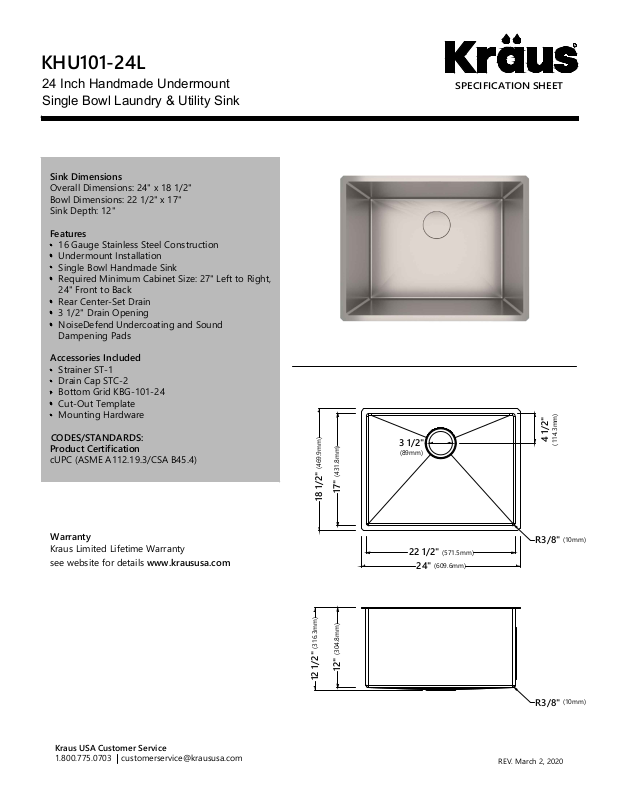

Page 1
KHU101-24L
24 Inch Handmade Undermount
Single Bowl Laundry & Utility Sink
Sink Dimensions
Overall Dimensions: 24" x 18 1/2"
Bowl Dimensions: 22 1/2" x 17"
Sink Depth: 12"
Features
16 Gauge Stainless Steel Construction
Undermount Installation
Single Bowl Handmade Sink
Required Minimum Cabinet Size: 27" Left to Right,
24" Front to Back
Rear Center-Set Drain
3 1/2" Drain Opening
NoiseDefend Undercoating and Sound
Dampening Pads
Accessories Included
Strainer ST-1
Drain Cap STC-2
Bottom Grid KBG-101-24
Cut-Out Template
Mounting Hardware
CODES/STANDARDS:
Product Certification
cUPC (ASME A112.19.3/CSA B45.4)
Warranty
Kraus Limited Lifetime Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. March 2, 2020
R
SPECIFICATION SHEET
17"
(431.8mm)
18 1/2"
(469.9mm)
22 1/2"
(571.5mm)
24"
(609.6mm)
3 1/2"
(89mm)
R3/8"
(10mm)
4 1/2"
(114.3mm)
12"
(304.8mm)
12 1/2"
(316.3mm)
R3/8"
(10mm)
