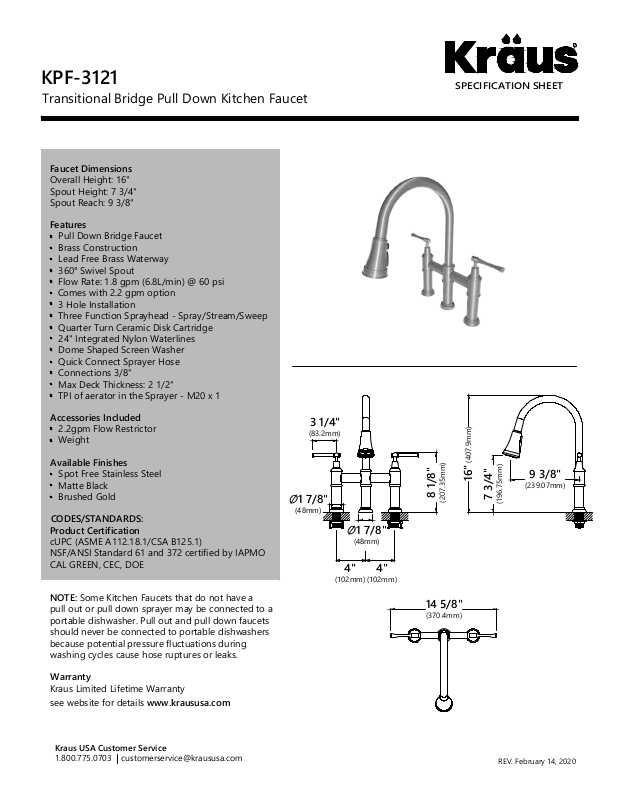

KPF-3121
Transitional Bridge Pull Down Kitchen Faucet
Faucet Dimensions
Overall Height: 16"
Spout Height: 7 3/4"
Spout Reach: 9 3/8"
Features
Pull Down Bridge Faucet
Brass Construction
Lead Free Brass Waterway
360° Swivel Spout
Flow Rate: 1.8 gpm (6.8L/min) @ 60 psi
Comes with 2.2 gpm option
3 Hole Installation
Three Function Sprayhead - Spray/Stream/Sweep
Quarter Turn Ceramic Disk Cartridge
24" Integrated Nylon Waterlines
Dome Shaped Screen Washer
Quick Connect Sprayer Hose
Connections 3/8"
Max Deck Thickness: 2 1/2"
TPI of aerator in the Sprayer - M20 x 1
Accessories Included
2.2gpm Flow Restrictor
Weight
Available Finishes
Spot Free Stainless Steel
Matte Black
Brushed Gold
CODES/STANDARDS:
Product Certification
cUPC (ASME A112.18.1/CSA B125.1)
NSF/ANSI Standard 61 and 372 certified by IAPMO
CAL GREEN, CEC, DOE
NOTE: Some Kitchen Faucets that do not have a
pull out or pull down sprayer may be connected to a
portable dishwasher. Pull out and pull down faucets
should never be connected to portable dishwashers
because potential pressure fluctuations during
washing cycles cause hose ruptures or leaks.
Warranty
Kraus Limited Lifetime Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. February 14, 2020
R
SPECIFICATION SHEET
7 3/4"
(196.75mm)
9 3/8"
(239.07mm)
16"
(407.9mm)
14 5/8"
(370.4mm)
8 1/8"
(207.35mm)
Ø1 7/8"
(48mm)
3 1/4"
(83.2mm)
Ø1 7/8"
(48mm)
4"
(102mm)
4"
(102mm)
