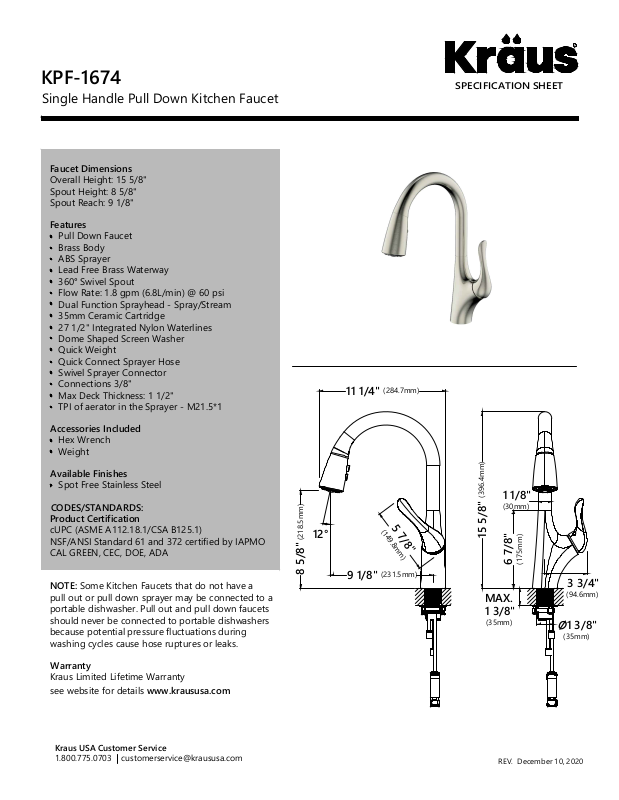

Page 1
KPF-1674
Single Handle Pull Down Kitchen Faucet
Faucet Dimensions
Overall Height: 15 5/8"
Spout Height: 8 5/8"
Spout Reach: 9 1/8"
Features
Pull Down Faucet
Brass Body
ABS Sprayer
Lead Free Brass Waterway
360° Swivel Spout
Flow Rate: 1.8 gpm (6.8L/min) @ 60 psi
Dual Function Sprayhead - Spray/Stream
35mm Ceramic Cartridge
27 1/2" Integrated Nylon Waterlines
Dome Shaped Screen Washer
Quick Weight
Quick Connect Sprayer Hose
Swivel Sprayer Connector
Connections 3/8"
Max Deck Thickness: 1 1/2"
TPI of aerator in the Sprayer - M21.5*1
Accessories Included
Hex Wrench
Weight
Available Finishes
Spot Free Stainless Steel
CODES/STANDARDS:
Product Certification
cUPC (ASME A112.18.1/CSA B125.1)
NSF/ANSI Standard 61 and 372 certified by IAPMO
CAL GREEN, CEC, DOE, ADA
NOTE: Some Kitchen Faucets that do not have a
pull out or pull down sprayer may be connected to a
portable dishwasher. Pull out and pull down faucets
should never be connected to portable dishwashers
because potential pressure fluctuations during
washing cycles cause hose ruptures or leaks.
Warranty
Kraus Limited Lifetime Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. December 10, 2020
R
SPECIFICATION SHEET
MAX.
1 3/8"
(35mm)
Ø1 3/8"
(35mm)
11 1/4"
(284.7mm)
8 5/8"
(218.5mm)
12°
9 1/8"
(231.5mm)
5 7/8"
(149.8mm)
6 7/8"
(175mm)
3 3/4"
(94.6mm)
1 1/8"
(30mm)
15 5/8"
(396.4mm)
