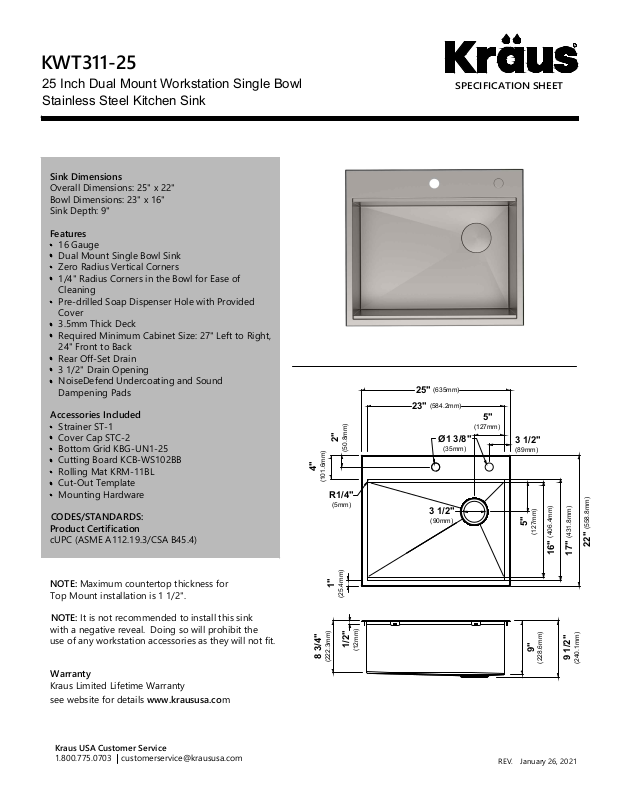

Page 1
KWT311-25
25 Inch Dual Mount Workstation Single Bowl
Stainless Steel Kitchen Sink
Sink Dimensions
Overall Dimensions: 25" x 22"
Bowl Dimensions: 23" x 16"
Sink Depth: 9"
Features
16 Gauge
Dual Mount Single Bowl Sink
Zero Radius Vertical Corners
1/4" Radius Corners in the Bowl for Ease of
Cleaning
Pre-drilled Soap Dispenser Hole with Provided
Cover
3.5mm Thick Deck
Required Minimum Cabinet Size: 27" Left to Right,
24" Front to Back
Rear Off-Set Drain
3 1/2" Drain Opening
NoiseDefend Undercoating and Sound
Dampening Pads
Accessories Included
Strainer ST-1
Cover Cap STC-2
Bottom Grid KBG-UN1-25
Cutting Board KCB-WS102BB
Rolling Mat KRM-11BL
Cut-Out Template
Mounting Hardware
CODES/STANDARDS:
Product Certification
cUPC (ASME A112.19.3/CSA B45.4)
NOTE: Maximum countertop thickness for
Top Mount installation is 1 1/2".
NOTE:
It is not recommended to install this sink
with a negative reveal. Doing so will prohibit the
use of any workstation accessories as they will not fit.
Warranty
Kraus Limited Lifetime Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. January 26, 2021
R
SPECIFICATION SHEET
25"
(635mm)
23"
(584.2mm)
16"
(406.4mm)
17"
(431.8mm)
5"
(127mm)
5"
(127mm)
3 1/2"
(89mm)
22"
(558.8mm)
9"
(228.6mm)
9 1/2"
(240.1mm)
8 3/4"
(222.3mm)
2"
(50.8mm)
4"
(101.6mm)
3 1/2"
(90mm)
1"
(25.4mm)
Ø1 3/8"
(35mm)
R1/4"
(5mm)
1/2"
(12mm)
