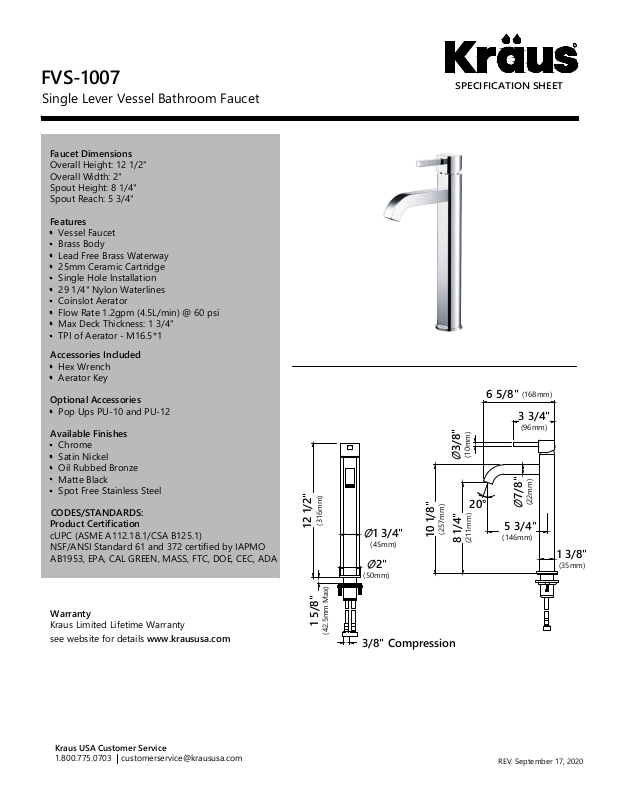

Page 1
FVS-1007
Single Lever Vessel Bathroom Faucet
Faucet Dimensions
Overall Height: 12 1/2"
Overall Width: 2"
Spout Height: 8 1/4"
Spout Reach: 5 3/4"
Features
Vessel Faucet
Brass Body
Lead Free Brass Waterway
25mm Ceramic Cartridge
Single Hole Installation
29 1/4" Nylon Waterlines
Coinslot Aerator
Flow Rate 1.2gpm (4.5L/min) @ 60 psi
Max Deck Thickness: 1 3/4"
TPI of Aerator - M16.5*1
Accessories Included
Hex Wrench
Aerator Key
Optional Accessories
Pop Ups PU-10 and PU-12
Available Finishes
Chrome
Satin Nickel
Oil Rubbed Bronze
Matte Black
Spot Free Stainless Steel
CODES/STANDARDS:
Product Certification
cUPC (ASME A112.18.1/CSA B125.1)
NSF/ANSI Standard 61 and 372 certified by IAPMO
AB1953, EPA, CAL GREEN, MASS, FTC, DOE, CEC, ADA
Warranty
Kraus Limited Lifetime Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. September 17, 2020
R
SPECIFICATION SHEET
12 1/2"
(316mm)
Ø1 3/4"
(45mm)
Ø2"
(50mm)
1 5/8"
(42.5mm Max)
3/8" Compression
3 3/4"
(96mm)
Ø3/8"
(10mm)
1 3/8"
(35mm)
10 1/8"
(257mm)
Ø7/8"
(22mm)
8 1/4"
(211mm)
6 5/8"
(168mm)
20°
5 3/4"
(146mm)
