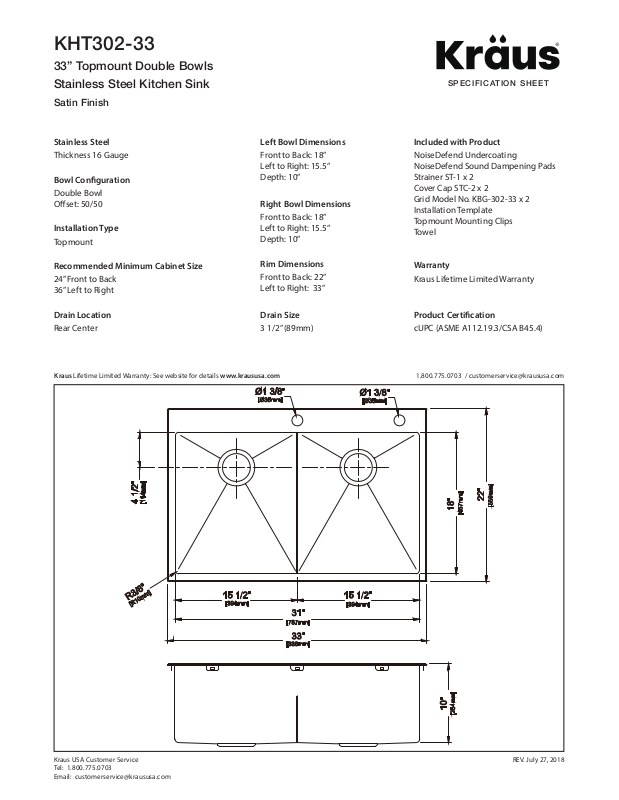

KHT302-33
33” Topmount Double Bowls
Stainless Steel Kitchen Sink
Satin Finish
SPECIFICATION SHEET
Left Bowl Dimensions
Thickness 16 Gauge
Bowl Conguration
Double Bowl
Oset: 50/50
Installation Type
Topmount
Recommended Minimum Cabinet Size
24” Front to Back
36” Left to Right
Drain Location
Rear Center
Kraus Lifetime Limited Warranty: See website for details www.kraususa.com
Front to Back: 18”
Left to Right: 15.5”
Depth: 10”
Right Bowl Dimensions
Front to Back: 18”
Left to Right: 15.5”
Depth: 10”
Rim Dimensions
Front to Back: 22”
Left to Right: 33”
Drain Size
3 1/2” (89mm)
Included with ProductStainless Steel
NoiseDefend Undercoating
NoiseDefend Sound Dampening Pads
Strainer ST-1 x 2
Cover Cap STC-2 x 2
Grid Model No. KBG-302-33 x 2
Installation Template
Topmount Mounting Clips
Tow el
Warranty
Kraus Lifetime Limited Warranty
Product Certication
cUPC (ASME A112.19.3/CSA B45.4)
1.800.775.0703 / [email protected]
Kraus USA Customer Service
Tel: 1.800.775.0703
Email: [email protected]
REV. July 27, 2018
