Page 1
16
Overall Size: 31 1/2’’X18 3/8’’X10’’
VERSION 1.1
MODEL-KBU-14-32
Page 2
3 1/2’’
VERSION 1.1
29 1/2’’
31 1/2’’
16 1/4’’
18 3/8’’
10’’

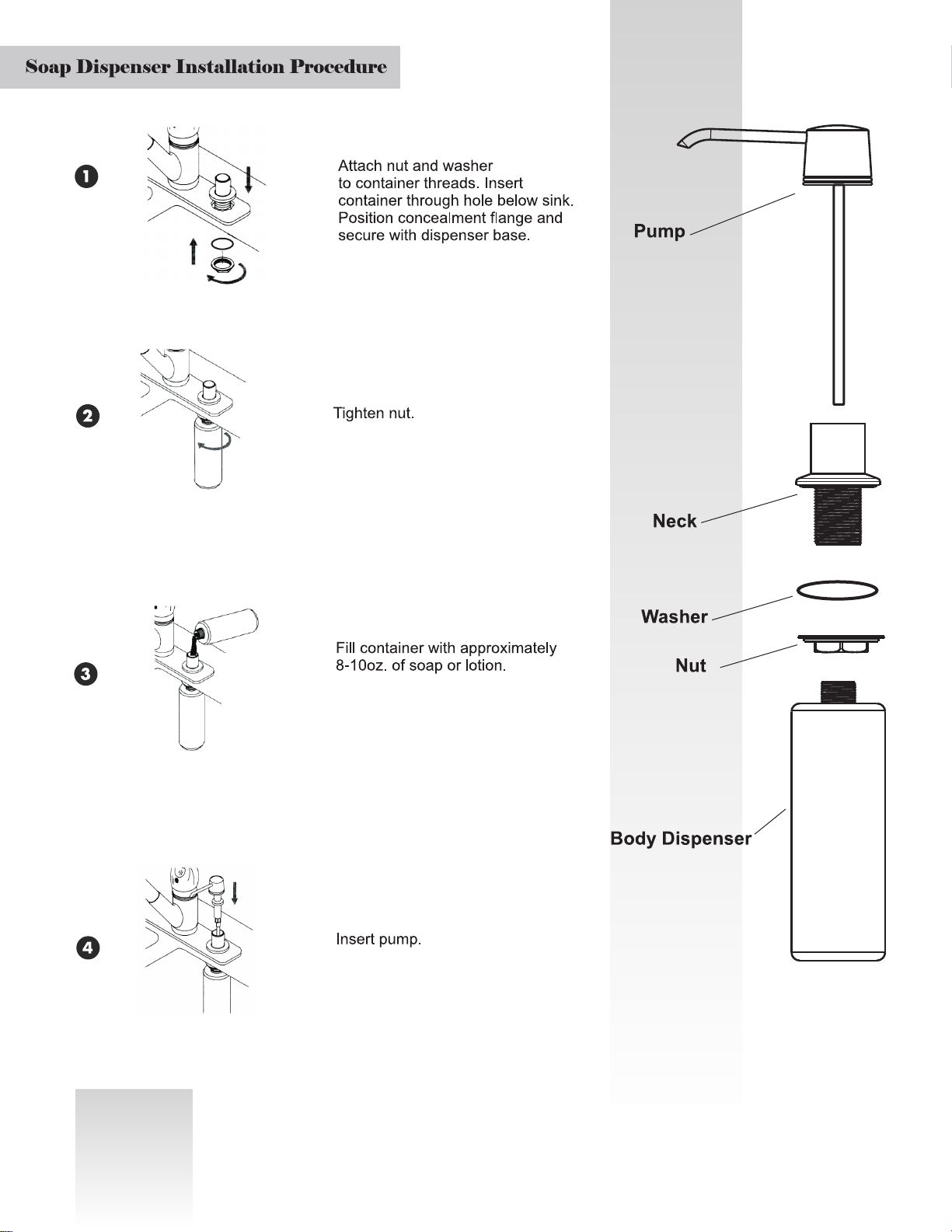

Page 3
VERSION 1.1
Page 4
VERSION 1.1
Page 5
Dear Valued Customer,
Kraus would like to take this opportunity
to thank you for purchasing Kraus
products. It is our sincere hope that you
are completely satisfied with your new
purchase. We welcome any questions or
comments you may have, and look
forward to assisting you in the future.
Sincerely,
Kraus Customer Service Department.
Contact Us Toll-Free at 1-800-775-0703; or visit our website at www.kraususa.com. © 2008-2009 Kraus USA Inc.
Contact Us Toll-Free at 1-800-775-0703; or visit our website at www.kraususa.com. © 2008-2009 Kraus USA Inc.
1 Metal Handle Assembly
2 Locking Nut
3 Ceramic Disc Cartridge
4 Spout Seal Kit
5 Spout Base
6 Spout
7 Hose Guide
8 Hand Spray w/Check Valve
9 Supply Pipe-Hot
10 Supply Pipe-Cold
11 Supply Pipe
12 Screen Washer
13 Mounting Hardware
14 Hose Adaptor Assembly
15 Cover Plate & Putty Plate
16 Weight
17 Hex Wrench(H2.5 * 19 mm L * 53 mm L)
18 Supply Hose
2.2.
1.1.
3.3.
13.13.
14.14.
4.4.
8.8.
7.7.
16.16.
17.17.
6.6.
5.5.
18.18.
12.12.
15.15.
11.11.
10.10.
9.9.
Adjustable wrench
Pipe tape
Groove joint plier
Phillips screwdriver
If you've followed the instructions carefully and your faucet still does not work properly, take these corrective steps.
Problem
Cause
Action
Single Control
Kitchen Faucet
Before Your Installation
Tools You Will Need
Check to make sure you have the following parts indicated below:
Leakage under the handle.
Adjusting ring or cap has come loose.
Tighten the adjusting ring or cap.
Aerator leaks or has an inconsistent
water flow pattern.
Aerator is dirty or misfitted.
Unscrew the aerator to check rubber packing
or replace the aerator.
Water will not shut off completely.
MAINTENANCE
Your new faucet is designed for years of trouble-free performance.
Keep it looking new by cleaning it periodically with a soft cloth. Avoid abrasive cleaners, steel wool and harsh chemicals as these
will dull the finish and void your warranty.
MAINTENANCE
Your new faucet is designed for years of trouble-free performance.
Keep it looking new by cleaning it periodically with a soft cloth. Avoid abrasive cleaners, steel wool and harsh chemicals as these
will dull the finish and void your warranty.
Faucet Installation Procedure
Shut off main water supply before installation.
Model
KPF-2230 CH
KPF-2230 SN
KPF-2230 ORB
Hex wrench
Dirty or worn out plastic washer in the
cartridge.
Remove the handle and the cartridge to check if the ceramic
dish is dirty or permanently damaged.
Trouble - Shooting
Keep this manual for ordering replacement parts.
Replacement Parts
2
1
3
4
5
6
Silicone Sealant
The fittings should be installed by a licensed plumber.
7
After installing faucet, remove pull-down spray and
turn on water to remove any left over debris.
Re-assemble spout.
Remove preassembled mounting hardware
from faucet
Tighten supply hose ends to faucet shank and water
supply source.Note: Hand tighten the supply hose and
then tighten 1/4 turn with adjustable wrench.
Overtightening the supply hose can cause leaking.
Purchase flexible supplies or bull-nose risers separately.
Open the water valve and check for leaks
at supply line connection.
Position the cover plate and putty plate onto
the sink, apply clear silicone sealant to putty
plate. Install faucet body through top of sink.
From underneath sink place mounting
hardware and tighten with mounting nut.
Attach metal weight to hose to prevent
hose from twisting and returns hose to
proper position.
KRAUS is proud to offer its customers the strongest, most durable
ceramic cartridges in all solid brass Kitchen Faucets it
manufactures. KRAUS guarantees all of our products to be free of
defect in materials and craftsmanship. All KRAUS BRAND Kitchen
Faucets carry a limited lifetime warranty from the original date of
purchase.
If a product fails due to defect in material or craftsmanship during
the warranty period, KRAUS will repair or replace the items at our
sole discretion. Warranty does not apply when the item has been
tampered with, misused, improperly installed, altered, or damaged
due to abuse or accident. Proof of purchase (original sales receipt)
must be provided to KRAUS for all warranty claims. Please contact
one of our representatives if you need any additional details.
All KRAUS products must be installed by a licensed professional
plumber or contractor to avoid any improper use or installation.
IN NO EVENT SHALL KRAUS BE LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES, INSTALLATION
COST, LABOR, TRAVEL TIME, FREIGHT COSTS INCURRED, LOST
PROFITS, OR CONTINGENT LIABILITIES.
KRAUS USA Inc. makes no representation that its products
comply with any or all local building or plumbing codes. It is the
consumer’s responsibility to determine local code compliance.
This warranty extends to the original purchaser and first
consumer.
Plastic Seal Cover
Remove the plastic seal cover from the outlet port
prior to pushing the hose adapter onto the same
port, you will hear a "click" sound once they are
joined.
SAFETY TIPS
• Cover your drain to avoid losing parts.
• When installing flexible hose, Please notice: there should be no torsion or deformation ; do not fold into
Shape V or L; do not use if there is any crack or deformation.
KRAUS” Brand Kitchen Faucets Limited Lifetime Warranty
AB1953 Compliant
