Wireless
WirelessWireless
Wireless----N Network Adapter
N Network AdapterN Network Adapter
N Network Adapter
300Mbps / 2T2R
300Mbps / 2T2R 300Mbps / 2T2R
300Mbps / 2T2R ---- USB
USB USB
USB
Guida d'utente
User Guide
Cod. KR.6N
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
2
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
3
Dichiarazione di conformità sintetica
Ai sensi dell’art. 2 comma 3 del D.M. 275 del 30/10/2002
Si dichiara che questo prodotto è conforme alle normative
vigenti e soddisfa i requisiti essenziali richiesti dalle direttive
2004/108/CE, 2006/95/CE e 1999/05/CE
quando ad esso applicabili
Short Declaration of conformity
We declare this product is complying with the laws in force
and meeting all the essential requirements as specified by the
directives 2004/108/CE, 2006/95/CE and 1999/05/CE
whenever these laws may be applied
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
4
Contents
Chapter 1 Introduction .....................................................................5
1.1 Product Feature ....................................................................5
1.2 Product Deployment .............................................................6
1.3 Indicator Description .............................................................6
1.4 Package Contents.................................................................6
Chapter 2 Installation Guide ............................................................7
Chapter 3 Client Utility Interface....................................................11
3.1 Station Mode.......................................................................11
3.1.1 Station Mode Topology.................................................11
3.1.2 Status ...........................................................................12
3.1.3 Site Survey...................................................................13
3.1.4 Profile Management.....................................................14
3.1.5 Statistics.......................................................................16
3.1.6 WPS Setting.................................................................17
3.2 AP Mode..............................................................................18
3.2.1 AP Mode Topology .......................................................18
3.2.2 Basic Setting ................................................................19
3.2.3 Security Setting............................................................20
3.2.4 Access Control .............................................................21
3.2.5 About............................................................................22
Appendix One: Acronyms and Terms ............................................23
Appendix Two: Product Specification.............................................24
Appendix Three: How to connect with PSP...................................25
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
5
Chapter 1 Introduction
KR.6N Wireless USB Adapter complies with IEEE802.11b, IEEE 802.11g
standards and provides up to 300Mbps data transmission rate.
Operating it as a Soft AP allows you to set up a wireless LAN network
quickly and inexpensively. PBC and PIN encryption methods from WPS
(Wi-Fi Protected Setup) free you from remembering long passwords. WMM
support provides for smooth voice and video communication. Support for
PSP, NDS and WII connections with Xlink Kai for an enhanced on-line
gaming experience.
1.1 Product Features
• Supports IEEE 802.11n (Draft 2.0), IEEE802.11g and
IEEE802.11b standards
• Provides USB2.0 port
• Provides two work modes: Infrastructure Mode and Ad-Hoc
Mode
• Provides up to 300Mbps maximum transmission rate
• Auto-detects and
changes the network transmission rate
• Supports Soft AP to establish wireless LAN networking
• Supports PSP, WII and NDS connecting with Internet and Xlink
Kai to enjoy on-line gaming
• Supports 64/128-bit WEP, WPA, WPA2 encryption methods
• Supports WPS (Wi-Fi Protected Setup) encryption method for
strong network security
• Supports WMM for smooth voice and video communication
• Easy-to-install, Plug and Play
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
6
1.2 Product Deployment
KR.6N Wireless USB Adapter offers fast, reliable and costeffective solution for wireless access.
Deployment as follows;
• For staffs that require a high degree of mobility in the office or if
they access to traditional wired or wireless network in any place of
the company is required.
• Enterprises or individuals operating in a frequently changing
network environment.
• Companies or places not suitable for wired LAN due to budget or
physical constraints, including places of interest, rented places or
places for short-term usage.
1.3 Indicator Description
In the front panel of the device is a LED indicator. A flashing LED indicates
that the device is communication with another wireless device, such as a
Wireless Access Point or Router.
1.4 Package Contents
The package contains following items:
a) One KR.6N Wireless USB Adapter
b) One CD-ROM
c) One USB Dongle Extension
d) One Quick Guide
In case of missing or damaged items, please contact your dealer.
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
7
Chapter 2 Installation Guide
This chapter is to assist you to install the device using the Setup Wizard
and the Client Utility Interface located on the CD-ROM that came with your
device.
The following steps using the Setup Wizard take Windows XP as example.
With minor variations these instructions also apply to other Windows based
operating systems
1. Insert the Wireless USB Adapter into an available USB port of your
computer.
2. The “Found New Hardware” system dialogue appears. Select “Cancel”
to use the included Setup Wizard for fast installation. You may also
select “Next” for manual installation.
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
8
3. Insert the included CD-ROM into the CD-ROM drive of your computer.
If ‘Autorun’ is enabled on your PC then the Welcome Screen appears.
(If it does not, navigate to the Setup program on the CD-ROM and
double-click the “Setup.exe” icon.)
4. Click “Enter”.
5. Click “Next” to start the installation.
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
9
6. Click “Change…” to select an installation path other then the
recommended default path, or click “Next” to accept the default.
7. Select “OK”.
8. Click “Next”.
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
10
9. During the installation, the following dialogue may appear. Click
“Continue Anyway” to continue. There is no security threat to your
computer.
10. Click “Finish” to complete the installation.
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
11
Chapter 3 Client Utility Interface
This software is for the Wireless USB Adapter management. If it does not
appear, select “Start”—“All Programs” —“Kraun”—“KR.6N”, or click the
shortcut on your PC’s desktop.
Note:
In Windows XP, you may select the included KR.6N Client Utility
Interface or configure the device using the Windows XP internal
wireless application. Earlier versions of Windows may not have such
internal wireless application. In that case, please use the Client Utility
Program.
The device may be configured in either Station Mode and AP Mode.
Note:
Station Mode (Client Mode) is the default access configuration.
3.1 Station Mode

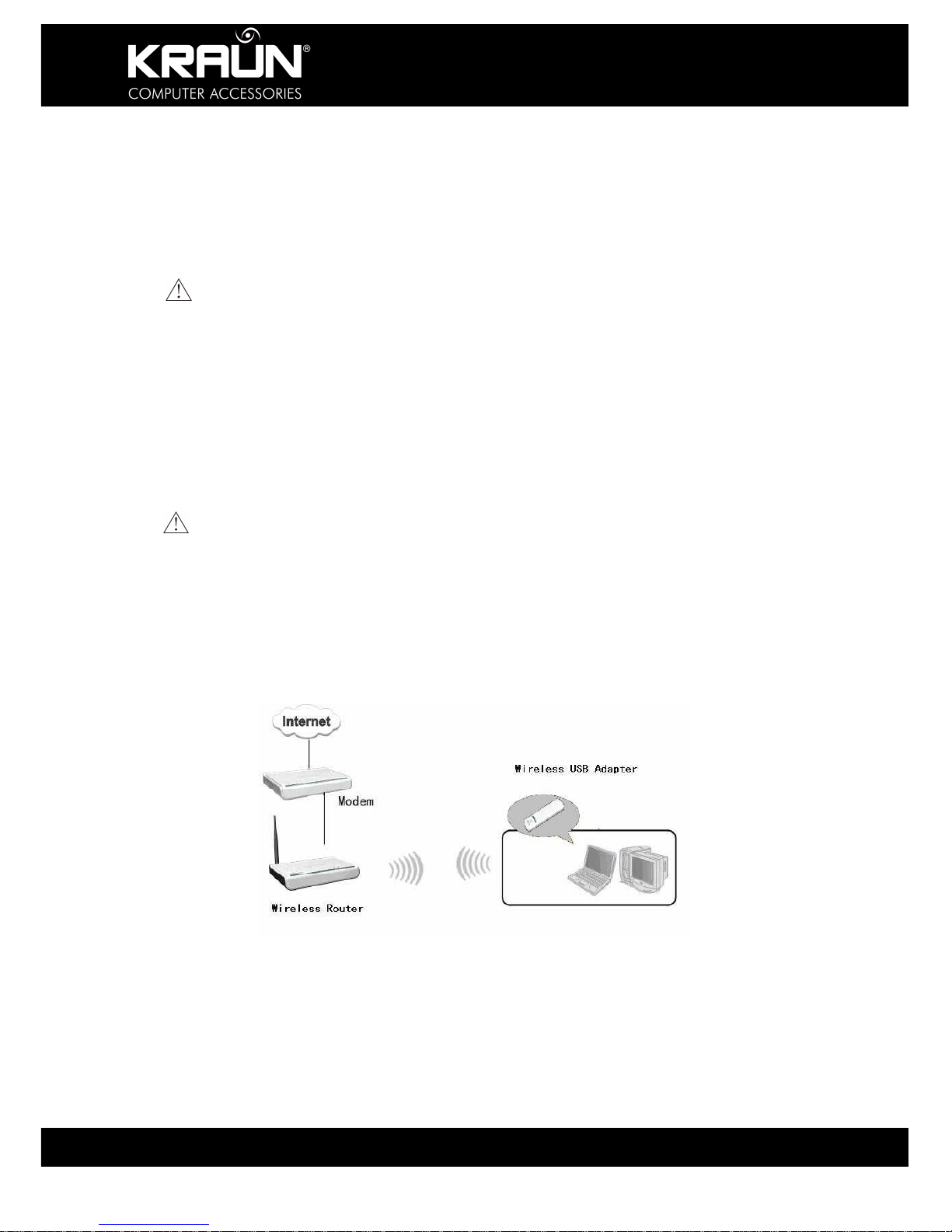

3.1.1 Station Mode Topology
In this mode, KR.6N serves as a client to receive the wireless signals to
access the Internet.
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
12
3.1.2 Status
The Network Status window displays details concerning the Wireless
Network Adapter and Network Status, including SSID, Authentication Type,
Encryption Type, IP Address, Subnet Mask and Gateway.
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
13
3.1.3 Site Survey
The Site Survey is used to scan for available wireless networks, showing
signal strength and other relevant information, enabling you to select and
access an available wireless network for which you have access privileges.
Connect: Select one entry in the wireless network list and click the
button to connect the device with the selected network.
Refresh: Rescan the wireless environment for available wireless
networks.
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
14
3.1.4 Profile Management
This window saves the general wireless parameters for different profiles,
allowing you to quickly connect to the desired wireless network.
UP/DOWN: To change the profile sequence list.
Connect: To activate the selected profile.
New: To create a new profile and configure the site status and security
setting.
Modify: To modify an existing profile.
Delete: To delete an existing profile.
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
15
(Site Status)
(Security Setting)
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
16
3.1.5 Statistics
Statistics is used to summarize Rx and Tx data packets, including the
success and error packet amount.
Clear: click this button to renew the statistics.
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
17
3.1.6 WPS Setting
WPS setting is enabled only on WPS-compliant devices.
PIN: Enter the Pin code and click the “PIN” to automatically connect
the wireless adapter with available wireless devices.
PBC: Click the “PBC” to complete auto-check and connections between
wireless adapter and other wireless device.
Refresh: To update the Pin code.
Rescan: Rescan for WPS-compliant wireless network devices.
Disconnect: Disconnect from the currently connected wireless network.
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
18
3.2 AP Mode
3.2.1 AP Mode Topology
The device also can serve as an access point to transmit wireless signals
and create wireless network, allowing other wireless clients to access the
network.
Click the AP Mode icon to enter the AP Mode interface.
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
19
3.2.2 Basic Setting
This window is used to configure the AP’s basic parameters, including
SSID, Wireless Mode and Channel.
SSID: Wireless network’s ID name scanned by wireless adapter.
Wireless Mode: 802.11b/802.11g/802.11b/g mixed.
Channel: 1~11 channels provided.
Restore Default: to restore the set parameters to default factory
default settings.
Apply: to make the changes made take effect.
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
20
3.2.3 Security Setting
This window is used to configure the wireless network’s security
authentication, providing WEP, WPA-PSK, WPA2-PSK, and WPAPSK/WPA2-PSK encryption methods.
WEP: 10 or 26 bits Hex, 5 or 13 ASCII support.
WPA-PSK: 8-32 bits ASCII support.
WPA2-PSK: 8-32 bits ASCII support.
WPA-PSK/WPA2-PSK: 8-32 bits ASCII support.
Note:
1. The Hex Characters include numerals ‘0-9’ and letters ‘a-f’.
2. ASCII Characters include any numerals ‘0-9’, letters ‘a-z’ and some
characters such as ‘-‘ or ‘_’.
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
21
3.2.4 Access Control
Access Control is based on the MAC address to decide that the specified
client connects to the wireless network, or disables it to access the wireless
network.
Filter Policy:
Disabled: To disable the filter function.
All Permitted: To permit all clients in the list to access the
wireless network.
All Blocked: To deny all clients in the list to access the wireless
network.
MAC Address: To enter the client’s MAC address to implement the
corresponding filter policy.
Example: b0000a8cd702.
Add: To add the MAC address entered into the list.
Delete: To delete an existing MAC address from the list.
Remove All: To delete all MAC address entries in the list.
Apply: To make the changes made take effect.
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
22
3.2.5 About
This window displays soft- and firmware version numbers and other details
of the device.
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
23
Appendix One: Acronyms and Terms
WLAN Wireless Local Area Network
802.11 A family of specifications developed by the IEEE for WLAN
technology.
802.11a An extension to 802.11 WLAN standard that provides up to 54 Mbps
transmission in the 5 GHz UNI radio band.
802.11b An extension to 802.11 WLAN standard that provides up to 11 Mbps
transmission in the 2.4 GHz ISM radio band. 802.11b uses DSSS
modulation.
802.11g An extension to 802.11 WLAN standard that provides up to 54 Mbps
transmission in the 2.4 GHz ISM radio band. 802.11b uses OFDM
modulation and is backwards compatible with 802.11b.
802.11n A proposed amendment which improves upon the previous 802.11
standards by adding multiple-input multiple-output (MIMO) and many
other newer features.
Ad-Hoc A group of computers each with wireless adapters, connected as an
independent WLAN.
AES Advanced Encryption Standard
BSSID Basic Service Set ID
DHCP Dynamic Host Configuration Protocol
DSSS Direct Sequence Spread Spectrum. DSSS is one of two types of
spread spectrum radio. The other is frequency-hopping spread
spectrum (FHSS).
QoS Quality of Service
OFDM Orthogonal Frequency Division Multiplexing
PSK Pre-shared Key(s), in connection with WPA, WPA2
RADIUS Remote Authentication Dial In User Service
RTS Request to Send
SSID Service Set Identifier. A 32-character unique identifier attached to the
header of packets sent over a WLAN that acts as a password when a
mobile device tries to connect to the BSS.
TCP/IP Transmission Control Protocol/Internet Protocol
TKIP Temporal Key Integrity Protocol
WDS Wireless Distribution System
WEP Wired Equivalent Privacy. A security protocol for
WLANs defined in the IEEE 802.11 standard.
WPA Wi-Fi Protected Access
WPA2 Wi-Fi Protected Access 2. The next generation of
Wi-Fi security, based on the 802.11i standard.
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
24
Appendix Two: Product Specification
Standard
IEEE802.11g, IEEE802.11b,
IEEE802.11n
Port
USB2.0
Frequency Range
2.4～2.4835GHz
Transmission Rate
130Mbps, 117Mbps, 104Mbps,
78Mbps, 52Mbps, 39Mbps, 26Mbps,
13Mbps, 65Mbps, 58.5Mbps, 52Mbps,
39Mbps, 26Mbps, 19.5Mbps, 13Mbps,
6.5Mbps, 54 Mbps, 48 Mbps, 36 Mbps,
24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps,
6 Mbps, 11 Mbps, 5.5 Mbps, 2 Mbps, 1
Mbps
Transmission Power
Max. 15dbm
Modulation Method
OFDM, CCK
Working Temper.
0ºC～40ºC
Storage Temper.
-40ºC～70ºC
Working Humidity
10％～90％RH non-condensing
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
25
Appendix Three: How to connect with PSP
1. Topology of PSP connection with KR.6N
2. To configure PSP in Ad-Hoc mode
2.1 Select Network Settings
2.2 Select Ad-Hoc mode
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
26
2.3 Select Channel
3. Using the Client Utility Interface scan PSP and double-click to
connect the desired wireless network.
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
27
4. Using Site Survey, check “enable PSP connection mode” box.
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
28
5. To configure Xlink Kai
Select “Start”→ “All Programs” → “Xlink Kai Evolution VII” → “Start Kai
Config” to configure the user name, password and other parameters as
follows.
6. Login Xlink Kai
Select “Start”→ “All Programs” → “Xlink Kai Evolution VII” → “Start Kai”.
PSP will connect with Xlink Kai automatically. The following window will
indicate the connection is established correctly.
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
29
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
30
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
31
Wireless-N Network Adapter
300Mbps / 2T2R - USB
www.kraun.it
32
Wireless
WirelessWireless
Wireless----N Network Adapter
N Network AdapterN Network Adapter
N Network Adapter
300Mbps / 1T1R
300Mbps / 1T1R 300Mbps / 1T1R
300Mbps / 1T1R ---- USB
USB USB
USB
UG_v1.0_10/09_KR.6N
Copyright ©2009 CDC S.p.A.
Loading...
