FOREWORD

MANUAL INSTRUCTION

Thanks for purchasing our UPS, it is safe and reliable, so few maintenance is required. Read this manual carefully and completely. It includes instructions of safety installation and operation. They will help your UPS obtain the longest life and service. This manual accounts the internal working principle and the relative protection functions. This manual also contains information about the usage of the equipment. Please obey the instructions and all the warning stated in the manual or on the machine. Don’t operate the machine before ﬁnishing reading the safety and operation instructions.

Note: Because of the continuous improvements, our products may diﬀer somewhat from the contents included in this manual. You can contact local oﬃce to get the information when necessary.

Manual

www.kraun.it

CONTENT

1. SUMMARY 4

1.1. INTRODUCTION 4

1.2. FUNCTIONS AND CHARACTERISTICS 4

2. SAFETY INSTRUCTION 6

2.1. SAFETY INSTRUCTION 6

2.2. SYMBOLS INDICATION 6

3. PRODUCT INTRODUCTION 7

3.1. THE APPEARANCE OF THE PRODUCT 7

3.2. THE PRINCIPLE OF THE PRODUCT 8

4. INSTALLATION 8

4.1. UNPACKING AND INSPECTION 8

4.2. NOTES 8

4.3. UPS INPUT CONNECTION 9

4.4. UPS OUTPUT CONNECTION 9

4.5. INSTALLATION 10

4.5.1. Plastic base installation 10

4.5.2. cabinet installation bracket assembly 10

4.5.3. tower/rack assembly 11

5. PANEL DISPLAY, OPERATION AND RUNNING 12

5.1. FACEPLATE DISPLAY ILLUMINATION 12

5.1.1. keys function 12

5.1.2. the descriPtion of led disPlay lamP functions 13

5.1.3. lcd disPlay functions 14

5.2. OPERATION 15

5.2.1. start uP oPeration 15

5.2.2. turn off oPeration 15

5.2.3. uPs self-test/mute test oPeration. 16

5.3. PARAMETER SETTING 16

5.3.1. eco mode set ting 16

5.3.2. byPass outPut setting 17

5.3.3. outPut voltage se tting (oPtional function) 18

5.4. PARAMETERS INQUIRING 19

5.5. RUN MODE 20

5.5.1. byPass mode 20

5.5.2. line mode 21

5.5.3. battery mode 21

5.5.4. eco mode 21

5.5.5. fault mode 22

6. MAINTENANCE 23

6.1. BATTERY MAINTENANCE 23

7. TROUBLESHOOTING AND PERFORMANCE OF PRODUCT 24

7.1. LED INDICATION AND WARNING TABLE 24

7.2. TROUBLESHOOTING 26

7.3. EMC STANDARD/SAFETY STANDARD 27

7.4. PRODUCT PERFORMANCE 27

7.4.1. elec tric Performance 27

7.5. COMMUNICATION INTERFACE 28

7.5.1. rs232 communication interface 28

7.5.2. rs232 cable sPecifications 29

7.5.3. oPtional communication interface 29

Manual

www.kraun.it

1. SUMMARY

1.1. INTRODUCTION

UPS(uninterruptible power supply) is a kind of power supply equipment that provides uninterruptible, high quality and eﬃcient and reliable AC power to the loads, it also has functions of protection and monitoring. The UPS plays a very important role in power supply of computer and its network, communication, ﬁnance, electricity, transportation, national defense, college, scientiﬁc research institutes and so on. This 1KVA product is designed as advanced ON-LINE UPS that provide the multiple functions and good performance.

1.2. FUNCTIONS AND CHARACTERISTICS

1. Advanced IGBT modules are used in our UPS. The electronic components we used can work normally for more than 300,000 hours.

2. Digital control technology with high eﬃciency and the most reliable controller algorithm design are used to optimize the output parameters of the machine.

3. Self-diagnose before start. It can ﬁnd potential problems of the UPS in time to avoid any losses.

4. Double conversion on-line topology which makes the output of the UPS a pure sine wave electricity with constant frequency and voltage, low noise and no interruption of the main power ﬂuctuation. It provides more comprehensive and perfect protection for the users’ equipments.

5. No transfer time for the output of the UPS when the main power fails or restores. It meets the high standard and high request of the precise instruments.

6. The bypass function. When UPS meets a fault, it can transfer to bypass with no interruption to supply power to loads and provide alarm.

7. Advanced voltage compensation technology. It makes the input voltage range from 115v to 295v which reduces the battery usage and enhances the adaptive ability against the bad main power variation.

8. The AC input frequency is 50Hz/60Hz. Advanced wide frequency input technology makes the input frequency range wider. When the output frequency is 50Hz, the range of the AC input frequency is 45Hz55Hz, When the output frequency is 60Hz, the range of the AC input frequency is 55Hz-65Hz.The UPS has a good compatibility with generator. It is suitable for diﬀerent types of single-phase generators.

9. The advanced PFC( power factor correction)technology on the input of the UPS makes the input power factor more than 0.98. It increases the power eﬃciency, removes the harmonic noise from UPS to utility, lowers the UPS operational cost. It’s really an economic environmental protection power supply.

10. Intelligent function without surveillance. When main power is on blackout, the UPS will start battery mode to supply power to loads.

When battery voltage is low, UPS will protect itself and shut down automatically. When main power restores, UPS will detect main power to determine whether the voltage and frequency are normal. If normal, UPS will turn on automatically to supply power to loads; if abnormal, UPS will start charger to charge the battery. The UPS will not turn on to supply power to loads until the voltage and frequency of the main power restore normally.

11. Cold start function. When there is no main power, UPS can be started by battery pack. It can meet the users’ emergency needs. The cold start function is quite strong. UPS can be cold started under the full load situation.

Manual

www.kraun.it

12. UPS protection function:

When the main power input/output voltage is too high or too low, overload, short-circuit, inverter temperature is too high, low voltage and overcharge of battery, network surge and so on, UPS has a protection function.

13. 13.Rack-Tower conversion LCD design. No matter what angel to watch the display, only press the key slightly can meet your perspective needs. The content displayed on the interface is rich. The capacity of the loads and the battery can be saw directly and the FLASH pictures and fan rotating icon can be displayed when charging. So it is easy to know it’s operation. When UPS fails, it can show the fault code, the machine can be maintained as soon as possible by inquiring fault code table.

14. 14.The UPS can communicate with the computer with intelligent UPS monitoring software through the RS232 interface. All the parameters clearly display on the communication interface. Computer can control multiple functions of the UPS directly.

15. 15.Via internal or external SNMP adapter, UPS can go on internet and provide the latest information and power messages. You can monitor and manage the UPS status through all kinds of network management system.

16. 16.Convenient USB communication. You can see the operation of the machine completely. Even if the RS232 interface is occupied or connected at the same time, it will automatically switch to USB connection.

17. 17.ECO function can help you save electricity. When the input mains power is in a ﬁxed range, the loads is supplied with power by mains power directly, the inverter is on waiting; when input mains power is abnormal, it transfers to inverter to supply power to loads at once.

18. 18.In order to ensure the power of the important loads can last for a long time, you can plug the important loads into the second power down socket. When the battery voltage is below the predetermined value, only the ﬁrst cut-oﬀ power socket is broken oﬀ, the second power down can keep on supplying power until the battery voltage reaches protect point and shut down.

19. 19.Adopt international standard rack-mounted size. Whether you want to put it on the oﬃce desk or in the rack-mount as a system to manage, It can present your personal style with corresponding components.

Manual

www.kraun.it

2. SAFETY INSTRUCTION

This chapter mainly introduce the safety marks and notes of 1KVA-3KVA series on-line UPS. Read this chapter carefully before operating on the equipment.

2.1. SAFETY INSTRUCTION

There is dangerous voltage and high temperature inside the UPS. During the installation, operation and maintenance, please abide the local safety instructions and relative laws, otherwise, it will result in personal injury or equipment damage. Safety instructions in this manual act as a supplementary for the local safety instructions.

Our company will not assume the liability that caused by disobey of safety instructions. Please note the following:

1. Don’t use the UPS when the actual load exceeds the rated load.

2. There are high-capacity batteries in the standard type UPS. You mustn’t open the enclosure or it will lead to electric shock. If it needs internal maintenance or battery replacement, please send it to the designated site.

3. Internal short-circuit of the UPS will cause electric shock or ﬁre. So don’t place the containers equipped with liquid on the top of the UPS so as not to cause danger of electric shock and so on.

4. Don’t put the UPS in a place with high temperature or humidity as well as the corrosive gas, much dust.

5. Keep good air circulation between in-vent on front panel and out-vent on back panel.

6. Avoid direct sunlight or near heat-dispensed objects.

7. In case that the smoke appears on the UPS, please cut oﬀ the power as soon as possible and contact the dealer service site.

2.2. SYMBOLS INDICATION

The safety symbols cited in this manual are shown in table 1-1, which are used to inform readers of safety issues that should be obeyed when installation, operation and maintenance.

Safety Symbol Indication



Attention

Static discharge sensitive



Electric shock

Manual

www.kraun.it

There are three levers of safety grade: Dangerous, Warning and Attention. The remark is on the right side of the safety symbol, the detailed comments is behind, shown as following:

 DANGEROUS:

Indicate risk of serious injury or death or seriously damage the equipment

 WARNING:

Indicate risk of serious injury or damage the equipment.

 ATTENTION:

Indicate risk of injury or damage the equipment.

3. PRODUCT INTRODUCTION

3.1. THE APPEARANCE OF THE PRODUCT

Fig 1 Front Panel view

Fig 2 1KVA Rear Panel view

Input

Breaker

Input Mains Power socket Intelligent Slot

GND Screw Hole

Output

RJ45 net surge

protection USB

Interface

RS232

Manual

www.kraun.it

3.2. THE PRINCIPLE OF THE PRODUCT

Fig 4 UPS Principle Diagram

1. input ﬁlter: Complete ﬁltering the input AC utility power to provide the clean power for UPS.

2. AC/DC converter: Convert the ﬁltered AC mains to DC and boost the DC for DC/AC inverter.

3. DC/DC booster: When the UPS works in battery mode, the circuit boosts the DC for DC/AC inverter.

4. DC/AC inverter: Convert the boosted DC to stable AC output.

5. Bypass: When overload or failure of inverting happen in the UPS, it transfers to bypass mode to supply power to loads.

6. Charger: Standard unit provides 1A; long backup unit provides 7A/14A.

7. Battery: Sealed Lead Acid Battery.

8. Output ﬁlter: Complete ﬁltering the output of the UPS to provide the clean power for loads.

4. INSTALLATION

4.1. UNPACKING AND INSPECTION

1. 1. Unpacking the UPS and check that whether it’s damaged during the transportation. If damaged or some parts missing, don’t start the machine and inform the carrier and franchiser.

2. 2. Check the annex (please consult Appendix Table 1).

3. 3. Check if the equipment is just what you wanted to purchase. You can aﬃrm through inspecting the model number on back panel of the equipment.

4.2. NOTES

1. Please place the UPS in a clean, stable environment, avoid the vibration, dust, too humidity, ﬂammable gas and liquid, corrosive.

Manual

www.kraun.it

2. The ambient temperature around UPS should keep in a range of 0°C~40°C. If UPS works above 40°C, it is required that the rated value of the largest load decreases 12% while the temperature increases the 5°C every time. The highest temperature cannot be more than 50°C when UPS works.

3. UPS should be placed in a suﬃciently ventilated place.

4.3. UPS INPUT CONNECTION

Connect the UPS to the mains by input power cable which is equipped with the UPS.

Fig 5 Input Connection

4.4. UPS OUTPUT CONNECTION

Fig 6 output connection

NOTE

The Input to the group should meet on a very precise phase / neutral connection; though incorrectly connected, on the display will ﬂash “INPUT”. The solution to this problem is to insert the plug of the group upside down.

Manual

www.kraun.it

4.5. INSTALLATION

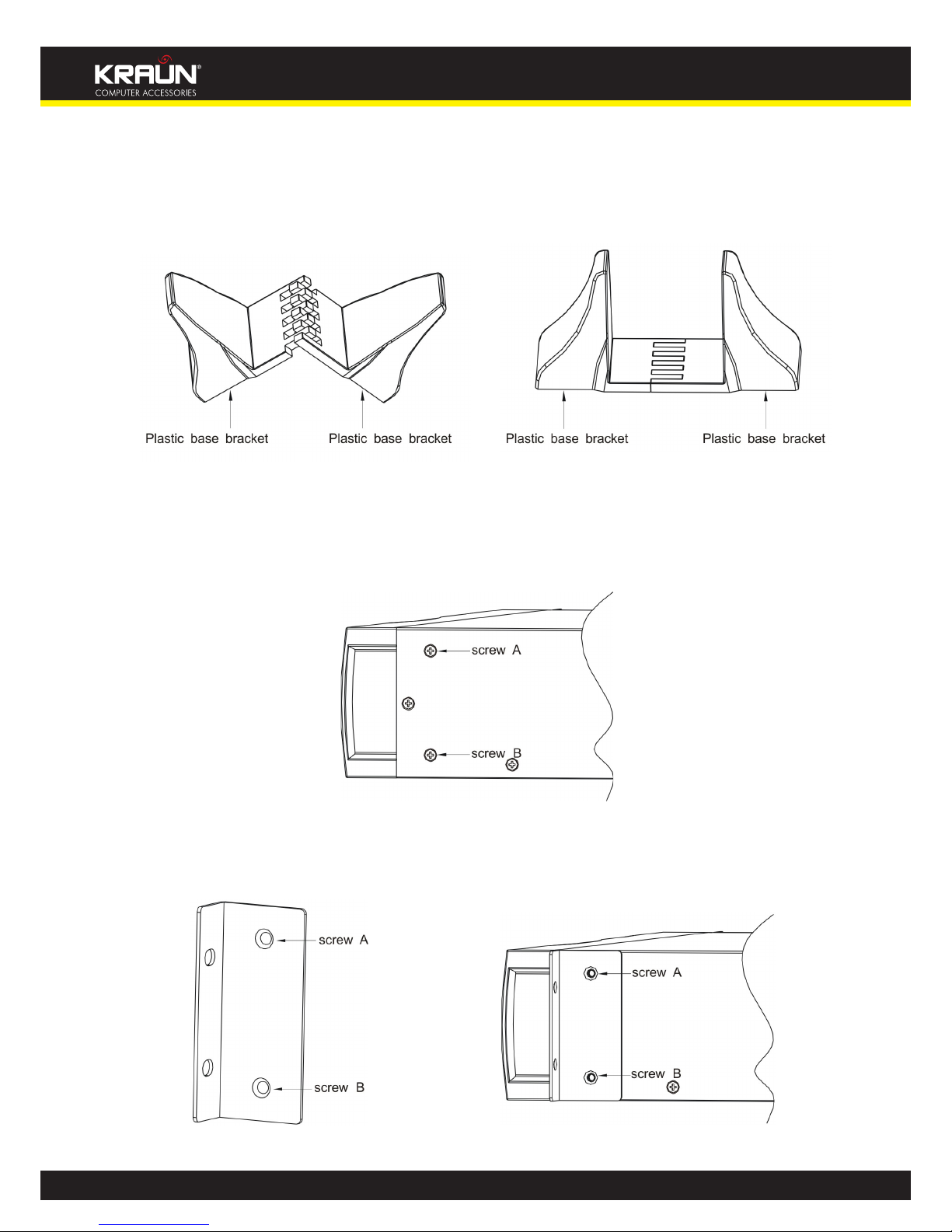

4.5.1. PLASTIC BASE INSTALLATION

1. two plastic base brackets

2. ﬂatten it after intercrossing intercross as following Figure

Fig 8 1KVA Plastic base assembly

4.5.2. CABINET INSTALLATION BRACKET ASSEMBLY

1. screw A, screw B, two M4 screws ( symmetrical on both sides, a total of four)

Fig 10 Cabinet installation bracket assembly

2. cabinet installation bracket screw hole A, screw hole B are respectively corresponding to two screws (symmetrical on both sides, a total of four).

Fig 11 Cabinet installation bracket Fig 12 Cabinet installation bracket assembly

Manual

www.kraun.it

3. screw the two M4 screws described as Fig 10 ( symmetrical on both sides, a total of four).

Fig 13 Cabinet installation bracket assembly

4.5.3. TOWER/RACK ASSEMBLY

Fig 14 Tower-mounted assembly Fig 15 Rack-mounted assembly

Warning:

• Before installing battery, make sure that UPS and breaker are all turned oﬀ. Remove all your metallic adorn-

ment such as ﬁnger ring, watch, and so on before connecting battery.

• No anti-connection or short circuit between the battery anode and cathode forever. Red cable connect

with battery anode “+” and black cable connect with cathode “-”.

• Please use the screwdriver with insulating handle. Do no lay the tools or metallic goods on the battery.

Notice:

• When connecting load to UPS, ﬁrst turn oﬀ load and then connect the power cable and ﬁnally turn on load

one-by-one.

• Inductance loads such as motor, ﬂuorescent lamp, copy cat are strictly prohibited connecting to UPS to

avoid damage.

• Plug UPS on the special socket with over-current protection, the power socket that used should be con-

nected with ground wire.

Manual

www.kraun.it

• UPS is likely to have output voltage no matter whether the power input cable is plugged in mains input

socket. If you wish UPS have no output, ﬁrst break oﬀ the switch and then cancel the mains.

• When connect laser printer, select the capacity of UPS according to the UPS start power because the startup

power is higher.

5. PANEL DISPLAY, OPERATION AND RUNNING

The operation is simple, operators only need to read the manual and follow the operation instructions listed in this manual without any special training.

5.1. FACEPLATE DISPLAY ILLUMINATION

5.1.1. KEYS FUNCTION

Fig 16 front panel keys instruction

• ON/OFF key (

)

Press and hold this key for more than half a second to turn on or turn oﬀ the UPS.

• ROTATE key (

)

Press and hold this key for more than 2 seconds to rotate LCD in any mode.

• SELF-TEST/MUTE key (

) Press and hold the key for more than 1 second in mains mode or economical mode: UPS runs the selftest function. Press and hold the key for more than 1 second in battery mode: UPS runs the mute function.

• INQUIRING key (

or )

Non-functional setting mode:

Press and hold the key for more than half a second (less than 2 seconds): Indicate the items of the LCD item section orderly. Press and hold

for more than 2 seconds: Circularly and orderly display the items every 2 seconds,

when press and hold the key for some time again, it will turn to output status.

• Function setting key

Non-functional setting mode:

Press and hold the key for more than 2 seconds: Function setting interface (ECO, BPS, OPU).

ON/OFF

SYSTEM TEST/MUTE

ROTATE

Manual

www.kraun.it

5.1.2. THE DESCRIPTION OF LED DISPLAY LAMP FUNCTIONS

Warning red LED is on: UPS is fault and has no output. For example: Overload beyond the allowed time, inverter fault, BUS fault, over temperature fault etc.

Bypass yellow LED is on: UPS is alarming. For example: Bypass mode supply power and etc.

Battery yellow LED is on: UPS is alarming. For example: Battery mode supply power and etc.

Inverter green LED is on: UPS is normally powered by mains or ECO mode or battery mode.

After starting the UPS, the four LEDs will light and go out one-by-one. It circulates several times until starting the UPS successful.

NOTE:

As to the LED indication in diﬀerent modes, please refer to the LED lamps/display panel and warning table.

Manual

www.kraun.it

5.1.3. LCD DISPLAY FUNCTIONS

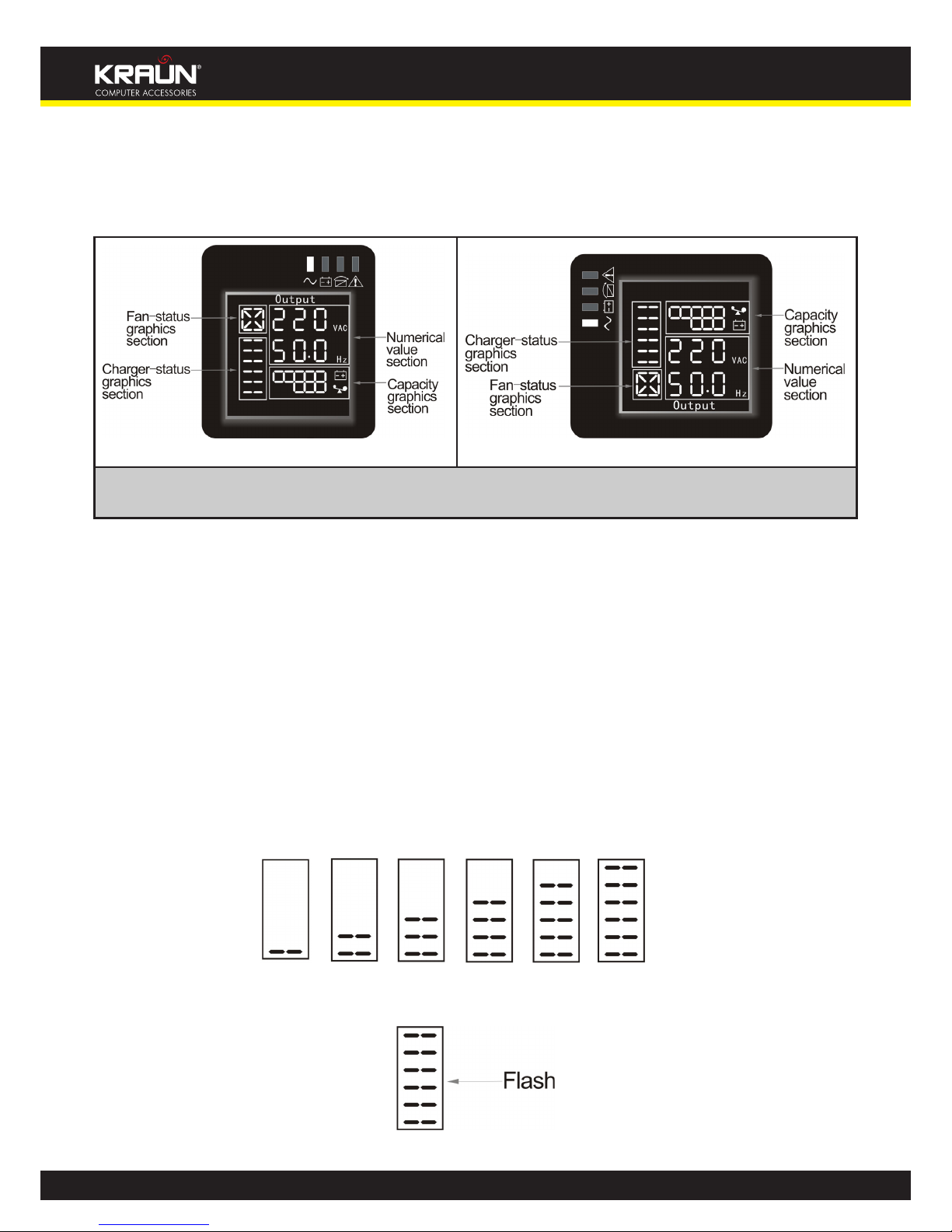

When UPS is tower-mounted, the LCD displays as following Fig A. Press and hold the ROTATE key for more than 1 second, the display will begin to rotate which matches with the rack-mounted conﬁguration. LCD displays as following Fig.B.

(A) Tower-mounted placement (B) Rack-mounted placement

NOTE: Press and hold the ROTATE key for more than 2 seconds, Fig.A and Fig.B will transfer to each other.

LCD display comprises numerical value section, capacity graphics section, fan-status graphics section and charger-status graphics section.

Numerical value section-display the corresponding numerical value of inquiring items(output, load, temperature, input, battery), for example, as the graphics shows above, the output voltage is 220v, the output frequency is 50Hz.

Capacity graphics section-display the capacity of the battery and load. Every pane represents 20% capacity. As graphics showed above, the capacity of the battery is 80%-100%( 5 panes), the load reaches 40%-60% (3 panes). When UPS is overload, the icon will ﬂash, when capacity of battery is too low or disconnected, the icon will also ﬂash.

Fan-status graphics section-display if the fan works normally. When the fan works normally, it will show the dynamic fan blades rotating; when the fan works abnormally, the icon will keep on ﬂashing and alarm. Charger-status graphics section-display the status of the charger. When charger works normally, the corresponding icon will vary dynamically and orderly, just as Graphics (1);

(1)

when charger works abnormally, the icon will ﬂash in a whole, as Graphics(2):

(2)

Manual

www.kraun.it

When UPS is in battery mode, the number of the icons of the charger-state section will vary according to the changeable capacity of the battery (pane). For example, there are ﬁve panes in Fig.A,(as the right picture of the Graphics(3) shows), so the corresponding number of icons is ﬁve rows(as the left picture of the Graphics(3) shows),, followed by this rule,

(3)

5.2. OPERATION

5.2.1. START UP OPERATION

Turn on the UPS in line mode

1. Once mains power is plugged in, the UPS will charge the battery, at the moment, LCD shows that the

output voltage is 0, which means UPS has no output. If it is expected to have output of bypass, you can set the bps “ON” by LCD setting menu.

2. Press and hold the ON/OFF key for more than half a second to start the UPS, then it will start the

inverter.

3. Once started, the UPS will perform a self-test function, LED will light and go out circularly and or-

derly. When self-test ﬁnishes, it will come to line mode, the corresponding LED lights, UPS is working in line mode.

Turn on the UPS by DC without mains power

1. When mains power is disconnected, press and hold the ON/OFF key for more than half a second to

start UPS.

2. The operation of UPS in the process of start is almost the same as that when mains power is in. After

ﬁnishing the self-test, the corresponding LED lights and UPS is working in battery mode.

5.2.2. TURN OFF OPERATION

Turn oﬀ the UPS in line mode

1. Press and hold the ON/OFF key for more than half a second to turn oﬀ the UPS and inverter.

2. After UPS shutting down, LED go out and there is no output. If output is needed, you can set bps

“ON” by LCD setting menu.

Turn oﬀ the UPS by DC without mains power

1. Press and hold the ON/OFF key for more than half a second to turn oﬀ the UPS.

2. When turning oﬀ the UPS, it will do self-testing ﬁrstly. LED light and go out circularly and orderly

until there is no display on the panel.

Manual

www.kraun.it

5.2.3. UPS SELFTEST/MUTE TEST OPERATION.

1. When UPS is in line mode, press and hold the self-test/mute key for more than 1 second, LED light

and go out circularly and orderly. UPS comes to self-test mode and tests its status. It will exit automatically after ﬁnishing testing, LED resume.

2. When UPS is in battery mode, press and hold the self-test/mute key for more than 1 second, the

buzzer stops beeping. If you press and hold the self-test/mute key for one more second, it will restart to beep again.

5.3. PARAMETER SETTING

UPS has setting function. It can run the setting on any mode. After setting, it will become eﬀective at once when meets some standards. The set information can be saved only when the battery connected and normally turning oﬀ the UPS.

The operation of setting is as following:

5.3.1. ECO MODE SETTING

1. Enter the setting interface. Press and hold the function setting key

for more than 2 seconds,

then come to setting interface, the letters ECO will ﬂash as following:

2. Enter the ECO setting interface. Press and hold

the function setting key

for more than half a second(less than 2 seconds), then come to setting interface of ECO, at this time, the letters “ECO” will light for a long time. The “ON” below the ECO will ﬂash. Press and hold the inquiring key

for more than half a second (less than 2 seconds) to determine whether the ECO function is used or not. If used, the corresponding word is “ON”, if not, the word is “OFF”. It can be determined by yourself.

3. Conﬁrm the ECO setting function. After selecting ON or OFF, press and hold the function setting key

for more than 2 seconds. Now, the ECO setting function is completed and the “ON” or “OFF” below the “ECO” will light without ﬂash.

4. Exit from the setting interface. Press and hold function setting key

for more than 2 seconds, exit from the setting interface and turn to main interface.

Manual

www.kraun.it

5.3.2. BYPASS OUTPUT SETTING

1. Enter the setting interface. Press and hold the function setting key

for more than 2 seconds, then come to setting interface, Press and hold the function setting key

for more than half a second(less than 2 seconds), select the function setting, choose the bypass output interface, at the moment, the letters “bPS” will ﬂash as following:

2. Enter the Bypass output setting interface. Press and hold the function setting key for more than half a second(less than 2 seconds), then come to setting interface of bPS, at this time, the letters “bPS” will light for a long time. The “ON” below the bPS will ﬂash. Press and hold the inquiring key

for more than half a second (less than 2 seconds) to determine whether the bPS function is used or not. If used, the corresponding word is “ON”, if not, the word is “OFF”. It can be determined by yourself.

3. Conﬁrm the Bypass output setting interface. After selecting ON or OFF, press and hold the function setting key

for more than 2 seconds. Now, the bPS setting function is completed and the “ON”

or “OFF” below the “bPS” will light without ﬂash.

4. Exit from the setting interface. Press and hold function setting key

for more than 2 seconds, exit

from the setting inte

rface and return to main interface.

5. After setting bPS as ON, when mains power plugged in without turning on the UPS or no mains power plugged in, there is bypass output but no power down backup function.

Manual

www.kraun.it

5.3.3. OUTPUT VOLTAGE SETTING OPTIONAL FUNCTION

1. Enter the setting interface. Press and hold the function setting key

for more than 2 seconds, then come to setting interface, Press and hold the function setting key for more than half a second(less than 2 seconds), select the function setting, choose the output voltage setting interface, at the moment, the letters “OPU” will ﬂash as following:

2. Enter the output voltage setting interface Press and hold the function setting key

for more than half a second(less than 2 seconds), then come to setting interface of output voltage OPU, at this time, the letters “OPU” will light for a long time. The numerical value below the OPU will ﬂash. Press and hold the inquiring key

for more than half a second (less than 2 seconds), select the numerical value in accordance with “OPU” function. The provided voltages are 208v, 220v, 230v, 240v you can choose anyone by yourself (The default is 220v).

3. Conﬁrm the output voltage setting interface After selecting numerical value, press and hold the function setting key

for more than 2 seconds. Now, the OPU setting function is completed and

the numerical value below the “OPU” will light without ﬂash.

4. Exit from the setting interface. Press and hold function setting key

for more than 2 seconds, exit

from the setting interface and return to main interface.

NOTE:

When setting the output voltage ,you’d better cut oﬀ the load of the UPS ﬁrst.

Manual

www.kraun.it

5.4. PARAMETERS INQUIRING

Press and hold the inquiring key

for more than half a second(less than 2 seconds) to inquire about items. The inquired items include input, battery, output, load, temperature. The displayed items on LCD screen are showed as following: Output: Display the output voltage and output frequency of the UPS. As the following graphic shows, the output voltage is 220v, the output frequency is 50Hz.

Load: Display the numerical value of the active power(WATT) and apparent power(VA) of the load. For example, as the following graphics shows: the WATT of the load is 100w, VA is 100VA (when disconnect load, it is a normal phenomenon to show a small numerical value of WATT and VA).

Temperature: Display the temperature of the inverter in the UPS. As the following graphics shows: the temperature of the inverter is 37°C.

Manual

www.kraun.it

Input: Display the voltage and frequency of the input. As the following graphics shows: the input voltage is 210v, input frequency is 49.8Hz.

Battery: Display the voltage and capacity of the battery ( determined by type). As the following graphics shows: the battery voltage is 28v, the capacity of battery is 100% (the capacity of battery is approximately reckoned according to the battery voltage).

Press and hold the inquiring key

for more than 2 seconds, LCD begins to display the items circularly and orderly which transfer to another every 2 seconds. Press and hold the key for some time again, it will return to output status.

5.5. RUN MODE

5.5.1. BYPASS MODE

LED indications on front panel in bypass mode are as following:

Bypass yellow LED is on the buzzer beeps once every 2 minutes . The warning red LED is on when beeping. LCD displays are according to the exact load and battery capacity.

Manual

www.kraun.it

Turn to bypass mode under the following two conditions:

1. Turn oﬀ the UPS in line mode while start the bypass output.

2. Overload in line mode.

NOTE: When UPS is working in bypass mode, it has no back up function.

5.5.2. LINE MODE

LED indications on front panel in line mode are as following: the inverter green LED is on .

When input AC mains is in line with the working conditions, UPS will work in line mode.

5.5.3. BATTERY MODE

LED indications on front panel in battery mode are as following: both the inverter green LED and battery yellow LED are on, the buzzer beeps once every 4 seconds. The warning red LED is on when beeping.

When the mains power down or instable, UPS will turn to battery mode at once. Continuously working on battery mode can last for 20 hours depending on the battery volume and the load. If battery discharge for 20 hours and the load is lower than 10% of rated power , the UPS will alarm for half an hour and then shutdown to protect the batteries.

5.5.4. ECO MODE

LED indications on front panel on ECO mode are as following: both the inverter green LED and bypass yellow LED are on.

When the input mains meets the input range of the ECO mode and start the ECO function, the UPS will works on ECO mode. If input AC mains exceeds the range of ECO several times in a row in a minute but stays in inverting input range, UPS will work on inverting mode automatically.

Manual

www.kraun.it

5.5.5. FAULT MODE

LED indications on front panel in fault mode are as following:

Fault mode(LCD interface on which the fault code display)

When UPS has fault, the fault LED lights and the buzzer beeps. UPS will turn to fault mode when overload fault, inverting fault and over-temperature fault happen. UPS cuts oﬀ the output and LCD display fault codes. At the moment, you can press the mute key to make the buzzer stop beeping temporarily to wait for maintenance. You can also press the ON/OFF key to shut down the UPS when conﬁrm that there is no serious fault.

NOTE: As for corresponding information of the fault code, please refer to Fault Code information Table in Appendix.

NOTICE:

• The following process must be performed if UPS is connected with generator:

• First turn on generator, after it runs stably connect output power of generator to UPS input terminal, then

turn on UPS. After UPS turned on, please connect load one-by-one.

• It is recommended that the generator capacity is as twice as UPS rated capacity

• You’d better not use the ECO mode when the quality of the input AC mains is not good.

Manual

www.kraun.it

6. MAINTENANCE

Only minimum maintenance is required for this series of UPS. The battery is sealed lead acid maintenance free. It only needs to be kept charging to obtain the expected life. Whether it is started or not, the UPS would charge batteries once it is connected to mains and provide protection for over-charging and deep discharging.

6.1. BATTERY MAINTENANCE

1. It is recommended that the batteries are manually charged or discharged.

2. once every three or four months if UPS has not been used for a long time or the power is long-term uninterruptible. The battery will be fully discharge to low-voltage protection shutdown. Then it needs to be fully charged once.

3. In high temperature area, batteries should be manually charged and discharged once every two months. The process is the same as that said above.

4. Under normal circumstances of using, the battery working life is three to ﬁve years. If you ﬁnd that the battery do not act well such as obviously shortening of backup time, too much imbalance on battery voltage so on, the battery should be replaced as soon as possible, which must be performed by qualiﬁed personnel.

5. When replace battery, it is recommended to change battery all together instead of changing separately.

NOTICE:

• Before replacing batteries, ﬁrst please turn oﬀ the UPS and break oﬀ the mains. Remove your metallic adorn-

ment such as ﬁnger ring, watch and so on.

• When replace batteries, please use the screwdriver with insulating handle. Do not lay the tools or metallic

goods on the battery.

• Never revert or short circuit between the battery anode and cathode.

Manual

www.kraun.it

7. TROUBLESHOOTING AND PERFORMANCE OF

PRODUCT

The following messages are the information that users would ﬁnd on UPS when it meets some problems. Users can judge if the fault is caused by external factors and know how to deal with it by making full use of the information.

1. Fault indicator on, indicates that the UPS has detected some fault.

2. Buzzer beeps, indicates that UPS need to be paid attention to, if beeps for a long time, it means that there is something wrong with the machine.

3. If you need help, contact our service department, the following messages should be provided for analysis:

• UPS MODEL NO. and SERIAL NO.

• Date of fault happened

• Detailed description of the problem (include indicator statements on panel)

7.1. LED INDICATION AND WARNING TABLE

Appendix1: F

Fault causation Fault Code

Bus Fault 00-19

Inverter Fault 20-39

Over Heat 40-44

Output short circuit 45-49

Overload 50-54

Output Relay Fault 55-59

Input NTC Fault 60-64

Auxiliary Power Fault 65-69

Input Fuse Fault 70-74

Others 99

Manual

www.kraun.it

Appendix 2: The corresponding working status of indications

NO Working status

Indication

Warning Remarks

Nor Bat Bps Fan

1 Line mode

Normal voltage



None

High/low voltage protection, turn to battery mode

 



Once every four seconds

2 Battery mode

Normal voltage

 



Once every four seconds

Battery Voltage abnormal warning



 

Once per second

3 Bypass mode

Main AC Normal voltage in bypass mode





Once every two minutes

Eliminate after starting the UPS

Main AC high voltage warning in bypass mode



Once every four seconds

Main AC low voltage warning in bypass mode



Once every four seconds

4 Battery disconnect warning

Bypass mode





Once every four seconds

Aﬃrm if the battery switch is closed

Inverting mode





Once every four seconds

Aﬃrm if the battery switch is closed

Power up or start Six times

Aﬃrm if the battery is connected well

5 Output overload protection

Overload warning in line mode,





Twice per second
