Introduction
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better!
Our 1,000-plus different models now appear in 11 groups1 that are clearly
defined by function.
Thank you for purchasing your Kramer TOOLS VP-210K UXGA Line
Amplifier, which is ideal for:
Dual monitor systems, local or remote (loop and output)
Presentation systems for remote transmission and cable
equalization
The package includes the following items:
VP-210K UXGA Line Amplifier
Power adapter (5V DC input) and this user manual2
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and
packaging materials for possible future shipment
Review the contents of this user manual
Use Kramer high-performance high-resolution cables3
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:
Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories
and Rack Adapters; GROUP 11: Sierra Products
2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
1
Getting Started
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.
2
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
3 Overview
The high-performance VP-210K is a line amplifier for UXGA1 computer
graphics signals that provides controls to compensate for signal losses
inherent in long cable runs.
In particular, the VP-210K UXGA Line Amplifier features:
Video bandwidth of 350MHz, ensuring that it remains transparent
for all resolutions
HDTV compatibility
Separate controls for output level and cable equalization, and
independent input signal termination for red, green and blue
A looping input
KR-ISP™ advanced sync processing that ensures compatibility
with a wide range of computers (even if the sync level is too low)
by restoring the sync signal waveform
To achieve the best performance:
Use only good quality connection cables2 to avoid interference,
deterioration in signal quality due to poor matching, and elevated
noise levels (often associated with low quality cables).
Avoid interference from neighboring electrical appliances that
may adversely influence signal quality and position your Kramer
VP-210K away from moisture, excessive sunlight and dust
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit3.
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
1 XGA, as used in this manual, means any RGBHV signal on a 15-pin HD connector having a resolution from VGA up to
UXGA
2 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com
3 For example, part number 2535-052002
3
Your VP-210K UXGA Line Amplifier
4 Your VP-210K UXGA Line Amplifier

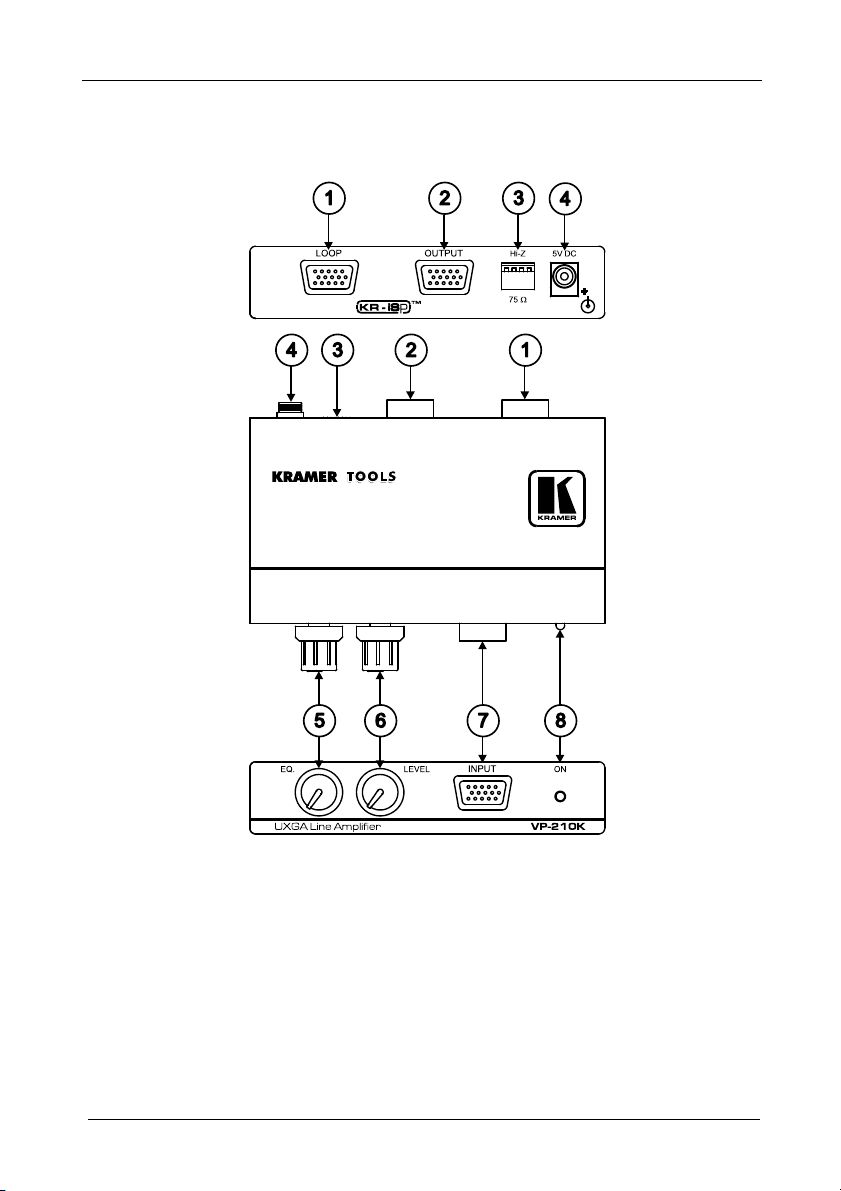

Figure 1 and Table 1 define the VP-210K :
Figure 1: VP-210K UXGA Line Amplifier
4
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VP-210K UXGA Line Amplifier
Table 1: VP-210K UXGA Line Amplifier Features
# Feature Function
1 LOOP 15-pin HD (F) Connector Connects to a local display
2 OUTPUT 15-pin HD (F) Connector Connects to the computer graphics acceptor
3 HI-Z/75 DIP-switches Set to 75 TERM (when a local monitor is not used); set to
4 5V DC +5V DC connector for powering the unit
5 EQ. Control knob Adjusts the video EQ. (equalization) compensation
6 LEVEL Control knob Adjusts the video signal level
7 INPUT 15-pin HD (F) Connector Connect to the computer graphics source
8 ON LED Illuminates when receiving power
Hi-Z (when a local monitor is connected to the LOOP 15-pin
HD connector)
5 Connecting the VP-210K UXGA Line Amplifier
To connect your VP-210K UXGA Line Amplifier, as shown in the example in
Figure 2, do the following1:
1. Connect a computer graphics source (for example, a computer) to the
INPUT 15-pin HD (F) connector.
2. Connect the OUTPUT 15-pin HD (F) connector to an acceptor (for
example, a projector).
3. Connect the LOOP 15-pin HD (F) connector to an acceptor (for
example, a local display).
4. Connect the 5V DC power adapter to the 5V DC socket and connect the
transformer to the mains electricity (not illustrated in Figure 2).
5. Adjust the video output signal level and/or cable compensation equalization
level as needed.
6. Set the DIP-switches as follows:
If no terminal is attached to the LOOP connector, set the
switches down to 75 TERM
If a terminal is attached to the LOOP connector, set the
switches up to HI-Z
1 Switch OFF the power on each device before connecting it to your VP-210K. After powering up your VP-210K, switch on
the power on each device
5
Technical Specifications
Figure 2: Connecting the VP-210K UXGA Line Amplifier
6 Technical Specifications
Table 2 includes the technical specifications:
Table 2: Technical Specifications1 of the VP-210K UXGA Line Amplifier
INPUT:
OUTPUT:
VIDEO BANDWIDTH (-3dB):
DIFF. GAIN:
DIFF. PHASE:
VIDEO S/N RATIO:
K-FACTOR:
CONTROLS:
POWER SOURCE:
DIMENSIONS:
WEIGHT:
ACCESSORIES:
OPTIONS:
1 UXGA on a 15-pin HD (F) connector
1 UXGA on a 15-pin HD (F) connector
1 LOOP UXGA on an 15-pin HD (F) connector
350MHz
0.41%
0.53°
66dB
<0.05%
Level: -1.2 to +6.3dB; EQ: 0 to +4dB @50MHz
5V DC, 108mA
12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H
0.25kg (0.55lbs) approx.
Power supply, mounting brackets
19" rack adapters
1 Specifications are subject to change without notice
6
