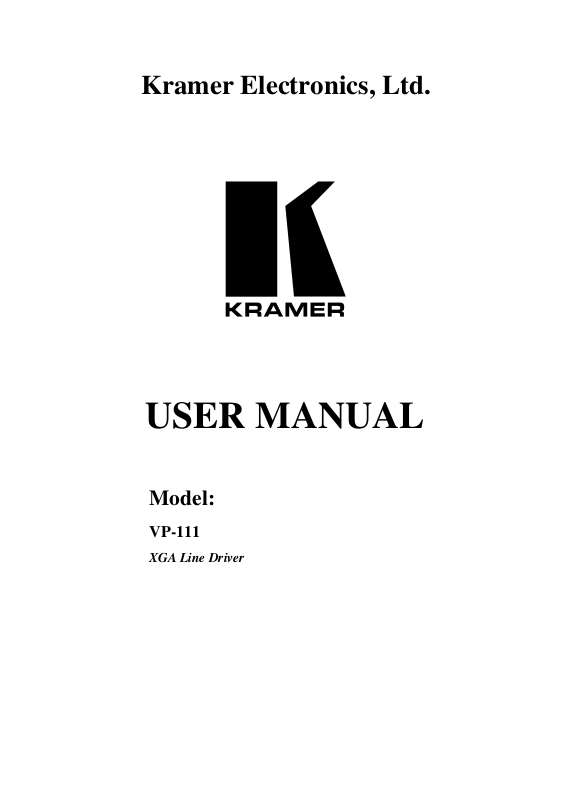

Kramer Electronics, Ltd.
USER MANUAL
Model:
VP-111
XGA Line Driver
Contents
1
Introduction 1
2
Getting Started 1
3
Overview 1
4
Your VP-111 XGA Line Driver 2
5
Connecting the VP-111 XGA Line Driver 3
6
Technical Specifications 4
Contents
Figures
Figure 1: VP-111 XGA Line Driver (Topside) 2
Figure 2: Connecting the VP-111 XGA Line Driver 4
Tables
Table 1: Features and Functions of the VP-111 XGA Line Driver (Topside) 3
Table 2: Features and Functions of the VP-111 XGA Line Driver (Underside) 3
Table 3: Technical Specifications of the VP-111 XGA Line Driver 4
i
Introduction
1 Introduction
Dedication by Kramer Electronics since 1981, to the development and
manufacture of high quality video/audio equipment, makes the Kramer line
an integral part of the finest production and presentation facilities in the
world. In recent years, Kramer has redesigned and upgraded most of the line,
making the best even better! The Kramer line of professional video/audio
electronics is one of the most versatile and complete available, and is a true
leader in terms of quality, workmanship, price/performance ratio and
innovation. In addition to the VP-111 XGA Line Driver, we also offer
excellent switchers and matrices, presentation processors, interfaces, remote
controllers and computer-related products.
Congratulations on purchasing your Kramer Tools VP-111 XGA Line Driver.
This product is ideal for using with:
Dual monitor systems (local and remote)
Presentation systems: for remote transmission and cable equalization
The package includes the following items:
VP-111 XGA Line Driver
Power adapter (12V DC Input)
This user manual1 and the Kramer concise product catalog/CD
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables2
3 Overview
The high performance Kramer VP-111 is a line driver for VGA/XGA signals
that:
Accepts one input, provides correct buffering and isolation, and then
1 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com/manuals.html
2 The complete list of Kramer cables is on our Web site at http://www. kramerelectronics.com (click “Cables and Connectors”
in the Products section)
1
Your VP-111 XGA Line Driver
loops it out to a local monitor (or some other acceptor), as well as outputting
an amplified and equalized signal to a remote acceptor
Can drive very long high resolution lines1 due to its large bandwidth that
exceeds 480MHz. This ensures that it remains transparent even at highest
resolution QXGA modes
In particular, the VP-111 XGA Line Driver includes:
A TERM switch for input signal termination
Cable equalization control
ID Bit control (via a switch on its underside)
Achieving the best performance means:
Connecting only good quality connection cables, thus avoiding
interference, deterioration in signal quality due to poor matching, and elevated
noise levels (often associated with low quality cables)
Avoiding interference from neighboring electrical appliances that may
adversely influence signal quality and positioning your VP-111 unit in a
location free from moisture and away from excessive sunlight and dust
4 Your VP-111 XGA Line Driver
Figure 1, Table 1 and Table 2, define the VP-111 XGA Line Driver:
Figure 1: VP-111 XGA Line Driver (Topside)
1 Up to 100 meters (300ft.) when using good quality cable
2
KRAMER ELECTRONICS, LTD.
Connecting the VP-111 XGA Line Driver
Table 1: Features and Functions of the VP-111 XGA Line Driver (Topside)
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 OUTPUT HD15F Connector Connect to the VGA/XGA acceptor
3 EQ. Trimmer Adjusts1 the cable compensation equalization level for the output
4 TERM Button
5 ON LED Illuminates when receiving power
6 LOOP HD15F Connector Connect to an additional monitor
7 INPUT HD15F Connector Connect to the VGA/XGA source
Pushing in selects 75; releasing selects Hi-Z2
Table 2: Features and Functions of the VP-111 XGA Line Driver (Underside)
Feature Function
ID Bit Switch3 Sliding to the right selects the ID BIT, sliding to the left deactivates the ID BIT (when
outputting the input signal from a laptop connected to an external VGA monitor4)
5 Connecting the VP-111 XGA Line Driver
To connect the VP-111, as the example in Figure 2 illustrates, do the following:
1. Connect an XGA source (for example, a laptop’s graphics card) to the
INPUT HD15F connector.
2. On the underside, slide the ID Bit switch to the right to set to ON.
3. Connect the OUTPUT HD15F connector to the acceptor (for example, a
projector).
4. Connect the LOOP HD15F connector to a local PC monitor and release
the TERM button to Hi-Z.
Note: if only a single output is required, leave the loop unconnected and
push in the TERM button to 75.
5. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity.
6. Adjust5 the video EQ. (equalization) compensation, if required.
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level
2 For looping select Hi-Z
3 Illustrated in Figure 2
4 Sometimes laptop computers refuse to output a VGA signal to an external VGA monitor if they do not detect the ID Bit as
ON. Set the ID Bit to ON using this switch so that the laptop will output to an external VGA monitor
5 Insert a screwdriver into the small hole and carefully rotate it, trimming the OUTPUT equalization level
3
Technical Specifications
Figure 2: Connecting the VP-111 XGA Line Driver
6 Technical Specifications
Table 3 includes the technical specifications:
Table 3: Technical Specifications1 of the VP-111 XGA Line Driver
INPUT:
OUTPUT:
MAX. OUTPUT LEVEL: 1.9Vpp
BANDWIDTH (-3dB): 480MHz
DIFF. GAIN: 0.8%
DIFF. PHASE: 0.2 Deg.
K-FACTOR: <0.05%
S/N RATIO: 73.5dB
CONTROLS: EQ.: 0dB to +11.3dB @ 50MHz
COUPLING: DC
POWER SOURCE: 12 VDC, 101mA
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98"), W, D, H
WEIGHT: 0.3 kg. (0.66 lbs.) approx.
ACCESSORIES: Power supply, mounting bracket
Looping analog red, green, blue signals - 0.7Vpp / 75, H & V sync, TTL
level, on HD15F connectors
Analog red, green, blue signals - 0.7Vpp / 75, H & V sync, TTL level, on an
HD15F connector
1 Specifications are subject to change without notice
4
KRAMER ELECTRONICS, LTD.
LIMITED WARRANTY
Kramer Electronics (hereafter Kramer) warrants this product free from defects in material and workmanship under the
following terms.
HOW LONG IS THE WARRANTY
Labor and parts are warranted for three years from the date of the first customer purchase.
WHO IS PROTECTED?
Only the first purchase customer may enforce this warranty.
WHAT IS COVERED AND WHAT IS NOT COVERED
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered by
the warranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer d ealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agent s listed in the web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed.
3. Damage, deterioration or malfunction resulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product defect
vii) Carto ns, equipment enclosures, cables or accessories used in conjunction with the product
WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR
We will pay labor and material expenses for covered items. We will not pay for the following:
1. Removal or installations charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.
HOW YOU CAN GET WARRANTY SERVICE
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original d ated invoice (o r a co py) must be presented as proof of warranty coverage,
and should be included in any shipment of the product. Please also include in any mailing a contact name, company, address, and
a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
LIMITATION OF IMPLIED WARRANTIES
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
EXCLUSION OF DAMAGES
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer
shall not be liable for:
1. Damage to other pro perty caused by defects in this product, damages based upon inconve nience, loss of use of the product, loss
of time, commercial loss; or:
2. Any other damages, whether incidental, consequent ial or otherwise. Some countries may not allow limitations on how long an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations and exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.
NOTE: All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
This equipment has been tested to determine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility (EMC);
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
CFR-47: FCC Rules and Regulations:
CAUTION!
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or modifications to
the unit without the expressed approval of the manufacturer will void user authority to operate the equipment.
Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables to connect the machine to other components.
generic emission standard.
Part 1: Residential, commercial and light industry"
Part 1: Residential, commercial and light industry environment".
Part 15: “Radio frequency devices
Subpart B – Unintentional radiators”
5
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com.
Updates to this user manual may be found at
http://www.kramerelectronics.com/manuals.html.
We welcome your questions, comments and feedback.
Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: info@kramerel.com
P/N: 2900-111001 REV 3
