Introduction
1 Introduction
Welcome to Kramer Electronics (since 1981): a world of unique, creative and
affordable solutions to the infinite range of problems that confront the video,
audio and presentation professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
500-plus different models now appear in 8 Groups1, which are clearly defined
by function.
Congratulations on purchasing your Kramer VM-4HD HD/SD - SDI
Distributor, which is ideal for:
SDI production studios for signal distribution and equalizations
Broadcast studios for on-air operation
SDI field production
Using with SDI video sources such a professional digital camera
The package includes the following items:
VM-4HD HD/SD - SDI Distributor
Power adapter (12V DC Input)
This user manual2
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables3
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
1
Getting Started
2.1 Quick Start

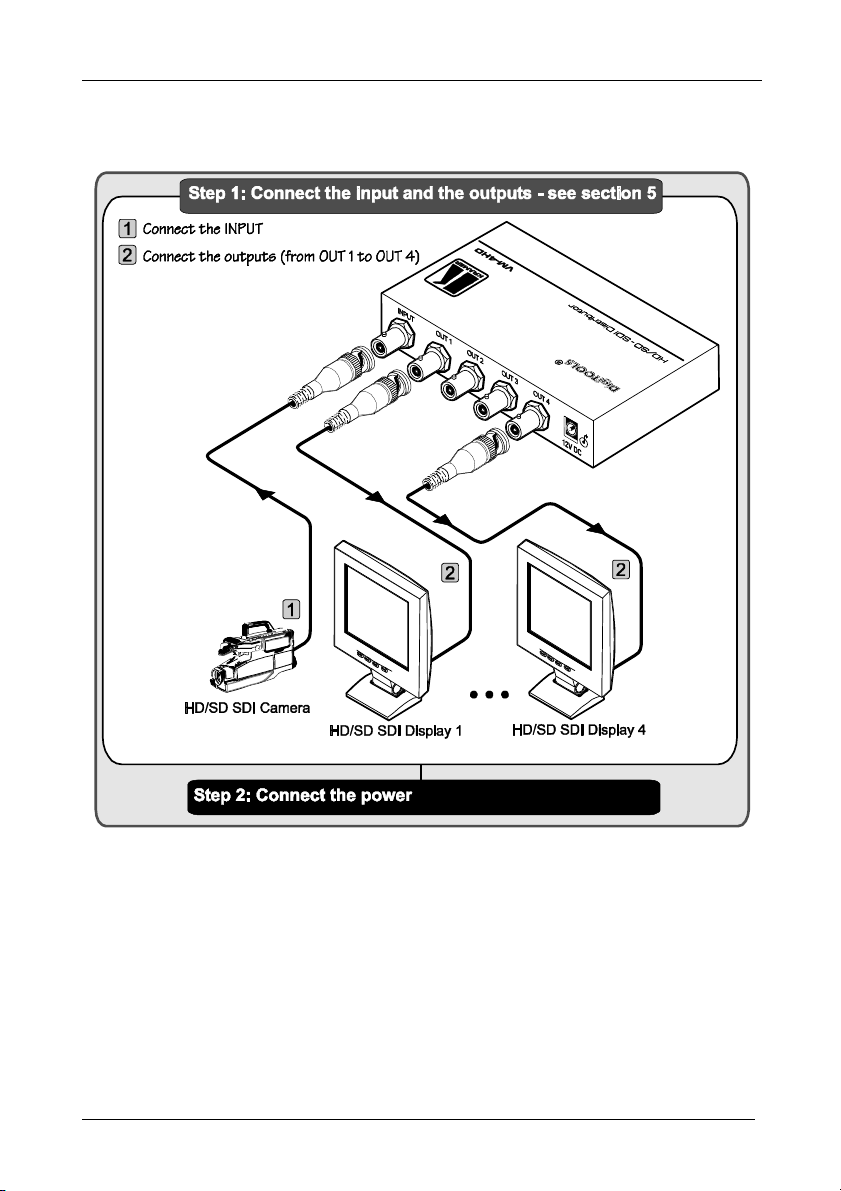

This quick start chart summarizes the basic setup and operation steps.
2
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
3 Overview
The VM-4HD HD/SD - SDI Distributor is a high performance 1:4 distributor
for all SDI video signals.
In particular, the VM-4HD:
Accepts one input and distributes the signal to 4 identical outputs using
BNC connectors
Has a video bandwidth of 1.485GHz that allows it to be used for standard
definition and high definition serial digital video signals (SD/HD-SDI)
Is SMPTE 292M, 259M and 344M compliant and supports data rates of
143, 177, 270, 360, 540, 1483.5, 1485Mb/sec
Provides automatic, multi-rate, equalization and reclocking for losses
typical with long runs of 75 co-axial cable
Has LOCK, HD and SD output indication LEDs
Achieving the best performance means:
Connecting only good quality connection cables, thus avoiding
interference, deterioration in signal quality due to poor matching, and
elevated noise levels (often associated with low quality cables)
Avoiding interference from neighboring electrical appliances that may
adversely influence signal quality and positioning your Kramer VM-4HD
away from moisture, excessive sunlight and dust
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit1.
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
1 For example: model number AD2512C, part number 2535-000251
3
Your VM-4HD HD/SD - SDI Distributor
4 Your VM-4HD HD/SD - SDI Distributor
Figure 1 and Table 1 define the VM-4HD HD/SD - SDI Distributor:
Figure 1: VM-4HD HD1/SD2 - SDI Distributor
Table 1: VM-4HD HD/SD - SDI Distributor Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 OUT BNC connectors Connects to the SDI acceptors (from 1 to 4)
3 INPUT BNC connector Connects to the SDI source
4 HD1 LED Blue LED illuminates when the SDI signal is HD1
SDI
5
6 LOCK LED Green LED illuminates when an SDI signal is locked
7 ON LED Red LED Illuminates when receiving power
SD2 LED Green LED illuminates when the SDI signal is SD2
1 High Definition (HD) means a video format, consisting of either 720 active lines of progressive video or 1080 lines
interlaced video
2 Standard Definition (SD) means an NTSC or PAL compatible video format, consisting of 480 (for NTSC) or 576 (for PAL)
lines of interlaced video
4
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VM-4HD HD/SD - SDI Distributor
5 Connecting the VM-4HD HD/SD - SDI Distributor
To connect the VM-4HD, as the example in Figure 2 illustrates, do the following:
1. Connect a HD/SD SDI video source (for example, an HD/SD SDI
camera) to the INPUT BNC connector.
2. Connect up to1 4 video OUT BNC connectors to the appropriate HD /SD
SDI video acceptors (for example, HD/SD SDI displays).
3. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity.

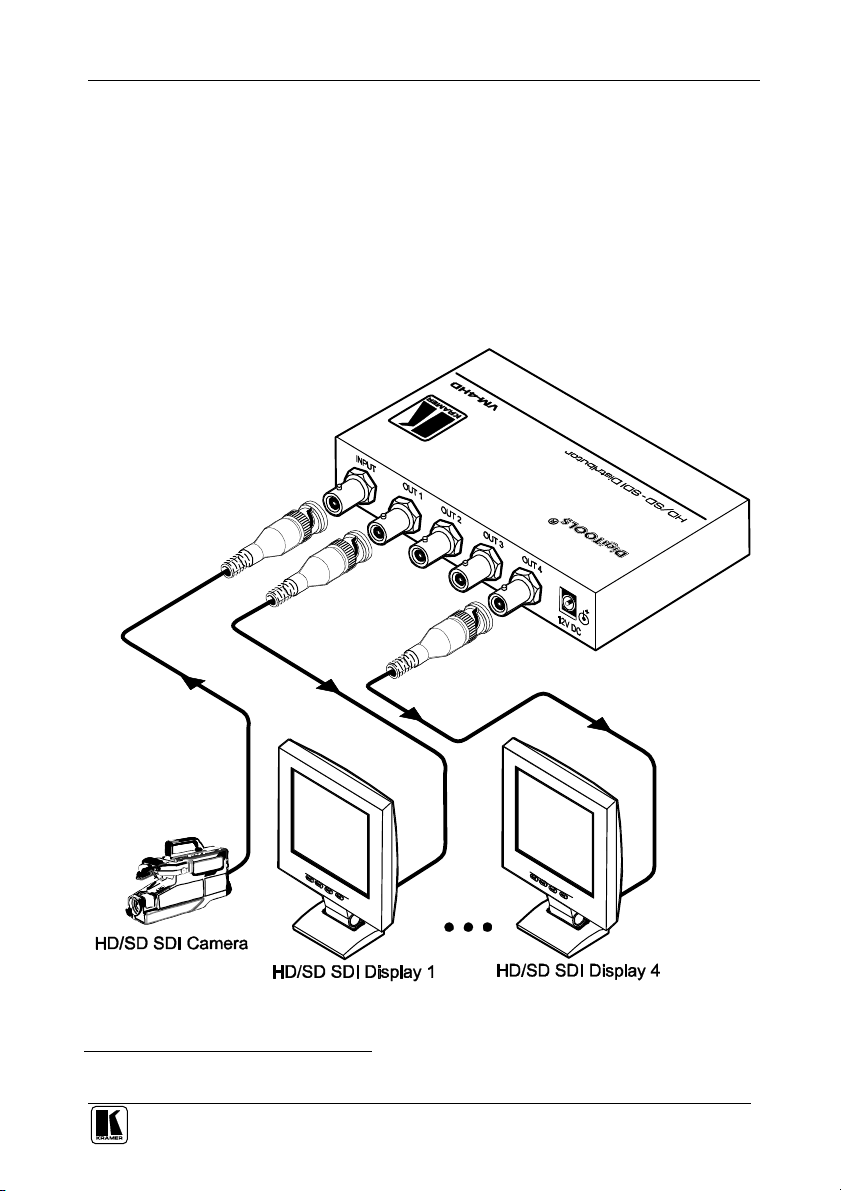

Figure 2: Connecting the VM-4HD HD/SD - SDI Distributor
1 When four outputs are not required, connect only those that are required and leave the other output(s) unconnected
5
Technical Specifications
6 Technical Specifications
Table 2 includes the technical specifications:
Table 2: Technical Specifications1 of the VM-4HD HD/SD - SDI Distributor
INPUTS: 1 SMPTE-259M, 292M, 344M serial video, 75 ohms on a BNC
OUTPUTS: 4 equalized and reclocked SMPTE-259M, 292M, 344M outputs
MAX. OUTPUT LEVEL: 800mVpp /75 ohms
MAX. DATA RATE: 1.485Gbps
COUPLING: AC
POWER SOURCE: 12 V DC, 250mA
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H
WEIGHT: 0.3 kg (0.67 lbs.) approx.
ACCESSORIES: Power supply, mounting brackets
OPTIONS: 19 inch rack adapters
connector
75 ohms on BNC connectors
1 Specifications are subject to change without notice
6
KRAMER: SIMPLE CREATIVE TECHNOLOGY
