KRAMER ELECTRONIC S LTD.
USER MANUAL
MODEL:
VM-1 00 YC
1:10 s-Video Distribution
Amplifier
P/N: 2900-002071 Rev 4
VM-100YC – Contents
i
Contents
1 Introduction 1
2 Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Safety Instructions 3
2.3 Recycling Kramer Products 3
3 Overview 4
3.1 Defining the VM-100YC 1:10 s-Video Distribution Amplifier 4
4 Connecting the VM-100YC 6
5 Technical Specifications 8
Figures
Figure 1: VM-100YC 1:10 s-Video Distribution Amplifier 4
Figure 2: Connecting the VM-100YC 1:10 s-Video Distribution Amplifier 7
VM-100YC - Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront video, audio, presentation, and broadcasting professionals
on a daily basis. In recent years, we have redesigned and upgraded most of our
line, making the best even better!
Our 1,000-plus different models now appear in 11 groups that are clearly defined
by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;
GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:
Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:
Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:
Sierra Products.
Congratulations on purchasing your Kramer VM-100YC 1:10 s-Video Distribution
Amplifier, which is ideal for the following typical applications:
Production and duplication facilities
Schools and boardrooms
Retail stores, point-of-sale systems, CCTV and security applications
2
VM-100YC - Getting Started
Go to http://www.kramerelectronics.com/support/product_downloads.asp
to check for up-to-date user manuals, application programs, and to check if
firmware upgrades are available (where appropriate).
This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.
i
!
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
2.1 Achieving the Best Performance
To achieve the best performance:
Use only good quality connection cables (we recommend Kramer high-
performance, high-resolution cables) to avoid interference, deterioration in
signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables)
Do not secure the cables in tight bundles or roll the slack into tight coils
Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
Position your Kramer VM-100YC away from moisture, excessive sunlight and
dust
VM-100YC - Getting Started
3
Caution:
There are no operator serviceable parts inside the unit
Warning:
Use only the Kramer Electronics input power wall
adapter that is provided with the unit
Warning:
Disconnect the power and unplug the unit from the wall
before installing
!
2.2 Safety Instructions
2.3 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC
aims to reduce the amount of WEEE sent for disposal to landfill or incineration by
requiring it to be collected and recycled. To comply with the WEEE Directive,
Kramer Electronics has made arrangements with the European Advanced
Recycling Network (EARN) and will cover any costs of treatment, recycling and
recovery of waste Kramer Electronics branded equipment on arrival at the EARN
facility. For details of Kramer’s recycling arrangements in your particular country
go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.
4
VM-100YC - Overview
3 Overview
The VM-100YC is a high quality 1:10 s-Video Distribution Amplifier for s-Video (Y/C)
signals. It accepts one input, provides correct buffering and isolation, and distributes
the signal to 10 identical outputs using 4-pin connectors. The looping connector can
be used to connect to a local display or other Y/C acceptor, or to create larger
systems (for example, connecting three VM-100YC units to make a 1:30 s-Video
Distribution Amplifier).
In addition, the VM-100YC features:
Bandwidth (Y) - 275MHz (-3dB)
Level (gain) controls - Y and C (on the underside)
Selectable input signal termination
A compact desktop size. Two units can be rack mounted side-by-side in a
1U rack space with the optional RK-1 adapter
3.1 Defining the VM-100YC 1:10 s-Video Distribution Amplifier
This section defines the VM-100YC.

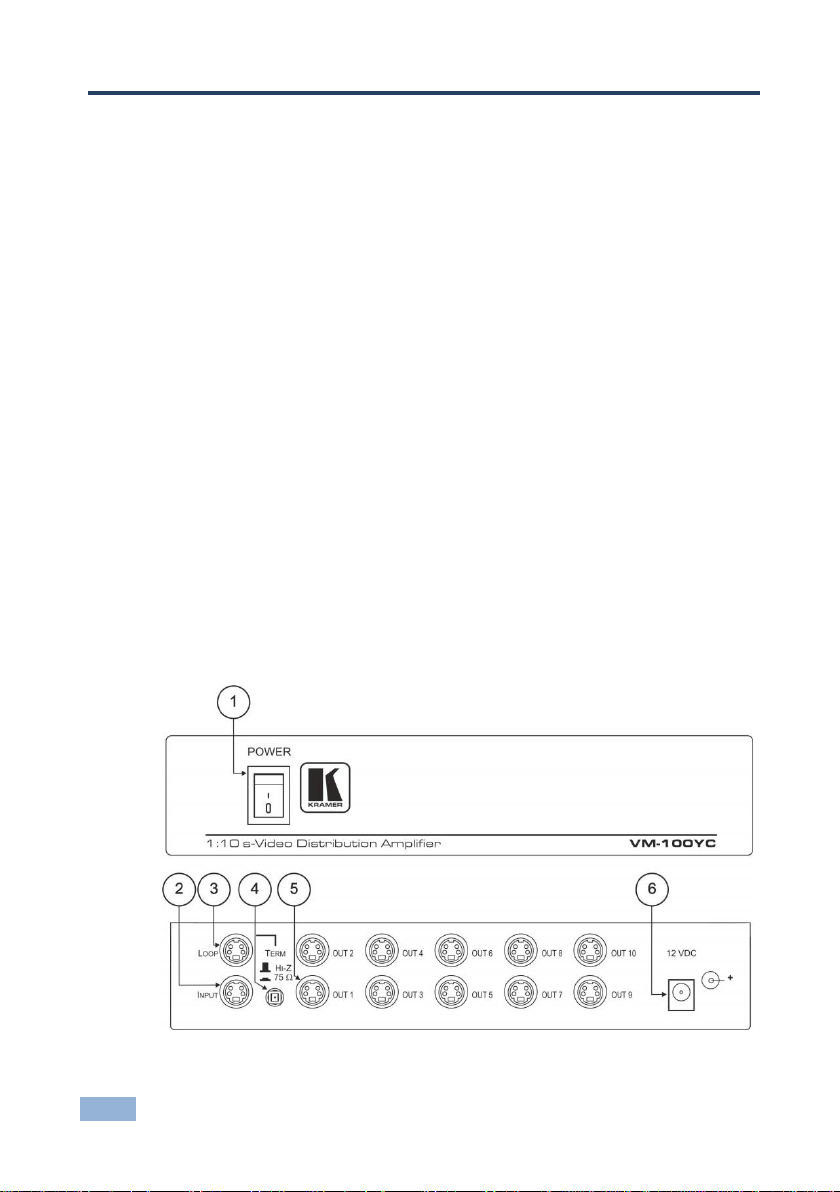

Figure 1: VM-100YC 1:10 s-Video Distribution Amplifier
VM-100YC - Overview
5
#
Feature
Function
1
POWER Switch
Illuminated switch for turning the unit ON or OFF
2
INPUT 4-pin Connector
Connects to the s-Video source
3
LOOP 4-pin Connector
For looping (if required) to increase the number of outputs
4
TERM Button
Pushing in selects 75; releasing selects Hi-Z (for looping
select Hi-Z)
5
OUT 4-pin Connector
Connects to the s-Video acceptors (from 1 to 10)
6
12 VDC
+12V DC connector for powering the unit
6
VM-100YC - Connecting the VM-100YC
Always switch off the power to each device before connecting it to your
VM-100YC. After connecting your VM-100YC, connect its power and
then switch on the power to each device.
i
4 Connecting the VM-100YC
To connect the VM-100YC as illustrated in the example in Figure 2:
1. Connect the s-Video source (for example, an s-Video player) to the INPUT
4-pin connector.
2. Connect the OUT 4-pin connectors to up to 10 s-Video acceptors (for
example, s-Video recorders).
3. If required, connect the LOOP 4-pin connector, when looping units and
release the TERM switch on first unit (selecting Hi-Z). Push in the TERM
switch on the second unit (selecting 75).
4. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity (not shown in Figure 2).
5. Switch on the VM-100YC.
The s-Video source distributes to the s-Video acceptors.
VM-100YC - Connecting the VM-100YC
7

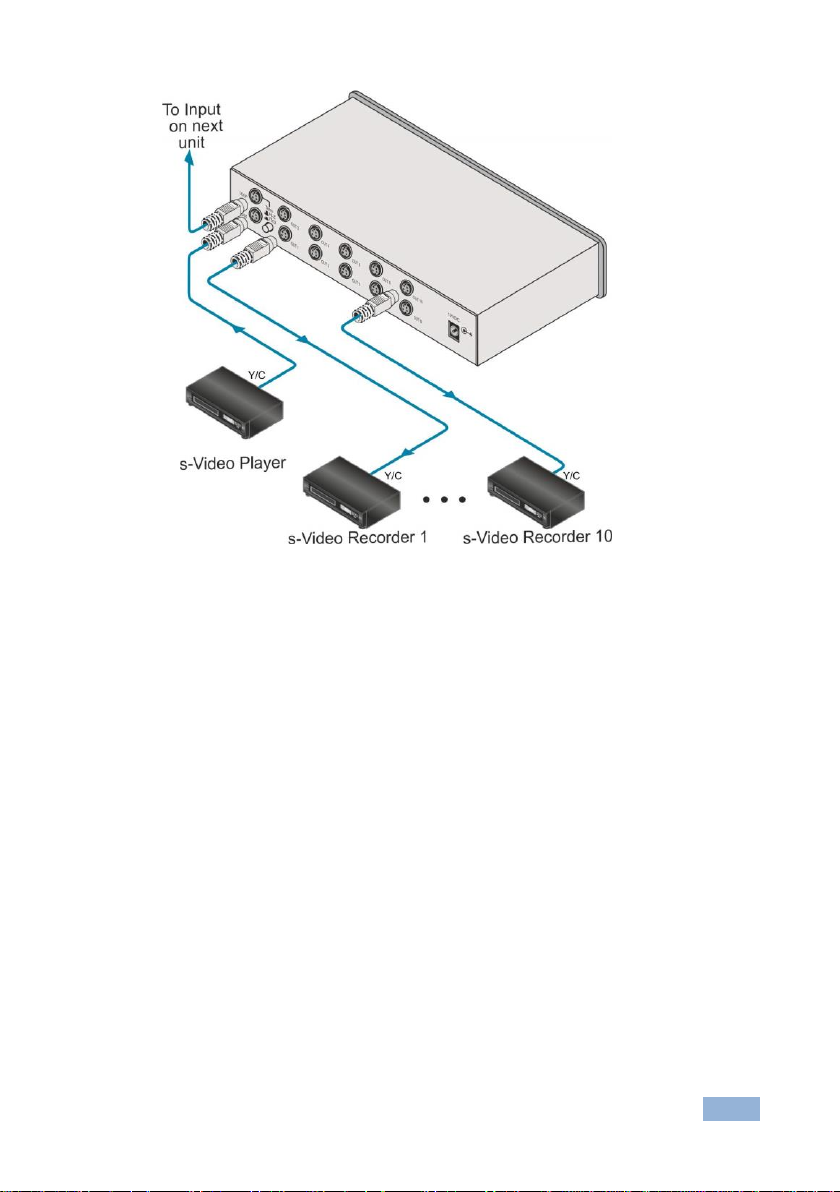

Figure 2: Connecting the VM-100YC 1:10 s-Video Distribution Amplifier
8
VM-100YC - Technical Specifications
INPUT:
1 s-Video with loop, 1Vpp/75Ω (Y), 0.3Vpp/75Ω (C), on a
4-pin connector with a termination switch
OUTPUT:
10 s-Video, 1Vpp/75Ω (Y), 0.3Vpp/75Ω (C), on 4-pin
connectors
MAX. OUTPUT LEVEL:
1.9Vpp/75Ω (Y)
BANDWIDTH (-3dB):
275MHz
DIFF. GAIN:
0.03%
DIFF. PHASE:
0.03Deg
K-FACTOR:
< 0.05%
S/N RATIO:
81.4dB
CONTROLS:
Trimmers for "Y" level: -1.4 to +6dB; "C" level: -1 to +6.3dB
COUPLING:
AC
POWER CONSUMPTION:
12V DC, 80mA
OPERATING TEMPERATURE:
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:
-40° to +70°C (-40° to 158°F)
HUMIDITY:
10% to 90%, RHL non-condensing
DIMENSIONS:
21.5cm x 16.2cm x 4.4cm (8.45" x 6.4" x 1.7") W, D, H
WEIGHT:
0.93kg (2lbs) approx.
ACCESSORIES:
Power supply
OPTIONS:
RK-1 19" rack adapter
Specifications are subject to change without notice at http://www.kramerelectronics.com
5 Technical Specifications
For the latest information on our products and a list of Kramer distributors,
visit our Web site where updates to this user manual may be found.
We welcome your questions, comments, and feedback.
Web site: www.kramerelectronics.com
E-mail: info@kramerel.com
P/N:
2900-002071
Rev:
4
!
SAFETY WARNIN G
Disconnect the unit from the power
supply before opening and servicing
