Kramer Electronics, Ltd.
USER MANUAL
Models:
TP-41,
TP-42,
Component – S/PDIF Line Transmitter
Component – S/PDIF Line Receiver
Contents
Contents
1
Introduction 1
2
Getting Started 1
2.1 Quick Start 1
3
Overview 3
3.1 About the TP-41 / TP-42 3
3.2 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP) 3
3.3 Recommendations for Achieving the Best Performance 4
4
Your Component – S/PDIF Line Transmitter and Line Receiver 4
4.1 Your TP-41 Component – S/PDIF Line Transmitter 4
4.1.1 Your TP-41 Component – S/PDIF Line Transmitter Topside 5
4.1.2 Your TP-41 Component – S/PDIF Line Transmitter Underside 6
4.2 Your TP-42 Component – S/PDIF Line Receiver 7
4.2.1 Your TP-42 Component – S/PDIF Line Receiver Topside 7
4.2.2 Your TP-42 Component – S/PDIF Line Receiver Underside 8
5
Connecting a Component – S/PDIF Distribution System 9
5.1 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors 10
6
Technical Specifications 11
Figures
Figure 1: TP-41 Component – S/PDIF Line Transmitter 5
Figure 2: TP-41 Component – S/PDIF Line Transmitter (Top Side Panel) 5
Figure 3: TP-41 Component – S/PDIF Line Transmitter (Lower Side Panel) 5
Figure 4: TP-41 Component – S/PDIF Line Transmitter Underside 6
Figure 5: TP-42 Component – S/PDIF Line Receiver 7
Figure 6: TP-42 Component – S/PDIF Line Receiver (Top Side Panel) 7
Figure 7: TP-42 Component – S/PDIF Line Receiver (Lower Side Panel) 7
Figure 8: TP-42 Component – S/PDIF Line Receiver Underside 8
Figure 9: Component – S/PDIF Distribution System up to 300ft (100m) UTP Cable 9

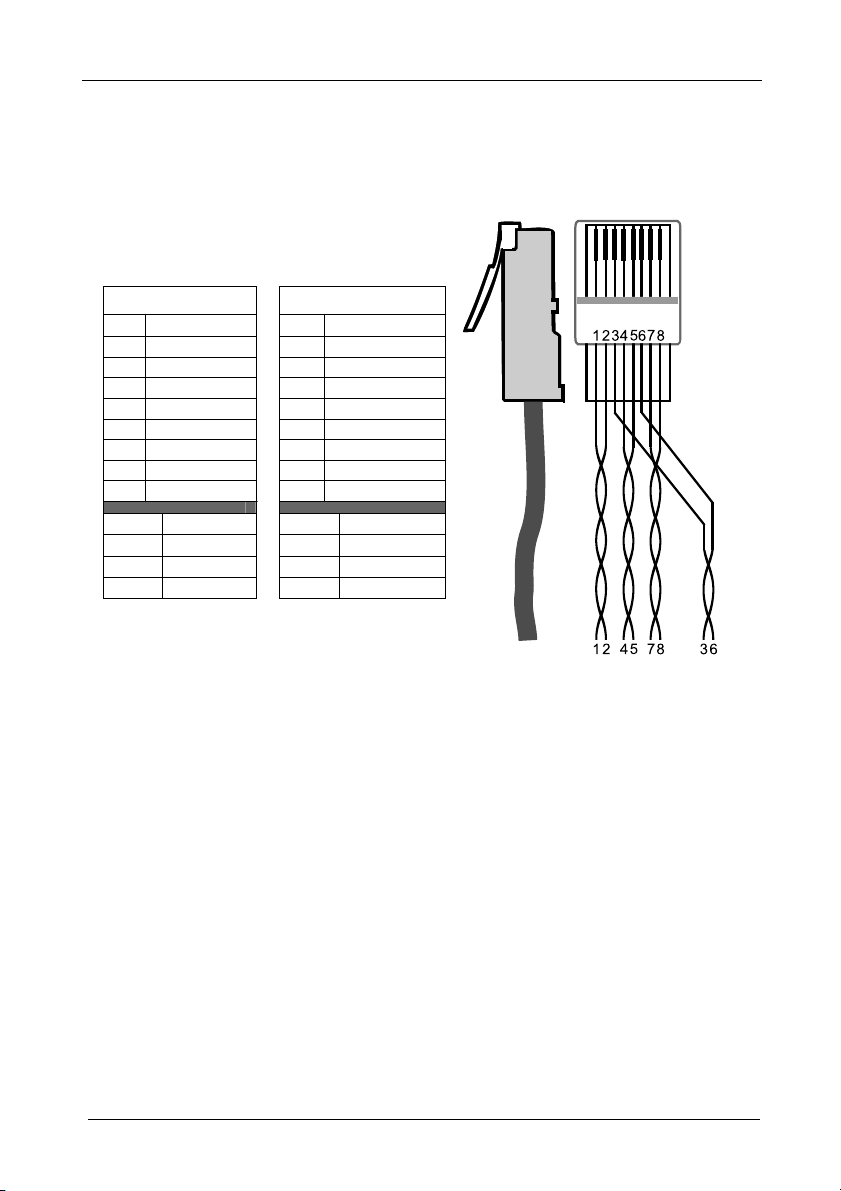

Figure 10: CAT 5 PINOUT 10
Tables
Table 1: TP-41 Component – S/PDIF Line Transmitter Features 5
Table 2: TP-41 Component – S/PDIF Line Transmitter Underside Features 6
Table 3: TP-42 Component – S/PDIF Line Receiver Topside Features 8
Table 4: TP-42 Component – S/PDIF Line Receiver Underside Features 8
Table 5: CAT 5 PINOUT 10
Table 6: Technical Specifications of the TP-41 / TP-42 11
i
Introduction
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
1,000-plus different models now appear in 11 groups1 that are clearly defined
by function.
Congratulations on purchasing your Kramer TOOLS TP-41 Component –
S/PDIF Line Transmitter and Kramer TOOLS TP-42 Component – S/PDIF
Line Receiver, which are particularly ideal for high quality home cinema.
The TP-41 and TP-42 are also suitable for utilizing existing UTP cabling that
results in an efficient, fast and uncluttered environment for:
Studios, airports, offices and hospitals
Security and military applications
The package includes the following items:
TP-41 and/or TP-42
Power supply2, and this user manual3
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables4
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:
Format/Standards Converters; GROUP 5: Twisted-Pair Solutions; GROUP 6: Specialty AV Products; GROUP 7: Scan
Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and
Rack Adapters; GROUP 11: Sierra Products
2 A separate power supply is included with each product. As an option, you can purchase the Kramer VA-50P 6 Port
Universal 12-Volt Power Supply, enabling you to supply power to up to 6 Kramer devices that require 12VDC
3 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com
4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
1
Getting Started
2
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
3 Overview
This section describes:
A summary of the TP-41 / TP-42, see section 3.1
Using shielded twisted pair (STP) / unshielded twisted pair (UTP), see
section 3.2
Recommendations for achieving the best performance, see section 3.3
3.1 About the TP-41 / TP-42
Using the TP-41 Component – S/PDIF Line Transmitter with the TP-42
Component – S/PDIF Line Receiver constitutes a Component – S/PDIF Line
transmitter / receiver system. The TP-42 receives the CAT 5 signal, decodes
it and simultaneously distributes it to the YUV output.
The TP-41 Component – S/PDIF Line Transmitter includes:
A YUV1 input on three RCA connectors
A digital audio input (S/PDIF) on an RCA connector
A CAT 5 output for signal transmission to the TP-42
Individual level controls for the Y, U, and V signals
Audio level control
The TP-42 Component – S/PDIF Line Receiver includes:
A YUV1 output on three RCA connectors
A digital audio output (S/PDIF) on an RCA connector
A CAT 5 input for signal reception from the TP-41
Individual level and EQ. controls for the Y, U, and V signals
Audio level and EQ. controls
Kramer twisted pair adapters are an excellent way to solve remote monitoring
requirements without using more costly coaxial cable or fiber, or wireless
transmission systems.
3.2 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP)
The decision whether to use shielded twisted pair (STP) cable or unshielded
twisted pair (UTP) cable depends on the nature of the application.
It is recommended that in applications with high interference, shielded
twisted pair (STP) cable is used. However, the shield itself does create a
capacitance that degrades the frequency response of the machines. For shorter
1 Also known as Y, B-Y, R-Y, or Y, Pb, Pr
3
Your Component – S/PDIF Line Transmitter and Line Receiver
distances, of 50m or so, shielded twisted pair (STP) cable is preferred because
it provides protection from interference (degradation is not apparent).
For long range applications, unshielded twisted pair (UTP) cable is preferred.
However, the unshielded twisted pair (UTP) cable should be installed far away from
electric cables, motors and so on, which are prone to create electrical interference.
In general, it is recommended to use shielded twisted pair (STP) skew-free
Kramer cable BC-SXTP for transmitting VGA signals, and shielded twisted
pair (STP) non-skew-free Kramer BC-STP cable for digital signals.
3.3 Recommendations for Achieving the Best Performance
Achieving the best performance means:
Connecting only good quality connection cables, thus avoiding
interference, deterioration in signal quality due to poor matching, and
elevated noise levels (often associated with low quality cables)
Avoiding interference from neighboring electrical appliances that may
adversely influence signal quality and positioning your TP-41 and/or
TP-42 in a location free from moisture and away from excessive sunlight
and dust
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit1.
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
4 Your Component – S/PDIF Line Transmitter and Line
Receiver
This section describes the:
TP-41 Component – S/PDIF Line Transmitter, see section 4.1
TP-42 Component – S/PDIF Line Receiver, see section 4.2
4.1 Your TP-41 Component – S/PDIF Line Transmitter
For a description of the TP-41:
Topside, see section 4.1.1
Underside, see section 4.1.2
1 For example: model number AD2512C, part number 2535-000251
4
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your Component – S/PDIF Line Transmitter and Line Receiver
4.1.1 Your TP-41 Component – S/PDIF Line Transmitter Topside
Figure 1, Figure 2, Figure 3 and Table 1 define the TP-41:
Figure 1: TP-41 Component – S/PDIF Line Transmitter
Figure 2: TP-41 Component – S/PDIF Line Transmitter (Top Side Panel)
Figure 3: TP-41 Component – S/PDIF Line Transmitter (Lower Side Panel)
Table 1: TP-41 Component – S/PDIF Line Transmitter Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 LINE OUT RJ-45 Connector
3 S/PDIF RCA Connector Connects to the digital audio source
4 V RCA Connector
5 U RCA Connector
INPUTS
6
7 ON LED Illuminates when receiving power
1 Using a straight pin to pin UTP cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 5 and Figure 10)
Y RCA Connector
Connects to the LINE IN connector on the TP-42
Connects to the component video source
1
5
Your Component – S/PDIF Line Transmitter and Line Receiver
4.1.2 Your TP-41 Component – S/PDIF Line Transmitter Underside
Figure 4 and Table 2 define the underside of the TP-41:
Figure 4: TP-41 Component – S/PDIF Line Transmitter Underside
Table 2: TP-41 Component – S/PDIF Line Transmitter Underside Features
# Feature Function
1 V LEVEL Trimmer Adjusts1 the V output signal level
2 U LEVEL Trimmer Adjusts1 the U output signal level
3 Y LEVEL Trimmer Adjusts1 the Y output signal level
4 AUDIO LEVEL Trimmer Adjusts1 the volume
1 Insert a screwdriver into the small hole and carefully rotate it, trimming the level
6
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your Component – S/PDIF Line Transmitter and Line Receiver
4.2 Your TP-42 Component – S/PDIF Line Receiver
For a description of the TP-42:
Topside, see section 4.2.1
Underside, see section 4.2.2
4.2.1 Your TP-42 Component – S/PDIF Line Receiver Topside
Figure 5, Figure 6, Figure 7 and Table 3 define the TP-42:
Figure 5: TP-42 Component – S/PDIF Line Receiver
Figure 6: TP-42 Component – S/PDIF Line Receiver (Top Side Panel)
Figure 7: TP-42 Component – S/PDIF Line Receiver (Lower Side Panel)
7
Your Component – S/PDIF Line Transmitter and Line Receiver
Table 3: TP-42 Component – S/PDIF Line Receiver Topside Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 LINE IN RJ-45 Connector
3 S/PDIF RCA Connector Connects to the digital audio acceptor
4 V RCA Connector
5 U RCA Connector
6
7 ON LED Illuminates when receiving power
OUTPUTS
Y RCA Connector
Connects to the LINE OUT connector on the TP-411
Connects to the component video acceptor
4.2.2 Your TP-42 Component – S/PDIF Line Receiver Underside

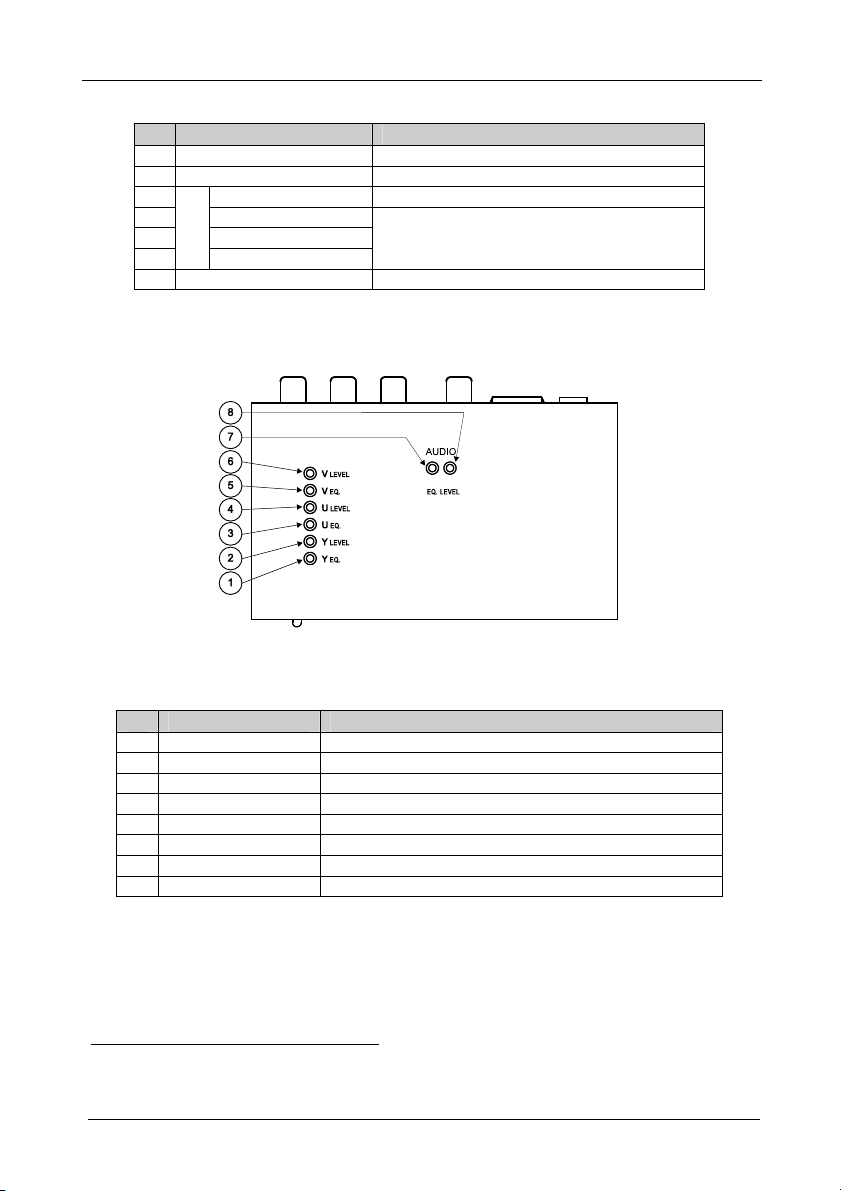

Figure 8 and Table 4 define the underside of the TP-42:
Figure 8: TP-42 Component – S/PDIF Line Receiver Underside
Table 4: TP-42 Component – S/PDIF Line Receiver Underside Features
# Feature Function
1 Y EQ. Trimmer Adjusts2 the cable compensation equalization level for output Y
2 Y LEVEL Trimmer Adjusts2 the Y output signal level
3 U EQ. Trimmer Adjusts2 the cable compensation equalization level for output U
4 U LEVEL Trimmer Adjusts2 the U output signal level
5 V EQ. Trimmer Adjusts2 the cable compensation equalization level for output V
6 V LEVEL Trimmer Adjusts2 the V output signal level
7 AUDIO EQ. Trimmer Adjusts2 the audio equalization level
8 AUDIO LEVEL Trimmer Adjusts2 the volume
1 Using a straight pin to pin UTP cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 5 and Figure 10)
2 Insert a screwdriver into the small hole and carefully rotate it, trimming the level
8
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting a Component – S/PDIF Distribution System
5 Connecting a Component – S/PDIF Distribution System
To configure a TP-41 / TP-42 Component – S/PDIF distribution system (for
example, for high quality home cinema), as Figure 9 illustrates, do the following:
1. On the TP-41, connect a component video source (for example, a DVD
player) to the:
Y, U, and V RCA (component video) INPUT connectors
S/PDIF (digital audio) RCA INPUT connector
2. On the TP-42, connect the:
Y, U, and V RCA (component video) OUTPUT connectors to a
component acceptor (for example, a plasma monitor)
S/PDIF (digital audio) RCA OUTPUT connector to an AV-Receiver
3. Connect the LINE OUT connector of the TP-41 to the LINE IN connector
of the TP-42, via UTP cabling (maximum range of up to 300ft (100m)).
4. On each TP-41 / TP-42 unit:
Connect a 12V DC power adapter to the power socket and connect the
adapter to the mains electricity1
If necessary, adjust2 the appropriate level(s), by inserting a
screwdriver into the small hole and carefully rotating it
Figure 9: Component – S/PDIF Distribution System up to 300ft (100m) UTP Cable
1 Note, the TP-41, TP-42 does not have the power connect feature
2 On the TP-41, adjust the audio level and/or the Y, U, and V levels. On the TP-42, adjust the audio level, the audio EQ., the
Y, U, and V levels, and/or the Y, U, and V EQ.
9
Connecting a Component – S/PDIF Distribution System
5.1 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors
Table 5 and Figure 10 define the CAT 5 PINOUT, using a straight pin to pin
cable with RJ-45 connectors:
Table 5: CAT 5 PINOUT
EIA /TIA 568A EIA /TIA 568B
PIN Wire Color PIN Wire Color
1 Green / White 1 Orange / White
2 Green 2 Orange
3 Orange / White 3 Green / White
4 Blue 4 Blue
5 Blue / White 5 Blue / White
6 Orange 6 Green
7 Brown / White 7 Brown / White
8 Brown 8 Brown
Pair 1 4 and 5 Pair 1 4 and 5
Pair 2 3 and 6 Pair 2 1 and 2
Pair 3 1 and 2 Pair 3 3 and 6
Pair 4 7 and 8
Pair 4 7 and 8
Figure 10: CAT 5 PINOUT
10
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Technical Specifications
6 Technical Specifications
Table 6 defines the technical specifications1:
Table 6: Technical Specifications2 of the TP-41 / TP-42
TP-41:
INPUTS:
MAX. OUTPUT LEVEL: VIDEO: 2.1Vpp AUDIO: 2.1Vpp (S/PDIF)
BANDWIDTH (-3dB): VIDEO: 57MHz3, Fully Loaded AUDIO: 53.4MHz3
DIFF. GAIN: 0.15%
DIFF. PHASE: 0.68 Deg
K-FACTOR: 0.8%
S/N RATIO: VIDEO: 78.1dB AUDIO: 78.4dB
CROSSTALK (all hostile): VIDEO: –55.5dB AUDIO: –50.5dB
CONTROLS:
COUPLING: VIDEO: DC AUDIO: DC
DIMENSIONS:
WEIGHT:
ACCESSORIES: Power Supply
1 set of component video (Y, U, V) on RCA connectors
1 S/PDIF (digital audio) on an RCA connector
TP-42:
1 RJ-45 CAT 5 shielded connector (Line In)
TP-41:
1 RJ-45 CAT 5 shielded connector (Line Out) OUTPUTS:
TP-42:
1 set of component video (Y, U, V) on RCA connectors
1 S/PDIF (digital audio) on an RCA connector
TP-41:
YUV Level: –1.7dB to +0.7dB
S/PDIF Level: –1.9dB to +0.4dB
TP-42:
YUV Level: –0.7dB to +0.8dB
YUV Equalization: 0 to +7.5dB
S/PDIF Level: –0.5dB to +1.2dB
S/PDIF Equalization: 0 to +7.8dB
TP-41:
12V DC, 95mA POWER SOURCE:
TP-42:
12V DC, 82mA
TP-41 / TP-42: 12cm x 7.5cm x 2.5cm (4.7" x 2.95" 0.98", W, D, H)
TP-41 / TP-42: 0.3kg (0.67lbs) approx.
1 Specifications for 100m of CAT5 UTP cable, unless otherwise specified
2 Specifications are subject to change without notice
3 At 30m
11
LIMI TED WARRAN TY
Kramer Electronics (hereafter ) warrants this product free from defects in material and workmanship under the
following terms.
HOW LONG IS THE WARRA NTY
Labor and parts are warranted for seven years from the date of the first customer purchase.
WHO IS PROTECTE D?
Only the first purchase customer may enforce this warranty.
WHAT IS COVERED AND WHAT IS NOT COVERED
Except as below, this warranty covers all defects in material or workmansh ip in this product. The following are not covered
by the warranty:
1. Any product which is n ot distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed, or on which the WARRANTY VOID
TAMPERED sticker has been torn,
IF reattached, removed or otherwise interfered with.
3. Damage, deterioration or malfunction resulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product d efect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product
WHAT WE WILL PAY FOR AND WHAT W E WI LL N OT PAY FOR
We will pay labor and material expenses for covered items. We will not pay for the following:
1. Removal or installations charges.
2. Costs of initial technical adjustments (set-up), including adjustment of u ser controls or programming. These costs are the
responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.
HOW YO U CA N GET WARRANT Y SERVI CE
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty
coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name,
company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
LIMI TATION OF IMPLI ED WARRA NTIES
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
EXCLUSIO N OF DAMAGES
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall
not be liable for:
1. Damage to other property caused by defects i n this product, damages based upon inconvenience, loss of use of the product, loss
of time, commercial loss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations and exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.
All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
NOTE:
This equipment has been tested to determine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility (EMC);
Residential, commercial and light industry"
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
CFR-47: FCC Rules and Regulations:
CAUTI ON!
12
generic emission standard.
Part 1:
Part 1: Residential, commercial and light industry environment".
Part 15: “Radio frequency devices
Subpart B Unintentional radiators”
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or
modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the
equipment.
Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables t o connect the machine to other components.
Kramer
KRAMER: SIMPLE CREATIVE TECHNOLOGY
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com,
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
Caution
Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: info@kramerel.com
P/N: 2900-000041 REV 4
Loading...
