USER MANUAL
MODEL:
Tavor 6-O
On-Wall Active Speakers
P/N: 2900-300516 Rev 1
www.kramerAV.com
Tavor 6-O – Contents
i
Contents
1 Introduction 1
2 Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Recycling Kramer Products 3
3 Overview 4
4 Defining the Tavor 6-O 6
5 Installing the Speakers 8
5.1 Choosing the Best Location 8
5.2 Installing the Speaker Wires 8
6 Technical Specifications 10
Figures
Figure 1: Active On-Wall Speakers in a Home Theater Setup 5
Figure 2: Active On-Wall Speakers in a Conference Room Setup 5
Figure 3: Tavor 6-O Active Speaker 6
Figure 4: Connecting the Active Speaker to the Passive Speaker 8
Tavor 6-O - Introduction
1
1
Boardrooms
Presentation venues
Conference rooms
Home theater
Educational classrooms
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront video, audio, presentation, and broadcasting professionals
on a daily basis. In recent years, we have redesigned and upgraded most of our
line, making the best even better!
Our 1,000-plus different models now appear in 14 groups that are clearly defined
by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;
GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:
Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:
Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11:
Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and
GROUP 14: Collaboration.
Congratulations on purchasing your Kramer Tavor 6-O On-Wall Active Speakers,
which are ideal for the following typical applications:
2
Tavor 6-O - Getting Started
Go to http://www.kramerav.com/downloads/TAVOR 6-O to check for up-to-
date user manuals, application programs, and to check if firmware upgrades
are available (where appropriate).
This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.
Do not open the housing of the speaker; doing so may reduce the
quality of the sound.
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
2.1 Achieving the Best Performance
To achieve the best performance:
Use only good quality connection cables (such as the Kramer BC-2S) to avoid
interference, deterioration in signal quality due to poor matching, and elevated
noise levels (often associated with low quality cables)
Do not secure the cables in tight bundles or roll the slack into tight coils
Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
Position your Kramer Tavor 6-O away from moisture, excessive sunlight and
dust
Tavor 6-O - Getting Started
3
3
2.2 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC
aims to reduce the amount of WEEE sent for disposal to landfill or incineration by
requiring it to be collected and recycled. To comply with the WEEE Directive,
Kramer Electronics has made arrangements with the European Advanced
Recycling Network (EARN) and will cover any costs of treatment, recycling and
recovery of waste Kramer Electronics branded equipment on arrival at the EARN
facility. For details of Kramer’s recycling arrangements in your particular country
go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.
4
Tavor 6-O - Overview
3 Overview
The Tavor 6-O is a powered two-way speaker system designed for indoor wall
mounting. The system accepts a line level stereo input and amplifies it using a
built-in amplifier and outputs a speaker signal to the passive speaker.
The Tavor 6-O speaker system features:
Three available inputs (for connecting to the individual input needed, or
connecting simultaneously to form a mix of the inputs) that consist of:
A Line level unbalanced stereo audio input on a 3.5mm mini jack
connector
A balanced stereo audio input on a 5-pin terminal block connector
An unbalanced stereo audio input on two RCA connectors
An output to a non-amplified speaker
A unique looping output, letting you chain additional pairs of active and
passive speakers
TREBLE, BASS and VOLUME control knobs
A control panel on the back of the active speaker that controls all the
functions of both speakers
A magnetic shield
Enhanced bass reflex design
An integrated 2x50W stereo amplifier (no external amplifier required)
A self-adjusting power range of 90 to 240V AC
Auto-ON selector button
The Tavor 6-O is enclosed in an ABS cabinet and can be mounted indoors on the
wall, vertically or horizontally. The mounting brackets are made of hardened steel
that attach to each speaker, letting you rotate each speaker to the left or right
when installed vertically (or up and down if installed horizontally).
Tavor 6-O - Overview
5
5

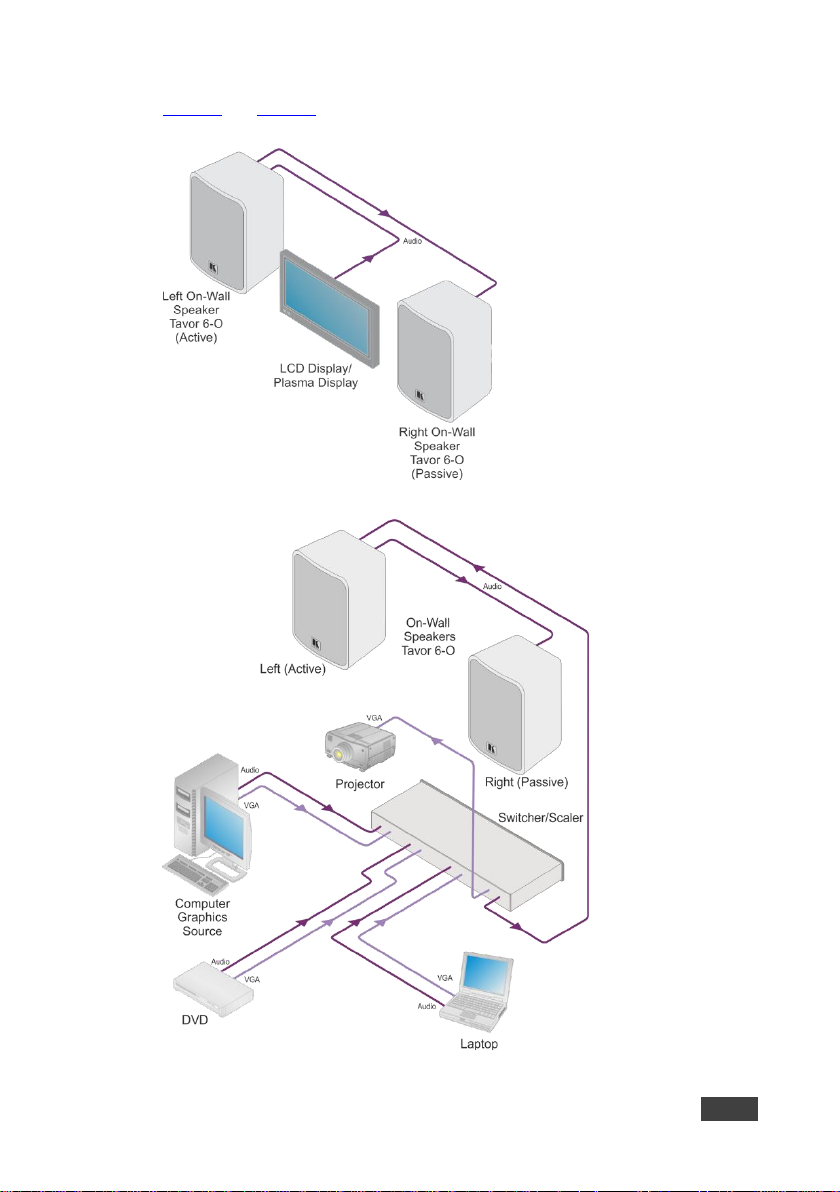

Figure 1 and Figure 2 show examples of how the speakers can be installed in
conference room and home theater setups, respectively.
Figure 1: Active On-Wall Speakers in a Home Theater Setup
Figure 2: Active On-Wall Speakers in a Conference Room Setup
6
Tavor 6-O - Defining the Tavor 6-O
4 Defining the Tavor 6-O
This section defines the active Tavor 6-O:
Figure 3: Tavor 6-O Active Speaker
Tavor 6-O - Defining the Tavor 6-O
7
7
#
Feature
Function
1
ON/AUTO Switch
Set to AUTO for the speakers to enter the
standby mode when idle for over 10 minutes.
Once a signal is detected the speakers power
up again.
Set to ON to keep the speaker powered
continuously
2
SPEAKER OUT Connectors
Connect the active speaker to the (+) and (-)
stereo sockets on the passive speaker
The L speaker is active and the R speaker is
passive
3
PWR/STBY LED
Illuminates in green when powered (ON/AUTO
switch set to ON or AUTO – see item 1)
illuminates in red when in the standby mode
(ON/AUTO switch is set to AUTO – see item 1)
In the AUTO mode (ON/AUTO switch is set to
AUTO – see item 1), the LED illuminates
green if an input signal is detected and
illuminates red if idle for over 10 minutes
4
INPUT
Connectors
5-pin Terminal Block
Connect the audio source to one or more of the
input connectors
5
L and R RCA
6
3.5mm Mini Jack
7
BASS Control Knob
Rotate the button to control the bass
8
TREBLE Control Knob
Rotate the button to control the treble
9
VOLUME Control knob
Rotate the button to adjust the audio volume
10
AC-Input Power Supply (selfadjusting)
Connect to the AC power cord
11
POWER Switch
For turning the unit ON (–) or OFF (O)
12
LOOP OUTPUT 3.5mm Mini Jack
Connector
Connect to another pair of active speakers
13
SUB OUT 3.5mm Mini Connector
If required, connect an active sub-woofer to this
output for maximum bass reproduction
8
Tavor 6-O - Installing the Speakers
Active Speaker (L)
Passive Speaker (R)

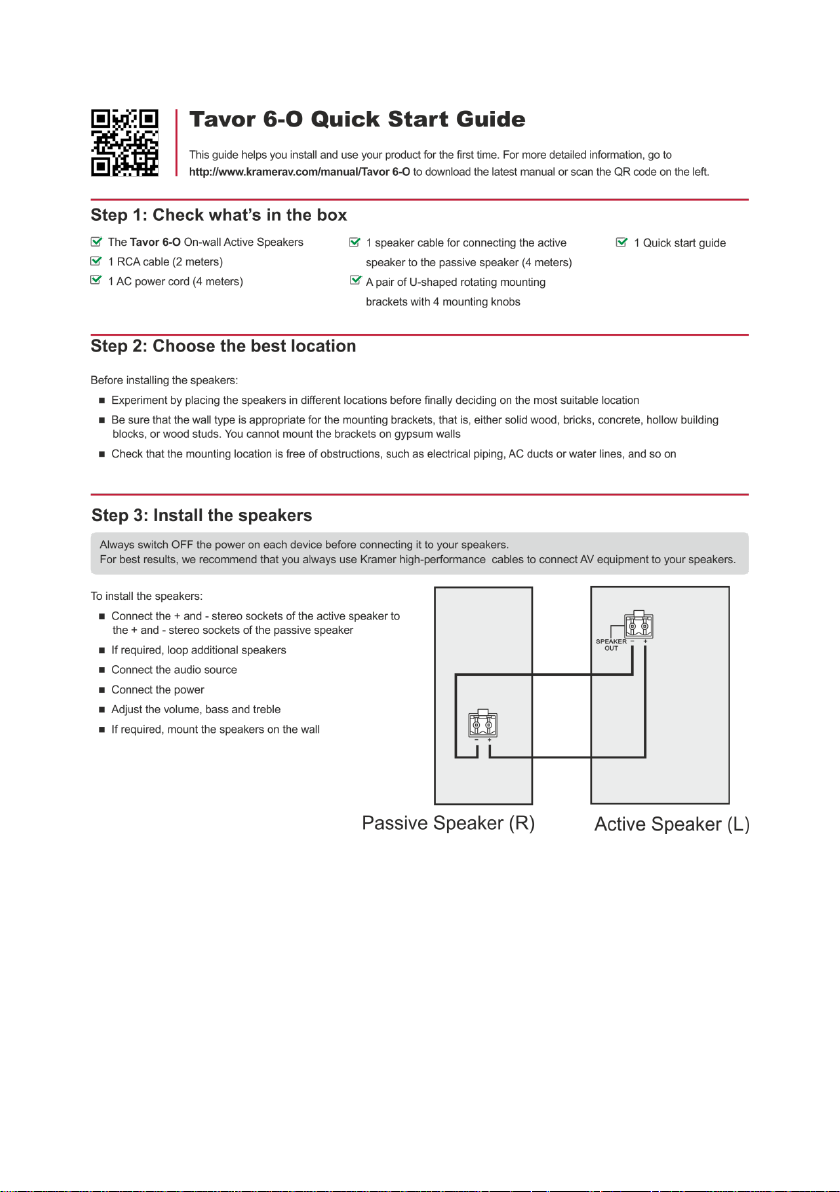

5 Installing the Speakers
This section explains how to:
Choose the best location for your speakers (see Section 5.1)
Install the speaker wires (see Section 5.2)
5.1 Choosing the Best Location
Before installing the speakers:
Experiment by placing the speakers in different locations before finally
deciding on the most suitable location
Be sure that the wall type is appropriate for the mounting brackets, that is,
either solid wood, bricks, concrete, hollow building blocks, or wood studs. You
cannot mount the brackets on gypsum walls
Check that the mounting location is free of obstructions, such as electrical
piping, AC ducts or water lines, and so on
5.2 Installing the Speaker Wires
To install the speakers, do the following:

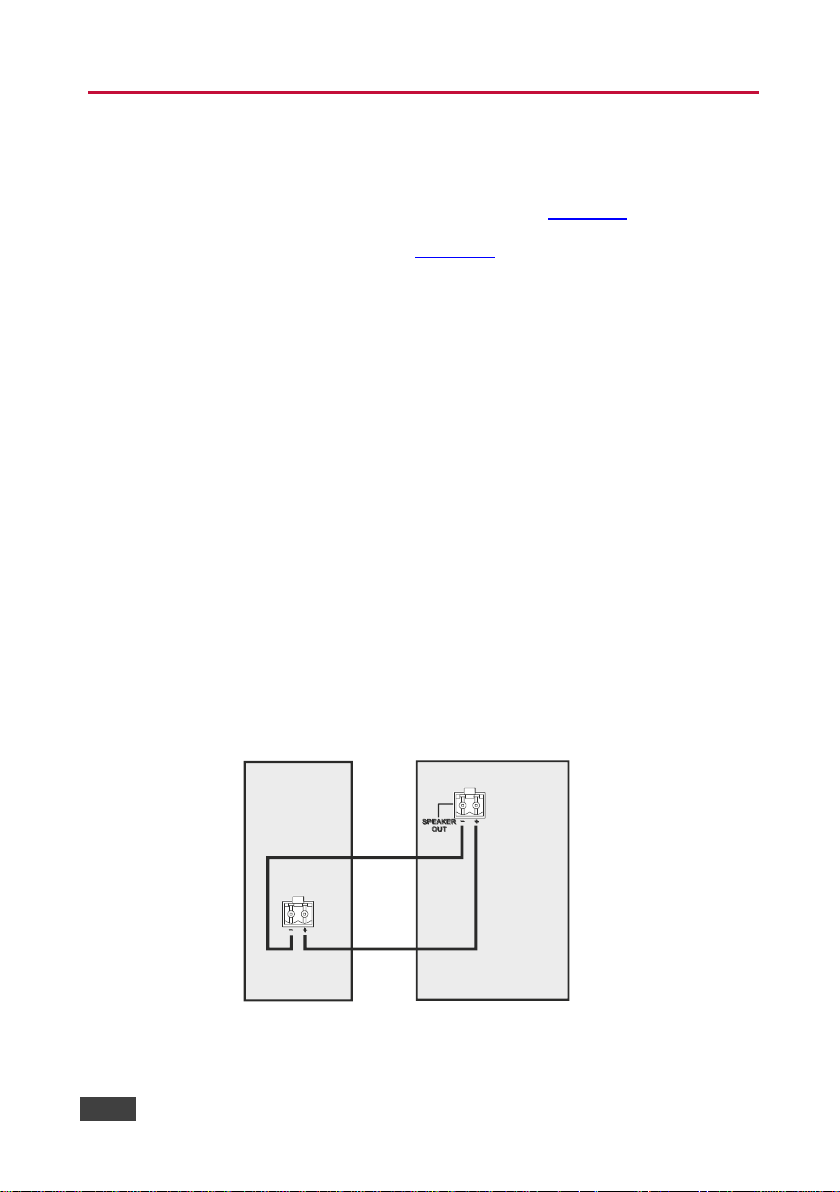

Figure 4: Connecting the Active Speaker to the Passive Speaker
1. Connect the + and - stereo sockets of the active speaker to the + and stereo sockets of the passive speaker using the cable supplied, as follows:
Tavor 6-O - Installing the Speakers
9
9
2. Connect the audio source (for example, a CD or a DVD player and so on) to
one of the INPUT connectors on the active speaker.
3. Connect the power.
4. Adjust the volume on the input source.
5. Adjust the volume control on the rear side control panel.
6. Adjust the bass and treble control on the rear side control panel.
7. If required, connect an additional set of speakers by connecting the LOOP
OUTPUT connector to the input of a second active speaker.
8. If required, mount the speaker on the wall via the removable mounting
brackets. To do so:
Mark the location of the mounting holes
Screw the mounting screws (not included in the package) into the
mounting holes
Slide the mounting bracket over the mounting screws so that the
mounting bracket is secured to the surface
10
Tavor 6-O - Technical Specifications
Audio and Power
DESCRIPTION:
2-way powered speaker
BUILT IN POWER AMPLIFIER:
2 X 50W RMS
2 X 140W continuous program
FREQUENCY RESPONSE:
45Hz to 20kHz @ -10dB
50Hz to 20kHz @ -3dB
WOOFER:
6 1/2” polypropylene cone with rubber edge woofer
TWEETER
1” Silk dome tweeter
SENSITIVITY:
85dB SPL, 1W@1m
MAX SPL:
Continuous: 100dB
Peak:108dB
POWER SOURCE:
90−240V AC 50/60Hz
IMPEDANCE
4Ω
CROSSOVER FREQUENCY:
8kHz
DIRECTIVITY FACTOR (Q):
7.5 averaged 1kHz to 10kHz
DIRECTIVITY INDEX (DI):
8.7dB averaged 1kHz to 10kHz
INPUT CONNECTORS:
Line level unbalanced stereo audio on a 3.5mm mini jack
Line level balanced stereo audio on a terminal block
connector
Line level unbalanced stereo audio on left and right RCA
connectors
OUTPUT CONNECTORS:
Speaker (to connect to the external passive speaker)
3.5mm mini jack lineout for optional sub-woofer
3.5mm mini jack Loop output
DISPERSION COVERAGE:
Vertical: 54 degrees @2000Hz
Horizontal: 65 degrees @2000Hz
DAMPING FACTOR:
19 @ 4Ω/1000Hz
S/N RATIO:
80-90dB
THD:
≦0.15%
CONTROLS:
Volume, bass and treble
INPUT POWER:
ON or AUTO
STANDBY MODE POWER CONSUMPTION:
0.5W
INPUT LEVEL FOR SYSTEM “WAKE-UP”
FROM STANDBY MODE:
12mV
6 Technical Specifications
Tavor 6-O - Technical Specifications
11
11
Shipping and Installation
MATERIALS:
Aluminum grill, steel brackets, ABS cabinet
WEIGHT PER SINGLE SPEAKER:
Active Speaker: 3.6kg (7.93lbs) approx.
Passive Speaker: 2.7kg (5.93lbs) approx.
WEIGHT WITH MOUNTING KIT:
Active Speaker: 4.2kg (9.25lbs) approx.
Passive Speaker: 3.2kg (7.05lbs) approx.
SHIPPING WEIGHT (FOR PAIR):
9.25kg (20.39lbs) approx.
DIMENSIONS:
21cm x18.6cm x 30.2cm (8.3” x7.3” x11.9”)
W, D, H
DIMENSIONS with mounting brackets:
21cm x25cm x32cm (8.3” x9.8” x12.6”)
W, D, H
INSTALLATION CLEARANCE:
Front panel to wall (with mounting bracket): 25cm (9.8”)
Back panel to wall (with mounting bracket): 6.3cm (2.5”)
OPERATING TEMPERATURE:
-15° to +70°C (5° to 158°F)
STORAGE TEMPERATURE:
-30° to +55°C (-22° to 131°F)
HUMIDITY:
25% to 90%, RHL non-condensing
ACCESSORIES:
1 pair of U-shaped rotating mounting brackets with 4 mounting
knobs; 4m (13.12ft) power cord; 4m (13.12ft) loudspeaker
cable; and a 2m (6.6ft) 3.5mm to 2 RCA cable
COLORS:
Available in white or black
Specifications are within a 10% tolerance and are subject to change without notice at
http://www.kramerelectronics.com
1
P/N:
2900-300516
Rev:
1
SAFETY WARNING
Disconnect the unit from the power supply before opening and servicing
For the latest information on our products and a list of Kramer distributors,
visit our Web site where updates to this user manual may be found.
We welcome your questions, comments, and feedback.
www.kramerAV.com
info@kramerel.com
Loading...
