Kramer Electronics, Ltd.
USER MANUAL
Wall Plate Models:
SV-301
SV-302
SV-303
SV-304
SV-305
Contents
Contents
1
Introduction 1
2
Getting Started 1
3
Overview 2
4
Defining the Wall Plates (for the United States) 3
4.1 SV-301 and SV-302 (for the United States) 3
4.2 SV-303, SV-304, and SV-305 (for the United States) 4
5
Defining the Wall Plates (for Europe) 6
5.1 SV-301 and SV-302 (for Europe) 6
5.2 SV-303, SV-304, and SV-305 (for Europe) 7
6
Wiring the Rear Panel Connectors 9
6.1 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors 9
6.2 Wiring the CAT 5 LINE IN / LINE OUT Terminal Block Connectors 10
7
Summary of Recommended Cables 11
Tables
Table 1: Defining the SV-301 and SV-302 (for the U.S.) 3
Table 2: Defining the SV-303, SV-304 and SV-305 (for the U.S.) 4
Table 3: Defining the SV-303, SV-304, SV-305 Rear (for the U.S.) 5
Table 4: Enclosing a Wall Plate (for the U.S.) in its Plastic Frame 5
Table 5: Defining the SV-301 (for England and Europe) 6
Table 6: Defining the SV-302 (for England and Europe) 6
Table 7: Defining the SV-303 (for England and Europe) 7
Table 8: Defining the SV-304 (for Europe) 7
Table 9: Defining the SV-305 (for Europe) 8
Table 10: CAT 5 PINOUT (for the USA) 9
Table 11: Terminal Block Connector PINOUT (for Europe) 10
Table 12: Cables for use with the SV-301/SV-302/SV-303/SV-304/SV-305 11
i
Introduction
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range
of problems that confront the video, audio, presentation, and broadcasting
professional on a daily basis. In recent years, we have redesigned and upgraded
most of our line, making the best even better! Our 1,000-plus different models
now appear in 11 groups1 that are clearly defined by function.
Congratulations on purchasing your Kramer SV-301, SV-302, SV-303, SV-304,
and/or SV-305 wall plate device. Each is designed to work as an integral part of
Kramer’s A/V SummitView™ Standard Kit and the SummitView™ Essentials
Kit or as a standalone product controlled via a room controller—RC-63DL,
RC-62P, RC-62L, RC-63AL, RC-63AP, or RC-63DP2—in a multimedia
classroom or conference room.
The packageincludes:
One of the following items: SV-301, SV-302, SV-303, SV-304, or SV-305
This user manual2
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original boxes and packaging
materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables3, as recommended in
section 7
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:
Format/Standards Converters; GROUP 5: Twisted-Pair Solutions; GROUP 6: Specialty AV Products; GROUP 7: Scan
Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and
Rack Adapters; GROUP 11: Sierra Products
2 Download the user manual at: http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
1
Overview
3 Overview
This user manual describes the:
SV-301 and SV-302—provided as the default wall plate devices with the
SummitView™ Standard Kit and the SummitView™ Essentials Kit and
described in that user manual, as well as in sections 4.1 (the U.S. version)
and 5.1 (the European version)
SV-303, SV-304 and SV-305 in sections 4.2 (the U.S. version) and 5.2 (the
European version)
To achieve the best performance:
Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noiselevels (often associated with low quality cables)
Avoid interference from neighboring electrical appliances and position your
Kramer Wall Plate away from moisture, excessive sunlight and dust
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit1.
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
1 For example: model number AD2512C, part number 2535-000251
2
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Defining the Wall Plates (for the United States)
4 Defining the Wall Plates (for the United States)
Section 4.1 defines the SV-301 and SV-302, and section 4.2 defines the
SV-303, SV-304 and SV-305.
4.1 SV-301 and SV-302 (for the United States)
Table 1 defines the front and rear views of the SV-301 and SV-302:
Table 1: Defining the SV-301 and SV-302 (for the U.S.)
SV-301: 2 RJ-45 CAT5
Connectors
SV-302 1 RJ-45 CAT5
Connector
# Feature Function
1 ON LED Lights in RED when
2 COMPUTER
IN 15-pin HD
Connector
3 AUDIO IN
3.5mm Mini
Plug
receiving power (when no
signal is detected); lights in
GREEN when receiving a
signal
Connect to the computer
graphics source
Connects to the audio
source
# Feature Function
1 L AUDIO
IN RCA
Connector
2 ON LED Lights in RED when receiving
3 R AUDIO
IN RCA
Connector
4 VIDEO IN
RCA
Connector
5 IR OUT
3.5mm
Mini Plug
Connect to the left analog
audio source
power (when no signal is
detected); lights in GREEN
when receiving a signal
Connect to the right analog
audio source
Connect to the composite video
source
Connect to a machine via an IR
Emitter
3
Defining the Wall Plates (for the United States)
Connector
s

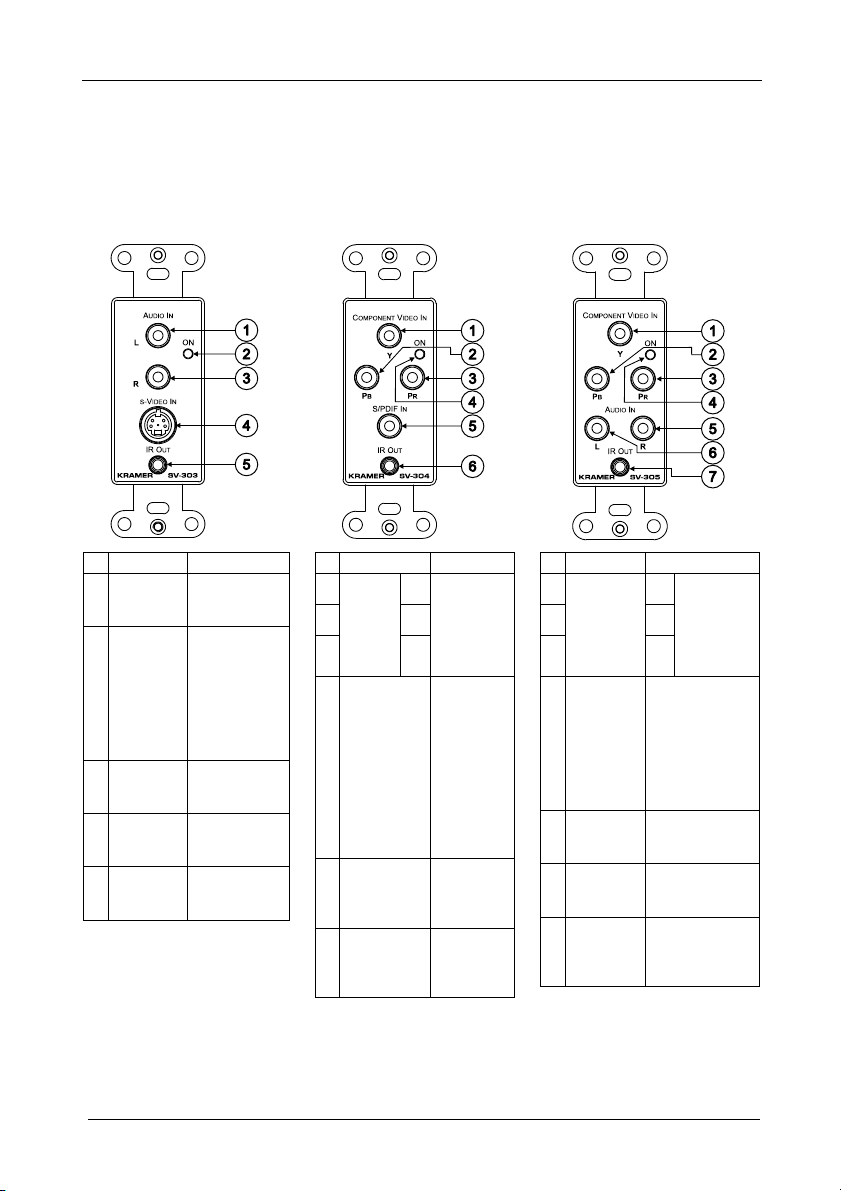

4.2 SV-303, SV-304, and SV-305 (for the United States)
Table 2 and Table 3 define the front and rear views of the SV-303, SV-304 and
SV-305, respectively:
Table 2: Defining the SV-303, SV-304 and SV-305 (for the U.S.)
SV-303: SV-304: SV-305:
# Feature Function
1 L AUDIO
IN RCA
Connector
2 ON LED Lights in RED
3 R AUDIO
IN RCA
Connector
4 s-VIDEO IN
4p
Connector
5 IR OUT
3.5mm
Mini Plug
Connect to the
left analog
audio source
when receiving
power (when
no signal is
detected); lights
in GREEN
when receiving
a signal
Connect to the
right analog
audio source
Connect to the
s-Video source
Connect to a
machine via
an IR Emitter
# Feature Function
1 Y
2 PB
3
4 ON LED Lights in
5 S/PDIF IN
RCA
Connector
6 IR OUT
3.5mm Mini
Plug
PR
COMPONENT
VIDEO IN RCA
Connect to
the
component
video
source
RED when
receiving
power (when
no signal is
detected);
lights in
GREEN
when
receiving a
signal
Connect to
the digital
audio
source
Connect to
a machine
via an IR
Emitter
# Feature Function
1 Y
2 PB
3
COMPONENT
VIDEO IN RCA
4 ON LED Lights in RED
5 R AUDIO
IN RCA
Connector
6 L AUDIO
IN RCA
Connector
7 IR OUT
3.5mm
Mini Plug
Connect to
the
component
video
PR
source
Connectors
when receiving
power (when no
signal is
detected); lights
in GREEN when
receiving a
signal
Connect to the
right analog
audio source
Connect to the
left analog audio
source
Connect to a
machine via an
IR Emitter
4
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Defining the Wall Plates (for the United States)
Table 3: Defining the SV-303, SV-304, SV-305 Rear (for the U.S.)
SV-303: SV-304 and SV-305:

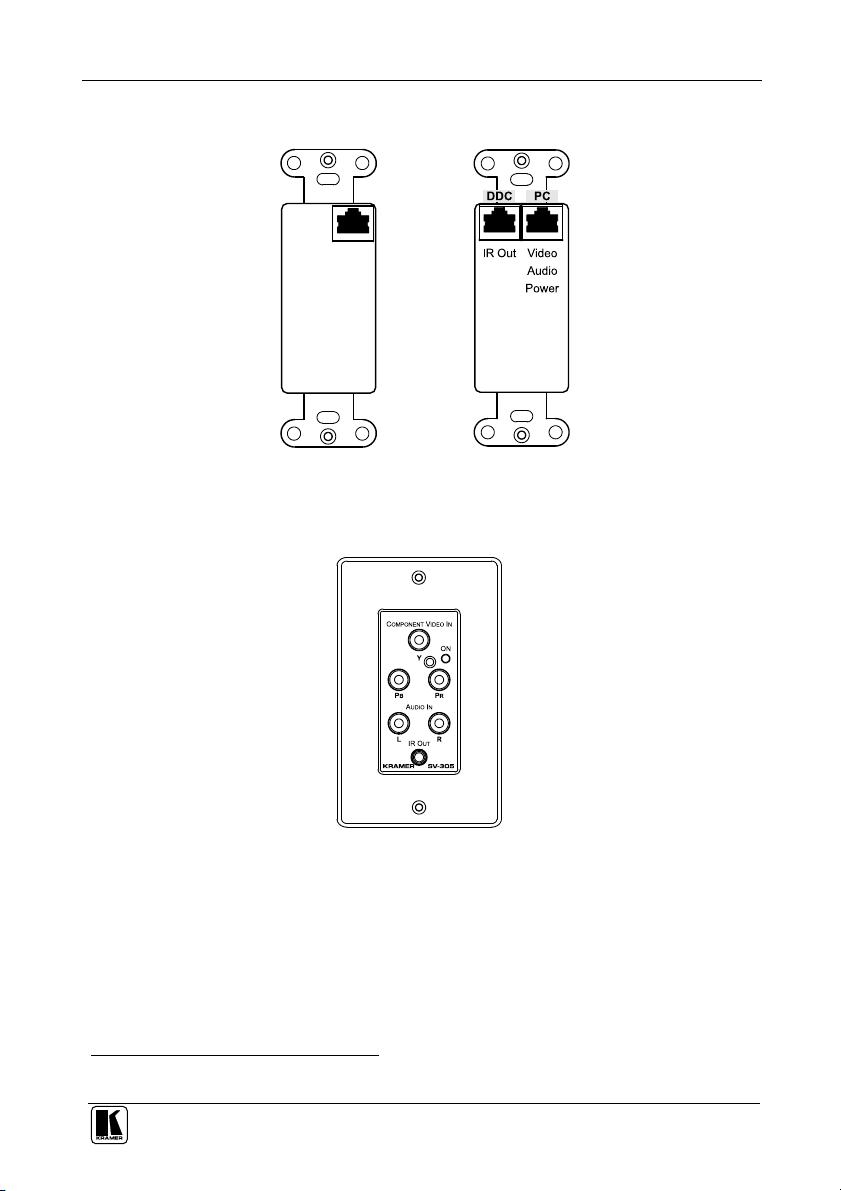

1 RJ-45 CAT5 Connector 2 RJ-45 CAT5 Connectors
Table 4 defines the SV-305, as an example, in its plastic frame:
Table 4: Enclosing a Wall Plate (for the U.S.) in its Plastic Frame1
1 Each model that is designed specifically for the US market fits inside a plastic frame
5
Defining the Wall Plates (for Europe)
5 Defining the Wall Plates (for Europe)
Section 5.1 defines the SV-301 and SV-302, and section 5.2 defines the
SV-303, SV-304 and SV-305.
5.1 SV-301 and SV-302 (for Europe)
The SV-301 and SV-302 are 1 Gang wall plate inserts. The SV-301 has two
terminal block connectors at the rear and the SV-302 has one.
Table 5: Defining the SV-301 (for England and Europe)1
# Feature Function
1 ON LED Lights in RED when
2 COMPUTER IN
15-pin HD
Connector
3 AUDIO IN 3.5mm
Mini Plug
Table 6: Defining the SV-302 (for England and Europe)1
# Feature Function
1 ON LED Lights in RED when receiving
2 L AUDIO IN
RCA Connector
3 R AUDIO IN
RCA Connector
4 VIDEO IN RCA
Connector
5 IR OUT 3.5mm
Mini Plug
receiving power (when no
signal is detected); lights
in GREEN when receiving
a signal
Connect to the computer
graphics source
Connects to the audio
source
power (when no signal is
detected); lights in GREEN
when receiving a signal
Connect to the left analog
audio source
Connect to the right analog
audio source
Connect to the composite video
source
Connect to a machine via an
IR Emitter
1 When mounting in Belgium and Germany, use the standard WP Adapter
6
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Defining the Wall Plates (for Europe)
5.2 SV-303, SV-304, and SV-305 (for Europe)
The SV-303 is a 1 Gang wall plate insert with one RJ-45 CAT5 connector at
the rear. The SV-304 and SV-305 are 2 Gang wall plate inserts with two RJ-45
CAT 5 connectors at the rear (available in a single version for Europe).
Table 7: Defining the SV-303 (for England and Europe)1
# Feature Function
1 ON LED Lights in RED when receiving
2 L AUDIO IN
RCA Connector
3 R AUDIO IN
RCA Connector
4 s-VIDEO IN 4p
Connector
5 IR OUT 3.5mm
Mini Plug
Connector
Table 8: Defining the SV-304 (for Europe)
power (when no signal is
detected); lights in GREEN
when receiving a signal
Connect to the left analog
audio source
Connect to the right analog
audio source
Connect to the s-Video source
Connect to a machine via an
IR Emitter
# Feature Function
1 ON LED Lights in RED when receiving power (when no signal
2 Y
COMPONENT VIDEO
IN RCA Connectors
3 PB
4
5 S/PDIF IN RCA Connector Connect to the digital audio source
6 IR OUT 3.5mm Mini Plug Connect to a machine via an IR Emitter
is detected); lights in GREEN when receiving a signal
Connect to the component video source
PR
1 When mounting in Belgium and Germany, use the standard WP Adapter
7
Defining the Wall Plates (for Europe)
Table 9: Defining the SV-305 (for Europe)
# Feature Function
1 ON LED Lights in RED when receiving power (when no signal
2 Y
COMPONENT VIDEO IN
RCA Connectors
3 PB
4
5 L AUDIO IN RCA Connector Connect to the left analog audio source
6 R AUDIO IN RCA Connector Connect to the right analog audio source
7 IR OUT 3.5mm Mini Plug Connect to a machine via an IR Emitter
is detected); lights in GREEN when receiving a signal
Connect to the component video source
PR
8
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Wiring the Rear Panel Connectors
6 Wiring the Rear Panel Connectors
STP cabling of 50' (15.24m)1 in length is provided with the Kramer A/V
SummitView™ Standard Kit and the SummitView™ Essentials Kit2. When
required, longer STP cabling can be used when purchased for stand alone wall
plates but we recommend a maximum transmission range of up to 100'
(30.48m). Exceeding the recommended distance may result in reduced image
quality.
This section describes how to connect the rear panel for the:
US wall plate versions (see section 6.1)
European wall plate versions (see section 6.2)

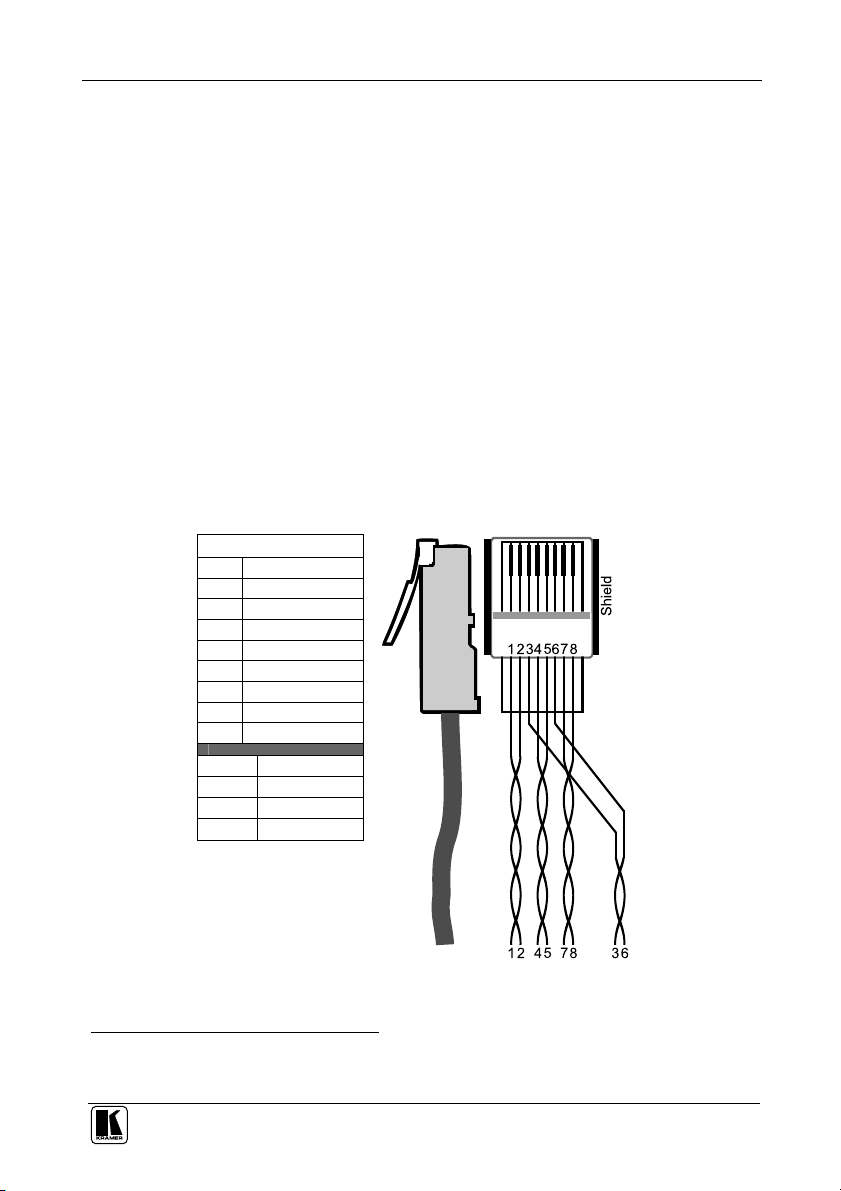

6.1 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors
The US versions of the SV wall plates are equipped with RJ-45 terminals.
Table 10 defines the STP CAT 5 PINOUT, using a straight pin to pin cable
with RJ-45 connectors:
Table 10: CAT 5 PINOUT (for the USA)
EIA /TIA 568B
PIN Wire Color
1 Orange / White
2 Orange
3 Green / White
4 Blue
5 Blue / White
6 Green
7 Brown / White
8 Brown
Pair 1 4 and 5
Pair 2 1 and 2
Pair 3 3 and 6
Pair 4 7 and 8
1 Plenum-rated for the SummitView™ US version; non-plenum for the SummitView™ Europe
2 Or should be purchased separately for a stand alone machine, see Table 12 for reference
9
Wiring the Rear Panel Connectors
Brown
Brown
Brown / White
Brown / White
Green / White
Green / White
Orange / White
Orange / White
Brown
Brown / White
Green / White
Orange / White
6.2 Wiring the CAT 5 LINE IN / LINE OUT Terminal Block Connectors
The European versions are equipped with an easy plug-in terminal for the CAT
5 cables. Use the color coded sticker on these terminals for proper connection
of the CAT 5 cable.
Table 11 defines the PINOUT of the terminal block connectors:
Table 11: Terminal Block Connector PINOUT (for Europe)
SV-301, SV-304, SV-305 Rear Panel PINOUT SV-302, SV-303 Rear Panel PINOUT
Orange
Blue
Blue / White
Green
Gnd
PC
DDC
Orange
Blue
Blue / White
Green
Gnd
Orange
Blue
Blue / White
Green
Video
Notes:
The “PC” section has 9 PINs; the “DDC” section has 8 PINs. Only use the
connector clips to remove the wires, not when inserting them
Each wire protrudes 9mm in length from the plastic casing so that it can be
easily connected. To prevent the wires crossing, be sure that each wire is
completely inserted
With STP cable, the Gnd pin is used for shielding. For the DDC channel,
shielding is not needed, but if desired, connect the GND pin of the PC
10
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Summary of Recommended Cables
7 Summary of Recommended Cables
Table 12 defines the cables that should be purchased for use with the SV-301 /
SV-302 / SV-303/ SV-304 / SV-305:
Table 12: Cables for use with the SV-301/SV-302/SV-303/SV-304/SV-305
Item Description
SV-301 Cable set
CP-STP-50 / C-STP-50 (2 cables1)2 STP cable 50' (15.24m)
C-MGM/MGM-3 (1 cable)3 Molded Micro VGA to VGA cable 3' (0.91m)
SV-302 Cable set
CP-STP-50 / C-STP-50 (1 cable1)2 STP cable 50' (15.24m)
C-RVM/RVM-3 (1 cable)3 Molded RCA RG-59 video cable 3' (0.91m)
SV-303 Cable set
CP-STP-50 / C-STP-50 (1 cable1)2 STP cable 50' (15.24m)
C-SM/SM-3 (1 cable)3 Molded 4-PIN s-Video cable 3' (0.91m)
SV-304 Cable set
CP-STP-50 / C-STP-50 (2 cables1)2 STP cable 50' (15.24m)
C-R3VM/R3VM-3 (1 cable)3 3 RCA Component cable (Male-Male) 3' (0.91m)
SV-305 Cable set
CP-STP-50 / C-STP-50 (2 cables1)2 STP cable 50' (15.24m)
C-R3VM/R3VM-3 (1 cable)3 3 RCA Component cable (Male-Male) 3' (0.91m)
1 There are two types of STP cable provided with SummitView™: CP-STP-50 (plenum-rated for the SummitView™ US) or
C-STP-50 (non-plenum for the SummitView™ Europe)
2 Connect the Wall Plate to the SV-551
3 Connects the SV-551 to the projector
11
LIMI TED WARRANT Y
Kramer Electronics (hereafter ) warrants this product free from defects in material and workmanship under the
following terms.
HOW LONG IS THE WARRA NTY
Labor and parts are warranted for seven years from the date of the first customer purchase.
WHO IS PROTECT ED?
Only the first purchase customer may enforce this warranty.
WHAT IS COVERED AND WHAT IS NOT COVERED
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered
by the warranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed, or on which the WARRANTY VOID
TAMPERED sticker has been torn,
IF reattached, removed or otherwise interfered with.
3. Damage, deterioration or malfunction resulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product
WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR
We will pay labor and material expenses for covered items. We will not pay for the following:
1. Removal or installations charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.
HOW YO U CA N G ET WARRANTY SERVICE
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty
coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name,
company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
LIMI TATION OF IMPLI ED WARRANT IES
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
EXCLUSIO N OF DAMAGES
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall
not be liable for:
1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss
of time, commercial loss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations and exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.
All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
NOTE:
This equipment has been tested to determine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility (EMC);
Residential, commercial and light industry"
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
CFR-47: FCC Rules and Regulations:
CAUT ION!
generic emission standard.
Part 1:
Part 1: Residential, commercial and light industry environment".
Part 15: “Radio frequency devices
Subpart B Unintentional radiators”
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or
modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the
equipment.
Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables to connect the machine to other components.
Kramer
12
KRAMER: SIMPLE CREATIVE TECHNOLOGY
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com,
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
Caution
Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: info@kramerel.com
P/N: 2900-000474 REV 1
Loading...
