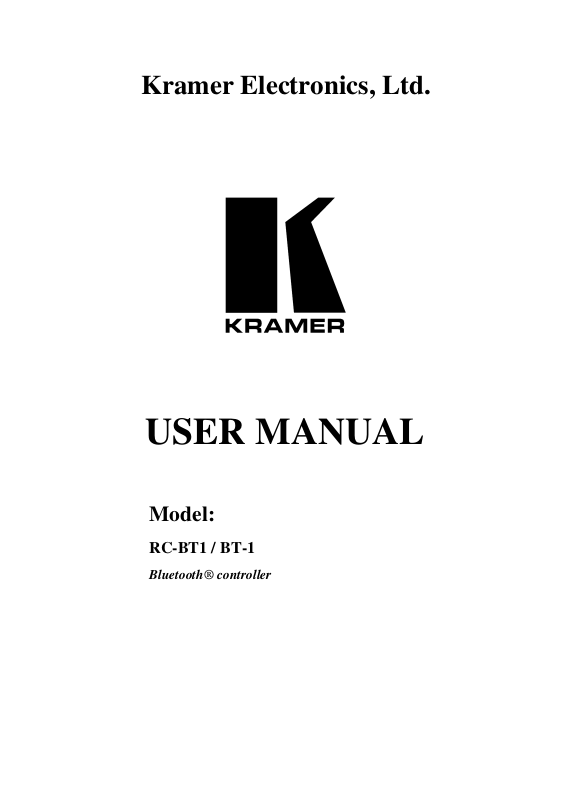

Kramer Electronics RC-BT1, BT-1 User Manual
Kramer Electronics, Ltd.
USER MANUAL
Model:
RC-BT1 / BT-1
Bluetooth® controller
Contents
Contents
1
Introduction 1
2
Getting Started 1
3
Overview 1
3.1 Your BT-1 Bluetooth® controller 2
4
Using the Bluetooth® controller 3
4.1 Bluetooth® controller Internal Settings 3
4.1.1 Preset Master and Slave Definition 3
4.1.2 Preset DCE Definition 3
4.2 Connecting and Operating the Bluetooth® controller 3
5
Technical Specifications 4
Figures
Figure 1: BT-1 Bluetooth® controller 2
Figure 2: BT-1 Bluetooth® controller Setup 4
Tables
Table 1: Features and Functions of the BT-1 Bluetooth® controller 3
Table 2: Technical Specifications of the BT-1 Bluetooth® controller 4
i
Introduction
1 Introduction
Dedication by Kramer Electronics since 1981, to the development and
manufacture of high quality video/audio equipment, makes the Kramer line
an integral part of the finest production and presentation facilities in the
world. In recent years, Kramer has redesigned and upgraded most of the line,
making the best even better! The Kramer line of professional video/audio
electronics is one of the most versatile and complete available, and is a true
leader in terms of quality, workmanship, price/performance ratio and
innovation. In addition to our high quality controllers, like the Kramer BT-1
Bluetooth® controller, we also offer excellent switchers and matrices,
distribution amplifiers, presentation processors, interfaces, and
computer-related products. Congratulations on purchasing your Kramer BT-1
Bluetooth® controller. This product is ideal for:
Wireless control in a video and/or audio studio
Presentation applications via remote control of RS-232 devices
The package includes the following items:
A pair of BT-1 Bluetooth® controller units
2 power adapters (5V DC Input)
Null-modem adapter
This user manual1 and the Kramer concise product catalog/CD
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
3 Overview
Bluetooth® technology is a short-range radio link connectivity that facilitates
RS-232 communication between 2 devices2, without the need for a direct
cable connection. In this way you can wirelessly transmit commands from a
PC or other controller to a Kramer RS-232 controlled device (such as a
switcher) without connecting a cable directly between the PC and the
switcher.
1 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com/manuals.html
2 A transceiver chip that transmits and receives, is included in each device
1
