Kramer Electronics, Ltd.
USER MANUAL
Model:
PT-101HDCP
DVI Repeater
Contents
Contents
1 Introduction 1
2 Getting Started 1
2.1 Quick Start 1
3 Overview 3
3.1 About HDCP 3
3.2 Recommendations for Best Performance 3
4 Your PT-101HDCP DVI Repeater 4
5 Connecting a PT-101HDCP DVI Repeater 5
6 Technical Specifications 6
Figures
Figure 1: PT-101HDCP DVI Repeater 4
Figure 2: Connecting the PT-101HDCP DVI Repeater 5
Tables
Table 1: PT-101HDCP DVI Repeater Features 4
Table 2: Technical Specifications of the PT-101HDCP DVI Repeater 6
i
Introduction
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solution s to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have redesigned
and upgraded most of our line, making the best even better! Our 1,000-plus
different models now appear in 11 groups
1
that are clearly defined by
function.
Congratulations on purchasing your PT-101HDCP DVI Repeater, which is
ideal for:
• Multimedia installations
• Home cinema installations
The package includes the following items:
• PT-101HDCP DVI Repeater
• Power adapter (5V DC Input)
• This user manual
2
2 Getting Started
We recommend that you:
• Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
• Review the contents of this user manual
• Use Kramer high performance high resolution cables
3
2.1 Quick Start
Thi
s quick start chart summarizes the basic setup and operation steps.
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:
Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialt y AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Conn ectivity; GROUP 10: Accessories
and Rack Adapters; GROUP 11: Sierra Products
2 Download up-to-date Kramer user manuals from our Web site: http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
1
Getting Started
2
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
3 Overview
The Kramer Pico TOOLS PT-101HDCP DVI Repeater:
• Is a high quality line driver for DVI-D signals that extends the standard
transmission range of standard DVI distances from 5m to up to 10m
(16.4ft to up to 32.8ft)
• Can be powered by an external power supply, or directly—from DVI
connectors on Kramer Scalers, as well as from some desktop DVI cards—
without requiring an external power supply
• Supports the DDWG DVI 1.0 standard
• Has two DVI-I connectors, that are compatible with all types of DVI cables
Note that only the digital signal (DVI-D) is available on the DVI connector.
3.1 About HDCP
The Hi
gh-Bandwidth Digital Conte nt Prot ection (HDCP) standard
digital video and audio signals transmitted over DVI or HDMI connections
between two HDCP-enabled devices to eliminate the reproduction of
copyrighted material. To protect copyright holders (such as movie studios)
from having their programs copied and shared, the HDCP standard provides
for the secure and encrypted transmission of digital signals.
3.2 Recommendations for Best Performance
hieve the best performance:
To ac
• Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise
levels (often associated with low quality cables)
• Avoid interference from neighboring electrical appliances that may
adversely influence signal quality and position your Kramer
PT-101HDCP away from moisture, excessive sunlight and dust
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
1
2
3
4
.
, protects
1 The distance can be longer, depending on the cable type and the resolution
2 If the unit does not seem to work properly, you can connect an external power supply
3 Developed by Intel
4 For example, part number 2535-052002
3
Your PT-101HDCP DVI Repeater
4 Your PT-101HDCP DVI Repeater
Figure 1 and Table 1 define the PT-101HDCP DVI Repeater:
Figure 1: PT-101HDCP DVI Repeater
Table 1: PT-101HDCP DVI Repeater Features
# Feature Function
1
5V DC
2 OUTPUT DVI Connector Connect to the DVI acceptor
3 INPUT DVI Connector Connect to the DVI source
4 ON LED Illuminates when receiving power. The POWER LED is colored:
+5V DC connector for powering the unit
Yellowish-green, when the 5V DC power source is connected but no
input signal is received
Red, when an input signal is received and the 5V DC power source
is disconnected
Orange when both the 5V DC power source is connected and an
input signal is received
4
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting a PT-101HDCP DVI Repeater
5 Connecting a PT-101HDCP DVI Repeater
To connect the PT-101HDCP, as illustrated in the example in Figure 2, do the
following:
1. Con n e ct t h e DVI source (for example, a DVI gra phi c s sou r c e) t o t h e
INPUT connector.
2. Connect the OUTPUT connector to a DVI acceptor (for example, a
display).
3. Connect the 5V DC power adapter to the power socket on the PT-101HDCP
and connect the adapter to the mains electricity.

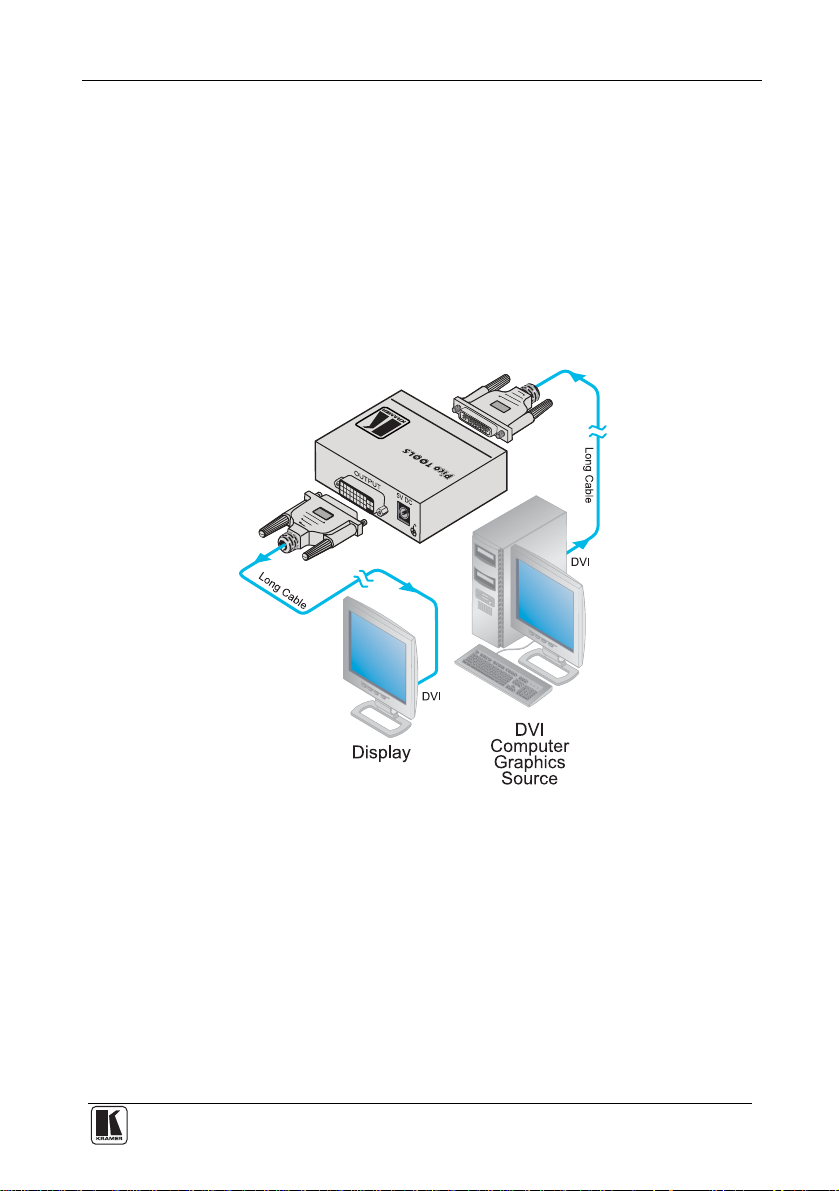

Figure 2: Connecting the PT-101HDCP DVI Repeater
5
Technical Specifications
6 Technical Specifications
Table 2 includes the technical specifications:
Table 2: Technical Specifications1 of the PT-101HDCP DVI Repeater
INPUT: 1 DVI, 1.2Vpp on a DVI Molex 24pin female connector; DDC signal 5Vpp (TTL)
OUTPUT: 1 DVI, 1.2Vpp on DVI Molex 24pin female connectors; DDC signal 5Vpp (TTL)
BANDWIDTH: Supports up to 2.25Gbps bandwidth
POWER SOURCE: 5V DC 18 0 mA
DIMENSIONS: 6.22cm x 5.23cm x 3.20cm (2.5" x 2.1" x 1.3"), W, D, H
WEIGHT: 0.07kg (0.16lbs) approx.
ACCESSORIES: Power supply, mounting bracket
OPTIONS: Kramer DVI cables2
1 Specifications are subject to change without notice
2 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
6
KRAMER: SIMPLE CREATIVE TECHNOLOGY
LIMITED WARRANTY
Kramer Electronics (hereafter ) warrants this product free from defects in material and workma nship unde r the
following terms.
HOW LO NG IS THE W ARR ANTY
Labor and parts are warranted for three years from the date of the first cus tomer purchase.
WHO IS PROTEC TED?
Only the first purchase customer may enforce this warranty.
WHAT IS COVERED AND WHAT IS NO T COVERED
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered
by the warranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed, or on which the WARRANTY VOID
IF reattached, removed or otherwise interfered with.
TAMPERED sticker has been torn,
3. Damage, deterioration or malfunction resulting from:
i) Accident, mis use, abu se, ne glect, f ire, wate r, l ightnin g or othe r acts of nature
ii) Pro duct m odific ation, or failu re to foll ow instr uction s suppli ed wit h the pro duct
iii) Repair or attempte d repai r by anyo ne not a uthori zed by Kr amer
iv) Any shipm ent of the pr oduct (cla ims m ust be pres ented to th e carri er)
v) Remova l or i nstalla tion of th e produ ct
vi) Any other cau se, which does n ot relate to a prod uct de fect
vii)Cartons, eq uipmen t enclos ures , cables o r acces sories used in conjunc tion wi th the p roduct
WHAT WE WILL PA Y FOR AND WHAT WE WILL NOT PA Y FOR
W e will p ay labor a nd mat erial ex penses for cov ered i tems. We will not pay for the fol lowing:
1. Removal or installations charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
respon sibili ty of the Krame r deale r from wh om the produ ct was pu rchas ed.
3. Shipping charges.
HOW YOU CA N GE T WARRANT Y SERV ICE
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty
coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name,
company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service cen ter, consult your authorized dealer.
LIMITATION OF IMPLIED W ARRANTIES
All implied warranties, including warranties of merchantability and fi tn ess for a particular purpose, are limited in duration to
the length of this warranty.
EXCLUSION OF DAMAGES
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall
not be liable for:
1. Damage to other p roperty c aused b y defect s in this product , damage s based upon inc onven ience, lo ss of use of the pro duct, l oss
of time, commercial loss ; or:
2. Any other dam ages , w het her i nci den tal, conse que nti al o r oth erw ise. S ome c oun tri es ma y n ot a llow lim ita tion s on ho w lon g an
implied warr anty lasts and/or do not allow the excl usion or limitation of incidental or conseque ntial damages, so the above
limitati ons and exclus ions ma y not app ly to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.
All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
NOTE:
This equipment has bee n tested to determine com pliance with the requiremen ts of:
EN-50081: "Electromagnetic compatibility (EMC);
Residential, commercial an d light industry"
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
CFR-47: FCC* Rules and Regulati ons:
CAUTIO N!
generic emiss ion stand ard.
Part 1:
Part 1: Residential, commer cial and light industry enviro nment".
Part 15: “Radio frequency devices
Subpart B Unintentional radiators”
Servicing the machines can only be done by an authorized Kramer techni cian. Any user who makes changes or
modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the
equipment.
Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables to connect the machine to other components.
* FCC and CE app roved usi ng STP cable (f or twiste d pair p roducts)
Kramer
7
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com,
where updat
es to this user manual may be found.
We welcome your questions, comments and feedback.
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
Caution
Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: info@kramerel.com
P/N: 2900-000511 REV 2
