Kramer Electronics, Ltd.
USER MANUAL
Models:
FC-47,
FC-48,
HDMI to DVI/ Audio Converter
DVI/ Audio to HDMI Converter
Contents
Contents
1
Introduction 1
2
Getting Started 1
2.1 Quick Start 2
3
Overview 3
3.1 FC-47 / FC-48 Input/Output Resolutions 4
4
Your FC-47 HDMI to DVI/ Audio Converter 5
4.1 Connecting the FC-47 HDMI to DVI/ Audio Converter 6
5
Your FC-48 DVI/ Audio to HDMI Converter 7
5.1 Connecting the FC-48 DVI/ Audio to HDMI Converter 8
6
Technical Specifications 9
Figures
Figure 1: FC-47 HDMI to DVI/ Audio Converter 5
Figure 2: Connecting the FC-47 HDMI to DVI/ Audio Converter 6
Figure 3: FC-48 DVI/ Audio to HDMI Converter 7
Figure 4: Connecting the FC-48 DVI/ Audio to HDMI Converter 8
Tables
Table 1: FC-47 PC Input/Output Resolutions 4
Table 2: FC-47 HD Input/Output Resolutions 4
Table 3: FC-48 PC Input/Output Resolutions 4
Table 4: FC-48 HDTV Input/Output Resolutions 4
Table 5: FC-47 HDMI to DVI/ Audio Converter Features 5
Table 6: FC-48 DVI/ Audio to HDMI Converter Features 7
Table 7: Technical Specifications of the FC-47 HDMI to DVI/ Audio Converter 9
Table 8: Technical Specifications of the FC-48 DVI/ Audio to HDMI Converter 9
i
Introduction
1 Introduction
Welcome to Kramer Electronics (since 1981): a world of unique, creative and
affordable solutions to the infinite range of problems that confront the video,
audio and presentation professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
500-plus different models now appear in 8 Groups1, which are clearly defined
by function. Congratulations on purchasing your Kramer TOOLS FC-47
HDMI2 to DVI/ Audio Converter and/or Kramer TOOLS FC-47 HDMI2 to
DVI/ Audio Converter. The FC-47 and FC-48 are ideal for:
Home theater, presentation and multimedia applications
Rental and staging
The package includes the following items:
FC-47 or FC-48
Power adapter (12V DC Input)
This user manual3
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables4
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit1.
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 High-Definition Multimedia Interface
3 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com
4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
1
Getting Started
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.
1 For example: model number AD2512C, part number 2535-000251
2
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
3 Overview
High-Definition Multimedia Interface (HDMI) is an uncompressed all-digital1
audio/video interface, widely supported in the entertainment and home cinema
industry. It delivers the highest high-definition image and sound quality. Note that
Kramer Electronics Limited is an HDMI Adopter2 and an HDCP Licensee3. In
particular, HDMI:
Provides a simple4 interface between any audio/video source, such as a
set-top box, DVD player, or A/V receiver and video monitor, such as a digital
flat LCD / plasma television (DTV), over a single lengthy5 cable
Supports standard, enhanced, high-definition video, and multi-channel
digital audio6 on a single cable
Transmits all ATSC HDTV standards and supports 8-channel digital audio,
with bandwidth to spare to accommodate future enhancements and requirements
Benefits consumers by providing superior, uncompressed digital video
quality via a single cable7, and user-friendly connector
Is backward-compatible with DVI (Digital Visual Interface)
Supports two-way communication between the video source (such as a
DVD player) and the digital television, enabling new functionality such as
automatic configuration and one-button play
HDMI has the capacity to support existing high-definition video formats (720p,
1080i, and 1080p/60), as well as standard definition formats such as NTSC or PAL.
Achieving the best performance means:
Connecting only good quality connection cables, thus avoiding
interference, deterioration in signal quality due to poor matching, and elevated
noise levels (often associated with low quality cables)
Avoiding interference from neighboring electrical appliances that may
adversely influence signal quality and positioning your FC-47 and/or FC-48
in a location free from moisture and away from excessive sunlight and dust
1 Ensuring an all-digital rendering of video without the losses associated with analog interfaces and their unnecessary digital-
to-analog conversions
2 See http://www.hdmi.org/about/adopters_founders.asp
3 See http://www.digital-cp.com/list/
4 With video and multi-channel audio combined into a s ingle cable, the cost, complexity, and confusion of multiple cables
currently used in A/V systems is reduced
5 HDMI technology has been designed to use standard copper cable construction at up to 15m
6 HDMI supports multiple audio formats, from standard stereo to multi-channel surround-sound. HDMI has the capacity to
support Dolby 5.1 audio and high-resolution audio formats
7 HDMI provides the quality and functionality of a digital interface while also supporting uncompressed video for mats in a
simple, cost-effective manner
3
Overview
3.1 FC-47 / FC-48 Input/Output Resolutions
This section describes the:
FC-47 PC input/output resolutions, see Table 1
FC-47 HD input/output resolutions, see Table 2
FC-48 PC input/output resolutions, see Table 3
FC-48 HDTV input/output resolutions, see Table 4
Table 1: FC-47 PC Input/Output Resolutions
VGA1@60Hz
SVGA2@60Hz
XGA3@60Hz
XGA3@87Hz
UXGA5@60Hz
VGA1@72Hz VGA1@75Hz VGA1@85Hz
SVGA2@72Hz SVGA2@75Hz SVGA2@85Hz
XGA3@70Hz XGA3@75Hz XGA3@85Hz
SXGA4@60Hz
SXGA4@75Hz SXGA4@85Hz
1152@70Hz 1152@75Hz 1152@85Hz
Table 2: FC-47 HD Input/Output Resolutions
480i@60Hz 576i@50Hz 480P@60Hz 576P@50Hz 720P@60Hz
720P@50Hz 1080i@60Hz 1080i@50Hz 1080P@60Hz 1080P@50Hz
1080P@30Hz 1080P@25Hz 1080P@24Hz
Table 3: FC-48 PC Input/Output Resolutions
VGA1@60Hz VGA1@72Hz VGA1@75Hz VGA1@85Hz
SVGA2@60Hz SVGA2@72Hz SVGA2@75Hz SVGA2@85Hz
XGA3@60Hz XGA3@70Hz XGA3@75Hz XGA3@85Hz
XGA3@87Hz SXGA4@60Hz SXGA4@75Hz SXGA4@85Hz
UXGA5@60Hz 1152@70Hz 1152@75Hz 1152@85Hz
Table 4: FC-48 HDTV Input/Output Resolutions
480P@60Hz 576P@50Hz 720P@50Hz 720P@60Hz 1080i@50Hz
1080i@60Hz 1080P@60Hz 1080P@50Hz 1080P@30Hz 1080P@25Hz
1080P@24Hz
1 640x480
2 800x600
3 1024x768
4 1280x1024
5 1600x1200
4
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your FC-47 HDMI to DVI/ Audio Converter
4 Your FC-47 HDMI to DVI/ Audio Converter
The high quality FC-47 HDMI to DVI/ Audio Converter accepts an HDMI
input and converts the HDMI signal to a digital video DVI (DVI-D) output and
a digital audio S/PDIF output. In particular, the FC-47:
Lets you connect your HDMI source to a DVI HDCP display and enjoy
high quality digital audio at the same time (note that when the HDMI input is
HDCP encrypted the DVI output is encrypted as well)
Features input format auto detection: digital RGB or YPbPr
Supports an operation frequency of up to 1.65Gbps
Is 12VDC fed
Is HDCP compliant
Is Plug and Play
Figure 1 and Table 5 define the FC-47 HDMI to DVI/ Audio Converter:
Figure 1: FC-47 HDMI to DVI/ Audio Converter
Table 5: FC-47 HDMI to DVI/ Audio Converter Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 DVI OUT Connector Connects to the DVI acceptor
3 S/PDIF OUT RCA Connector Connects to the digital audio acceptor
4 ON LED Illuminates when receiving power
5 HDMI IN Connector Connects to the HDMI source
5
Your FC-47 HDMI to DVI/ Audio Converter
4.1 Connecting the FC-47 HDMI to DVI/ Audio Converter
To connect the FC-47, as the example in Figure 2 shows, do the following1:
1. Connect the DVI OUT connector to the DVI acceptor (for example, a
plasma display).
2. Connect the S/PDIF RCA OUT connector to the digital audio acceptor
(for example, an AV receiver).
3. Connect the HDMI source (for example, an HDMI set top box) to the
HDMI IN connector.
4. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity.
Note that only the digital signal (DVI-D) is available on the DVI connector.

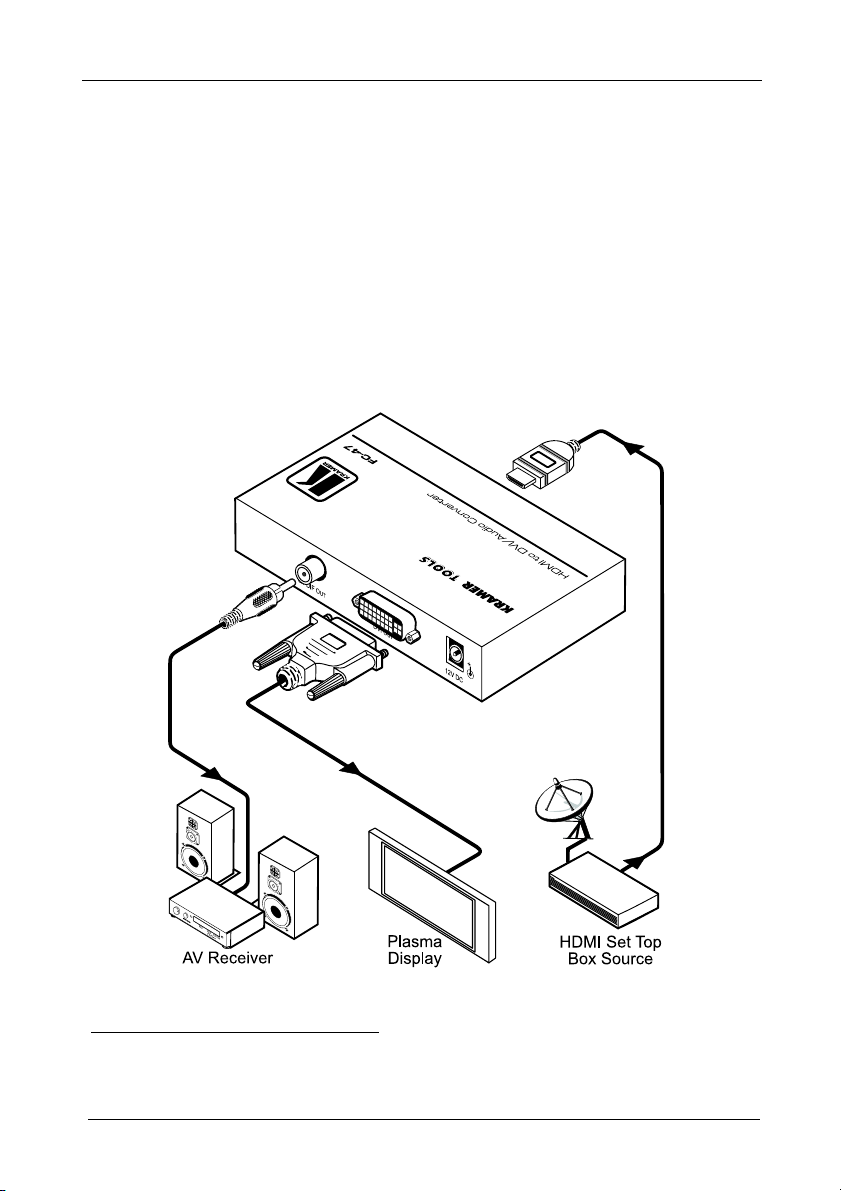

Figure 2: Connecting the FC-47 HDMI to DVI/ Audio Converter
1 Switch OFF the power on each device before connecting it to your FC-47. After connecting your FC-47, switch on its
power and then switch on the power on each device
6
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your FC-48 DVI/ Audio to HDMI Converter
5 Your FC-48 DVI/ Audio to HDMI Converter
The high quality FC-48 DVI/ Audio to HDMI Converter accepts a DVI input
and an S/PDIF input, and combines both these digital A/V signals into an
HDMI output. In particular, the FC-48:
Adds HDMI output capability to your DVI source so that, for example, an
HDMI television can be used with your DVI source with sound
Supports an operation frequency of up to 1.65Gbps per graphic channel
Features input format auto detection: digital RGB or YPbPr
Is 12VDC fed
HDCP compliant
Is Plug and Play
Figure 3 and Table 6 define the FC-48 DVI/ Audio to HDMI Converter:
Figure 3: FC-48 DVI/ Audio to HDMI Converter
Table 6: FC-48 DVI/ Audio to HDMI Converter Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 HDMI OUT Connector Connects to the HDMI acceptor
3 ON LED Illuminates when receiving power
4 S/PDIF IN RCA Connector Connects to the digital audio source
5 DVI IN Connector Connects to the DVI source
7
Your FC-48 DVI/ Audio to HDMI Converter
5.1 Connecting the FC-48 DVI/ Audio to HDMI Converter
To connect the FC-48, as the example in Figure 4 shows, do the following1:
1. Connect the HDMI OUT connector to the HDMI acceptor (for example,
an LCD TV with built-in speakers).
2. Connect the DVI source (for example, a multimedia player) to the:
DVI IN connector
S/PDIF (digital audio) RCA IN connector
3. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity.
Figure 4: Connecting the FC-48 DVI/ Audio to HDMI Converter
1 Switch OFF the power on each device before connecting it to your FC-48. After connecting your FC-48, switch on its
power and then switch on the power on each device
8
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Technical Specifications
6 Technical Specifications1
Table 7 and Table 8 define the technical specifications:
Table 7: Technical Specifications of the FC-47 HDMI to DVI/ Audio Converter
INPUT: HDMI Connector
OUTPUTS: 1 DVI2, 1.2Vpp on a DVI Molex 24pin female connector; DDC signal 5Vpp (TTL)
OPERATION
FREQUENCY:
COMPLIANCE WITH
HDMI STANDARD:
INDICATOR LED: ON
POWER SOURCE: 12 VDC 180mA
DIMENSIONS: 12cm x 7.2cm x 2.4cm (4.73" x 2.83" 0.95", W, D, H)
WEIGHT: 0.3 kg. (0.67 lbs.) approx.
ACCESSORIES: Power supply, bracket installation kit
OPTIONS: Kramer cables
Table 8: Technical Specifications of the FC-48 DVI/ Audio to HDMI Converter
INPUTS: 1 DVI2, 1.2Vpp on a DVI Molex 24pin female connector; DDC signal 5Vpp (TTL)
OUTPUT: HDMI Connector
OPERATION
FREQUENCY:
COMPLIANCE WITH
HDMI STANDARD:
INDICATOR LED: ON
POWER SOURCE: 12 VDC 190mA
DIMENSIONS: 12cm x 7.2cm x 2.4cm (4.73" x 2.83" 0.95", W, D, H)
WEIGHT: 0.3 kg. (0.67 lbs.) approx.
ACCESSORIES: Power supply, bracket installation kit
OPTIONS: Kramer cables
1 S/PDIF (digital audio) on an RCA connector
Supports up to 1.65Gbps
Supports HDMI 1.1, HDCP3 1.0
1 S/PDIF (digital audio) on an RCA connector
Supports up to 1.65Gbps
Supports DVI 1.0, HDMI 1.1, and HDCP3 1.0
1 Specifications are subject to change without notice
2 On a DVI-I connector. Note that only the digital signal (DVI-D) is available on the DVI connector
3 Compliant with HDCP 1.1 and downward compatible with HDCP 1.0
9
10
LIMITED WARRANTY
Kramer Electronics (hereafter Kramer) warrants this product free from defects in material and workmanship under the
following terms.
HOW LONG IS THE WARRANTY
Labor and parts are warranted for seven years from the date of the first customer purchase.
WHO IS PROTECTED?
Only the first purchase customer may enforce this warranty.
WHAT IS COVERED AND WHAT IS NOT COVERED
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered by
the warranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agent s listed in the web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed.
3. Damage, deterioration or malfunction resulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product defect
vii) Carto ns, equipment enclosures, cables or accessories used in conjunction with the product
WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR
We will pay labor and material expenses for covered items. We will not pay for the following:
1. Removal or installations charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.
HOW YOU CAN GET WARRANTY SERVICE
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty coverage,
and should be included in any shipment of the product. Please also include in any mailing a contact name, company, address, and
a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
LIMITATION OF IMPLIED WARRANTIES
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
EXCLUSION OF DAMAGES
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer
shall not be liable for:
1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss o f use of t he product, loss
of time, commercial loss; or:
2. Any o ther damages, whether incide ntal, consequential o r otherwise. Some countries may not allow limitations o n how long an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations and exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.
NOTE: All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
This equipment has been tested to determine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility (EMC);
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
CFR-47: FCC Rules and Regulations:
CAUTION!
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or modifications to
the unit without the expressed approval of the manufacturer will void user authority to operate the equipment.
Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables to connect the machine to other components.
generic emission standard.
Part 1: Residential, commercial and light industry"
Part 1: Residential, commercial and light industry environment".
Part 15: “Radio frequency devices
Subpart B – Unintentional radiators”
KRAMER: SIMPLE CREATIVE TECHNOLOGY
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com,
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
Caution
Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: info@kramerel.com
P/N: 2900-000238 REV 1
Loading...
