Kramer Electronics FC-29 User Manual
Kramer Electronics, Ltd.
USER MANUAL
Model:
FC-29
IR Learner
Contents
Contents
1
2
2.1 Quick Start 2
3
4
5
5.1 Connecting the FC-29 and Learning the IR Commands 5
5.2 Testing the IR Commands 7
5.3 Exporting the IR Commands 8
6
7
Figures
Figure 1: FC-29 IR Learner 4

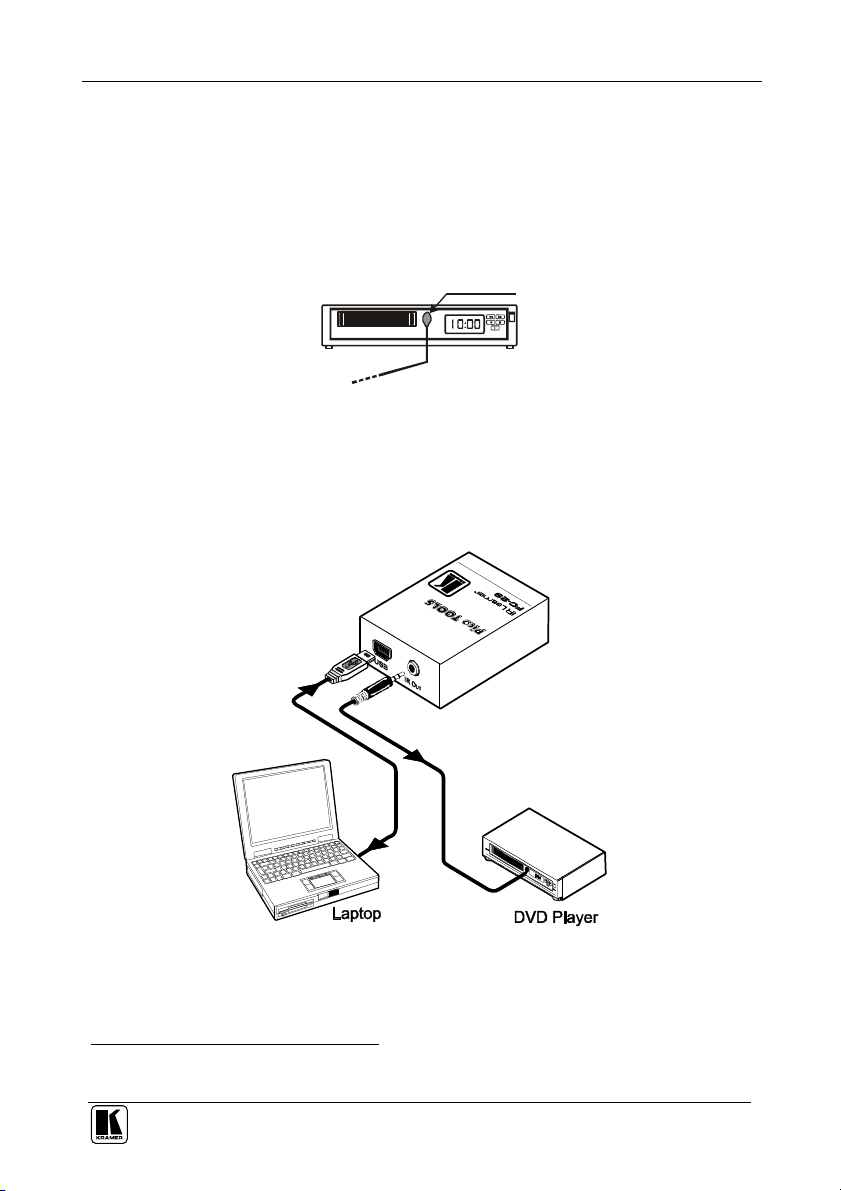

Figure 2: Connecting the FC-29 IR Learner 5
Figure 3: New IR Command Window 6
Figure 4: IR Command Area Window 6
Figure 5: Connect to IR Capture Device Window 6
Figure 6: Connecting the IR Emitter 7
Figure 7: Testing the IR Commands on the PC via the FC-29 7
Figure 8: Load Firmware Upgrade Window 8
Figure 9: Connect Window 8
Introduction 1
Getting Started 1
Overview 3
Your FC-29 IR Learner 4
Using the FC-29 IR Learner 5
Upgrading Firmware 8
Technical Specifications 9
Tables
Table 1: Features and Functions of the FC-29 IR Learner 4
Table 2: Technical Specifications of the FC-29 9
i
Introduction
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have redesigned
and upgraded most of our line, making the best even better! Our 1,000-plus
different models now appear in 11 groups1 that are clearly defined by
function.
Congratulations on purchasing your Kramer Pico TOOLS FC-29 IR Learner,
which is ideal for:
Learning IR commands and transferring them to your PC
Setting up multiple room controller systems
The package includes the following items:
FC-29 IR Learner
Kramer RC configuration software2: the RC Configuration 2
One IR emitter cable3
This user manual2
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables4
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3 : Control Systems; GROUP 4:
Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories
and Rack Adapters; GROUP 11: Sierra Products
2 Download up-to-date Kramer user manuals and guides from the Internet at this URL: http://www.kramerelectronics.com
3 The 3.5mm to IR Emitter Control Cable (C-A35/IRE-10)
4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
1
Getting Started
2.1 Quick Start
This quick start chart summarizes the basic setup and operation
2
