Kramer Electronics, Ltd.
USER MANUAL
Model:
FC-10Dxl
Composite-YC-Component Transcoder
Contents
Contents
1
Introduction 1
2
Getting Started 1
2.1 Quick Start 1
3
Overview 3
4
Your FC-10Dxl Composite-YC-Component Transcoder 4
5
Connecting the FC-10Dxl Composite-YC-Component Transcoder 5
5.1 Controlling via the REMOTE INPUT SELECT Connector 6
6
Technical Specifications 6
Figures
Figure 1: FC-10Dxl Composite-YC-Component Transcoder 4
Figure 2: Connecting the FC-10Dxl Composite-YC-Component Transcoder 5
Figure 3: Connecting the REMOTE INPUT SELECT Connector 6
Tables
Table 1: FC-10Dxl Composite-YC-Component Transcoder Features 4
Table 2: Technical Specifications, of the FC-10Dxl 6
i
Introduction
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range
of problems that confront the video, audio, presentation, and broadcasting
professional on a daily basis. In recent years, we have redesigned and upgraded
most of our line, making the best even better! Our 1,000-plus different models
now appear in 11 groups1 that are clearly defined by function.
Congratulations on purchasing your Kramer FC-10Dxl Composite-YC-
Component Transcoder, which is ideal for the following typical applications:
Video production, editing and duplication studios
Interfacing between machines with differing formats
The package includes the following items:
FC-10Dxl Composite-YC-Component Transcoder
Power adapter (12V DC Input)
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables2

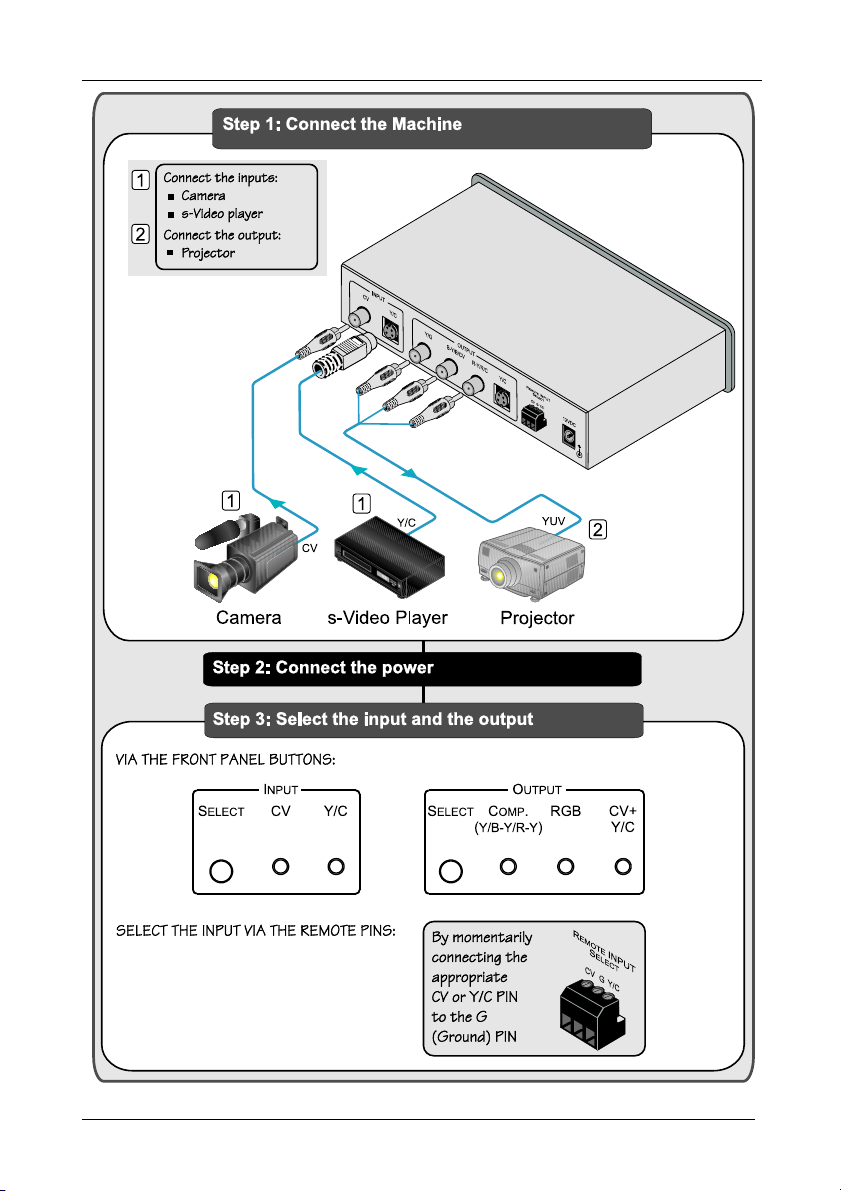

2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:
Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories
and Rack Adapters; GROUP 11: Sierra Products
2 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
1
Getting Started
2
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
3 Overview
The FC-10Dxl is a high-performance video format converter for composite and
s-Video (Y/C) signals. The unit converts a composite video or s-Video input
through a digital comb filter to a composite and s-Video (Y/C) or component
(YUV/RGB1) video output.
The FC-10Dxl features:
Selectable inputs - one composite (RCA connector) and one s-Video (4-pin
connector)
Format conversion - Transcodes composite video and s-Video to component
video, RGB1, or composite video and s-Video
One component video output and one composite video output on RCA
connectors, as well as one s-Video output (on RCA connectors/4-pin
connector)
A front panel input select button and an output format select button
A contact closure remote input select terminal block connector
3D comb filtering for best quality color separation
PAL/NTSC compatibility
Compact size. Two units can be rack mounted side-by-side in a 1U rack
space with the optional RK-1 rack kit
To achieve the best performance:
Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise
levels (often associated with low quality cables)
Avoid interference from neighboring electrical appliances that may
adversely influence signal quality
Position your Kramer FC-10Dxl in a location free from moisture and away
from excessive sunlight and dust
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit2.
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
1 Defined as RsGsBs (that is, there is sync on all three components of the RGB outputs)
2 For example: model number AD2512C, part number 2535-000251
3
Your FC-10Dxl Composite-YC-Component Transcoder
4 Your FC-10Dxl Composite-YC-Component Transcoder
Figure 1 and Table 1 define the FC-10Dxl.
Figure 1: FC-10Dxl Composite-YC-Component Transcoder
Table 1: FC-10Dxl Composite-YC-Component Transcoder Features
# Feature Function
1 POWER Switch Illuminated switch for turning the unit ON or OFF
2 SELECT Button Press to select the input format (CV or Y/C)
INPUT
Area
CV LED Lights when the CV input is selected
3 SELECT Button Press to select the desired output format
OUTPUT
Area
COMP. (Y/B-Y/R-Y) LED Lights when the component video output format is selected
RGB LED Lights when the RsGsBs output format is selected
4 CV RCA Connector Connect to the CV source
INPUT
5 Y/G RCA Connector
OUTPUT
B-Y/B/CV RCA Connector
R-Y/R/C RCA Connector
6 REMOTE INPUT SELECT Terminal
Block Connector
7 12V DC +12V DC connector for powering the unit
Y/C LED Lights when the Y/C input is selected
CV+Y/C LED Lights when the CV as well as the Y/C output format is
selected
Y/C 4-pin Connector Connect to the s-Video source
Connect to the CV (via B-Y/B/CV) and/or to the s-Video1
(Y/G and R-Y/R/C) acceptor, or to the component acceptor
Y/C 4-pin Connector Connect to the s-Video1 acceptor
Connect to contact closure switches (see section 5.1)
1 If the s-Video acceptor is connected to the Y/C 4-pin connector, you cannot connect to the Y/G and R-Y/R/C RCA
connectors and vice versa
4
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the FC-10Dxl Composite-YC-Component Transcoder
5 Connecting the FC-10Dxl Composite-YC-Component
Transcoder
To connect the FC-10Dxl, as the example in Figure 2 illustrates, do the
following1:
1. Connect one or both of the following sources:
A composite video source (for example, a camera) to the CV INPUT
RCA connector
A Y/C source (for example, an s-Video player) to the 4-pin INPUT
connector
2. Connect the Y/G, B-Y/B/CV, and R-Y/R/C RCA connectors to the
component video acceptor (for example, a projector)2.
3. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity3.
Figure 2: Connecting the FC-10Dxl Composite-YC-Component Transcoder
1 Switch OFF the power on each device before connecting it to your FC-10Dxl. After connecting your FC-10Dxl, switch on
its power and then switch on the power on each device
2 Alternatively, you can connect a CV, Y/C or RGB acceptor to the RCA connectors, or an s-Video acceptor to the Y/C 4-pin
connector
3 Not illustrated in Figure 2
5
Technical Specifications
5.1 Controlling via the REMOTE INPUT SELECT Connector
The contact closure remote control pins operate in a similar way to the input
selector buttons. Using the contact closure remote control lets you select an input
by remote control. To do so, temporarily connect the required input (CV or Y/C)
pin on the REMOTE INPUT SELECT terminal block connector to the G
(ground) pin, as illustrated in the examples in Figure 3.
DO NOT connect more than one PIN to the G PIN at the same time
To select the CV input, attach PIN CV to the G PIN: To select the Y/C input, attach PIN Y/C to the G PIN
Figure 3: Connecting the REMOTE INPUT SELECT Connector
6 Technical Specifications
Table 2 includes the technical specifications:
Table 2: Technical Specifications
INPUTS: 1 CV on an RCA connector, 1 YC on a 4-pin connector
OUTPUTS: 3 RCA connectors: Y/G, B-Y/B/CV and R-Y/R/C, for use as CV, Y/C, RGB3, or
Component (Y/B-Y/R-Y); 1 Y/C on a 4-pin connector
BANDWIDTH (-3dB): 5MHz
DIFF. GAIN: 0.35%
DIFF. PHASE: 0.25 Deg.
K-FACTOR: 0.4%
S/N RATIO: 66.3dB
CROSSTALK (all hostile): <-66dB
CONTROLS: Input selector and output format selector pushbuttons
POWER SOURCE: 12V DC, 210mA
DIMENSIONS: 21.5cm x 16.2cm x 4.4cm (8.46" x 6.38" x 1.73"), W, D, H
WEIGHT: 0.3kg (0.67lbs) approx.
ACCESSORIES: Power supply (2V)
OPTIONS: RK-1 rack kit
1,2
of the FC-10Dxl
1 Specifications are subject to change without notice
2 Specifications are shown for PAL CV input and YC output, unless otherwise stated
3 Defined as RsGsBs (that is, there is sync on all three components of the RGB outputs)
6
