Kramer Electronics, Ltd.
USER MANUAL
Models:
707,
Video Audio Line Transmitter
708,
Video Audio Line Receiver
709,
Y/C Line Transmitter
710,
Y/C Line Receiver
711xl,
712xl,
Video-Audio Line Transmitter
Video-Audio Line Receiver
Contents
Contents
1
2
2.1 Quick Start 1
3
4
4.1 Your 707 Video Audio Line Transmitter 5
4.2 Your 708 Video Audio Line Receiver 6
4.3 Connecting the 707/708 Video Audio Line Transmitter/Receiver 7
5
5.1 Your 709 Y/C Line Transmitter 10
5.2 Your 710 Video-Audio Line Receiver 11
5.3 Connecting the 709/710 Y/C Line Transmitter/Receiver 12
6
6.1 Your 711xl Video-Audio Line Transmitter 15
6.2 Your 712xl Video-Audio Line Receiver 16
6.3 The 6-pole Detachable Terminal Block Connector Pinout 17
6.4 Connecting the 711xl and the 712xl 17
7
Figures
Figure 1: 707 Video Audio Line Transmitter 5
Figure 2: 708 Video Audio Line Receiver 6
Figure 3: Connecting the 707/708 Video Audio Line Transmitter/Receiver System 8
Figure 4: 709 Y/C Line Transmitter 10
Figure 5: 710 Y/C Line Receiver 11
Figure 6: Connecting the 709/710 Y/C Line Transmitter / Receiver System 13
Figure 7: Connecting an Additional 710 Unit 13
Figure 8: 711xl Video-Audio Line Transmitter 15
Figure 9: 712xl Video-Audio Line Receiver 16
Figure 10: Connecting the 711xl/712xl 18
Figure 11: Connecting an Additional 712xl Unit 18
Introduction 1
Getting Started 1
Overview 3
The 707 and 708 Video Audio Line Transmitter and Receiver 4
The 709 and 710 Y/C Line Transmitter and Receiver 9
The 711xl and 712xl Video-Audio Line Transmitter and Receiver 14
Technical Specifications 19
i
Contents
Tables
Table 1: 707 Video Audio Line Transmitter Features 5
Table 2: 708 Video Audio Line Receiver Features 6
Table 3: 709 Y/C Line Transmitter Features 10
Table 4: 710 Y/C Line Receiver Features 11
Table 5: 711xl Video-Audio Line Transmitter Features 15
Table 6: 712xl Video-Audio Line Receiver Features 16
Table 7: 711xl/712xl LINE IN and LINE OUT Connector Pinout 17
Table 8: Technical Specifications of the 707 and the 708 19
Table 9: Technical Specifications of the 709 and the 710 20
Table 10: Technical Specifications of the 711xl and the 712xl 20
ii
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Introduction
1 Introduction
Welcome to Kramer Electronics (since 1981): a world of unique, creative and
affordable solutions to the infinite range of problems that confront the video, audio
and presentation professional on a daily basis. In recent years, we have redesigned
and upgraded most of our line, making the best even better! Our 500-plus
different models now appear in 8 Groups1, which are clearly defined by function.
Congratulations on purchasing your Kramer: 707, Video Audio Line Transmitter
and/or 708, Video Audio Line Receiver, and/or 709, Y/C Line Transmitter and/or
710, Y/C Line Receiver, and/or 711xl, Video-Audio Line Transmitter and/or 712xl,
Video-Audio Line Receiver.
The 707 / 708, the 709 / 710, and the 711xl / 712xl are ideal for:
Remote monitoring for CCTV, medical, school and broadcast applications
Existing facilities with TP cable already installed
Teleconferencing in offices and hospitals using existing intercom or
telephone wiring
The package includes one or more of the following Kramer products:
707, 708, 709, 710, 711xl, or 712xl
Power adapter (12V DC Input) and this user manual2
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables3
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
1
Getting Started
Display
s-Video Camera
Video Source
708
707
AmplifierVideo Pl ayer
709
710
Display
712xl
711xl
Display
Composite
2
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
3 Overview
This manual describes the:
The 707 Video Audio Line Transmitter and the 708 Video Audio Line
Receiver (see section 4)
The 709 Y/C Line Transmitter and the 710 Y/C Line Receiver (see
section 5)
The 711xl Video-Audio Line Transmitter and the 712xl Video-Audio Line
Receiver (see section 6)
To achieve the best performance:
Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noiselevels (often associated with low quality cables)
Avoid interference from neighboring electrical appliances and position
your Kramer products away from moisture, excessive sunlight and dust
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit1.
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
1 For example: model number AD2512C, part number 2535-000251
3
The 707 and 708 Video Audio Line Transmitter and Receiver
4 The 707 and 708 Video Audio Line Transmitter and Receiver
This section describes:
The 707 (see section 4.1)
The 708 (see section 4.2)
How to connect the 707/708 Video Audio Line Transmitter/Receiver (see
section 4.3)
The 707 and 708 are a twisted pair transmitter and receiver for composite
video and unbalanced mono audio signals. The 707 transmitter converts a
composite video and audio signal to a twisted pair signal and the 708 receiver
converts the twisted pair signal back into composite video and audio signals.
The 707 and the 708 feature a bandwidth of 58MHz, RJ-11 twisted pair
connections and a system range of up to 1000m (more than 3000ft).
In addition, the 707 features:
Audio level control
A selectable line or condenser microphone input
The 708 includes:
Level (VIDEO GAIN) and equalization (EQ) controls
A looping input
A selectable input signal termination button
A polarity inverter switch that inverts the incoming polarity
4
KRAMER: SIMPLE CREATIVE TECHNOLOGY
The 707 and 708 Video Audio Line Transmitter and Receiver
4.1 Your 707 Video Audio Line Transmitter
Figure 1 and Table 1 define the 707:
Figure 1: 707 Video Audio Line Transmitter
Table 1: 707 Video Audio Line Transmitter Features
# Feature Function
1 LINE OUT RJ-11 Connector
2 AUDIO LEVEL Trimmer Turn to adjust the audio level1
3 COND. MIC Push Button Press to provide power to the microphone2
4 AUDIO IN RCA Connector Connect to the unbalanced mono audio source
5 VIDEO IN BNC Connector Connect to the composite video source
6 ON LED Lights when receiving power
7 12V DC +12V DC connector for powering the unit
Connect to the LINE IN connector of the 708
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level
2 Press this button when a condenser microphone is used with the 707. For other audio sources, you do not need t o press this
button
5
The 707 and 708 Video Audio Line Transmitter and Receiver

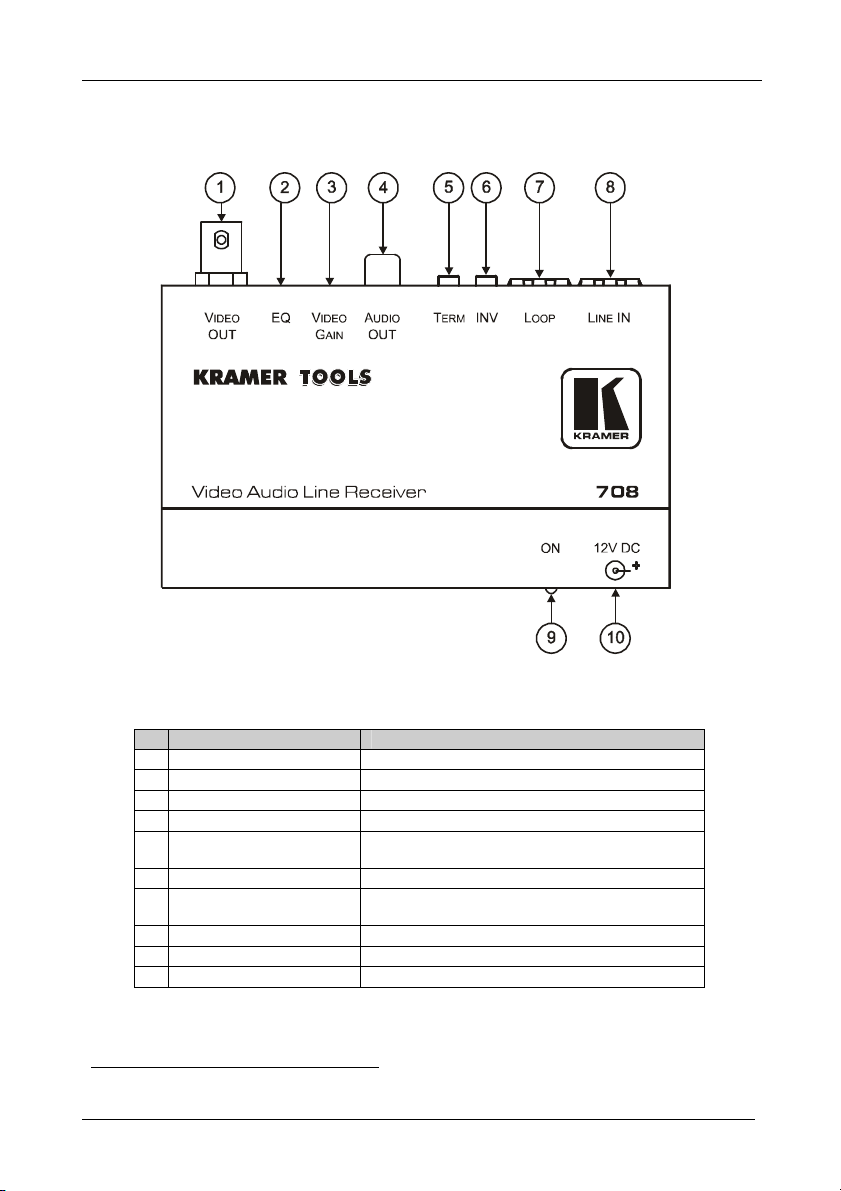

4.2 Your 708 Video Audio Line Receiver
Figure 2 and Table 2 define the 708:
Figure 2: 708 Video Audio Line Receiver
Table 2: 708 Video Audio Line Receiver Features
# Feature Function
1 VIDEO OUT BNC Connector Connect to the composite video acceptor
2 EQ Trimmer Turn to adjust the output signal level1
3 VIDEO GAIN Trimmer Turn to adjust the output signal equalization1
4 AUDIO OUT RCA Connector Connect to the unbalanced mono audio acceptor
5 TERM Push Button When pressed, terminates the unit that is the last in
6 INV Push Button When pressed, inverts the incoming video signal
7 LOOP RJ-11 Connector Connect to the LINE IN terminal block of an additional
8 LINE IN RJ-11 Connector
9 ON LED Lights when receiving power
10 12V DC +12V DC connector for powering the unit
the line (not looped)
708 to increase the number of outputs
Connect to the LINE OUT connector of the 707
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level
6
KRAMER: SIMPLE CREATIVE TECHNOLOGY
The 707 and 708 Video Audio Line Transmitter and Receiver
4.3 Connecting the 707/708 Video Audio Line Transmitter/Receiver
You can use the 707 and 708 to configure a video audio line transmitter and
receiver system.
To connect the 707 Video Audio Line Transmitter with the 708 Video Audio
Line Receiver, as illustrated in the example in Figure 3, do the following:
1. Connect a composite video source (for example, a video player) to the VIDEO
IN BNC connector of the 707.
2. Connect an unbalanced mono audio source (for example, the audio
output of the video player1) to the AUDIO IN RCA connector of the
707.
3. Connect the VIDEO OUT BNC connector of the 708 to a composite
video acceptor (for example, a display).
4. Connect the AUDIO OUT RCA connector of the 708 to an unbalanced
mono audio acceptor (for example, an amplifier with speakers).
5. Connect the LINE OUT RJ-11 connector of the 707 to the LINE IN RJ-11
connector of the 708, via twisted pair cabling.
6. If required, connect the LOOP RJ-11 connector to the LINE IN RJ-11
connector of an additional 708 unit.
7. On each 707 / 708 unit, connect a 12V DC power adapter to the power socket
and connect the adapter to the mains electricity (not illustrated in Figure 3).
8. If required, adjust the AUDIO LEVEL on the 707 and the EQ
(equalization) and VIDEO GAIN levels on the 708, by inserting a
screwdriver into each of the small holes and carefully rotating them.
1 Alternatively, you can connect a condenser microphone and press the COND. MIC push button
7
The 707 and 708 Video Audio Line Transmitter and Receiver
Display
Amplifier
708
707
Video Player
Figure 3: Connecting the 707/708 Video Audio Line Transmitter/Receiver System
8
KRAMER: SIMPLE CREATIVE TECHNOLOGY
The 709 and 710 Y/C Line Transmitter and Receiver
5 The 709 and 710 Y/C Line Transmitter and Receiver
This section describes:
The 709 (see section 5.1)
The 710 (see section 5.2)
How to connect the 709/710 Video-Audio Line Transmitter/Receiver (see
section 5.3)
The 709 and 710 are a twisted pair transmitter and receiver for s-Video (Y/C)
signals. The 709 transmitter converts an s-Video (Y/C) signal into a twisted
pair signal and the 710 receiver converts the twisted pair signal back into an
s-Video (Y/C) signal.
The 709 and the 710 feature:
A bandwidth of 8.4MHz
Twisted pair inputs and outputs on terminal block connectors
A system range of up to 100m (more than 300ft)
Level (GAIN) and equalization (EQ) controls
In addition, the 710 can be looped to add additional outputs and includes a
selectable input signal termination push button.
9
The 709 and 710 Y/C Line Transmitter and Receiver
5.1 Your 709 Y/C Line Transmitter
Figure 4 and Table 3 define the 709:
Figure 4: 709 Y/C Line Transmitter
Table 3: 709 Y/C Line Transmitter Features
# Feature Function
1 C OUT, Y OUT Terminal
Block Connector
2 Y GAIN Trimmer Turn to adjust the Y gain1
3 Y EQ. Trimmer Turn to adjust the Y cable equalization1
4 C GAIN Trimmer Turn to adjust the Chroma gain1
5 Y/C INPUT 4p Connector Connect to the s-Video source
6 ON LED Lights when receiving power
7 12V DC +12V DC connector for powering the unit
Connect to the C IN and Y IN terminal block
connector of the 710
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level
10
KRAMER: SIMPLE CREATIVE TECHNOLOGY
The 709 and 710 Y/C Line Transmitter and Receiver
5.2 Your 710 Video-Audio Line Receiver
Figure 5 and Table 4 define the 710:
Figure 5: 710 Y/C Line Receiver
Table 4: 710 Y/C Line Receiver Features
# Feature Function
1 Y/C OUTPUT 4p Connector Connect to the s-Video acceptor
2 Y EQ. Trimmer Turn to adjust the Y cable equalization1
3 Y GAIN Trimmer Turn to adjust the Y gain1
4 C GAIN Trimmer Turn to adjust the Chroma gain1
5 Hi-Z / TERM Push Button Press to terminate the unit that is the last in the line (not looped)
6 C IN, Y IN Terminal Block
Connector
7 ON LED Lights when receiving power
8 12V DC +12V DC connector for powering the unit
Connect to the C OUT and Y OUT terminal block connector of the
709
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level
11
The 709 and 710 Y/C Line Transmitter and Receiver
5.3 Connecting the 709/710 Y/C Line Transmitter/Receiver
You can use the 709 and 710 to configure a Y/C Transmitter and Receiver system.
To connect the 709 Y/C Line Transmitter with the 710 Y/C Line Receiver, as
illustrated in the example in Figure 6, do the following:
1. Connect an s-Video source (for example, an s-Video camera) to the Y/C
INPUT 4p connector on the 709.
2. On the 710, connect the Y/C OUTPUT 4p connector to an s-Video acceptor
(for example, a display).
3. Connect the C OUT Y OUT terminal block connector of the 709 to the C IN
Y IN terminal connector of the 710, via twisted pair cabling1.
4. On each 709 / 710 unit, connect a 12V DC power adapter to the power socket
and connect the adapter to the mains electricity (not shown in Figure 6).
5. On each 709 / 710 unit, if required, adjust the Y GAIN, the C GAIN and the Y
EQ. levels, by inserting a screwdriver into each of the small holes and
carefully rotating them.
6. If required, connect the C IN Y IN terminal block connector of the 710 to the
C IN Y IN terminal block connector 2 of an additional 710 (as illustrated in
Figure 7).
1 A straight connection should be made between the units ( C+ OUT to C+ IN, C- OUT to C- IN, and so on)
2 Connect C+ to the C+ of the next 710, C- to the C- of the next 710, Y+ to the Y+ of the next 710, and Y- to the Y- of the
next 710
12
KRAMER: SIMPLE CREATIVE TECHNOLOGY
s-Video Camera
To the C IN Y IN
Terminal block connector
710 unit
The 709 and 710 Y/C Line Transmitter and Receiver
Figure 6: Connecting the 709/710 Y/C Line Transmitter / Receiver System
Display
From the C OUT Y OUT
terminal block connector
of the 709 unit
Figure 7: Connecting an Additional 710 Unit
of an additional
13
The 711xl and 712xl Video-Audio Line Transmitter and Receiver
6 The 711xl and 712xl Video-Audio Line Transmitter and
Receiver
This section:
Describes the 711xl (see section 6.1)
Describes the 712xl (see section 6.2)
Defines the 6-pole detachable terminal block connector pinout (see
section 6.3)
Describes how to connect the 711xl/712xl Video-Audio Line
Transmitter/Receiver (see section 6.4)
The 711xl and 712xl are a twisted pair transmitter and receiver for composite
video and unbalanced stereo audio signals. The 711xl transmitter converts
composite video and stereo audio to a twisted pair signal and the 712xl
receiver converts the twisted pair signal back into composite video and stereo
audio signals.
The 711xl/712xl feature:
A bandwidth of 45MHz
Twisted pair inputs and outputs on terminal block connectors
A system range of up to 1000 meters (more than 3000 feet)
Level (GAIN) and equalization (EQ) controls (for the 712xl)
In addition, the 712xl LINE IN can be looped to add additional outputs and
includes a selectable input signal termination push button.
14
KRAMER: SIMPLE CREATIVE TECHNOLOGY
The 711xl and 712xl Video-Audio Line Transmitter and Receiver
6.1 Your 711xl Video-Audio Line Transmitter
Figure 8 and Table 5 define the 711xl:
Figure 8: 711xl Video-Audio Line Transmitter
Table 5: 711xl Video-Audio Line Transmitter Features
# Feature Function
1 RIGHT RCA
AUDIO
IN
2
3 LINE OUT 6-pole Detachable
Terminal Block Connector
4 VIDEO IN BNC Connector Connect to composite video source
5 ON LED Lights when receiving power
6 12V DC +12V DC connector for powering the unit
Connector
LEFT RCA
Connector
Connect to the right unbalanced stereo audio source
Connect to the left unbalanced stereo audio source
Connect to the LINE IN 6-pole detachable block
connector of the 712xl (see section 6.3 for pinout)
15
The 711xl and 712xl Video-Audio Line Transmitter and Receiver
6.2 Your 712xl Video-Audio Line Receiver
Figure 9 and Table 6 define the 712xl:
Figure 9: 712xl Video-Audio Line Receiver
Table 6: 712xl Video-Audio Line Receiver Features
# Feature Function
1 R RCA Connector Connect to the right unbalanced stereo audio acceptor
AUDIO
OUT
2
3 TERM Push Button When pressed, terminates the unit that is the last in the
4 LINE IN 6-pole Detachable
5 EQ. Trimmer Turn to adjust the output signal equalization1
6
7 VIDEO OUT BNC Connector Connect to the composite video acceptor
8 ON LED Lights when receiving power
9 12V DC +12V DC connector for powering the unit
L RCA Connector Connect to the left unbalanced stereo audio acceptor
line (not looped)
Connect to the LINE OUT 6-pole detachable block
Terminal Block Connector
VIDEO
GAIN Trimmer Turn to adjust the output signal level1
connector of the 711xl (see section 6.3 for pin-out)
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level
16
KRAMER: SIMPLE CREATIVE TECHNOLOGY
The 711xl and 712xl Video-Audio Line Transmitter and Receiver
6.3 The 6-pole Detachable Terminal Block Connector Pinout
Table 7 defines the LINE IN and LINE OUT connector pinout:
Table 7: 711xl/712xl LINE IN and LINE OUT Connector Pinout
PIN Function
1 Audio R+
2 Audio R3 Audio L+
4 Audio L5 Video +
6 Video -
6.4 Connecting the 711xl and the 712xl
You can use the 711xl and 712xl to configure a Video-Audio Transmitter and
Receiver system.
To connect the 711xl Video-Audio Line Transmitter with the 712xl Video-Audio
Line Receiver, as illustrated in the example in Figure 10, do the following:
1. Connect a composite video source (for example, a composite video player) to
the VIDEO IN BNC connector on the 711xl.
2. Connect an unbalanced stereo source to the AUDIO IN RIGHT and LEFT
RCA connectors (for example, a composite video player).
3. On the 712xl, connect the VIDEO OUT BNC connector to a composite video
acceptor (for example, a display).
4. Connect an unbalanced stereo acceptor to the AUDIO OUT R and L RCA
connectors (for example, speakers).
5. Connect the LINE OUT 6-pole detachable terminal block connector1 of the
711xl to the LINE IN 6-pole detachable terminal connector 1 of the 712xl, via
twisted pair cablin2.
6. On each 711xl / 712xl unit, connect a 12V DC power adapter to the power
socket and connect the adapter to the mains electricity.
7. On the 712xl, if required, adjust the VIDEO GAIN and EQ. levels3.
8. If required, connect the LINE IN terminal block connector of the 710 to the
LINE IN terminal block connector 4 of an additional 710 (see Figure 7).
1 See Table 7 for PINOUT
2 A straight connection should be made between the units (PIN 1 to PIN 1, PIN 2 to PIN 2, and so on)
3 By inserting a screwdriver into each of the small holes and carefully rotating them
4 If you want to add an additional 712xl unit, connect the LINE IN 6-pole detachable ter minal block connector to the LINE
IN connector of that additional 712xl by attaching another set of wires
17
The 711xl and 712xl Video-Audio Line Transmitter and Receiver
Composite
Video Source
To the LINE IN
Terminal block connector
From the LINE OUT
Display

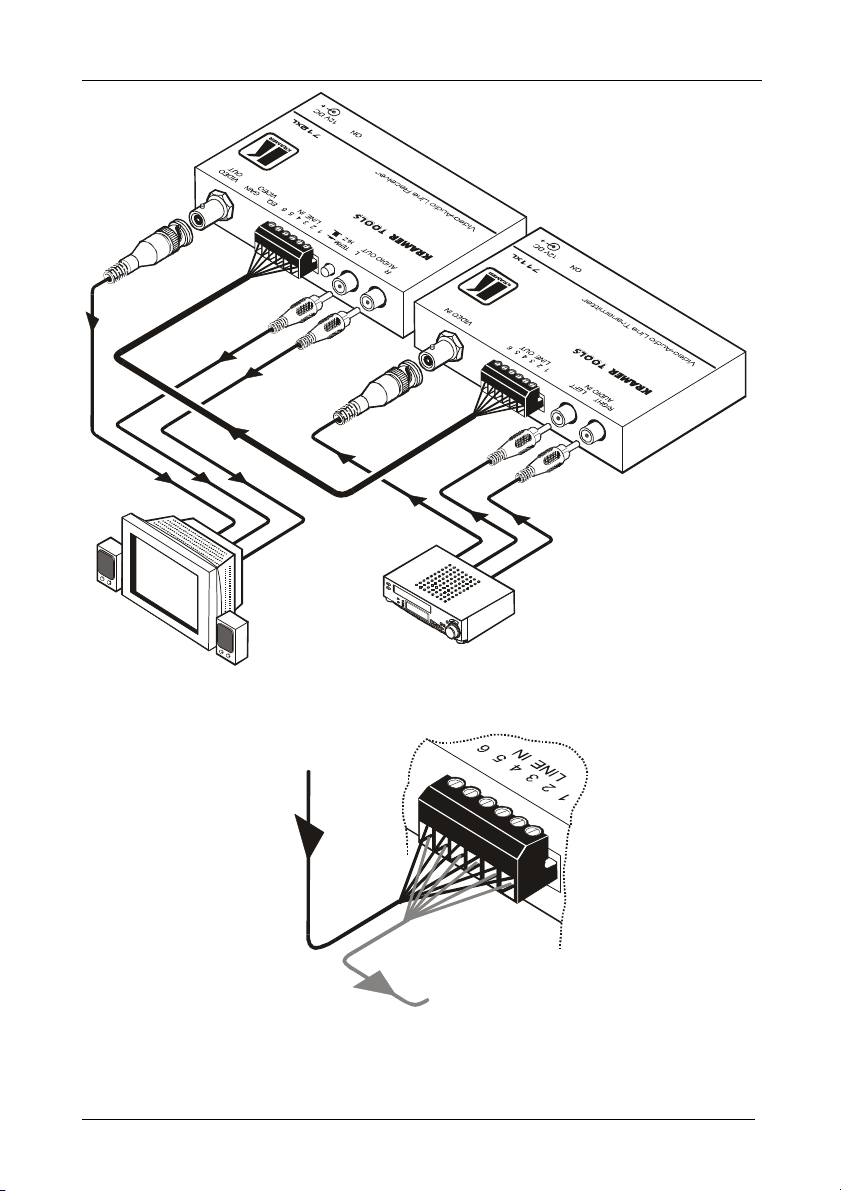

Figure 10: Connecting the 711xl/712xl
18
terminal block connector
of the 711xl unit
of an additional
712xl unit
Figure 11: Connecting an Additional 712xl Unit
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Technical Specifications
7 Technical Specifications1
In this section:
Table 8 includes the technical specifications of the 707 and the 708
Table 9 includes the technical specifications of the 709 and the 710
Table 10 includes the technical specifications of the 711xl, and the 712xl
Table 8: Technical Specifications of the 707 and the 708
INPUTS: 1 composite video, 1Vpp/75, on a BNC
OUTPUTS: 1 balanced, 150 on a 6/4 standard
BANDWIDTH: Video: 58MHz; audio: 30kHz (at 30 meters without lightening arrestors)
NON-LINEARITY: <0.2% at short distances
DIFF. GAIN: 0.41%
DIFF. PHASE: 0.3°
K-FACTOR: 0.1%
S/N RATIO: 72dB
CONTROLS: Video gain: -1.8dB to +2.3dB, EQ above 2.5 MHz: 0dB to 16dB, audio: 0dB to 52dB;
POWER SOURCE: 12 VDC 40mA
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”, W, D, H)
WEIGHT: 0.28kg. (0.62lbs.) Approx. (each)
ACCESSORIES: Power supply, mounting bracket
OPTIONS: Model VA-50P power supply with six 12VDC outlets; RK-T1, RK-T3, 19” rack
707 708
connector
1 audio, 1mV-2V/33k on an RCA
connector
telephone socket
707: condenser mic power; 708: loop termination, signal invert
adapters
Looping balanced 150 on a 6/4
standard telephone socket, with
termination switch and polarity inversion
switch
1 composite video, 1Vpp/75 composite
video, 1Vpp/75 unbalanced on a BNC
connector
1 audio - line level, up to 4.6Vpp/100 on
an RCA connector
1 Specifications are subject to change without notice
19
Technical Specifications
Table 9: Technical Specifications of the 709 and the 710
INPUTS: s-Video, 1Vpp/75 (Y), 0.3Vpp/75 (C)
OUTPUTS: 4-pin terminal block s-Video, 1-Vpp/75 (Y), 0.3Vpp/75
BANDWIDTH: 8.4MHz, (Y) at 100m
NON-LINEARITY: 0.07%
DIFF. GAIN: 0.04%
K-FACTOR: 1.4% at 100m
S/N RATIO: Better than 60dB
CONTROLS: Y gain: -2.4dB to +6.5dB; Y EQ: -2.7dB to 15.6dB; C gain: -5.8dB to 7.8dB
POWER SOURCE: 12 VDC 40mA
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”, W, D, H)
WEIGHT: 0.26kg. (0.58lbs.) Approx.
ACCESSORIES: Power supply, mounting bracket
OPTIONS: Model VA-50P power supply with six 12VDC outlets; RK-T1, RK-T3, 19” rack
709 710
4-pin terminal block
on a 4p connector
(C) on a 4p connector
710: loop termination
adapters
Table 10: Technical Specifications of the 711xl and the 712xl
INPUT: Video, 1Vpp/75 on a BNC connector;
OUTPUT: 6-pole detachable terminal block
MAX. SIGNAL LEVEL: 2.1Vpp (video), 4.2Vpp (audio)
VIDEO BANDWIDTH (-3dB): 64MHz
AUDIO BANDWIDTH (-3dB): 100kHz
DIFF. GAIN: 1.4%
DIFF. PHASE: 0.63°
VIDEO S/N RATIO: 76dB
AUDIO S/N RATIO: 76dB unweighted
AUDIO THD + NOISE: 0.033%, 1kHz
AUDIO 2nd HARMONIC: 0.002%
MAX. SIGNAL LEVEL: 1.7Vpp (video), 4.2Vpp (audio)
POWER SOURCE: 12 VDC 80mA
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”, W, D, H)
WEIGHT: 0.28kg. (0.62lbs.) approx.
ACCESSORIES: Power supply, mounting bracket
OPTIONS: RK-T1, RK-T3, 19 inch rack adapters
711xl 712xl
audio 1Vpp / 33k on RCA connectors
connector
6-pole detachable terminal block
connector
Video, 1Vpp/75 on a BNC connector;
audio 1Vpp / 150 on RCA connectors
20
KRAMER: SIMPLE CREATIVE TECHNOLOGY
LIMITED WARRANTY
Kramer Electronics (hereafter Kramer) warrants this product free from defects in material and workmanship under the
following terms.
HOW LONG IS THE WARRANTY
Labor and parts are warranted for seven years from the date of the first customer purchase.
WHO IS PROTECTED?
Only the first purchase customer may enforce this warranty.
WHAT IS COVERED AND WHAT IS NOT COVERED
Except as below, this warranty covers all defe cts in material or workmanship in this product. The following are not covered
by the warranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dea ler. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed.
3. Damage, deterioration or malfunction resulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or insta llation of the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product
WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR
We will pay labor and material expenses for covered items. We will not pay for the following:
1. Removal or installations charges.
2. Costs of initial technical adjustments (set-up), inc luding adjustment of user controls or programming. These costs are the
responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.
HOW YOU CAN GET WARRANTY SERVICE
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original d ated invoice (o r a co py) must be presented as proof of warranty coverage,
and should be included in any shipment of the product. Please also include in any mailing a contact name, company, address, and
a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
LIMITATION OF IMPLIED WARRANTIES
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
EXCLUSION OF DAMAGES
The liability of Kra mer for any eff ective products is limited to the repair or replacement of the product at our option. Kramer
shall not be liable for:
1. Damage to other pro perty caused by defects in this product, damages based upon inconve nience, loss of use of the product , loss
of time, commercial loss; or:
2. Any other damages, whether incidental, consequent ial or otherwise. Some countries may not allow limitations o n how long an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations and exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.
NOTE: All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
This equipment has been tested to determine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility (EMC);
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
CFR-47: FCC Rules and Regulations:
CAUTION!
Servicing t he machines can only be done by an authorized Kramer technician. Any user who makes changes or modifications to
the unit without the expressed approval of the manufacturer will void user authority to operate the equipment.
Use t he supplied DC power supply to feed power to the machine.
P lease use recommended interconnection cables to connect the machine to other components.
generic emission standard.
Part 1: Residential, commercial and light industry"
Part 1: Residential, commercial and light industry environment".
Part 15: “Radio frequency devices
Subpart B – Unintentional radiators”
21
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com,
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
Caution
Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: info@kramerel.com
P/N: 2900-000214 REV 1
Loading...
