USER MANUAL
Models:
6808,
SDI-AES De-Embedder
6809,
SDI-AES Embedder
Contents
Contents
1
Introduction 1
2
Getting Started 1
3
Overview 1
3.1 About the 6808 SDI-AES De-Embedder 1
3.2 About the 6809 SDI-AES Embedder 2
3.3 High Signal Quality Recommendations 2
4
Your SDI-AES De-Embedder / SDI-AES Embedder 3
4.1 Your 6808 SDI-AES De-Embedder 3
4.2 Your 6809 SDI-AES Embedder 4
5
Using the SDI-AES De-Embedder / SDI-AES Embedder 4
5.1 Connecting the 6808 SDI-AES De-Embedder 5
5.2 Connecting the 6809 SDI-AES Embedder 6
5.2.1 Setting the GROUP SELECT Dipswitches 7
6
Linking SDI-AES De-Embedder / SDI-AES Embedder Units 8
6.1 Connecting an SDI-AES Embedder to an SDI-AES De-Embedder 8
6.2 Cascading SDI-AES De-Embedder / SDI-AES Embedder Units 9
7
Technical Specifications 12
Figures
Figure 1: 6808 SDI-AES De-Embedder 3
Figure 2: 6809 SDI-AES Embedder 4

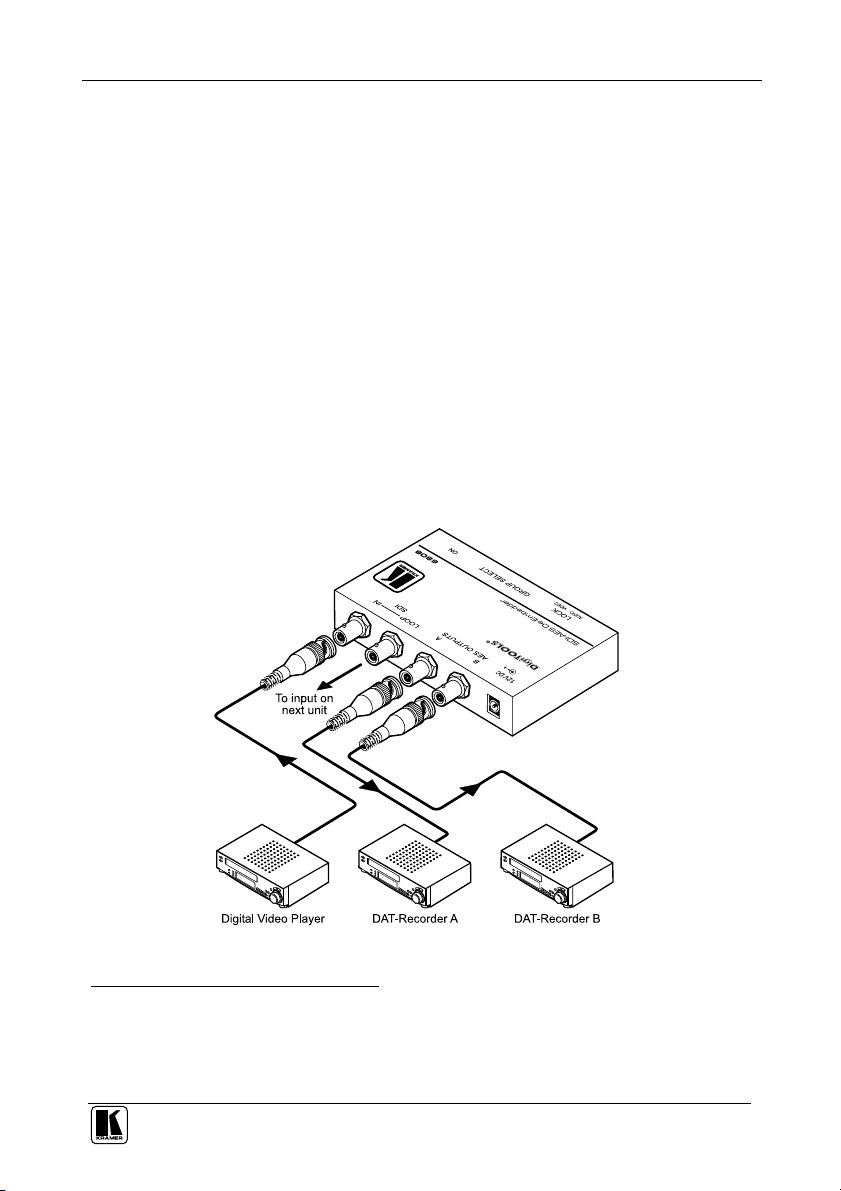

Figure 3: Connecting a 6808 SDI-AES De-Embedder 5

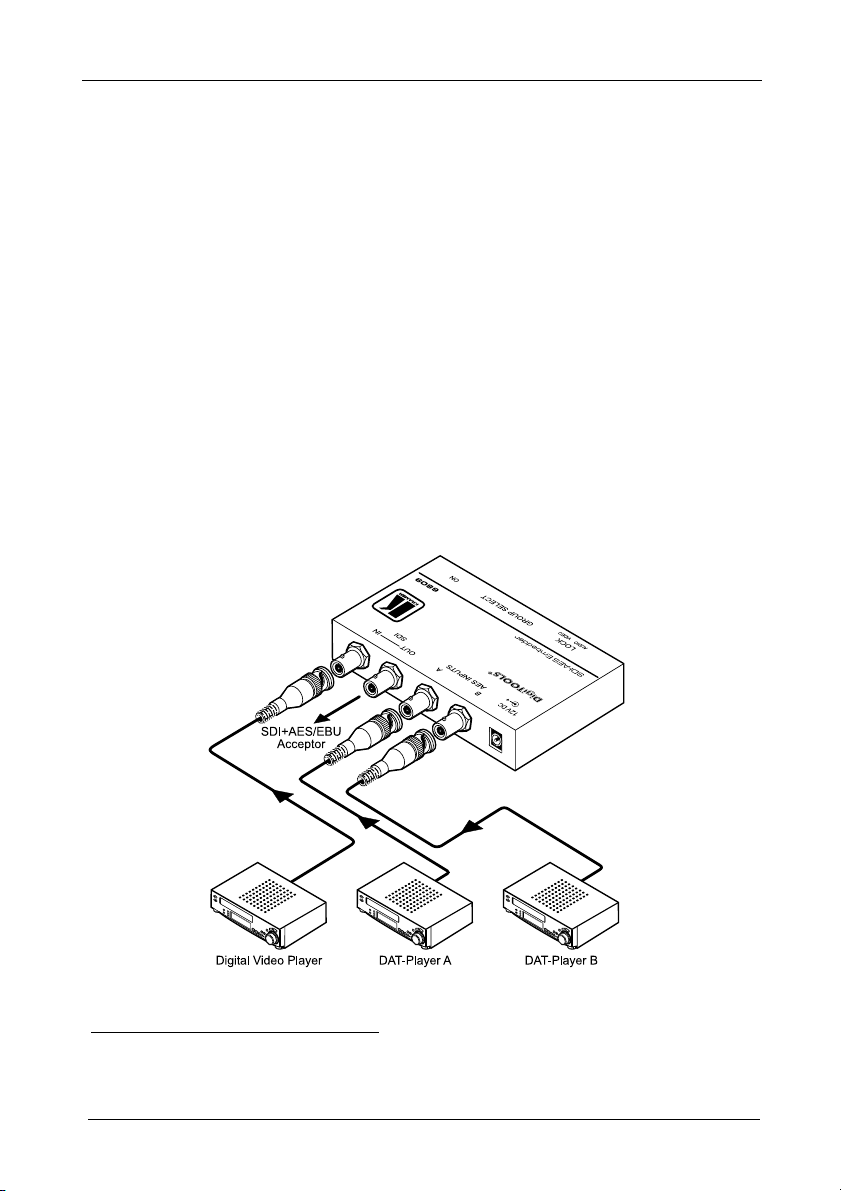

Figure 4: Connecting a 6809 SDI-AES Embedder 6
Figure 5: Connecting a 6809 SDI-AES Embedder to a 6808 SDI-AES De-Embedder 8
Figure 6: Cascading SDI-AES De-Embedder / SDI-AES Embedder Units I 10
Figure 7: Cascading SDI-AES De-Embedder / SDI-AES Embedder Units II 11
Tables
Table 1: 6808 SDI-AES De-Embedder 3
Table 2: 6809 SDI-AES Embedder 4
Table 3: GROUP SELECT Dipswitch Settings 7
Table 4: Technical specifications of the 6808 / 6809 12
i
9999992 A1
ADDENDUM (this data is included at the end of the Overview section)
This addendum adds the following information to the user manual:
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit1.
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
1 For example: model number AD2512C, part number 2535-000251
2900-
Introduction
1 Introduction
Welcome to Kramer Electronics (since 1981): a world of unique, creative and
affordable solutions to the infinite range of problems that confront the video,
audio and presentation professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
350-plus different models now appear in 8 Groups1, which are clearly defined
by function. Congratulations on purchasing your Kramer DigiTOOLS 6808
SDI-AES De-Embedder and/or 6809 SDI-AES Embedder, which are ideal for
broadcast and production studios, as well as digital / analog audio video
authoring. The package includes the following items:
6808 SDI-AES De-Embedder or 6809 SDI-AES Embedder
Power adapter (12V DC Input)
This user manual2
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables3
3 Overview
The Kramer DigiTOOLS 6808 SDI-AES De-Embedder (see section 3.1) and
6809 SDI-AES Embedder (see section 3.2) include automatic selection for up
to 24 bit digital audio streams, and are compatible with PAL or NTSC video
input standards.
3.1 About the 6808 SDI-AES De-Embedder
The 6808 SDI-AES De-Embedder is a high quality audio de-embedder for
serial digital video. It accepts a standard definition SDI source (270Mbps), has
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
1
Overview
a cable equalized (up to 350m of input cable) and reclocked SDI output
(loop), and de-embeds the audio from the SDI stream.
In addition, the 6808 SDI-AES De-Embedder
:
De-embeds four audio channels
Provides de-embedded audio in digital AES/EBU audio format
Includes auto-detect 525/625 line format
Has a serial digital video input with active loop-through
Can be cascaded to de-embed up to 16 audio channels
Can be controlled via the GROUP SELECT dipswitches, that let you
select the audio group that you want to de-embed
Has LEDs that indicate when an SDI signal is being received and when
audio is being de-embedded from the video signal
3.2 About the 6809 SDI-AES Embedder
The high quality 6809 SDI-AES Embedder embeds digital AES/EBU audio
with serial digital video. It accepts a standard definition SDI source (270
Mbps), has a cable equalized (up to 350m of input cable) and reclocked SDI
output (loop), and embeds the audio into the SDI output stream.
In addition, the 6809 SDI-AES Embedder
:
Embeds four audio channels
Embeds digital AES/EBU audio with SDI
Includes auto-detect 525/625 line format and EDH insertion and generation
Has a serial digital video input with active loop-through
Can be controlled via the GROUP SELECT dipswitches, that let you
select the audio group that you want to embed
Has LEDs that indicate when an SDI signal is being received and when
audio is being embedded to the video stream
3.3 High Signal Quality Recommendations
To achieve the best performance:
Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise levels
(often associated with low quality cables)
Avoid interference from neighboring electrical appliances that may
adversely influence signal quality
Position your Kramer DigiTOOLS 6808 and/or 6809 away from
moisture, excessive sunlight and dust
2
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your SDI-AES De-Embedder / SDI-AES Embedder
4 Your SDI-AES De-Embedder / SDI-AES Embedder
Sections 4.1 and 4.2 define the 6808 SDI-AES De-Embedder, and the 6809
SDI-AES Embedder, respectively.
4.1 Your 6808 SDI-AES De-Embedder
Figure 1 and Table 1 define the 6808 SDI-AES De-Embedder:
Figure 1: 6808 SDI-AES De-Embedder
Table 1: 6808 SDI-AES De-Embedder
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 B BNC Connector Connects to the digital audio acceptor (for channels 3 and 4)1
AES
3
4 LOOP BNC Connector For active looping of the SDI input
5
6 ON LED Illuminates when receiving power
7 GROUP SELECT Dipswitches Select the audio group
8 VIDEO Green LED
9 AUDIO Green LED
A BNC Connector Connects to the digital audio acceptor (for channels 1 and 2)1
OUTPUTS
SDI
IN BNC Connector Connects to the SDI source
Automatically lights when receiving an SDI signal
Automatically lights when de-embedding audio from the video signal
1 In accordance with the standard, the audio digital stream contains 2 audio channels
3
