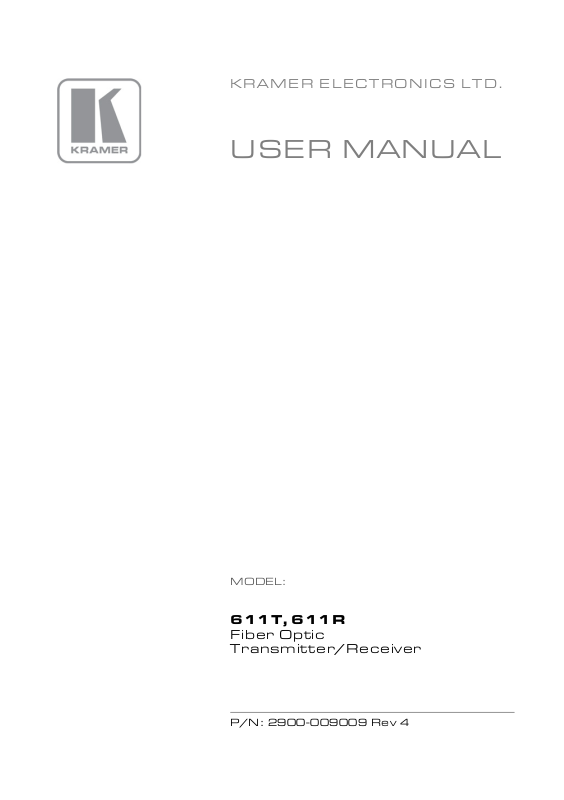

KRAMER ELECTRONICS LTD.
USER MANUAL
MODEL:
611T, 611R
Fiber Transmitter/Receiver
P/N: 2900-009009 Rev 4
Optic
Contents
1 Introduction 1 2 Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Safety Instructions 3
2.3 Recycling Kramer Products 3
3 Overview 4
3.1 Defining the 611T, 611R Fiber Optic Transmitter/Receiver 4
4 Connecting the 611T, 611R 6 5 Technical Specifications 8
Figures
Figure 1: 611T Fiber Optic Transmitter 4 Figure 2: 611R Fiber Optic Receiver 5 Figure 3: Connecting the 611T, 611R Fiber Optic Transmitter/Receiver 7
611T, 611R – Contents i

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront video, audio, presentation, and broadcasting professionals
on a daily basis. In recent years, we have redesigned and upgraded most of our
line, making the best even better!
Our 1,000-plus different models now appear in 11 groups that are clearly defined
by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;
GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:
Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:
Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:
Sierra Products.
Congratulations on purchasing your Kramer 611T, 611R Fiber Optic
Transmitter/Receiver, which is ideal for the following typical applications:
Remote monitoring systems for CCTV, medical, broadcast, and industrial
use
Signal distribution in broadcast and production studios
Board room and other presentation systems
Rental and staging applications
611T, 611R - Introduction 1
i
!

2 Getting Started

We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Go to http://www.kramerelectronics.com to check for up-to-date user manuals, application programs, and to check if firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:
Use only good quality connection cables (we recommend Kramer high-
performance, high-resolution cables) to avoid interference, deterioration in
signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables)
Do not secure the cables in tight bundles or roll the slack into tight coils
Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
Position your Kramer 611T, 611R away from moisture, excessive sunlight
and dust
This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building.
2 611T, 611R - Getting Started
