ADDENDUM (this data is included at the end of the Overview section)
This addendum adds the following information to the user manual:
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit1.
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
1 For example: model number AD2512C, part number 2535-000251
2900-
Introduction
1 Introduction
Welcome to Kramer Electronics (since 1981): a world of unique, creative and
affordable solutions to the infinite range of problems that confront the video,
audio and presentation professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
350-plus different models now appear in 8 Groups1, which are clearly defined
by function.
Congratulations on purchasing your Kramer 466 Digital Audio Transcoder.
This product is ideal for the following typical applications:
Video production and duplication studios
Audio recording studios
Live broadcasting and editing
The package includes the following items:
466 Digital Audio Transcoder
Power adapter (12V DC Input)
This user manual2
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
3 Your Digital Audio Transcoder
The high performance 466 Digital Audio Transcoder is a converter with 4
inputs and 4 outputs as follows:
Professional balanced 110 ohms AES/EBU on detachable terminal block
connectors
AES-ID3 75 on BNC connectors
Consumer 75 ohms S/PDIF on RCA connectors
Optical TosLink® in and out connectors
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 Download up-to-date Kramer user manuals and software from our Web site at http://www.kramerelectronics.com
1
Your Digital Audio Transcoder
Additionally:
When an input is selected, all the outputs are available simultaneously
All inputs and outputs are capable of receiving and transmitting 24 bit,
192kHz digital audio, including multi-channel audio
A twisted pair input and 2 identical twisted pair outputs are also provided
to support an extensive cascade of branching, providing multiple outputs
over a long distance
The system bit can be set to professional or consumer status, while all the
other system bits remain the same
The 466 Digital Audio Transcoder:
Can transmit the highest quality digital audio over several hundred meters
when several 466 units are used – one as a transmitter and one or more as
receivers
Has transformer coupled AES/EBU and AES-ID3 inputs and outputs
Accepts all serial digital audio transmission standards, compliant with
IEC 60958, S/PDIF, EIAJ CP1201 and AES3 interface standards, as well
as multi-channel standards
Is 12VDC fed and is housed in a DigiTOOLS enclosure
To achieve the best performance:
Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise
levels (often associated with low quality cables)
Avoid interference from neighboring electrical appliances that may
adversely influence signal quality
Position your Kramer 466 Digital Audio Transcoder away from moisture,
excessive sunlight and dust
Close the optical cable’s connectors (when not in use) to protect them
against exposure to dirt and dust
Figure 1 and Table 1 define the 466 Digital Audio Transcoder, Figure 2 and
Table 2 define the underside features:
2
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your Digital Audio Transcoder
Figure 1: 466 Digital Audio Transcoder
Table 1: Features and Functions of the Digital Audio Transcoder
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 AES-ID3 BNC
3 S/PDIF RCA
4
5 OUT2 Detachable
6 OUT1 Detachable
7
1 Use an optical cable, such as Sony’s POC-15A (not included in the package)
2 When connecting a single machine, this section is not relevant
Connector
Connector
OUTPUTS
OPTICAL TosLink®
Connector
2
Terminal Block
Terminal Block
IN Detachable
Terminal Block
TWISTED PAIR
Connect to the digital audio acceptor (75 )
Connect to the digital audio acceptor
Connect to the digital audio acceptor1
Connect to an additional 466 receiver
Connect to an additional 466 receiver
Connect to the OUT1 or OUT2 detachable terminal
block on another (transmitter) 466 unit, when using
more than one 466 unit (transmitter/receivers)
3
Your Digital Audio Transcoder
LOCAL INPUT
# Feature Function
8 OUT Detachable
9
10 OPTICAL Button
11 S/PDIF Button
12 AES-ID3 Button
13
14 TWISTED PAIR / LOCAL
15 OPTICAL TosLink®
16 S/PDIF RCA
17
18 ON LED Lights red when the system is powered
19 LINK LED Lights green when the input is connected and the
Terminal Block
EBU
IN Detachable
AES/
Terminal Block
SELECTOR
AES/EBU Button
Push Button
Connector
Connector
INPUTS
AES-ID3 BNC
Connector
Connect to the digital audio acceptor
Connect to the digital audio source
Press to select the optical input source
Press to select the S/PDIF source
Press to select the AES-ID3 source
Press to select the AES/EBU source
Release the button, to the LOCAL position, if a single
unit is used, or the unit is to operate as a transmitter1
Push the button in, to the TWISTED PAIR position, if
the unit operates as a receiver1
Connect to the digital audio source2
Connect to the digital audio source
Connect to the digital audio source (75)
signal is of good quality and can be decoded
Figure 2: 466 Digital Audio Transcoder Underside Mode Selection Switch
Table 2: 466 Underside Features
# Feature Function
1 MODE SELECT Switch Slide up to set to PROF. (professional) or slide down to set
1 See Figure 4
2 Use an optical cable, such as Sony’s POC-15A (not included in the package)
3 For example, when connecting a consumer source (a DVD player) and outputting to a professional acceptor (a DAT
recorder), it may be necessary to change the system bit status by altering the selected PROF./CONSUMER mode
4
to CONSUMER to change the system bit3
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Using the Digital Audio Transcoder
4 Using the Digital Audio Transcoder
To connect a single 466 Digital Audio Transcoder machine, as the example in
Figure 3 illustrates1, do the following2:
1. Connect the sources as follows:
Connect a digital audio source (for example, a DAT player) to the
AES-ID3 INPUT BNC connector
Connect a digital audio source (for example, a DVD player) to the
S/PDIF INPUT RCA connector
Connect a digital audio source (for example, a DVD player) to the
OPTICAL INPUT TosLink® connector
Connect an AES/EBU source (for example, a DAT player) to the
AES/EBU detachable terminal block IN connector using a shielded
twisted pair cable
2. Connect the acceptors as follows:
Connect the OPTICAL OUTPUT TosLink® connector to a digital
audio acceptor (for example, an AV receiver)
Connect the S/PDIF OUTPUT RCA connector to a digital audio
acceptor (for example, an AV receiver)
Connect the AES-ID3 OUTPUT BNC connector to a digital audio
acceptor (for example, a DAT recorder)
Connect the AES/EBU detachable terminal block OUT connector
(using a shielded twisted pair cable) to an AES/EBU acceptor (for
example, a DAT recorder)
3. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity.
4. Release the TWISTED PAIR/LOCAL button to the LOCAL position.
5. Set the MODE SELECT switch button to PROF. or CONSUMER, as
required (see Figure 2).
6. Press one of the LOCAL INPUT SELECTOR buttons to select an input
source3.
This source will appear on all outputs simultaneously.
1 You do not have to connect all inputs and outputs, connect only those that are required
2 Switch OFF the power on each device before connecting it to your 466. After connecting your 466, switch on its power and
then switch on the power on each device
3 If the valid digital audio signal is present on the selected input, the green LINK LED will light
5
DAT
Recorder
DAT Recorder
AV
Receiver
AV
Receiver
DVD Player
DAT Player
DAT Player
Using the Digital Audio Transcoder
DVD Player

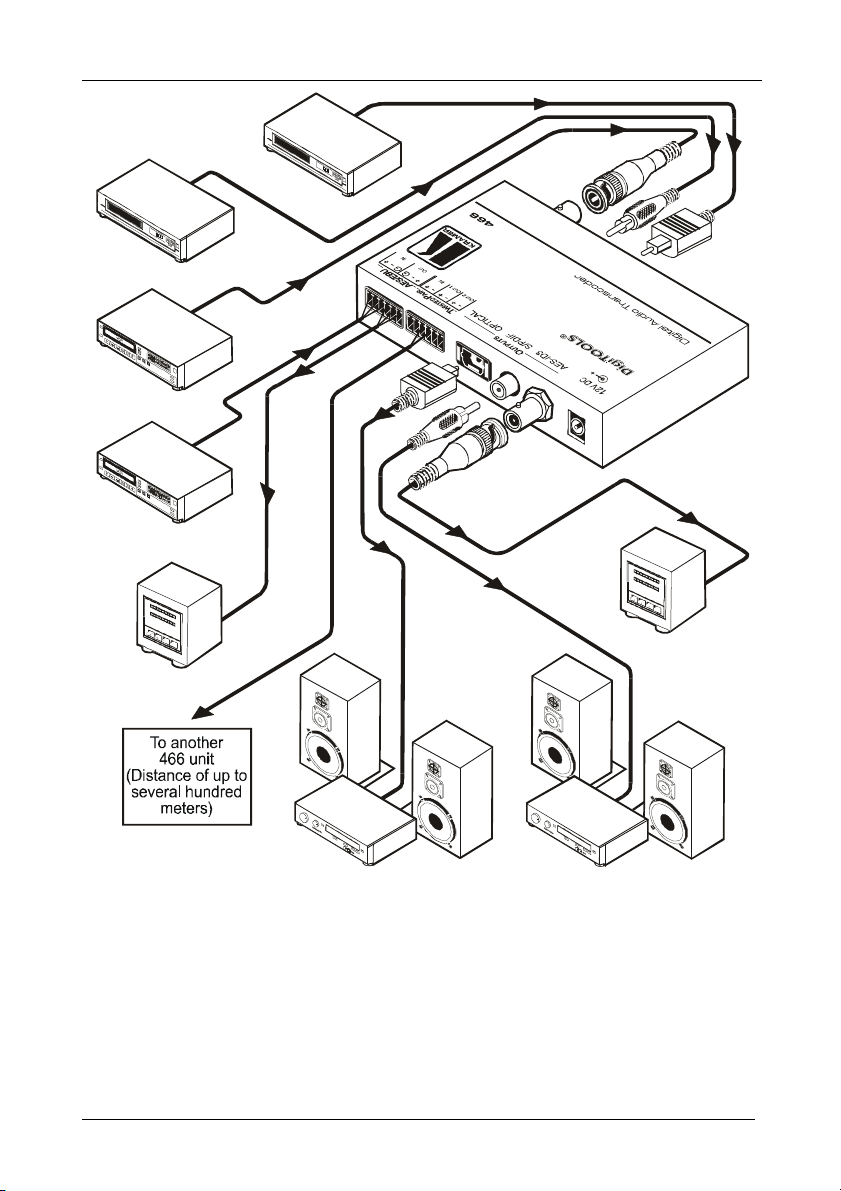

Figure 3: Connecting the 466 Digital Audio Transcoder
6
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Cascading Machines
5 Cascading Machines
You can cascade several machines via the TWISTED PAIR detachable
terminal blocks (OUT1, OUT2 and IN), to extend the range of the output
signals over several hundred meters.
To use several machines1, as illustrated in Figure 4, do the following2:
1. Connect the first 466 unit (the Transmitter3 in Figure 4) as described in
section 4.
2. Connect Receiver4 # 1 (in Figure 4):
Connect the outputs, as described in section 4 (numbered item 2)
Push in the TWISTED PAIR/LOCAL button to the TWISTED PAIR
position
Connect the TWISTED PAIR OUT 1 detachable terminal block, on
the Transmitter, to the TWISTED PAIR IN detachable terminal
block on Receiver # 1, via a shielded twisted pair cable
Set the MODE SELECT switch button to PROF. or CONSUMER, as
required (see Figure 2)
3. Connect Receiver4 # 2 (in Figure 4):
Connect the outputs, as described in section 4 (numbered item 2)
Push in the TWISTED PAIR/LOCAL button to the TWISTED PAIR
position
Connect the TWISTED PAIR OUT 2 detachable terminal block, on
the Transmitter, to the TWISTED PAIR IN detachable terminal
block on Receiver # 2, via a shielded twisted pair cable
Set the MODE SELECT switch button on each 466 unit to PROF. or
CONSUMER, as required (see Figure 2)
4. Press one of the LOCAL INPUT SELECTOR buttons to select an input
source5. This source will appear on all outputs simultaneously.
If you wish to operate any of the connected units locally, connect the desired
inputs to that unit and release the TWISTED PAIR/LOCAL button to the LOCAL
position.
1 Switch OFF the power on each device before connecting it to your 466. After connecting your 466, switch on its power and
then switch on the power on each device
2 You do not have to connect all inputs and outputs, connect only those that are required
3 This 466 unit is operating as a transmitter in this configuration
4 This 466 unit is operating as a receiver in this configuration
5 If the valid digital audio signal is present on the selected input, the green LINK LED will light
7
Cascading Machines
Push in an input button
To another
466 unit
To another
466 unit
8
to transmit to the outputs
Figure 4: Extending the Range with the 466 Digital Audio Transcoder
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Cascading Machines
5.1 Using Additional 466 Machines
You can connect additional 466 units (operating as receivers) to further
extend the output signal range.
To use additional 466 machines, do the following:
1. Connect the required outputs1 to the newly added 466 receiver unit.
2. Connect the TWISTED PAIR OUT 1 and/or OUT 2 detachable terminal
blocks of the previously connected unit, to the TWISTED PAIR IN
detachable terminal block on the newly added unit, using a shielded
twisted pair cable.
3. Push in the TWISTED PAIR/LOCAL button on the new machine, to the
TWISTED PAIR position2.
4. Set the MODE SELECT switch button on each 466 unit to PROF. or
CONSUMER, as required (see Figure 2)
5. Press one of the LOCAL INPUT SELECTOR buttons to select an input
source3.
This source will appear on all outputs simultaneously
When connecting several machines, push in the TWISTED PAIR/LOCAL button
on all receiver units, except for the transmitter unit.
1 You do not have to connect all the outputs
2 Push in the TWISTED PAIR/LOCAL button on each unit except for the first machine (to which the inputs are connected).
3 If the valid digital audio signal is present on the selected input, the green LINK LED will light
9
Technical Specifications
6 Technical Specifications
Table 3 includes the technical specifications:
Table 3: Technical Specifications1 of the Digital Audio Transcoder
INPUTS: 1 digital audio AES-ID3 on a BNC connector, 1 S/PDIF digital audio on an RCA
OUTPUTS: 1 digital audio AES-ID3 on a BNC connector, 1 S/PDIF digital audio on an RCA
SAMPLING: 32, 44.1, 48, 96, 192 kHz sampling frequencies
STANDARDS: IEC 60958, S/PDIF, EIAJ CP1201 and AES3 interface standards, as well as multi-
CONTROL: Input select, local twisted-pair selector, system bit selector
DIMENSIONS: 12 cm x 7.5 cm x 2.5 cm (4.7" x 2.95" x 0.98", W, D, H)
POWER SOURCE: 12 VDC, 60 mA
WEIGHT: .25 kg (0.6 lbs.) approx.
ACCESSORIES: Power supply, mounting bracket
OPTIONS: RK-T1 or RK-T3 rack mount kit
connector, 1 TosLink® optical, 1 digital audio AES/EBU on a detachable terminal
block, 1 twisted pair on a detachable terminal block
connector, 1 TosLink® optical, 1 digital audio AES/EBU on a detachable terminal
block, 2 twisted pairs on detachable terminal blocks
channel standards
1 Specifications are subject to change without notice
10
KRAMER: SIMPLE CREATIVE TECHNOLOGY
LIMITED WARRANTY
Kramer Electronics (hereafter Kramer) warrants this product free from defects in material and workmanship under the
following terms.
HOW LONG IS THE WARRANTY
Labor and parts are warranted for three years from the date of the first customer purchase.
WHO IS PROTECTED?
Only the first purchase customer may enforce this warranty.
WHAT IS COVERED AND WHAT IS NOT COVERED
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered
by the warranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed.
3. Damage, deterioration or malfunction resulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product
WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR
We will pay labor and material expenses for covered items. We will not pay for the following:
1. Removal or installations charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.
HOW YOU CAN GET WARRANTY SERVICE
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty coverage,
and should be included in any shipment of the product. Please also include in any mailing a contact name, company, address, and
a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
LIMITATION OF IMPLIED WARRANTIES
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
EXCLUSION OF DAMAGES
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer
shall not be liable for:
1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss
of time, commercial loss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations and exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.
NOTE: All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
This equipment has been tested to determine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility (EMC);
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
CFR-47: FCC Rules and Regulations:
CAUTION!
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or modifications to
the unit without the expressed approval of the manufacturer will void user authority to operate the equipment.
Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables to connect the machine to other components.
generic emission standard.
Part 1: Residential, commercial and light industry"
Part 1: Residential, commercial and light industry environment".
Part 15: “Radio frequency devices
Subpart B – Unintentional radiators”
11
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com,
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: info@kramerel.com
P/N: 2900-000070 REV 1
Loading...
