Kramer Electronics 104R User Manual

KRAMER ELECTRONIC S LTD.
USER MANUAL
MODEL:
10 4R
RF Distribution Amplifier
P/N: 2900-001010 Rev 3
104R – Contents
i
Contents
1 Introduction 1 2 Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Safety Instructions 3
2.3 Recycling Kramer Products 3
3 Overview 4
3.1 Defining the 104R RF Distribution Amplifier 4
4 Connecting the 104R 5 5 Technical Specifications 7
Figures
Figure 1: 104R RF Distribution Amplifier 4 Figure 2: Connecting the 104R RF Distribution Amplifier 6
104R - Introduction
1

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better!
Our 1,000-plus different models now appear in 11 groups that are clearly defined by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products.
Congratulations on purchasing your Kramer 104R RF Distribution Amplifier, which is ideal for the following typical applications:
CATV and MATV systems Modulation applications (for example, hotel systems) Retail stores, schools, medical facilities Home theater systems
2
104R - Getting Started
Go to http://www.kramerelectronics.com to check for up-to-date user manuals, application programs, and to check if firmware upgrades are available (where appropriate).
This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building.
i
!

2 Getting Started

We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual

2.1 Achieving the Best Performance

To achieve the best performance:
Use only good quality connection cables (we recommend Kramer high-
performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables)
Do not secure the cables in tight bundles or roll the slack into tight coils Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
Position your Kramer 104R away from moisture, excessive sunlight and dust
104R - Getting Started
3
Caution:
There are no operator serviceable parts inside the unit
Warning:
Use only the Kramer Electronics input power wall adapter that is provided with the unit
Warning:
Disconnect the power and unplug the unit from the wall before installing
!

2.2 Safety Instructions

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected and recycled. To comply with the WEEE Directive, Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.
4
104R - Overview
#
Feature
Function
1
OUT 1 “F” type connector
Connects to the RF source 1
2
OUT 2 “F” type connector
Connects to the RF source 2
3
INPUT “F” type connector
Connects to the RF acceptor
4
OUT 3 “F” type connector
Connects to the RF source 3
5
OUT 4 “F” type connector
Connects to the RF source 4
6
ON LED
Illuminates when receiving power
7
12V DC
+12V DC connector for powering the unit

3 Overview

The 104R is a high−performance distribution amplifier for RF signals. It takes one RF (CATV/MATV) signal and distributes it to four identical outputs.
In addition, the 104R features:
A single RF input such as a typical CATV/MATV signal and distributes it to
four identical outputs
Extra wide bandwidth of up to 800 MHz, ensuring that the unit remains
transparent in the most critical applications
Matches the inputs and outputs to 75Ω impedance Comes with convenient screw-on “F” type connectors

3.1 Defining the 104R RF Distribution Amplifier

This section defines the 104R.

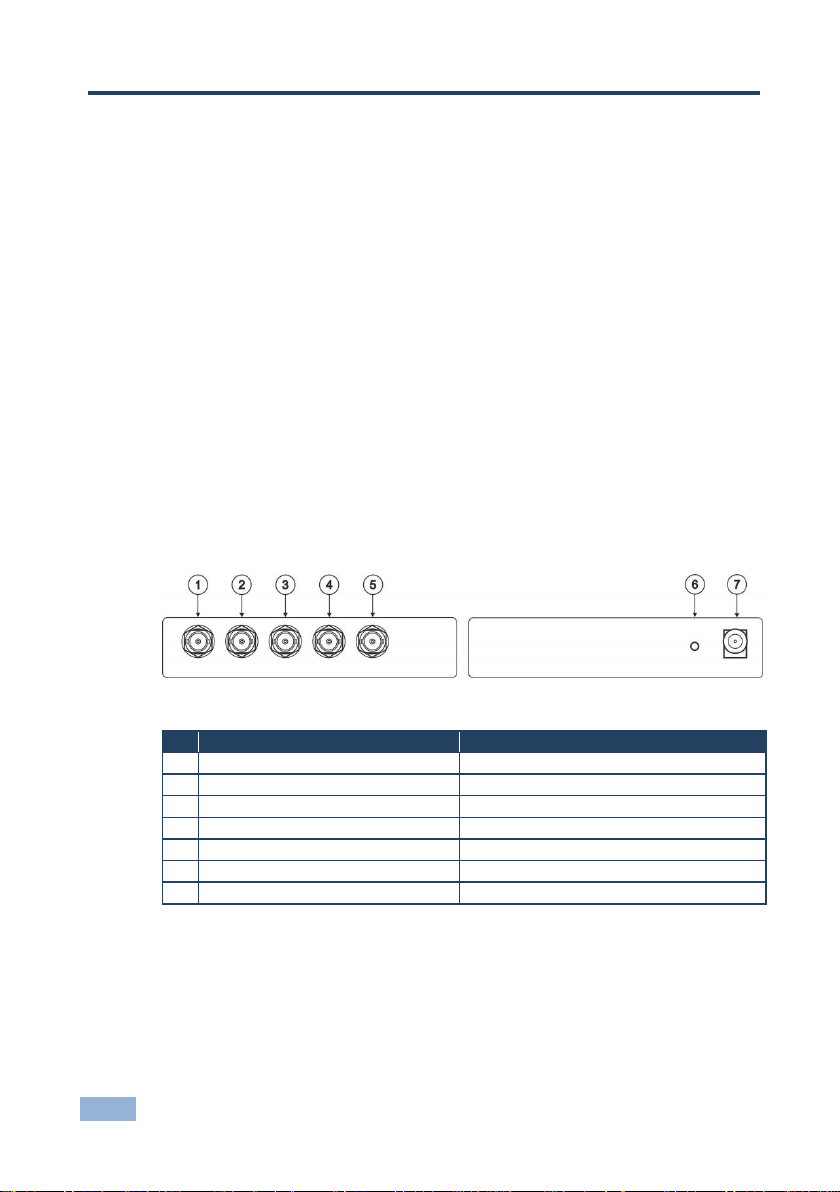

Figure 1: 104R RF Distribution Amplifier
104R - Connecting the 104R
5
Always switch off the power to each device before connecting it to your 104R. After connecting your 104R, connect its power and then switch on the power to each device.
i

4 Connecting the 104R

To connect the 104R as illustrated in the example in Figure 2:
1. Connect the TV source (for example, a satellite receiver) to the “F” type INPUT connector.
2. Connect one or more of up to 4 of the following “F” type OUT connectors to the respective TV acceptors:
You do not have to connect all the outputs.
OUT 1 to TV acceptor 1 (for example, a TV) OUT 2 to TV acceptor 2 (for example, a TV) OUT 3 to TV acceptor 3 (for example, a recorder) OUT 4 to TV acceptor 4 (for example, a TV)
3. Connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity.
4. Switch on the TV source and the TV acceptors. The RF INPUT signal automatically distributes to the TV acceptors.
6
104R - Connecting the 104R
Figure 2: Connecting the 104R RF Distribution Amplifier
104R - Technical Specifications
7
INPUT:
1 RF, 0.5Vpp/75Ω (max.) on an “F” type connector
OUTPUTS:
4 RF, 0.5Vpp/75Ω (max.) on “F” type connectors
BANDWIDTH:
40MHz to 3000MHz (+/−3dB)
COUPLING:
AC
RF GAIN:
+6dB typical across band
NOISE FIGURE:
3.5dB
POWER CONSUMPTION:
12V DC, 80mA
OPERATING TEMPERATURE:
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:
-40° to +70°C (-40° to 158°F)
HUMIDITY:
10% to 90%, RHL non-condensing
DIMENSIONS:
12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H.
WEIGHT:
0.32kg (0.71lbs) approx.
ACCESSORIES:
Power supply, mounting bracket
OPTIONS:
RK−3T 19" rack adapter
Specifications are subject to change without notice at http://www.kramerelectronics.com

5 Technical Specifications

8
104R - Technical Specifications
For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found.
We welcome your questions, comments, and feedback.
Web site: www.kramerelectronics.com E-mail: info@kramerel.com
P/N:
2900-001010
Rev:
3
!
SAFETY WARNIN G Disconnect the unit from the power supply before opening and servicing
