Page 1

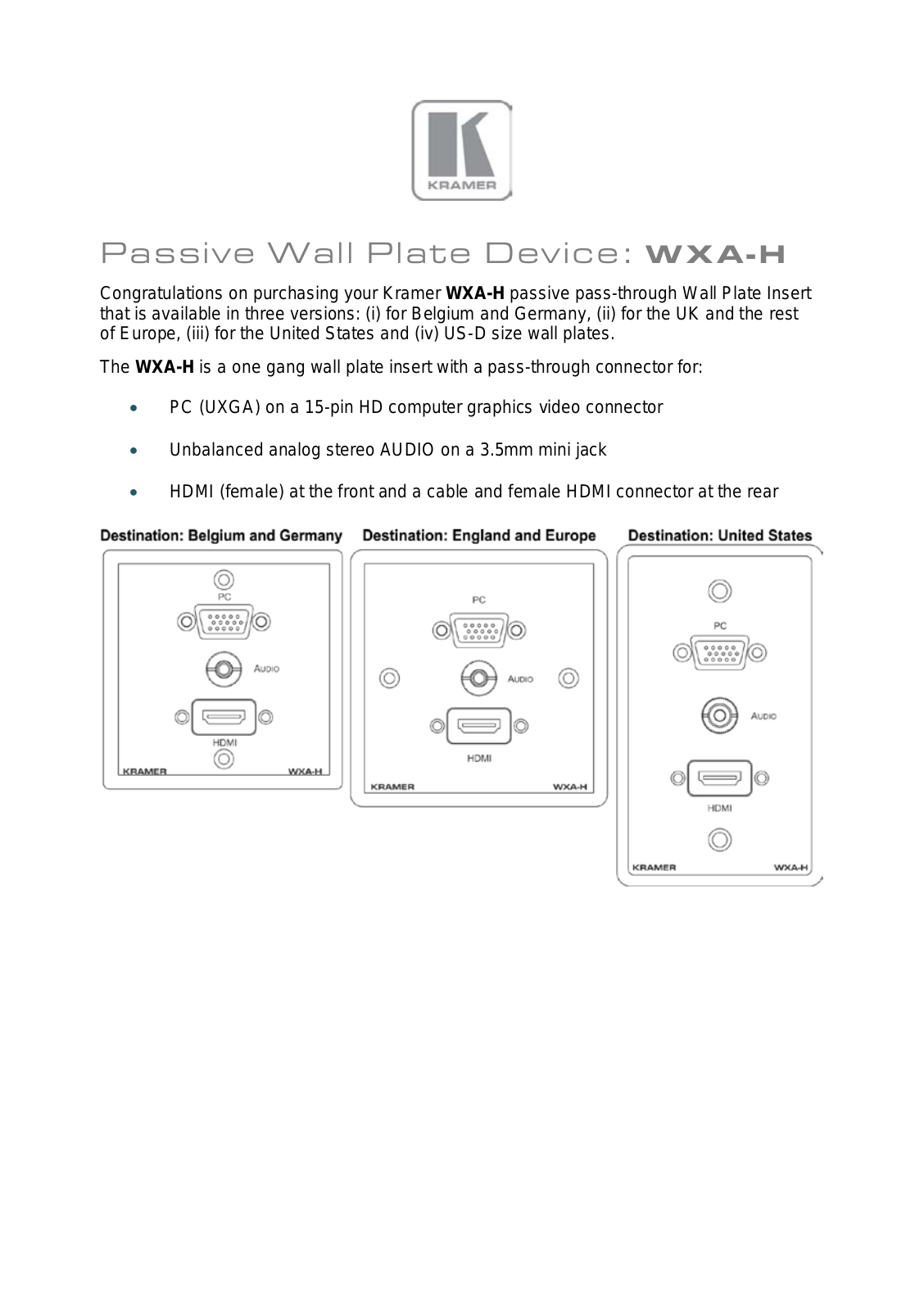

Passive Wall Plate Device:
Congratulations on purchasing your Kramer WXA-H passive pass-through Wall Plate Insert
that is available in three versions: (i) for Belgium and Germany, (ii) for the UK and the rest
of Europe, (iii) for the United States and (iv) US-D size wall plates.
The WXA-H is a one gang wall plate insert with a pass-through connector for:
• PC (UXGA) on a 15-pin HD computer graphics video connector
• Unbalanced analog stereo AUDIO on a 3.5mm mini jack
• HDMI (female) at the front and a cable and female HDMI connector at the rear
WXA- H
Page 2

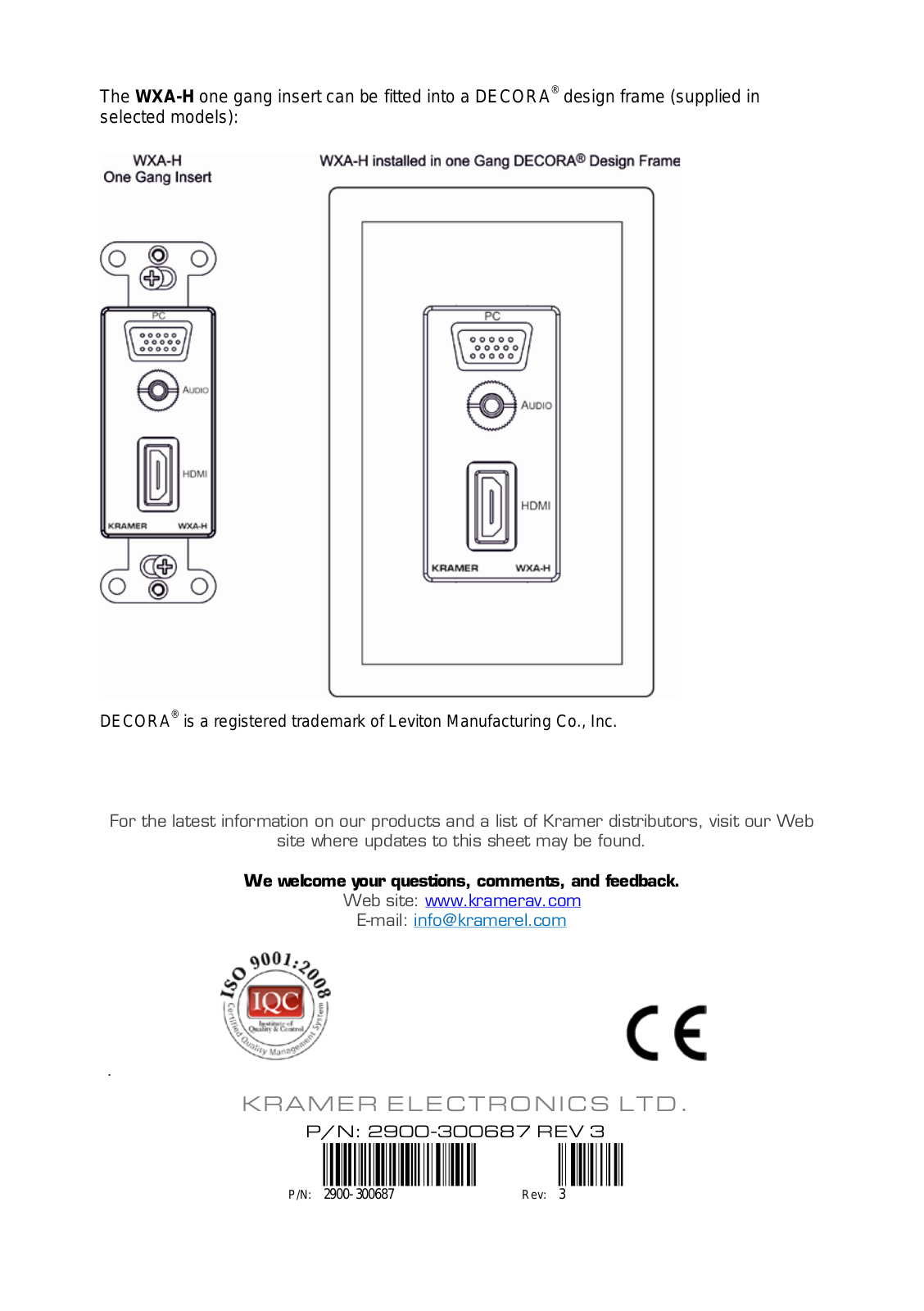

The WXA-H one gang insert can be fitted into a DECORA® design frame (supplied in
P/N:
2900-300687
Rev:
3
selected models):
DECORA® is a registered trademark of Leviton Manufacturing Co ., In c.
For the latest information on our products and a list of Kramer distributors, visit our Web
site where updates to this sheet may be found.
We welcome your questions, comments, and feedback.
Web site: www.kramerav.com
E-mail: info@kramerel.com
KRAMER ELECTRONICS LTD.
P/N: 2900-3 00687 REV 3
