WP-EN6 US PANEL SET Quick Start

P/N:

2900- 301418QS

Rev:

1

Scan for full manual

WP-EN6 US PANEL SET Quick Start Guide

This guide helps you install and use your WP -EN6 US PANEL SET for the first time.
Go to www.kramerav.com/downloads/WP-EN6

Step 1: Check what’s in the box

1 US-D faceplate, 1 US-D frame bracket and 1 US-D frame

1 Quick start guide

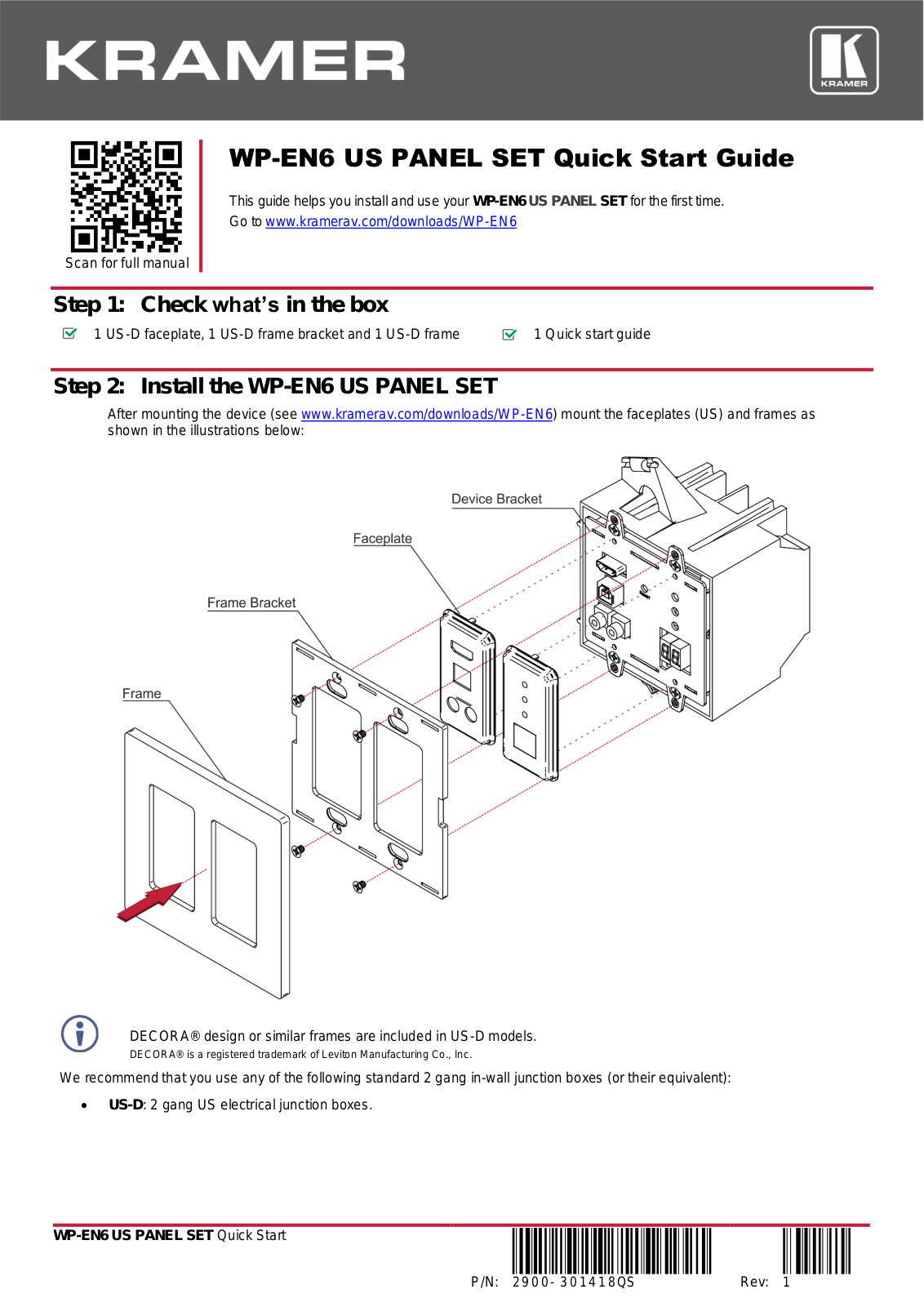

Step 2: Install the WP-EN6 US PANEL SET

After mounting the device (see www.kramerav.com/downloads/WP-EN6) mount the faceplates (US) and frames as
shown in the illustrations below:

DECORA® design or similar frames are included in US-D models.

DECORA® is a registered trademark of Leviton Manufacturing Co., Inc.

We recommend that you use any of the following standard 2 gang in-wall junction boxes (or their equivalent):

• US-D: 2 gang US electrical junction boxes.
