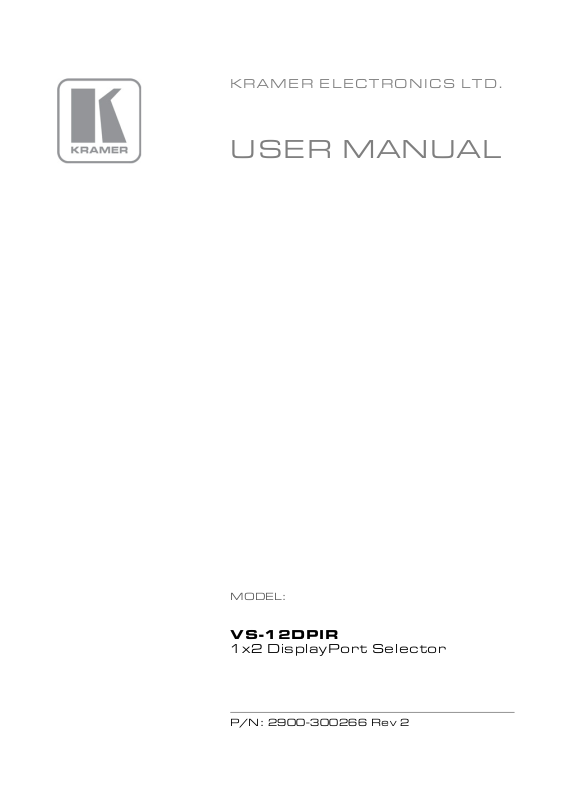

KRAMER ELECTRONICS LTD.
USER MANUAL
MODEL:
VS-12DPIR
1x2
DisplayPort Selector
P/N: 2900-300266 Rev 2
Page 2
Page 3
Contents
1 Introduction 1
2 Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Safety Instructions 3
2.3 Recycling Kramer Products 3
3 Overview 4
3.1 Defining the VS-12DPIR 1x2 DisplayPort Selector 4
4 Connecting the VS-12DPIR 6
4.1 Controlling via the REMOTE Terminal Block Connector 7
5 Technical Specifications 8
Figures
Figure 1: VS-12DPIR 1x2 DisplayPort Selector 5
Figure 2: Connecting the VS-12DPIR 1x2 Dis pl ayP ort S elector 6
Figure 3: Connecting the REMOTE Input Select Connector 7
VS-12DPIR – Contents i
Page 4
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront video, audio, presentation, and broadcasting professionals
on a daily basis. In recent years, we have redesigned and upgraded most of our
line, making the best even better!
Our 1,000-plus different models now appear in 11 groups that are clearly defined
by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;
GROUP 3: Control Systems; GROUP 4: Format/Standards Converters ; GROUP 5:
Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:
Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:
Sierra Products.
Congratulations on purchasing your Kramer VS-12DPIR 1x2 DisplayPort Selector,
which is ideal for the following typical applications:
• Home theater, presentation and multimedia applications
• Rental and staging
VS-12DPIR - Introduction 1
Page 5
i
!
2 Getting Started
We recommend that you:
• Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
• Review the contents of this user manual
Go to http://www.kramerelectronics.com to check for up-to-date
user manuals, application programs, and to check if firmware
upgrades are available (where appropriate).
2.1 Achieving the Best Performance
To achieve the best performance:
• Use only good quality connection cables (we recommend Kramer high-
performance, high-resolution cables) to avoid interference, deterioration in
signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables)
• Do not secure the cables in tight bundles or roll the slack into tight coils
• Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
• Position your Kramer product away from moisture, excess i ve sunli ght and
dust
This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.
2 VS-12DPIR - Getting Started
