Introduction
1
1 Introduction
Welcome to Kramer Electronics (since 1981): a world of unique, creative and
affordable solutions to the infinite range of problems that confront the video,
audio and presentation professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
500-plus different models now appear in 8 Groups1, which are clearly defined
by function.
Congratulations on purchasing your Kramer TOOLS VP-800 VGA / XGA Bar
Generator! This product is ideal for:
Testing and alignment of computer displays and large screen projectors
Use with scan converters (VGA/XGA to video)
Testing switching and distribution systems
The package includes the following items:
VP-800 VGA / XGA Bar Generator
Power adapter (12V DC Input) and this user manual2
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables3
3 Your VP-800 VGA / XGA Bar Generator
The high quality VP-800 VGA / XGA Bar Generator is a high performance
computer graphics video color bar generator. It can be set to output color bars
at 640x480, 800x600, 1024x768 and 1280x1024 resolutions via a 15-pin HD
connector. The VP-800 is fed from an external 12V DC4 source, making it
suitable for field operation.
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
4 Some older versions may be marked 9V DC and are supplied with a 9V power adapter
Page 4
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VP-800 VGA / XGA Bar Generator
2
To achieve the best performance:
Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise
levels (often associated with low quality cables)
Avoid interference from neighboring electrical appliances that may
adversely influence signal quality and position your Kramer VP-800 VGA
/ XGA Bar Generator away from moisture, excessive sunlight and dust
Figure 1 and Table 1 define the VP-800 VGA / XGA Bar Generator:

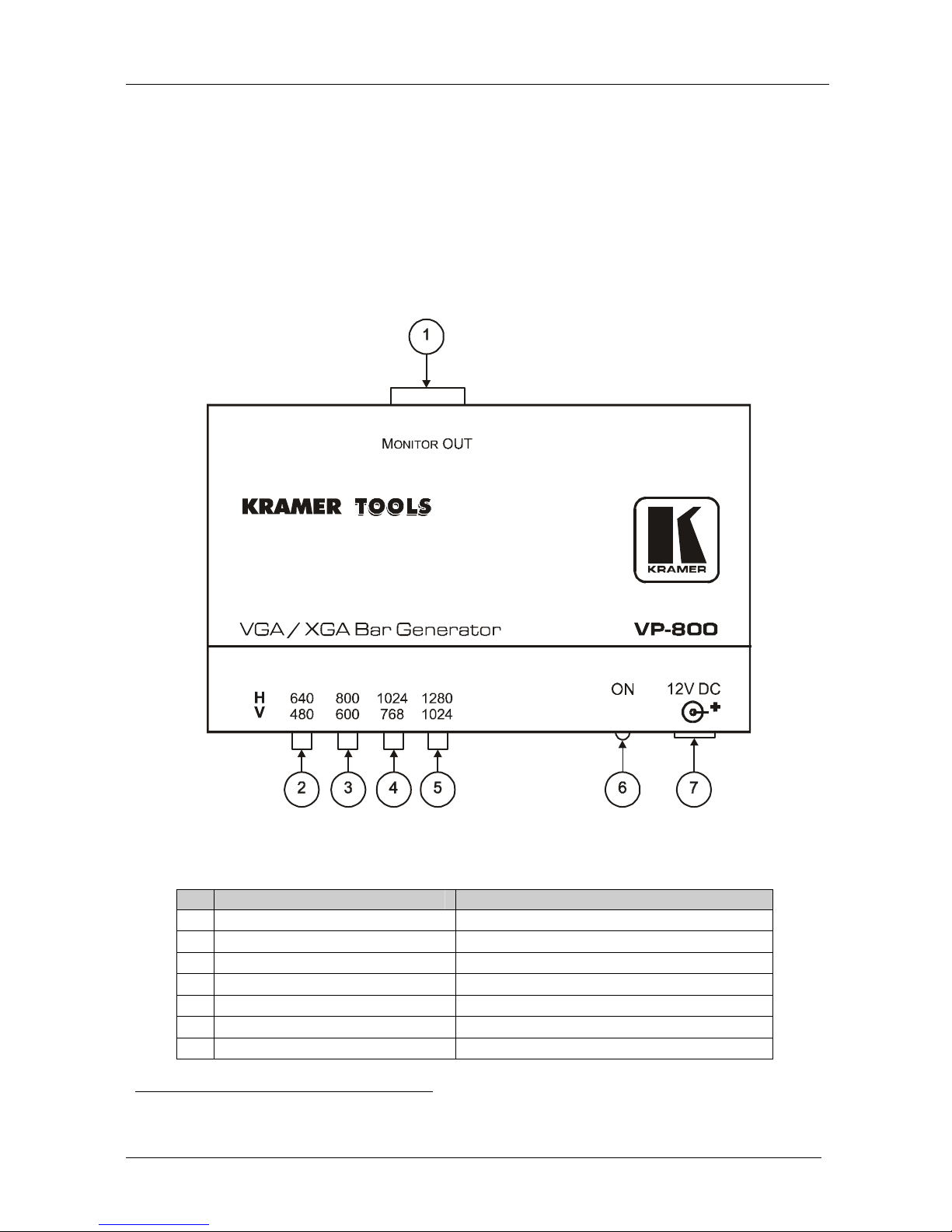

Figure 1: VP-800 VGA / XGA Bar Generator
Table 1: Features and Functions of the VP-800 VGA / XGA Bar Generator
# Feature Function
1 MONITOR OUT HD15F Connector Connect to the VGA/XGA acceptor1
2 640x480 Button Selects VGA (640x480) when pressed
3 800x600 Button Selects SVGA (800x600) when pressed
4 1024x768 Button Selects XGA (1024x768) when pressed
5 1280x1024 Button Selects SXGA (1280x1024) when pressed
6 ON LED Lights when the power is connected
7 12V DC +12V DC connector for powering the unit
1 To display the test pattern
Page 5
Connecting the VP-800 VGA / XGA Bar Generator
3
4 Connecting the VP-800 VGA / XGA Bar Generator
To connect your VP-800 VGA / XGA Bar Generator as illustrated in the
example in Figure 2, do the following:
1. Connect the MONITOR OUT HD-15F connector to a VGA/XGA
acceptor (for example, a display).
2. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity.
3. Select the required resolution.
Display

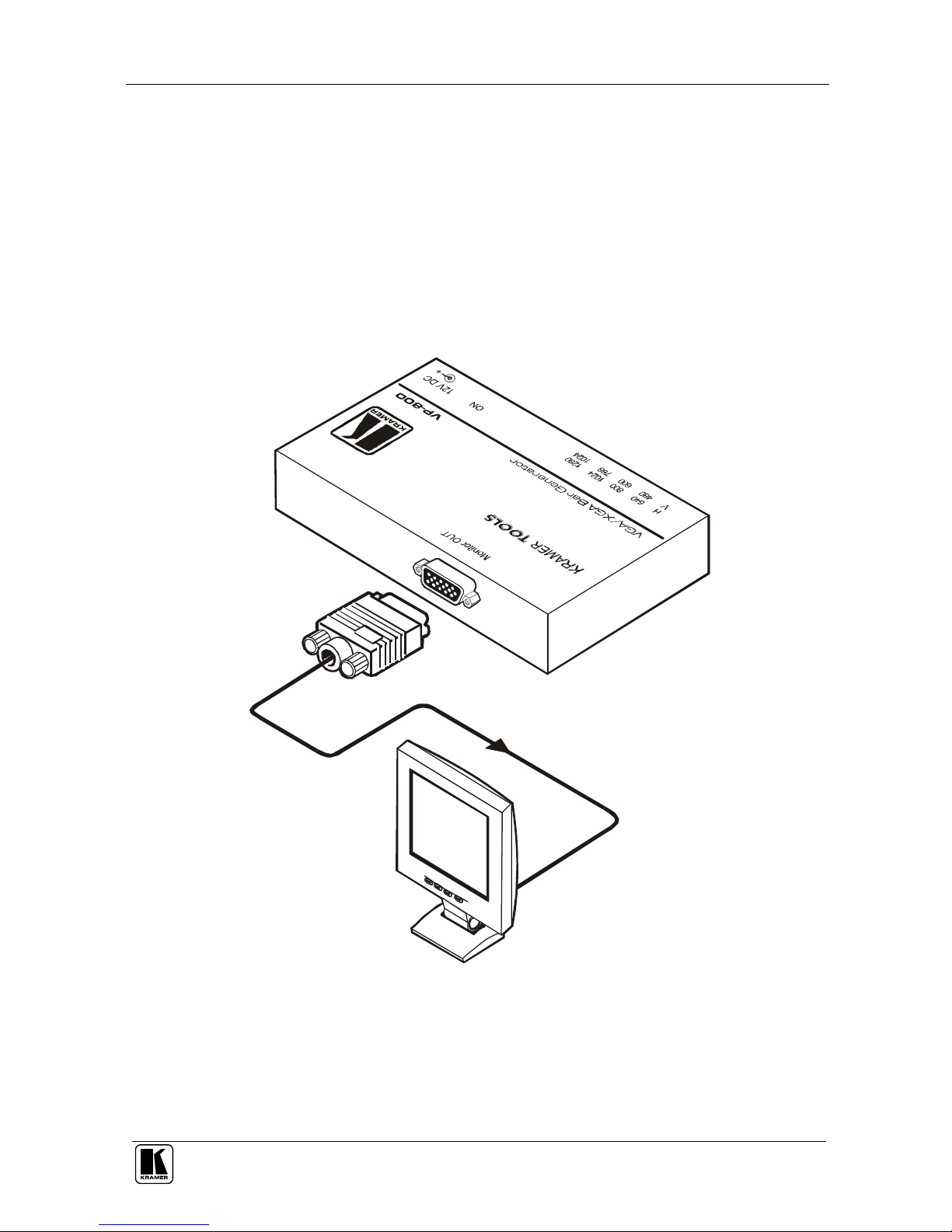

Figure 2: Connecting the VP-800 VGA / XGA Bar Generator
Page 6
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Technical Specifications
4
5 Technical Specifications
Table 2: Technical Specifications1 of the VP-800 VGA / XGA Bar Generator
OUTPUT: Standard VGA/SXGA RGBHV signal on an HD15F connector
RESOLUTIONS: 640 x 480, 60Hz; 800 x 600, 75Hz; 1024 x 768, 75Hz; 1280 x 1024, 74Hz
POWER SOURCE: 12V DC, 200mA max.
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”, W, D, H)
WEIGHT: 0.3kg (0.66 lbs.) approx
ACCESSORIES: Power supply, mounting bracket
OPTIONS: RK-T1, RK-T3, 19” rack adapters
1 Specifications are subject to change without notice
