Kramer VP-553xl User Manual

KRAMER ELECTRONIC S LTD.

USER MANUAL

MODEL:

VP-5 53 xl

Presentation Switcher/Scaler

P/N: 2900-300421 Rev 3

VP-553xl – Contents

i

Contents

1 Introduction 1
2 Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 3

2.3 Recycling Kramer Products 3

3 Overview 4

3.1 Using the USB Switcher 6

3.2 Using Twisted Pair Cable for HDBT 6

3.3 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP) 7

3.4 Defining the VP-553xl Presentation Switcher/Scaler 7

4 Installing in a Rack 11
5 Connecting the VP-553xl 12

5.1 Connecting the Balanced Stereo Audio Input and Outputs 15

6 Controlling the VP-553xl 16

6.1 Controlling via the Front Panel Buttons 16

6.2 Using the OSD Menu 17

6.3 Connecting to the VP-553xl via RS-232 24

6.4 Operating via Ethernet 25

6.5 Controlling via the Infrared Remote Control Transmitter 29

7 Using the Embedded Web Pages 30

7.1 Browsing the VP-553xl Web Pages 31

7.2 The Switching Page 32

7.3 The Scaler Page 35

7.4 The Device Settings Page 37

7.5 The USB Routing Page 39

7.6 The Audio Settings Page 40

7.7 The EDID Page 43

7.8 The Data Routing Page 45

7.9 The Authentication Page 46

7.10 The About Page 46

8 Technical Specifications 47

8.1 Default Communication Parameters 48

8.2 Input Resolutions 49

9 The VP-553xl RS-232 Communication Protocol 50

9.1 Kramer Protocol 3000 Syntax 50

9.2 Kramer Protocol 3000 – Command List 53

9.3 Kramer Protocol 3000 – Detailed Commands 55

Figures

Figure 1: VP-553xl Presentation Switcher/Scaler Front Panel 8
Figure 2: VP-553xl Presentation Switcher/Scaler Rear Panel 9
Figure 3: Connecting the VP-553xl Presentation Switcher / Scaler 14
Figure 4: Balanced Stereo Audio Connection 15
Figure 5: Unbalanced Stereo Audio Output Connection 15
Figure 6: Unbalanced Stereo Audio Input Connection 15
Figure 7: HDBT IR transmission Example 18

ii

VP-553xl - Contents

Figure 8: VP-553xl Audio Volume Level (dB) vs. OSD Volume Values 23
Figure 9: Local Area Connection Properties Window 26
Figure 10: Internet Protocol Version 4 Properties Window 27
Figure 11: Internet Protocol Version 6 Properties Window 27
Figure 12: Internet Protocol Properties Window 28
Figure 13: Infrared Remote Control Transmitter 29
Figure 14: The Loading Page 31
Figure 15: Enter Username and Password 31
Figure 16: The Switching Page 32
Figure 17: Input and Output Icons 33
Figure 18: Edit Input Buttons 33
Figure 19: Edit Output Buttons 34
Figure 20: The Scaler Page – Output 1 35
Figure 21: The Scaler Page – Output 1 for an Analog Input 36
Figure 22: The Scaler Page – Output 2 36
Figure 23: The Device Settings Page 37
Figure 24: The Device Settings Page – Static IP Confirmation. 37

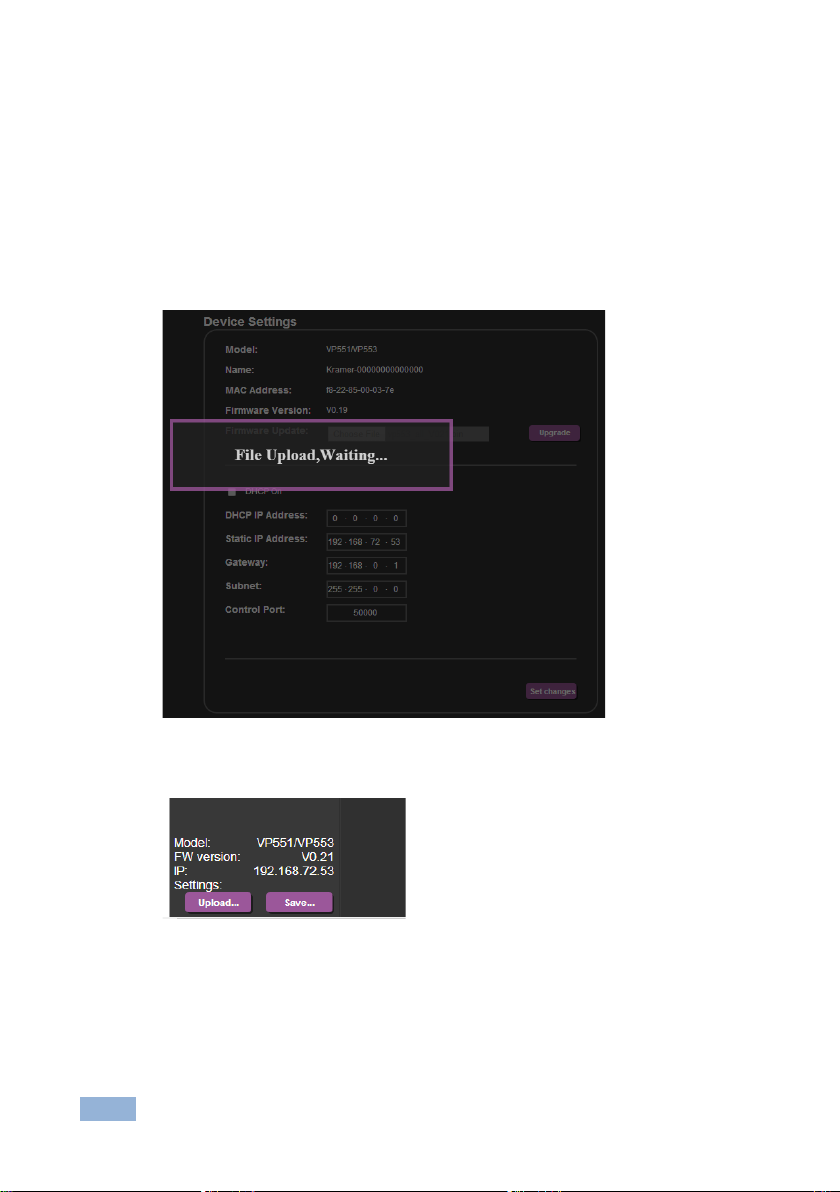

Figure 25: The Device Settings Page – Uploading the New Firmware File 38
Figure 26: The Device Settings Page –New Firmware Updated 38
Figure 27: The USB Routing Page 39
Figure 28: The USB Tied to a Selected Input 40

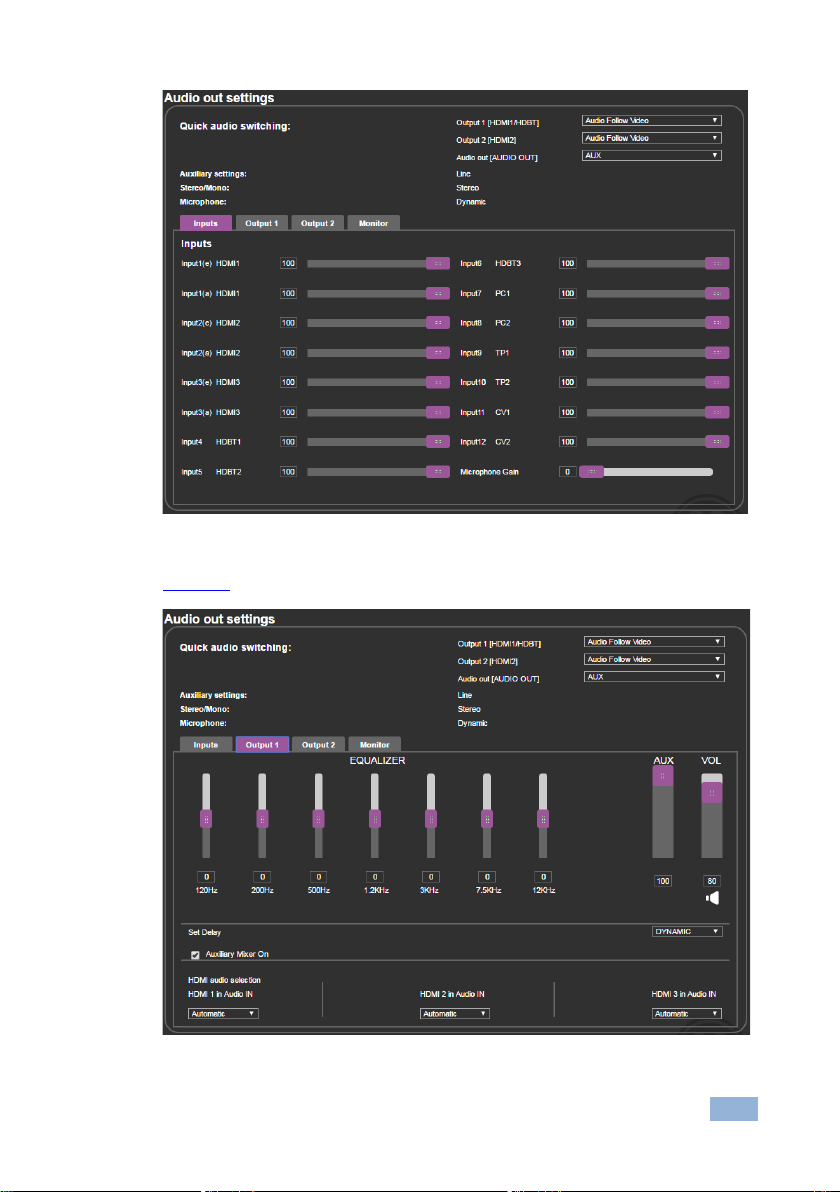

Figure 29: The Audio Settings Page – Inputs 41
Figure 30: The Audio Settings Page – Output 1 41
Figure 31: The Audio Settings Page – Output 2 42
Figure 32: The Audio Settings Page – Monitor 42
Figure 33: The EDID Page 43
Figure 34: The EDID Page – Copying the Native Timing 43
Figure 35: The EDID Page – Copying the Default 44
Figure 36: The EDID Page –The Copy EDID Results 44
Figure 37: The Data Routing Page 45
Figure 38: The Authentication Page 46
Figure 39: The About Page 46

VP-553xl – Introduction

1

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront video, audio, presentation, and broadcasting professionals
on a daily basis. In recent years, we have redesigned and upgraded most of our
line, making the best even better!

Congratulations on purchasing your Kramer VP-553xl Presentation
Switcher/Scaler. This product, which incorporates HDMI™ technology, is ideal for:

• Projection systems in conference rooms, boardrooms, hotels and churches

• Video conferencing setups

2

VP-553xl - Getting Started

2 Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

• Review the contents of this user manual

Go to www.kramerav.com/downloads/VP-553xl to check for up-to-date
user manuals, application programs, and to check if firmware upgrades
are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

• Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in
signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables)

• Do not secure the cables in tight bundles or roll the slack into tight coils

• Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

• Position your Kramer VP-553xl away from moisture, excessive sunlight and

dust

This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.

i

!

VP-553xl – Getting Started

3

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the power cord that is supplied with the unit

Warning:

Do not open the unit. High voltages can cause
electrical shock! Servicing by qualified personnel only

Warning:

Disconnect the power and unplug the unit from the wall
before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims
to reduce the amount of WEEE sent for disposal to landfill or incineration by
requiring it to be collected and recycled. To comply with the WEEE Directive,
Kramer Electronics has made arrangements with the European Advanced
Recycling Network (EARN) and will cover any costs of treatment, recycling and
recovery of waste Kramer Electronics branded equipment on arrival at the EARN
facility. For details of Kramer’s recycling arrangements in your particular country go
to our recycling pages at www.kramerav.com/support/recycling/.

!

4

VP-553xl - Overview

3 Overview

The VP-553xl is a high-performance 6x2 presentation switcher/scaler for HDMI™,
HDBaseT and analog signals, and a 4x1 USB switcher. The unit has dual,
independent, scaled outputs, the first on both HDMI and HDBaseT connectors,
and the second on an HDMI connector. Both can take from the six digital inputs:
three HDBaseT and three HDMI signals; while the first also includes analog inputs
– for two computer graphics signals, two composite video and two analog TP
inputs. Analog, digital and embedded audio are supported, and the unit also
includes a microphone input and rich DSP features.

The VP-553xl features:

• Pix-Perfect™ scaling technology - Kramer’s precision pixel mapping and

high quality scaling technology. High-quality 3:2 and 2:2 pull down
de-interlacing and full up- and down-scaling of video input signals

• System Range for the HDBT inputs and outputs - Up to 70m (230ft)

For optimum range and performance using HDBaseT™, use Kramer's
BC-UNIKat cable. Note that the transmission range depends on the
signal resolution, source and display used. The distance using
non−Kramer CAT 6 cable may not reach these ranges.

• System Range for the TP inputs and outputs - over 250m (more than 820ft)

For optimum range and performance using TP, use Kramer's BC-STP
cable where skewing is not an issue or the Kramer BC-XTP Unshielded
Twisted Pair (UTP) skew-free cable. Note that the transmission range
depends on the signal resolution, source and display used. The
distance using non−Kramer CAT 6 cable may not reach these ranges.

• HDTV compatibility

• HDCP compliance - the HDCP (High Definition Content Protection) license

agreement allows copy-protected data on the HDMI input to pass only to the
HDMI outputs

• Video inputs - three HDMI connectors, two VGA on 15-pin HD connectors

each with unbalanced stereo audio on 3.5mm connectors, two composite
video on RCA connectors with unbalanced stereo audio on RCA connectors,
three HDBaseT on RJ-45 connectors and two analog TP on RJ-45
connectors

i

i

VP-553xl – Overview

5

• Two scaled HDMI outputs (OUT 1 also outputs HDBaseT)

• Output resolutions - HDTV and computer graphics and 1080p/UXGA with

selectable refresh rates

• A 4x1 USB switcher that can be set to follow the switching of the video layer

or can be used as an independent switcher

• OSD (On Screen Display) - for easy setup and adjustment, accessible via

the IR remote control and via the front panel buttons

• Powerful audio features via DSP technology

• Input and output audio level adjustment

• Selectable microphone talkover or mix modes

• Automatic audio detection and selection of the HDMI input source (the

default selection is HDMI). If not present, the unit uses the audio from the
analog input. Manual audio selection is also available

• Audio inputs - three analog HDMI audio and two analog PC audio on 3.5mm

mini jacks; two stereo CV audio on RCA connectors each with individual
level controls

• A microphone input - dynamic or condenser (with 48V phantom voltage)

• Audio outputs - two balanced stereo audio on terminal blocks (mirrored with

independent volume settings)

• Multiple aspect ratio selections - full, over scan, under scan, letter box, pan

scan and best fit

• Built-in ProcAmp - color, hue, sharpness, noise, contrast and brightness

• Front panel control - audio mute, video blanking and freeze frame

• Built-in Web pages for easy setup and remote control

• Firmware upgrade via the Ethernet

• Non-Volatile memory that saves the final settings

6

VP-553xl - Overview

Control your VP-553xl:

• Directly, via the front panel push buttons

• By RS-232 serial commands transmitted by a touch screen system, PC, or

other serial controller

• Remotely, from the infrared remote control transmitter with OSD (on−screen

display)

• Via the Ethernet with built-in Web pages

The VP-553xl is housed in a 19” 2U rack mountable enclosure, with rack “ears”

included, and is fed from a 100-240 VAC universal switching power supply.

3.1 Using the USB Switcher

The VP-553xl incorporates a simple, yet effective, 4:1 USB 1.1 switcher. The
switcher can be used, for example, to connect one out of several PCs to a smart
board or other USB client.

The USB switcher can be routed as a separate layer, or can be tied to the video
switching layer of the unit. This creates a powerful “USB follows video” system – the
PC routed to the display also connects to the smart board. In many meeting room
setups these USB switching schemes are highly effective.

3.2 Using Twisted Pair Cable for HDBT

Kramer engineers have developed special twisted pair cables to best match our
digital twisted pair products; BC−UNIKat (CAT 6 23 AWG cable) significantly
outperforms regular CAT 5 / CAT 6 cables.

We strongly recommend that you use shielded twisted pair cable.

i

VP-553xl – Overview

7

3.3 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP)

We recommend that you use Shielded Twisted Pair (STP) cable, and stress that the
compliance to electromagnetic interference was tested using STP cable. There are
different levels of STP cable available, and we advise you to use the best quality
STP cable that you can afford. Our non-skew-free cable, Kramer BC-STP is
intended for analog signals where skewing is not an issue.

In cases where there is skewing in analog TP systems, our Unshielded Twisted Pair
(UTP) skew-free cable, Kramer BC-XTP, may be advantageous, and UTP cable
might also be preferable for long range applications. In any event when using UTP
cable, it is advisable to ensure that the cable is installed far away from electric
cables, motors and so on, which are prone to create electrical interference.

3.4 Defining the VP-553xl Presentation Switcher/Scaler

This section defines the VP-553xl.

Figure 1: VP-553xl Presentation Switcher/Scaler Front Panel

#

Feature

Function

1

IR Receiver

Receives signals from the remote control transmitter

2

Input

Selector

Buttons

TO USB OUT

Press a button to switch a USB input to the output (from USB 1 to USB 4)

3

TO OUT 2

Press a button to switch an input to the OUT 2 output (HDMI inputs from 1 to 3 and HDBT inputs from 1 to 3)

4

TO OUT 1

Press a button to switch an input to the OUT 1 output (HDMI inputs from 1 to 3, HDBT inputs from 1 to 3, PC inputs from 1 to 2, TP
inputs from 1 to 2 and CV inputs from 1 to 2)

5

BLANK Buttons

Press to toggle between a blank screen and the display on OUT 1 and OUT 2 separately; can be programmed to follow MUTE (see

Section 6.2.5)

6

MUTE Buttons

Press to toggle between muting (blocking out the sound) and enabling the embedded audio output for OUT 1 and OUT 2 separately

Note that the mute button will not affect the LINE and MONITOR outputs

7

FREEZE Buttons

Press to freeze/unfreeze the output video image on OUT 1 and OUT 2 separately; can be programmed to follow MUTE (see Section 6.2.5)

8

MENU Button

Displays the OSD menu (see Section 6.2)

9

Navigation
Buttons

Button

Press to decrease numerical values or select from several definitions

 Button

Press to move up the menu list values (see Section 6.2)

 Button

Press to move down the menu list (see Section 6.2)

Button

Press to increase numerical values or select from several definitions

10

ENTER Button

Press to accept changes and change the SETUP parameters (see Section 6.2)

11

RESET TO XGA/720p
Button

Press to reset the video resolution of both scalers to XGA or 720p

Press and hold for about 2 seconds to reset to XGA; or press and hold for about 5 seconds to reset to 720p

12

OSD OUT LEDs

Red LEDS indicate whether the OSD is displayed on OUT 1 and/or OUT 2

13

OSD SELECT Button

Click to select the output on which the OSD will be displayed (on both outputs, on output 1, output 2 or none)

8

VP-553xl – Overview

VP-553xl – Overview

9

Figure 2: VP-553xl Presentation Switcher/Scaler Rear Panel

#

Feature

Function

14

VIDEO INPUT
Connectors

TP IN

RJ-45

Connect to a TP transmitter, for example the TP-121xl (from 1 to 2)

LEVEL Trimmer

Use to adjust the input signal level

EQ. Trimmer

Use to adjust the cable compensation equalization level

15

HDBT IN

Connect to an HDBT Transmitter (for example, the Kramer TP-580Txr) to pass audio and video signals as
well as serial commands (from 1 to 3)

16

HDMI IN

Connect to the HDMI source (from 1 to 3)

17

PC IN 15-pin HD

Connect to the computer graphics source (from 1 to 2)

18

CV RCA

Connect to the composite video source (from 1 to 2)

19

USB (B type) IN Connectors

Connect to a USB host (from 1 to 4)

20

USB (A type) OUT Connector

Connect to a USB client

21

AUDIO INPUT
Connectors

HDMI 3.5mm Mini
Jack

Connect to the analog audio HDMI source (from 1 to 3)
22

AUX IN

Terminal Block Connector

Connect to an auxiliary stereo balanced audio source or microphone

LINE/MIC Selector

Select either a line or a microphone input

COND/DYN Selector

Select between a condenser and a dynamic type microphone

MONO/STEREO

Select between a stereo or mono input

23

PC 3.5mm Mini
Jack

Connect to the analog audio computer graphics source (from 1 to 2)

24

CV

Connect to the L and R analog audio composite video source (from 1 to 2)

#

Feature

Function

25

AUDIO
OUTPUT
Terminal Block
Connectors

MONITOR OUT

Connect to a stereo analog audio acceptor (for example, active speakers or an audio power amplifier)

26

LINE OUT

Connect to a stereo analog audio acceptor (for example, active speakers or an audio power amplifier)

27

REM Terminal Block Connector

Remote switch to mute the analog and embedded audio signal. Allows easy integration of the audio system
with a public announcement audio system, usually used in cases of alarms or other audio messages

28

POWER Switch

Switch for turning the unit ON or OFF

29

VIDEO
OUTPUT
Connectors

OUT 1

HDMI

Connect to an HDMI acceptor

HDBT RJ-45

Connect to an HDBT Receiver (for example, the Kramer TP-580Rxr)

30

OUT 2

Connect to an HDMI acceptor

31

ETHERNET Connector

Connects to the PC or other Serial Controller through computer networking

32

RS-232 DATA 9-pin D-sub Port

Connect to the PC or the remote controller and pass data between this RS-232 port and the HDBT OUT port
or one of the HDBT IN ports

33

RS-232 CONTROL 9-pin D-sub Port

Connect to the PC or the remote controller

34

Mains Power Fuse

Fuse for protecting the device

35

Mains Power Connector

Connect to the mains power

10

VP-553xl – Overview

VP-553xl – Installing in a Rack

11

4 Installing in a Rack

This section provides instructions for rack mounting the unit.

12

VP-553xl - Connecting the VP-553xl

5 Connecting the VP-553xl

Always switch off the power to each device before connecting it to
your VP-553xl. After connecting your VP-553xl, connect its power
and then switch on the power to each device.

You do not have to connect all the inputs and outputs, connect only
those that are required.

To connect the VP-553xl, as illustrated in the example in Figure 3, do the following:

1. Connect an HDMI source (for example, a Blu-ray player) to the HDMI VIDEO
INPUT connector (from 1 to 3).

Alternatively, you can connect the DVI connector on the DVD player to the HDMI
connector on the VP-553xl via a DVI-HDMI adapter. When using this adapter, you can
connect the audio signal via the terminal block connector

2. Connect a computer graphics source to the PC 1 15-pin HD VIDEO INPUT
connector (from 1 to 2).

3. Connect a composite video source (for example, a composite video player)
to the CV VIDEO INPUT RCA connector (from 1 to 2).

4. Connect a TP transmitter (for example, TP-121xl) to the RJ-45 TP IN
connectors (from 1 to 2).

5. Connect an HDBT transmitter (for example, TP-580T) to the RJ-45 TP IN
connectors (from 1 to 3).

6. Connect the USB IN ports (from 1 to 4) (for example, a PC) and USB OUT
port (for example, a smart whiteboard).

7. Connect the audio inputs (not shown in Figure 3) to the:

▪ HDMI audio input 3.5mm mini jacks (from 1 to 3)
▪ PC audio input 3.5mm mini jacks (from 1 to 2)
▪ CV audio inputs to the L and R RCA connectors (from 1 to 2)

!

i

VP-553xl – Connecting the VP-553xl

13

8. Connect an external audio source to the AUX IN 5-pin terminal block
connector (not shown in Figure 3).

9. Connect the video outputs. The:

▪ OUT 1 HDMI and/or HDBT output to an HDMI acceptor (for example

an LCD display) and/or an HDBT receiver (for example, the output of
TP-580R connected to HDBT)

▪ HDMI OUT 2 (for example, a projector)

10. Connect the LINE OUT and/or MONITOR OUT AUDIO OUTPUT terminal
blocks to:

▪ An audio power amplifier
▪ Active speakers

11. Connect the:

▪ RS-232 DATA 9-pin D-sub Port to a PC for sending RS-232

commands via HDBT

▪ RS-232 CONTROL 9-pin D-sub Port to a PC to control the unit

12. Connect the REM 2-pin terminal block contact-closure remote-control pins to
a switch to mute/unmute the audio output by momentarily pressing the
switch.

13. Connect the ETHERNET port, see Section 6.4

14

VP-553xl - Connecting the VP-553xl

Figure 3: Connecting the VP-553xl Presentation Switcher / Scaler

VP-553xl – Connecting the VP-553xl

15

5.1 Connecting the Balanced Stereo Audio Input and Outputs

Figure 4: Balanced Stereo Audio
Connection

Figure 5: Unbalanced Stereo Audio Output
Connection

Figure 6: Unbalanced Stereo Audio Input
Connection

16

VP-553xl - Controlling the VP-553xl

6 Controlling the VP-553xl

The VP-553xl can be controlled via:

• The front panel buttons (see Section 6.1)

• The OSD menu (see Section 6.2)

• RS-232 serial commands transmitted by a touch screen system, PC, or

other serial controller (see Section 6.3)

• The ETHERNET (see Section 6.4)

• The infrared remote control transmitter (see Section 6.5)

6.1 Controlling via the Front Panel Buttons

The VP-553xl includes the following front panel buttons:

• Input selector buttons for selecting the required input: CV (1 and 2),

TP (1 and 2), PC (1 and 2), HDBT (1 to 3), or HDMI (1 to 3) to OUT 1

• Input selector buttons for selecting the required input: HDBT (1 to 3), or

HDMI (1 to 3) to OUT 2

• Input selector buttons for selecting the required USB port (1 to 4)

• BLANK, MUTE and FREEZE buttons (for OUT 1 and OUT 2)

• MENU, ENTER, and up, down, left and right arrow buttons

• RESET TO XGA/720p and OSD SELECT buttons

6.1.1 The Auto Adjust Feature

The auto adjust feature (applies only to the PC input) automatically centers the
image on the screen when pressing the ENTER front panel button on the remote
control transmitter (when not within the OSD menu).

You can also implement this feature every time the input is switched to VGA or
when the input resolution changes, via the AUTO SETUP menu (see Section

6.2.2).

VP-553xl – Controlling the VP-553xl

17

6.2 Using the OSD Menu

The control buttons let you control the VP-553xl via the OSD menu. Press the:

• MENU button to enter the menu

The default timeout is set to 10 seconds

• ENTER button to accept changes and to change the menu settings

• Arrow buttons to move through the OSD menu, which is displayed on the

video output

On the OSD menu, select EXIT to exit the menu.

6.2.1 The MAIN Menu

Mode

Function

OUTPUT 1

Set the output 1 parameters, see Section 6.2.2

OUTPUT 2

Set the output 2 parameters, see Section 6.2.3

AUDIO OUT

Set the audio output parameters, see Section 6.2.4

AUDIO SET

Set the audio input parameters, see Section 0

USB

Set the USB ports behavior, see Section 6.2.6

OSD

Set the OSD parameters: H POSITION, V POSITION, TIMER, BACKGROUND
and DISPLAY, see Section 6.2.7

FACTORY

Select YES to reset to the default parameters.
If you cannot see the display after factory reset, use the front panel RESET TO

XGA/720p button to set the correct resolution: press to toggle between reset to

XGA and reset to 720p

ETHER(NET)

IP MODE: Set to DHCP or STATIC. When selecting STATIC IP, the IP number
appears next to IP ADDRESS
SET STATIC IP: set the IP ADDRESS, DEF. GATEWAY (default gateway), and
SUBNET MASK.
CONTROL PORT: set the CONTROL PORT number

MISC.

You can use a remote control transmitter (that is used for controlling a
peripheral device, for example, a DVD player) to send commands (to the
A/V equipment) from/to any of the transmitters /receiver connected to the
HDBT connectors.

Select the IR transmission route for each of the units that are connected to the
HDBT connectors (IN+OUT):
HDBT1 (IR OUT): set to HDBT2, HDBT3 or HDBT OUT (to set the IR route
from/to HDBT2, HDBT3 or HDBT OUT to HDBT1)
HDBT2 (IR OUT): set to HDBT1, HDBT3 or HDBT OUT (to set the IR route
from/to HDBT1, HDBT3 or HDBT OUT to HDBT2)
HDBT3 (IR OUT): set to HDBT1, HDBT2 or HDBT OUT (to set the IR route
from/to HDBT1, HDBT2 or HDBT OUT to HDBT3)
HDBT OUT (IR OUT): set to HDBT1, HDBT2 or HDBT3 (to set the IR route
from/to HDBT1, HDBT2 or HDBT3 to HDBT OUT)

For example, set HDBT1 (IR OUT) to HDBT2 to control (via IR) the peripheral
device that is connected to the device connected to HDBT 1 via the device
connected to HDBT2, see Figure 7

18

VP-553xl - Controlling the VP-553xl

Mode

Function

HDCP INPUT: select the HDCP option for each HDMI and HDBT input to

either ON (the default) or OFF.
Setting HDCP support to disabled (OFF) on the HDMI input allows the
source to transmit a non-HDCP signal if required (for example, when
working with a Mac computer)

INFO.

Displays the:

OUTPUT 1 information – resolution, HDCP status and input source
OUTPUT 2 information – resolution and input source
DIP SWITCH: set MICHROPHONE, PHANTOM POWER, STEREO and MUTE

CONTROL ON or OFF
VERSION: shows the firmware version

Figure 7 shows the IR signal route when setting HDBT 1 (IR OUT) to HDBT 2.

In this example, an External IR Sensor is connected to the IR connector of the

TP-580T (connected to HDBT 2) and an IR Emitter is connected between the
TP-580T (connected to HDBT 1) and a DVD player. The DVD remote control sends

a command while pointing towards the External IR Sensor. The IR signal passes
through the TP cables, the VP-553xl and the IR Emitter to the DVD player, which
responds to the command sent.

Figure 7: HDBT IR transmission Example

VP-553xl – Controlling the VP-553xl

19

6.2.2 The OUTPUT 1 Menu

Mode

Function

SOURCE

Select the source:

Source input

Appears as:

Source input

Appears as:

HDMI 1

HDMI1

VGA 1

PC1 HDMI 2

HDMI2

VGA 2

PC2 HDMI 3

HDMI3

Twisted pair 1

TP1 HDBT 1

HDBT1

Twisted pair 2

TP2 HDBT 2

HDBT2

CV 1

CV1 HDBT 3

HDBT3

CV 2

CV2


CONTRAST: Set the contrast (the range and default values vary according to the
input signal)
BRIGHTNESS: Set the brightness (the range and default values vary according to
the input signal)

COLOR: set the red (R), green (G) and blue (B) shades and offsets
HUE: Set the color hue
SATURATION: Set the color saturation
SHARPNESS: Set the sharpness of the picture
NR: Select the noise reduction: OFF, LOW, MIDDLE and HIGH

SIZE

Select the size of the display: FULL, OVER SCAN, UNDER1, UNDER2, LETTER
BOX, PAN SCAN, BEST FIT (default, FULL)

UNDER1 refers to an underscan of 6%; UNDER2 refers to an underscan of 9%

RESOLUTION

Select the output resolution from the menu (default NATIVE):

Output resolution:

Appears as:

Output resolution:

Appears as:

NATIVE

1600x1200

1600x1200 60

640x480

640x480 60

1920x1080

1920x1080 60

800x600

800x600 60

1920x1200

1920x1200 60

1024x768

1024x768 60

480p @60Hz

720x480P 60

1280x768

1280x768 60

720p @60Hz

1280x720P 60

1360x768

1360x768 60

1080i @60Hz

1920x1080I 60

1280x720

1280x720 60

1080p @60Hz

1920x1080P 60

1280x800

1280x800 60

576p @50Hz

720x576P 60

1280x1024

1280x1024 60

720p @50Hz

1280x720P 50

1440x900

1440x900 60

1080i @50Hz

1920x1080I 50

1400x1050

1400x1050 60

1080p @50Hz

1920x1080P 50

1680x1050

1680x1050 60

NATIVE - Select NATIVE to select the output resolution from the EDID of the
connected HDMI monitor

HDCP

INPUT HDCP: select the HDCP option for the HDMI input: either ON (the
default) or OFF.
Setting HDCP support to disabled (OFF) on the HDMI input allows the
source to transmit a non-HDCP signal if required (for example, when
working with a Mac computer)
OUTPUT HDCP: Select FOLLOW INPUT or FOLLOW OUTPUT to define
whether the HDCP will follow the input or the output
When FOLLOW INPUT is selected, it changes its HDCP output setting (for
the HDMI output) according to the HDCP of the input. This option is
recommended when the HDMI output is connected to a splitter/switcher
When FOLLOW OUTPUT is selected, the scaler matches its HDCP output to
the HDCP setting of the HDMI acceptor to which it is connected

AUTOSYNC

Turn the auto sync ON/OFF. When ON, this de-activates the output after a few

20

VP-553xl - Controlling the VP-553xl

Mode

Function

OFF

minutes if no input is present.

This is useful, for example, when the output is connected to a projector, and the
projector will automatically shut down when it has no input

AUDIO

Adjust audio parameters (see Section 6.2.2.1)

AUDIO EQ

Set the audio EQ values in 0.5dB steps for: BELOW 120Hz, CENTER 200Hz,
CENTER 500Hz, CENTER 1200Hz, CENTER 3000Hz, CENTER 7500Hz and
ABOVE 12000Hz

PC

AUTO SETUP

When set to ON, auto adjusts the image (centers it
correctly on the screen) every time the input is switched to
VGA or when the input resolution changes

Alternatively, you can auto adjust the image by pressing the
ENTER button when not within the OSD menu

H-POSITION

Set the horizontal position of the picture

V-POSITION

Set the vertical position of the picture

PHASE

Set the clock phase

CLOCK

Set the clock frequency

WXGA/XGA

Set to WXGA or XGA

RESET

Reset settings to their default values

6.2.2.1 The AUDIO Parameters

Parameter

Function

SOURCE

Select the audio source: FOLLOW VIDEO, HDMI1, HDMI2, HDMI3,
HDBT1, HDBT2, HDBT3, PC1, PC2, TP1, TP2, CV1, CV2, or MIC

EMBEDDED AUDIO

HDMI AUDIO IN
(1, 2 and 3)

Select the HDMI 1, HDMI 2 and HDMI 3 audio
sources behavior:
AUTOMATIC: the embedded audio on the HDMI
input is selected for an HDMI signal, or the analog
audio input is selected if the input is not HDMI (for
example, for a DVI input signal)
EMBEDDED: the embedded audio in the HDMI
signal is selected
ANALOG: the analog audio input is selected

HDMI AUDIO IN is enabled only when one of the
HDMI inputs is selected

OUTPUT VOLUME

Set the output volume

MUTE

Set MUTE to ON or OFF

DELAY

Select the audio delay time: OFF, 10ms to 80ms in 10ms steps or
AUTO

MICROPHONE MIX

Set mix ON to mix the microphone input with the selected audio input
or set to OFF

MIX LEVEL

Adjust the mix level (enabled when MICROPHONE MIX is set to ON)

VP-553xl – Controlling the VP-553xl

21

6.2.3 The OUTPUT 2 Menu

Mode

Function

SOURCE

Select the source:

Source input

Appears as:

Source input

Appears as:

HDMI 1

HDMI1

HDBT 1

HDBT1

HDMI 2

HDMI2

HDBT 2

HDBT2

HDMI 3

HDMI3

HDBT 3

HDBT3


CONTRAST: Set the contrast (the range and default values vary according to the
input signal)
BRIGHTNESS: Set the brightness (the range and default values vary according to
the input signal)

COLOR: set the red (R), green (G) and blue (B) shades and offsets
HUE: Set the color hue
SATURATION: Set the color saturation
SHARPNESS: Set the sharpness of the picture
NR: Select the noise reduction: OFF, LOW, MIDDLE and HIGH

SIZE

Select the size of the display: FULL, OVERS CAN, UNDER1, UNDER2, LETTER
BOX, PANS CAN, BEST FIT (default, FULL)

UNDER1 refers to an underscan of 6%; UNDER2 refers to an underscan of 9%

RESOLUTION

Select the output resolution from the menu (default NATIVE):

Output resolution:

Appears as:

Output resolution:

Appears as:

NATIVE

1600x1200

1600x1200 60

640x480

640x480 60

1920x1080

1920x1080 60

800x600

800x600 60

1920x1200

1920x1200 60

1024x768

1024x768 60

480p @60Hz

720x480P 60

1280x768

1280x768 60

720p @60Hz

1280x720P 60

1360x768

1360x768 60

1080i @60Hz

1920x1080I 60

1280x720

1280x720 60

1080p @60Hz

1920x1080P 60

1280x800

1280x800 60

576p @50Hz

720x576P 60

1280x1024

1280x1024 60

720p @50Hz

1280x720P 50

1440x900

1440x900 60

1080i @50Hz

1920x1080I 50

1400x1050

1400x1050 60

1080p @50Hz

1920x1080P 50

1680x1050

1680x1050 60

NATIVE - Select NATIVE to select the output resolution from the EDID of the
connected HDMI monitor

HDCP

INPUT HDCP: select the HDCP option for the HDMI input: either ON (the
default) or OFF.

Setting HDCP support to disabled (OFF) on the HDMI input allows the
source to transmit a non-HDCP signal if required (for example, when
working with a Mac computer)
OUTPUT HDCP: Select FOLLOW INPUT or FOLLOW OUTPUT to define
whether the HDCP will follow the input or the output

When FOLLOW INPUT is selected, it changes its HDCP output setting (for
the HDMI output) according to the HDCP of the input. This option is
recommended when the HDMI output is connected to a splitter/switcher
When FOLLOW OUTPUT is selected, the scaler matches its HDCP output to
the HDCP setting of the HDMI acceptor to which it is connected

AUTOSYNC
OFF

Turn the auto sync ON/OFF. When ON, this de-activates the output after a few
minutes if no input is present.

This is useful, for example, when the output is connected to a projector, and the
projector will automatically shut down when it has no input

AUDIO

Adjust audio parameters (see Section 6.2.3.1)

22

VP-553xl - Controlling the VP-553xl

Mode

Function

AUDIO EQ

Set the audio EQ values in 0.5dB steps for: BELOW 120Hz, CENTER 200Hz,
CENTER 500Hz, CENTER 1200Hz, CENTER 3000Hz, CENTER 7500Hz and
ABOVE 12000Hz

6.2.3.1 The AUDIO Parameters

Parameter

Function

SOURCE

Select the audio source: FOLLOW VIDEO, HDMI1, HDMI2, HDMI3,
HDBT1, HDBT2, HDBT3, PC1, PC2, TP1, TP2, CV1, CV2, or MIC

EMBEDDED AUDIO

HDMI AUDIO IN
(1, 2 and 3)

Select the HDMI 1, HDMI 2 and HDMI 3 audio
sources behavior:

AUTOMATIC: the embedded audio on the HDMI
input is selected for an HDMI signal, or the analog
audio input is selected if the input is not HDMI (for
example, for a DVI input signal)
EMBEDDED: the embedded audio in the HDMI
signal is selected

ANALOG: the analog audio input is selected

HDMI AUDIO IN is enabled only when one of the
HDMI inputs is selected

OUTPUT VOLUME

Set the output volume

MUTE

Set MUTE to ON or OFF

DELAY

Select the audio delay time: OFF, 10ms to 80ms in 10ms steps or
AUTO

MICROPHONE MIX

Set mix ON to mix the microphone input with the selected audio input
or set to OFF

MIX LEVEL

Adjust the mix level (enabled when MICROPHONE MIX is set to ON)

6.2.4 The AUD OUT Menu

Parameter

Function

SOURCE

Select the audio source: HDMI1, HDMI2, HDMI3, HDBT1, HDBT2,
HDBT3, PC1, PC2, TP1, TP2, CV1, CV2 or MIC

EMBEDDED AUDIO

HDMI AUDIO
IN (1, 2 and 3)

Select the HDMI 1, HDMI 2 and HDMI 3 audio
sources behavior:
AUTOMATIC: the embedded audio on the HDMI
input is selected for an HDMI signal, or the analog
audio input is selected if the input is not HDMI (for
example, for a DVI input signal)
EMBEDDED: the embedded audio in the HDMI
signal is selected
ANALOG: the analog audio input is selected

HDMI AUDIO IN is enabled only when one of the
HDMI inputs is selected

OUTPUT VOLUME (see

Figure 8)

LINE

Set the LINE OUT volume

MONITOR

Set the MONITOR OUT volume

LINE OUT MUTE

Set to ON or OFF

MONITOR OUT MUTE

Set to ON or OFF

DELAY

Select the audio delay time: OFF, 10 to 80ms in 10ms steps or
AUTO

MICROPHONE MIX

Set to ON or OFF

Set to ON to mix the microphone input with the selected audio input or
set to OFF

VP-553xl – Controlling the VP-553xl

23

Parameter

Function

MIX LEVEL

Adjust the mix level (enabled when MICROPHONE MIX is set to
ON)

EQ SAME AS

Set to NONE, OUTPUT 1 or OUTPUT 2

AUDIO EQ

Set the audio EQ values in 0.5dB steps for: BELOW 120Hz, CENTER
200Hz, CENTER 500Hz, CENTER 1200Hz, CENTER 3000Hz, CENTER
7500Hz and ABOVE 12000Hz

Figure 8 shows the output volume level (dB) vs. the OSD volume setting:

Figure 8: VP-553xl Audio Volume Level (dB) vs. OSD Volume Values

6.2.5 The AUD SET Menu

Parameter

Function

MICROPHONE GAIN

Set the microphone gain

INPUT VOLUME

Set the volume for each input:
HDMI1 (embedded), HDMI2 (embedded), HDMI3 (embedded)
HDBaseT1 (embedded), HDBaseT2 (embedded), HDBaseT3
(embedded), HDMI1 (analog), HDMI2 (analog), HDMI3 (analog),
PC1, PC2. TP1, TP2, CV1, CV2

MUTE FOLLOWS

Select the action that will be followed by mute:
NONE: the audio muting is independent of the FREEZE and
BLANK functions

FREEZE
BLANK
FREEZE+BLANK: when freezing or blanking the video, the audio

will be muted (the MUTE function follows the FREEZE and the
BLANK functions)

24

VP-553xl - Controlling the VP-553xl

6.2.6 The USB Menu

Parameter

Function

SOURCE

Select the USB input: USB 1, USB 2, USB 3, USB 4 or TIE TO INPUT.

SETUP FOLLOW
INPUT

If TIE TO INPUT was selected above, setup the input to which the
selected USB port will be tied.
For each of the inputs you can select a USB port that will follow. For
example, if you want to set USB 3 to follow HDMI 3, select HDMI 3 and
set to USB 3

6.2.7 The OSD Menu

Parameter

Function

SHOW ON OUTPUT

Select the output/s that will display the OSD: BOTH ON, BOTH
OFF,OUTPUT 1 or OUTPUT 2

H POSITION

Set the horizontal position of the OSD

V POSITION

Set the vertical position of the OSD

TIMER

Set the timeout period in 5sec steps (from 5 to 60)

TRANSPARENCY

Set the OSD background between 0 (transparent) and 50 (opaque)

DISPLAY

Select the information shown on the screen during operation:

OFF: the information is not shown
ON: the information is shown permanently
INFO: the information is shown for a few seconds

6.3 Connecting to the VP-553xl via RS-232

The VP-553xl features two RS-232 ports:

• RS-232 DATA to pass data to and from the machines that are connected to

the HDBT connectors

• RS-232 CONTROL to control the VP-553xl

You can connect to the VP-553xl via an RS-232 connection using, for example, a
PC. Note that a null-modem adapter/connection is not required.

To connect to the VP-553xl via RS-232 Connect the RS-232 9-pin D-sub rear panel
port on the product unit via a 9-wire straight cable (only pin 2 to pin 2, pin 3 to pin 3,
and pin 5 to pin 5 need to be connected) to the RS-232 9-pin D-sub port on your PC.

VP-553xl – Controlling the VP-553xl

25

6.4 Operating via Ethernet

You can connect to the VP-553xl via Ethernet using either of the following
methods:

• Directly to the PC using a crossover cable (see Section 6.4.1)

• Via a network hub, switch, or router, using a straight-through cable (see

Section 6.4.2)

Note: If you want to connect via a router and your IT system is based on IPv6,
speak to your IT department for specific installation instructions.

6.4.1 Connecting the Ethernet Port Directly to a PC

You can connect the Ethernet port of the VP-553xl directly to the Ethernet port on
your PC using a crossover cable with RJ-45 connectors.

This type of connection is recommended for identifying the VP-553xl
with the factory configured default IP address.

After connecting the VP-553xl to the Ethernet port, configure your PC as follows:

1. Click Start > Control Panel > Network and Sharing Center.

2. Click Change Adapter Settings.

3. Highlight the network adapter you want to use to connect to the device and

click Change settings of this connection.
The Local Area Connection Properties window for the selected network
adapter appears as shown in Figure 9.

i

26

VP-553xl - Controlling the VP-553xl

Figure 9: Local Area Connection Properties Window

4. Highlight either Internet Protocol Version 6 (TCP/IPv6) or Internet

Protocol Version 4 (TCP/IPv4) depending on the requirements of your IT
system.

5. Click Properties.

The Internet Protocol Properties window relevant to your IT system appears
as shown in Figure 10 or Figure 11.

VP-553xl – Controlling the VP-553xl

27

Figure 10: Internet Protocol Version 4 Properties Window

Figure 11: Internet Protocol Version 6 Properties Window

28

VP-553xl - Controlling the VP-553xl

6. Select Use the following IP Address for static IP addressing and fill in the

details as shown in Figure 12.
For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to

192.168.1.255 (excluding 192.168.1.39) that is provided by your IT
department.

Figure 12: Internet Protocol Properties Window

7. Click OK.

8. Click Close.

6.4.2 Connecting the Ethernet Port via a Network Hub or Switch

You can connect the Ethernet port of the VP-553xl to the Ethernet port on a
network hub or using a straight-through cable with RJ-45 connectors.

6.4.3 Control Configuration via the Ethernet Port

To control several units via Ethernet, connect the Master unit (Device 1) via the
Ethernet port to the Ethernet port of your PC. Use the OSD menu to provide initial
configuration of the settings (see Section 6.2.1).

VP-553xl – Controlling the VP-553xl

29

6.5 Controlling via the Infrared Remote Control Transmitter

You can control the VP-553xl from the infrared remote control transmitter:

Figure 13: Infrared Remote
Control Transmitter

Keys

Function

POWER

Toggle the power save mode ON or
OFF

OUT 1

BLANK

Toggle between a blank screen
black screen and the display (for
both windows)

MUTE

Toggle between muting (blocking
out the sound) and enabling the
audio output

FREEZE

Freeze/unfreeze the output video
image (for both windows)

OUT 2

BLANK

Toggle between a blank screen
black screen and the display (for
both windows)

MUTE

Toggle between muting (blocking
out the sound) and enabling the
audio output

FREEZE

Freeze/unfreeze the output video
image (for both windows)

Press ENTER to access menu
levels (when in the OSD)

MENU

Enter/Exit the OSD menu and return
to the previous menu level

OSD

Select whether the OSD will appear
on OUT 1, OUT 2, both or none of
them

720p/XGA

Press to reset to the default
resolution (toggles between XGA
and 720p)

USB

Select a USB input:1, 2, 3 or 4

OUT 1

Select one of the following inputs to
switch to output 1: HDMI 1, HDMI 2,
HDMI 3, HDBT 1, HDBT 2, HDBT 3,
PC 1, PC 2, TP 1, TP 2, CV 1 or
CV 2

OUT 2

Select one of the following inputs to
switch to output 2: HDMI 1, HDMI 2,
HDMI 3, HDBT 1, HDBT 2 or
HDBT 3

30

VP-553xl - Using the Embedded Web Pages

7 Using the Embedded Web Pages

The VP-553xl can be operated remotely using the embedded Web pages. The
Web pages are accessed using a Web browser and an Ethernet connection.

Before attempting to connect:

• Perform the procedures in Section 6.4

• Ensure that your browser is supported

The following operating systems and Web browsers are supported:

• Windows 7:

▪ Google Chrome v25
▪ FireFox v15
▪ Opera v12
▪ Microsoft Internet Explorer v9

• Windows XP:

▪ Google Chrome v25
▪ FireFox v15

• Apple Mac:

▪ Google Chrome v25
▪ FireFox v20
▪ Opera v12.14
▪ Safari v6

VP-553xl – Using the Embedded Web Pages

31

7.1 Browsing the VP-553xl Web Pages

To browse the VP-553xl Web pages:

1. Open your Internet browser.

2. Type the IP number of the device in the Address bar of your browser. For

example, the default IP number:

The Loading page appears.

Figure 14: The Loading Page

Once loaded, enter your user name and password:

Figure 15: Enter Username and Password

There are eight Web pages:

• The Switching page (see Section 7.2)

• The Scaler page (see Section 7.3)

• The Device Settings page (See Section 7.4)

• The USB Routing page (see Section 7.5)

• The Audio Settings page (see Section 7.6)

• The EDID page (see Section 7.7)

• The Data Routing page (see Section 7.8)

• The Authentication page (see Section 7.9)

• The About page (see Section 7.10)

32

VP-553xl - Using the Embedded Web Pages

7.2 The Switching Page

Figure 13 shows the Switching page that is also the first page that appears

following the loading page. The column on the left shows the switching page
selected and below a list of all the other available Web pages. The Switching area
lets you switch an input to an output (audio, video or audio-follow-video) the Audio
out (below Output) shows the audio input that is routed to the line and monitor
outputs. The volume area lets you control the Line and Monitor output audio level.

The lower part of the screen lets you save a configuration and upload a saved
configuration.

The model name, FW version, IP number and settings appear on the lower left side
of the main page.

Figure 16: The Switching Page

Figure 17 explains the icons used to switch inputs and outputs.

VP-553xl – Using the Embedded Web Pages

33

Figure 17: Input and Output Icons

You can also edit the input and output button by clicking the edit icon.

To edit an input button, select that button and click the edit icon. The input edit
window appears:

Figure 18: Edit Input Buttons

The input edit window lets you change the name of the input as it will appear on the
Web page and save it, and also set the embedded and analog volume separately.

34

VP-553xl - Using the Embedded Web Pages

To edit an output button, select that button and click the edit icon. The output edit
window appears:

Figure 19: Edit Output Buttons

The output edit window lets you change the name of the output as it will appear on
the Web page and save it, set the resolution, the HDCP settings, the Auxiliary mixer
ON or OFF and set the Auxiliary level as well as the output volume.

7.2.1 Switching an Input to an Output

You can switch the input audio and video signals together to a selected output
(AFV) or separately.

To switch an Input to an Output in the AFV mode (see the output 1 button in

Figure 18):

1. Click an output button.

The button changes color to purple.

2. Click on the Input AFV icon .

The Output shows the video input next to the video icon and Audio Follow
Video next to its audio icon.

VP-553xl – Using the Embedded Web Pages

35

To switch separate audio and video inputs to an output (for example, selecting the
video from INPUT 3 and the PC2 audio signal from INPUT 8, see the output 2
button in Figure 18):

1. Click an output button.
The button changes color to purple.

2. Click the video icon on Input 3.
The output 2 button displays from input 3 next to the video icon.

3. Click the audio icon on Input 8.
The Output 2 button displays PC2 next to the audio icon.

7.3 The Scaler Page

The Scaler page lets you set the output 1 and output 2 picture and PC mode
separately.

Figure 20 shows the Scaler page for output 1 which includes the picture setup and

the PC mode setup.

Note that when the PC inputs are connected all the settings are
available. If TP is selected, only the WXGA/XGA is enabled otherwise,
PC mode is disabled.

Figure 20: The Scaler Page – Output 1

i

36

VP-553xl - Using the Embedded Web Pages

When an analog input is connected, the PC mode is enabled:

Figure 21: The Scaler Page – Output 1 for an Analog Input

Figure 22 shows the setup for output 2:

Figure 22: The Scaler Page – Output 2

VP-553xl – Using the Embedded Web Pages

37

7.4 The Device Settings Page

The device Settings window (in Figure 23) lets you upgrade the firmware and set
the Ethernet parameters.

Figure 23: The Device Settings Page

Any change in the device settings requires confirmation, as illustrated in the
example in Figure 24.

Figure 24: The Device Settings Page – Static IP Confirmation.

38

VP-553xl - Using the Embedded Web Pages

7.4.1 Firmware Upgrade

You can upgrade the firmware via the Device Settings page. To do so:

1. Choose the firmware file by clicking the Choose File button in the Firmware
upgrade line.

2 Click the Upgrade button.

The new firmware is uploaded:

Figure 25: The Device Settings Page – Uploading the New Firmware File

3 Make sure that the new version appears on the Web page lower left side:

Figure 26: The Device Settings Page –New Firmware Updated

VP-553xl – Using the Embedded Web Pages

39

7.5 The USB Routing Page

Figure 27: The USB Routing Page

The USB page lets you select one of the USB hosts (buttons USB 1, USB 2, USB 3
or USB 4 – in the example in Figure 27, USB 1 is selected). The selected button is
routed to the USB client.

The USB Routing page also lets you tie any of the USB ports to any of the
switcher/scaler inputs that are routed to output 1. To do so click the Tie To Input
button and then assign the USB 1 to 4 ports each to one of the inputs. In the
example in Figure 28 (if the Tie To INPUT button was selected) USB 1 is tied to
HDMI 1, USB 2 is tied to HDMI 2 and so on.

40

VP-553xl - Using the Embedded Web Pages

Figure 28: The USB Tied to a Selected Input

7.6 The Audio Settings Page

The audio settings page lets you define the audio parameters for the inputs, outputs
(1 and 2), and the audio out (Monitor and Line out).

The main page lets you switch and set the selected audio signal to the two outputs
and the independent audio output. The rear panel DIP-switch settings (see Figure

2): Auxiliary Settings, Stereo/Mono and Microphone, are displayed.
Note that the DIP-switch settings cannot be changed via the Web pages only
physically on the rear panel.

The Input tab (see Figure 29) lets you set the volume individually for each input,
including the analog and embedded audio HDMI signals.

VP-553xl – Using the Embedded Web Pages

41

Figure 29: The Audio Settings Page – Inputs

Figure 30 shows the output 1 equalizer settings:

Figure 30: The Audio Settings Page – Output 1

42

VP-553xl - Using the Embedded Web Pages

Figure 30 shows the output 2 equalizer settings:

Figure 31: The Audio Settings Page – Output 2

Figure 30 shows the Monitor equalizer settings as well as the volume of the Aux,

Line and Monitor volume levels:

Figure 32: The Audio Settings Page – Monitor

VP-553xl – Using the Embedded Web Pages

43

7.7 The EDID Page

The EDID page lets you copy a selected resolution (Native Timing) or the default
resolution (HDMI/HDBT or VGA) to one or more selected inputs.

Figure 33: The EDID Page

Figure 34 shows how to select a resolution from the list and select one or more

inputs. To copy, click the Copy button:

Figure 34: The EDID Page – Copying the Native Timing

44

VP-553xl - Using the Embedded Web Pages

Figure 34 shows how to select one of the default resolutions from the list and select

one or more inputs. To copy, click the Copy button:

Figure 35: The EDID Page – Copying the Default

The EDID page displays the machine name, selected resolution, the audio
channels and deep color support.
After clicking the Copy button, the EDID page shows the copy EDID results:

Figure 36: The EDID Page –The Copy EDID Results

VP-553xl – Using the Embedded Web Pages

45

7.8 The Data Routing Page

The data routing page lets you route the data over the HDBT ports. (each port has
a separate UDP IP port) via the RS-232 Data port, or the Ethernet (General or
SID-X2N), see Figure 37.

When selecting:

• RS-232 Data, you can transmit data from a controller connected to the

RS-232 DATA port to one of the HDBaseT inputs or the HDBaseT output

• Ethernet-General, you can transmit data from a controller connected via the

Ethernet port to one of the HDBaseT inputs or the HDBaseT output

• Ethernet-SID-X2N, you can transmit data from a controller connected via the

connected SID-X2N to the HDBaseT input to which it is connected

Figure 37: The Data Routing Page

Click the Set changes button to set the changes.

RS-232 Data Port: for each HDBaseT port you can set the following data settings:

• Baud Rate: 4800, 9600, 19200, 38400, 57600 or 115200

• Data Bits: 5, 6, 7 or 8

• Parity: NONE, EVEN, ODD, MARK or SPACE

• Stop Bits: 1 or 2

• Flow Control: OFF or ON

46

VP-553xl - Using the Embedded Web Pages

If you check SID-X2N, data passes between the VP-553xl and SID-X2N.

If you check RS-232, data passes between the RS-232 Data port and VP-553xl.
Note that you can check RS-232 and SID-X2N simultaneously.

7.9 The Authentication Page

The Authentication page lets you set the user name and password as well as
setting the inactivity logout. Figure 38 shows the Authentication page:

Figure 38: The Authentication Page

7.10 The About Page

The VP-553xl About page lets you view the Web page version and Kramer
Electronics Ltd details.

Figure 39: The About Page

VP-553xl – Technical Specifications

47

8 Technical Specifications

INPUTS:

3 HDMI connectors (HDMI, HDCP)
2 VGA on 15-pin HD connectors
2 composite video on RCA connectors
2 analog TP on RJ-45 connectors
3 HDBT on RJ-45 connectors
4 USB (B type) ports
3 unbalanced analog audio on 3.5mm mini jacks for HDMI
2 unbalanced analog audio on 3.5mm mini jacks for PC
1 Aux in balanced stereo audio on 5-pin terminal block
connectors
2 balanced audio (L and R) RCA connectors for CV

OUTPUTS:

1 HDBT on RJ-45 connector
2 HDMI connectors (HDMI, HDCP)
1 USB (A type) port
Monitor out balanced stereo on a 5-pin terminal block
connector
Line out balanced stereo on a 5-pin terminal block
connector

OUTPUT RESOLUTIONS:

NATIVE, 640x480@60, 800x600@60, 1024x768@60,

1280x768@60, 1360x768@60, 1280x720@60, 1280x800@60,
1280x1024@60, 1440x900@60, 1400x1050@60,
1680x1050@60, 1600x1200@60, 1920x1080@60,
1920x1200@60, 720x480p@60, 1280x720p@60,
1920x1080i@60, 1920x1080p@60, 720x576p@60,
1280x720p@50, 1920x1080i@50, 1920x1080p@50

CONTROLS:

TP 1, TP 2, CV 1, CV 2, HDBT 1, HDBT 2, HDBT 3, PC 1,
PC 2, HDMI 1, HDMI 2, HDMI 3, USB 1, USB 2, USB 3,
USB 4 input selector buttons; 2 blank, 2 mute, 2 freeze
buttons; menu, enter, menu arrows, reset to XGA/720p,
OSD SELECT, 2 RS-232, IR, Ethernet, 2 level and EQ
trimmers, line/mic selector switch, cond/dyn selector
switch, mono/stereo selector switch, REM for muting audio

POWER CONSUMPTION:

100-240V AC, 43VA max.

OPERATING TEMPERATURE:

0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE:

-40° to +70°C (-40° to 158°F)

HUMIDITY:

10% to 90%, RHL non-condensing

DIMENSIONS:

19" x 7" x 2U (W, D, H) rack mountable

WEIGHT:

2.7kg (6lbs) approx.

INCLUDED ACCESSORIES:

Power cord, rack ears, IR remote control

OPTIONS:

Kramer BC−HDKat6a cable

Specifications are subject to change without notice at www.kramerav.com

48

VP-553xl - Technical Specifications

8.1 Default Communication Parameters

RS-232

Baud Rate:

115,200

Data Bits:

8

Stop Bits:

1

Parity:

None

Command Format:

ASCII

Example (Route the video from the HDMI3 input to the HDMI1
output port):

#ROUTE 1,1,2<cr>

Ethernet

To reset the IP settings to the factory reset values go to : Menu-> Factory-> RESET->Change
the option to YES and press Enter

IP Address:

192.168.1.39

Subnet mask:

255.255.255.0

Default gateway:

192.168.1.254

Default UDP Port #:

50000

Maximum UDP Ports:

4

Full Factory Reset

OSD

Go to : Menu-> Factory-> RESET->Change the option to YES and
press Enter

VP-553xl – Technical Specifications

49

8.2 Input Resolutions

Resolution/Refresh Rate

CV

PC

HDMI

NTSC

Yes

No

No

PAL

Yes

No

No

640x480 (@60/72/75Hz)

No

Yes

Yes

800x600 (@56/60/72/75Hz)

No

Yes

Yes

1024x768 (@60/70/75Hz)

No

Yes

Yes

1152x864 @75Hz

No

Yes

Yes

1280x720 @60Hz

No

Yes

Yes

1280x768 @60Hz

No

Yes

No

1280x800 @60Hz

No

Yes

Yes

1280x960 @60Hz

No

Yes

Yes

1280x1024 (@60/75Hz)

No

Yes

Yes

1360x768 @60Hz

No

Yes

Yes

1400x1050 @60Hz

No

Yes

Yes

1440x900 @60Hz

No

Yes

Yes

1600x900 RB @60Hz

No

Yes

Yes

1600x1200 @60Hz

No

Yes

Yes

1680x1050 RB @60Hz

No

Yes

Yes

1920x1080 @60Hz

No

Yes

Yes

1920x1200 RB @60Hz

No

Yes

Yes

480I/576I

No

No

Yes

480P/576P

No

No

Yes

720P(@50/60Hz)

No

No

Yes

1080I(@50/60Hz)

No

No

Yes

1080P(@24/30Hz)

No

No

Yes

1080P(@50/60Hz)

No

No

Yes

50

VP-553xl - The VP-553xl RS-232 Communication Protocol

9 The VP-553xl RS-232 Communication

Protocol

The VP-553xl can be operated using serial commands from a PC, remote
controller, or touch screen. The unit communicates using the default Kramer
Protocol 3000.

• Kramer Protocol 3000 syntax (see Section 9.1)

• Kramer Protocol 3000 command list (see Section 9.2)

• Kramer Protocol 3000 detailed commands (See Section 9.3)

9.1 Kramer Protocol 3000 Syntax

Protocol 3000 communicates at a data rate of 115200 baud, no parity, 8 data bits
and 1 stop bit.

9.1.1 Host Message Format

Start

Address (optional)

Body

Delimiter

#

Destination_id@

Message

CR

Simple Command

Command string with only one command without addressing:

Start

Body

Delimiter

#

Command SP Parameter_1,Parameter_2,…

CR

Command String

Formal syntax with commands concatenation and addressing:

Start

Address

Body

Delimiter

#

Destination_id@

Command_1 Parameter1_1,Parameter1_2,…|
Command_2 Parameter2_1,Parameter2_2,…|
Command_3 Parameter3_1,Parameter3_2,…|…

CR

9.1.2 Device Message Format

Start

Address (optional)

Body

delimiter

~

Sender_id@

Message

CR LF

Device Long Response

Echoing command:

Start

Address (optional)

Body

Delimiter

~

Sender_id@

Command SP [Param1 ,Param2 …] result

CR LF

VP-553xl – The VP-553xl RS-232 Communication Protocol

51

CR = Carriage return (ASCII 13 = 0x0D)
LF = Line feed (ASCII 10 = 0x0A)
SP = Space (ASCII 32 = 0x20)

9.1.3 Command Terms

Command

A sequence of ASCII letters ('A'-'Z', 'a'-'z' and '-').
Command and parameters must be separated by at least one space.

Parameters
A sequence of alphameric ASCII characters ('0'-'9','A'-'Z','a'-'z' and some special
characters for specific commands). Parameters are separated by commas.

Message string
Every command entered as part of a message string begins with a message

starting character and ends with a message closing character.
Note: A string can contain more than one command. Commands are separated by

a pipe ( '|' ) character.

Message starting character
'#' – For host command/query
'~' – For machine response

Device address (Optional, for K-NET)
K-NET Device ID followed by '@'

Query sign
'?' follows some commands to define a query request.

Message closing character
CR – For host messages; carriage return (ASCII 13)
CRLF – For machine messages; carriage return (ASCII 13) + line-feed (ASCII 10)

Command chain separator character
When a message string contains more than one command, a pipe ( '|' ) character
separates each command.

Spaces between parameters or command terms are ignored.

52

VP-553xl - The VP-553xl RS-232 Communication Protocol

9.1.4 Entering Commands

You can directly enter all commands using a terminal with ASCII communications
software, such as HyperTerminal, Hercules, etc. Connect the terminal to the serial
or Ethernet port on the Kramer device. To enter CR press the Enter key.
( LF is also sent but is ignored by command parser).

For commands sent from some non-Kramer controllers like Crestron, some
characters require special coding (such as, /X##). Refer to the controller manual.

9.1.5 Command Forms

Some commands have short name syntax in addition to long name syntax to allow
faster typing. The response is always in long syntax.

9.1.6 Command Chaining

Multiple commands can be chained in the same string. Each command is delimited
by a pipe character ( '|' ). When chaining commands, enter the message starting
character and the message closing character only once, at the beginning of the
string and at the end.

Commands in the string do not execute until the closing character is entered.

A separate response is sent for every command in the chain.

9.1.7 Maximum String Length

64 characters

VP-553xl – The VP-553xl RS-232 Communication Protocol

53

9.2 Kramer Protocol 3000 – Command List

Command

Short Form

Description

# Protocol handshaking

#HELP

List of commands

#BUILD-DATE?

Read device build date

#MODEL?

Read device model

#PROT-VER?

Read device protocol version

#PROG-ACTION

Set step-in button action bitmap

#SN? Read device serial number

#RESET

Reset device

#NAME-RST

Reset machine name to factory default (DNS)

#VERSION?

Read device firmware version

#NET-MAC?

NTMC?

Get MAC address

#NET-IP

NTIP

Set device IP address

#NET-IP?

NTIP?

Get device IP address

#NET-GATE

NTGT

Set Gateway IP

#NET-GATE?

NTGT?

Get Gateway IP

#NET-MASK

NTMSK

Set device subnet mask

#NET-MASK?

NTMSK?

Get device subnet mask

#NET-DHCP

NTDH

Set DHCP mode

#NET-DHCP?

NTDH?

Get DHCP mode

#CPEDID

Copy output EDID to input

#LDEDID

Write EDID data from external application to
device inputs

#GEDID

Set EDID data from device

#GEDID?

Get EDID support on certain input/output

#ROUTE

Set the video, audio, USB and serial data
routing (see Section 9.3.3)

#ROUTE?

Display the video, audio, USB and serial data
routing (see Section 9.3.3)

#SIGNAL?

Get input signal lock status

#DISPLAY?

Get output HPD status

#LOCK-FP

LCK

Lock front panel

#LOCK-FP?

LCK?

GET Lock front panel

#HDCP-MOD

Set HDCP mode

#HDCP-MOD?

Get HDCP mode

#HDCP-STAT?

Get HDCP signal status

#VID-RES

Set input/output resolution

#VID-RES?

Get input/output resolution

#VMUTE

Set video blank

#VMUTE?

Display video blank status

#VFRZ

Set freeze on selected output

#VFRZ?

Get output freeze status

#AUD-LVL

Set audio level

54

VP-553xl - The VP-553xl RS-232 Communication Protocol

Command

Short Form

Description

#AUD-LVL?

Get audio level

#MIX Set mix on/off

#MIX?

Display mix on/off status

#MIX-LVL

Set mix volume

#MIX-LVL?

Display mix volume

#MUTE

Set audio mute

#MUTE?

Display the audio mute status

#SCLR-AS

Set auto sync on/off

#SCLR-AS?

Display the auto sync on/off status

#IMAGE-PROP

Set the screen size

#IMAGE-PROP?

Display the screen size

#SCLR-PCAUTO

Run PC auto

#SCLR-AUDIO­DELAY

Set audio delay

#SCLR-AUDIO­DELAY?

Display the audio delay value

#EQ-LVL

Set EQ

#EQ-LVL?

Display EQ

#SHOW-OSD

Set the OSD display

#SHOW-OSD?

Get the OSD display

#MIC-GAIN

Set Mic volume

#MIC-GAIN?

Display Mic volume

#DPSW­STATUS?

Get the DIP-switch status
#ETH-PORT

Set UDP port

#ETH-PORT?

Display UDP port

#STANDBY

Set Standby mode

#STANDBY?

Get Standby mode status

#VOLUME

Set global volume (+1 or -1)

VP-553xl – The VP-553xl RS-232 Communication Protocol

55

9.3 Kramer Protocol 3000 – Detailed Commands

This section describes the detailed commands list (see Section 9.3.4) as well as the
Port number key (see Section 9.3.1) and the video resolutions key (see Section

9.3.2).

9.3.1 Port Number Key

Video #

Audio input

# Video Output

#

HDMI 1

0 HDMI 1 (EMB)

0:1 HDMI 1

0

HDMI 2

1 HDMI 1 (A)

0:2 HDBT 1

1

HDMI 3

2 HDMI 2 (EMB)

1:1 HDMI 2

2

HDBT 1

3 HDMI 2 (A)

1:2 HDBT 2

4 HDMI 3 (EMB)

2:1

HDBT 3

5 HDMI 3 (A)

2:2

USB Host

#

PC 1 6

HDBT 1

3 USB 1

0

PC 2 7

HDBT 2

4 USB 2

1

TP 1 8

HDBT 3

5 USB 3

2

TP 2 9

PC 1 6

USB 4

3

CV 1

10 PC 2 7

CV 2

11 TP 1 8

Audio Output

# TP 2 9

HDMI 1+HDBT

0 CV 1

10 HDMI 2

1 CV 2

11 Line OUT

2 Aux IN

12 Monitor OUT

3

9.3.2 The Resolutions key

#

Resolution

#

Resolution

#

Resolution

0

Native

9

1440x900

18

720P60

1

640x480

10

1400x1050

19

1080P60

2

800x600

11

1680x1050

20

1080I60

3

1024x768

12

1600x1200

21

N/A 4 1280x768

13

1920x1080

22

576P50

5

1360x768

14

N/A

23

720P50

6

1280x720

15

N/A

24

1080P50

7

1280x800

16

1920x1200

25

1080I50

8

1280x1024

17

480P60

26

N/A

56

VP-553xl - The VP-553xl RS-232 Communication Protocol

9.3.3 ROUTE Command Options Key

Description

P1:
Value + Definition

P2:
Value + Definition

P3:
Value + Definition

Set/display
video source

Value=1

Value=1~2

Value=0~11

Video

1:Output1
2:Output2

0: HDMI1
1: HDMI2
2: HDMI3
3: HDBT1
4: HDBT2
5: HDBT3
6: PC1
7: PC2
8: TP1
8: TP2
10: CV1
11: CV2

SID-X2N
mode – set
video source
(set SID-X2N
source at the
same time)

Value=1

Value=0~3

Value=(3~5):(1~4)

Video

0: no change
(same VP-553xl
video source)
1: Output1
2: Output2
3: All outputs (1~2)

3:1: HDBT1
(SID-X2N: select HDMI)
3:2: HDBT1
(SID-X2N: select DP)
3:3: HDBT1
(SID-X2N: select DVI)
3:4: HDBT1
(SID-X2N: select PC)
4:1: HDBT2
(SID-X2N select HDMI)
4:2: HDBT2
(SID-X2N select DP)
4:3: HDBT2
(SID-X2N: select DVI)
4:4: HDBT2
(SID-X2N: select PC)
5:1: HDBT3
(SID-X2N: select HDMI)
5:2: HDBT3
(SID-X2N: select DP)
5:3: HDBT3
(SID-X2N: select DVI)
5:4: HDBT3
( (SID-X2N: select PC)

Set audio
source

Value=2

Value=0~2

Value=0~12

Audio

0: Audio Out
1: Output1
2: Output2

0: HDMI1
1: HDMI2
2: HDMI3
3: HDBT1
4: HDBT2
5: HDBT3
6: PC1
7: PC2
8: TP1
8: TP2
10: CV1
11: CV2
12: AUX

Set audio
source:
embedded or
analog

Value=2

Value=0~2

Value=(0~2):(1~2)

Audio

0:Audio Out
1:Output1
2:Output2

0:1: HDMI1 Embedded
0:2: HDMI1 Analog
1:1: HDMI2 Embedded
1:2: HDMI2 Analog
2:1: HDMI3 Embedded

VP-553xl – The VP-553xl RS-232 Communication Protocol

57

Description

P1:
Value + Definition

P2:
Value + Definition

P3:
Value + Definition

2:2: HDMI3 Analog

Set USB

Value=3

Value=1

Value=1~4

USB

Fixed

1: USB1
2: USB2
3: USB3
4: USB4

Set serial
data

Value=4

Value=0

Value=3~5/12

Serial data

0: none

3: HDBT1
4: HDBT2
5: HDBT3
12: HDBT Out1

Set serial
data

Value=4

Value=1

Value=3~5/12

Serial data

1:Eth_Gen

3: HDBT1
4: HDBT2
5: HDBT3
12: HDBT Out1

Set serial
data

Value=4

Value=2

Value=3~5/12

Serial data

2:RS-232

3: HDBT1
4: HDBT2
5: HDBT3
12: HDBT Out1

Set serial
data

Value=4

Value=3

Value=3~5

Serial data

3: SID-X2N

3: HDBT1
4: HDBT2
5: HDBT3

Set video +
audio source

Value=12

Value=1~2

Value=0~11

Video+audio

1: Output1
2: Output2

0: HDMI1
1: HDMI2
2: HDMI3
3: HDBT1
4: HDBT2
5: HDBT3

6: PC1
7: PC2
8: TP1
9: TP2
10: CV1
11: CV2

Set video +
audio source
– set
embedded or
analog

Value=12

Value=1~2

Value=(0~2):(1~2)

Video+audio

1: Output1
2: Output2

0:1: HDMI1 Embedded
0:2: HDMI1 Analog
1:1: HDMI2 Embedded
1:2: HDMI2 Analog
2:1: HDMI3 Embedded
2:2: HDMI3 Analog

Set video
source – set

USB to “tie to

input”

Value=13

Value=1

Value=0~11

Video+USB

Output1

0: HDMI1
1: HDMI2
2: HDMI3
3: HDBT1
4: HDBT2
5: HDBT3
6: PC1

7: PC2
8: TP1
9: TP2
10: CV1
11: CV2

Set
video+audio
source – set
USB to "tie to
input"

Value=123

Value=1

Value=0~11

video+audio+USB

Output1

0: HDMI1
1: HDMI2
2: HDMI3
3: HDBT1
4: HDBT2
5: HDBT3
6: PC1

7: PC2
8: TP1
9: TP2
10: CV1
11: CV2

58

VP-553xl - The VP-553xl RS-232 Communication Protocol

Description

P1:
Value + Definition

P2:
Value + Definition

P3:
Value + Definition

Set
video+audio
source
set
Embedded or
Analog also
set USB to
"tie to input"
also

Value=123

Value=1

Value=(0~2):(1~2)

video+audio+USB

Output1

0:1: HDMI1 Embedded
0:2: HDMI1 Analog
1:1: HDMI2 Embedded
1:2: HDMI2 Analog
2:1: HDMI3 Embedded
2:2: HDMI3 Analog

9.3.4 The Commands

Command – HELP

Command Type – System-mandatory

Command Name

Permission

Transparency

Set: - - - Get:

HELP

End User

-

Description

Syntax

Set: - -

Get :

Get command list or help for specific
command

2 options:

1. #HELP␍

2. #HELP␠ command_name␍

Response

1. Multi-line: ~nn @Device available protocol 3000 commands:␍␊ command,␠command… ␍␊
To get help for command use : HELP (COMMAND_NAME)␍␊

2. Multi-line: ~nn @HELP␠command: ␍␊description␍␊USAGE:usage ␍␊

Command – BUILD-DATE

Command Type – System-mandatory

Command Name

Permission

Transparency

Set:

BUILD-DATE

End User

-

Get: - -

-

Description

Syntax

Set:

Read device build date

#BUILD-DATE?␍

Get : - -

Response

~nn @BUILD-DATE␠date␠time␍␊

Parameters

date – Format: YYYY/MM/DD where YYYY = Year, MM = Month, DD = Day
time – Format: hh:mm:ss where hh = hours, mm = minutes, ss = seconds

VP-553xl – The VP-553xl RS-232 Communication Protocol

59

Command – FACTORY

Command Type – System-mandatory

Command Name

Permission

Transparency

Set:

FACTORY

End User

-

Get: - -

-

Description

Syntax

Set:

Reset device to factory defaults configuration

#FACTORY␍

Get : - -

Response

~nn @FACTORY␠ OK␍␊

Notes

This command deletes all user data from the device. The deletion can take some time.

Command – MODEL?

Command Type – System-mandatory

Command Name

Permission

Transparency

Set: - - - Get:

MODEL?

End User

-

Description

Syntax

Set: - -

Get :

Get device model

#MODEL?␍

Response

~nn @MODEL␠ model_name␍␊

Parameters

model_name – String of up to 19 printable ASCII chars

Command – PROT-VER?

Command Type – System-mandatory

Command Name

Permission

Transparency

Set: - - - Get:

PROT-VER?

End User

-

Description

Syntax

Set: - -

Get :

Get protocol version

#PROT-VER?␍

Response

~nn @PROT-VER␠ 3000:version␍␊

Parameters

Version – Format: XX.XX where X is a decimal digit

60

VP-553xl - The VP-553xl RS-232 Communication Protocol

Command – PROG-ACTION

Command Type - Step-in

Command Name

Permission

Transparency

Set:

PROG-ACTION

End user

Public

Get:

PROG-ACTION?

End user

Public

Description

Syntax

Set:
Set step-in button action bitmap

# PROG-ACTION␠type, port_id,button_id,
actions_bitmap␍

Get :

Get step-in button action bitmap

# PROG-ACTION?␠port_type, port_id,button_id␍

Response

~ nn@PROG-ACTION␠ port_type,port_id,button_id,actions_bitmap␍␊

Parameters

port_type – 0=input
port_id – 3=HDBT1, 4=HDBT2, 5=HDBT3
button_id - 1
actions_bitmap – 0x00=ALL OFF, 0x01=OUT1, 0x02=OUT2, 0x04=AUDIO OUT

Notes

Programs matrix action as a response for external event (programmable button pressed)

Command – SN?

Command Type – System-mandatory

Command Name

Permission

Transparency

Set: - - - Get:

SN?

End User

Public

Description

Syntax

Set: - -

Get :

Get device serial number

#SN?␍

Response

~nn@SN␠ serial_number␍␊

Parameters

serial_number - 14 decimal digits, factory assigned

Command – RESET

Command Type – System-mandatory

Command Name

Permission

Transparency

Set:

RESET

Administrator

-

Get: - - - Description

Syntax

Set:

Reset device

#RESET␍

Get : - -

Response

~nn @RESET␠ OK␍␊

Notes

To avoid locking the port due to a USB bug in Windows, disconnect USB connections immediately after
running this command. If the port was locked, disconnect and reconnect the cable to reopen the port.

VP-553xl – The VP-553xl RS-232 Communication Protocol

61

Command - NAME-RST

Command Type - System (Ethernet)

Command Name

Permission

Transparency

Set:

NAME-RST

Administrator

Public

Get: - -

-

Description

Syntax

Set:

Reset machine (DNS) name to
factory default

#NAME-RST␍

Get: - -

Response

~nn@NAME-RST␠OK␍␊

Notes

Factory default of machine (DNS) name is “KRAMER_” + 4 last digits of device serial number

Command – VERSION?

Command Type – System-mandatory

Command Name

Permission

Transparency

Set: - - - Get:

VERSION?

End User

-

Description

Syntax

Set: - -

Get :

Get version number

#VERSION?␍

Response

~nn@VERSION␠ firmware_version␍␊

Parameters

firmware_version – Format: XX.XX.XXXX where the digits group are: major.minor.build version

Command – NET-MAC?

Command Type – Communication

Command Name

Permission

Transparency

Set: - - - Get:

NET-MAC?

End User

-

Description

Syntax

Set:

Get :

Get MAC address

#NET-MAC?␍

Response

~nn @NET-MAC␠ mac_address␍␊

Parameters

mac_address – Unique MAC address. Format: XX-XX-XX-XX-XX-XX where X is hex digit.

62

VP-553xl - The VP-553xl RS-232 Communication Protocol

Command – NET-IP

Command Type – Communication

Command Name

Permission

Transparency

Set:

NET-IP

Administrator

-

Get:

NET-IP?

End User

-

Description

Syntax

Set:

Set device IP address

#NET-IP␠ P1 ␍

Get :

Get device IP address

#NET-IP?␍

Response

Set: ~nn @ NET-IP ␠ ip_address ␠OK ␍␊
Get: ~nn @ NET-IP ␠ ip_address ␍␊

Parameters

P1 (valid IP address)= xxx.xxx.xxx.xxx

Notes

For proper settings consult your network administrator.

Command – NET-GATE

Command Type – Communication

Command Name

Permission

Transparency

Set:

NET-GATE

Administrator

-

Get:

NET-GATE?

End User

-

Description

Syntax

Set:

Set Gateway IP

#NET-GATE␠ P1 ␍

Get :

Get Gateway IP

#NET-GATE?␍

Response

Set: ~nn @ NET-GATE ␠ P1 ␠OK␍␊
Get: ~nn @ NET-GATE ␠ ip_address ␍␊

Parameters

P1 (valid IP address)=xxx.xxx.xxx.xxx

Notes

A network gateway connects the device via another network and maybe over the Internet. Be careful of
security problems. For proper settings consult your network administrator

VP-553xl – The VP-553xl RS-232 Communication Protocol

63

Command – NET-MASK

Command Type – Communication

Command Name

Permission

Transparency

Set:

NET-MASK

Administrator

-

Get:

NET-MASK?

End User

-

Description

Syntax

Set:

Set device subnet mask

#NET-MASK␠ net_mask ␍

Get :

Get device subnet mask

#NET-MASK? ␍

Response

Set: ~nn @NET-MASK ␠ P1 ␠ OK␍␊
Get: ~nn @NET-MASK ␠ net_mask ␍␊

Parameters

P1 (valid IP address)=xxx.xxx.xxx.xxx

Response triggers

The subnet mask limits the Ethernet connection within the local network.
For proper settings consult your network administrator.

Command – NET-DHCP

Command Type – Communication

Command Name

Permission

Transparency

Set:

NET-DHCP

Administrator

-

Get:

NET-DHCP?

End User

-

Description

Syntax

Set:

Set DHCP mode

#NET-DHCP␠ P1 ␍

Get :

Get DHCP mode

#NET-DHCP?␍

Response

Set: ~nn @ NET-DHCP ␠ P1 ␠ OK␍␊
Get: ~nn @ NET-DHCP ␠ mode ␍␊

Parameters

P1 (Off/On)– 0=off; 1=on

0 – Do not use DHCP. Use the IP set by the factory or using the IP set command.
1 – Try to use DHCP. If unavailable, use IP as above.

Notes

Connecting Ethernet to devices with DHCP may take more time in some networks.
To connect with a randomly assigned IP by DHCP, specify the device DNS name (if available) using the
command “NAME”. You can also get an assigned IP by direct connection to USB or RS-232 protocol port
if available.
For proper settings consult your network administrator.

64

VP-553xl - The VP-553xl RS-232 Communication Protocol

Command - CPEDID

Command Type - System

Command Name

Permission

Transparency

Set:

CPEDID

End User

Public

Get: - -

-

Description

Syntax

Set:

Copy EDID data from the output to
the input EEPROM

#CPEDID␠ P1, P2, P3, P4␍

Get: - -

Response

~nn@CPEDID␠ P1, P2, P3, P4␍␊

Parameters

P1 (source type) – 1=output
P2 (source ID) – 0=HDMI1; 1=HDBT1; 2=HDMI2
P3 (destination type) – 0=input
P4 (bitmap representing destination IDs) – 0=HDMI1; 1=HDMI2; 2=HDMI3; 3=HDBT1; 4=HDBT2;
5=HDBT3

Format: XXXX…X, where X is hex digit. The binary form of every hex digit represents corresponding
destinations. Setting ‘1’ says that EDID data has to be copied to this destination

Response Triggers

Response is sent to the com port from which the Set was received (before execution)

Notes

Destination bitmap size depends on device properties (for 64 inputs it is a 64-bit word)
Example: bitmap 0x0013 means inputs 1,2 and 5 are loaded with the new EDID

VP-553xl – The VP-553xl RS-232 Communication Protocol

65

Command - LDEDID

Command Type - EDID Handling

Command Name

Permission

Transparency

Set:

LDEDID

End User

Public

Get: - -

-

Description

Syntax

Set:

Write EDID data from external
application to device

Multi-step syntax (see following steps)

Get:

None

None

Communication Steps (Command and Response)

Step 1: #LDEDID␠dst_type, dest_bitmask, size, safe_mode␍
Response 1: ~nn@LDEDID␠ dst_type, dest_bitmask, size, safe_mode␠ READY␍␊ or
~nn@LDEDID␠ERRnn␍␊

Step 2: If ready was received, send EDID_DATA
Response 2: ~nn@LDEDID␠dst_type, dest_bitmask, size, safe_mode␠ OK␍␊ or
~nn@LDEDID␠ERRnn␍␊

Parameters

dst_type - EDID destination type – input=0
dest_bitmask – (see table below) bitmap representing destination IDs. The binary presentation of this

number is a bit mask for destinations. Setting ‘1’ means EDID data has to be copied to this destination

size - EDID data size (see table below)
safe_mode - 0 - Device accepts the EDID as is without trying to adjust

EDID_DATA - data in protocol packets (see Section 9.3.5)

dest_bitmask

size

dest_bitmask

size

0x01=HDMI1

256

0x10=HDBT2

256

0x02=HDMI2

256

0x20=HDBT3

256

0x04=HDMI3

256

0x01=PC1

128

0x08=HDBT1

256

0x02=PC2

128

Response Triggers

Response is sent to the com port from which the Set (before execution)

Notes

When the unit receives the LDEDID command it replies with READY and enters the special EDID packet
wait mode. In this mode the unit can receive only packets and not regular protocol commands.
If the unit does not receive correct packets for 30 seconds or is interrupted for more than 30 seconds

before receiving all packets, it sends timeout error ~nn @LDEDID␠ ERR01␍␊ and returns to the regular
protocol mode. If the unit received data that is not a correct packet, it sends the corresponding error and

returns to the regular protocol mode.

66

VP-553xl - The VP-553xl RS-232 Communication Protocol

Command - GEDID

Command Type - System

Command Name

Permission

Transparency

Set:

GEDID

Administrator

Public

Get:

GEDID?

End User

Public

Description

Syntax

Set:

Set EDID data from device

#GEDID␠ P1, P2 ␍

Get:

Get EDID support on certain input/output

#GEDID?␠ P1, P2 ␍

Response

Set:
Multi-line response:

~nn@GEDID␠ P1,P2,size␍␊
EDID_data␍␊
~nn@GEDID␠ P1,P2␠OK␍␊

Get:
~nn@GEDID␠ P1,|P2,size␍␊

Parameters

P1 (stage) – 0=input; 1=output
P2 (stage_id) - (Input/Output number valid according to the selected Input/Output according to P1) – video
inputs=(0~7); Video outputs =(0,1,2) (see Section 9.3.1)
Size - EDID data size. For Set, size of data to be sent from device, for Get, 0 means no EDID support

Response Triggers

Response is sent to the com port from which the Set (before execution) / Get command was received

Notes

For Get, size=0 means EDID is not supported
For old devices that do not support this command, ~nn@ ERR 002␍␊ is received

Command – ROUTE

Command Type –

Command Name

Permission

Transparency

Set:

ROUTE

End User

-

Get:

ROUTE?

End User

-

Description

Syntax

Set:

Set layer routing

# ROUTE ␠ P1,P2,P3 ␍

Get :

Get layer routing

# ROUTE? ␠ P1,P2 ␍

Response

~ nn @ ROUTE ␠ P1,P2,P3 ␍␊

Parameters (see Section 9.3.3)

P1 (Layer number) – 1=Video; 2=Audio; 3=USB; 12=Video+Audio; 13=Video+USB;
123=Video+Audio+USB

P2 (Route to, 0-1-2 are valid according to the selected layer according to P1) – 0=Audio Out; 1=Scaler1;
2=Scaler2
P3 (Route from, valid values are in accordance to the selected layer and Route to selected according to
P1 and P2) – video inputs=(0~11); Audio inputs=(0~12); USB hosts=(0~3) – see Section 9.3.1

Notes

This command replaces all other routing commands.

VP-553xl – The VP-553xl RS-232 Communication Protocol

67

Command – SIGNAL

Command Type - System

Command Name

Permission

Transparency

Set : - - - Get

SIGNAL?

End User

Public

Description

Syntax

Set: - -

Get:

Get input signal lock status

#SIGNAL? ␠ P1 ␍

Response

~ nn @SIGNAL ␠ P1,P2 ␍␊

Parameters

P1 (Input number)– 0: HDMI1; 1: HDMI2; 2: HDMI3; 3: HDBT1; 4: HDBT2; 5: HDBT3
P2 – 0=Off; 1=On

Response triggers

• After execution, response is sent to the com port from which the Get was received

• Response is sent after every change in input signal status ON to OFF, or OFF to ON

Command – DISPLAY?

Command Type - System

Command Name

Permission

Transparency

Set : - - - Get

DISPLAY?

End User

Public

Description

Syntax

Set: - -

Get:

Get output HPD status

#DISPLAY? ␠P1 ␍

Response

~ nn @DISPLAY ␠ P1,P2 ␍␊

Parameters

P1 (Output number) – 0=HDMI1; 1=HDBT1; 2=HDMI2
P2 – 0=Off; 1=On

Response triggers

• After execution, response is sent to the com port from which the Get was received

• Response is sent after every change in output HPD status ON to OFF

• Response is sent after every change in output HPD status OFF to ON and ALL parameters (new

EDID, etc.) are stable and valid

68

VP-553xl - The VP-553xl RS-232 Communication Protocol

Command – LOCK-FP

Command Type – System

Command Name

Permission

Transparency

Set:

LOCK-FP

End User

-

Get:

LOCK-FP?

End User

-

Description

Syntax

Set:

Lock front panel

#LOCK-FP␠P1 ␍

Get :

Get front panel lock state

#LOCK-FP?␍

Response

nn@LOCK-FP␠ P1␠ OK␍␊

Parameters

P1 (Off/On)– 0=Off; 1=On

Command – HDCP-MOD

Command Type – System

Command Name

Permission

Transparency

Set:

HDCP-MOD

Administrator

Public

Get:

HDCP-MOD?

End User

Public

Description

Syntax

Set:

Set HDCP mode

#HDCP-MOD ␠P1,P2,P3 ␍

Get :

Get HDCP mode

#HDCP-MOD? ␠ P1,P2 ␍

Response

Set / Get : ~ nn@HDCP-MOD ␠ P1,P2,P3 ␍␊

Parameters

P1 (Input/Output) – 0=Input; 1=Output
P2 (Scaler number) – 1=Scaler1; 2=Scaler2
P3 (Status) – 0=Off; 1=On; 2=Follow In, 3=Follow Out

Response triggers

• Response is sent to the com port from which the Set (before execution) / Get command was received

• Response is sent to all com ports after execution if HDCP-MOD was set any other external control

device (button press, device menu and similar) or genlock status changed

Notes

Set HDCP working mode on device input :
HDCP supported – HDCP_ON [default]
HDCP not supported – HDCP OFF
HDCP support changes following detected sink – MIRROR OUTPUT

VP-553xl – The VP-553xl RS-232 Communication Protocol

69

Command – HDCP-STAT

Command Type - System

Command Name

Permission

Transparency

Set : - - - Get

HDCP-STAT?

End User

Public

Description

Syntax

Set:

None

-

Get:

Get HDCP signal status

#HDCP-STAT?␠ P1,P2 ␍

Response

Set / Get: ~ nn@HDCP-STAT␠P1,P2 ␍␊

Parameters

P1 (Input/Output) – 0=Input; 1=Output
P2 –1=Scaler1, 2=Scaler2

Response triggers

Response is sent to the com port from which the Set (before execution) / Get command was received
Response is sent to all com ports after execution if HDCP-STAT was set by any other external control
device (button press, device menu and similar) or HDCP mode changed

Notes

On output – sink status
On input – signal status

Command – VID-RES

Command Type - Video

Command Name

Permission

Transparency

Set :

VID-RES

End User

Public

Get

VID-RES?

End User

Public

Description

Syntax

Set:

Set video resolution

#VID-RES ␠ P1,P2,P3,P4 ␍

Get:

Get video resolution

#VID-RES? ␠ P1,P2,P3 ␍

Response

~ nn @VID-RES ␠ P1,P2,P3,P4 ␍␊

Parameters

P1 – 0=Input; 1=Output
P2 – 1=Scaler1; 2=Scaler2
P3 – 0=Off; 1=On
P4 - video resolutions see Section 9.3.2

Response triggers

• After execution, response is sent to the com port from which the Set /Get was received

• After execution, response is sent to all com ports if VID-RES was set by any other external control

device (button press, device menu and similar)

Notes

1. “Set” command is only applicable for stage=Output

2. “Set” command with is_native=ON sets native resolution on selected output (resolution index sent = 0).
Device sends as answer actual VIC ID of native resolution

3. “Get” command with is_native=ON returns native resolution VIC, with is_native=OFF returns current
resolution

70

VP-553xl - The VP-553xl RS-232 Communication Protocol

Command – VMUTE

Command Type – Video

Command Name

Permission

Transparency

Set:

VMUTE

End User

-

Get:

VMUTE?

End User

-

Description

Syntax

Set:

Set enable/ disable video
on output

# VMUTE ␠ P1,P2 ␍

Get :

Get video on output status

# VMUTE? ␠ P1 ␍

Response

Set / Get : ~ nn @ VMUTE ␠ P1,P2 ␍␊

Parameters

P1 (Scaler number) – 1=Scaler1; 2=Scaler2
P2 (Off/On) – 0=Off; 1=On

Command – VFRZ

Command Type – Video

Command Name

Permission

Transparency

Set:

VFRZ

End User

Public

Get:

VFRZ?

End User

Public

Description

Syntax

Set:

Set freeze on
selected output

#VFRZ␠ P1,P2 ␍

Get :

Get output freeze status

#VFRZ?␠ P1 ␍

Response

~ nn @VFRZ␠ P1,P2 ␍␊

Parameters

P1 (Scaler number) – 1=Scaler1; 2=Scaler2
P2 (Off/On) – 0=Off; 1=On

Command – AUD-LVL

Command Type – Audio

Command Name

Permission

Transparency

Set:

AUD-LVL

End User

-

Get:

AUD-LVL?

End User

-

Description

Syntax

Set:

Set audio level in specific amplifier stage

#AUD-LVL␠ P1,P2,P3 ␍

Get :

Get audio level in specific amplifier stage

#AUD-LVL?␠ P1,P2 ␍

Response

~nn @AUD-LVL␠ P1,P2 ␍␊

Parameters

P1 (Input/Output)– 0=Input; 1=Output
P2 (Input/Output number valid according to the selected Input/Output according to P1) – video
inputs=(0~11); Audio inputs=(0~12);Audio Outputs (– see Section 9.3.1)
P3 – 0~100

VP-553xl – The VP-553xl RS-232 Communication Protocol

71

Command – MIX

Command Type – Audio

Command Name

Permission

Transparency

Set:

MIX

End User

-

Get:

MIX?

End User

-

Description

Syntax

Set:

Set audio MIX

#MIX␠ P1,P2 ␍

Get :

Get audio MIX

#MIX? ␠ P1 ␍

Response

~nn @MIX␠ channel, mix_mode ␍␊

Parameters

P1 (Output number) – 0=Audio out; 1=Scaler 1; 2=Scaler2
P2 (Off/On)– 0=Off; 1=On

Command – MIX-LVL

Command Type –[Audio]

Command Name

Permission

Transparency

Set:

MIX-LVL

End User

Public

Get:

MIX-LVL?

End User

Public

Description

Syntax

Set:

Set the mixing level of the
selected output

# MIX-LVL ␠ P1,P2 ␍

Get :

Get the mixing level of the

selected output

# MIX-LVL? ␠ P1 ␍

Response

Set / Get : ~ nn @ MIX-LVL ␠ P1,P2 ␍␊

Parameters

P1 (Output number)– 0=Audio out; 1=Scaler 1; 2=Scaler2
P2 (Level) – 0 to 100

Response triggers

• Response is sent to the com port from which the Set (before execution) / Get command was received

• After execution, response is sent to all com ports if CMD-NAME was set any other external control

device (button press, device menu and similar) or genlock status was changed

Notes

Sets the mixing level between the audio of the selected video In and the selected AUX audio channel

72

VP-553xl - The VP-553xl RS-232 Communication Protocol

Command – MUTE

Command Type – [Audio]

Command Name

Permission

Transparency

Set:

MUTE

End User

Public

Get:

MUTE?

End User

Public

Description

Syntax

Set:

Mute the selected output

# MUTE ␠ P1,P2 ␍

Get :

Mute the selected output

# MUTE? ␠ P1 ␍

Response

Set / Get : ~ nn @ MUTE ␠ P1,P2. ␍␊

Parameters

P1 – 2=Line out; 3=Monitor Out; 1=Scaler1; 2=Scaler2
P2 – 0=Off; 1=On

Response triggers

Response is sent to the com port from which the Set (before execution) / Get command was received

After execution, response is sent to all com ports if CMD-NAME was set any other external control device
(button press, device menu and similar) or genlock status was changed

Notes

Mutes the selected audio output

Command – SCLR-AS

Command Type – [Audio]

Command Name

Permission

Transparency

Set:

SCLR-AS

End User

Public

Get:

SCLR-AS?

End User

Public

Description

Syntax

Set:

Set the

# SCLR-AS ␠ P1,P2 ␍

Get :

Get the

# SCLR-AS? ␠ P1 ␍

Response

Set / Get : ~ nn @ SCLR-AS ␠ P1,P2…. ␍␊

Parameters

P1 –(Scaler Number)1=Scaler 1; 2=Scaler2
P2 (Off/On)– 0=Off; 1=On

Response triggers

Response is sent to the com port from which the Set (before execution) / Get command was received

After execution, response is sent to all com ports if CMD-NAME was set any other external control device
(button press, device menu and similar) or genlock status was changed

Notes

Sets the Auto Sync features for the selected Scaler

VP-553xl – The VP-553xl RS-232 Communication Protocol

73

Command – IMAGE-PROP

Command Type – [Video]

Command Name

Permission

Transparency

Set:

IMAGE-PROP

End User

Public

Get:

IMAGE-PROP?

End User

Public

Description

Syntax

Set:

Set the image size

# IMAGE-PROP ␠ P1 ␍

Get :

Get the image size

# IMAGE-PROP? ␠ P1,…,P6 ␍

Response

Set / Get : ~ nn @ IMAGE-PROP ␠ P1,P2…. ␍␊

Parameters

P1 (Scaler number) –1=Scaler 1; 2=Scaler2
P2 (Status) – 0=Over Scan; 1=Full; 2=Best Fit; 3=PanScan; 3=Letter Box; 5=Under 2; 6=Under 1

Response triggers

Response is sent to the com port from which the Set (before execution) / Get command was received

After execution, response is sent to all com ports if CMD-NAME was set any other external control
device (button press, device menu and similar) or genlock status was changed

Notes

Sets the image properties of the selected scaler

Command – SCLR-PCAUTO

Command Type – [Video]

Command Name

Permission

Transparency

Set:

SCLR-PCAUTO

End User

Public

Get: End User

Public

Description

Syntax

Set:

Set

# SCLR-PCAUTO ␠ P1,P2 ␍

Get :

Response

Set / Get : ~ nn @ SCLR-PCAUTO ␠ P1,P2…. ␍␊

Parameters

P1 (Scaler number) –1=Scaler 1; 2=Scaler2
P2 (Off/On) – 0=Off; 1=On

Response triggers

Response is sent to the com port from which the Set (before execution) / Get command was received
After execution, response is sent to all com ports if CMD-NAME was set any other external control
device (button press, device menu and similar) or genlock status was changed

Notes

Sets the PC Auto sync of the selected scaler

74

VP-553xl - The VP-553xl RS-232 Communication Protocol

Command – SCLR-AUDIO-DELAY

Command Type – [Audio]

Command Name

Permission

Transparency

Set:

SCLR-AUDIO-DELAY

End User

Public

Get:

SCLR-AUDIO-DELAY?

End User

Public

Description

Syntax

Set:

Set the scaler audio delay

# SCLR-AUDIO-DELAY ␠ P1,P2 ␍

Get :

Get the scaler audio delay

# SCLR-AUDIO-DELAY? ␠ P1 ␍

Response

Set / Get : ~ nn @ SCLR-AUDIO-DELAY ␠ P1,P2 ␍␊

Parameters

P1 (Audio output number) – 0=Audio out; 1=Scaler 1; 2=Scaler2
P2 (Level selection) – 0=Off; 1 to8=10ms to80ms in 10ms steps; 9=Auto

Response triggers

Response is sent to the com port from which the Set (before execution) / Get command was received
After execution, response is sent to all com ports if CMD-NAME was set any other external control
device (button press, device menu and similar) or genlock status was changed

Notes

Sets the audio delay for the selected audio output

Command – EQ-LVL

Command Type – [Audio]

Command Name

Permission

Transparency

Set:

EQ-LVL

End User

Public

Get:

EQ-LVL?

End User

Public

Description

Syntax

Set:

Set the equalization level

# EQ-LVL ␠ P1,P2,P3 ␍

Get :

Get the equalization level

# EQ-LVL? ␠ P1,P2 ␍

Response

Set / Get : ~ nn @ EQ-LVL ␠ P1,P2,P3 ␍␊

Parameters

P1 (Audio output number) – 0=Audio out; 1=Scaler 1; 2=Scaler2
P2 (frequency number) – 0=120; 1=200; 3=500; 4=1200; 5=3000; 6=7500; 8=12000
P3 (Level) – 0=-10dB 20=0dB; 40=10dB

Response triggers

Response is sent to the com port from which the Set (before execution) / Get command was received
After execution, response is sent to all com ports if CMD-NAME was set any other external control
device (button press, device menu and similar) or genlock status was changed

Notes

Sets the EQ level for the selected frequency of the selected audio output

VP-553xl – The VP-553xl RS-232 Communication Protocol

75

Command – SHOW-OSD

Command Type – [Video]

Command Name

Permission

Transparency

Set:

SHOW-OSD

End User

Public

Get:

SHOW-OSD?

End User

Public

Description

Syntax

Set:

Set the OSD display

# SHOW-OSD ␠ P1 ␍

Get :

Get the OSD display

# SHOW-OSD? ␠ ␍

Response

Set / Get : ~ nn @ SHOW-OSD ␠ P1 ␍␊

Parameters

P1 (Scaler number) – 0=Both Off; 1=1 On; 2=2 On; 99=Both On

Response Triggers

Response is sent to the com port from which the Set (before execution) / Get command was received
After execution, response is sent to all com ports if CMD-NAME was set any other external control
device (button press, device menu and similar) or genlock status was changed

Notes

Displays the OSD of the selected Scaler

Command – MIC-GAIN

Command Type – [Audio]

Command Name

Permission

Transparency

Set:

MIC-GAIN

End User

Public

Get:

MIC-GAIN?

End User

Public

Description

Syntax

Set:

Set the microphone gain

# MIC-GAIN ␠ P1,P2 ␍

Get :

Get the microphone gain

# MIC-GAIN? ␠ P1 ␍

Response

Set / Get : ~ nn @ MIC-GAIN ␠ P1,P2 ␍␊

Parameters

P1 (Input number, for VP-553xl always 0) = 0
P2 (level) – 0 to 100

Response Triggers

Response is sent to the com port from which the Set (before execution) / Get command was received
After execution, response is sent to all com ports if CMD-NAME was set any other external control
device (button press, device menu and similar) or genlock status was changed

Notes

Sets the Microphone input audio gain

76

VP-553xl - The VP-553xl RS-232 Communication Protocol

Command – DIPSW-STATUS

Command Type – [Machine]

Command Name

Permission

Transparency

Set: End User

Public

Get:

DPSW-STATUS?

End User

Public

Description

Syntax

Set:

Get :

Get the DIP-switch status

# DPSW-STATUS? ␠ P1 ␍

Response

Get : ~ nn @ DPSW-STATUS ␠ P2 ␍␊

Parameters

P1 –0=SW 0;… 2=SW2
P2 (Off/On) – Off=0, On=1

Response Triggers

Response is sent to the com port from which the Set (before execution) / Get command was received
After execution, response is sent to all com ports if CMD-NAME was set any other external control
device (button press, device menu and similar) or genlock status was changed

Notes

Gets the DIP status for the selected DIP switch

Command – ETH-PORT

Command Type - Communication

Command Name

Permission

Transparency

Set :

ETH-PORT

Administrator

Public

Get

ETH-PORT?

End User

Public

Description

Syntax

Set:

Set Ethernet port protocol

#ETH-PORT␠ portType, ETHPort ␍

Get:

Get Ethernet port protocol

#ETH-PORT?␠portType ␍

Response

~nn@ ETH-PORT␠portType, ETHPort␍␊

Parameters

portType - UDP
ETHPort –UDP=50000-50999

VP-553xl – The VP-553xl RS-232 Communication Protocol

77

Command – STANDBY

Command Type - Audio

Command Name

Permission

Transparency

Set :

STANDBY

End User

Public

Get

STANDBY?

End User

Public

Description

Syntax

Set:

Set Standby mode

# STANDBY ␠ on_off␍

Get:

Get Standby mode status

# STANDBY?␍

Response

~nn@STANDBY ␠ value␍␊

Parameters

on_off – 0=Off; 1=On

Command – VOLUME

Command Type - Audio

Command Name

Permission

Transparency

Set :

VOLUME

End User

-

Get

-

Description

Syntax

Set:

Set global output audio
level

#VOLUME␠ P1 ␍
Get:

Response

~~nn @VOLUME␠ P1 ␠ OK ␍␊

Parameters

P1 (Input/Output)– + = increase current level; - = decrease current level

Notes

To set / get an “input” level or audio level in other amplifier stage, use command #AUD-LVL / #AUD-LVL?
to set / get audio level in specific amplifier stage

9.3.5 Packet Protocol Structure

The packet protocol is designed to transfer large amounts of data, such as files, IR
commands, EDID data, etc.

9.3.5.1 Using the Packet Protocol

To use the packet protocol:

1. Send a command: LDRV, LOAD, IROUT, LDEDID

2. Receive Ready or ERR###

78

VP-553xl - The VP-553xl RS-232 Communication Protocol

3. If Ready:

▪ Send a packet
▪ Receive OK on the last packet
▪ Receive OK for the command

4. Packet structure:

▪ Packet ID (1, 2, 3…) (2 bytes in length)
▪ Length (data length + 2 for CRC) - (2 bytes in length)
▪ Data (data length -2 bytes)
▪ CRC - 2 bytes

01

02

03

04

05…

Packet ID

Length

Data

CRC

5. Response:

~NNNNSPOKCR LF

Where NNNN is the received packet ID in ASCII hex digits.

9.3.5.2 Calculating the CRC

The polynomial for the 16-bit CRC is:
CRC-CCITT: 0x1021 = x16 + x12 + x5 + 1
Initial value: 0000
Final XOR Value: 0

For a code example, see:

http://sanity-free.org/133/crc_16_ccitt_in_csharp.html

CRC example:
Data = “123456789”
Result => 0x31C3

For the latest information on our products and a list of Kramer distributors,
visit our Web site where updates to this user manual may be found.

We welcome your questions, comments, and feedback.

Web site: www.KramerAV.com
E-mail: [e-mail]

SAFETY WARNING

Disconnect the unit from the power
supply before opening and servicing

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI
Logo are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc.
All brand names, product names, and trademarks are the property of their
respective owners.

P/N:

2900-300421

Rev:

3

!
