Kramer VP-461 User Manual

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

VP-461

Video Scaler

P/N: 2900-300195 Rev 1

VP-461 – Contents

i

Contents

1 Introduction 1
2 Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 2

2.3 Recycling Kramer Products 3

3 Overview 4

3.1 HDCP Compliance 6

3.2 Defining the VP-461 Video Scaler 6

4 Connecting the VP-461 8

4.1 Audio Input Pinout 9

5 The OSD Menu 10

5.1 OSD Menu Operation Example 10

5.2 The Input Menu 13

5.3 The Audio Menu 19

5.4 The Process Menu 21

5.5 The Picture Menu 22

5.6 The Enhance Menu 23

5.7 The Scale Menu 24

5.8 The Miscellaneous Menu 27

6 The Display Modes 30

6.1 The Single Window Display Mode 30

6.2 The Dual Window Display Mode 30

7 Controlling the VP-461 35

7.1 Controlling via the Front Panel Buttons 35

7.2 Controlling via the OSD Menu 35

7.3 Connecting to the VP-461 via RS-232 36

7.4 Controlling via the Infrared Remote Control Transmitter 37

8 Flash Memory Upgrade 38
9 Technical Specifications 39

9.1 Default Communication Parameters 40

9.2 Input Resolutions 40

9.3 Output Resolutions 41

10 The VP-461 RS-232 Communication Protocol 42

10.1 Using the Communication Protocol 42

10.2 Communication Protocol: Mimicking OSD 42

10.3 Protocol Table: Mimicking Remote and Front Panel Buttons 50

10.4 The Protocol 3000 Common Operation Commands 50

ii

VP-461 - Contents

Figures

Figure 1: VP-461 Video Scaler 6
Figure 2: Connecting the VP-461 Video Scaler 9
Figure 3: Audio Input Pinout 9
Figure 4: Input Menu 13

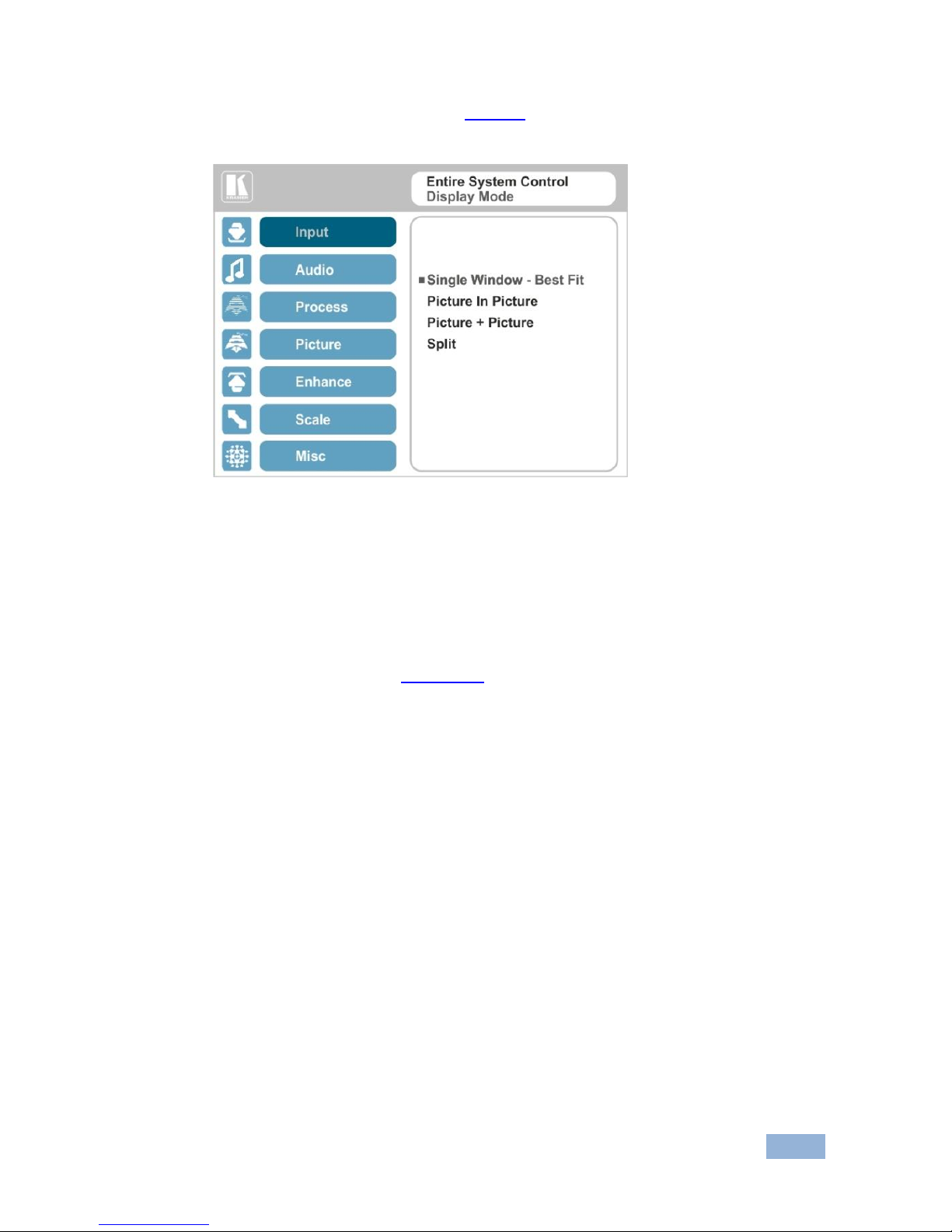

Figure 5: Select the Display Mode 15
Figure 6: changing the size of the Window 16

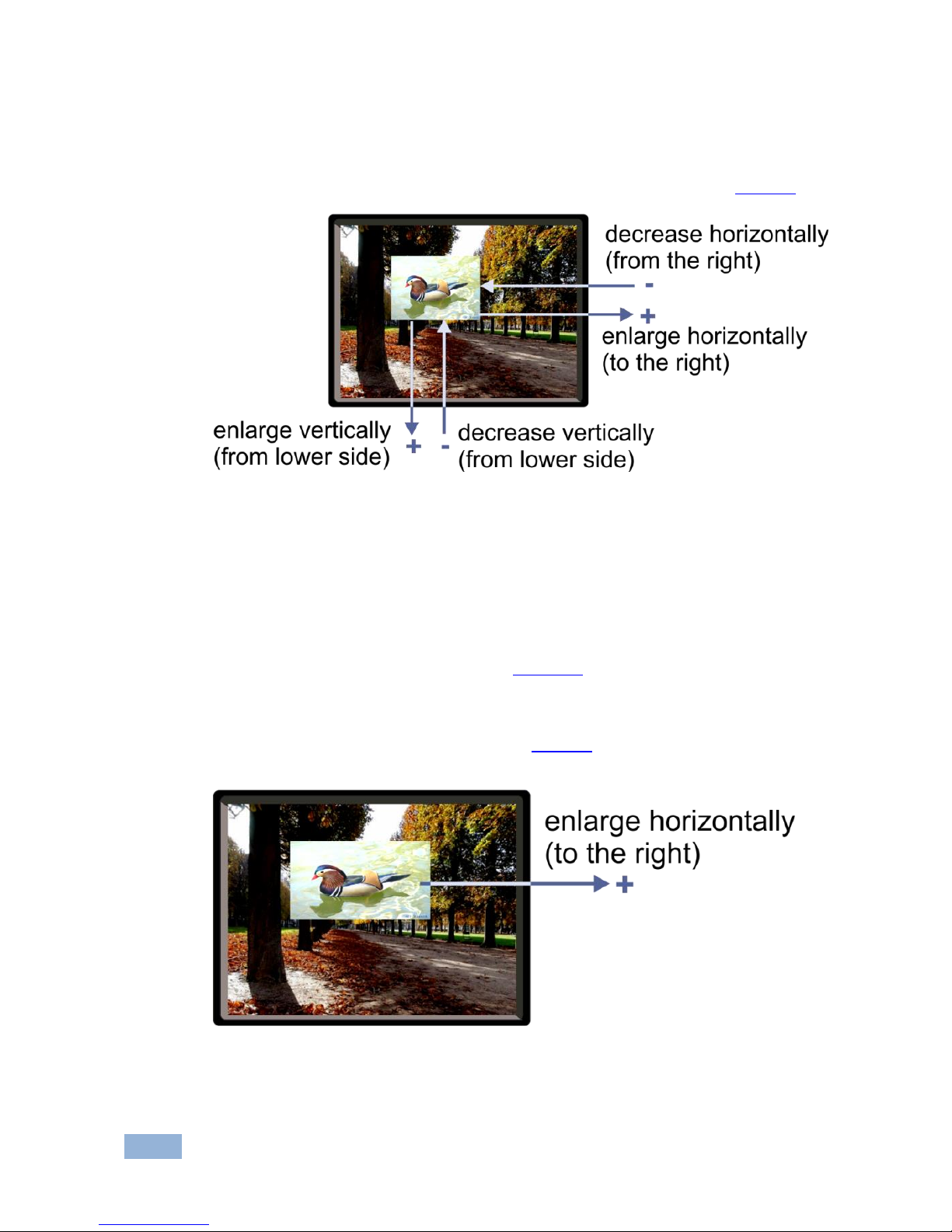

Figure 7: Increasing the Width 16
Figure 8: Increasing the Height 17
Figure 9: Positioning the Window 17

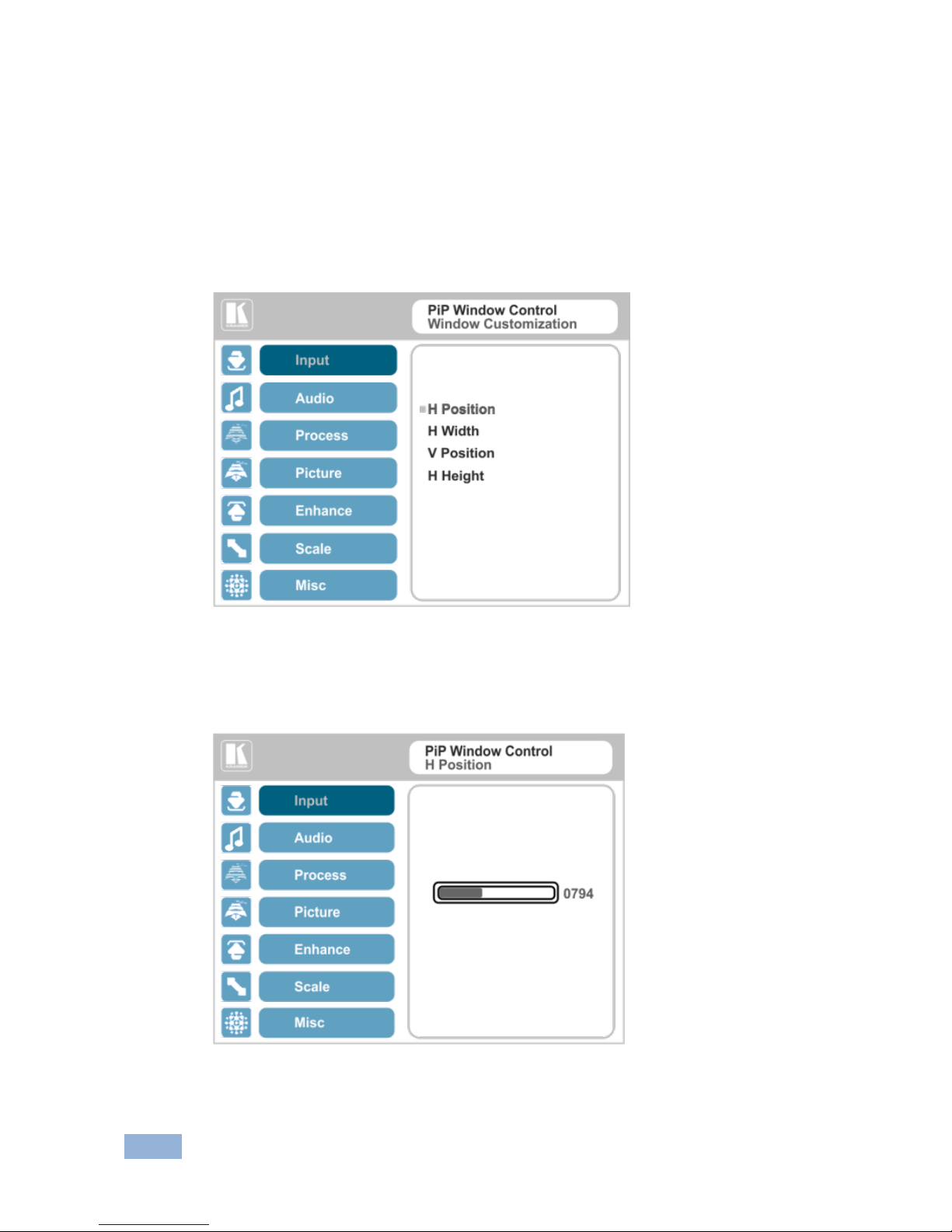

Figure 10: Window Customization 18
Figure 11: H-Position Slide Bar 18
Figure 12: Moving the PiP Window 19
Figure 13: Audio Menu 19
Figure 14: Set the Output Volume Level 20
Figure 15: Process Menu 21
Figure 16: Picture Menu 22
Figure 17: Enhance Menu 23
Figure 18: Scale Menu 24
Figure 19: Misc Menu 27
Figure 20: DP superimposed over PC 33

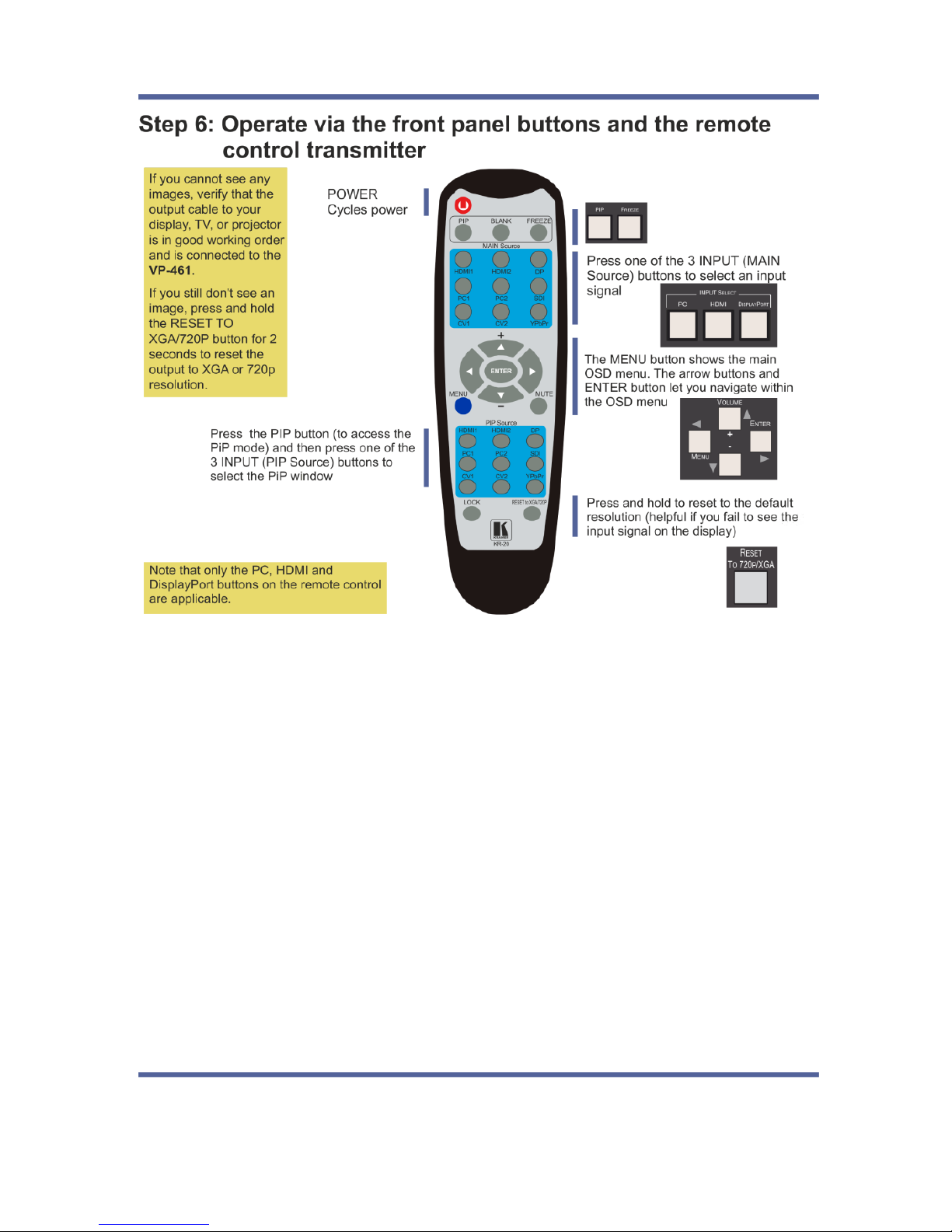

Figure 21: Infrared Remote Control Transmitter 37

VP-461 - Introduction

1

1

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront video, audio, presentation, and broadcasting professionals
on a daily basis. In recent years, we have redesigned and upgraded most of our
line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined by
function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;
GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:
Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:
Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:
Sierra Video Products.

Congratulations on purchasing your Kramer VP-461 Video Scaler. This product,
which incorporates HDMI™ technology, is ideal for:

 Projection systems in conference rooms, boardrooms, auditoriums, hotels

and churches, production studios, rental and staging

 Any application where high quality conversion and switching of multiple and

different video signals to graphical data signals is required for projection
purposes

2

VP-461 - Getting Started

2 Getting Started

We recommend that you:

 Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

 Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp
to check for up-to-date user manuals, application programs, and to check
if firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

 Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in
signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables)

 Do not secure the cables in tight bundles or roll the slack into tight coils
 Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

 Position your Kramer VP-461 away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the Kramer Electronics input power wall
adapter that is provided with the unit

Warning:

Disconnect the power and unplug the unit from the wall
before installing

i

!

!

VP-461 - Getting Started

3

3

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims
to reduce the amount of WEEE sent for disposal to landfill or incineration by
requiring it to be collected and recycled. To comply with the WEEE Directive,
Kramer Electronics has made arrangements with the European Advanced
Recycling Network (EARN) and will cover any costs of treatment, recycling and
recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country go

to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

4

VP-461 - Overview

3 Overview

The Kramer VP-461 is a high quality Video Scaler. It accepts one of three inputs: a

computer graphics signal on a 15-pin HD connector, an HDMI and a DisplayPort
signal. It scales the video, embeds the audio and outputs the signal to the HDMI
output, as well as to the PC output together with an unbalanced audio output.

The VP-461 Video Scaler features:

 K-Storm™ Scaling Technology - Kramer’s extremely high performance scaling

technology. High-quality 3:2 and 2:2 pull down de-interlacing and full up and
down scaling of computer graphics video input signals

 State-of-the-art video processing technology, with the highest quality de-

interlacing, noise reduction, and scaling performance for both standard­definition and high-definition signals

 K-IIT XL™ Picture-in-Picture Image Insertion Technology - Ultra stable

picture−in−picture, picture−and−picture and split screen capability, or fully

customizable windows’ size and position control

 Ultra Fast Fade-Thru-Black (FTB™) Switching - Video switching transitions

are clean and ultra-fast. The video fades to black and the new input fades
from black for smooth, glitch-free switching. The output signal provides
constant sync so the display never glitches

 Advanced deinterlacing functions - including 3D comb filtering, film mode,

diagonal correction and motion detection

 Scaled Outputs – HDMI and PC outputs simultaneously
 Output Resolutions – HDTV and Computer Graphics up to 2K and

1080p/UXGA with selectable refresh rates

 Multiple Aspect Ratio Selections – Follow input, follow output, best fit,

letterbox

 Multi-Standard Video support - NTSC (3.58/4.43), PAL (M/N/60) and

SECAM

 Input and output audio level adjustment
 Selectable Power Save modes for energy efficient usage

VP-461 - Overview

5

5

 HDCP Compliant - The HDCP (High Definition Content Protection) license

agreement allows copy-protected data on the HDMI input to pass only to the
HDMI output

In addition, the VP-461 Video Scaler:

 Includes luma keying via the PiP window
 Features advanced EDID management (native resolution and color depth)

per input

 Analyzes the connected output’s EDID for optimal scaling
 Supports picture zooming both on main and PiP window from 100% to

1600%, including separate V and H sharpness control

 Provides HDMI and PC input and output color space control
 Supports HDMI deep color for output
 Features vertical keystone operation
 Is HDTV and computer graphics compatible and the resolution can be up- or

down-scaled as required (see output resolutions in Section 5.7)

 Comes with an On-Screen Display (OSD) for easy setup and adjustment,

accessible via the IR remote control and via the front-panel buttons

 Has a non-volatile memory that retains the last settings used
 Supports firmware upgrade via RS-232
 Has an external 5V DC power source

Control your VP-461:

 Directly, via the front panel push buttons
 By RS-232 serial commands transmitted by a touch screen system, PC, or

other serial controller

 Remotely, from the infrared remote control transmitter

The VP-461 is housed in a desktop enclosure, letting 2 units to be rack mounted
side-by-side in a 1U rack space with the optional RK-1 rack adapter.

6

VP-461 - Overview

3.1 HDCP Compliance

If the HDMI signal is HDCP protected, it can only appear on the
HDMI output if it is connected to an HDCP compliant display.

The VP-461 will not output a picture on an HDMI display that is not
HDCP compliant, nor will a picture be shown on the PC output;
instead it will show a black screen.

In the dual window display mode (see Section 6.2), even if only one
of the inputs is HDCP protected, and is output to a non compliant
display, it will affect the entire screen and turn it black.

3.2 Defining the VP-461 Video Scaler

This section defines the VP-461.

Figure 1: VP-461 Video Scaler

i

VP-461 - Overview

7

7

#

Feature

Function

1

IR Receiver

Accepts IR remote commands

2

IR LED

Lights orange when the unit accepts IR remote
commands

3

INPUT
SELECT

Buttons
PC 15-pin HD

Press to select the computer graphics input

4

HDMI

Press to select the HDMI input

5

DISPLAYPORT

Press to select the DisplayPort input

6

PIP Button

Toggles the dual window mode (Picture-in-Picture)
function (see Section 6.2)

Note that while browsing the OSD menu in the dual
window mode, a long press of the PIP button will
instantly toggle the window control (between Main and
PiP)

7

FREEZE Button

Press to freeze/unfreeze the output video image

8

Navigation
Buttons

/-
VOLUME
Button

Press to move down the menu list (see Section 7.1.1)
and to decrease numerical values. When not within the
OSD menu mode, press to reduce the output volume

9

 Button

Press to exit the OSD menu and, when in the OSD
menu, move to the previous level in the OSD screen
(see Section 7.1.1)

10

/+ VOLUME
Button

Press to move up the menu list values (see Section

7.1.1) and to increase numerical values. When not

within the OSD menu mode, press to increase the
output volume

11

 ENTER
Button

Press to access sub-menu items and select from
several settings (see Section 7.1.1)

12

MENU Button

Press to access/exit the menu

13

RESET TO 720P/XGA
Button

Press to reset the video output resolution to XGA or
720p and change the deep color settings to Off (see

Section 5.7)

Press and hold for about 3 seconds to toggle between reset
to XGA and reset to 720p

14

PANEL LOCK Button

Press and hold for about 3 seconds to lock/unlock the
front panel buttons

15

AUDIO PC IN 3.5mm Mini
Jack Connector

Connect to the unbalanced audio of the computer
graphics source (the pinout is defined in Section 4.1)

16

AUDIO OUT 3.5mm Mini
Jack Connector

Connect to an unbalanced stereo audio output
17

VIDEO
INPUT

Connectors

PC

Connect to the computer graphics source

18

HDMI

Connect to the HDMI source

19

DISPLAYPORT

Connect to the DisplayPort source

20

VIDEO
OUTPUT

Connectors

PC 15-pin HD

Connect to a computer graphics acceptor

21

HDMI

Connect to an HDMI acceptor
22

RS-232 9-pin D-sub Port

Connect to the PC or a remote controller

23

5V DC

+5V DC connector for powering the unit

8

VP-461 - Connecting the VP-461

4 Connecting the VP-461

Always switch off the power to each device before connecting it to
your VP-461. After connecting your VP-461, connect its power and
then switch on the power to each device.

You do not have to connect all the inputs and outputs, connect only
those that are required.

To connect the VP-461, as illustrated in the example in Figure 2, do the following:

1. Connect a computer graphics source to the PC VIDEO INPUT 15-pin HD
connector.

2. Connect an HDMI source (for example, a DVD player) to the HDMI VIDEO
INPUT connector.

Alternatively, you can connect the DVI connector on the DVD player to the HDMI
connector on the VP-461 via a DVI-HDMI adapter

3. Connect a DisplayPort video source (for example, a computer graphics
source) to the DISPLAYPORT VIDEO INPUT connector.

4. Connect the audio input signal to the AUDIO PC IN 3.5mm mini jack (not
shown in Figure 2).

5. Connect the HDMI VIDEO OUTPUT connector to an HDMI acceptor (for
example, a plasma display).

6. Connect the PC VIDEO OUTPUT 15-pin HD connector to a VGA acceptor
(for example, an analog display).

7. Connect the AUDIO OUT 3.5mm mini jack to an audio acceptor, not shown
in Figure 2.

8. Connect a PC and/or controller to the RS-232 terminal block (see Section

7.3)

9. Connect the 5V DC power adapter to the power socket and connect the
adapter to the mains electricity (not shown in Figure 2).

!

i

VP-461 - Connecting the VP-461

9

9

Figure 2: Connecting the VP-461 Video Scaler

4.1 Audio Input Pinout

This section defines the
audio input 3.5mm jack
pinout.

Figure 3: Audio Input Pinout

10

VP-461 - The OSD Menu

5 The OSD Menu

The VP-461 OSD menu lets you set the operation parameters for the:

 Main Window Control
 PIP Window Control
 Entire System Control

The nature of the operation setup appears in the OSD title, as shown in the
example in Section 5.1:

 The title line shows the control mode (Main, PIP or Entire system)
 Level 1 lists the main menu items
 Level 2 includes the second hierarchy level, below level 1
 Level 3 includes the third hierarchy level, below level 2
 Function, is the selectable parameter or numerical value and can appear

either under level 2 or 3

5.1 OSD Menu Operation Example

In the example illustrated below, the Master Connection is set to PC (see Section

5.7).

The table below shows function 632 (from the Protocol in Section 10.2.2):

 6 in the hundreds, represents “Scale” which is the 6th menu item in the main

menu list

 3 in the tens, represents “Output” which is 3rd in the Scale menu
 2 in the units, represents “Master Connection” which is second in the Output

menu

Level 1

Level 2

Level 3

Level 4 (Function)

Range

Function

Scale (6)

Output (3)

Master Connection
(2)

HDMI

0

632
PC

1

VP-461 - The OSD Menu

11

11

The subtitle, below the title line
shows the current level accessed
(Scale in this example)

After selecting Output (which is the
second Level), it appears in the
subtitle

Once Master Connection is

selected, the Title changes to “Entire
System Control” indicating that the

selection will affect the entire
system. The subtitle shows the
current, Level 3, selection and the
menu list shows the function (PC)

If the display layout includes a PiP window, you can set the OSD menu to control
the main source window and the PIP window separately (by defining Window
Control, see Section 5.8).

General characteristics which apply to the entire system (for example, setting the
volume) are changed without needing to shift control (the title line will state: Entire
System Control).

12

VP-461 - The OSD Menu

Note that:

 A selected parameter that turns gray becomes valid immediately (there is no

need to press Enter to save the changes)

 Exiting the menu saves the parameter to the memory
 Data is saved per window and per input (to a dedicated input + window

memory), as applicable

The control buttons let you control the VP-461 via the OSD menu. Press the:

 MENU button to enter the menu, exit the menu, and when in the OSD menu,

move to the previous level and change menu settings in the OSD screen.
Changes are immediate

The default timeout is set to 30 seconds and can be changed (see Section 5.8)

 ENTER (or ) button to access sub-menu items
 Arrow buttons to move through the OSD menu
 Up or down arrows to change settings

Note that when exiting menu, all the changes are automatically
saved to the non-volatile memory.
The default OSD timeout is set to 30 seconds and can be changed
(see Section 5.8).

5.1.1 OSD Control Icons

The following three icons: M, P, and E are included to indicate when functionality
applies to the Main window, the PiP Window or the entire system:

 M for Main Window Control
 P for PiP window Control
 E for Entire System Control

i

VP-461 - The OSD Menu

13

13

5.2 The Input Menu

Figure 4: Input Menu

Setting

Function

Display Mode

Select the display mode (see Figure 5):

Single Window – single window mode operation with one channel displayed E
Picture in Picture (PiP) – dual window mode operation, a smaller window

superimposed over a full screen image (see Section 6.2) E
Picture + Picture (PoP) – dual window mode operation, both images appear

side-by-side and the aspect ratios of both images are maintained (see Section

6.2) E

Split (SbS) – dual window mode operation, both images are placed side-by-
side with the same height (see Section 6.2) E

When selecting a PiP configuration, set the Main window or the PiP window
parameters via Misc -> OSD -> Window Control (see Section 5.8)

Note that while browsing the OSD menu in the dual window mode, press of the PIP
button to instantly toggle the window control (between Main and PiP)

Customized –customized image size E

Note that any change in the output resolution cancels the window
customization

Input Source

Select the input source: PC, HDMI or DisplayPort M/P

When selecting the PC input, it supports YPbPr and RGB color spaces and also
supports sync on green. (see Color Space below)

i

14

VP-461 - The OSD Menu

Setting

Function

Input Settings

Set the:

H Image Shift – to set the horizontal position of the image within the window

M/P

Volatile parameter

V Image Shift – to set the vertical position of the image within the window

M/P

Volatile parameter

Auto Positioning – to search the input image during the tuning process and
automatically position it on the output window in a perfect fit.
Set to Off to disable auto positioning

Set to Normal Scan to perform a normal range image search
Set to Wide Scan to perform a wide range image search M/P

In the Normal/Wide Scan option, the machine automatically adjusts all the PC input
video resolutions (PC 1 and PC 2). For the other inputs, the machine automatically
adjusts all the input video resolutions except for HD/SD (CEA 861 standard) video
resolutions

HDCP Mode – to select the HDCP option for the HDMI input: either ON (the
default) or OFF.

Setting HDCP mode to Off on the HDMI input allows the source to transmit a
non-HDCP signal if required (for example, when working with a Mac
computer).

EDID Select – to select the native resolution on the input to be read by the
video source connected to that input: 1024x768@60, 1280x800@60,
1280x1024@60, 1366x768@60, 1440x900@60, 1400x1050@60,
1600x900@60, 1600x1200@60, 1680x1050@60, 1920x1200@60RB,
720p50, 720p60, 1080p50, 1080p60 (default), 2K50 or 2K60

Note that for the HDMI and DP inputs, you can either select the color depth to
be 8bpp or 12bpp after selecting the native resolution

Note that when the EDID is set on the inputs, the changes are per
input and immediate.

Color Space – to select the color space for the PC and HDMI inputs: RGB,
YPbPr or Follow Input

Note that if the machine is set to the dual display mode, and both the Main
and PiP windows display the same input, set the same input color space value
for both windows

Window
Customization

Select the position and the size of the selected window: H Position, H Width,
V Position and V Height (see Section 5.2.1.2 and Section 5.2.1.1) M/P

The value range is dynamic, the FW prevents windows from exceeding boundaries
or over-sizing and the position and size of the windows are saved to the system.

The size and position of the customized window (main or PiP) remain valid even
when toggling the PIP button (front panel, remote control transmitter or protocol
command).

The customized setup is run over only by explicitly selecting a preset Display Mode
(see above in table).

Only if a new setup is created or a preset display mode is selected, this new setup
runs-over the current, customized, setup.

The PiP window maximum horizontal active image area is
1600 pixels

i

i

VP-461 - The OSD Menu

15

15

The display mode setup, shown in Figure 5, is part of the entire system control and
the selected Single Window also shows the current aspect ratio (Best Fit):

Figure 5: Select the Display Mode

5.2.1 Window Customization

Window customization lets you change the position and size of a selected window.
Make sure that you have control over the window that requires customization (Main
Window Control or PiP Window Control). If not, select it via the OSD item in the
Miscellaneous menu, see Section 5.8.

In the following examples, PiP Window Control is selected, but the same procedure
applies to Main Window Control.

16

VP-461 - The OSD Menu

5.2.1.1 Changing the Size of the Main and/or PiP Window

Use the H Width and V Height to change the size of the window using the + and –
buttons on the front panel or remote control transmitter (as illustrated in Figure 6).

Figure 6: changing the size of the Window

To change the size of the window, do the following:

1. Check that window control is set as required (for example, PiP Window
Control).

2. Select Window Customization (see Figure 10).

3. Select H width (an OSD slide bar appears) and press + to increase the
width, or – to decrease the width, see Figure 7.

The following example shows how to increase the width of the window

Figure 7: Increasing the Width

VP-461 - The OSD Menu

17

17

4. Select V Height (an OSD slide bar appears) and press + to increase the
height, or – to decrease the height, see Figure 8.

Figure 8: Increasing the Height

5.2.1.2 Moving the Position of the Main and/or PiP Window

Use the H Position and V Position items in the OSD to change the position of the
window using the + and – buttons on the front panel or remote control transmitter
(as illustrated in Figure 9).

Figure 9: Positioning the Window

18

VP-461 - The OSD Menu

To move the position of the window, do the following:

1. Check that window control is set as required (for example, PiP Window
Control).

2. Select Window Customization.
The following Window appears:

Figure 10: Window Customization

3. To move the picture to the right, select H Position.
An OSD slide bar appears:

Figure 11: H-Position Slide Bar

VP-461 - The OSD Menu

19

19

4. Press the +/- buttons to move the PiP window horizontally.
Use the V Position menu item in the same way to move the PiP vertically,
see Figure 12.

Figure 12: Moving the PiP Window

Note that the sequence in which you change the size and position
of the window is insignificant, as long as you make sure that the
resized image does not go beyond the window boundaries.

5.3 The Audio Menu

Figure 13: Audio Menu

i

20

VP-461 - The OSD Menu

Setting

Function

Volume

Set the input/output volume level [dB], see Figure 14 E

Input Volume [dB] – to adjust the audio input level
Output level [dB] – to adjust the audio output level

The output audio level can also be set via the + and – buttons on the front
panel buttons (when not in the OSD mode) and/or the IR remote control
transmitter buttons (see Section 7.4)

Balance

Set the balance [ratio] E

Treble

Set the treble [dB] E

Bass

Set the bass level [dB] E

Lip Sync

Set the Lip Sync delay value [msec] E

Analog Takeover

Set the Analog Takeover E:

On – for the PC IN analog input to take over all the embedded inputs
Off – to use the embedded inputs

As long as Analog Takeover is ON, the embedded audio is disabled

Figure 14: Set the Output Volume Level

VP-461 - The OSD Menu

21

21

5.4 The Process Menu

The Process menu functions are available for interlaced video
processing only and not for progressive scan.

Figure 15: Process Menu

Setting

Function

Deinterlacing

Set the deinterlacing method to:
Line Doubler – to improve the quality of the image to some extent M/P

Line doubler takes an interlaced scan, doubles the lines. The additional lines
provide a better quality image and a brighter output

Motion adaptive – to produce a brighter smoother and higher
resolution image M/P

Set the deinterlacing (per window) sync to:

Current Field – for a long delay M/P
Older Field – for a short delay M/P

When selecting Older Field, diagonal correction is disabled

Film Mode

Set to:

Off – for no pull-down M/P
Follow Input – to automatically identify the required pull-down (2:2 or

3:2 pull-down) M/P
24PsF – to force 24PsF pull-down M/P

Diagonal Correction

Set the level of diagonal interpolation from 0 to 3.
When set to the lower level, the diagonal image does not appear

smooth M/P

MD Sensitivity

Set (from Level 1 to Level 5) M/P
Select the motion detection sensitivity for filtering of interlaced images.

Set a high value for video where there is generally a large amount of
motion, or a low value for little motion

i

22

VP-461 - The OSD Menu

5.5 The Picture Menu

Figure 16: Picture Menu

Setting

Function

Brightness

Set the brightness level M/P

Contrast

Set the contrast level M/P

Color

Set the color level M/P

Color Correction

Set the blue, green and flesh color levels from 0 to 4 M/P

Black Level

Set the black level M/P

Gamma Mode

Set the gamma correction factor to Off, 0.4, 0.8, 1.2, 1.6, 2.0, 2.4 or 2.8 E
The higher the value, the darker the image

Dither

Set the error diffusion E:
Mode0: Disable error diffusion
Mode1: In-frame 8:6 conversion
Mode2: Intra-frame 8:6 conversion
Mode3: In-frame 10:8 conversion
Mode4: Intra-frame 10:8 conversion
Mode5: In-frame 12:10 conversion
Mode6: Intra-frame 12:10 conversion

Auto Adjust

Set the image color (back to its default values) and position per window
(centers it correctly on the screen) M/P

See Auto Positioning menu item in Section 5.2

Note that Auto Adjust is disabled when in the Freeze state

VP-461 - The OSD Menu

23

23

5.6 The Enhance Menu

Figure 17: Enhance Menu

Setting

Function

H Sharpness

Select the horizontal sharpness level M/P

V Sharpness

Select the vertical sharpness level M/P

Noise Reduction

Set the input noise reduction levels:

Mosquito NR – the higher the level, the stronger the filtering of the image

M/P

Combing NR – set to improve the quality of the subtitles M/P
Temporal NR – the higher the level, the stronger the filtering of the

image. Useful when the noise is visible to the eye M/P
Block NR – as the level is set higher, the block noise disappears and the

image appears softer M/P

Input noise reduction (except for Temporal NR) is enabled for
interlaced video processing only and is inactive in the
progressive scan.

i

24

VP-461 - The OSD Menu

5.7 The Scale Menu

Figure 18: Scale Menu

Setting

Function

Aspect
Ratio

Set (see Section 5.7.1) to:
Follow Input – If the input resolution ≤ output resolution, display with a blank

border.
input > output is denied and the aspect ratio automatically changes to Follow
Output M

Follow Output – If the input resolution ≤ output resolution, scale up the picture.
If the input resolution ≥ output resolution, scale down the picture M

Best Fit – the best possible compromise between the input and the output
aspect ratios M

Letterbox – to compress the top and bottom edges of the input signal, but fill
the width of the screen M

Applies to the Single Window display mode only

Overscan

Set the overscan (per window) to Off, 5% or 10% M/P

Output

Set the:
Output Resolution – to Native, 640x480@60, 640x480@75, 800x600@50,

800x600@60, 800x600@75, 1024x768@50, 1024x768@60, 1024x768@75,
1280x768@50, 1280x768@60, 1280x800@60, 1280x1024@50,
1280x1024@60, 1280x1024@75, 1360x768@60, 1366x768@50,
1366x768@60, 1400x1050@50, 1400x1050@60, 1600x900@60,
1600x1200@50, 1600x1200@60, 1680x1050@60, 1920x1200@60, 480i60,
480p60, 576i50, 576p50, 720p50, 720p59.94, 720p60, 1080p23.976, 1080p24,
1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2K50, 2K60

E

Note that any change in the output resolution will cancel the zoom
setting and window customization

Master Connection – to HDMI or PC to determine the machine’s behavior (see

Section 5.7.2) E

If the native resolution is not supported by the selected Master Connection, the
system searches for the best supported resolution. If the search fails (for example, if
the master connection is disconnected or EDID is unreadable), the resolution will
default to XGA.

i

VP-461 - The OSD Menu

25

25

Setting

Function

Deep Color – to Off (the default) for 8-bit color depth or to Follow Output for

applying deep color automatically on the HDMI output if supported by the
display.

Note that Follow Output sets the Deep Color of each output independently,
according to the screen connected to each output.

A change in the Deep Color setting will take effect after there is a
hot plug on the HDMI output or if the user selects a new output
resolution.

Color Space – to RGB, YPbPr422 or YPbPr444

Zoom
Position

Set H Position and V Position, the horizontal and vertical zoom positions
respectively, to zoom into certain areas of the image M/P

Lets you “move” the zoom area (same as scanning an area with a magnifying glass)

Zoom

Set the zoom M/P

Zooms into the center of the display
When zooming in the Freeze state, in case the input resolution is larger than the

output resolution, the image may be cut-off or change its position. This can be fixed
via Zoom Position (above).

Note that any change in the output resolution will cancel the zoom setting.

5.7.1 Selecting the Correct Aspect Ratio

You can configure the aspect ratio of any output image to fit your application. The
VP-461 offers four different aspect ratio settings: Follow Input, Follow Output, Best
Fit and Letterbox. Here is how each of these settings works.

FOLLOW INPUT – The aspect ratio and resolution of the

input video or graphics signal are both preserved (no
scaling). For example, a composite video image with a 4:3
aspect ratio will appear with the same aspect ratio on a
1080p (16:9) output image, surrounded by black bars

FOLLOW OUTPUT – The aspect ratio and resolution

of the input signal is re-sized to precisely match the
aspect ratio and resolution of the VP-461 output
signal. This may result in some distortion to the input
signal images

BEST FIT – This setting re-sizes the video or

graphics input signal to “best fit” the output resolution

while maintaining the aspect ratio of the input signal.
For example, a composite video signal (4:3 aspect

ratio) will “best fit” to the top and bottom of a

widescreen output image, resulting in black pillars on
either side.

LETTERBOX – This setting compresses the top and

bottom edges of the input signal, but fills the width of
the screen. For example, to preserve a widescreen
film image on a 4:3 display.

i

i

26

VP-461 - The OSD Menu

5.7.2 Master Connection Settings

The Master Connection (HDMI or PC) is usually set to the main output display so
that the optimal resolution for that display can be obtained.

By setting the output resolution to Native, the VP-461 is triggered to read the EDID
of the main display and change the output resolution value according to the native
resolution of the display.

If it is not supported by the selected Master Connection, the system searches for
the best supported resolution. If the search fails (for example, if the master
connection is disconnected or EDID is unreadable), the resolution will default to
XGA.

VP-461 - The OSD Menu

27

27

5.8 The Miscellaneous Menu

Figure 19: Misc Menu

Setting

Function

Information

Displays the input resolution and frequency, the output resolution and
firmware versions E

If the selected output is the native output resolution, it will be displayed under
"Native Output:"; in case of an explicit output resolution the title will be "Output:"

If the input video is encrypted, an HDCP icon appears next to the input
information

OSD

Set:
Window Control – to Main Window Control to set the OSD menu to control
the Main window (letting you select the input and other parameters for the

main window) or to PiP Window Control to control the PiP window (letting
you select the input and other parameters for the PiP window) E

While browsing the OSD menu in the dual window mode, the window
control can be toggled instantly with a long press of the PIP button on the
front panel and a short press of the PIP button on the IR remote controller.

Note that you can select the window control only when in the dual window mode

H Position – to set the horizontal position of the OSD E
V Position – to set the vertical position of the OSD E
Transparency – to set the transparency to On or Off E
Transparency Gain – to set the transparency level (once set to

transparent) E

Transparency Bias – to set the transparency level E
Blink – to On for the selected item in the OSD to blink, or Off E
Blink Period – to determine the blinking rate E
Timeout – to 30 seconds before OSD timeout, 60 seconds before OSD

timeout or OFF (Off means that that the OSD appears continuously) E

28

VP-461 - The OSD Menu

Setting

Function

Advanced

Set:
V Keystone – to set the vertical keystone level E

Useful If the projector is located at an angle above or below the screen. In the
OSD menu the value range shows -80 to 80. For interlaced inputs, this feature is
disabled

Auto Sync Off – to turn the auto sync On/Off.
When ON, 2 minutes after not detecting a valid video signal on the selected
input (or both inputs in the dual window mode), the unit will disable the
syncs and the audio on all the outputs, until a valid input is again detected
or any keypad button is pressed to activate the machine (once restored, the
buttons return to their normal function) E

When using the VP-461 for audio only, we recommend that you
turn this feature off

Luma Keying – to set the transparency level of the PIP window (see

Section 5.8.1) E

Pause

Set:
Freeze – to ON to freeze the window (freezing the main window will also

mute the audio output) M/P
Blank – to ON to display a blank window (blanking the main window will

also mute the audio output) M/P

Note that any change in the input source may cancel the freeze
and blank settings.

Mute – to ON to mute the audio output E

A mute icon appears on screen

Disable Outputs – to turn the sync and audio On/Off.
When ON, the unit will disable the syncs and mute the audio output until
any keypad button is pressed E

Once Disable Outputs is selected, a countdown appears, letting you cancel
the process and revert to the previous state

Test Pattern

Set the Test pattern to Slide Bar (non-HDCP), Color Bar (HDCP) or Off.
Each test pattern includes a sinusoid audio signal at 10dB @1kHz.
We recommend that you set the Display Mode to Single Window (see

Section 5.2) and set the Output Resolution to 1080p (see Section 5.7).

Note that the Color Bar test pattern changes the OSD menu coloring and the

following message appears on the display: “Ignore OSD Coloring”

Factory Reset

Reset to factory default values (see Section 9.1) E

Once Factory Reset is selected, a countdown appears, letting you cancel the
process and revert to the previous state

i

i

VP-461 - The OSD Menu

29

29

5.8.1 The Luma Keying Feature

The luma keying feature is an easy-to-use method of compositing two video

sources into a single image. By setting up a “key” image or clip on a black

background, it can be merged – or overlaid – onto the primary video. The key
image is transparent in the areas of its dark background, resulting in a picture which
looks as if the key image is cut out and pasted over the primary image. This useful
function of combining images from two different sources is suitable for many
applications, such as sub-titling, labeling, advertising or logo insertion.

To apply the luma keying feature, first set the PiP window to the desired size and
location and then turn luma keying On. The PiP image will show without its
background.

The lower the luminance in the PIP window, the more transparent it becomes, thus
letting the main window image show. The higher the luminance, the less
transparent it becomes, not letting the main window show through. To use this
feature it is recommended to set the PIP image as follows: use low-luminance
colors for the background (the key image portion) and high-luminance colors for the
logo.

For certain displays, the screen may flicker once for about a second
after activating or changing the luma keying setting.

Since luma keying is a volatile parameter, it may reset unexpectedly
following a change in the setup. So we recommend that you
activate it after completing the setup.

When the luma keying feature is On, any change in the setup
(either by the user or by resetting due to a setup change) may
cause the screen to flicker once. The luma keying will recover
automatically after resetting.

i

30

VP-461 - The Display Modes

6 The Display Modes

The VP-461 can function in the single window display mode (the factory default
setup) or the dual window display mode.

6.1 The Single Window Display Mode

The single window mode shows one window on the screen. The window size can
be customized, and its parameters modified via the OSD menu.

6.1.1 Activating the Single Window Mode

Set the VP-461 to the single window display mode in any of the following ways:

 Press and hold (for 3 seconds) the illuminated front panel PIP button until

the button no longer illuminates

 Access the OSD menu, select INPUT>Display Mode, and then choose

Single Window

 Press the PIP window on the remote control transmitter (see Section 7.4)

6.2 The Dual Window Display Mode

The VP-461 dual window mode feature lets you show two images on one screen:
the main window and the PiP window. For example, you can show a live video
window on top of a graphic background, or show two images on screen of the same
input channel. The PiP window appears even if no input signals are connected. In
this case the PiP window appears in dark gray and the main window appears in light
gray.

VP-461 - The Display Modes

31

31

The dual window mode appears in the following preset PiP configurations:

Picture-in-Picture, with a smaller PiP
window superimposed over a full main
window image

Picture + Picture, where both images
appear side-by-side and the aspect
ratios of both images are maintained

Split, where both images are placed
side-by-side with the same height

The window customization feature (see Section 5.2) lets you customize the dual
window mode layout (main window and PiP window) to any size.

You can superimpose any input type over any or the same input
type except for HDMI over PC or PC over HDMI

If the HDMI signal is HDCP protected, it can appear on the HDMI
output that is connected to a supported HDCP compliant display.
However, it cannot appear on a display that is not HDCP compliant
and will show a black screen instead.

i

32

VP-461 - The Display Modes

6.2.1 Activating the Dual window Mode

You can activate the dual window mode (indicated by an illuminated PIP front panel
button) in any of the following ways:

 Press and hold (for 3 seconds) the front panel PIP button

The latest PiP configuration appears

 Press the PIP button on the IR remote control transmitter (see Section 7.4)

The latest PiP configuration appears

 Access the OSD menu, select INPUT>Display Mode, and then choose one

of the preset PiP configurations (Picture in Picture, Picture + Picture or Split)

6.2.2 Setting the OSD Menu to PiP Window Control

When the OSD menu is set to PiP Window Control, you can control the PiP window
and change its parameters (for example, select the PiP input, size, position and so
on). Section 6.2.3.3 shows how to select the PiP source via the OSD menu.

To set the OSD menu to PiP control:

1. Press the MENU button to access the OSD menu.

2. Scroll down to the Misc menu and press ENTER.

3. Select the OSD submenu and press ENTER.

4. Select Window Control and choose PIP WINDOW.

The OSD menu controls the PiP source

5. Press the MENU button to exit and accept changes.
The OSD menu title will show PiP Window Control.

6. You can press the MENU button several times to exit the menu and save
changes, or modify PiP window parameters via the other menu items.

To return to Main Window control, repeat the procedure above but select Main
Window in the Window Control submenu.

VP-461 - The Display Modes

33

33

6.2.3 Selecting the PIP Source

To select a PiP source you have to set the VP-461 to any of the PiP display mode
configurations and then select the desired input.

6.2.3.1 Selecting the PiP Source via the Front Panel Buttons

Press and hold the PIP front panel button while pressing the input button of the
required PiP source.
For example, to select DIsplayPort as the PiP source over PC as the main source,
press the PIP front panel button while pressing the DIsplayPort front panel button
(see Figure 20).

In this example, the PC button is illuminated and the DIsplayPort button blinks

Figure 20: DP superimposed over PC

6.2.3.2 Selecting the PiP Source via the IR Remote Control Transmitter

Press the PIP button on the IR transmitter (the PIP front panel button is
illuminated). Press the desired PiP source button on the IR transmitter (see Section

7.4).

34

VP-461 - The Display Modes

6.2.3.3 Selecting the PiP Source via the OSD Menu

You can select an input source only after you set the display mode
to one of the PiP configurations (see Section 6.2.1).

To set the PiP source via the OSD menu, do the following:

1. Press the MENU button to access the OSD menu.

2. Scroll through the menu, and for window specific submenus check the menu
title:

 If PiP Window Control appears, continue to step 7
 If not, continue to the next step

3. Press the button to move to the Misc menu and press ENTER.

4. Select the OSD submenu and press ENTER.

5. Select Window Control and choose PiP Window Control.

The OSD menu controls the PIP source

6. Press the MENU button a number of times to return to the main OSD menu
(and accept changes).

7. Scroll to the Input menu and press ENTER.

8. Select Input Source and press ENTER.

9. Choose the input for the PiP window.

10. Press the MENU a few times until you exit the OSD menu (changes are
saved upon exit).

i

VP-461 - Controlling the VP-461

35

35

7 Controlling the VP-461

The VP-461 can be controlled via:

 The front panel buttons (see Section 7.1)
 The OSD menu (see Section 7.2)
 The infrared remote control transmitter (see Section 7.4)

7.1 Controlling via the Front Panel Buttons

The VP-461 includes the following front panel buttons:

 Input selector buttons for selecting the required input: PC, HDMI and

DisplayPort (see Section 7.1.1)

 PIP and FREEZE buttons (note, these buttons illuminate when selected)
 MENU, ENTER (right arrow), left arrow and up, down, arrow buttons
 Output Volume up (+) and down (-) buttons (when not in the OSD mode)
 RESET TO 720p/XGA and PANEL LOCK buttons

7.1.1 Using the INPUT Front Panel buttons

When selected, an INPUT front panel button behaves as follows:

Selecting the:

Causes the button to:

Main input button

Illuminate continuously

PiP input button

Blink (the light On period is shorter than the light Off period)

Same Main input button and
PiP button

Blink (the light On period is longer than the light Off period)

If you want to adjust the image of a selected input in a window, press
that input button again (up to 3 times) for fast tuning. Pressing that
input button for the fourth time initiates full tuning of the window.

7.2 Controlling via the OSD Menu

You can change PiP Window parameters, main window parameters and entire
system parameters via the OSD menu, as described in Section 5.

i

36

VP-461 - Controlling the VP-461

7.3 Connecting to the VP-461 via RS-232

You can connect to the VP-461 via an RS-232 connection using, for example, a PC.
Note that a null-modem adapter/connection is not required.

To connect to the VP-461 via RS-232, connect the RS-232 9-pin D-sub rear panel
port on the VP-461 unit via a 9-wire straight cable (only pin 2 to pin 2, pin 3 to pin 3,
and pin 5 to pin 5 need to be connected) to the RS-232 9-pin D-sub port on your PC.

VP-461 - Controlling the VP-461

37

37

7.4 Controlling via the Infrared Remote Control Transmitter

This IR remote control transmitter is compatible with various Kramer
machines, therefore not all its buttons are applicable to the VP-461.
The table below defines only the buttons that are relevant to the
VP-461; the functionality of the other buttons is marked N/A.

Figure 21: Infrared Remote
Control Transmitter

Keys

Function

POWER

Toggle the power save mode ON or OFF

PIP

Enter the dual window mode (the latest
setting), see Section 6.2

Note that while browsing the OSD menu
in the dual window mode, a short press of
the PIP button will instantly toggle the
window control (between Main and PiP)

FREEZE

Freeze/unfreeze the output video image
(for both windows)

MAIN Source Inputs

HDMI1

Select the HDMI input

HDMI2

N/A DP

Select the DisplayPort input

PC1

Select the UXGA input

PC2

N/A SDI

N/A CV1

N/A

CV2

N/A

YPbPr

N/A

Press ENTER to access menu levels
(when in the OSD)

Use the up and down arrows to adjust
numerical values and adjust the output
volume level (when not within the OSD)

MENU

Enter/Exit the OSD menu and return to
the previous menu level

MUTE

Toggle between muting (blocking out the
sound) and enabling the audio output

PIP Source Inputs

HDMI1

Select the HDMI input

HDMI2

N/A DP

Select the DisplayPort input

PC1

Select the UXGA input

PC2

N/A SDI

N/A CV1

N/A

CV2

N/A

YPbPr

N/A LOCK

Lock the front panel buttons

RESET to
XGA/720P

Press to reset to the default resolution
(toggles between RESET to XGA and
720p)

i

38

VP-461 - Flash Memory Upgrade

8 Flash Memory Upgrade

You can upgrade the VP-461 via the Kramer K-UPLOAD software. Two types of
upgrade files are available for upgrade: video core and audio/graphics.

The latest firmware version, the Flash Memory Upgrade user guide, as
well as the latest version of K-UPLOAD and installation instructions
can be downloaded from the Kramer Web site at

http://www.kramerelectronics.com/support/product_downloads.asp

i

VP-461 - Technical Specifications

39

39

9 Technical Specifications

INPUTS:

1 VGA on a 15-pin HD connector
1 HDMI (deep color) connector
1 DisplayPort connector
1 PC IN unbalanced stereo audio (1Vrms nom/100k) on a 3.5mm mini jack

connector

OUTPUTS:

1 PC on a 15-pin HD connector
1 HDMI (deep color) connector
1 OUT unbalanced stereo audio on a 3.5mm mini jack connector

COMPLIANCE
WITH HDMI
STANDARD:

Supports HDMI (deep color) and HDCP
Supports: DisplayPort 1.1a

OUTPUT
RESOLUTIONS:

640x480@60, 640x480@75, 800x600@50, 800x600@60, 800x600@75,
1024x768@50, 1024x768@60, 1024x768@75, 1280x768@50, 1280x768@60,
1280x800@60, 1280x1024@50, 1280x1024@60, 1280x1024@75, 1360x768p60,
1366x768@50, 1366x768@60, 1400x1050@50, 1400x1050@60, 1600x900@60,
1600x1200@50, 1600x1200@60, 1680x1050@60, 1920x1200@60, 480i60,
480p60, 576i50, 576p50, 720p50, 720p59.94, 720p60, 1080p23.976, 1080p24,
1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2K50, 2K60

CONTROLS:

Front panel buttons, OSD, IR remote control, RS-232 on a 9-pin D-sub connector

OPERATING
TEMPERATURE:

0° to +40°C (32° to 104°F)

STORAGE
TEMPERATURE:

-40° to +70°C (-49° to 158°F)

HUMIDITY:

10% to 90%, RHL non-condensing

POWER
SOURCE:

5V DC 3.6A

DIMENSIONS:

21.5cm x 16.3cm x 4.4cm (8.5" x 6.4" x 1.7") W, D, H

WEIGHT:

1kg (2.2lbs) approx.

ACCESSORIES:

Power adapter (5.2V / 4A), IR remote control, control application program via
RS-232 (PC)

OPTIONS:

RK-1 rack adapter

Specifications are subject to change without notice
For the most updated resolution list, go to our Web site at http://www.kramerelectronics.com

40

VP-461 - Technical Specifications

9.1 Default Communication Parameters

RS-232

Protocol

3000 (Default)

Baud Rate:

115,200

Data Bits:

8

Stop Bits:

1

Parity:

None

Command Format:

ASCII

Example (Set display mode to Picture in Picture):

#Y 0,110,1<CR>

Full Factory Reset

Front panel buttons

Turn power off. Turn power on again while holding the RESET TO
720p/XGA front panel button. The LEDs light. Full factory reset is
complete once the LEDs turn off one after the other and react normally

OSD

Factory Reset through the Misc menu item

Protocol 3000

Use “Factory” command or #Y 0,760,1<CR>

9.2 Input Resolutions

This section defines the input resolutions for each input

9.2.1 HDMI Input Resolutions

HDMI Input Resolutions

NTSC

1080_I60

640x480_72

1024x768_70

1360x768_60

PAL

1080_P23_976

640x480_75

1024x768_75

1366x768_60

525_P60

1080_P24

640x480_85

1024x768_85

1440x900_60

625_P50

1080_P25

800x600_56

1152x864_75

1400x1050_60

720_P24

1080_P30

800x600_60

1280x800_60

1400x1050_75

720_P25

1080_P50

800x600_72

1280x960_85

1600x900_60

720_P30

1080_P60

800x600_75

1280x768_60

1600x1200_60

720_P50

2K50

800x600_85

1280x1024_60

1680x1050_60

720_P60

2K60

848x480_60

1280x1024_75

1920x1200_60RB

1080_I50

640X480_60

1024x768_60

1280x1024_85

9.2.2 PC Input Resolutions

PC Input Resolutions

640X480_60

800x600_75

625_P50

1280x1024_60

1400x1050_75

640x480_72

800x600_85

525_P60

1280x1024_75

1600x900 60

640x480_75

1024x768_60

720_P50

1280x1024_85

1600x1200_60

640x480_85

1024x768_70

720_P60

1360x768_60

1680x1050_60

800x600_56

1024x768_75

1280x800_60

1366x768_60

1920x1200_60RB

800x600_60

1024x768_85

1280x960_85

1440x900_60

1080_P50

800x600_72

1152x864_75

1280x768_60

1400x1050_60

1080_P60

VP-461 - Technical Specifications

41

41

9.2.3 DisplayPort Input Resolutions

Display Port Input Resolution

640X480_60

848x480_60

1280x768_60

1400x1050_75

640x480_75

1024x768_60

1280x1024_60

1600x900_60

640x480_85

1024x768_70

1280x1024_75

1680x1050_60

800x600_56

1024x768_75

1280x1024_85

1920x1200_60RB

800x600_60

1024x768_85

1360x768_60

720_P60

800x600_72

1152x864_75

1366x768_60

1080_P60

800x600_75

1280x800_60

1440x900_60

2K50

800x600_85

1280x960_85

1400x1050_60

2K60

9.3 Output Resolutions

This section defines the output resolutions

9.3.1 HDMI Output Resolutions

Technical Specifications of the HDMI Output Signal

640x480@60

1280x1024@50

1680x1050@60

1080p25

640x480@75

1280x1024@60

1920x1200@60

1080p29.97

800x600@50

1280x1024@75

480i60

1080p30

800x600@60

1360x768@60

480p60

1080p50

800x600@75

1366x768@50

576i50

1080p59.94

1024x768@50

1366x768@60

576p50

1080p60

1024x768@60

1400x1050@50

720p50

2K50

1024x768@75

1400x1050@60

720p59.94

2K60

1280x768@50

1600x900@60

720p60

1280x768@60

1600x1200@50

1080p23.976

1280x800@60

1600x1200@60

1080p24

9.3.1 PC Output Resolutions

Technical Specifications of the PC Output Signal

640x480@60

1280x1024@75

480p60

1080p29.97

640x480@75

1360x768@60

576i50

1080p30

800x600@60

1366x768@60

576p50

1080p50

800x600@75

1400x1050@60

720p50

1080p59.94

1024x768@60

1600x900@60

720p59.94

1080p60

1024x768@75

1600x1200@60

720p60

2K50

1280x768@60

1680x1050@60

1080p23.976

2K60

1280x800@60

1920x1200@60

1080p24

1280x1024@60

480i60

1080p25

42

VP-461 - The VP-461 RS-232 Communication Protocol

10 The VP-461 RS-232 Communication Protocol

The Kramer Protocol lets you control the VP-461 from any standard terminal
software (for example, the Windows® HyperTerminal Application).

10.1 Using the Communication Protocol

There are three different methods to control the VP-461 via RS-232:

 Protocol commands (via protocol 3000) mimicking the OSD, see Section

10.2

 The button functions mimicking the remote controller buttons (as well as the

front panel buttons), see Section 10.3

 Protocol 3000 common commands, see Section 10.4

All three tables together include all the protocol commands, but they
are not identical and do not always include the same information.
Some of the data may appear in one or two of the tables but not in the
third table and vice versa.

The protocol 3000 communications protocol uses a data rate of 115200 baud, with
no parity, 8 data bits, and 1 stop bit.

10.2 Communication Protocol: Mimicking OSD

The audio/video protocol commands defines all the function numbers, their valid
parameters can be used with protocol 3000.

10.2.1 Using the Communication Protocol with Protocol 3000 (the “Y”
Command)

Set Command:

Type in: “Y Control_Type=0,Function,Param”
Reply: “~id=01Y Control_Type=0,Function,Param OK”

Set command example, set window control (721) to PiP:

Send: “#y 0,721,1”
Reply: “~01@Y 0,721,1 OK”

i

VP-461 - The VP-461 RS-232 Communication Protocol

43

43

Get Command:

Type in: “Y Control_Type=1,Function”
Result: “~id=01Y Control_Type=1,Function,Param”

Get command example: get window control setup (721):

Send: “#y 1,721”
Result: “~01@y 1,721,1”

You can add a last parameter, to be located fourth in SET or third
in GET, to define a specific window.

For example:
Set H Sharpness value to 10 on the PiP window (1): “#y 0,510,10,1”

Get H sharpness of the Main window (0): “#y 1,510,0”

The “Y” command also supports the value increment/decrement of any command
using the ‘+’ or ‘-‘ signs as the third parameter of the “Y” command.

For example, move the PiP window one step to the left

Send: “#Y 0,141,-,1<CR>”
Reply: “~01@Y 0,141,-,1 OK”

For example, in order to increase zoom on the main windows type “#Y
0,650,+,0<CR>”.
Send: “#Y 0,650,+,0<CR>”
Reply: “~01@Y 0,650,+,0 OK”

10.2.2 Protocol Table: Mimicking OSD

You can associate a function number to its description and valid parameters
intuitively by navigating the OSD menu according to the following logic: A function
number is directly related to its location in the OSD menu.
For example, the third menu on the OSD is Process (3 in the hundreds). The
second menu item in Process is Film Mode (2 in the tens), therefore the function
number for it will be 320 (3rd item on the Main Window Control and the 2nd item in
the Process submenu (see also Section 5.1). When navigating in the OSD MENU
you will be able to see the Film Mode valid parameters.
The following table defines the protocol commands:

i

44

VP-461 - The VP-461 RS-232 Communication Protocol

1st
Level

2nd Level

3rd Level

4th Level

Range

Func.

Note

Input

Display Mode

Single Window

0

110

Single window also
displays the aspect
ratio in the OSD
MENU

Picture in Picture

1 Picture + Picture

2 Split 3

Customized

4

Input Source

HDMI

13

120

In case the window
is inactive -1 will be
returned

PC 11

DP 16

Input Settings

H Image Shift

20:790

131

Volatile Parameter

V Image Shift

4:240

132

Auto Positioning

Off 0 133

Not applicable to
HD/SD video types

Normal Scan

1

Wide Scan

2

HDCP Mode

On 1 134 Off 0

EDID Select

1024x768@60

0

135

Applicable to input
types with EDID
only

1280x800@60

1 1280x1024@60

2 1366x768@60

3

1440x900@60

4

1400x1050@60

5

1600x900@60

6

1600x1200@60

7

1680x1050@60

8

1920x1200@60RB

9

720p50

10

720p60

11

1080p50

12

1080p60

13

2K50

14

2K60

15

Note; In case 8bpp is selected, set the color depth bit accordingly.
The color depth bit is the MSB of PM.EDID_SEL (which represents the resolution).
For example, when selecting 1600x900@60 at:
8bpp, PM.EDID_SEL = 86h=134 dec
12bpp, PM.EDID_SEL = 6h=6 dec

Color Space

RGB

0

136

Applicable to PC
and HDMI inputs
only

YPbPr

1 Follow Input

2

Window
Customization

H Position

0:2048

141

The value range is
dynamic. The FW
prevents window
overlapping and
exceeding of
boundaries

The PiP window
horizontal value
range is 0-1600

H Width

0:2048

142

V Position

0:2048

143

V Height

0:2048

144
Audio

Volume

Input Volume

-20:4 [dB]

211

Unavailable in
audio pass-through

Output Volume

-80:20 [dB]

212

VP-461 - The VP-461 RS-232 Communication Protocol

45

45

1st
Level

2nd Level

3rd Level

4th Level

Range

Func.

Note

Balance

-10:10 [Ratio]

220

Treble

-18:18 [dB]

230

Bass

-18:18 [dB]

240

Lip Sync

0:90 [ms]

250

Analog Takeover

0:1

260

Process

Deinterlacing

Method
Line Doubler

0

311

Volatile parameter
unavailable in

progressive scan

Motion Adaptive

1

Sync
Current Field

0

312

Unavailable in
progressive scan.

Older Field

1

Film Mode

Off 0

320

Unavailable in
progressive scan

Follow Input

1 24PsF Mode

2

Diagonal
Correction

0:3

330

Unavailable in
progressive scan.

Unavailable when
deinterlacing sync
is older field

MD Sensitivity

LEVEL1

0

340

Unavailable in
progressive scan

LEVEL2

1 LEVEL3

2 LEVEL4

3

LEVEL5

4


Brightness

-400:400

410

In the OSD menu
the range appears
as -80:80

Contrast

0.1:1.6

420

Color

0.1:1.6

430

Color
Correction

Blue 0:4

441 Green

0:4

442

Flesh

0:4

443

Black Level

-80:80

450

Gamma Mode

Gamma Off

0

460

Gamma 0.4

1 Gamma 0.8

2 Gamma 1.2

3 Gamma 1.6

4 Gamma 2.0

5 Gamma 2.4

6

Gamma 2.8

7

Dither

Mode0: Disable error diffusion

0

470

Mode1: In-frame 8:6 conversion

1

Mode2: Intra-frame 8:6 conversion

2

Mode3: In-frame 10:8 conversion

3

Mode4: Intra-frame 10:8 conversion

4

Mode5: In-frame 12:10 conversion

5

Mode6: Intra-frame 12:10 conversion

6

Auto Adjust

0:1

480

Self-clearing

Enhance

H Sharpness

-10:10

510

46

VP-461 - The VP-461 RS-232 Communication Protocol

1st
Level

2nd Level

3rd Level

4th Level

Range

Func.

Note

V Sharpness

-10:10

520

Noise
Reduction

Mosquito NR

0:3

531

Unavailable in
progressive scan

Combing NR

0:3

532

Temporal NR

0:3

533

Block NR

0:3

534

Unavailable in
progressive scan

Scale

Aspect Ratio

Follow input

0

610

1. Single window
only

2. Customization
lost

3. In “Follow Input”,

output must be
bigger than input

Follow Output

1 Best Fit

2

Letterbox

3

Overscan

Off 0

620

5% 1

10% 2

Output

Video Resolution

Native

0

631

1. GET command in native
mode returns the determined
resolution of the master
connection

2. Special OSD MENU
screen, follow OSD
instructions

640x480@60

1

640x480@75

2

800x600@50

3

800x600@60

4

800x600@75

5

1024x768@50

6

1024x768@60

7

1024x768@75

8

1280x768@50

9

1280x768@60

10

1280x800@60

11

1280x1024@50

12

1280x1024@60

13

1280x1024@75

14

1360x768@60

15

1366x768@50

16

1366x768@60

17

1400x1050@50

18

1400x1050@60

19

1600x900@60

20

1600x1200@50

21

1600x1200@60

22

1680x1050@60

23

1920x1200@60

24

480i60

25

480p60

26

576i50

27

576p50

28

720p50

29

720p59.94

30

720p60

31

VP-461 - The VP-461 RS-232 Communication Protocol

47

47

1st
Level

2nd Level

3rd Level

4th Level

Range

Func.

Note

1080p23.976

32

1080p24

33

1080p25

34

1080p29.97

35

1080p30

36

1080p50

37

1080p59.94

38

1080p60

39 2K50

40

2K60

41

Master Connection
HDMI

0

632
PC

1

Deep Color

Off 0 633 Follow Output

1

Color Space

RGB

0

634

YPbPr422

1

Not applicable to
PC output. Screen
may flicker

YPbPr444

2

Zoom Position

H Position

0:2047

641

Value range is
dynamic, FW
prevents zoom from
exceeding the
boundaries

V Position

0:2047

642

Zoom

1.0:16.0

650

Misc

Information

NTSC

0

710

READ ONLY:
In the OSD MENU -

Input, Output video
formats & FW
version.

In the protocol –
Get command
returns the Input
video format only

PALM

1 PAL60

2 N443

3 NTSC_4

4

SECAM

5

PAL 6

PALNC

7 NTSC_8

8 N\A 9

N\A 10

N\A 11

N\A 12

N\A 13

525p60

14

625p50

15

720p60

16

720p50

17

720p24

18

720p25

19

720p30

20

1080i60

21

1080i50

22

48

VP-461 - The VP-461 RS-232 Communication Protocol

1st
Level

2nd Level

3rd Level

4th Level

Range

Func.

Note

N\A 23

1080i100

24

1080p60

25

1080p50

26

1080p30

27

1080p23_976

28

1080p24

29

1080p25

30

N\A 31

N\A 32

640X480@60

33

N\A 34

N\A 35

N\A 36

640x480@72

37

640x480@75

38

848x480@60

39

640x480@85

40

N\A 41

800x600@56

42

800x600@60

43

N\A 44

800x600@72

45

800x600@75

46

800x600@85

47

1024x768@60

48

1360x768@60

49

1280x768@60

50

1024x768@70

51

1024x768@75

52

1280x800@60

53

1024x768@85

54

1400x1050@60

55

1400x1050@75

56

1440x900@60

57

1152x864@75

58

1600x900@60

59

1280x1024@60

60

1280x1024@75

61

1280x960@85

62

1920x1200@60RB

63

1280x1024@85

64

1600x1200@60

65

1680x1050@60

66

NONE

0XF5 or 0XFF

VP-461 - The VP-461 RS-232 Communication Protocol

49

49

1st
Level

2nd Level

3rd Level

4th Level

Range

Func.

Note

OSD

Window Control
Main Win

0

721

When in the single
window mode, only
Main Win is valid

PiP Win

1

H Position

0:2047

722

The value range is
dynamic, FW
prevents exceeding
of boundaries

V Position

0:2047

723

Transparency
ON

1

724
OFF

0

Transparency
Gain

0.1:1.6

725
Transparency Bias

-400:400

726

Blink
ON

1

727
OFF

0

Blink Period

0.1:1.6

728

Timeout

Off

0

729

30 Sec

1

60 Sec

2

Advanced

Vertical Keystone

-400:400

731

In the OSD menu
the value range
shows -80:80.

Unavailable for
interlaced output

Auto Sync Off

On

1

732

Two idle minutes
are required to
trigger screen
shutdown

Off

0

Luma Keying

On

1

733

Volatile parameter.
Screen may flicker.
Keying the PiP

window

Off

0

Pause

Freeze
On

1

741
Off

0

Blank
On

1

742
Off

0

Mute
On

1

743

In the Pip Mode,
applies to main
window only

Off

0

Disable Outputs

On 1 744

Follow OSD
instructions

Off 0

Test Pattern

Off 0

750

Slide Bar

1

Non-HDCP content
sinusoid sound

Color Bar

2

HDCP content
sinusoid sound

Factory Reset

0:1

760

Follow OSD
instructions.

Self-clearing.

50

VP-461 - The VP-461 RS-232 Communication Protocol

10.3 Protocol Table: Mimicking Remote and Front Panel
Buttons

The keystroke codes operate in the following way:
SET command third param =0,
Syntax example: "#Y 0,10,0<CR>" => MENU keystroke
GET command for keystrokes will return ERR

The following table defines the keystroke function codes:

Button

Keystroke
Code

Button

Keystroke
Code

Button

Keystroke
Code

MENU

10

FREEZE

17

CH2_DP

35

ENTER

11

LOCK

18

MUTE

37

MINUS

12

CH1_VGA1

21

POWER

38

PLUS

13

CH1_HDMI1

23

LEFT

39

RESET

14

CH1_DP

26

RIGHT

40

PIP

15

CH2_VGA1

30

DUMMY

99

BLANK

16

CH2_HDMI1

32

10.4 The Protocol 3000 Common Operation Commands

Operation commands

Command

Syntax

Response

Lock front panel

LOCK-FP LOCK-MODE
Short form: LCK LOCK-MODE

LOCK-FP LOCK-MODE

RESULT

See SV commands for SV version of this command

Get front panel
locking state

LOCK-FP?

LOCK-FP LOCK-MODE

See SV commands for SV version of this command
Parameters Description:

LOCK-MODE = Front panel locking state:

"0" or "off" to unlock front panel buttons.
"1" or "on" to lock front panel buttons.

Restart device

RESET

RESET OK

Firmware update

execute*

UPGRADE

UPGRADE OK

Reset configuration
to factory default

FACTORY

FACTORY RESULT
Set SN #

FCT-SN SN#

FCT-SN SN# RESULT

VP-461 - The VP-461 RS-232 Communication Protocol

51

51

Audio/video common commands

Command

Syntax

Response

Output volume

VOLUME VOLUME-PARAMETER

VOLUME VOLUME-

PARAMETER RESULT

Get output volume

VOLUME?

VOLUME VOLUME-VALUE

Parameters Description:

VOLUME-PARAMETER = output volume parameters:

[VALUE] either positive or negative digits (minus sign precedes negative values).

“+” increase current value,
“-“ decrease current value

Win-customization

WIN-CUST WINDOW, HPOS,

HW , VPOS, VH

WIN- CUST WINDOW, HPOS,
HW , VPOS, VH RESULT

Parameters Description: fast window customization
[WINDOW] “0” for main window; “1” for PiP window
[HPOS] horizontal position value
[HW] horizontal width value
[VPOS] vertical position value
[VH] vertical height value

Set dual window state

PIP PiP-MODE

PIP PiP-MODE RESULT

Get dual window state

PIP?

PIP PiP-MODE

Parameters Description:

PiP-MODE = Dual window state:

"0" or "off" for single window.
"1" or "on" to for dual window.

52

VP-461 - The VP-461 RS-232 Communication Protocol

Identification commands

Command

Syntax

Response

Protocol Handshaking

#CR

~OK CRLF

Read device model

MODEL?

MODEL MACHINE_MODEL

Read device serial
number

SN?

SN SERIAL_NUMBER

Read device firmware
version

VERSION?

VERSION MAJOR .MINOR
.BUILD .REVISION

Read device build date

BUILD-DATE?

BUILD-DATE YYYY/MM/DD

HH:MM:SS

Read device protocol
version

PROT-VER?

PROT-VER 3000:MAJOR
.MINOR

Set machine name

NAME MACHINE_NAME

NAME MACHINE_NAME RESULT

Read machine name

NAME?

NAME MACHINE_NAME

Reset machine name to
factory default*

NAME-RST

NAME-RST RESULT

Load firmware

Step 1: LDFW SIZE
Response 1: READY or LDFWS SIZE ERR###

Step 2: If ready was received, send FIRMWARE_DATA P
Response 2: LDFWS SIZE RESULT

Load new
audio\graphics
memory file.

Step 1: LDMF SIZE
Response 1: READY or LDMFS SIZE ERR###

Step 2: If ready was received, send FIRMWARE_DATA P
Response 2: LDMFS SIZE RESULT

1

For the latest information on our products and a list of Kramer distributors,
visit our Web site where updates to this user manual may be found.

We welcome your questions, comments, and feedback.

Web site: www.kramerelectronics.com
E-mail: [e-mail]

P/N:

2900-300195

Rev:

1

!

SAFE TY WARNI NG
Disconnect the unit from the power
supply before opening and servicing
