Kramer VP-438 User Manual

Page 1
Kramer Electronics, Ltd.
USER MANUAL
Model:
VP-438
Presentation Switcher / Scaler
Page 2
Contents
i
Contents
1 Introduction 1 2 Getting Started 1
2.1 Quick Start 1
3 Overview 3
3.1 Recommendations for Best Performance 4
3.2 Recycling Kramer Products 4
4 Your VP-438 Presentation Switcher / Scaler 4 5 Installing the VP-438 in a Rack 8 6 Connecting the VP-438 Presentation Switcher / Scaler 9 7 Controlling the VP-438 11
7.1 Controlling via the Front Panel Buttons 11
7.2 Using the OSD Menu 11
7.2.1 The MAIN MENU 12
7.2.2 The FINETUNE Menu 13
7.2.3 The AUDIO Menu 14
7.2.4 The OSD Menu 14
7.3 Connecting to VP-438 via RS-232 14
7.4 Controlling via the Infrared Remote Control Transmitter 15
8 Technical Specifications 16 9 RS-232 Communication Protocol 18
Figures
Figure 1: VP-438 Presentation Switcher / Scaler 5 Figure 2: Connecting the VP-438 Presentation Switcher / Scaler
10
Figure 3: Infrared Remote Control Transmitter
15
Tables
Table 1: VP-438 Presentation Switcher / Scaler Front Panel Features 6 Table 2: VP-438 Presentation Switcher / Scaler Rear Panel Features
7
Table 3: The MAIN MENU Features
12
Table 4: The FINETUNE Menu Features 13 Table 5: The AUDIO Menu Features
14
Table 6: The OSD Menu Features
14
Table 7: Infrared Remote Control Transmitter Functions
15
Table 8: Technical Specifications of the VP-438 Presentation Switcher /Scaler 16 Table 9: Input Resolutions
17
Table 10: Character Symbols Definitions
18
Table 11: RS-232 Protocol
19
Page 3
Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better! Our 1,000-plus different models now appear in 11 groups
1
Congratulations on purchasing your Kramer VP-438 Presentation Switcher / Scaler. This product, which incorporates HDMI™ technology, is ideal for:
that are clearly defined by
function.
Projection systems in conference rooms, boardrooms, hotels and churches
Home theater up-scaling
The package includes the following items:
VP-438
Presentation / Switcher Scaler
Power cord and rack “ears”
Infrared remote control transmitter
This user manual
2
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables
3
2.1 Quick Start
This Quick start chart summarizes the basic setup and operation steps.
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control Systems; GROUP 4:
Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories
and Rack Adapters and GROUP 11: Sierra Video Products
2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
Page 4
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2
Page 5
Overview
3
3 Overview
The Kramer VP-438 is a high quality presentation switcher and scaler. It accepts one of 10 inputs: four HDMI signals, two computer graphics signals on 15-pin HD connectors, two composite video signals on RCA connectors and two component video
1
The VP-438 Presentation Switcher / Scaler:
signals on RCA connectors. It scales the video, embeds the audio, and outputs the signal to the HDMI output, as well as to a computer graphics output and an RGBHV video output with digital audio and analog stereo audio outputs.
Is HDTV compatible and the resolution can be up- or down-scaled
2
Is HDCP compliant, the HDCP (High Definition Content Protection)
license agreement allows copy−protected data on the HDMI input to pass only to the HDMI output
Output signal is available in three formats: 1 HDMI and 2 RGBHV (on 5
BNC connectors, and one 15−pin HD connector)
Has analog audio inputs which include volume control, and digital
(S/PDIF) and analog stereo audio outputs
Automatically detects and selects the audio source for the HDMI input.
Default selection is HDMI – if this is not present, then the machine uses the audio from the analog input
Comes with an On-Screen Display (OSD) for easy setup and adjustment,
accessible via the IR remote control and via the front-panel buttons
Has a non-volatile memory that retains the last settings used
Supports firmware upgrade
3
Control your VP-438:
via RS-232
Directly, via the front panel push buttons
By RS-232 serial commands transmitted by a touch screen system, PC, or
other serial controller
Remotely, from the infrared remote control transmitter
The VP-438
is housed in a 19” 1U rack mountable enclosure, with rack “ears”
included, and is fed from a 100-240V AC universal switching power supply.
1 Also known as Y, Pb, Pr, Y, Cb, Cr and YUV; compatible with both SD and HD component
2 you can find the available resolutions in
Table 8
3 To check if firmware upgrades are available, go to our Web site at
http://www.kramerelectronics.com
Page 6
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VP-438 Presentation Switcher / Scaler
4
3.1 Recommendations for Best Performance
To achieve the best performance:
Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise­levels (often associated with low quality cables)
Do not secure the cables in tight bundles or roll the slack into tight coils
Avoid interference from neighboring electrical appliances and position
your Kramer VP-438 away from moisture, excessive sunlight and dust
3.2 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected and recycled. To comply with the WEEE Directive, Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at
http://www.kramerelectronics.com/support/recycling/.
4 Your VP-438 Presentation Switcher / Scaler
Figure 1, Table 1 and Table 2 define the VP-438 Presentation Switcher /
Scaler:
Page 7
Your VP-438 Presentation Switcher / Scaler
5

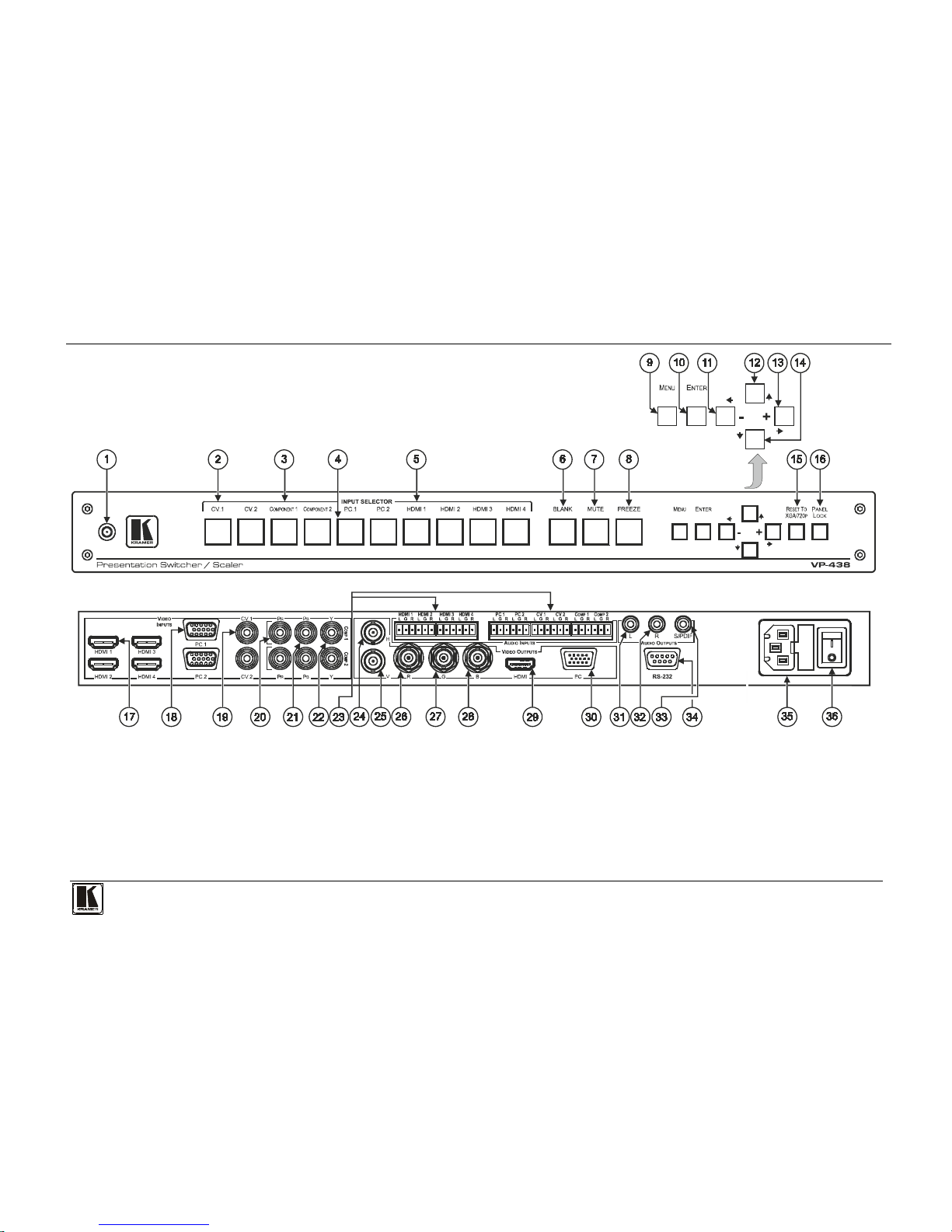

Figure 1: VP-438 Presentation Switcher / Scaler
Page 8
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VP-438 Presentation Switcher / Scaler
6
Table 1: VP-438 Presentation Switcher / Scaler Front Panel Features
#
Feature
Function
1 IR Receiver Receives signals from the remote control transmitter
2 INPUT
SELECTOR
Buttons
CV Press to select the composite video input (from 1 to 2)
3 COMPONENT Press to select the component video input (from 1 to 2)
4 PC Press to select the computer graphics input (from 1 to 2)
5 HDMI Press to select the HDMI input (from 1 to 4)
6 BLANK Button Press to toggle between a blank screen and the display1
7 MUTE Button Press to toggle between muting (blocking out the sound) and
enabling the audio output
8 FREEZE Button Press to freeze/unfreeze the output video image
1
9 MENU Button Displays the OSD menu (see Section 7.2
10 ) ENTER Button Press to accept changes and change the SETUP parameters
2
11 - Button Press to decrease numerical values or select from several
definitions. When not working in the OSD—press to reduce volume
12 Button Press to move up the menu list2
13 + Button Press to increase numerical values or select from several
definitions. When not working in the OSD—press to increase volume
14 Button Press to move down the menu list2
15 RESET TO XGA/720p Button Press and hold to reset the video resolution to XGA or 720p
3
16 PANEL LOCK Button Press and hold
4
to lock/unlock the front panel buttons
1 Can be programmed to follow MUTE (see Section 7.2.3)
2 See Section
7.2
3 Press and hold for about 2 seconds to reset to XGA; or press and hold for about 5 seconds to reset to 720p
4 For about 2 seconds
Page 9
Your VP-438 Presentation Switcher / Scaler
7
Table 2: VP-438 Presentation Switcher / Scaler Rear Panel Features
#
Feature
Function
17
VIDEO INPUTS
HDMI Connector Connect to the HDMI source (from 1 to 4)
18 PC 15-pin HD Connector Connect to the computer graphics source (from 1 to 2)
19 CV RCA Connector Connect to the composite video source (from 1 to 2)
20 PR RCA Connector
21 PB RCA Connector Connect to the component video source
1
22
(from 1 to 2)
Y RCA Connector
23
AUDIO INPUTS
Unbalanced Stereo Terminal Block Connectors
HDMI Connect to the analog audio HDMI source (from 1 to 4)
PC Connect to the analog audio computer graphics source (from 1 to 2)
CV Connect to the analog audio composite video source (from 1 to 2)
COMP Connect to the analog audio component video source (from 1 to 2)
24
VIDEO OUTPUTS
H BNC Connector
25 V BNC Connector
26 R BNC Connector Connect to the RGBHV video acceptor
27 G BNC Connector
28 B BNC Connector
29 HDMI Connector Connect to the HDMI acceptor
30 PC 15-pin HD Connector Connect to a VGA acceptor
31 AUDIO OUTPUTS
RCA Connectors
L Connect to the left stereo analog audio acceptor
32 R Connect to the right stereo analog audio acceptor
33 S/PDIF Connect to a digital audio acceptor
34 RS-232 9-pin D-sub Port Connect to the PC or the remote controller
35 Power Connector with Fuse AC connector, enabling power supply to the unit
36 Power Switch Switch for turning the unit ON or OFF
1 For component video, connect all three connectors: Y, Pr, Pb (also known as YUV)
Page 10
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Installing the VP-438 in a Rack
8
5 Installing the VP-438 in a Rack
This section provides instructions for rack mounting the unit.
Page 11
Connecting the VP-438 Presentation Switcher / Scaler
9
6 Connecting the VP-438 Presentation Switcher / Scaler
To connect1 your VP-438, as illustrated in the example in Figure 2, do the following
2
1. Connect an HDMI source (for example, a DVD player) to each of the
HDMI VIDEO INPUT connectors
:
3
2. Connect a computer graphics source to the PC 1 15-pin HD VIDEO
INPUT connector.
(from 1 to 4).
3. Connect a composite video source (for example, a composite video player)
to both CV VIDEO INPUT RCA connectors.
4. Connect a component video source (for example, a component video
player) to the COMP 1 P
R, PB and Y, VIDEO INPUT RCA connectors.
5. Connect the audio input signals to the AUDIO INPUT terminal block
connectors, as required (not shown in
Figure 2).
6. Connect the RGBHV VIDEO OUTPUT BNC connectors to an RGBHV
acceptor (for example, an RGBHV display).
7. Connect the HDMI VIDEO OUTPUT connector to an HDMI acceptor (for
example, a plasma display).
8. Connect the VGA VIDEO OUTPUT 15-pin HD connector to a VGA
acceptor (for example, a projector).
9. Connect the audio output signals to the AUDIO OUTPUTS stereo analog
audio acceptor and/or the digital audio acceptor, as required (not shown in
Figure 2).
10. Connect the power cord
4
(not shown in Figure 2).
1 You do not have to connect all the inputs and outputs, connect only those that are required
2 Switch OFF the power on each device before connecting it to your VP-438. After connecting your VP-438, switch on its
power and then switch on the power on each device
3 Alternatively, you can connect the DVI connector on the DVD player to the HDMI connector on the VP-438 via a
DVI-HDMI adapter. When using this adapter, you can connect the audio signal via the terminal block connector
4 We recommend that you use only the power cord that is supplied with this machine
Page 12
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VP-438 Presentation Switcher / Scaler
10
Figure 2: Connecting the VP-438 Presentation Switcher / Scaler
Page 13
Controlling the VP-438
11
7 Controlling the VP-438
The VP-438 can be controlled via:
The front panel buttons (see
Section 7.1
The OSD menu (see ) Section 7.2
RS-232 serial commands transmitted by a touch screen system, PC, or
other serial controller (see
)
Section 7.3
The infrared remote control transmitter (see ) Section 7.4
7.1 Controlling via the Front Panel Buttons
)
The VP-438 includes the following front panel buttons:
Input selector buttons for selecting the required input: CV (1 and 2),
COMPONENT (1 and 2), PC (1 and 2) or HDMI (1 to 4)
BLANK, MUTE and FREEZE buttons
MENU, ENTER, and arrow
1
RESET TO XGA/720p and PANEL LOCK buttons
buttons
2
7.2 Using the OSD Menu
The control buttons let you control the VP-438 via the OSD menu.
Press the:
MENU button to enter the menu
3
ENTER button to accept changes and to change the menu settings
Arrow
1
buttons to move through the OSD menu, which is displayed on
the video output
On the OSD menu, select EXIT to exit the menu.
1 Up, down, left and right
2 As defined in
Table 1
3 The default timeout is set to 10 seconds
Page 14
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Controlling the VP-438
12
7.2.1 The MAIN MENU
Table 3 defines the MAIN MENU features and functions.
Table 3: The MAIN MENU Features
Mode
Function
CONTRAST Set the contrast
1
BRIGHTNESS
Set the brightness1
FINETUNE (see Section 7.2.2
COLOR
)
Set the red, green and blue shades
SIZE
2
Select the size of the display: FULL, OVERSCAN, UNDER1, UNDER2, LETTER BOX, PANSCAN, BEST FIT (default, FULL)
SOURCE Select the source: (default VGA)
Appears as: Source input Appears as: Source input
CV1 CV 1 PC2 VGA 2
CV2 CV 2 HDMI1 HDMI 1
YPBPR1 COMP 1 HDMI2 HDMI 2
YPBPR2 COMP 2 HDMI3 HDMI 3
PC1 VGA 1 HDMI4 HDMI 4
OUTPUT Select the output resolution from the menu (default NATIVE):
Appears as: Output resolution: Appears as: Output resolution:
480I 480i 1080P59 1080p@59.94Hz
480P 480p NATIVE
3
720P60 720p @50Hz VGA 640x480
1080I60 1080i @60Hz SVGA 800x600
1080P60 1080p @60Hz XGA 1024x768
576I 576i SXGA 1280x1024
576P 576p UXGA 1600x1200
720P50 720p @50Hz WXGA 1366x768
1080I50 1080i @50Hz WSXGA 1680x1050
1080P50 1080p @50Hz WUXGA 1920x1200
480I59 480i@59.94Hz 1280x800 1280x800
480P59 480p@59.94 Hz WXGA+ 1440x900
720P59 720p@59.94Hz SXGA+ 1400x1050
1080I59 1080i@59.94Hz 1600x900 1600x900
AUDIO See
OSD
Section 7.2.3
Set the OSD parameters: H POSITION, V POSITION, TIMER, BACKGROUND and DISPLAY (see
Section 7.2.4
HDCP ON INPUT
)
Select the HDCP option for the HDMI input: either ON (the default) or OFF. Setting HDCP support to enabled (ON) on the HDMI input allows the source to
transmit a non-HDCP signal if required (for example, when working with a Mac computer)
1 The range and default values vary according to the input signal
2 UNDER1 refers to an underscan of 6% and UNDER2 refers to an underscan of 9%
3 Select “NATIVE” to select the output resolution from the EDID of the connected HDMI monitor
Page 15
Controlling the VP-438
13
Mode Function
HDCP ON OUTPUT Select FOLLOW INPUT or FOLLOW OUTPUT to define whether the HDCP will
follow the input or the output When FOLLOW INPUT is selected, it changes its HDCP output setting (for the
HDMI output) according to the HDCP of the input. This option is recommended when the HDMI output is connected to a splitter/switcher
When FOLLOW OUTPUT is selected, the scaler matches its HDCP output to the HDCP setting of the HDMI acceptor to which it is connected
FACTORY RESET Resets to the default parameters (resolution is set to XGA or 720p
1
INFORMATION
)
Displays the source, the input resolution, the output resolution and the software version
AUTO SYNC OFF Turn the auto sync ON/OFF. When ON, a short period after not detecting a valid
video signal on the selected input, the unit will disable the H and V syncs on the analog outputs until a valid input is again detected or any keypad button is pressed
EXIT Select to exit the menu
7.2.2 The FINETUNE Menu
Table 4 defines the FINETUNE menu:
Table 4: The FINETUNE Menu Features
Input Signal
Parameter
Function
CV, COMPONENT
HUE Set the color hue
SATURATION Set the color saturation
SHARPNESS Set the sharpness of the picture
NOISE REDUCTION Select the noise reduction: OFF, HI, LOW and MID
(middle)
COLOR FILTER Set to ON to enable color filtering
2
VGA
PHASE Set the clock phase
CLOCK Set the clock frequency
H-POSITION Set the horizontal position of the picture
V-POSITION Set the vertical position of the picture
AUTO TUNE
3
When set to ON, auto adjusts the image
4
COLOR FILTER
every time the input is switched to VGA or when the input resolution changes
Set to ON to enable color filtering2
HDMI COLOR FILTER Set to ON to enable color filtering2
1 If you cannot see the display after factory reset, use the front panel Res. button to set the correct resolution: press
continuously for 2 seconds to reset to XGA, or continuously for 5 seconds to reset to 720p
2 May improve the output image for certain graphic cards where color fringing is seen
3 Alternatively, you can auto adjust the image by pressing the ENTER button when not within the OSD menu
4 Centers the picture correctly on the screen
Page 16
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Controlling the VP-438
14
7.2.3 The AUDIO Menu
Table 5 defines the AUDIO menu.
Table 5: The AUDIO Menu Features
Parameter
Function
OUTPUT VOLUME Set the output volume (from 0 to 100)
1
INPUT VOLUME
Set the input volume (from 0 to 100) 1
DELAY Select the audio delay time: OFF, 40ms, 110ms and 150ms
SOUND Select the sound options: ON, MUTE
MUTE FOLLOWS Select the action that will be followed by mute:
INDEPENDENT
2
, FREEZE, BLANK, FREEZE/BLANK
3
HDMI AUDIO IN
4
Select AUTOMATIC
5
, EMBEDDED6 or ANALOG
7
7.2.4 The OSD Menu
Table 6 defines the OSD menu.
Table 6: The OSD Menu Features
Parameter
Function
H POSITION Set the horizontal position of the OSD (from 0 to 100)
V POSITION Set the vertical position of the OSD (from 0 to 100)
TIMER Set the timeout period in seconds (from 5 to 100)
BACKGROUND Set the OSD background between 0 (solid black) and 8
(transparent)
DISPLAY Select the information shown on the screen during operation:
ON - the information is shown permanently OFF - the information is not shown INFO - the information is shown for a few seconds
7.3 Connecting to VP-438 via RS-232
You can connect to the VP-438 via an RS-232 connection using, for example, a PC. Note that a null-modem adapter/connection is not required.
To connect to the VP-438 via RS-232, connect the RS-232 9-pin D-sub rear panel port on the VP-438 unit via a 9-wire straight cable (only pin 2 to pin 2, pin 3 to pin 3, and pin 5 to pin 5 need to be connected) to the RS-232 9-pin D-sub port on your PC.
1 Not applicable for embedded HDMI audio inputs
2 INDEPENDENT means that the audio muting is independent of the FREEZE and BLANK functions
3 FREEZE/BLANK means that when you FREEZE or BLANK the video, then the audio will be muted (the MUTE function
follows the FREEZE and the BLANK functions)
4 Enabled only when one of the HDMI inputs is selected
5 In this case, the embedded audio on the HDMI input is selected for an HDMI signal, or the analog audio input is selected if
the input is not HDMI (for example, for a DVI input signal)
6 In this case, the embedded audio in the HDMI signal is selected
7 In this case, the analog audio input is selected
Page 17
Controlling the VP-438
15
7.4 Controlling via the Infrared Remote Control Transmitter
You can control the VP-438 from the infrared remote control transmitter, as
Figure and 3 Table define: 7
SIZE POWER
CV1
COMP2
CV2
PC1
COMP1
PC2
HDMI1 HDMI2 HDMI3
HDMI4
INFO NATIV E
MENU EXIT
FREEZE BLANK MUTE
LR-30
Figure 3: Infrared Remote Control
Transmitter
Table 7: Infrared Remote Control
Transmitter Functions
Keys Function
SIZE Set the size of the image displayed
POWER
Turn the VP-438 ON or OFF
1
CV1 Select the composite video 1 input
CV2 Select the composite video 2 input
COMP1 Select the component video 1 input
COMP2 Select the component video 2 input
PC1 Select the UXGA 1 input
PC2 Select the UXGA 2 input
HDMI1 Select the HDMI 1 input
HDMI2 Select the HDMI 2 input
HDMI3 Select the HDMI 3 input
HDMI4 Select the HDMI 4 input
XGA Reset Reset the resolution to XGA
720p Reset Reset the resolution to 720p
INFO Displays the selected input, the input
and output resolutions and the firmware versions
2
on the OSD
NATIVE Select the output resolution via the
EDID of the connected HDMI monitor
Four navigation keys (Left and right arrow keys also function as output volume control)
OK Press to accept changes
MENU Enter the OSD menu
EXIT EXIT the menu
FREEZE Freeze/unfreeze the output video
BLANK Toggle between a blank screen and
the display
MUTE Toggle between muting (blocking out
the sound) and enabling the audio output
1 OFF in this case means that the unit is in standby mode
2 To check if firmware upgrades are available, go to our Web site at
http://www.kramerelectronics.com
Page 18
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Technical Specifications
16
8 Technical Specifications
Table 8: Technical Specifications
1
INPUTS:
of the VP-438 Presentation Switcher /Scaler
4 HDMI connectors (HDMI, HDCP version 1.1) 2 VGA on a 15-pin HD connector
2 composite video on an RCA connector 2 component video each on 3 RCA connectors Unbalanced stereo audio on 10 3-pin terminal block connectors
OUTPUT: 1 RGBHV on 5 BNC connectors
1 HDMI connector (HDMI, HDCP version 1.1) 1 VGA (RGBHV) on a 15-pin HD connector 1 S/PDIF on an RCA connector 1 analog stereo audio on 2 RCA connectors
H FREQUENCY: 15.63-90kHz
V FREQUENCY: 50-100Hz
RGB SYNCS: H and V TTL separated syncs
RGB LEVEL:
1.2Vpp max, 75load
XGA OUT LEVEL:
1.2Vpp max, 75load
S/PDIF OUT LEVEL: 0.55Vpp constant
OUTPUT RESOLUTIONS:
480i, 480p, 720p @50Hz, 1080i @60Hz, 1080p @60Hz, 576i, 576p, 720p @50Hz, 1080i @50Hz, 1080p @50Hz, 480i@59.94Hz
, 480p@59.94 Hz,
720p@59.94Hz, 1080i@59.94Hz, 1080p@59.94Hz, 640x480, 800x600, 1024x768, 1280x1024, 1600x1200, 1366x768, 1680x1050, 1920x1200, 1280x800, 1440x900, 1400x1050, 1600x900
CONTROLS: CV 1, CV 2, component 1, component 2, PC 1, PC 2, HDMI 1, HDMI 2,
HDMI 3, HDMI 4, input selector buttons; blank, mute, freeze buttons; menu, enter, menu arrows, reset to XGA/720p, lock buttons, RS-232, IR
OPERATING TEMPERATURE:
0° to +55°C (32° to 131°F)
STORAGE TEMPERATURE:
-45° to +72°C (-49° to 162°F)
HUMIDITY: 10% to 90%, RHL non-condensing
POWER SOURCE: 100-240V AC, 25VA max.
DIMENSIONS: 19" x 7" x 1U (W, D, H) rack mountable
WEIGHT: 2.7kg (6lbs) approx
ACCESSORIES: Power cord, rack ears, IR remote control
1 Specifications are subject to change without notice
Page 19
Technical Specifications
17
Table 9: Input Resolutions
1
Resolution/Refresh Rate
CV
Y, Pb, Pr (Component)
PC
HDMI
480I/576I(NTSC/PAL) Yes Yes No Yes
480P/576P Yes No Yes
720P@(60/50)
Yes No Yes
1080I@(60/50)
Yes No Yes
1080P@(60/50)
Yes No Yes
1080P@(24/25/30)
Yes No Yes
480P/576P-RGB
Yes Yes
720P@(60/50)-RGB
Yes Yes
1080I@(60/50)-RGB
No Yes
1080P@(60/50)-RGB
Yes Yes
1080P@(24/25/30)-RGB
No Yes
VGA@(60/67/72/75/85)
Yes Yes
SVGA@(56/60/72/75)
Yes Yes
XGA@(60/70/75)
Yes Yes
SXGA@(60/75)
Yes Yes
1280X960
Yes Yes
1600X900@60
Yes Yes
UXGA@60 ( 1600X1200 )
Yes Yes
WXGA@60(1280x800)
Yes Yes
WXGA+@60(1440x900)
Yes Yes
WXGA@60(1366x768)
Yes Yes
SXGA+@60(1400x1050)
Yes Yes
WSXGA@60(1680x1050)
Yes Yes
WUXGA@60(1920x1200)
Yes Yes
2K@50 ( 2048X1080) Yes Yes
2K@60 ( 2048X1080) Yes Yes
1 Go to our Web site at http://www.kramerelectronics.com to check for updated resolution lists
Page 20
KRAMER: SIMPLE CREATIVE TECHNOLOGY
RS-232 Communication Protocol
18
9 RS-232 Communication Protocol
The following is the COM port setting:
Baud Rate: 9600bps Parity: None Data Bits: 8bits Stop Bits: 1bit Set CTS Mode: Off Set XON/XOFF: Off
Table 10 defines the symbol characters:
Table 10: Character Symbols Definitions
Sym bol Meaning
Space
[CR] Carriage Return, ASCII code 0x0D
[LF] Line Feed, ASCII code 0x0A
Set Command
Type in: YControl_TypeFunctionParam[CR]
1
Reply: ZControl_TypeFunctionParam[CR][LF]
Get Command:
Type in: YControl_TypeFunction[CR]
Reply: ZControl_TypeFunctionParam[CR][LF]
Example:
Example 1: set Brightness value to 32
Send: Y11632[CR]
Reply: Z11632[CR][LF]
Example 2: get current output resolution (2 = SVGA)
Send: Y421[CR]
Reply: Z4212[CR][LF]
1 When sending a command, a blank character may precede [CR] if desired
Page 21
RS-232 Communication Protocol
19
Table 11: RS-232 Protocol
Control
Type
Function
Param
(for Set)
Function Description Comment
0 0 N/A SIZE button on remote control
0 1 N/A POWER button on remote control
0 2 N/A
FREEZE button on remote control
0 3 N/A 480p button on remote control
0 4 N/A 576p button on remote control
0 5 N/A 720p button on remote control
0 6 N/A 1080i button on remote control
0 7 N/A 1080p button on remote control
0 8 N/A VGA button on remote control
0 9 N/A SVGA button on remote control
0 10 N/A XGA button on remote control
0 11 N/A SXGA button on remote control
0 12 N/A WXGA button on remote control
0 13 N/A UXGA button on remote control
0 14 N/A INFO button on remote control
0 15 N/A UP button on remote control
0 16 N/A NATIVE button on remote control
0 17 N/A LEFT button on remote control
0 18 N/A OK button on remote control
0 19 N/A RIGHT button on remote control
0 20 N/A MENU button on remote control
0 21 N/A DOWN button on remote control
0 22 N/A EXIT button on remote control
0 23 N/A CV1 button on remote control
0 25 N/A COMP1 button on remote control
0 26 N/A HDMI1 button on remote control
0 27 N/A HDMI2 button on remote control
0 28 N/A COMP2 button on remote control
0 29 N/A PC 1 button on remote control
0 30 N/A BLANK button on remote control
0 31 N/A MUTE button on remote control
33 N/A Auto adjust FW V6.12
0 34 N/A CV2 button on remote control
0 35 N/A PC2 button on remote control
0 36 N/A HDMI3 button on remote control
0 37 N/A HDMI4 button on remote control
1: Set 2: Get
4 0~100 Color: Red
1: Set 2: Get
5 0~100 Color: Green
1: Set 2: Get
6 0~100 Color: Blue
Page 22
KRAMER: SIMPLE CREATIVE TECHNOLOGY
RS-232 Communication Protocol
20
Control
Type
Function
Param
(for Set)
Function Description Comment
1: Set 2: Get
16 0~100 Brightness
1: Set 2: Get
17 0~100 Contrast
1: Set 2: Get
25 0~100 Hue
1: Set 2: Get
26 0~100 Sharpness
1: Set 2: Get
29 0~100 Saturation
1: Set 2: Get
33 0~100
set an absolute volume for Output
1: Set 2: Get
34 0~100 set an absolute volume for Input
1: Set 2: Get
41 0~100 OSD Setting :H-Position
1: Set 2: Get
42 0~100 OSD Setting: V-Position
1: Set 2: Get
43 0~100 OSD Timeout
1: Set 2: Get
44 0~8 OSD Background
1: Set 2: Get
50 0~3 NR (Noise Reduction)
0: Off 1: Low 2: Mid
3: High
1: Set 2: Get
51 0~3 Audio delay
0: Off 1: 40ms 2: 110ms 3: 150ms
1: Set 2: Get
52 0~2 HDMI AUDIO IN
0 : AUTOMATIC 1 : EMBEDDED 2 : ANALOG
1: Set 2: Get
84 0~1 Auto Sync Off
0 : OFF (FW:6.14) 1 : ON
1: Set 2: Get
160 0~1 HDCP ON INPUT
0 : OFF 1 : ON
1: Set 2: Get
161 0~1 HDCP ON OUTPUT
0 : Follow input 1 : Follow output
3: Set 4: Get
0 1~10 Select Input Source
1: CV1 2: CV2 3: COMP1 4: COMP2 5: PC1 6:PC2 7: HDMI1 8: HDMI2 9: HDMI3 10: HDMI4
3: Set 4: Get
1 0~6 Size
0: Full 1: Panscan
Page 23
RS-232 Communication Protocol
21
Control
Type
Function
Param
(for Set)
Function Description Comment
2: Overscan 3: Underscan1 4: Letterbox
5: Underscan2
6. BEST FIT
3: Set 4: Get
21 0~27 Output Resolution
0: Native 1: VGA 2: SVGA 3: XGA 4: SXGA 5: UXGA 6: 480i 7: 480p 8: 720p60 9: 1080i60 10: 1080p60 11: 576i 12: 576p 13: 720p50 14: 1080i50 15: 1080p50 16: WXGA 17: WSXGA 18: WUXGA 19: 1280x800
20: WXGA+ (1440X900) 21: SXGA+ (1400X1050
)
22: 1600x900
F/W 1.32
23: 480i59 24: 480p59 25: 720p59 26: 1080i59 27: 1080p59
3: Set 23 1 Factory Reset
4: Get 24 0~24 INPUT Resolution (V1.41)
0: Un-known 1: VGA
2. SVGA 3: XGA 4: SXGA 5: UXGA 6: 480i 7: 480p 8: 720p60 9: 1080i60 10: 1080p60 11: 576i 12: 576p 13: 720p50 14: 1080i50 15: 1080p50 16: WXGA 17: WSXGA 18: WUXGA
Page 24
KRAMER: SIMPLE CREATIVE TECHNOLOGY
RS-232 Communication Protocol
22
Control
Type
Function
Param
(for Set)
Function Description Comment
19: 1280x800
20: WXGA+ (1440X900) 21: SXGA+ (1400X1050)
22: 1600X900 23: 2048X1080/50 24: 2048X1080/60
6: Set 7: Get
0 0~2 Power
0: Power Down 1: Power On
2: Reboot
6: Set 7: Get
1 0~1 Freeze
0: Off 1: On
6: Set 7: Get
2 0~1 Blank
0: Off 1: On
6: Set 7: Get
3 0~1 Mute
0: Off 1: On
6: Set 7: Get
4 0~1 Key lock
0: Off 1: On
6 : Set 7 : Get
140 0~1 Auto Tune (under fine tune)
0: Clear Auto Tune 1: Set Auto Tune
Page 25
23
Page 26
Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: info@kramerel.com
P/N: 2900-000642 REV 4
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com,
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Caution
Safety Warning:
Disconnect the unit from the power supply before opening/servicing.
P/N:
2900-000642
Rev:
4
Loading...
