VP-427X1 – Introduction

1

Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world
of unique, creative, and affordable solutions to the vast range of problems that confront the
video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we
have redesigned and upgraded most of our line, making the best even better!

Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for
possible future shipment.

• Review the contents of this user manual.

Go to www.kramerav.com/downloads/VP-427X1 to check for up-to-date user manuals,
application programs, and to check if firmware upgrades are available (where appropriate).

Achieving Best Performance

• Use only good quality connection cables (we recommend Kramer high-performance,
high-resolution cables) to avoid interference, deterioration in signal quality due to poor
matching, and elevated noise levels (often associated with low quality cables).

• Do not secure the cables in tight bundles or roll the slack into tight coils.

• Avoid interference from neighboring electrical appliances that may adversely influence

signal quality.

• Position your Kramer VP-427X1 away from moisture, excessive sunlight and dust.

Safety Instructions

Caution:

• This equipment is to be used only inside a building. It may only be connected to other
equipment that is installed inside a building.

• For products with relay terminals and GPI\O ports, please refer to the permitted rating
for an external connection, located next to the terminal or in the User Manual.

• There are no operator serviceable parts inside the unit.

Warning:

• Use only the power cord that is supplied with the unit.

• To ensure continuous risk protection, replace fuses only according to the rating

specified on the product label which is located on the bottom of the unit.

Kramer Electronics Ltd.

VP-427X1 – Introduction

2

Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce
the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected
and recycled. To comply with the WEEE Directive, Kramer Electronics has made
arrangements with the European Advanced Recycling Network (EARN) and will cover any
costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on

arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular

country go to our recycling pages at www.kramerav.com/il/quality/environment.

Overview

Congratulations on purchasing your Kramer VP-427X1 4K HDBT/HDMI Receiver Scaler

Switcher.
VP-427X is a high−performance auto−switcher receiver with integrated scaler for 4K HDMI™

over long−reach HDBaseT, with a local HDMI input and an HDMI output. VP-427X receives

the HDBaseT signal from a compatible transmitter, converts it to an HDMI signal and up− or
down−scales the picture to any resolution up to 4K@60Hz (4:4:4) set by the user or

automatically matching the resolution of the display connected to the HDMI output.

Exceptional Quality

• Auto Switcher Ease of Use — Automatically plays the switched source signal on the
connected display according to user–configured preferences, such as auto-scan or last–
connected input. When the user manually switches, by pressing a button, the auto
switching is overridden.

• Fast and clean AV Switching — Clean and instantaneous switching between inputs, with
smooth, fade-through-black, uninterrupted transitions between presented content on the
display, greatly enhancing end–users presentation experience.

• High–Performance Scaling Experience — Built–in ProcAmp high–resolution scaling
technology for optimal up or down image scaling and video signal auto–adjustment with
output–connected display capabilities to gain end–users valuable high presentation
experience.

• HDMI Signal Switching — HDCP 2.2 compliant, supporting deep color, x.v.Color™,
CEC, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K,
and 3D as specified in HDMI 2.0.

• I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling,
processing, locking and pass–through algorithm ensures plug & play operation for HDMI
source and display systems.

Advanced and User-friendly Operation

• Display On/Off Operation — Meeting presentation is simplified by automatically turning
ON/OFF a CEC–enabled display when the presentation source is plugged in /
unplugged.

• Convenient Unit Control and Configuration Options — Local control via front panel

Kramer Electronics Ltd.

VP-427X1 – Introduction

3

source switching buttons and OSD menu. Distance control via RS–232 serial commands
transmitted by a PC, touch screen system or other serial controller.

• Easy, Cost–effective Maintenance — Local firmware upgrade via USB connector.

• Easy and Elegant Installation — Compact MegaTOOLS™ fan–less enclosure for

dropped–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with
the recommended rack adapter.

Flexible Connectivity and Control

• Wired and Wireless Auto Switcher — When the receiver is connected to a wireless
connectivity device such as Kramer VIA, can automatically select between a wired
source at the transmitter or the wireless source at the receiver.

• High Performance Standard Extension — Professional HDBaseT extension for providing
long–reach signals over twisted–pair copper infrastructures. VP-427X is a standard
receiver that can be connected to any market–available HDBaseT–compliant extension
product. For optimum extension reach and performance, use recommended Kramer
cables.

• Audio De–embedding — The digital audio signal passing–through to the HDMI output, is
de–embedded, converted to an analog signal and sent to the stereo balanced analog
audio output. This enables playing the audio on a locally connected professional audio
system (such as DSP) and speakers, in parallel to playing it on the speakers connected
to the AV acceptor device (such as TVs with speakers).

• Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing
data transmission and device control.

Typical Applications

VP-427X1 is ideal for the following typical applications:

• Classrooms and meeting rooms with multiple connections that require automated
switching and automated display control.

• Projection systems in conference rooms, boardrooms, auditoriums, and churches.

• Any application where high quality conversion and switching of multiple and different

video signals to graphical data signals is required for display or projection purposes.

Controlling your VP-427X1

Control your VP-427X1 directly via the front panel push buttons (with on-screen menus, or:

• By RS-232 serial commands transmitted by a touch screen system, PC, or other serial
controller.

• Via the Ethernet using built-in user-friendly web pages.

Kramer Electronics Ltd.

VP-427X1 – Defining VP-427X1 4K HDBT/HDMI Receiver Scaler Switcher

4

Defining VP-427X1 4K HDBT/HDMI Receiver Scaler Switcher

This section defines VP-427X1.

Figure 1: VP-427X1 4K HDBT/HDMI Receiver Scaler Switcher Front Panel

#

Feature

Function

ON LED

Lights green when device is powered.

INPUT Select
Button

Press to select the input (HDBT or HDMI).

Input
LEDs

HDBT

Lights green when the HDBT input is selected.

HDMI

Lights green when the HDMI input is selected.

If the selected source is not connected to an input, its LED flashes.

3.5mm Mini Jack

Connect to an IR sensor.
Use to control a remote device that is connected to the transmitter side. IR

commands are passed via HDBT tunneling to the selected HDBT input
(1 or 2).

IR OUT 3.5mm
Mini Jack

Connect to an external IR emitter to control a local device from the transmitter
side.

MENU Button

Press to enter/exit the on-screen display (OSD) menu. Press together with the
– button to reset the output to 1080p resolution.

ENTER Button

In OSD, press to choose the highlighted menu item. Press together with the
FREEZE/+ button to reset the output to XGA resolution (1024x768).

– Button

In OSD, press to move back through menus or decrement parameter values.
Press together with the MENU button to reset the output to 1080p resolution.

FREEZE/+ Button

In OSD, press to move forward through menus or increment parameter
values. When not in OSD, press to freeze the display.

ETHERNET RJ-45
Connector

Connect to a PC via a LAN to setup and monitor the VP-427X1, tunnel data
via HDBT, as well as upgrade the firmware. (Configured via web pages).
Can provide power to the unit.

PROG USB
Connector

Connect to a USB stick to perform firmware upgrades.

1 2 3 4 5 6 7 8 9

10

11

Kramer Electronics Ltd.

VP-427X1 – Defining VP-427X1 4K HDBT/HDMI Receiver Scaler Switcher

5

Figure 2: VP-427X1 4K HDBT/HDMI Receiver Scaler Switcher Front Panel

#

Feature

Function

INPUTS

HDBT RJ-45 Connector

Connect to a transmitter (for example, the Kramer TP-780Txr).

HDMI Connector

Connect to an HDMI source.

RS-232 CONTROL 3-pin Terminal
Block Connector

Connect to a serial controller or PC to control VP-427X1
(default configuration), connect to a device (e.g., a display) to
control it via VP-427X1, or use for RS-232 tunneling via
HDBT.
Configurable via the device web page.

REMOTE Contact-Closure 4-pin
Terminal Block Connector

Connect to contact closure switches, an occupancy sensor
and/or toggle switches (contact between the desired pin and
GND pin), to turn the display on or off (see Connecting the

Remote Control Switches on page 10).

AUDIO 5-pin Terminal Block
Connector

Connect to a balanced stereo audio acceptor.
HDMI OUT Connector

Connect to an HDMI acceptor.

12V DC Connector

Connect to the supplied power adapter.

12

13

14

15

16

17

18

Kramer Electronics Ltd.

VP-427X1 – Mounting VP-427X1

6

Mounting VP-427X1

This section provides instructions for mounting VP-427X1. Before installing, verify that the
environment is within the recommended range:

• Operation temperature – 0 to 40C (32 to 104F).

• Storage temperature – -40 to +70C (-40 to +158F).

• Humidity – 10% to 90%, RHL non-condensing.

Caution:

• Mount VP-427X1 before connecting any cables or power.

Warning:

• Ensure that the environment (e.g., maximum ambient temperature & air flow) is
compatible for the device.

• Avoid uneven mechanical loading.

• Appropriate consideration of equipment nameplate ratings should be used for avoiding

overloading of the circuits.

• Reliable earthing of rack-mounted equipment should be maintained.

• Maximum mounting height for the device is 2 meters.

Mount VP-427X1 in a rack:

• Use the recommended rack adapter
(see www.kramerav.com/product/VP-427X1).

Mount VP-427X1 on a surface using one of the following
methods:

• Attach the rubber feet and place the unit on a flat
surface.

• Fasten 2 brackets (included) on each side of the unit

and attach them to a flat surface. For more information
go to www.kramerav.com/downloads/VP-427X1.

Kramer Electronics Ltd.

VP-427X1 – Connecting VP-427X1

7

Connecting VP-427X1

Always switch off the power to each device before connecting it to your VP-427X1. After
connecting your VP-427X1, connect its power and then switch on the power to each device.

Figure 3: Connecting to the VP-427X1

To connect VP-427X1 as illustrated in the example in Figure 3:

1. Connect an HDBT transmitter (for example, Kramer TP-780Txr) to the INPUT HDBT
RJ-45 port on the front panel. The transmitter is connected to a Blu-ray player.

2. Connect an HDMI source (for example, Kramer VIA GO) to the HDMI INPUT connector

.

3. Connect the HDMI OUT connector to an HDMI Acceptor (for example, a display).

4. Connect the REMOTE pins to contact closure switches (for example, an occupancy
sensor). See Connecting the Remote Control Switches on page 10.

5. Connect the AUDIO OUT 5-pin terminal block connector to a balanced stereo audio
acceptor (for example, Kramer Tavor 5-O active speakers).

6. Connect an IR sensor to the IR IN 3.5mm mini jack . In this example, point the
Blu-ray remote controller to the sensor to control the Blu-ray that is connected to

TP-780Txr via HDBT.

7. Connect a control system (for example, a laptop) to the ETHERNET RJ-45 port .

8. Connect a control system to the RS-232 3-pin terminal block connector .
See Connecting to VP-427X1 via RS-232 on page 8.

9. If there is no PoE input, connect the power adapter to the VP-427X1 and plug the
adaptor to the mains electricity (not shown in Figure 3).

12

13

17

15

16 4 10

15

Kramer Electronics Ltd.

VP-427X1 – Connecting VP-427X1

8

Connecting the Output to a Balanced/Unbalanced

Stereo Audio Acceptor

The following are the pinouts for connecting the output to a balanced or unbalanced stereo
audio acceptor:

Figure 4: Connecting to a Balanced Stereo Audio

Acceptor

Figure 5: Connecting to an Unbalanced Stereo Audio

Acceptor

Connecting to VP-427X1 via RS-232

You can connect to VP-427X1 via an RS-232 connection using, for example, a PC.

VP-427X1 features an RS-232 3-pin terminal block connector allowing RS-232 control of
VP-427X1.

Connect the RS-232 terminal block on the rear panel of VP-427X1 to a PC/controller, as
follows:

From the RS-232 9-pin D-sub serial port connect:

• Pin 2 to the TX pin on the VP-427X1 RS-232 terminal block

• Pin 3 to the RX pin on the VP-427X1 RS-232 terminal block

• Pin 5 to the G pin on the VP-427X1 RS-232 terminal block

RS-232 Device VP-427X1

Wiring RJ-45 Connectors

This section defines the HDBT pinout, using a straight pin-to-pin cable with RJ-45 connectors.

For HDBT cables, it is recommended that the cable ground shielding be connected/soldered
to the connector shield.

EIA /TIA 568B

PIN

Wire Color

1

Orange / White

2

Orange

3

Green / White

4

Blue

5

Blue / White

6

Green

7

Brown / White

8

Brown

15

Kramer Electronics Ltd.

VP-427X1 – Operating and Controlling VP-427X1

9

Operating and Controlling VP-427X1

Principles of Operation

Flexible Auto Switching Policy

Set the switching policy to:

• Manual – Select an input manually and switching occurs whether a live signal is present
on the input or not.

• Auto – Auto Switching selection is performed according to either the Last Connected or
the Auto Scan policy.

See Flexible Auto Switching Policy on page 9.

OSD Configuration & Operation

Convenient OSD (On Screen Display) menus for easy configuration and switcher operation.
See Using the OSD Menu on page 10.

Auto Display On/Off via CEC

Auto display shut-down and wake-up, via HDMI CEC communication, for energy expenses
savings.

See Defining CEC on page 17.

Operating and Controlling the Device

Operate and control VP-427X1 by:

• Using Front Panel Buttons on page 9.

• Connecting the Remote Control Switches on page 10.

Using Front Panel Buttons

Use VP-427X1 front panel buttons enable performing the following actions:

• Pressing the INPUT to and cycling through the inputs to select an input.

• Using the MENU, ENTER (when in the OSD menu), + and – buttons to control the

device (see Using the OSD Menu on page 10).

• Pressing MENU and - to reset the resolution to 1080p.

2 6 8

Kramer Electronics Ltd.

VP-427X1 – Operating and Controlling VP-427X1

10

• Pressing ENTER and + to reset the resolution to XGA.

• Pressing FREEZE to freeze the image.

Connecting the Remote Control Switches

Control the display status via remote control switches.

Pin Name

Function

TOGGLE

Toggle the display on / off (via CEC): A single button toggles
between display on and display off.
Alternatively, using the VP-427X1 OSD, configure turning the
display on or off according to whether the switch is open or
closed, for example, when using an occupancy sensor.
(See Configuring TOGGLE Pin Behavior on page 17
and/or Defining the TOGGLE Pin Behavior on page 35).

OFF

Turn off the display (via CEC).

ON

Turn on the display (via CEC).

Using the OSD Menu

VP-427X1 enables controlling and defining the device parameters via the OSD, using the

front panel MENU buttons.

To enter and use the OSD menu buttons:

1. Press MENU.

2. Press:

▪ ENTER to accept changes and to change the menu settings.
▪ Arrow buttons to move through the OSD menu, which is displayed on the video

output.

▪ EXIT to exit the menu.

The default OSD timeout is set to 10 seconds.

Use the OSD menu to perform the following operations:

• Adjusting Image Parameters on page 11.

• Selecting an Input Signal on page 11.

• Setting Output Parameters on page 12.

• Setting Audio Parameters on page 12.

• Setting OSD Parameters on page 13.

• Managing EDID via OSD on page 13.

• Setting HDCP on page 14.

• Setting Sleep Mode on page 15.

7 9 9

Kramer Electronics Ltd.

VP-427X1 – Operating and Controlling VP-427X1

11

• Setting Switching Mode on page 15.

• Defining FREEZE Button Operation Mode on page 16.

• Setting Ethernet Parameters on page 16.

• Defining CEC on page 17.

• Configuring TOGGLE Pin Behavior on page 17.

• Defining HDBT Range on page 17.

• Viewing Device Information on page 18.

• Performing a Reset on page 18.

Adjusting Image Parameters

VP-427X1 enables adjusting the image parameters such as contrast, brightness and so on.

To adjust the image parameters:

1. On the front panel press MENU. The menu appears.

2. Click Picture and define the image parameters according to the information in the
following table:

Menu Item

Function

Contrast

Set the contrast.

Brightness

Set the brightness.

Finetune

Video

HUE – Set the color hue.

SATURATION – Set the color saturation.

SHARPNESS – Set the sharpness of the picture.

NOISE REDUCTION – Select the noise reduction filter: Off
(default), Low, Middle or High.

Color

Set the Red, Green and Blue shades.

Image parameters are adjusted.

Selecting an Input Signal

Select the VP-427X1 input source via the OSD menu.

To set the input source:

1. On the front panel press MENU. The menu appears.

2. Click Input and select the Source: HDBT (default) or HDMI.

An input signal is selected.

Kramer Electronics Ltd.

VP-427X1 – Operating and Controlling VP-427X1

12

Setting Output Parameters

VP-427X1 enables setting output parameters such as the size of the image and output

resolution via the OSD MENU buttons.

To set the output parameters:

1. On the front panel press MENU. The menu appears.

2. Click Output and define the output parameters according to the information in the
following table:

Menu Item

Function

Size

Set the size of the image: Best Fit (default), Full, Over Scan, Follow In, Under 1, Under
2, Letter Box, Pan Scan.

Resolution

Select the output resolution (default, Native):

Native

1400x1050 @60Hz

2560x1600 @60Hz RB

1920x1080P @25Hz

640x480 @60Hz

1440x900 @60Hz

720x480P @60Hz

1920x1080P @30Hz

800x600 @60Hz

1600x1200 @60Hz

1280x720P @60Hz

3840x2160P @24Hz

1024x768 @60Hz

1680x1050 @60Hz

1920x1080P @60Hz

3840x2160P @25Hz

1280x768 @60Hz

1920x1200 @60Hz RB

720x576P @50Hz

3840x2160P @30Hz

1280x800 @60Hz

2560x1600 @60Hz RB

1280x720P @50Hz

3840x2160P @50Hz

1280x1024 @60Hz

1920x1080 @60Hz

1920x1080P @50Hz

3840x2160P @60Hz

1360x768 @60Hz

1280x720 @60Hz

1920x1080P @24Hz

Image size and output resolution are defined.

Setting Audio Parameters

VP-427X1 enables defining the audio delay time and output volume.

To set the audio:

1. On the front panel press MENU. The menu appears.

2. Click Audio and define the following:

▪ Set the audio delay time (lip sync) to off, 40ms (default),110ms or 150ms.
▪ Set the AUDIO OUT output volume (default is 80 = 0dB).

Audio parameters are defined.

Kramer Electronics Ltd.

VP-427X1 – Operating and Controlling VP-427X1

13

Setting OSD Parameters

VP-427X1 enables adjusting OSD parameters for your convenience via the OSD MENU

buttons.

To set the OSD parameters:

1. On the front panel press MENU. The menu appears.

2. Click OSD and define the OSD parameters according to the information in the following
table:

Menu Item

Function

H-Position

Set the horizontal position of the OSD.

V-Position

Set the vertical position of the OSD.

Timer

Set the timeout period to Off or up to 60 seconds (default 10).

Transparency

Set the OSD background between 100 (transparent) and 0 (opaque).

Display

Select the information displayed on-screen during operation:
Info (default) – the information appears for 10 seconds.
On – the information appears constantly.
Off – the information does not appear.

OSD parameters are set.

Managing EDID via OSD

VP-427X1 enables managing the EDID via the OSD MENU buttons.

Uploading the EDID

To upload EDID:

1. On the front panel press MENU. The menu appears.

2. Click EDID Manage and select the parameters according to the information in the
following table:

Menu Item

Function

EDID on HDBT

Select one of the following EDID sources and then press enter:

• A built-in EDID file: Def. 1080P, Def.1080P (AUD), Def. 4K
(3G), Def. 4K (3G - AUD).

• The HDMI Output.

• An external file (see Uploading EDID from an External File

on page 14).

EDID on HDMI

Select one of the EDID sources and then press enter:

• A built-in EDID file: Def. 1080P, Def.1080P (AUD), Def. 4K
(3G), Def. 4K (3G - AUD), Def. 4K (6G), Def. 4K (6G - AUD)

• The HDMI Output.

• An external file (see Uploading EDID from an External File

on page 14).

The selected EDID is sent to the input.

Kramer Electronics Ltd.

VP-427X1 – Operating and Controlling VP-427X1

14

Uploading EDID from an External File

To select the EDID from an external file:

1. Save an EDID file via the EDID webpage (see Managing EDID on page 31).

2. On the front panel press MENU. The OSD menu appears.

3. Click Advanced and select EDID Manage.

4. Select an HDMI input and then select File.
The external EDID file (as stored via the EDID embedded page) is stored.

An external EDID file is sent to a selected input.

Setting HDCP

VP-427X1 enables setting the HDCP on the inputs and on the output via the front panel

MENU buttons.

To set the HDCP on the inputs and output:

1. On the front panel press MENU. The menu appears.

2. Click Advanced and define the HDCP parameters according to the information in the
following table:

Menu Item

Function

HDCP On Input

Set HDCP support on HDBT and HDMI inputs to ON (default) or OFF.
Note that:

1. HDCP must be enabled (ON) to support HDCP encrypted
sources.

2. Sources such as Mac computers encrypt their outputs when
detecting that the sink supports HDCP. If the content does not
require HDCP, you can prevent these sources from encrypting
by disabling (OFF) HDCP on the input.

HDCP On Output

Select FOLLOW OUTPUT (default) or FOLLOW INPUT on the HDMI
OUT.
Select FOLLOW OUTPUT (recommended) for the scaler to match its
HDCP output to the HDCP setting of the acceptor to which it is
connected.
Select FOLLOW INPUT to change its HDCP output setting according
to the HDCP of the input (recommended when the output is connected
to a splitter/switcher).

HDCP is set on the input/output.

Kramer Electronics Ltd.

VP-427X1 – Operating and Controlling VP-427X1

15

Setting Sleep Mode

Auto Sync Off turns off the output after a period of not detecting a valid video signal on the
input(s) until a valid input is again detected or any keypad button is pressed.

VP-427X1 enables configuring the Auto Sync Off delay time when a connected display enters

sleep mode.

To set Auto Sync Off:

1. On the front panel press MENU. The menu appears.

2. Click Advanced and select Auto Sync Off.

3. Define Auto Sync Off according to the information in the following table:

Menu Item

Function

Off (default)

Leave the outputs active always.

Fast

Disable the outputs after ~ 10 seconds of no input detection.

Slow

Disable the outputs after ~ 2 minutes of no input detection.

Immediate

Disable the outputs immediately.

Sleep mode is defined.

Setting Switching Mode

VP-427X1 enables configuring for automatic switching of the input source upon signal loss or

when a source is plugged in.

To set the switching mode:

1. On the front panel press MENU. The menu appears.

2. Click Advanced and select Auto Switching.

3. Select the switching mode according to the information in the following table:

Menu Item

Function

Off

For manual switching.

Auto Scan

Scans for a valid input when no signal is found on the selected input.

Last Connected

Automatically switches to the last connected input and reverts to the
previously selected input after that input is lost.

Switching mode is defined.

Kramer Electronics Ltd.

VP-427X1 – Operating and Controlling VP-427X1

16

Defining FREEZE Button Operation Mode

VP-427X1 enables defining the function of the FREEZE front panel button .

To define the FREEZE button operation mode:

1. On the front panel press MENU. The menu appears.

2. Click Advanced and select Freeze.

3. Set freeze mode according to the information in the following table:

Menu Item

Function

Freeze + Mute

Freeze the image and mute the audio output.

Only Mute

Mute the audio output.

Only Freeze

Freeze the image.

When pressed, FREEZE button functions as defined.

Setting Ethernet Parameters

VP-427X1 enables defining the Ethernet parameters via the MENU front panel buttons.
To set the Ethernet parameters:

1. On the front panel press MENU. The menu appears.

2. Click Advanced and define the Ethernet parameters according to the information in the
following table:

Menu Item

Function

IP Mode

Select Static IP (default) or DHCP.

Static IP Address

Enter to change the IP address.

Subnet Mask

Enter to change the subnet mask.

Default Gateway

Enter to change the default gateway.

TCP Port

Enter TCP port # (5000, by default).

UDP Port

Enter UDP port # (50000, by default).

IP

View the current IP address.

MAC ADDRESS

View the MAC address.

Network parameters are defined.

8

Kramer Electronics Ltd.

VP-427X1 – Operating and Controlling VP-427X1

17

Defining CEC

VP-427X1 can be configured to automatically send CEC on/off commands to the connected

display (default) or to pass CEC commands from the connected source to the connected
display.

To set the CEC (Consumer Electronic Control) functionality:

1. On the front panel press MENU. The menu appears.

2. Click Advanced and select Output CEC Bypass.

3. Select:

▪ Off – Automatically send CEC commands to shut down the output display after a

timeout period when no input signal is found and to power up the display when the
input returns.

▪ On – Pass CEC commands from the source to the display.

CEC functionality is defined.

Configuring TOGGLE Pin Behavior

VP-427X1 enables defining the function of the REMOTE pin on the rear panel.
To configure the TOGGLE pin (see Connecting the Remote Control Switches on page 10):

1. On the front panel press MENU. The menu appears.

2. Click Advanced and select Toggle Pin.

3. Select the TOGGLE pin configuration:

▪ Edge = (toggle on/off).
▪ Input Select.
▪ GND=Off / Hi=On
▪ GND=On / Hi=Off
▪ Hi=Off

Defining HDBT Range

VP-427X1 enables defining the HDBT port range.
To define HDBT extra range:

1. On the front panel press MENU. The menu appears.

2. Click Advanced and select HDBT Extra Range.

3. Select:

▪ Off – 1080p signal extends to 130m.
▪ On – extra range, 1080p signal extends to 180m.

HDBT range is defined.

13

Kramer Electronics Ltd.

VP-427X1 – Operating and Controlling VP-427X1

18

Viewing Device Information

Device information includes the selected source, the input and output resolutions, and the
software version.

To view the information:

1. On the front panel press MENU. The menu appears.

2. Click INFO and view the input resolution, output resolution and software version.
Information is displayed.

Performing a Reset

VP-427X1 enables performing either a soft reset or a full reset via the front panel MENU

buttons.

To reset the device:

1. On the front panel press MENU. The menu appears.

2. Click Factory and select either Reset (full reset) or a Soft Reset (reset device
information excluding Ethernet parameters), then click Yes.
Wait for completion of factory reset (resolution is set to Native).

Device is reset.

Operating via Ethernet

You can connect to VP-427X1 via Ethernet using either of the following methods:

• Directly to the PC using a crossover cable (see Connecting Ethernet Port Directly to a

PC on page 18).

• Via a network hub, switch, or router, using a straight-through cable (see Connecting

Ethernet Port via a Network Hub on page 20).

Note: If you want to connect via a router and your IT system is based on IPv6, speak to your
IT department for specific installation instructions.

Connecting Ethernet Port Directly to a PC

You can connect the Ethernet port of VP-427X1 directly to the Ethernet port on your PC using
a crossover cable with RJ-45 connectors.

This type of connection is recommended for identifying VP-427X1
with the factory configured default IP address.

After connecting VP-427X1 to the Ethernet port, configure your PC as follows:

1. Click Start > Control Panel > Network and Sharing Center.

2. Click Change Adapter Settings.

Kramer Electronics Ltd.

VP-427X1 – Operating and Controlling VP-427X1

19

3. Highlight the network adapter you want to use to connect to the device and click Change
settings of this connection.
The Local Area Connection Properties window for the selected network adapter appears
as shown in Figure 6.

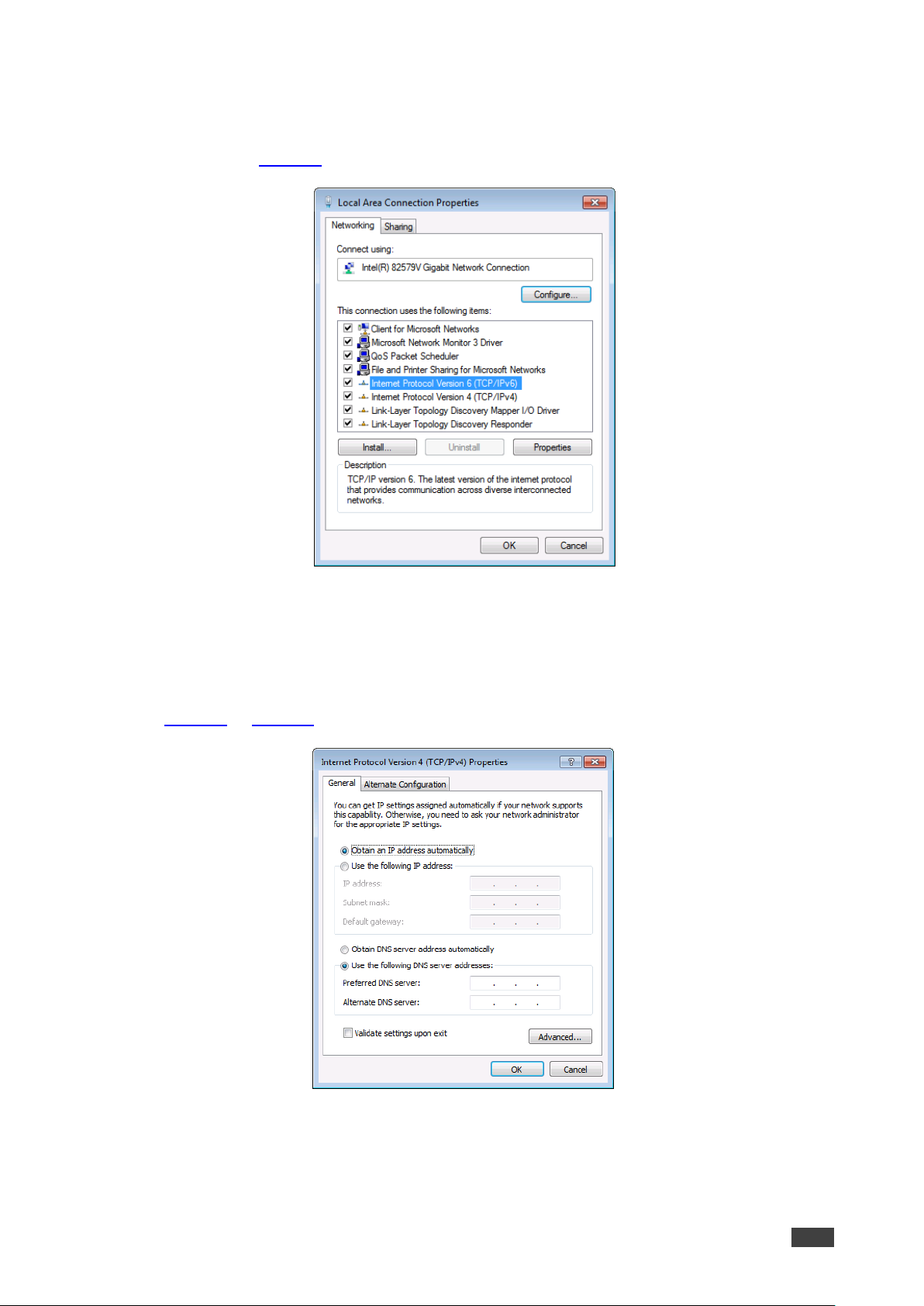

Figure 6: Local Area Connection Properties Window

4. Highlight either Internet Protocol Version 6 (TCP/IPv6) or Internet Protocol Version 4
(TCP/IPv4) depending on the requirements of your IT system.

5. Click Properties.
The Internet Protocol Properties window relevant to your IT system appears as shown in

Figure 7 or Figure 8.

Figure 7: Internet Protocol Version 4 Properties Window

Kramer Electronics Ltd.

VP-427X1 – Operating and Controlling VP-427X1

20

Figure 8: Internet Protocol Version 6 Properties Window

6. Select Use the following IP Address for static IP addressing and fill in the details as
shown in Figure 9.
For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to 192.168.1.255
(excluding 192.168.1.39) that is provided by your IT department.

Figure 9: Internet Protocol Properties Window

7. Click OK.

8. Click Close.

Connecting Ethernet Port via a Network Hub or Switch

You can connect the Ethernet port of VP-427X1 to the Ethernet port on a network hub or
using a straight-through cable with RJ-45 connectors.

Configuring Ethernet Port

You can set the Ethernet parameters via the embedded Web pages.

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

21

Using Embedded Web Pages

VP-427X1 can be operated remotely using the embedded Web pages. The Web pages are

accessed using a Web browser and an Ethernet connection.
Before attempting to connect:

• Perform the procedures in Operating via Ethernet on page 18.

• Ensure that your browser is supported.

The following operating systems and Web browsers are supported:

Operating Systems

Browser

Windows 7
IE

Firefox

Chrome

Safari

Windows 10

IE

Edge

Firefox

Chrome

Mac

Safari

iOS

Safari

Android

N/A

Some features might not be supported by some mobile device operating systems.

VP-427X1 enables performing the following:

• Loading and Saving Configurations on page 23.

• Entering Standby Mode on page 23.

• Configuring Video Input Settings on page 24.

• Selecting an Input on page 25.

• Freezing or Blanking the Video Output Signal on page 25.

• Adjusting the Output Volume on page 25.

• Upgrading the Firmware on page 27.

• Configuring Network Settings on page 28.

• Performing Device Soft Factory Reset on page 29.

• Configuring Video Output Settings on page 29.

• Configuring HDCP per Input/Output on page 30.

• Managing EDID on page 31.

• Adjusting the Audio Delay and Volume on page 33.

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

22

• Configuring Automatic Switching Settings on page 34.

• Defining CEC Functionality on page 35.

• Controlling VP-427X1 via the RS-232 Terminal Block Connectors on page 36.

• Managing Authentication on page 44.

• Viewing About Page on page 46.

To browse the VP-427X1 web pages:

1. Open your Internet browser.

2. Type the IP address of the device in the Address bar of your browser. For example, the
default IP address:

The Controller application page appears.

Figure 10: Controller Application Page with Navigation List on Left

3. Click the tabs on the left side of the screen to access the relevant web page.

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

23

Loading and Saving Configurations

VP-427X1 enables you to save a configuration to recall it in the future.

Saving a Configuration

To save the current configuration:

1. Configure the device as required.

2. In the Navigation pane, click Save.
The file is automatically saved in the Downloads folder (or another designated folder).

The current configuration is saved.

Loading a Configuration

To load a configuration:

1. In the navigation pane click Upload.
An Explorer window opens.

2. Select the required file and click Open.

The device is configured according to the saved preset.

Entering Standby Mode

VP-427X1 features a power saving standby mode that shuts down its outputs without having

to power off the unit.

To toggle between standby mode and normal operation:

• Click the power icon on the right-hand side of the web pages header.
When in standby mode, the icon displays a gray background:

Figure 11: VP-427X1 Standby Mode

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

24

Configuring Video Input Settings

VP-427X1 enables you to individually configure settings for each of the video inputs.

To configure video input settings:

1. Click Input Select on the Navigation List.
The Input Select page appears (Figure 10).

Figure 12: Web Pages – Input Select Page

2. In the Video Switching area, click the edit icon on the right side of the relevant video
input.
The settings window appears for the selected input.

Figure 13: Setting Window for HDBT

Figure 14: Setting Window for HDMI

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

25

3. If required, enter a new name, and click the save icon to change the name of the input
that appears in the web pages.

4. Click ON/OFF to enable/disable the HDCP decryption on the selected input.

If HDCP is disabled on an input, an HDCP encrypted source will not pass through the unit.

Inputs are configured.

Selecting an Input

To select an input to be switched to the output using the web pages:

1. Click Input Select on the Navigation List.
The Input Select page appears (Figure 10).

2. In the Video Switching area, click the required input button.
The input button turns green

The selected input is switched to the output.

Freezing or Blanking the Video Output Signal

To freeze or clear the video output, do one of the following:

1. Click Input Select on the Navigation List.
The Input Select page appears (Figure 10).

2. In the Video Switching area, click one of the following:

▪ – Freezes the currently displayed video frame.

To define what happens when you press the Freeze button,
see Defining FREEZE Button Operation Mode on page 16.

▪ – Blanks the video output from the display; the display goes blank.

Output video signal is frozen/blanked.

Adjusting the Output Volume

The analog audio output volume can also be adjusted from the Audio web page.

To adjust the output volume:

1. Click Input Select on the Navigation List.
The Input Select page appears (Figure 10).

2. Use the slider controls in the Volume area of the web page to change the volume or
enter the value in the text box above the slider.

3. Click to mute the output.

Audio output volume is adjusted.

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

26

Viewing Device Details

1. Click Device Settings on the Navigation List.
The Device Settings page appears.

Figure 15: The Device Settings Page

2. Under Device Settings, view device details: Model, Device Name, Serial Number, MAC
Address and Firmware Version.

Device details are viewed.

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

27

Upgrading the Firmware

To upgrade VP-427X1 firmware:

1. Click Device Settings on the Navigation List.
The Device Settings page appears (see Figure 15).

2. Under Firmware Update, click Choose File.
A file browser appears.

3. Open the required upgrade file.
The file name appears on the web page.

4. Click Upgrade.
a confirmation window appears.

5. Click OK. The new firmware is uploaded:

Figure 16: Device Settings Page –New Firmware Uploaded

6. Once the file is uploaded follow the instructions on the web page:
The new firmware is uploaded:

Figure 17: Device Settings Page – New Firmware File Uploading Complete

7. Re-enter the IP address and refresh the web page.

8. Make sure that the new version appears on the lower left side of the web page.

Figure 18: Current Firmware Information Display

Firmware upgrade is complete.

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

28

Configuring Network Settings

VP-427X1 enables you to use DHCP mode or to turn DHCP mode off and change Network

settings.

To configure Network settings:

1. Click Device Settings on the Navigation List.
The Device Settings page appears (see Figure 15).

2. Change Network settings as required:
a. In static mode (DHCP On is unchecked), change static Network settings as required:

 For example, change the IP address.

Figure 19: Changing the IP Address

 Click Set Changes. A confirmation message appears.

b. To select to work in DHCP mode instead of with static parameters, select the DHCP

On check box and click Set changes. A confirmation message appears.

3. Click OK to confirm the change.
The current web page session is disconnected. To access the web pages, reload with
the new setting.

Network settings are configured.

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

29

Performing Device Soft Factory Reset

VP-427X1 enables you to reset to factory default settings, with or without resetting the IP

parameters.

To perform soft factory reset:

1. Click Device Settings on the Navigation List.
The Device Settings page appears (see Figure 15).

2. Click Soft Factory Reset to restart the unit.
IP address values and User/Password settings do not return to their factory default
parameters.

The device resets.

For full factory reset, see Performing a Reset on page 18.

Configuring Video Output Settings

VP-427X1 enables you to configure settings for the video that is passed through the HDBT

and HDMI outputs.

To configure video output settings:

1. Click Output Settings on the Navigation List.
The Output Settings page appears.

Figure 20: The Output Settings Page

2. Open the Resolution drop-down box and select the required output resolution or select
one of the following:

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

30

▪ Native – sets the output resolution to match the native resolution of the connected

device.

3. Open the Size drop-down box and select the video size on the display: Over Scan, Full,
Best Fit, Pan Scan, Letter Box, Under 2, Under 1 and Follow In.

4. In the Picture area, use the slider controls to adjust the display picture quality.

5. Open the Noise Reduction drop-down box and select the level of noise reduction or
select Off.

Output settings are defined.

Configuring HDCP per Input/Output

VP-427X1 enables you to configure HDCP individually for each input/output.

To configure HDCP:

1. Click HDCP on the Navigation List.
The HDCP page appears.

Figure 21: The HDCP Page

2. In the On Output area, click one of the following:

▪ Input – signal is outputted with HDCP encryption when the input includes HDCP

encryption.

▪ Output – signal is always outputted with HDCP encryption when the output acceptor

supports it (even if the input does not include encryption).

3. In the On Input area, click ON or OFF for each of the inputs to turn on or off the HDCP
encryption for that input.

HDCP settings are defined.

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

31

Managing EDID

VP-427X1 enables you to individually configure and manage EDID settings for each of the

inputs.

To Copy EDID:

1. Click EDID on the Navigation List.
The EDID page appears.

Figure 22: The EDID Page

2. Under Read from, click the required EDID source or click Browse to use an EDID
configuration File.

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

32

3. Under Copy to, click the inputs to copy the selected EDID to.
The Copy button is enabled.

Figure 23: Selecting the EDID and Inputs

4. Click Copy.
The selected EDID is copied to the selected inputs and the Copy EDID Results message

appears.

Figure 24: The EDID Page – The Copy EDID Results

5. Click Close.

EDID is copied.

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

33

Adjusting the Audio Delay and Volume

VP-427X1 enables you to define the audio delay value (for lip-sync adjustment) and to set the

analog audio volume.

To adjust the audio settings:

1. Click Audio on the Navigation List.
The Audio page appears.

Figure 25: The Audio Settings Page

2. For Delay, select a time value in milliseconds.

3. Use the slider controls or enter a number from 0 to 100 in the field to adjust the volume
of the analog audio output.

Audio settings are defined.

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

34

Configuring Automatic Switching Settings

To configure automatic switching settings:

1. Click Advanced on the Navigation List.
The Advanced page appears.

Figure 26: The Advanced Page

2. Define Auto Sync Off:

▪ Off – disable the Auto Sync Off feature.
▪ Fast – shuts down after about 10 seconds.
▪ Slow – shuts down after about 2 minutes.
▪ Immediate – shuts down immediately.

3. Define Auto Switching:

▪ Off – Disable auto switching.
▪ Auto Scan – set auto-scanning.
▪ Last connected – when detecting that a source is connected to an input (which

previously had no signal), automatically switch to that input.

Auto Switching is defined.

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

35

Defining CEC Functionality

Define whether the unit automatically sends CEC on/off commands to the display (default) or
whether it passes CEC commands from the source to the display (see Defining CEC
on page 17).

To define the CEC behavior:

1. Click Advanced on the Navigation List.
The Advanced page appears.

2. Define Output CEC Bypass from the drop-down box:

▪ Off – Automatically send CEC commands to shut down the output display after a

timeout period when no input signal is found and to power up the display when the
input returns.

▪ On – Pass CEC commands from the source to the display.

CEC functionality is defined.

Defining the TOGGLE Pin Behavior

VP-427X1 enables defining the function of the REMOTE pin on the rear panel.
To configure the TOGGLE pin (see Connecting the Remote Control Switches on page 10):

1. Click Advanced on the Navigation List.
The Advanced page appears.

2. Select the TOGGLE pin configuration from the drop-down box:

▪ Edge = (toggle on/off).
▪ Input Select.
▪ GND=Off / Hi=On
▪ GND=On / Hi=Off
▪ Hi=Off
▪ Hi=On
▪ GND=Off
▪ GND=On

TOGGLE pin button is defined.

15

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

36

Controlling VP-427X1 via the RS-232 Terminal Block

Connectors

Configure the VP-427X1 RS-232 port to control the device, control an external device, or for
tunneling of RS-232 commands via HDBT or via the Ethernet.

Use the RS-232 CONTROL port to perform the following actions:

• Controlling VP-427X1 via the RS-232 Port on page 37.

• Controlling an External Device Via the RS-232 Port on page 38.

• Controlling an RS-232 External Device Via Local Ethernet Tunneling on page 40.

• Controlling an RS-232 External Device Via HDBT Tunneling on page 41.

• Controlling VP-427X1 Via HDBT Tunneling on page 42.

• Controlling an External Device Via HDBT Ethernet Tunneling on page 43.

12

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

37

Controlling VP-427X1 via the RS-232 Port

Connect the RS-232 port to a system controller to control the VP-427X1.

To control VP-427X1 via RS-232:

1. Connect a controlling system to the RS-232 port
(see Connecting to VP-427X1 via RS-232 on page 8).

Figure 27: Local Scaler Control

2. Click RS-232 on the Navigation List. The RS-232 page appears.

3. Set “Use RS-232 Port for control of” drop-down box to Scaler (local).

Figure 28: RS-232 Page – Controlling the VP-427X1

RS-232 port is used to control the VP-427X1.

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

38

Controlling an External Device Via the RS-232 Port

Control any external device (for example, the connected display) via RS-232 commands
triggered by VP-427X1.

Figure 29: External Control

To control an external device via RS-232 port:

1. Click RS-232 on the Navigation List. The RS-232 page appears.

2. Set “Use RS-232 Port for control of” drop-down box to External Control.

Figure 30: RS-232 Page – Controlling an External Device

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

39

3. Set RS-232 Configuration parameters to enable communication with the display that is
connected to the acceptor (or any other device with an RS-232 port).

Figure 31: RS-232 Device Configuration Parameters

4. Configure the external device commands as follows:

▪ Enter a device command (for example, turn POWER OFF).
▪ Enter the command description (for example, Turn Display Off).
▪ Select a trigger from the drop-down box to carry out the command (5V On, 5V Off,

Sync/Clock, No Sync/No Clock).

▪ Enter a delay time, if required.
▪ Check Hex for Hex command format, if required.
▪ Check Enable to enable the command.

Figure 32: RS-232 Page – Creating a Command

5. Click Add.

Figure 33: RS-232 Page – Command Added

6. You can:

▪ Click Delete to delete the command.
▪ Click Test to test the command.
▪ Change any of the command configurations.
▪ Enable or disable the command.

Commands are sent to the display via VP-427X1 RS-232 port.

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

40

Controlling an RS-232 External Device Via Local Ethernet Tunneling

Control any external device (for example, the connected display) using RS-232 commands
tunneled via VP-427X1’s Ethernet port.

Figure 34: Local Ethernet Tunneling

RS-232 commands can be tunneled from the VP-427X1 Ethernet port to the RS-232 port that
is connected to the external device.

To control an external device via local Ethernet Tunneling:

1. Click RS-232 on the Navigation List. The RS-232 page appears.

2. Set “Use RS-232 Port for control of” drop-down box to Ethernet Tunneling (Local).

Figure 35: RS-232 Page – Controlling an External Device via Local Ethernet Tunneling

3. Set RS-232 Configuration parameters to enable communication with the display that is
connected to the acceptor (or any other device with an RS-232 port), see Figure 31.

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

41

4. Set the tunneling port number (5100, by-default) and click Port Set.

5. Send the display RS-232 commands via Ethernet tunneling.

Commands are sent to the display via Ethernet tunneling.

Controlling an RS-232 External Device Via HDBT Tunneling

Control any external device (for example, the connected display) using an RS-232 controller
connected to the transmitter wired to the HDBT input. RS-232 commands are sent from the
control system to the transmitter and tunneled via HDBT to the VP-427X1 and fed to the
RS-232 device connected to VP-427X1.

Figure 36: External Device Control via HDBT Tunneling

To control an external device via HDBT Tunneling to the RS-232 port:

1. Click RS-232 on the Navigation List. The RS-232 page appears.

2. Set “Use RS-232 Port for control of” drop-down box to Tunneling (HDBT).

Figure 37: RS-232 Page – Controlling an External Device via HDBT Tunneling

3. Send the display RS-232 commands via HDBT tunneling.

Commands are sent to the display via HDBT tunneling.

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

42

Controlling VP-427X1 Via HDBT Tunneling

Control VP-427X1 using an RS-232 control system connected to the transmitter on the HDBT
input. RS-232 commands are sent from the control system connected to the transmitter and
tunneled via HDBT to VP-427X1 to control it.

In this case, RS-232 terminal block connector is not operational.

Figure 38: VP-427X1 Control via HDBT Tunneling

To control VP-427X1 via HDBT Tunneling to the RS-232 port:

1. Click RS-232 on the Navigation List. The RS-232 page appears.

2. Set “Use RS-232 Port for control of” drop-down box to Scaler (HDBT).

Figure 39: RS-232 Page – Controlling an External Device via HDBT Tunneling

3. Send the display RS-232 commands via HDBT tunneling.

Commands are sent to VP-427X1 via HDBT tunneling.

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

43

Controlling an External Device Via HDBT Ethernet Tunneling

Control any external device (for example, a connected display) using an Ethernet control
system connected to the transmitter wired to the HDBT input. RS-232 commands are sent
from the control system to the transmitter and tunneled via VP-427X1 HDBT to the RS-232
device connected to VP-427X1.

Figure 40: Ethernet Tunneling via HDBT

RS-232 commands can be tunneled from the VP-427X1 Ethernet port to the RS-232 port that
is connected to the external device.

To control an external device via Ethernet Tunneling to the RS-232 port:

1. Click RS-232 on the Navigation List. The RS-232 page appears.

2. Set “Use RS-232 Port for control of” drop-down box to Ethernet Tunneling (HDBT).

Figure 41: RS-232 Page – Controlling an External Device

3. Set RS-232 Configuration parameters to enable communication with the display that is
connected to the acceptor (or any other device with an RS-232 port), see Figure 31.

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

44

4. Set the tunneling port number (5100, by-default) and click Port Set.

5. Send the display RS-232 commands via HDBT Ethernet tunneling.

Commands are sent to the display via HDBT Ethernet tunneling.

Managing Authentication

By default, the web pages are not secured. This section describes how to change the
password and disable/enable access permission.

You can perform the following functions:

Securing Web Pages

To secure the Web pages with a user name and password:

1. In the Navigation pane, click Authentication. The Authentication page appears.

Figure 42: Authentication Page

2. Check Authenticate Web Pages access to indicate that you want the web pages to
lock.

3. Fill in a user name (the default is Admin).

4. Fill in a password (the default is Admin).

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

45

5. If you want the unit to automatically logout after a set number of minutes of inactivity,
check the box indicating Logout After, and set the number of minutes to wait before
locking the webpages.

6. Click Set changes.

The web pages lock according to settings.

Accessing Web Pages with a Password

When the web pages are locked, you will be prompted for your user name and password.

To access secured web pages:

1. In the Navigation pane, click Authentication. The Authentication page appears.

(Figure 42).

2. Enter the correct username and password.

3. Click the right arrow.

Figure 43: Prompt to unlock Web Pages

Web pages are secured.

Removing Password

To remove password protection from web pages:

1. In the Navigation pane, click Authentication. The Authentication page appears.

(Figure 42).

2. Uncheck Authenticate Web Pages access to indicate that you do not want the
webpages to lock.

3. Click Set changes. A confirmation message appears.

Web pages are not password protected.

Changing Password

To change the password:

1. In the Navigation pane, click Authentication. The Authentication page appears.

(Figure 42).

2. Enter the new Password.

3. Click Set changes. A confirmation message appears.

Password has changed.

Kramer Electronics Ltd.

VP-427X1 – Using Embedded Web Pages

46

Viewing About Page

View the Web page version and Kramer Electronics Ltd details in the About page.

Figure 44: The About Page

Kramer Electronics Ltd.

VP-427X1 – Upgrading Firmware

47

Upgrading Firmware

Upgrade the firmware in any of the following ways:

• Connecting the device to your PC and using Kramer K-UPLOAD software.

• Via PROG USB port (see USB Firmware Upgrade (USB Format FAT32)

on page 47).

• Via the embedded web pages (see Upgrading the Firmware on page 27).

The latest version of K-UPLOAD and installation instructions can be downloaded from our
website at: www.kramerav.com/support/product_downloads.asp.

USB Firmware Upgrade (USB Format FAT32)

To update the firmware via PROG USB port:

1. Save VP_427X1 bin. file (for example, VP_427X1_all_V*.bin) in USB flash driver and
plug into PROG USB port.

2. Press and hold ENTER+DOWN button for about 3 seconds until the two HDBT/HDMI
INPUT LEDs are lit, and then release buttons.
the device enters USB mode and firmware upgrade starts.
Upon completion (after about 30 seconds), the device reboots.

If the device is in USB mode but can’t read the firmware file or if the USB flash driver is not

connected, it reboots automatically after 10 seconds and exits the USB mode.

If the power drops during firmware upgrade, it automatically starts upgrading once the power
is back.

If the power drops in the early stages of firmware upgrade, you need to start firmware
upgrade again.

11

Kramer Electronics Ltd.

VP-427X1 – Technical Specifications

48

Technical Specifications

Inputs
HDBaseT

On an RJ-45 connector

HDMI

On a female HDMI connector

Outputs

HDMI

On a female HDMI connector

Balanced Analog Stereo Audio

On a 5-pin terminal block connector

Ports

IR

On a 3.5mm mini jack

RS-232

On a 3-pin terminal

Ethernet

On an RJ-45 female connector

Video

Max. Range

180m (590ft) at 1080p@60Hz
100m (328ft) at 4K@60Hz (4:2:0)

Max. Resolution

HDMI: 4K @60Hz (4:4:4)
HDBT: 4K @60Hz (4:2:0)

Latency

Up to 2 frames

Content Protection

HDCP 2.2/1.4

Switching Time Between Inputs

<2.5 seconds (constant output sync)

Audio

Output Impedance

500Ω

S/N Ratio

>95dB (A-Weighted)

THD+Noise

<0.003% @1kHz at 1Vpp

Crosstalk

<-94dB @1kHz

Output coupling

DC Maximum Output Level

14dBu

Extended Ethernet

Max Transmission Bandwidth

100BT

Extended RS-232

Baud Rate

4800 to 115200 baud

Control RS-232

Baud Rate

115200 baud

User Interface
Control

Input selection buttons, remote
contact-closure switches.
Kramer API via RS-232 serial commands
transmitted by a PC, touch screen system or
other serial controller, embedded web pages
via LAN for configuration and control

Indicators

Power, link, input selection LEDs

Power
Consumption

12V DC, 1500mA

Source

PoE or 12V DC, 5A

Environmental
Conditions

Operating Temperature

0° to +40°C (32° to 104°F)

Storage Temperature

-40° to +70°C (-40° to 158°F)

Humidity

10% to 90%, RHL non-condensing

Regulatory
Compliance

Safety

CE, FCC

Environmental

RoHs, WEEE

Enclosure

Size

MegaTOOLS®, deep

Type

Aluminum

Cooling

Convection Ventilation

General

Net Dimensions (W, D, H)

18.8cm x 14.5cm x 2.54cm (7.4" x 5.7" x 1")

Shipping Dimensions (W, D, H)

35.1cm x 21.2cm x 7.2cm (13.8" x 8.4" x 2.8")

Net Weight

0.9kg (2.0lbs) approx.

Shipping Weight

1.1kg (2.4lbs) approx.

Accessories

Included

Power cord and adapter

Specifications are subject to change without notice at www.kramerav.com

Kramer Electronics Ltd.

VP-427X1 – Technical Specifications

49

Default Communication Parameters

RS-232

Baud Rate:

115,200

Data Bits:

8

Stop Bits:

1

Parity:

None

Command Format:

ASCII

Example (Route video HDBT INPUT to HDMI OUTPUT):

#ROUTE1,1,1<CR>

Ethernet

To reset the IP settings to the factory reset values go to: Menu->Setup -> Factory Reset-> press Enter to
confirm

IP Address:

192.168.1.39

Subnet mask:

255.255.0.0

Default gateway:

192.168.0.1

TCP Port #:

5000

UDP Port #:

50000

Default username:

Admin

Default password:

Admin

Factory Reset

OSD

Go to: Menu > Factory > select either Reset (full reset) or a Soft Reset (reset
device information excluding Ethernet parameters).

Front panel buttons

Press the Reset to XGA/1080p Button while plugging the power to reset the
machine.

Embedded web pages

Device Settings > Soft Factory Reset.

Kramer Electronics Ltd.

VP-427X1 – Protocol 3000

50

Protocol 3000

Kramer devices can be operated using Kramer Protocol 3000 commands sent via serial or
Ethernet ports.

Understanding Protocol 3000

Protocol 3000 commands are a sequence of ASCII letters, structured according to the
following.

• Command format:

Prefix

Command Name

Constant (Space)

Parameter(s)

Suffix

#

Command



Parameter

<CR>

• Feedback format:

Prefix

Device ID

Constant

Command Name

Parameter(s)

Suffix

~

nn @ Command

Parameter

<CR><LF>

• Command parameters – Multiple parameters must be separated by a comma (,). In
addition, multiple parameters can be grouped as a single parameter using brackets ([
and ]).

• Command chain separator character – Multiple commands can be chained in the
same string. Each command is delimited by a pipe character (|).

• Parameters attributes – Parameters may contain multiple attributes. Attributes are
indicated with pointy brackets (<…>) and must be separated by a period (.).

The command framing varies according to how you interface with VP-427X1. The following
figure displays how the # command is framed using terminal communication software (such
as Hercules):

Kramer Electronics Ltd.

VP-427X1 – Protocol 3000

51

Protocol 3000 Commands

Function

Description

Syntax

Parameters/Attributes

Example

#

Protocol handshaking.

Validates the
Protocol 3000
connection and gets the
machine number.

Step-in master products
use this command to
identify the availability
of a device.

COMMAND

#<CR>

FEEDBACK

~nn@ok<CR><LF>

#<CR>

AUD-LVL

Set volume level.

COMMAND

#AUD-LVLio_mode,io_index,vol_level<CR>

FEEDBACK

~nn@AUD-LVLio_mode,io_index,vol_level<CR><LF>

io_mode –

1 – Output

io_index – 0
vol_level – Volume level 0 to

100;

++ (increase current value by 1);

-- (decrease current value by 1)

Set audio output level to 50:

#AUD-LVL1,0,50<CR>

AUD-LVL?

Get volume level.

COMMAND

#AUD-LVL?io_mode,io_index<CR>

FEEDBACK

~nn@AUD-LVLio_mode,io_index,vol_level<CR><LF>

io_mode –

1 – Output

io_index – 0
vol_level – Volume level 0 to

100;

++ (increase current value by 1);

-- (decrease current value by 1)

Get audio output level

#AUD-LVL?1,0<CR>

AV-SW­MODE

Set input auto switch
mode (per output).

COMMAND

#AV-SW-MODElayer_type,out_index,connection_mode<CR>

FEEDBACK

~nn@AV-SW-MODElayer_type,out_index,connection_mode<CR><

LF>

layer_type – Number that

indicates the signal type:

1 – Audio+Video

out_index – 1
connection_mode – Connection

mode

0 – manual
1 – priority switch
2 – last connected switch

Set input auto switch mode
to manual:

#AV-SW-MODE1,1,0<CR>

AV-SW­MODE?

Get input auto switch
mode (per output).

COMMAND

#AV-SW-MODE?layer_type,out_index<CR>

FEEDBACK

~nn@AV-SW-MODElayer_type,out_index,connection_mode<CR><

LF>

layer_type – Number that

indicates the signal type:

1 – Audio+Video

out_index – 1
connection_mode – Connection

mode

0 – manual
1 – priority switch
2 – last connected switch

Get the input audio switch
mode:

#AV-SW-MODE?1,1<CR>

BUILD­DATE?

Get device build date.

COMMAND

#BUILD-DATE?<CR>

FEEDBACK

~nn@BUILD-DATEdate,time<CR><LF>

date – Format: YYYY/MM/DD

where

YYYY = Year
MM = Month
DD = Day

time – Format: hh:mm:ss where

hh = hours
mm = minutes
ss = seconds

Get the device build date:

#BUILD-DATE?<CR>

CEC

Set display to ON/OFF

COMMAND

#CECstate<CR>

FEEDBACK

~nn@CECstate<CR><LF>

state – CEC state

Off
On

Set display to OFF via CEC:

#CEC OFF<CR>

CEC-PASS

Set CEC device bypass.

COMMAND

#CEC-PASSstate<CR>

FEEDBACK

~nn@CEC-PASSstate<CR><LF>

state – CEC state

0 – Off
1 – On

Set bypass device state:

#CEC-PASS1<CR>

CEC-PASS?

Get CEC device bypass
state.

COMMAND

#CEC-PASS?<CR>

FEEDBACK

~nn@CEC-PASSstate<CR><LF>

state – CEC state

0 – Off
1 – On

Get bypass device state:
#CEC-PASS?<CR>

CPEDID

Copy EDID data from
the output to the input
EEPROM.

Destination bitmap
size depends on device
properties (for 64 inputs
it is a 64-bit word).

Example: bitmap
0x0013 means inputs
1,2 and 5 are loaded
with the new EDID.

In certain products
Safe_mode is an
optional parameter.
See the HELP
command for its
availability.

COMMAND

#CPEDIDedid_io,src_id,edid_io,dest_bitmap<CR>

or

#CPEDIDedid_io,src_id,edid_io,dest_bitmap,safe_mode<CR>

FEEDBACK

~nn@CPEDIDedid_io,src_id,edid_io,dest_bitmap<CR><LF>

~nn@CPEDIDedid_io,src_id,edid_io,dest_bitmap,safe_mode<

CR><LF>

edid_io – EDID source type

(usually output)

1 – Output

src_id – Number of chosen

source stage

1 – HDMI

edid_io – EDID destination type

(usually input)

0 – Input

dest_bitmap – Bitmap

representing destination IDs.

0x01 – HDBT
0x02 – HDMI

0 – indicates that EDID data is not

copied to this destination.

1 – indicates that EDID data is

copied to this destination.

safe_mode – Safe mode

0 – device accepts the EDID as is

without trying to adjust

1 – device tries to adjust the EDID

(default value if no parameter
is sent)

Copy the EDID data from the
Output (EDID source) to the
HDBT input:

#CPEDID1,1,0,0x01<CR

>

Kramer Electronics Ltd.

VP-427X1 – Protocol 3000

52

Function

Description

Syntax

Parameters/Attributes

Example

DISPLAY?

Get output HPD status.

COMMAND

#DISPLAY?out_index<CR>

FEEDBACK

~nn@DISPLAYout_index,status<CR><LF>

out_index – 1
status – HPD status according to

signal validation

0 – Signal or sink is not valid
1 – Signal or sink is valid
2 – Sink and EDID is valid

Get the output HPD status of
the output:

#DISPLAY?1<CR>

ETH-PORT

Set Ethernet port
protocol.

If the port number
you enter is already in
use, an error is
returned.
The port number must
be within the following
range: 0-(2^16-1).

COMMAND

#ETH-PORTport_type,port_id<CR>

FEEDBACK

~nn@ETH-PORTport_type,port_id<CR><LF>

port_type – TCP/UDP
port_id – TCP/UDP port number

(0 – 65535)

Set the Ethernet port
protocol for TCP to port
12457:

#ETH-PORT0,12457<CR>

ETH-PORT?

Get Ethernet port
protocol.

COMMAND

#ETH-PORT?port_type<CR>

FEEDBACK

~nn@ETH-PORTport_type,port_id<CR><LF>

port_type – TCP/UDP

0 – TCP
1 – UDP

port_id – TCP / UDP port number

(0 – 65535)

Get the Ethernet port
protocol for UDP:

#ETH-PORT?1<CR>

FACTORY

Reset device to factory
default configuration.

This command
deletes all user data
from the device. The
deletion can take some
time.

Your device may
require powering off
and powering on for the
changes to take effect.

COMMAND

#FACTORY<CR>

FEEDBACK

~nn@FACTORYok<CR><LF>

Reset the device to factory
default configuration:

#FACTORY<CR>

HDCP-MOD

Set HDCP mode.

Set HDCP working
mode on the device
input:

HDCP supported ­HDCP_ON [default].

HDCP not supported ­HDCP OFF.

HDCP support changes
following detected sink

- MIRROR OUTPUT.
When you define 3 as

the mode, the HDCP
status is defined
according to the
connected output in the
following priority: OUT
1, OUT 2. If the
connected display on
OUT 2 supports HDCP,
but OUT 1 does not,
then HDCP is defined
as not supported. If
OUT 1 is not
connected, then HDCP
is defined by OUT 2.

COMMAND

#HDCP-MODio_stage,io_index,mode<CR>

FEEDBACK

~nn@HDCP-MODio_stage,io io_index,mode<CR><LF>

io_mode,

0 – Input
1 – Output

io_index –

For inputs:

1 – HDBT
2 – HDMI

For input: 1

mode – HDCP mode:

for inputs

0 – HDCP Off
1 – HDCP On

For output

2 – Follow Input
3 – Follow output (HDCP defined

according to the connected
output)

Set the input HDCP-MODE
of HDBT to Off:

#HDCP-MOD0,1,0<CR>

HDCP-MOD?

Get HDCP mode.

Set HDCP working
mode on the device
input:

HDCP supported ­HDCP_ON [default].

HDCP not supported ­HDCP OFF.

HDCP support changes
following detected sink

- MIRROR OUTPUT.

COMMAND

#HDCP-MOD?io_stage,io_index<CR>

FEEDBACK

~nn@HDCP-MODiio_stage,io_index,mode<CR><LF>

io_mode,

0 – Input
1 – Output

io_index –

For inputs:

1 – HDBT
2 – HDMI

For input: 1

mode – HDCP mode:

for inputs

0 – HDCP Off
1 – HDCP On

For output

2 – Follow Input
3 – Follow output (HDCP defined

according to the connected
output)

Get the input HDCP-MODE
of HDMI:

#HDCP-MOD?0,2<CR>

HELP

Get command list or
help for specific
command.

COMMAND

#HELP<CR>

#HELPcmd_name<CR>

FEEDBACK

1. Multi-line:

~nn@Devicecmd_name,cmd_name…<CR><LF>

To get help for command use: HELP (COMMAND_NAME)<CR><LF>

~nn@HELPcmd_name:<CR><LF>

description<CR><LF>

USAGE:usage<CR><LF>

cmd_name – Name of a specific

command

Get the command list:

#HELP<CR>

To get help for
AV-SW-TIMEOUT:
HELPav-sw-timeout<C

R>

Kramer Electronics Ltd.

VP-427X1 – Protocol 3000

53

Function

Description

Syntax

Parameters/Attributes

Example

IMAGE­PROP

Set the image size.

Sets the image
properties of the
selected scaler.

COMMAND

#IMAGE-PROPscaler_id<CR>

FEEDBACK

~nn@IMAGE-PROPscaler_id,video_mode…<CR><LF>

scaler_id – Scaler number – 1
video_mode – Status

0 – Over scan
1 – Full
2 – Best fit
3 – Pan scan
4 – Letter box
5 – Under 2
6 – Under 1
7 – Follow in

Set the image size to Full:

#IMAGE-PROP1,1<CR>

IMAGE­PROP?

Get the image size.

Gets the image
properties of the
selected scaler.

COMMAND

#IMAGE-PROP?scaler_id<CR>

FEEDBACK

~nn@IMAGE-PROPscaler_id,video_mode…<CR><LF>

scaler_id – Scaler number – 1
video_mode – Status

0 – Over scan
1 – Full
2 – Best fit
3 – Pan scan
4 – Letter box
5 – Under 2
6 – Under 1
7 – Follow in

Get the image size:

#IMAGE-PROP?1<CR>

MODEL?

Get device model.

This command
identifies equipment
connected to VP-427X1
and notifies of identity
changes to the
connected equipment.
The Matrix saves this
data in memory to
answer REMOTE-INFO
requests.

COMMAND

#MODEL?<CR>

FEEDBACK

~nn@MODELmodel_name<CR><LF>

model_name – String of up to 19

printable ASCII chars

Get the device model:

#MODEL?<CR>

MUTE

Set audio mute.

COMMAND

#MUTEout_index,mute_mode<CR>

FEEDBACK

~nn@MUTEout_index,mute_mode<CR><LF>

out_index – 1
mute_mode – On/Off

0 – Off
1 – On

Set output to mute:

#MUTE1,1<CR>

MUTE?

Get audio mute.

COMMAND

#MUTE?out_index<CR>

FEEDBACK

~nn@MUTEout_index,mute_mode<CR><LF>

out_index – 1
mute_mode – On/Off

0 – Off
1 – On

Get mute status of output:

#MUTE1?<CR>

NAME

Set machine (DNS)
name.

The machine name
is not the same as the
model name. The
machine name is used
to identify a specific
machine or a network in
use (with DNS feature
on).

COMMAND

#NAMEmachine_name<CR>

FEEDBACK

~nn@NAMEmachine_name<CR><LF>

machine_name – String of up to 15

alpha-numeric chars (can include
hyphen, not at the beginning or end)

Set the DNS name of the
device to room-442:

#NAMEroom-442<CR>

NAME?

Get machine (DNS)
name.

The machine name
is not the same as the
model name. The
machine name is used
to identify a specific
machine or a network in
use (with DNS feature
on).

COMMAND

#NAME?<CR>

FEEDBACK

~nn@NAMEmachine_name<CR><LF>

machine_name – String of up to 15

alpha-numeric chars (can include
hyphen, not at the beginning or end)

Get the DNS name of the
device:

#NAME?<CR>
NAME-RST

Reset machine (DNS)
name to factory default.

Factory default of
machine (DNS) name is

“KRAMER_” + 4 last

digits of device serial
number.

COMMAND

#NAME-RST<CR>

FEEDBACK

~nn@NAME-RSTok<CR><LF>

Reset the machine name
(S/N last digits are 0102):

#NAME­RSTkramer_0102<CR>

Kramer Electronics Ltd.

VP-427X1 – Protocol 3000

54

Function

Description

Syntax

Parameters/Attributes

Example

NET-DHCP

Set DHCP mode.

Only 1 is relevant
for the mode value. To
disable DHCP, the user
must configure a static
IP address for the
device.

Connecting Ethernet to
devices with DHCP
may take more time in
some networks.

To connect with a
randomly assigned IP
by DHCP, specify the
device DNS name (if
available) using the
NAME command. You
can also get an
assigned IP by direct
connection to USB or
RS-232 protocol port, if
available.

For proper settings
consult your network
administrator.

COMMAND

#NET-DHCPdhcp_state<CR>

FEEDBACK

~nn@NET-DHCP dhcp_state<CR><LF>

dhcp_state –

0 – Static IP
1 – DHCP

Enable DHCP mode:

#NET-DHCP1<CR>

NET-DHCP?

Get DHCP mode.

COMMAND

#NET-DHCP?<CR>

FEEDBACK

~nn@NET-DHCPdhcp_mode<CR><LF>

dhcp_state –

0 – Static IP
1 – DHCP

Get DHCP mode:

#NET-DHCP?<CR>

NET-GATE

Set gateway IP.

A network gateway
connects the device via
another network and
maybe over the
Internet. Be careful of
security issues. For
proper settings consult
your network
administrator.

COMMAND

#NET-GATEip_address<CR>

FEEDBACK

~nn@NET-GATEip_address<CR><LF>

ip_address – Format:

xxx.xxx.xxx.xxx

Set the gateway IP address
to 192.168.0.1:

#NET­GATE192.168.000.001<

CR>

NET-GATE?

Get gateway IP.

A network gateway
connects the device via
another network and
maybe over the
Internet. Be aware of
security problems.

COMMAND

#NET-GATE?<CR>

FEEDBACK

~nn@NET-GATEip_address<CR><LF>

ip_address – Format:

xxx.xxx.xxx.xxx

Get the gateway IP address:

#NET-GATE?<CR>

NET-IP

Set IP address.

For proper settings
consult your network
administrator.

COMMAND

#NET-IPip_address<CR>

FEEDBACK

~nn@NET-IPip_address<CR><LF>

ip_address – Format:

xxx.xxx.xxx.xxx

Set the IP address to

192.168.1.39:

#NET­IP192.168.001.039<CR

>

NET-IP?

Get IP address.

COMMAND

#NET-IP?<CR>

FEEDBACK

~nn@NET-IPip_address<CR><LF>

ip_address – Format:

xxx.xxx.xxx.xxx

Get the IP address:

#NET-IP?<CR>

NET-MAC?

Get MAC address.

For backward
compatibility, the id
parameter can be
omitted. In this case,
the Network ID, by
default, is 0, which is
the Ethernet control
port.

COMMAND

#NET-MAC?id<CR>

FEEDBACK

~nn@NET-MACid,mac_address<CR><LF>

id – Network ID–the device

network interface (if there are more
than one). Counting is 0 based,

meaning the control port is ‘0’,
additional ports are 1,2,3….

mac_address – Unique MAC

address. Format: XX-XX-XX-XX­XX-XX where X is hex digit

#NET-MAC?id<CR>

NET-MASK

Set subnet mask.

For proper settings
consult your network
administrator.

COMMAND

#NET-MASKnet_mask<CR>

FEEDBACK

~nn@NET-MASKnet_mask<CR><LF>

net_mask – Format:

xxx.xxx.xxx.xxx

Set the subnet mask to

255.255.0.0:

#NET­MASK255.255.000.000<

CR>

NET-MASK?

Get subnet mask.

COMMAND

#NET-MASK?<CR>

FEEDBACK

~nn@NET-MASKnet_mask<CR><LF>

net_mask – Format:

xxx.xxx.xxx.xxx

Get the subnet mask:

#NET-MASK?<CR>

PROT-VER?

Get device protocol
version.

COMMAND

#PROT-VER?<CR>

FEEDBACK

~nn@PROT-VER3000:version<CR><LF>

version – XX.XX where X is a

decimal digit

Get the device protocol
version:

#PROT-VER?<CR>

RESET

Reset device.

To avoid locking the
port due to a USB bug
in Windows, disconnect
USB connections
immediately after
running this command.
If the port was locked,
disconnect and
reconnect the cable to
reopen the port.

COMMAND

#RESET<CR>

FEEDBACK

~nn@RESETok<CR><LF>

Reset the device:

#RESET<CR>

Kramer Electronics Ltd.

VP-427X1 – Protocol 3000

55

Function

Description

Syntax

Parameters/Attributes

Example

ROUTE

Set layer routing.

This command
replaces all other
routing commands.

COMMAND

#ROUTElayer_type,out_index,in_index<CR>

FEEDBACK

~nn@ROUTElayer_type,out_index,in_index<CR><LF>

layer_type Layer Enumeration

1 – Video+Audio

out_index

1

in_index – Source id

1 –HDBT
2 – HDMI

Route video HDMI to output:

#ROUTE1,1,2<CR>

ROUTE?

Get layer routing.

This command
replaces all other
routing commands.

COMMAND

#ROUTE?layer_type,out_index<CR>

FEEDBACK

~nn@ROUTElayer_type,out_index,in_index<CR><LF>

layer_type Layer Enumeration

1 – Video+Audio

out_index

1

in_index – Source id

1 –HDBT
2 – HDMI

Get the layer routing:

#ROUTE?1,1<CR>

SCLR-AS

Set auto-sync features.

Sets the auto sync
features for the
selected scaler.

COMMAND

#SCLR-ASscaler_index,sync_speed<CR>

FEEDBACK

~nn@SCLR-ASscaler_index,sync_speed<CR><LF>

scaler_index – 1
sync_speed – 0, 1 or 2

0 – off
1 – fast
2 – slow
3 - immediate

Set auto-sync off to
immediate:

#SCLR-AS1,3<CR>

SCLR-AS?

Get auto-sync features.

Gets the auto sync
features for the
selected scaler.

COMMAND

#SCLR-AS?scaler_index<CR>

FEEDBACK

~nn@SCLR-ASscaler_index,sync_speed<CR><LF>

scaler_index – 1
sync_speed – 0, 1 or 2

0 – off
1 – fast
2 – slow
3 - immediate

Get auto-sync features:

#SCLR-AS?1<CR>

SCLR­AUDIO­DELAY

Set the scaler audio
delay.

Sets the audio delay
for the selected audio
output.

COMMAND

#SCLR-AUDIO-DELAYscaler_index,delay<CR>

FEEDBACK

~nn@SCLR-AUDIO-DELAYscaler_index,delay<CR><LF>

scaler_index – 1
delay –

0 – Off
1 – 40ms
2 – 110ms
3 – 150ms

Set the scaler audio delay to
40ms:

#SCLR-AUDIO-DELAY1,1

<CR>

SCLR­AUDIO­DELAY?

Get the scaler audio
delay.

Gets the audio
delay for the selected
audio output.

COMMAND

#SCLR-AUDIO-DELAY?scaler_index<CR>

FEEDBACK

~nn@SCLR-AUDIO-DELAYscaler_index,delay<CR><LF>

scaler_index – 1
delay –

0 – Off
1 – 40ms
2 – 110ms
3 – 150ms

Get the scaler audio delay:

#SCLR-AUDIO-DELAY?1<

CR>

SIGNAL?

Get input signal status.

COMMAND

#SIGNAL?in_index<CR>

FEEDBACK

~nn@SIGNALin_index,status<CR><LF>

in_index – Number that indicates

the specific input:

1 –HDBT
2 – HDMI

status – Signal status according

to signal validation:

0 – Off
1 – On

Get the input signal lock
status of HDBT:

#SIGNAL?1<CR>

SN?

Get device serial
number.

COMMAND

#SN?<CR>

FEEDBACK

~nn@SNserial_num<CR><LF>

serial_num – 14 decimal digits,

factory assigned

Get the device serial
number:

#SN?<CR>

VERSION?

Get firmware version
number.

COMMAND

#VERSION?<CR>

FEEDBACK

~nn@VERSIONfirmware_version<CR><LF>

firmware_version –

XX.XX.XXXX where the digit groups
are: major.minor.build version

Get the device firmware
version number:

#VERSION?<CR>

VFRZ

Set freeze on selected
output.

COMMAND

#VFRZout_index,freeze_flag<CR>

FEEDBACK

~nn@VFRZout_index,freeze_flag<CR><LF>

out_index – 1
freeze_flag – On/Off

0 – Off
1 – On

Set freeze on selected
output:

#VFRZ1,1<CR>

VFRZ?

Get output freeze
status.

COMMAND

#VFRZ?out_index<CR>

FEEDBACK

~nn@VFRZout_index,freeze_flag<CR><LF>

out_index – 1
freeze_flag – On/Off

0 – Off
1 – On

Get output freeze status:

#VFRZ?1<CR>

Kramer Electronics Ltd.

VP-427X1 – Protocol 3000

56

Function

Description

Syntax

Parameters/Attributes

Example

VID-RES

Set output resolution.

“Set” command with
is_native=ON sets
native resolution on
selected output
(resolution index sent =

0). Device sends as
answer actual VIC ID of
native resolution.

To use “custom
resolutions” (entries

100-105 In View
Modes), define them
using the DEF-RES
command.

COMMAND

#VID-RESio_mode,io_index,is_native,resolution<CR>

FEEDBACK

~nn@VID-RESio_mode,io_index,is_native,resolution<CR><LF

>

io_mode – Output

1 – Output

io_index – 1
is_native – Native resolution flag

0 – Off

resolution – Resolution index

200= Native
201=640x480
202= 800x600
203=1024x768
204=1280x768
205=1360x768
206=1280x720
207=1280x800
208=1280x1024
209=1440x900
210=1400x1050
211=1680x1050
212=1600x1200
213=1920x1080
214=1920x1200
215=2560x1600
216=2560x1440
217=480p
218=576p
219=720p50
220=720p60
221=1080p24
222=1080p25
223=1080p30
224=1080p50
225=1080p60
226=4K24
227=4K25
228=4K30
229=4K50
230=4K60

Set output resolution:

#VID-RES1,1,0,1<CR>

VID-RES?

Get output resolution.

“Get” command with
is_native=ON returns
native resolution VIC,
with is_native=OFF
returns current
resolution.

To use “custom
resolutions” (entries

100-105 In View
Modes), define them
using the DEF-RES
command.

COMMAND

#VID-RES?io_mode,io_index,is_native<CR>

FEEDBACK

~nn@VID-RES?io_mode,io_index,is_native,resolution<CR><L

F>

io_mode – Input/Output

0 – Input
1 – Output

io_index – Number that indicates

the specific input or output port:
1-N (N= the total number of input or
output ports)

is_native – Native resolution flag

0 – Off
1 – On

resolution – Resolution index
io_mode – Output

1 – Output

io_index – 1
is_native – Native resolution flag

0 – Off

resolution – Resolution index

200= Native
201=640x480
202= 800x600
203=1024x768
204=1280x768
205=1360x768
206=1280x720
207=1280x800
208=1280x1024
209=1440x900
210=1400x1050
211=1680x1050
212=1600x1200
213=1920x1080
214=1920x1200
215=2560x1600
216=2560x1440
217=480p
218=576p
219=720p50
220=720p60
221=1080p24
222=1080p25
223=1080p30
224=1080p50
225=1080p60
226=4K24
227=4K25
228=4K30
229=4K50

230=4K60

Set output resolution:

#VID-RES?1,1,1<CR>

VMUTE

Set enable/disable
video on output.

COMMAND

#VMUTEout_index,flag<CR>

FEEDBACK

~nn@VMUTEout_index,flag<CR><LF>

out_index – 1
flag – Video Mute

0 – Video enabled
1 – Video disabled

Disable the video output on
OUT 2:

#VMUTE1,0<CR>

VMUTE?

Get video on output
status.

COMMAND

#VMUTE?out_index<CR>

FEEDBACK

~nn@VMUTEout_index,flag<CR><LF>

out_index – 1
flag – Video Mute

0 – Video enabled
1 – Video disabled

Get video on output status:

#VMUTE?1<CR>

Kramer Electronics Ltd.

VP-427X1 – Protocol 3000

57

Function

Description

Syntax

Parameters/Attributes

Example

X-AUD-LVL

Set audio level of a
specific signal.

This is an Extended
Protocol 3000
command.

COMMAND

#X-AUD-LVL<direction_type>. <port_format>. <port_index>.

<signal_type>. <index>,audio_level<CR>

FEEDBACK

~nn@X-AUD-LVL<direction_type>. <port_format>.

<port_index>. <signal_type>. <index>,audio_level<CR><LF>

The following attributes comprise
the signal ID:

▪ <direction_type> –

Direction of the port:

o OUT – Output

▪ <port_format> – Type of

signal on the port:

o HDMI

▪ <port_index> – 1
▪ <signal_type> – Signal ID

attribute:

o AUDIO

▪ <index> – 1

audio_level – Audio level (range

between 0 to 100) depending of the
ability of the product

Set the audio level of HDMI
output to 10:

#X-AUD-LVLOUT.HDMI.1
.AUDIO.1,10<CR>

X-AUD­LVL?

Get audio level of a
specific signal.

This is an Extended
Protocol 3000
command.

COMMAND

#X-AUD-LVL?<direction_type>. <port_format>. <port_index>.

<signal_type>. <index><CR>

FEEDBACK

~nn@X-AUD-LVL<direction_type>. <port_format>.

<port_index>. <signal_type>. <index>,audio_level<CR><LF>

The following attributes comprise
the signal ID:

▪ <direction_type> –

Direction of the port:

o OUT – Output

▪ <port_format> – Type of

signal on the port:

o HDMI

▪ <port_index> – 1
▪ <signal_type> – Signal ID

attribute:

o AUDIO

▪ <index> – 1

audio_level – Audio level (range

between 0 to 100) depending of the
ability of the product

Get the audio level of HDMI
output:

#X-AUD-LVL?OUT.HDMI.

1.AUDIO.1<CR>

X-AV-SW­MODE

Set auto-switch mode
per output.

This is an Extended
Protocol 3000
command.

COMMAND

#X-AV-SW-MODE<direction_type>. <port_format>.

<port_index>. <signal_type>. <index>,connection_mode<CR>

FEEDBACK

~nn@X-AV-SW-MODE<direction_type>. <port_format>.

<port_index>. <signal_type>.
<index>,connection_mode<CR><LF>

The following attributes comprise
the signal ID:

▪ <direction_type> –

Direction of the port:

o OUT – Output

▪ <port_format> – Type of

signal on the port:

o HDMI

▪ <port_index> – 1
▪ <signal_type> – Signal ID

attribute:

o VIDEO

▪ <index> – 1

connection_mode – Connecton

mode

0 – manual
1 – Auto Scan
2 – last connected

Set auto switch mode for the
output to last connected:

#X-AV-SW-MODEOUT.HDM

I.1.VIDEO.1,2<CR>

X-AV-SW­MODE?

Get auto-switch mode.

This is an Extended
Protocol 3000
command.

COMMAND

#X-AV-SW-MODE?<direction_type>. <port_format>.

<port_index>. <signal_type>. <index><CR>

FEEDBACK

~nn@X-AV-SW-MODE<direction_type>. <port_format>.

<port_index>. <signal_type>.
<index>,connection_mode<CR><LF>

The following attributes comprise
the signal ID:

▪ <direction_type> –

Direction of the port:

o OUT – Output

▪ <port_format> – Type of

signal on the port:

o HDMI

▪ <port_index> – 1
▪ <signal_type> – Signal ID

attribute:

o VIDEO

▪ <index> – 1

connection_mode – Connecton

mode

0 – manual
1 – Auto Scan
2 – last connected

Get auto switch mode for the
output:

#X-AV-SW-MODE?OUT.HD

MI.1.VIDEO.1<CR>

X-MUTE

Set mute ON/OFF on a
specific signal.

This command is
designed to Mute a
Signal. This means that
it could be applicable
on any type of signal.
Could be audio, video
and maybe IR, USB or
data if this capability is
supported by the
product.

This is an Extended
Protocol 3000
command.

COMMAND

#X-MUTE<direction_type>. <port_format>. <port_index>.

<signal_type>. <index>,state<CR>

FEEDBACK

~nn@X-MUTE<direction_type>. <port_format>. <port_index>.

<signal_type>. <index>,state<CR><LF>

The following attributes comprise
the signal ID:

▪ <direction_type> –

Direction of the port:

o OUT – Output

▪ <port_format> – Type of

signal on the port:

o HDMI

▪ <port_index> – 1
▪ <signal_type> – Signal ID

attribute:

o VIDEO
o AUDIO

▪ <index> – 1

state – OFF/ON (not case

sensitive)

Mute the audio on the HDMI
output:

#X-MUTEout.hdmi.1.au

dio.1,on<CR>

Kramer Electronics Ltd.

VP-427X1 – Protocol 3000

58

Function

Description

Syntax

Parameters/Attributes

Example

X-MUTE?

Get mute ON/OFF state
on a specific signal.

This command is
designed to Mute a
Signal. This means that
it could be applicable
on any type of signal.
Could be audio, video
and maybe IR, USB or
data if this capability is
supported by the
product.

This is an Extended
Protocol 3000
command.

COMMAND

#X-MUTE?<direction_type>. <port_format>. <port_index>.

<signal_type>. <index><CR>

FEEDBACK

~nn@X-MUTE<direction_type>. <port_format>. <port_index>.

<signal_type>. <index>,state<CR><LF>

The following attributes comprise
the signal ID:

▪ <direction_type> –

Direction of the port:

o OUT – Output

▪ <port_format> – Type of

signal on the port:

o HDMI

▪ <port_index> – 1
▪ <signal_type> – Signal ID

attribute:

o VIDEO
o AUDIO

▪ <index> – 1

state – OFF/ON (not case

sensitive)

Get the video mute ON/OFF
state on the HDMI output :

#X-MUTE?out.hdmi.1.v

ideo.1<CR>

X-ROUTE

Send routing command
to matrix.

It is recommended
to use the command
#SIGNALS-LIST to get
the list of all signal IDs
available in the system
and which can be used
in this command.

This is an Extended
Protocol 3000
command.

COMMAND

#X-ROUTE<direction_type1>. <port_type1>. <port_index1>.

<signal_type1>. <index1>,<direction_type2>. <port_type2>.
<port_index2>. <signal_type2>. <index2><CR>

FEEDBACK

~nn@X-ROUTE<direction_type1>. <port_type1>.

<port_index1>. <signal_type1>. <index1>,<direction_type2>.
<port_type2>. <port_index2>. <signal_type2>.
<index2><CR><LF>

The following attributes comprise
the signal ID:

▪ <direction_type> –

Direction of the port:

o IN – Input
o OUT – Output

▪ <port_format> – Type of

signal on the port:

o HDMI
o HDBT

▪ <port_index> – The port

number as printed on the front
or rear panel:

o HDBT=1
o HDMI=1

▪ <signal_type> – Signal ID

attribute:

o VIDEO

▪ <index> – 1

Route HDBT to the output:

#X-ROUTEout.hdmi.1.v

ideo.1,in.hdbt.1.vide
o.1<CR>

X-ROUTE?

Get routing status.

It is recommended
to use the command
#SIGNALS-LIST to get
the list of all signal IDs
available in the system
and which can be used
in this command.

This is an Extended
Protocol 3000
command.

COMMAND

#X-ROUTE?<direction_type1>. <port_type1>. <port_index1>.

<signal_type1>. <index1><CR>

FEEDBACK

~nn@X-ROUTE<direction_type1>. <port_type1>.

<port_index1>. <signal_type1>. <index1>,<direction_type2>.
<port_type2>. <port_index2>. <signal_type2>.
<index2><CR><LF>

The following attributes comprise
the signal ID:

▪ <direction_type> –

Direction of the port:

o IN – Input
o OUT – Output

▪ <port_format> – Type of

signal on the port:

o HDMI
o HDBT

▪ <port_index> – The port

number as printed on the front
or rear panel:

o HDBT=1
o HDMI=1

▪ <signal_type> – Signal ID

attribute:

o VIDEO

▪ <index> – 1

Get the routing status:

#X-ROUTE?out.hdmi.1.

video.1<CR>

X-SIGNAL?

Get input signal status.

This is an Extended
Protocol 3000
command.

COMMAND

#X-SIGNAL?<direction_type>. <port_format>. <port_index>.

<signal_type>. <index><CR>

FEEDBACK

~nn@X-SIGNAL<direction_type>. <port_format>.

<port_index>. <signal_type>. <index>,status<CR><LF>

The following attributes comprise
the signal ID:

▪ <direction_type> –

Direction of the port:

o IN – Input

▪ <port_format> – Type of

signal on the port:

o HDMI
o HDBT

▪ <port_index> – The port

number as printed on the front
or rear panel:

o HDBT=1
o HDMI=1

▪ <signal_type> – Signal ID

attribute:

o VIDEO

▪ <index> – 1

status – Input Signal Status

0 – No signal
1 – There is a signal

#X­SIGNALin.hdmi.1.vide

o.1<CR>

~01@X­SIGNALin.hdmi.1.vide

o.1,1<CR><LF>

Kramer Electronics Ltd.

VP-427X1 – Protocol 3000

59

Result and Error Codes

Syntax

In case of an error, the device responds with an error message. The error message syntax:

• ~NN@ERR XXX<CR><LF> – when general error, no specific command

• ~NN@CMD ERR XXX<CR><LF> – for specific command

• NN – machine number of device, default = 01

• XXX – error code

Error Codes

Error Name

Error
Code

Description

P3K_NO_ERROR

0

No error

ERR_PROTOCOL_SYNTAX

1

Protocol syntax

ERR_COMMAND_NOT_AVAILABLE

2

Command not available

ERR_PARAMETER_OUT_OF_RANGE

3

Parameter out of range

ERR_UNAUTHORIZED_ACCESS

4

Unauthorized access

ERR_INTERNAL_FW_ERROR

5

Internal FW error

ERR_BUSY

6

Protocol busy

ERR_WRONG_CRC

7

Wrong CRC

ERR_TIMEDOUT

8

Timeout

ERR_RESERVED

9

(Reserved)

ERR_FW_NOT_ENOUGH_SPACE

10

Not enough space for data (firmware, FPGA…)

ERR_FS_NOT_ENOUGH_SPACE

11

Not enough space – file system

ERR_FS_FILE_NOT_EXISTS

12

File does not exist

ERR_FS_FILE_CANT_CREATED

13

File can’t be created

ERR_FS_FILE_CANT_OPEN

14

File can’t open

ERR_FEATURE_NOT_SUPPORTED

15

Feature is not supported

ERR_RESERVED_2

16

(Reserved)

ERR_RESERVED_3

17

(Reserved)

ERR_RESERVED_4

18

(Reserved)

ERR_RESERVED_5

19

(Reserved)

ERR_RESERVED_6

20

(Reserved)

ERR_PACKET_CRC

21

Packet CRC error

ERR_PACKET_MISSED

22

Packet number isn't expected (missing packet)

ERR_PACKET_SIZE

23

Packet size is wrong

ERR_RESERVED_7

24

(Reserved)

ERR_RESERVED_8

25

(Reserved)

ERR_RESERVED_9

26

(Reserved)

ERR_RESERVED_10

27

(Reserved)

ERR_RESERVED_11

28

(Reserved)

ERR_RESERVED_12

29

(Reserved)

ERR_EDID_CORRUPTED

30

EDID corrupted

ERR_NON_LISTED

31

Device specific errors

ERR_SAME_CRC

32

File has the same CRC – not changed

ERR_WRONG_MODE

33

Wrong operation mode

ERR_NOT_CONFIGURED

34

Device/chip was not initialized

The warranty obligations of Kramer Electronics Inc. (“Kramer Electronics”) for this product are limited to the terms set forth below:

What is Covered

This limited warranty covers defects in materials and workmanship in this product.

What is Not Covered

This limited warranty does not cover any damage, deterioration or malfunction resulting from any alteration, modification, improper or unreasonable use or
maintenance, misuse, abuse, accident, neglect, exposure to excess moisture, fire, improper packing and shipping (such claims must be presented to the carrier),
lightning, power surges, or other acts of nature. This limited warranty does not cover any damage, deterioration or malfunction resulting from the installation or
removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Kramer Electronics
to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product. This limited warranty does not
cover cartons, equipment enclosures, cables or accessories used in conjunction with this product.
Without limiting any other exclusion herein, Kramer Electronics does not warrant that the product covered hereby, including, without limitation, the technology
and/or integrated circuit(s) included in the product, will not become obsolete or that such items are or will remain compatible with any other product or technology
with which the product may be used.

How Long this Coverage Lasts

The standard limited warranty for Kramer products is seven (7) years from the date of original purchase, with the following exceptions:

1. All Kramer VIA hardware products are covered by a standard three (3) year warranty for the VIA hardware and a standard three (3) year
warranty for firmware and software updates; all Kramer VIA accessories, adapters, tags, and dongles are covered by a standard one (1) year
warranty.

2. Kramer fiber optic cables, adapter-size fiber optic extenders, pluggable optical modules, active cables, cable retractors, ring mounted
adapters, portable power chargers, Kramer speakers, and Kramer touch panels are covered by a standard one (1) year warranty. Kramer
7-inch touch panels purchased on or after April 1st, 2020 are covered by a standard two (2) year warranty.

3. All Kramer Calibre products, all Kramer Minicom digital signage products, all HighSecLabs products, all streaming, and all wireless products
are covered by a standard three (3) year warranty.

4. All Sierra Video MultiViewers are covered by a standard five (5) year warranty.

5. Sierra switchers & control panels are covered by a standard seven (7) year warranty (excluding power supplies and fans that are covered for
three (3) years).

6. K-Touch software is covered by a standard one (1) year warranty for software updates.

7. All Kramer passive cables are covered by a lifetime warranty.

Who is Covered

Only the original purchaser of this product is covered under this limited warranty. This limited warranty is not transferable to subsequent purchasers or owners of
this product.

What Kramer Electronics Will Do

Kramer Electronics will, at its sole option, provide one of the following three remedies to whatever extent it shall deem necessary to satisfy a proper claim under
this limited warranty:

1. Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and
labor to complete the repair and restore this product to its proper operating condition. Kramer Electronics will also pay the shipping costs
necessary to return this product once the repair is complete.

2. Replace this product with a direct replacement or with a similar product deemed by Kramer Electronics to perform substantially the same
function as the original product. If a direct or similar replacement product is supplied, the original product’s end warranty date remains
unchanged and is transferred to the replacement product.

3. Issue a refund of the original purchase price less depreciation to be determined based on the age of the product at the time remedy is sought
under this limited warranty.

What Kramer Electronics Will Not Do Under This Limited Warranty

If this product is returned to Kramer Electronics or the authorized dealer from which it was purchased or any other party authorized to repair Kramer Electronics
products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume
all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re-installation of this product from or
into any installation. Kramer Electronics will not be responsible for any costs related to any setting up this product, any adjustment of user controls or any
programming required for a specific installation of this product.

How to Obtain a Remedy Under This Limited Warranty

To obtain a remedy under this limited warranty, you must contact either the authorized Kramer Electronics reseller from whom you purchased this product or the
Kramer Electronics office nearest you. For a list of authorized Kramer Electronics resellers and/or Kramer Electronics authorized service providers, visit our web
site at www.kramerav.com or contact the Kramer Electronics office nearest you.
In order to pursue any remedy under this limited warranty, you must possess an original, dated receipt as proof of purchase from an authorized Kramer Electronics
reseller. If this product is returned under this limited warranty, a return authorization number, obtained from Kramer Electronics, will be required (RMA number).
You may also be directed to an authorized reseller or a person authorized by Kramer Electronics to repair the product.
If it is decided that this product should be returned directly to Kramer Electronics, this product should be properly packed, preferably in the original carton, for
shipping. Cartons not bearing a return authorization number will be refused.

Limitation of Liability

THE MAXIMUM LIABILITY OF KRAMER ELECTRONICS UNDER THIS LIMITED WARRANTY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE PAID
FOR THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS IS NOT RESPONSIBLE FOR DIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL
THEORY. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation
of liability to specified amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

TO THE MAXIMUM EXTENT PERMITTED BY LAW, THIS LIMITED WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. TO THE MAXIMUM EXTENT
PERMITTED BY LAW, KRAMER ELECTRONICS SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION,
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF KRAMER ELECTRONICS CANNOT LAWFULLY DISCLAIM OR
EXCLUDE IMPLIED WARRANTIES UNDER APPLICABLE LAW, THEN ALL IMPLIED WARRANTIES COVERING THIS PRODUCT, INCLUDING WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY TO THIS PRODUCT AS PROVIDED UNDER APPLICABLE LAW.
IF ANY PRODUCT TO WHICH THIS LIMITED WARRANTY APPLIES IS A “CONSUMER PRODUCT” UNDER THE MAGNUSON -MOSS WARRANTY ACT (15
U.S.C.A. §2301, ET SEQ.) OR OTHER APPLICABLE LAW, THE FOREGOING DISCLAIMER OF IMPLIED WARRANTIES SHALL NOT APPLY TO YOU, AND
ALL IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR THE PARTICULAR PURPOSE,
SHALL APPLY AS PROVIDED UNDER APPLICABLE LAW.

Other Conditions

This limited warranty gives you specific legal rights, and you may have other rights which vary from country to country or state to state.
This limited warranty is void if (i) the label bearing the serial number of this product has been removed or defaced, (ii) the product is not distributed by Kramer
Electronics or (iii) this product is not purchased from an authorized Kramer Electronics reseller. If you are unsure whether a reseller is an authorized Kramer
Electronics reseller, visit our web site at www.kramerav.com or contact a Kramer Electronics office from the list at the end of this document.
Your rights under this limited warranty are not diminished if you do not complete and return the product registration form or complete and submit the online product
registration form. Kramer Electronics thanks you for purchasing a Kramer Electronics product. We hope it will give you years of satisfaction.

www.kramerav.com
[e-mail]

P/N:

2900-301615

Rev:

2

SAFETY WARNING

Disconnect the unit from the power supply before opening and servicing

For the latest information on our products and a list of Kramer distributors, visit our website where
updates to this user manual may be found.

We welcome your questions, comments, and feedback.

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
All brand names, product names, and trademarks are the property of their respective owners.
