Kramer VP-4 User Manual
Kramer Electronics, Ltd.
USER MANUAL
Model:
VP-4
1:4 VGA Distributor
Contents
i
Contents
1
Introduction 1
2
Getting Started 1
3
Overview 2
4
Your VGA Distributor 2
5
Technical Specifications 3
Figures

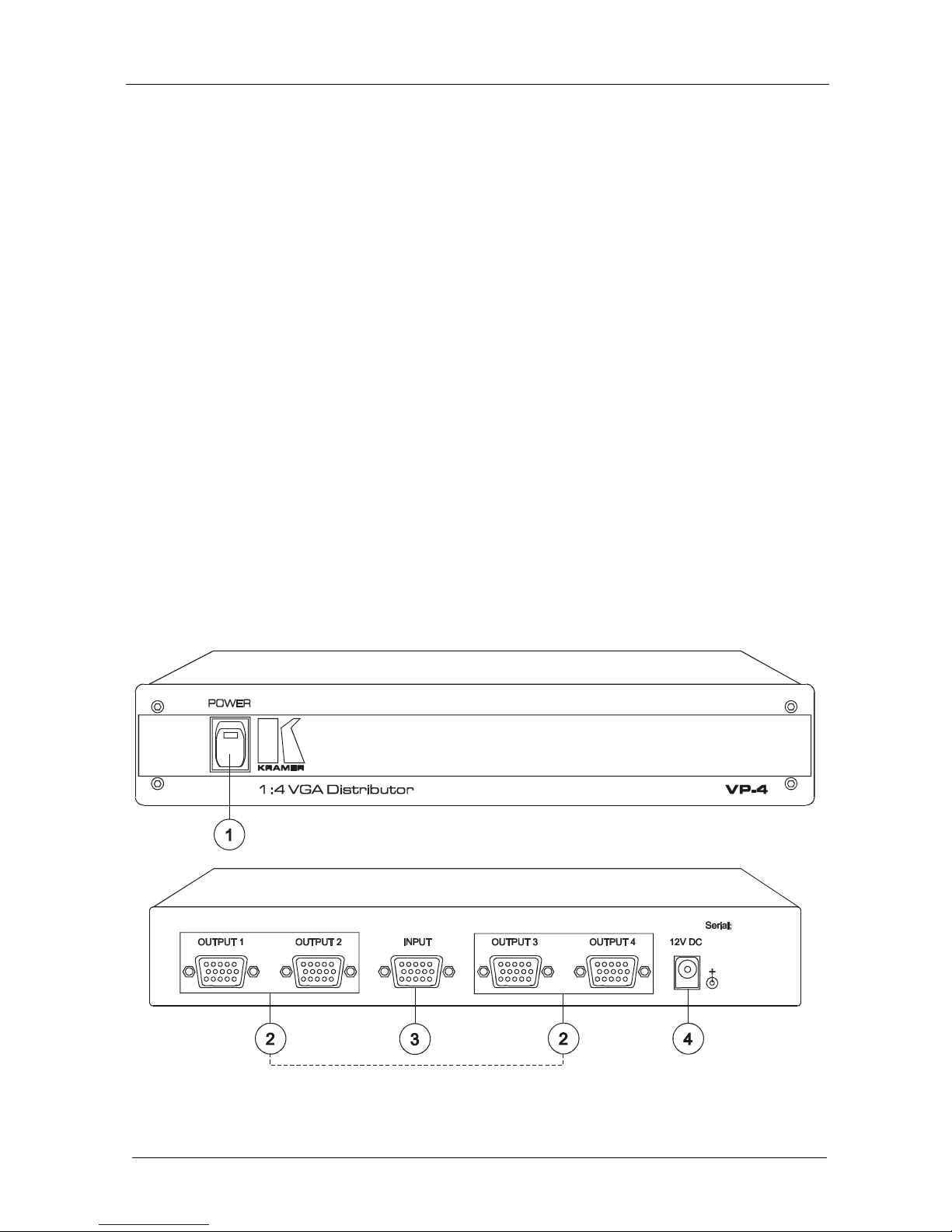

Figure 1: VP-4 1:4 VGA Distributor 2
Tables
Table 1: VP-4 1:4 VGA Distributor Features 3
Table 2: Technical Specifications of the VP-4 1:4 VGA Distributor 3
Introduction
1
1 Introduction
Welcome to Kramer Electronics (since 1981): a world of unique, creative and
affordable solutions to the infinite range of problems that confront the video,
audio and presentation professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
350-plus different models now appear in 8 Groups1, which are clearly defined
by function.
Congratulations on purchasing your Kramer VP-4 1:4 VGA Distributor. This
product is:
Ideal for any professional system requiring high quality VGA distribution
to multiple monitors/projectors
Easily expandable to create larger systems
Ideal as a multi-channel video DA for other signal formats via adapter cables
The package includes the following items:
VP-4 1:4 VGA Distributor
Power cord
This user manual2
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables3
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
