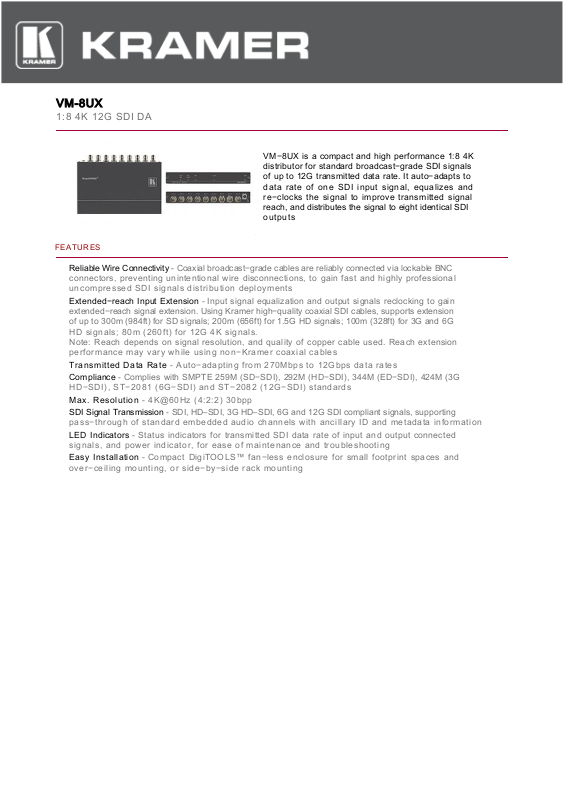

Kramer VM-8UX Data Sheet

VM-8UX

1:8 4K 12G SDI DA

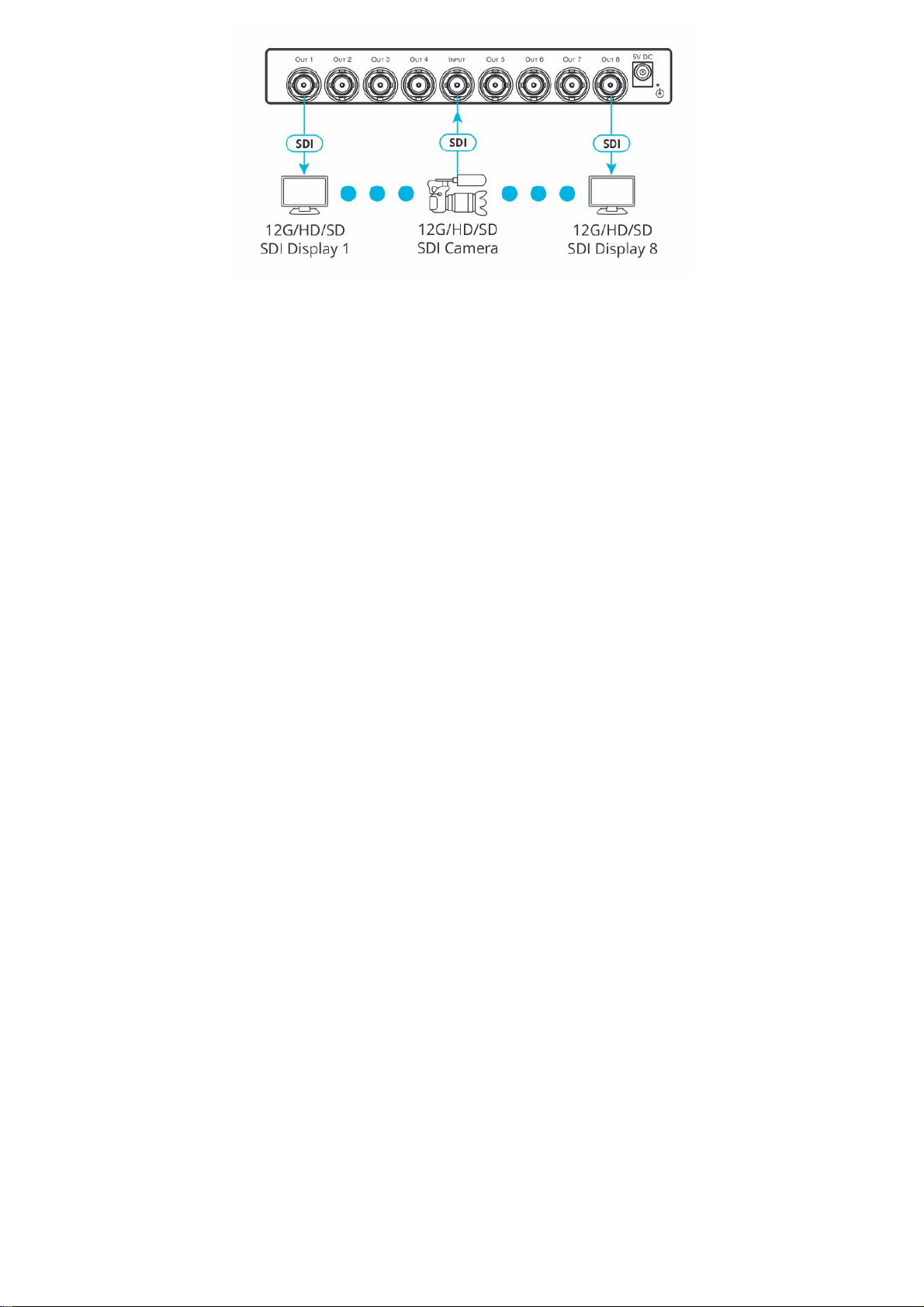

VM−8UX is a compact and high performance 1:8 4K
distributor for standard broadcast−grade SDI signals
of up to 12G transmitted data rate. It auto−adapts to
data rate of one SDI input signal, equalizes and
re−clocks the signal to improve transmitted signal
reach, and distributes the signal to eight identical SDI
outputs

FEATURES

Reliable Wire Connectivity-Coaxial broadcast−grade cables are reliably connected via lockable BNC

connectors, preventing unintentional wire disconnections, to gain fast and highly professional
uncompressed SDI signals distribution deployments

Extended−reach Input Extension-Input signal equalization and output signals reclocking to gain

extended−reach signal extension. Using Kramer high−quality coaxial SDI cables, supports extension
of up to 300m (984ft) for SD signals; 200m (656ft) for 1.5G HD signals; 100m (328ft) for 3G and 6G
HD signals; 80m (260ft) for 12G 4K signals.
Note: Reach depends on signal resolution, and quality of copper cable used. Reach extension
performance may vary while using non−Kramer coaxial cables

Transmitted Data Rate-Auto−adapting from 270Mbps to 12Gbps data rates
Compliance-Complies with SMPTE 259M (SD−SDI), 292M (HD−SDI), 344M (ED−SDI), 424M (3G

HD−SDI), ST−2081 (6G−SDI) and ST−2082 (12G−SDI) standards

Max. Resolution-4K@60Hz (4:2:2) 30bpp
SDI Signal Transmission-SDI, HD–SDI, 3G HD–SDI, 6G and 12G SDI compliant signals, supporting

pass−through of standard embedded audio channels with ancillary ID and metadata information

LED Indicators-Status indicators for transmitted SDI data rate of input and output connected

signals, and power indicator, for ease of maintenance and troubleshooting

Easy Installation-Compact DigiTOOLS™ fan−less enclosure for small footprint spaces and

over−ceiling mounting, or side−by−side rack mounting



TECHNICAL SPECIFICATIONS

Input:

Outputs:

Cable Equalization
Reach:

Video:

Maximum Output
Level:

Coupling:

Standards
Compliance:

Power Consumption:

Power Source:

Enclosure:

1 SMPTE 259M (SD−SDI), 292M (HD−SDI), 344M (ED−SDI), 424M (3G HD−SDI),
ST−2081 (6G−SDI) and ST−2082 (12G−SDI) compliant serial video, 75Ω on a BNC
connector

8 equalized and reclocked SMPTE 259M (SD−SDI), 292M (HD SDI), 344M
(ED−SDI), 424M (3G HD−SDI), ST−2081 (6G−SDI) and ST−2082 (12G−SDI),
outputs 75Ω on BNC connectors

12Gbps: Up to 80m (260ft), 3Gbps and 6Gbps: Up to 100m (330ft), 1.5Gbps: Up to
200m (660ft), SD: Up to 300m (980ft), Note: The specs apply when using Kramer
cables

Up to 4K@60Hz (4:2:2) 30bpp resolution, 270Mbps to 12Gbps data rate

800mVpp /75Ω

AC

SMPTE 259M (SD−SDI), 292M (HD−SDI), 344M (ED−SDI), 424M (3G HD−SDI),
ST−2081 (6G−SDI), ST−2082 (12G−SDI)

5V DC, 400mA

5.2V/4A

Tool, aluminum type

Cooling:

Operating
Temperature:

Humidity:

Shipping Dimensions:

Weight:

Shipping Weight:

Included Accessories:

PRODUCT
DIMENSION:

PRODUCT WEIGHT:

SHIPPING
DIMENSION:

SHIPPING WEIGHT:

Convection ventilation

0° to +40°C (32° to 104°F)

10% to 90%, RHL non−condensing

34.5cm x 16.5cm x 5.2cm (13.6” x 6.5” x 2.05”) W, D, H

0.48kg (1.06lbs) approx

1.02kg (2.25lbs) approx

Power supply, mounting bracket, 2 male BNC 75Ω terminators

18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H

0.5kg (1.1lbs) approx

34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H

1.0kg (2.2lbs) approx
