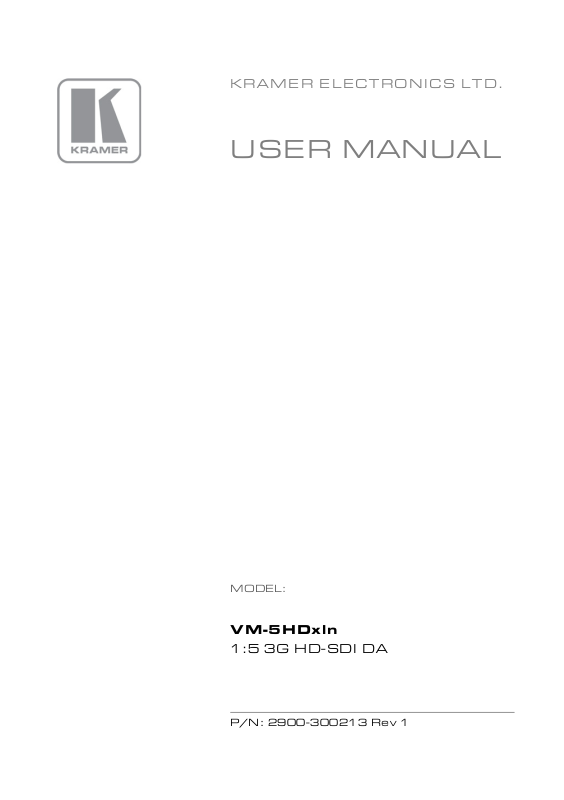

Page 1
KRAMER ELECTRONICS LTD.
USER MANUAL
MODEL:
VM-5HDxln
1:5 3G HD-SDI DA
P/N: 2900-300213 Rev 1
Page 2
Page 3
Contents
1 Introduction 1
2 Getting Started 2
2.1 Achieving the Best Performance 2
3 Overview 3
4 Defining the VM-5HDxln 1:5 3G HD-SDI DA 4
5 Connecting the VM-5HDxln 5
6 Technical Specifications 6
Figures
UFigure 1: VM-5HDxln 1:5 3G HD-SDI DA Front PanelU 4
UFigure 2: Connecting the VM-5HDxln 1:5 3G HD-SDI DAU 5
VM-5HDxln – Contents i
Page 4
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront the video, audio, presentation, and broadcasting
professional on a daily basis. In recent years, we have redesigned and upgraded
most of our line, making the best even better!
Our 1,000-plus different models now appear in 11 groups that are clearly defined
by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix
Switchers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters;
GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors;
GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and
GROUP 11: Sierra Products.
Congratulations on purchasing your Kramer DigiTOOLS
®
VM-5HDxln
1:5 3G HD-SDI DA which is ideal for the following typical applications:
• SDI production studios for signal distribution and equalizations
• Broadcast studios for on-air operation and SDI field production
• Using with SDI video sources such as professional digital cameras
VM-5HDxln - Introduction 1
Page 5
i
!
2 Getting Started
We recommend that you:
• Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
• Review the contents of this user manual
• Use Kramer high performance, high resolution cables
Go to http://www.kramerelectronics.com to check for up-to-date
user manuals, application programs, and to check if firmware
upgrades are available (where appropriate).
2.1 Achieving the Best Performance
To achieve the best performance:
• Use only good quality connection cables to avoid interference, deterioration
in signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables)
• Do not secure the cables in tight bundles or roll the slack into tight coils
• Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
• Position your Kramer VM-5HDxln 1:5 3G HD-SDI DA away from moisture,
excessive sunlight and dust
Caution: No operator serviceable parts inside the unit
Warning:
Warning:
2 VM-5HDxln - Getting Started
Use only the Kramer Electronics input power wall
adapter that is provided with the unit
Disconnect the power and unplug the unit from the
wall before installing
