KRAMER
2900- 300612QS
1

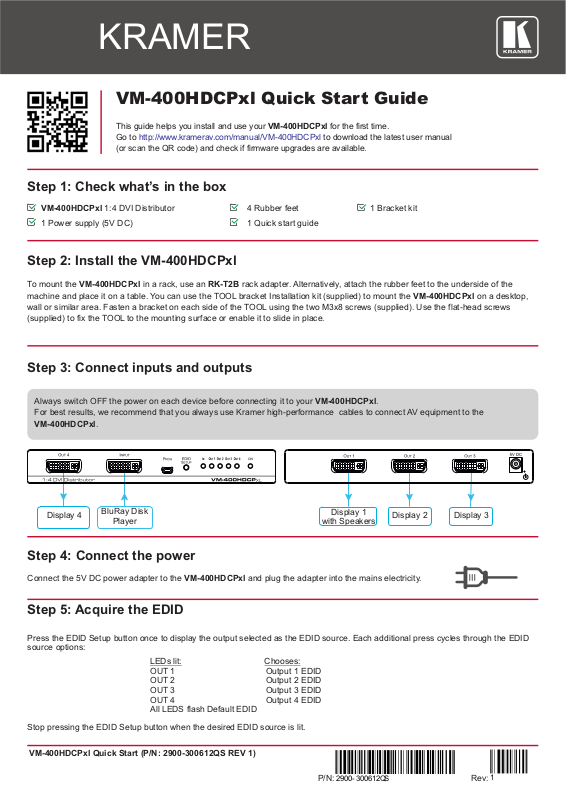

VM-400HDCPxl Quick Start Guide
This guide helps you install and use your VM-400HDCPxl for the first time.
http://www.kramerav.com/manual/VM-400HDCPxl
Go to to download the latest user manual
(or scan the QR code) and check if firmware upgrades are available.
Step 1: Check what’s in the box
VM-400HDCPxl 1:4 DVI Distributor
1 Power supply (5V DC)
4 Rubber feet
1 Quick start guide
1 Bracket kit
Step 2: Install the VM-400HDCPxl
To mount the VM-400HDCPxl in a rack, use an RK-T2B rack adapter. Alternatively, attach the rubber feet to the underside of the
machine and place it on a table. You can use the TOOL bracket Installation kit (supplied) to mount the VM-400HDCPxl on a desktop,
wall or similar area. Fasten a bracket on each side of the TOOL using the two M3x8 screws (supplied). Use the flat-head screws
(supplied) to fix the TOOL to the mounting surface or enable it to slide in place.
Step 3: Connect inputs and outputs
Always switch OFF the power on each device before connecting it to your .
For best results, we recommend that you always use Kramer high-performance cables to connect AV equipment to the
VM-400HDCPxl.
VM-400HDCPxl
Display 4
BluRay Disk
Player
Display 1
with Speakers
Display 2
Display 3
Step 4: Connect the power
Connect the V DC power adapter to the and plug the adapter into the mains electricity.5 VM-400HDCPxl
Step 5: Acquire the EDID
Press the EDID Setup button once to display the output selected as the EDID source. Each additional press cycles through the EDID
source options:
LEDs lit: Chooses:
OUT 1 Output 1 EDID
OUT 2 Output 2 EDID
OUT 3 Output 3 EDID
OUT 4 Output 4 EDID
All LEDS flash Default EDID
Stop pressing the EDID Setup button when the desired EDID source is lit.
VM-400HDCPxl Quick Start (P/N: 2900-300612QS REV 1)
Rev:
P/N:
