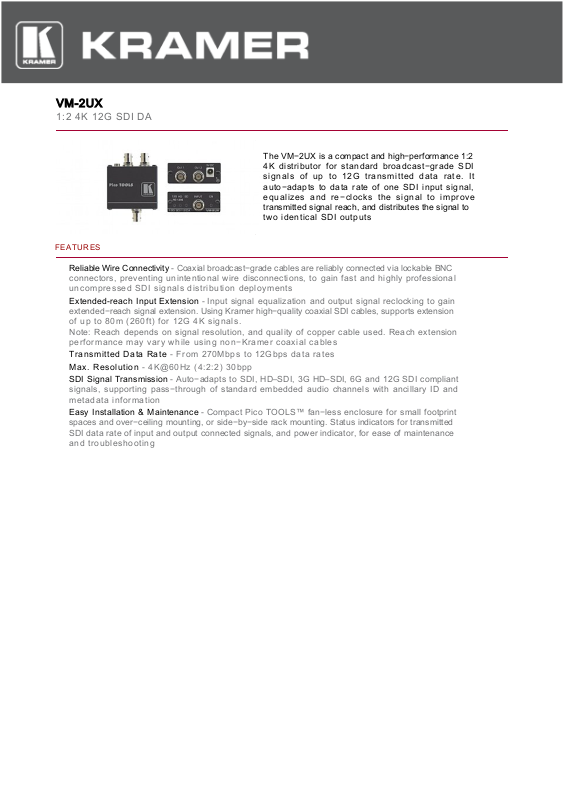

Kramer VM-2UX Data Sheet

VM-2UX
1:2 4K 12G SDI DA

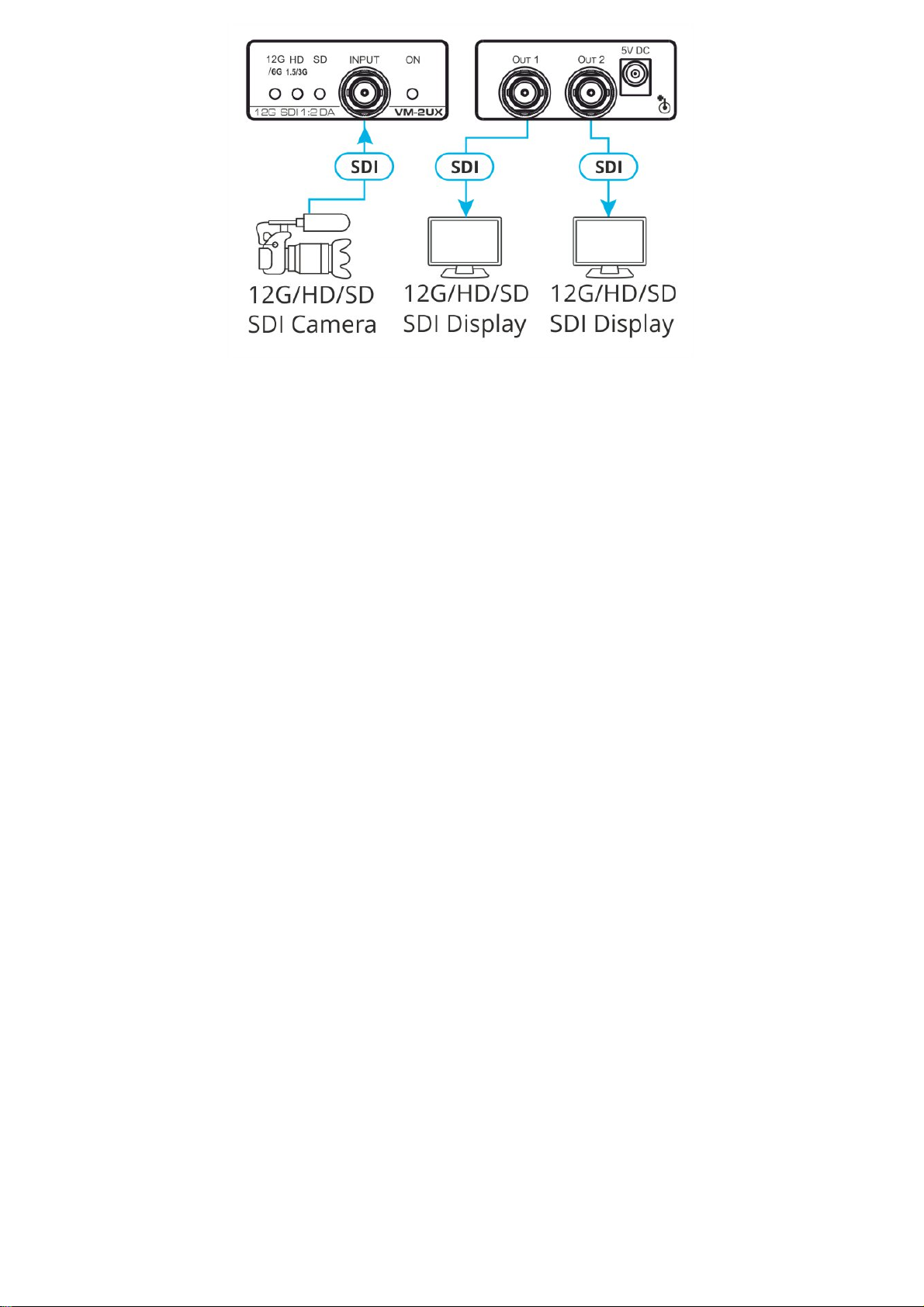

The VM−2UX is a compact and high−performance 1:2 4K distributor for standard broadcast−grade SDI signals of up to 12G transmitted data rate. It auto−adapts to data rate of one SDI input signal, equalizes and re−clocks the signal to improve transmitted signal reach, and distributes the signal to two identical SDI outputs
FEATURES
Reliable Wire Connectivity-Coaxial broadcast−grade cables are reliably connected via lockable BNC
connectors, preventing unintentional wire disconnections, to gain fast and highly professional uncompressed SDI signals distribution deployments
Extended-reach Input Extension-Input signal equalization and output signal reclocking to gain
extended−reach signal extension. Using Kramer high−quality coaxial SDI cables, supports extension of up to 80m (260ft) for 12G 4K signals. Note: Reach depends on signal resolution, and quality of copper cable used. Reach extension performance may vary while using non−Kramer coaxial cables
Transmitted Data Rate-From 270Mbps to 12Gbps data rates Max. Resolution-4K@60Hz (4:2:2) 30bpp SDI Signal Transmission-Auto−adapts to SDI, HD–SDI, 3G HD–SDI, 6G and 12G SDI compliant
signals, supporting pass−through of standard embedded audio channels with ancillary ID and metadata information
Easy Installation & Maintenance-Compact Pico TOOLS™ fan−less enclosure for small footprint
spaces and over−ceiling mounting, or side−by−side rack mounting. Status indicators for transmitted SDI data rate of input and output connected signals, and power indicator, for ease of maintenance and troubleshooting
TECHNICAL SPECIFICATIONS
Input:
Outputs:
Cable Equalization Reach:
Video:
Maximum Output Level:
Coupling:
Standards Compliance:
Power Consumption:
Power Source:
Operating Temperature:
1 SMPTE 259M (SD−SDI), 292M (HD−SDI), 344M (ED−SDI), 424M (3G HD−SDI), ST−2081 (6G−SDI) and ST−2082 (12G−SDI) compliant serial video input on a 75Ω BNC connector
2 equalized and reclocked SMPTE 259M (SD−SDI), 292M (HD−SDI), 344M (ED−SDI), 424M (3G HD−SDI), ST−2081 (6G−SDI) and ST−2082 (12G−SDI) outputs on 75Ω BNC connectors
12Gbps: Up to 80m (260ft) using Kramer cables, 3Gbps and 6Gbps: Up to 100m (330ft)
1.5Gbps: Up to 200m (660ft), SD: Up to 300m (980ft)
Up to 4K@60Hz (4:2:2) 30bpp resolution, 270Mbps up to12Gbps data rate
800mVpp/75Ω
AC
SMPTE 259M (SD−SDI), 292M (HD−SDI), 344M (ED−SDI), 424M (3G HD−SDI), ST−2081 (6G−SDI), ST−2082 (12G−SDI)
5V DC, 250mA
5.2V/4A
0° to +40°C (32° to 104°F)
Storage Temperature:
Humidity:
Dimensions:
Weight:
Shipping dimensions:
Shipping weight:
Included Accessories:
PRODUCT DIMENSION:
PRODUCT WEIGHT:
SHIPPING DIMENSION:
SHIPPING WEIGHT:
−40° to +70°C (−40° to 158°F)
10% to 90%, RHL non−condensing
6.2cm x 5.2cm x 2.4cm (2.4" x 2.05" x 0.9") W, D, H
0.093kg (0.205lbs) approx
15.7cm x 12cm x 8.7cm (6.18” x 4.7” x 3.42”) W, D, H
0.52kg (1.15lbs) approx
Power supply, mounting bracket
6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
0.5kg (1.1lbs) approx
15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
0.9kg (2.1lbs) approx
