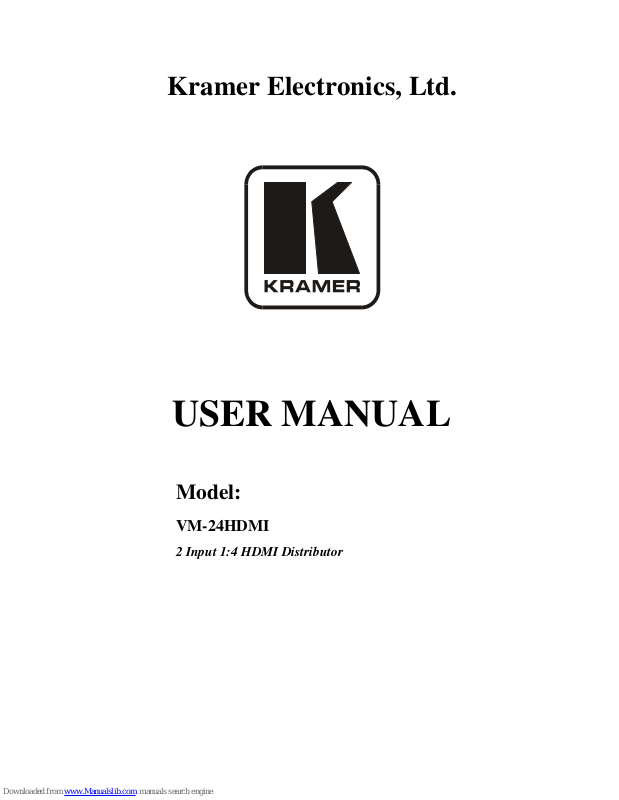

Kramer Electronics, Ltd.
USER MANUAL
Model:
VM-24HDMI
2 Input 1:4 HDMI Distributor
Page 2
Contents
i
Contents
1
Introduction 1
2
Getting Started 1
2.1
Quick Start 2
3
Overview 3
3.1
About HDMI 3
3.2
Defining EDID 4
3.3
Recommendations for Best Performance 5
4
Your VM-24HDMI 2 Input 1:4 HDMI Distributor 5
4.1
Using the IR Transmitter 7
5
Installing in a Rack 8
6
Using the VM-24HDMI 9
6.1
Connecting the VM-24HDMI 9
6.2

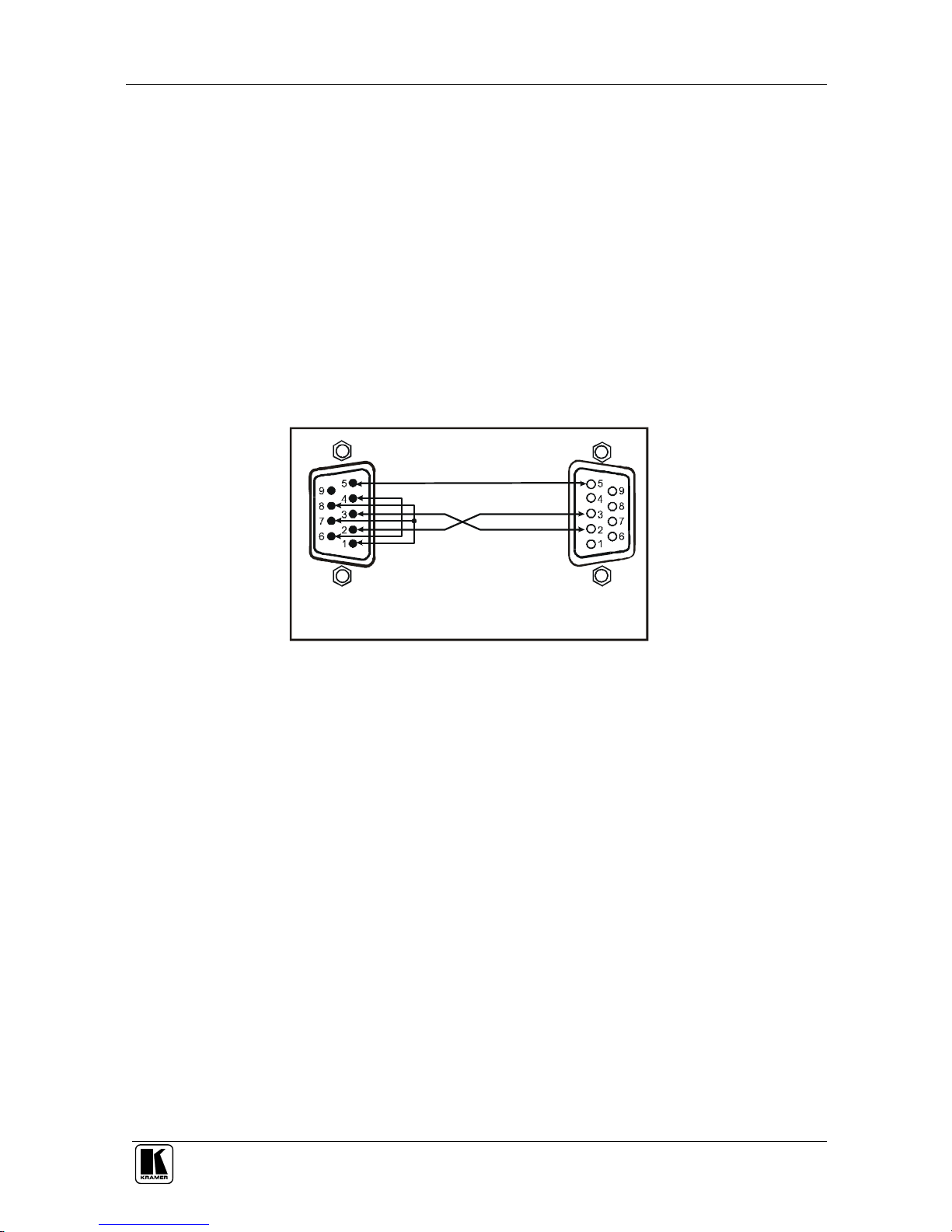

Controlling via RS-232 (for example, using a PC) 11
6.3
Operating the VM-24HDMI 11
6.4
Using the EDID Buttons 12
6.4.1 Acquiring / Changing the EDID from One Output 12
6.4.2 Acquiring the Default EDID 13
6.4.3 Acquiring the Auto-mix EDID from the Connected Outputs 13
7
Technical Specifications 14
8
Communication Protocol 15
Figures
Figure 1: VM-24HDMI 2 Input 1:4 HDMI Distributor 6

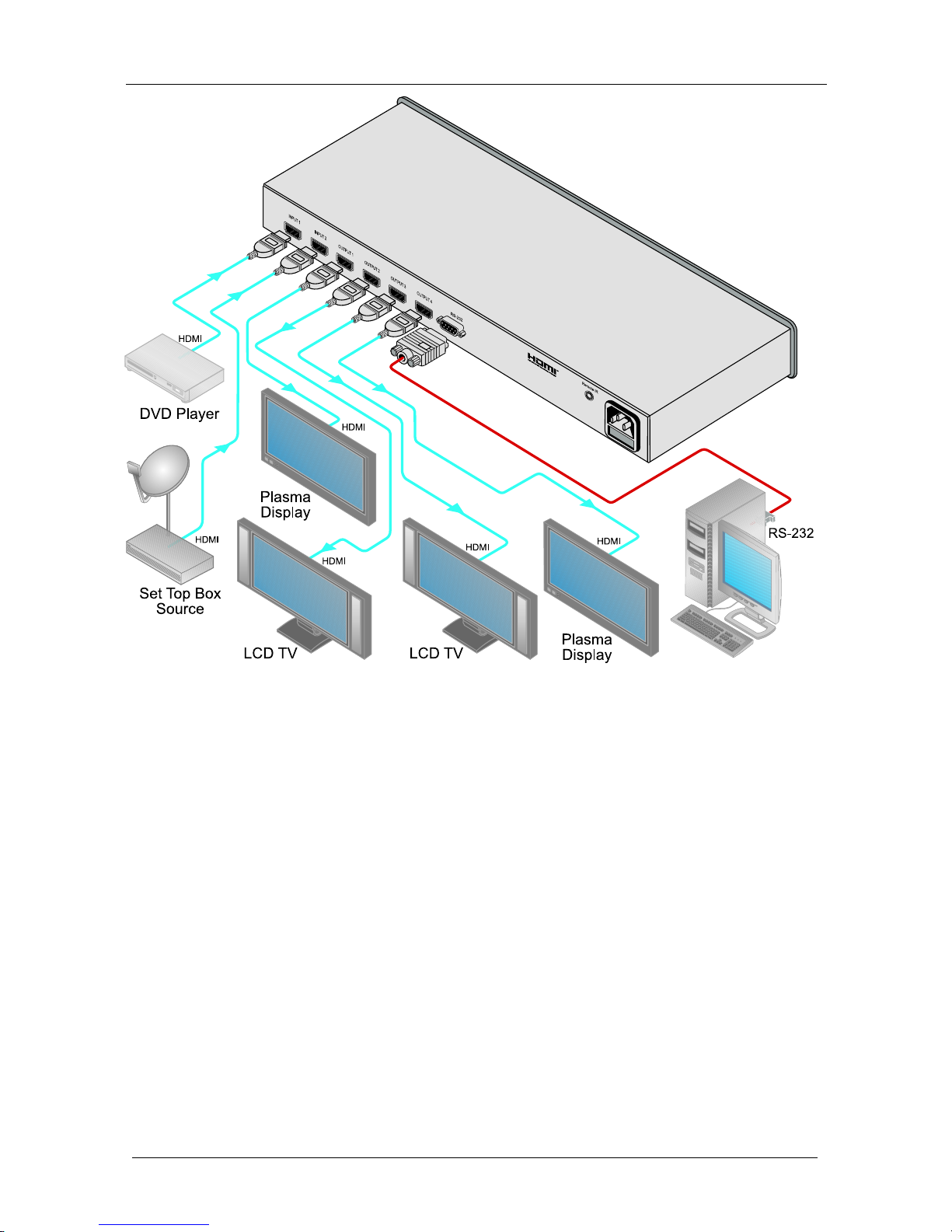

Figure 2: Connecting a VM-24HDMI 2 Input 1:4 HDMI Distributor 10
Figure 3: Connecting a PC without using a Null-modem Adapter 11
Tables
Table 1: VM-24HDMI 2 Input 1:4 HDMI Distributor Features 7
Table 2: The EDID Modes 12
Table 3: VM-24HDMI Technical Specifications 14
Table 4: Protocol Definitions 15
Table 5: Instruction Codes for Protocol 2000 16
Page 3
Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
1,000-plus different models now appear in 11 groups1 that are clearly defined
by function.
Congratulations on purchasing your Kramer VM-24HDMI 2 Input 1:4
HDMI2 Distributor! Each machine is ideal for:
Home theater, presentation and multimedia applications
Rental and staging
The package includes the following items:
VM-24HDMI
Power cord
This user manual
3
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables
4
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:
Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories
and Rack Adapters; GROUP 11: Sierra Products
2 High-Definition Multimedia Interface
3 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com
4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
Page 4
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2
2.1 Quick Start
This quick start chart summarizes the basic setup and operation:
Page 5
Overview
3
3 Overview
Each high quality HDMI Distributor accepts one of two HDMI inputs, and
distributes the selected signal to four outputs.
The VM-24HDMI:
Supports up to 2.25Gbps bandwidth per graphic channel
1
Has the ability to read and store, in non-volatile memory
2
, the EDID3 block
from an output display device, so it can then provide the EDID information
to the HDMI source even if the display device is not connected
Lets you acquire the EDID from one output, from several connected
outputs (Auto-mix) or acquire the default EDID for fast and efficient
connection of the unit4
Is housed in a 19" 1U rack mountable enclosure and is fed from a 100-240
VAC universal switching power supply
Control the VM-24HDMI via:
The front panel buttons
The infrared remote control transmitter
The infrared remote extension cable transmitter, see section 4.1
RS-232 serial commands transmitted by a touch screen system, PC, or
other serial controller
3.1 About HDMI
High-Definition Multimedia Interface (HDMI) is an uncompressed all-digital5
audio/video interface, widely supported in the entertainment and home cinema
industry. It delivers the highest high-definition image and sound quality.
1 Suitable for resolutions up to UXGA at 60Hz, and for all HD resolutions
2 While the machine is ON
3 EDID is Extended Display Identification Data (see section 3.1 for a detailed definition)
4 Lets you use the EDID default value when no display from which to read the EDID is connected
5 Ensuring an all-digital rendering of video without the losses associated with analog interfaces and their unnecessary digital-
to-analog conversions
Page 6
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
4
In particular, HDMI1:
Provides a simple
2
interface between any audio/video source, such as a
set-top box, DVD player, or A/V receiver and video monitor, such as a
digital flat LCD / plasma television (DTV), over a single lengthy3 cable
Supports standard, enhanced, high-definition video, and multi-channel
digital audio4 on a single cable
Transmits all ATSC HDTV standards and supports 8-channel digital
audio, with bandwidth to spare to accommodate future enhancements and
requirements
Benefits consumers by providing superior, uncompressed digital video
quality via a single cable5, and user-friendly connector
Is backward-compatible with DVI (Digital Visual Interface)
Supports two-way communication between the video source (such as a
DVD player) and the digital television, enabling new functionality such
as automatic configuration and one-button play
Has the capacity to support existing high-definition video formats (720p,
1080i, and 1080p/60), as well as standard definition formats such as
NTSC or PAL
3.2 Defining EDID
The Extended Display Identification Data (EDID6) is a data-structure,
provided by a display, to describe its capabilities to an HDMI source. The
EDID enables the VM-24HDMI to “know” what kind of monitor is
connected to the output. The EDID includes the manufacturer’s name, the
product type, the timing data supported by the display, the display size,
luminance data and (for digital displays only) the pixel mapping data.
1 HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
licensing LLC
2 With video and multi-channel audio combined into a single cable, the cost, complexity, and confusion of multiple cables
currently used in A/V systems is reduced
3 HDMI technology has been designed to use standard copper cable construction at up to 15m
4 HDMI supports multiple audio formats, from standard stereo to multi-channel surround-sound. HDMI has the capacity to
support Dolby 5.1 audio and high-resolution audio formats
5 HDMI provides the quality and functionality of a digital interface while also supporting uncompressed video formats in a
simple, cost-effective manner
6 Defined by a standard published by the Video Electronics Standards Association (VESA)
Page 7
Your VM-24HDMI 2 Input 1:4 HDMI Distributor
5
3.3 Recommendations for Best Performance
To achieve the best performance:
Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise
levels (often associated with low quality cables)
Avoid interference from neighboring electrical appliances and position
your VM-24HDMI away from moisture, excessive sunlight and dust
4 Your VM-24HDMI 2 Input 1:4 HDMI Distributor
Figure 1 illustrates the VM-24HDMI and Table 1 defines the front and rear
panels.
Page 8
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VM-24HDMI 2 Input 1:4 HDMI Distributor
6

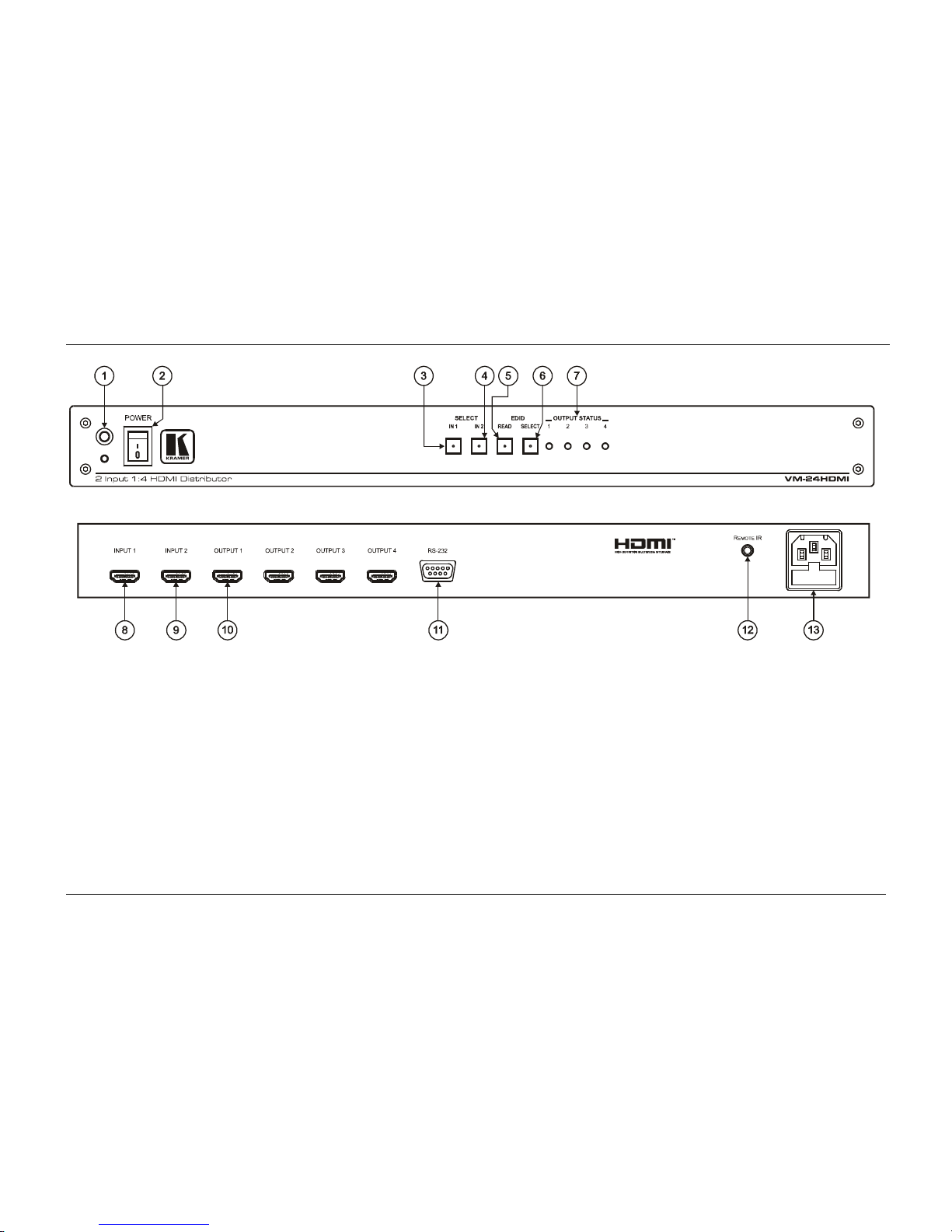

Figure 1: VM-24HDMI 2 Input 1:4 HDMI Distributor
Page 9
Your VM-24HDMI 2 Input 1:4 HDMI Distributor
7
Table 1: VM-24HDMI 2 Input 1:4 HDMI Distributor Features
# Feature Function
1 IR Receiver The red LED is illuminated when receiving signals from the Kramer
infrared remote control transmitter
2 POWER Switch Illuminated switch for turning the unit ON or OFF
3 IN 1 Button1 Press to select source 1 and distribute this signal to the outputs
4
SELECT
IN 2 Button1 Press to select source 2 and distribute this signal to the outputs
5 READ2 Press, after pressing the EDID SELECT button, to acquire the EDID
Press to show the EDID status
6
EDID Buttons
SELECT Select the EDID mode (One Output, Auto-mix or Default)
7 OUTPUT STATUS LEDs LEDs light when an output(s) is connected and active; LEDs blink to
indicate the type of EDID acquired (see section 6.4) or when
connecting a non-HDCP display while providing HDCP content to
the VM-24HDMI
8 INPUT 1 HDMI Connector Connects to the HDMI source 1
9 INPUT 2 HDMI Connector Connects to the HDMI source 2
10 OUTPUT HDMI Connectors Connects to the HDMI acceptor (from 1 to 4)
11 RS-232 9-pin D-sub Port Connects to the PC or the Remote Controller3
12 REMOTE IR Opening4 Connects to an external IR receiver unit for controlling the machine
via an IR remote controller instead of using the front panel IR
receiver5
13 Power Connector with Fuse AC connector enabling power supply to the unit
4.1 Using the IR Transmitter
You can use the RC-IR2 IR transmitter to control the machine via the built-in
IR receiver on the front panel or, instead, via an optional external IR
receiver6. The external IR receiver can be located 15 meters away from the
machine. This distance can be extended to up to 60 meters when used with
three extension cables7.
Before using the external IR receiver, be sure to arrange for your Kramer
dealer to insert the internal IR connection cable8 with the 3.5mm connector
that fits into the REMOTE IR opening on the rear panel.
Connect the external IRreceiver to the REMOTE IR 3.5mm connector.
1 Illuminates when selected and there is a signal
2 Illuminates when configuring the EDID
3 Via a null-modem connection
4 Covered by a cap. The 3.5mm connector at the end of the internal IR connection cable fits through this opening
5 Optional. Can be used instead of the front panel (built-in) IR receiver to remotely control the machine (only if the internal
IR connection cable has been installed)
6 Model: C-A35M/IRR-50
7 Model: C-A35M/A35F-50
8 P/N: 505-70434010-S
Page 10
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Installing in a Rack
8

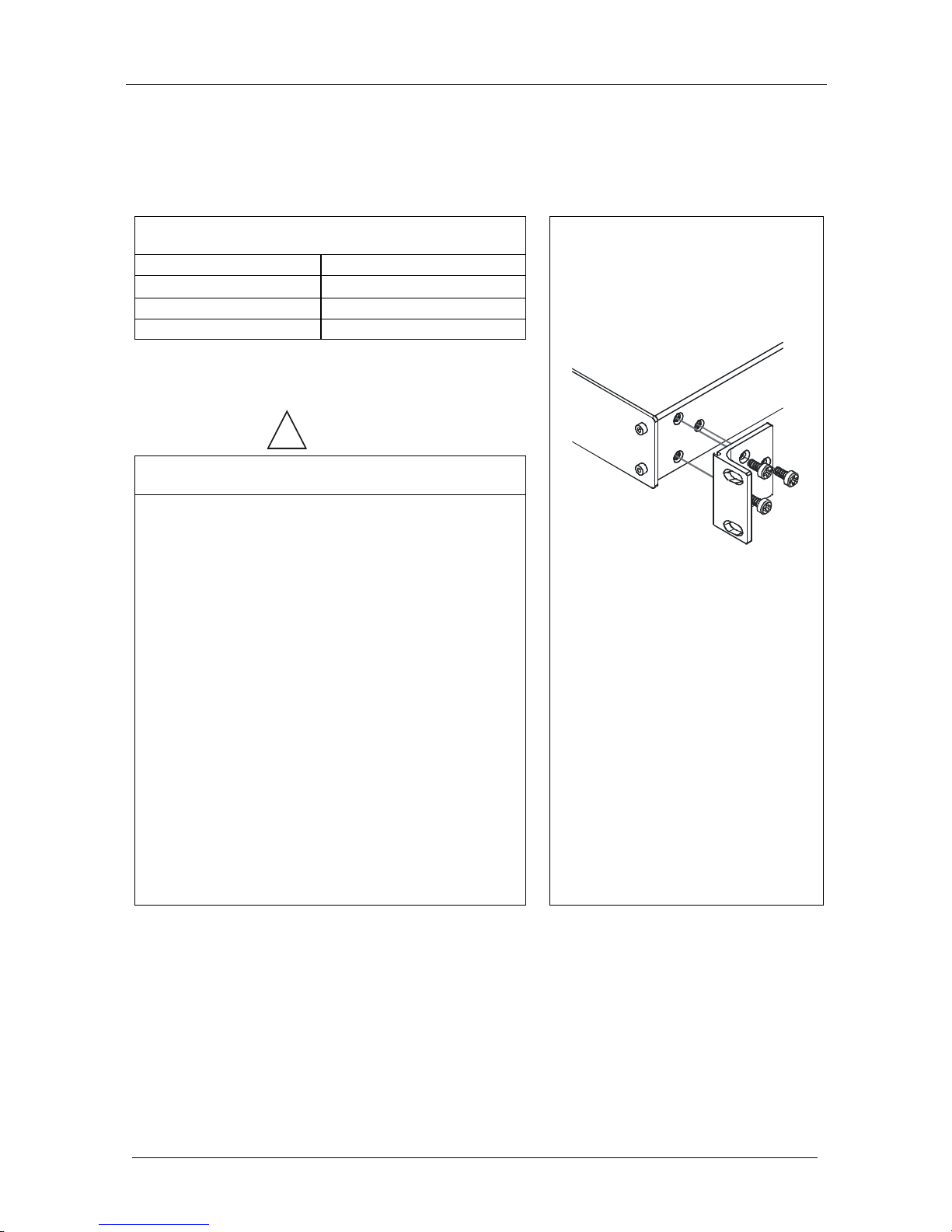

5 Installing in a Rack
This section describes what to do before installing in a rack and how to rack
mount.
Before Installing in a Rack
How to Rack Mount
Before installing in a rack, be sure that the environment is
within the recommended range:
Operating temperature range +5° to +45° C (41° to 113° F)
Operating humidity range 10 to 90% RHL, non-condensing
Storage temperature range -20° to +70° C (-4° to 158° F)
Storage humidity range 5 to 95% RHL, non-condensing
CAUTION!!
When installing in a 19" rack, avoid hazards by taking
care that:
1. It is located within the recommended environmental
conditions, as the operating ambient temperature of a
closed or multi unit rack assembly may exceed the
room ambient temperature.
2. Once rack mounted, enough air will still flow around
the machine.
3. The machine is placed straight in the correct
horizontal position.
4. You do not overload the circuit(s). When connecting
the machine to the supply circuit, overloading the
circuits might have a detrimental effect on overcurrent
protection and supply wiring. Refer to the appropriate
nameplate ratings for information. For example, for
fuse replacement, see the value printed on the
product label.
5. The machine is earthed (grounded) in a reliable way
and is connected only to an electricity socket with
grounding. Pay particular attention to situations where
electricity is supplied indirectly (when the power cord
is not plugged directly into the socket in the wall), for
example, when using an extension cable or a power
strip, and that you use only the power cord that is
supplied with the machine.
To rack-mount a machine:
1. Attach both ear brackets to the
machine. To do so, remove the
screws from each side of the
machine (3 on each side), and
replace those screws through the
ear brackets.
2. Place the ears of the machine
against the rack rails, and insert the
proper screws (not provided)
through each of the four holes in the
rack ears.
Note that:
In some models, the front panel
may feature built-in rack ears
Detachable rack ears can be
removed for desktop use
Always mount the machine in the
rack before you attach any cables
or connect the machine to the
power
If you are using a Kramer rack
adapter kit (for a machine that is not
19"), see the Rack Adapters user
manual for installation instructions
(you can download it at:
http://www.kramerelectronics.com)
Page 11
Using the VM-24HDMI
9
6 Using the VM-24HDMI
This section describes how to:
Connect the VM-24HDMI, see section 6.1
Control the VM-24HDMI via RS-232, see section 6.2
Operate the VM-24HDMI, see section 6.3
Use the EDID button, see section 6.4
6.1 Connecting the VM-24HDMI
To connect the VM-24HDMI, as illustrated in the example in Figure 2, do the
following1:
1. Connect2 the two HDMI sources, for example, a DVD player and a set top
box, to the INPUT 1 and INPUT 2 connectors, respectively.
2. Connect the HDMI OUTPUT connectors3 to up to 4 HDMI acceptors, using
Kramer HDMI copper cables. In this example4, connect the:
OUTPUT 1 connector to acceptor 1 (for example, a plasma display)
OUTPUT 2 connector to acceptor 2 (for example, an LCD TV)
OUTPUT 3 connector to acceptor 3 (for example, an LCD TV)
OUTPUT 4 connector to acceptor 4 (for example, a plasma display)
3. If required, connect a PC and/or controller to the RS-232 port (see section 6.2).
4. Connect the power cord to the mains electricity (not shown in Figure 2).
5. If required, acquire the EDID (see section 6.4).
1 Switch OFF the power on each device before connecting it to your VM-24HDMI. After connecting your VM-24HDMI,
switch on its power and then switch on the power on each device
2 Using the Kramer HDMI copper cables
3 As required. Up to four outputs can be connected. Not all outputs need to be connected
4 Only connections from the first two acceptors and the last two acceptors are shown in Figure 2
Page 12
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Using the VM-24HDMI
10
Figure 2: Connecting a VM-24HDMI 2 Input 1:4 HDMI Distributor
Page 13
Using the VM-24HDMI
11
6.2 Controlling via RS-232 (for example, using a PC)
You can connect a PC (or other controller) to the VM-24HDMI via the RS-232
port.
To connect using the Null-modem adapter provided with the machine
(recommended method):
Connect the RS-232 9-pin D-sub rear panel port on the VM-24HDMI to
the Null-modem adapter and connect the Null-modem adapter with a
9-wire flat cable to the RS-232 9-pin D-sub port on your PC
To connect without using a Null-modem adapter:
Connect the RS-232 9-pin D-sub port on your PC to the RS-232 9-pin
D-sub rear panel port on the VM-24HDMI, as Figure 3 illustrates
9-pin D- sub
(From P C)
9-pin D- sub
(Male)
If a shielded cable is used, connect the shield to PIN 5
PIN 4 is connected to PIN 6
PINs 8, 7, 1 are connected together
PIN 5 Connected to PIN 5 (Ground)
PIN 3 Connected to PIN 2
PIN 2 Connected to PIN 3
Figure 3: Connecting a PC without using a Null-modem Adapter
6.3 Operating the VM-24HDMI
To operate the VM-24HDMI:
1. Turn ON the POWER.
2. Select the desired input.
3. If required, press the EDID button to acquire or change the EDID data (see
section 6.4).
Page 14
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Using the VM-24HDMI
12
6.4 Using the EDID Buttons
You can acquire the EDID from:
One Output (the selected output LED blinks)
The Default EDID (all the output LEDs blink)
Several Connected Outputs, the Auto-mix Mode
1
(the output LEDs blink
in sequence)
To cycle between the different modes (One Output, Default and Auto-mix),
as defined in Table 2, press the EDID SELECT button
Table 2: The EDID Modes
Current
EDID Mode
Appearance To cycle to the
Default EDID
To cycle to the Automix EDID
To cycle to the One
output EDID
One Output The selected
output LED
blinks
Press the EDID
SELECT button once
again after selecting
output 4.
The output LEDS blink
Default The output
LEDs blink
simultaneously
Press the EDID
SELECT button once
Auto-mix All the output
LEDs light
Press the EDID
SELECT button to
select the required
output. The selected
output blinks
To acquire or change the EDID of a new output display from:
One output, see section 6.4.1
The default EDID, see section 6.4.2
Several connected outputs, see section 6.4.3
6.4.1 Acquiring / Changing the EDID from One Output
To acquire or change the EDID of one of the output displays:
1. Connect the power supply.
2. Connect the new output display device.
3. Press the EDID SELECT button, enter the One output mode as defined in
Table 2, and set to the connected output.
The appropriate OUTPUT STATUS LED blinks, indicating that that
output channel is selected.
1 The EDID acquired is a weighted average of all the connected outputs. For example, if several displays with different
resolutions are connected to the outputs, the acquired EDID supports all the resolutions, as well as other parameters included
in the EDID
Page 15
Using the VM-24HDMI
13
4. Press the EDID READ button to copy the EDID of the selected OUTPUT
to the inputs1.
While the EDID is being copied, the EDID SELECT and READ buttons
illuminate.
The new EDID is copied when both buttons no longer illuminate.
6.4.2 Acquiring the Default EDID
To reset to the default EDID2, do the following:
1. Connect the power supply.
2. Press the EDID SELECT button and set it to the Default EDID mode.
All the OUTPUT STATUS LEDs blink simultaneously.
3. Press the EDID READ button to copy the default EDID to the inputs1.
While the EDID is being copied, the EDID SELECT and READ buttons
illuminate.
The new EDID is copied when both buttons no longer illuminate.
6.4.3 Acquiring the Auto-mix EDID from the Connected Outputs
To acquire the Auto-mix EDID3:
1. Connect the power supply.
2. Connect the desired output display devices.
3. Enter the Auto-mix mode as defined in Table 2.
All the OUTPUT STATUS LEDs light.
4. Press the READ button to copy the EDID of the selected OUTPUT to the
inputs1.
While the EDID is being copied, the EDID SELECT and READ buttons
illuminate.
The new EDID is copied when both buttons no longer illuminate.
1 If you want to cancel the EDID modification, wait for a few seconds without touching any button
2 The factory-default which is programmed into the VM-24HDMI before it is shipped
3 The EDID acquired is a weighted average of all the connected outputs. For example, if several displays with different
resolutions are connected to the outputs, the acquired EDID supports all the resolutions, as well as other parameters included
in the EDID
Page 16
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Technical Specifications
14
7 Technical Specifications
Table 3 includes the technical specifications1 of the VM-24HDMI:
Table 3: VM-24HDMI Technical Specifications
INPUTS: 2 HDMI Connectors
OUTPUTS: 4 HDMI Connectors
BANDWIDTH: Supports up to 2.25Gbps bandwidth per graphic channel
COMPLIANCE WITH HDMI STANDARD: Supports HDMI 1.3 and HDCP
CONTROLS: EDID SELECT, EDID READ, IN 1, IN 2 buttons, RS-232, IR
INDICATOR LEDs: OUTPUT STATUS LEDs
POWER SOURCE: 100-240V AC 50/60Hz 16VA
DIMENSIONS: 19-inch (W), 7-inch (D), 1U (H) rack mountable
WEIGHT: 2.5kg (5.5lbs) approx.
ACCESSORIES: Power cord, Null modem adapter, Windows®-based control
software
OPTIONS: HDMI/HDMI male-to-male cables, Fiber Optic HDMI Cable
(C-FOHM/FOHM), External remote IR receiver cable2
1 Specifications are subject to change without notice
2 P/N: C-A35M/IRR-50
Page 17
Communication Protocol
15
8 Communication Protocol
The VM-24HDMI is compatible with Kramer’s Protocol 2000 (version 0.50)
(below). This RS-232/RS-485 communication protocol uses four bytes of
information as defined below. For RS-232, a null-modem connection between
the machine and controller is used. The default data rate is 9600 baud, with
no parity, 8 data bits and 1 stop bit.
Table 4: Protocol Definitions
MSB LSB
DESTI-
NATION
INSTRUCTION
0 D N5 N4 N3 N2 N1 N0
7 6 5 4 3 2 1 0
1st byte
INPUT
1 I6 I5 I4 I3 I2 I1 I0
7 6 5 4 3 2 1 0
2nd byte
OUTPUT
1 O6 O5 O4 O3 O2 O1 O0
7 6 5 4 3 2 1 0
3rd byte
MACHINE NUMBER
1 OVR X M4 M3 M2 M1 M0
7 6 5 4 3 2 1 0
4th byte
1st BYTE: Bit 7 – Defined as 0.
D – “DESTINATION”: 0 - for sending information to the switchers (from the PC);
1 - for sending to the PC (from the switcher).
N5…N0 – “INSTRUCTION”
The function that is to be performed by the switcher(s) is defined by the INSTRUCTION (6 bits). Similarly, if a function is
performed via the machine’s keyboard, then these bits are set with the INSTRUCTION NO., which was performed. The
instruction codes are defined according to the table below (INSTRUCTION NO. is the value to be set for N5…N0).
2nd BYTE: Bit 7 – Defined as 1.
I6…I0 – “INPUT”.
When switching (ie. instruction codes 1 and 2), the INPUT (7 bits) is set as the input number which is to be switched.
Similarly, if switching is done via the machine’s front-panel, then these bits are set with the INPUT NUMBER which was
switched. For other operations, these bits are defined according to the table.
3rd BYTE: Bit 7 – Defined as 1.
O6…O0 – “OUTPUT”.
When switching (ie. instruction codes 1 and 2), the OUTPUT (7 bits) is set as the output number which is to be switched.
Similarly, if switching is done via the machine’s front-panel, then these bits are set with the OUTPUT NUMBER which was
switched. For other operations, these bits are defined according to the table.
4th BYTE: Bit 7 – Defined as 1.
Bit 5 – Don’t care.
OVR – Machine number override.
M4…M0 – MACHINE NUMBER.
Used to address machines in a system via their machine numbers.
When several machines are controlled from a single serial
port, they are usually configured together with each machine having an individual machine number. If the OVR bit is set,
then all machine numbers will accept (implement) the command, and the addressed machine will reply.
For a single machine controlled via the serial port, always set M4…M0 = 1, and make sure that the machine itself is
configured as MACHINE NUMBER = 1.
Page 18
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Communication Protocol
16
Table 5: Instruction Codes for Protocol 2000
Note: All values in the table are decimal, unless otherwise stated.
INSTRUCTION DEFINITION FOR SPECIFIC INSTRUCTION
# DESCRIPTION INPUT OUTPUT
NOTE
1 SWITCH VIDEO Set equal to video input
which is to be switched
(0 = disconnect)
Set equal to video output which is to
be switched
(0 = to all the outputs)
2, 15
30 LOCK FRONT PANEL 0 - Panel unlocked
1 - Panel locked
0 2
31 REQUEST WHETHER PANEL
IS LOCKED
0 0 16
61 IDENTIFY MACHINE 1 - video machine name
2 - audio machine name
3 - video software version
4 - audio software version
5 - RS422 controller name
6 - RS422 controller version
7 - remote control name
8 - remote software version
9 - Protocol 2000 revision
0 - Request first 4 digits
1 - Request first suffix
2 - Request second suffix
3 - Request third suffix
10 - Request first prefix
11 - Request second prefix
12 - Request third prefix
13
62 DEFINE MACHINE 1 - number of inputs
2 - number of outputs
3 - number of setups
1 - for video
2 - for audio
3 - for SDI
4 - for remote panel
5 - for RS-422 controller
14
NOTES on the above table:
NOTE 2 - These are bi-directional definitions. That is, if the switcher receives the code, it will perform the instruction; and if
the instruction is performed (due to a keystroke operation on the front panel), then these codes are sent. For example, if the
HEX code
01 85 88 83
was sent from the PC, then the switcher (machine 3) will switch input 5 to output 8. If the user switched input 1 to output 7
via the front panel keypad, then the switcher will send HEX codes:
41 81 87 83
to the PC.
When the PC sends one of the commands in this group to the switcher, then, if the instruction is valid, the switcher replies by
sending to the PC the same four bytes that it was sent (except for the first byte, where the DESTINATION bit is set high).
NOTE 13 - This is a request to identify the switcher/s in the system. If the OUTPUT is set as 0, and the INPUT is set as 1, 2,
5 or 7, the machine will send its name. The reply is the decimal value of the INPUT and OUTPUT. For example, for a 2216,
the reply to the request to send the audio machine name would be (HEX codes):
7D 96 90 81 (i.e. 128dec+ 22dec for 2nd byte, and 128dec+ 16dec for 3rd
byte).
If the request for identification is sent with the INPUT set as 3 or 4, the appropriate machine will send its software version
number. Again, the reply would be the decimal value of the INPUT and OUTPUT - the INPUT representing the number in
front of the decimal point, and the OUTPUT representing the number after it. For example, for version 3.5, the reply to the
request to send the version number would be (HEX codes):
7D 83 85 81 (i.e. 128dec+ 3dec for 2nd byte, 128dec+ 5dec for 3rd byte).
If the OUTPUT is set as 1, then the ASCII coding of the lettering following the machine’s name is sent. For example, for the
VS-7588YC, the reply to the request to send the first suffix would be (HEX codes):
7D D9 C3 81 (i.e. 128dec+ ASCII for “Y”; 128dec+ ASCII for “C”).
NOTE 14 - The number of inputs and outputs refers to the specific machine which is being addressed, not to the system. For
example, if six 16X16 matrices are configured to make a 48X32 system (48 inputs, 32 outputs), the reply to the HEX code
3E 82 81 82 (ie. request the number of outputs)
would be HEX codes
7E 82 90 82
ie. 16 outputs
NOTE 15 – When the OVR bit (4th byte) is set, then the “video” commands have universal meaning. For example,
instruction 1 (SWITCH VIDEO) will cause all units (including audio, data, etc.) to switch. Similarly, if a machine is in
“FOLLOW” mode, it will perform any “video” instruction.
NOTE 16 - The reply to the “REQUEST WHETHER PANEL IS LOCKED” is as in NOTE 4 above, except that here the
OUTPUT is assigned with the value 0 if the panel is unlocked, or 1 if it is locked.
Page 19
17
LIMITE D WARRANTY
WHO IS PROTECTED?
WHAT I S COVERED AND WHAT I S NOT COVERED
WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY F OR
HOW YOU CAN GET WARRANTY SERVICE
LIMITATION OF IMPLIED WA RRANTIES
EXCLUSION OF DAMAGES
CAUT ION!
Kramer Electronics (hereafter ) warrants this product free from defects in material and workmanship under the
following terms.
Kramer
HOW LONG IS THE WARRANTY
Labor and parts are warranted for seven years from the date of the first customer purchase.
Only the first purchase customer may enforce this warranty.
We will pay labor and material expenses for covered items. We will not pay for the following:
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall
not be liable for:
This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.
All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
This equipment has been tested to determine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility (EMC);
generic emission standard.
Residential, commercial and light industry"
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
Part 1: Residential, commercial and light industry environment".
CFR-47: FCC* Rules and Regulations:
Part 15: “Radio frequency devices
Subpart B Unintentional radiators”
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered
by the warranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed, or on which the WARRANTY VOID
TAMPERED sticker has been torn,
3. Damage, deterioration or malfunction resulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product
1. Removal or installations charges.
2. Costs of
initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty
coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name,
company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss
of time, commercial loss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations and exclusions may not apply to you.
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or
modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the
equipment.
Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables to connect the machine to other components.
IF reattached, removed or otherwise interfered with.
* FCC and CE approved using STP cable (for twisted pair products)
NOTE:
Part 1:
Page 20
Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: [email protected]
P/N: 2900-000403 REV 2
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com,
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Caution
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
Loading...
