Kramer VM-1110XL User manual
Kramer Electronics, Ltd.
Preliminary
USER MANUAL
Model:
VM-1110xl
Balanced Audio Distributor
Contents
Contents
1
Introduction 1
2
Getting Started 1
2.1 Quick Start 2
3
Overview 3
4
Your VM-1110xl Balanced Audio Distributor 3
5
Installing the VM-1110xl in a Rack 6
6
Connecting Your VM-1110xl 6
6.1 Connecting a 1:10 Mono DA 7
6.2 Connecting a 2x1:5 Mono DA 8
6.3 Connecting a 1:5 Stereo DA 9
7
Technical Specifications 10
Figures
Figure 1: VM-1110xl Balanced Audio Distributor 4

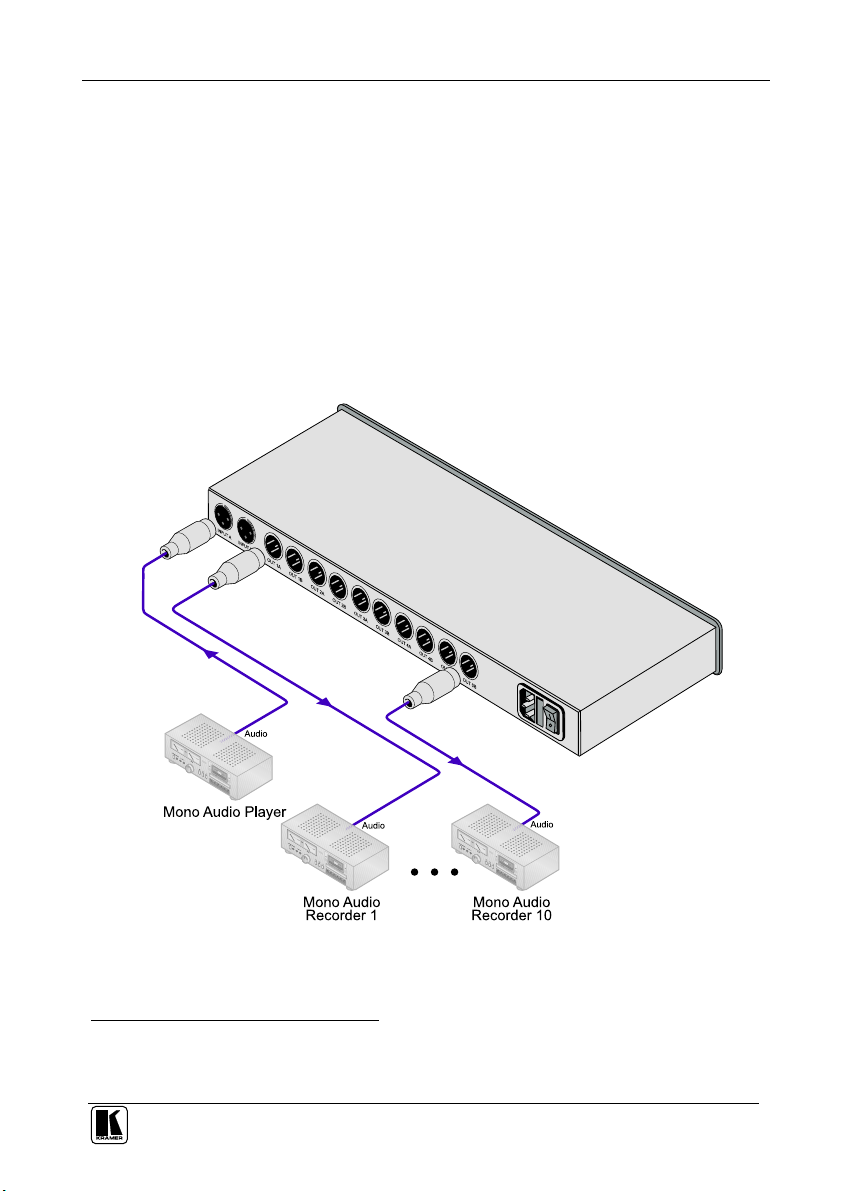

Figure 2: Connecting the VM-1110xl as a 1:10 Mono DA 7
Figure 3: Connecting the VM-1110xl as a 2x1:5 Mono DA 8
Figure 4: Connecting the VM-1110xl as a 1:5 Stereo DA 9
Tables
Table 1: VM-1110xl Balanced Audio Distributor Features 5
Table 2: VM-1110xl Balanced Audio Distributor Technical Specifications 10
i
Introduction
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better!
Our 1,000-plus different models now appear in 11 groups1 that are clearly
defined by function.
Thank you for purchasing your Kramer VM-1110xl Balanced Audio
Distributor.
This product is ideal for the following typical applications:
Audio duplication and production studios, delivering undiminished
quality duplicates
Recording studios
Broadcast studios for on-line signal distribution
Each package includes the following items:
VM-1110xl Balanced Audio Distributor
Power cord2
This user manual3
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and
packaging materials for possible future shipment
Review the contents of this user manual
Use Kramer high-performance high-resolution cables4
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers a nd Matrix Switchers; GROUP 3: Control Systems;
GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;
GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products
2 We recommend that you use only the power cord supplied with this device
3 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com
4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
1
Getting Started
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.
2
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
3 Overview
The VM-1110xl is a high performance balanced audio DA (distribution
amplifier) using XLR connectors. It can be configured as a mono (1:10 or
2x1:5) DA or as a stereo (1:5) DA.
The VM-1110xl features:
Front panel output level trimmer controls
Active Bi-FET amplifying circuitry that ensures hum-free, full-
bandwidth operation
A high-power discrete buffering system providing excellent
performance
To achieve the best performance:
Use only good quality connection cables1 to avoid interference,
deterioration in signal quality due to poor matching, and elevated
noise levels (often associated with low quality cables).
Avoid interference from neighboring electrical appliances that
may adversely influence signal quality and position your Kramer
VM-1110xl away from moisture, excessive sunlight and dust
4 Your VM-1110xl Balanced Audio Distributor
Figure 1 and Table 1 define the VM-1110xl.
1 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com
3
