VIAcast Quick Start
P/N:
2900- 301062QS
Rev:
4
Scan for full
manual

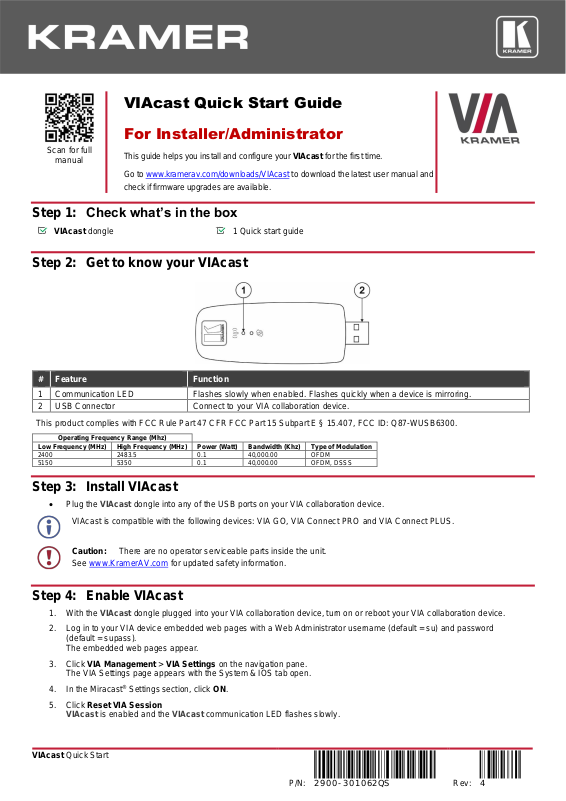

VIAcast Quick Start Guide
For Installer/Administrator
This guide helps you install and configure your VIAcast for the first time.
Go to www.kramerav.com/downloads/VIAcast to download the latest user manual and
check if firmware upgrades are available.
Step 1: Check what’s in the box
VIAcast dongle
1 Quick start guide
Step 2: Get to know your VIAcast
#
Feature
Function
1
Communication LED
Flashes slowly when enabled. Flashes quickly when a device is mirroring.
2
USB Connector
Connect to your VIA collaboration device.
This product complies with FCC Rule Part 47 CFR FCC Part 15 Subpart E § 15.407, FCC ID: Q87-WUSB6300.
Operating Frequency Range (Mhz)
Low Frequency (MHz)
High Frequency (MHz)
Power (Watt)
Bandwidth (Khz)
Type of Modulation
2400
2483.5
0.1
40,000.00
OFDM
5150
5350
0.1
40,000.00
OFDM, DSSS
Step 3: Install VIAcast
• Plug the VIAcast dongle into any of the USB ports on your VIA collaboration device.
VIAcast is compatible with the following devices: VIA GO, VIA Connect PRO and VIA Connect PLUS.
Caution:
There are no operator serviceable parts inside the unit.
See www.KramerAV.com for updated safety information.
Step 4: Enable VIAcast
1. With the VIAcast dongle plugged into your VIA collaboration device, turn on or reboot your VIA collaboration device.
2. Log in to your VIA device embedded web pages with a Web Administrator username (default = su) and password
(default = supass).
The embedded web pages appear.
3. Click VIA Management > VIA Settings on the navigation pane.
The VIA Settings page appears with the System & IOS tab open.
4. In the Miracast® Settings section, click ON.
5. Click Reset VIA Session
VIAcast is enabled and the VIAcast communication LED flashes slowly.
Scan for full
manual
VIAcast Quick Start Guide
For User
This guide helps you participate in a meeting using VIAcast.
Go to www.kramerav.com/downloads/VIAcast to download the latest user manual.
Mirror on VIA Main Display Using VIAcast
To mirror using VIAcast you need a Windows 10 laptop or an Android device that supports Miracast.
If the drivers of your Windows10 laptop are up to date and the “Connect to a wireless display” option is not
available, your device does not support Miracast.
Android operating system versions 4.2 and higher include built-in Miracast technology. However, some
Android 4.2 and 4.3 devices do not support Miracast.
For Windows laptop:
1. On your Windows laptop, press Windows + P.
The Project options appear.
2. Click Connect to a wireless display.
The Room Name of your VIA collaboration device appears
in the Connect list.
3. Click the Room Name of your VIA device.
A PIN code field appears (if Code was activated on
your VIA device).
4. Enter the Code that appears on the main display
and click Connect.
The name of your device appears on the main
display and then your screen is mirrored on the
main display.
For Android:
1. In your Android device settings, open Wi-Fi Direct or
Miracast.
Device options appear on your screen.
2. Click the Room Name of your VIA collaboration
device.
A PIN code field appears (if Code was activated on
your VIA device).
3. Enter the Code that appears on the main display
and click Accept/Connect.
The name of your device appears on the main
display and then your screen is mirrored on the
main display.
Miracast is a registered trademark of Wi-Fi Alliance.
