Page 1
Kramer Electronics, Ltd.
USER MANUAL
Models:
FC-47, HDMI to DVI/ Audio Converter
FC-48, DVI/ Audio to HDMI Converter
Page 2
Contents
i
Contents
1 Introduction 1
2 Getting Started 1
2.1 Quick Start 2
3 Overview 4
3.1 FC-47 / FC-48 Input/Output Resolutions 5
4 Your FC-47 HDMI to DVI/ Audio Converter 6
4.1 Connecting the FC-47 HDMI to DVI/ Audio Converter 7
5 Your FC-48 DVI/ Audio to HDMI Converter 8
5.1 Connecting the FC-48 DVI/ Audio to HDMI Converter 9
6 Technical Specifications 10
Figures
Figure 1: FC-47 HDMI to DVI/ Audio Converter 6
Figure 2: Connecting the FC-47 HDMI to DVI/ Audio Converter 7
Figure 3: FC-48 DVI/ Audio to HDMI Converter 8
Figure 4: Connecting the FC-48 DVI/ Audio to HDMI Converter 9
Tables
Table 1: FC-47 PC Input/Output Resolutions 5
Table 2: FC-47 HD Input/Output Resolutions 5
Table 3: FC-48 PC Input/Output Resolutions 5
Table 4: FC-48 HDTV Input/Output Resolutions 5
Table 5: FC-47 HDMI to DVI/ Audio Converter Features 6
Table 6: FC-48 DVI/ Audio to HDMI Converter Features 8
Table 7: Technical Specifications of the FC-47 HDMI to DVI/ Audio Converter 10
Table 8: Technical Specifications of the FC-48 DVI/ Audio to HDMI Converter 10
Page 3
Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
1,000-plus different models now appear in 11 groups
1
that are clearly defined
by function. Congratulations on purchasing your Kramer TOOLS FC-47
HDMI
2 2
to DVI/ Audio Converter and/or Kramer TOOLS FC-47 HDMI to
DVI/ Audio Converter. The FC-47 and FC-48 are ideal for:
• Home theater, presentation and multimedia applications
• Rental and staging
The package includes the following items:
• FC-47 or FC-48
• Power adapter (12V DC Input)
• This user manual
3
2 Getting Started
We recommend that you:
• Unpack the equipment carefully and save the original box and
packaging materials for possible future shipment
• Review the contents of this user manual
• Use Kramer high performance high resolution cables
4
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems;
GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;
GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products
2 High-Definition Multimedia Interface
3 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com
4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
Page 4
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit
1
.
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.
1 For example: model number AD2512C, part number 2535-000251
Page 5
Getting Started
3
Page 6
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
4
3 Overview
High-Definition Multimedia Interface (HDMI) is an uncompressed all-digital
1
• Provides a simple
audio/video interface, widely supported in the entertainment and home cinema
industry. It delivers the highest high-definition image and sound quality. Note that
Kramer Electronics Limited is an HDMI Adopter and an HDCP Licensee. In
particular, HDMI:
2
interface between any audio/video source, such as a
set-top box, DVD player, or A/V receiver and video monitor, such as a digital
flat LCD / plasma television (DTV), over a single lengthy
3
• Supports standard, enhanced, high-definition video, and multi-channel
digital audio
cable
4
• Transmits all ATSC HDTV standards and supports 8-channel digital audio,
with bandwidth to spare to accommodate future enhancements and requirements
on a single cable
• Benefits consumers by providing superior, uncompressed digital video
quality via a single cable
5
• Is backward-compatible with DVI (Digital Visual Interface)
, and user-friendly connector
• Supports two-way communication between the video source (such as a
DVD player) and the digital television, enabling new functionality such as
automatic configuration and one-button play
HDMI has the capacity to support existing high-definition video formats (720p,
1080i, and 1080p/60), as well as standard definition formats such as NTSC or PAL.
Achieving the best performance means:
• Connecting only good quality connection cables, thus avoiding
interference, deterioration in signal quality due to poor matching, and elevated
noise levels (often associated with low quality cables)
• Avoiding interference from neighboring electrical appliances that may
adversely influence signal quality and positioning your FC-47 and/or FC-48
in a location free from moisture and away from excessive sunlight and dust
1 Ensuring an all-digital rendering of video without the losses associated with analog interfaces and their unnecessary digital-
to-analog conversions
2 With video and multi-channel audio combined into a single cable, the cost, complexity, and confusion of multiple cables
currently used in A/V systems is reduced
3 HDMI technology has been designed to use standard copper cable construction at up to 15m
4 HDMI supports multiple audio formats, from standard stereo to multi-channel surround-sound. HDMI has the capacity to
support Dolby 5.1 audio and high-resolution audio formats
5 HDMI provides the quality and functionality of a digital interface while also supporting uncompressed video formats in a
simple, cost-effective manner
Page 7
Overview
5
3.1 FC-47 / FC-48 Input/Output Resolutions
This section describes the:
• FC-47 PC input/output resolutions, see Table 1
• FC-47 HD input/output resolutions, see Table 2
• FC-48 PC input/output resolutions, see Table 3
• FC-48 HDTV input/output resolutions, see Table 4
Table 1: FC-47 PC Input/Output Resolutions
VGA
1
VGA
@60Hz
1
@72Hz VGA1@75Hz VGA1@85Hz
SVGA
2
SVGA
@60Hz
2
@72Hz SVGA2@75Hz SVGA2@85Hz
XGA
3
XGA
@60Hz
3
@70Hz XGA3@75Hz XGA3@85Hz
XGA3@87Hz
SXGA
4
SXGA
@60Hz
4
@75Hz SXGA4@85Hz
UXGA
5
1152@70Hz
@60Hz
1152@75Hz 1152@85Hz
Table 2: FC-47 HD Input/Output Resolutions
480i@60Hz 576i@50Hz 480P@60Hz 576P@50Hz 720P@60Hz
720P@50Hz 1080i@60Hz 1080i@50Hz 1080P@60Hz 1080P@50Hz
1080P@30Hz 1080P@25Hz 1080P@24Hz
Table 3: FC-48 PC Input/Output Resolutions
VGA
1
@60Hz VGA1@72Hz VGA1@75Hz VGA1@85Hz
SVGA2@60Hz SVGA2@72Hz SVGA2@75Hz SVGA2@85Hz
XGA3@60Hz XGA3@70Hz XGA3@75Hz XGA3@85Hz
XGA3@87Hz SXGA4@60Hz SXGA4@75Hz SXGA4@85Hz
UXGA5@60Hz 1152@70Hz 1152@75Hz 1152@85Hz
Table 4: FC-48 HDTV Input/Output Resolutions
480P@60Hz 576P@50Hz 720P@50Hz 720P@60Hz 1080i@50Hz
1080i@60Hz 1080P@60Hz 1080P@50Hz 1080P@30Hz 1080P@25Hz
1080P@24Hz
1 640x480
2 800x600
3 1024x768
4 1280x1024
5 1600x1200
Page 8
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your FC-47 HDMI to DVI/ Audio Converter
6
4 Your FC-47 HDMI to DVI/ Audio Converter
The high quality FC-47 HDMI to DVI/ Audio Converter accepts an HDMI
input and converts the HDMI signal to a digital video DVI (DVI-D) output and
a digital audio S/PDIF output. In particular, the FC-47:
• Lets you connect your HDMI source to a DVI HDCP display and
enjoy high quality digital audio at the same time (note that when the
HDMI input is HDCP encrypted the DVI output is encrypted as well)
• Features input format auto detection: digital RGB or YPbPr
• Supports an operation frequency of up to 1.65Gbps
• Is 12VDC fed
• Is HDCP compliant
• Is Plug and Play
Figure 1 and Table 5 define the FC-47 HDMI to DVI/ Audio Converter:

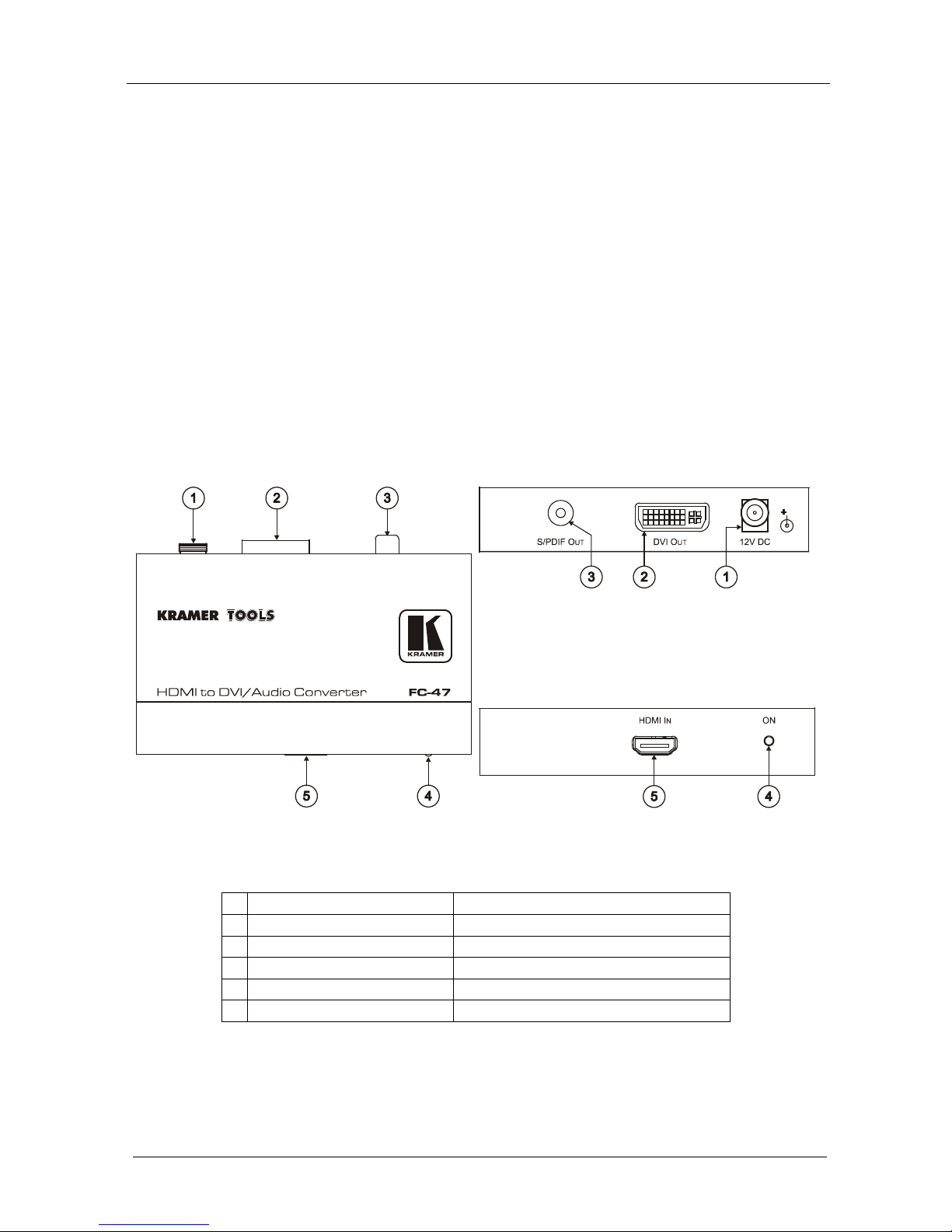

Figure 1: FC-47 HDMI to DVI/ Audio Converter
Table 5: FC-47 HDMI to DVI/ Audio Converter Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 DVI OUT Connector Connects to the DVI acceptor
3 S/PDIF OUT RCA Connector Connects to the digital audio acceptor
4 ON LED Illuminates when receiving power
5 HDMI IN Connector Connects to the HDMI source
Page 9
Your FC-47 HDMI to DVI/ Audio Converter
7
4.1 Connecting the FC-47 HDMI to DVI/ Audio Converter
To connect the FC-47, as the example in Figure 2 shows, do the following
1
1. Connect the DVI OUT connector to the DVI acceptor (for example, a
plasma display).
:
2. Connect the S/PDIF RCA OUT connector to the digital audio acceptor
(for example, an AV receiver).
3. Connect the HDMI source (for example, an HDMI set top box) to the
HDMI IN connector.
4. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity.
Note that only the digital signal (DVI-D) is available on the DVI connector.
Figure 2: Connecting the FC-47 HDMI to DVI/ Audio Converter
1 Switch OFF the power on each device before connecting it to your FC-47. After connecting your FC-47, switch on its
power and then switch on the power on each device
Page 10
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your FC-48 DVI/ Audio to HDMI Converter
8
5 Your FC-48 DVI/ Audio to HDMI Converter
The high quality FC-48 DVI/ Audio to HDMI Converter accepts a DVI input
and an S/PDIF input, and combines both these digital A/V signals into an
HDMI output. In particular, the FC-48:
• Adds HDMI output capability to your DVI source so that, for
example, an HDMI television can be used with your DVI source with
sound
• Supports an operation frequency of up to 1.65Gbps per graphic
channel
• Features input format auto detection: digital RGB or YPbPr
• Is 12VDC fed
• HDCP compliant
• Is Plug and Play
Figure 3 and Table 6 define the FC-48 DVI/ Audio to HDMI Converter:
Figure 3: FC-48 DVI/ Audio to HDMI Converter
Table 6: FC-48 DVI/ Audio to HDMI Converter Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 HDMI OUT Connector Connects to the HDMI acceptor
3 ON LED Illuminates when receiving power
4 S/PDIF IN RCA Connector Connects to the digital audio source
5 DVI IN Connector Connects to the DVI source
Page 11
Your FC-48 DVI/ Audio to HDMI Converter
9
5.1 Connecting the FC-48 DVI/ Audio to HDMI Converter
To connect the FC-48, as the example in Figure 4 shows, do the following
1
1. Connect the HDMI OUT connector to the HDMI acceptor (for example,
an LCD TV with built-in speakers).
:
2. Connect the DVI source (for example, a multimedia player) to the:
• DVI IN connector
• S/PDIF (digital audio) RCA IN connector
3. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity.
Figure 4: Connecting the FC-48 DVI/ Audio to HDMI Converter
1 Switch OFF the power on each device before connecting it to your FC-48. After connecting your FC-48, switch on its
power and then switch on the power on each device
Page 12
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Technical Specifications17F
10
6 Technical Specifications
1
Table 7 and Table 8 define the technical specifications:
Table 7: Technical Specifications of the FC-47 HDMI to DVI/ Audio Converter
INPUT: HDMI Connector
OUTPUTS: 1 DVI
2
1 S/PDIF (digital audio) on an RCA connector
, 1.2Vpp on a DVI Molex 24pin female connector; DDC signal 5Vpp
(TTL)
OPERATION
FREQUENCY:
Supports up to 1.65Gbps
COMPLIANCE WITH HDMI
STANDARD:
Supports HDMI, HDCP
3
AUDIO FORMATS:
1.0
2ch 44.1kHz/16 bit; 2ch 48kHz/24 bit; 5.1ch 48kHz/24 bit; 7.1ch 48kHz/24
bit
INDICATOR LED: ON
POWER CONSUMPTION: 12 VDC 260mA
DIMENSIONS: 12cm x 7.2cm x 2.4cm (4.73" x 2.83" 0.95", W, D, H)
WEIGHT: 0.3 kg. (0.67 lbs.) approx.
ACCESSORIES: Power supply, bracket installation kit
OPTIONS: Kramer cables
Table 8: Technical Specifications of the FC-48 DVI/ Audio to HDMI Converter
INPUTS: 1 DVI2, 1.2Vpp on a DVI Molex 24pin female connector; DDC signal 5Vpp (TTL)
1 S/PDIF (digital audio) on an RCA connector
OUTPUT: HDMI Connector
OPERATION
FREQUENCY:
Supports up to 1.65Gbps
COMPLIANCE WITH
HDMI STANDARD:
Supports DVI 1.0, HDMI, and HDCP3 1.0
INDICATOR LED: ON
POWER
CONSUMPTION:
12 VDC 190mA
DIMENSIONS: 12cm x 7.2cm x 2.4cm (4.73" x 2.83" 0.95", W, D, H)
WEIGHT: 0.3 kg. (0.67 lbs.) approx.
ACCESSORIES: Power supply, bracket installation kit
OPTIONS: Kramer cables
1 Specifications are subject to change without notice
2 On a DVI-I connector. Note that only the digital signal (DVI-D) is available on the DVI connector
3 Compliant with HDCP 1.1 and downward compatible with HDCP 1.0
Page 13
11
LIMITED WARRANTY
WHO IS PROTECTED?
WHAT IS COVERED AND WHAT IS NOT COVERED
WH AT WE W IL L P AY FO R AN D W H AT W E WI L L N O T PAY F O R
HOW YOU CAN GET WARRANTY SERVICE
LIMITATION OF IMPLIED WARRANTIES
EXCLUSION OF DAMAGES
CAUTION!
Kramer Electronics (hereafter ) warrants this product free from defects in material and workmanship under the
following terms .
Kramer
HOW LONG IS THE WA RRANTY
Labor and parts are warranted for three years from the date of the first customer purchase.
Only the first purchase customer may enforce this warranty.
We will pay labor and material expenses for covered items. We will not pay for the following:
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall
not be liable for:
This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.
All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
This equipment has been tested to determine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility (EMC);
generic emission standard.
Residential, commercial and light industry"
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
Part 1: Residential, commercial and light industry environment".
CFR-47: FCC* Rules and Regulations:
Part 15: “Radio frequency devices
Subpart B Unintentional radiators”
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered
by the warranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed, or on which the WARRANTY VOID
TAMPERED sticker has been torn,
3. Damage, deterioration or malfunction resulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) P roduct modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, whi ch does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product
1. Removal or installations charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty
coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name,
company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss
of time, commercial loss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations and exclusions may not apply to you.
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or
modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the
equipment.
Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables to connect the machine to other components.
IF reattached, removed or otherwise interfered with.
* FCC and CE approved using STP cable (for twisted pair products)
NOTE:
Part 1:
Page 14
Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: info@kramerel.com
P/N: 2900-000238 REV 3A
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com,
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Caution
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
Loading...
