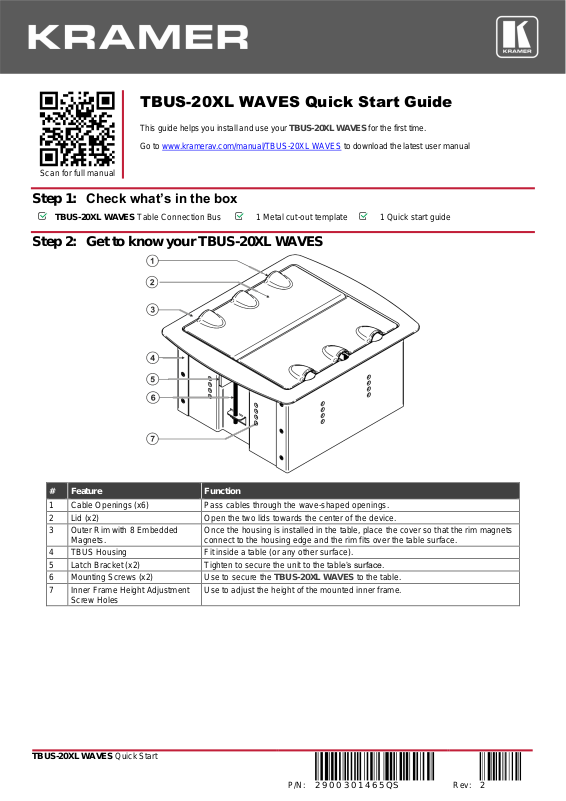

TBUS-20XL WAVES Quick Start
P/N:
2900301465QS
Rev:
2
Scan for full manual
TBUS-20XL WAVES Quick Start Guide
This guide helps you install and use your TBUS-20XL WAVES for the first time.
Go to www.kramerav.com/manual/TBUS-20XL WAVES to download the latest user manual
Step 1: Check what’s in the box
TBUS-20XL WAVES Table Connection Bus
1 Metal cut-out template
1 Quick start guide
Step 2: Get to know your TBUS-20XL WAVES
#
Feature
Function
1
Cable Openings (x6)
Pass cables through the wave-shaped openings.
2
Lid (x2)
Open the two lids towards the center of the device.
3
Outer Rim with 8 Embedded
Magnets.
Once the housing is installed in the table, place the cover so that the rim magnets
connect to the housing edge and the rim fits over the table surface.
4
TBUS Housing
Fit inside a table (or any other surface).
5
Latch Bracket (x2)
Tighten to secure the unit to the table’s surface.
6
Mounting Screws (x2)
Use to secure the TBUS-20XL WAVES to the table.
7
Inner Frame Height Adjustment
Screw Holes
Use to adjust the height of the mounted inner frame.
Page 2
Step 3: Install the TBUS-20XL WAVES
1. Cut an opening in the table using the metal cut-out template. Before cutting check the latest cut-out dimensions from
the Kramer website at www.kramerav.com/downloads/TBUS-20XL WAVES:
▪ Place the cut-out template on the surface of the table exactly where you want to install the TBUS-20XL WAVES.
▪ Attach the cut-out template to the table with the included screws.
▪ Following the inside edge of the template, cut a hole in the table surface according to the dimensions
(217 +2mm x 230+2mm; 8.5+0.08” x 9.05+0.08”).
▪ Unscrew and remove the template from the surface of the table and clean the table surface.
Take care not to damage the table. If needed, you can download a full-scale template from the Kramer website at
www.kramerav.com/downloads/TBUS-20XL WAVES.
Take care not to damage the table. Kramer Electronics is not responsible for any damage caused to the table.
2. Make sure that:
▪ All the inserts are mounted onto the inner frame, as
required.
▪ The inner frame is correctly installed inside the
TBUS-20XL WAVES housing.
▪ The TBUS-20XL WAVES lid is off.
3. Carefully insert TBUS-20XL WAVES into the cut-out
opening (with lid removed).
4. Screw the mounting screws on both sides of the
housing until both latch brackets are tightened against
the surface from underneath.
5. Connect the cables and power sockets from under the
table.
6. Place the lid over the housing (the magnets attach to
the rim of the housing).
TBUS-20XL WAVES is ready to use.
