Introduction
1
1 Introduction
Welcome to Kramer Electronics (since 1981): a world of unique, creative and
affordable solutions to the infinite range of problems that confront the video, audio
and presentation professional on a daily basis. In recent years, we have redesigned
and upgraded most of our line, making the best even better! Our 500-plus different
models now appear in 8 Groups1, which are clearly defined by function.
Congratulations on purchasing your Kramer TBUS-2 table bus, which is ideal
for boardrooms, conference and training rooms!
The package includes the following items:
TBUS-2 Table Bus System
Power cord
This user manual2
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables3
2.1 Quick Start
This Quick start chart summarizes the basic steps when connecting a TBUS-2:
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 Download up-to-date Kramer user manuals from our Web site: http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2
Overview
3
3 Overview
The TBUS-2 is a furniture-mounted connection bus that is easily installed into
a table or podium top. The TBUS-2 lets you connect any equipment to the
room’s presentation system installations via cable access or passive interfaces.
When not in use, you can lower the TBUS-2 flush into the table. The example
in Figure 1 shows the TBUS-2 in a table or podium top with a power socket
suitable for the US.
Figure 1: TBUS-2 Table Connection Bus
In addition, the TBUS-2 is:
Easily opened and closed by pressing down gently on the lid1
Modular in design, letting you tailor it according to your needs2
Available with different power outlet connections3
1 Due to its tilting angular construction, pneumatic lift and mechanical latching mechanism, it can be raised (when in use) or
lowered (when not in use)
2 The complete list of Kramer inserts, for designing the Connecting Surface, can be found on our Web site at
http://www.kramerelectronics.com
3 Suitable for Australia, Belgium and France, Germany and the EU, Italy, South Africa, the UK and the US
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
4
To achieve the best performance:
Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise
levels (often associated with low quality cables)
Avoid interference from neighboring electrical appliances that may
adversely influence signal quality and position your Kramer TBUS-2
away from moisture, excessive sunlight and dust
Never place fingers inside the opening on each side of the
unit. This could cause serious injury because of the sharp
edges inside the TBUS-2.
Do not place heavy objects on top of the TBUS-2
Do not use excessive force to push down the top of the unit.
Your TBUS-2 Connection Bus
5
4 Your TBUS-2 Connection Bus
Figure 2 and Table 1 define the TBUS-2 unit:
Table Surface
Figure 2: TBUS-2 Table Connection Bus (Side View)
Table 1: TBUS-2 Table Connection Bus Features
# Feature Function
1 Connecting Surface See Figure 3 and Table 2
2 Black Textured Lid Covers the connecting surface, leaving the table surface neat and tidy
3 Outer Rim Fits over the table surface
4 Support Bracket Supports the table securing screw (two sets)
5 Table Securing Screw Tighten to secure the unit to the table surface (two sets)
6 Support Bracket Grooves Hold the support bracket at the required height (four on each side)
7 Pneumatic Lift Enables smooth lifting and closing of the lid
8 Mechanical Latching
Mechanism
Enables closing and opening the lid by slightly pressing it
9 Enclosure Located underneath the table surface
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your TBUS-2 Connection Bus
6

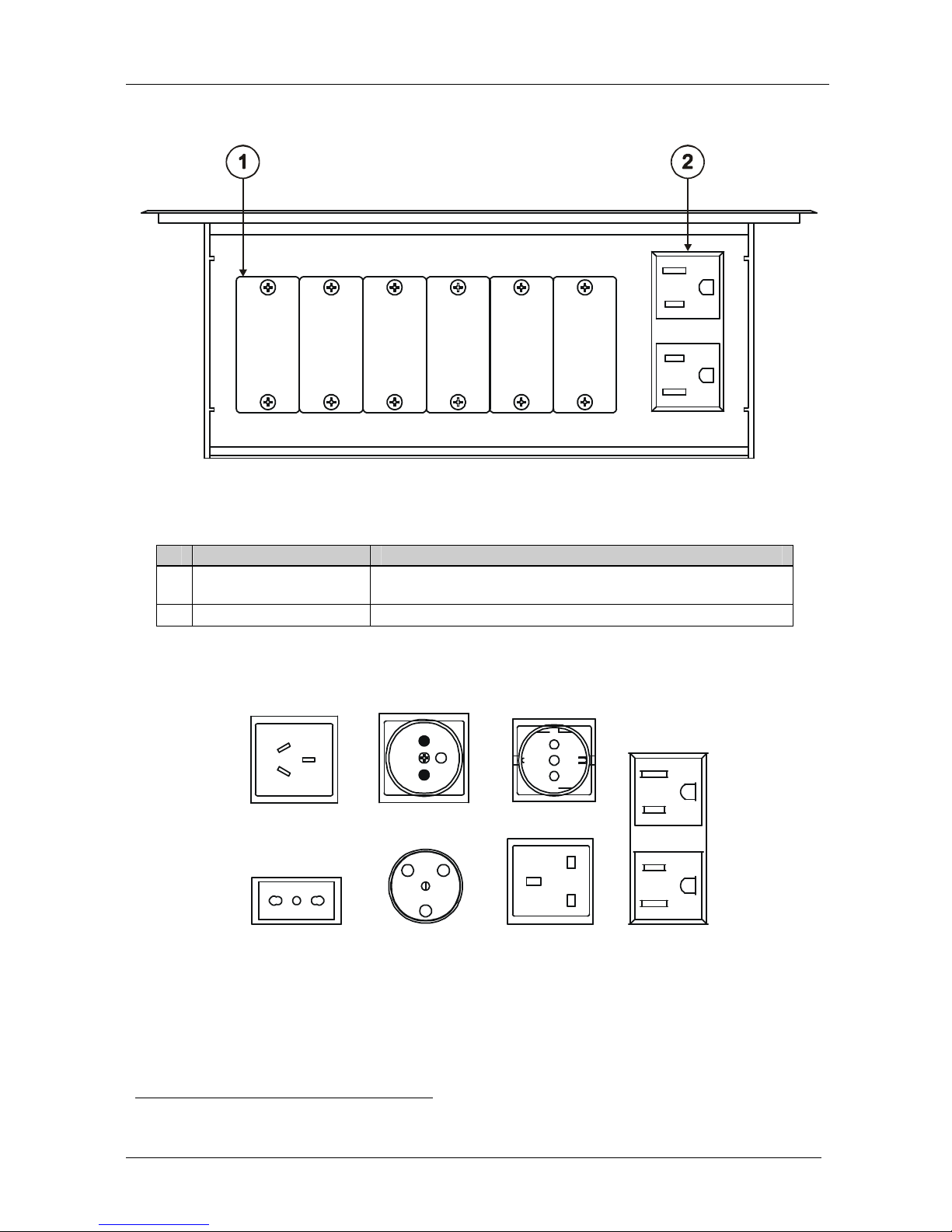

Figure 3 and Table 2 define the Connecting Surface:
110V~60Hz 5A
Figure 3: TBUS-2 Connecting Surface
Table 2: TBUS-2 Connecting Surface Features
# Feature Function
1 Blank Plates Six blank covers that can be replaced with Kramer inserts as
required (see section 5.3)
2 Power Sockets1 Suitable for US power requirements
In addition to the US power socket, the TBUS-2 is also available with other
types of power sockets, as illustrated in Figure 4:
Australia
UK
US
Belgium - France
Germany - EU
South AfricaItaly
Figure 4: TBUS-2 Power Sockets
1 Also available with other types of power sockets (see Figure 4)
Connecting the TBUS-2 Connection Bus
7
5 Connecting the TBUS-2 Connection Bus
This section describes how to connect the TBUS-2:
Cut an opening in the table (see section 5.1)
Insert the TBUS-2 through the cut-out opening (see section 5.2)
Install the required Kramer inserts (see section 5.3)
5.1 Cutting an Opening
Figure 5 illustrates the cutout template (not to scale) defining the surface you
have to cut out to install your TBUS-2.
A template can be downloaded from our Web site1
6
.
0
3
"
[
1
5
6
.
1
3
m
m
]
VERIF Y ALL DIME NSION S
TO EN SURE THAT THIS
PRIN T IS 1 TO 1 SCALE
MEASURE W ITH A RULER
inch.
cm.
CUT TO THE
OUTSIDE OF
THE LINE.
9.470"
[240.54mm]
FRONT
FRONT
4x R.500"
[R12.70mm]
i
n
c
h
.
c
m
.
M
E
A
S
U
R
E
W
I
T
H
A
R
U
L
E
R
.
Figure 5: Cutout Dimensions
The thickness of the table should be 3” or less.
Before cutting the opening, confirm the dimensions and make sure that the
specifications have not changed.
Cut out the wooden surface in which you want to insert the TBUS-2. Take
care not to cause damage to the table.
Kramer Electronics is not responsible for any damage caused to the table
1 At http://www.kramerelectronics.com
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the TBUS-2 Connection Bus
8
5.2 Inserting the TBUS-2 through the Cut-Out Opening
To install the TBUS-2, do the following:
1. Carefully insert the unit into the prepared opening.
2. Take the support brackets under the table and place them into the support
bracket grooves at the desired height (on both the front and rear sides of the
unit).
3. Make sure that the upper outer rim is situated parallel to the edge of the table.
4. Insert the table securing screw through the holes in the support brackets and
tighten them until they reach the table surface (from underneath).
5. Secure the cables.
Do not keep the cord too tight or too loose.
6. Connect the appropriate cables to the mounted Kramer inserts from
underneath.
Once you have connected the unit to mains power and connected the proper
cables, you may use the unit.
5.3 Installing the Required Kramer Inserts
You can install the Kramer inserts before or after installing the TBUS-2.
By default, the mounting surface includes a power socket (different power
sockets are available, see Figure 4), and six blank plates for optional video,
audio, telephone and network connectors.
Any of the Kramer inserts mounted to the connecting surface can be
rearranged or removed and replaced with Kramer inserts1 or connector
modules for interfacing A/V type signals.
To mount a Kramer insert or connector module, do the following:
1. Unscrew the two screws that fasten the blank plate to the connecting surface
and remove the blank plate.
2. Place the required Kramer insert over the opening, insert the two screws to fix
the Kramer insert in place, and tighten them.
1 The complete list of Kramer inserts and module connectors is on our Web site at http://www.kramerelectronics.com
Technical Specifications
9
6 Technical Specifications
Table 3 includes the technical specifications:
Table 3: Technical Specifications1 of the TBUS-2
Dual US 110V AC, 60 Hz, 2.5A per connector
Germany and the EU 220-240V AC, 50/60 Hz, 5A per connector
Belgium and France 220-240V AC, 50/60 Hz, 5A per connector
The UK 220-240V AC, 50/60 Hz, 5A per connector
South Africa 220-240V AC, 50/60 Hz, 5A per connector
Italy 220-240V AC, 50/60 Hz, 5A per connector
POWER SOURCE
(AC power limits):
Australia 220-240V AC, 50/60 Hz, 5A per connector
DIMENSIONS: Including the outer rim: 25.3cm x 16.6cm x 18.4cm (9.97" x 6.53" x 7.25") W, D, H
Without the outer rim: 24cm x 15.6cm x 18.4cm (9.47" x 6.03" x 7.25") W, D, H
WEIGHT: 1.15kg. (2.53lbs.) approx.
ACCESSORIES: Power cord
OPTIONS: Kramer inserts and interfaces2
1 Specifications are subject to change without notice
2 The complete list of Kramer inserts and module connectors is on our Web site at http://www.kramerelectronics.com
KRAMER: SIMPLE CREATIVE TECHNOLOGY
10
LIMITED WARRANTY
WHO IS PROTECTED?
WHAT IS COVERED AND WHAT IS NOT COVE RED
WHAT WE WILL PAY FOR AND WH AT WE WILL NO T PAY FOR
HOW YOU CAN GET WARRANTY SERVICE
LIMITATION OF I MPLIED WARRAN TIE S
EXCLUSION OF DAMAGES
CAUTION!
Kramer Electronics (hereafter ) warrants this product free from defects in material and workmanship under the
following terms.
Kramer
HOW LONG IS THE WARRANTY
Labor and parts are warranted for seven years from the date of the first customer purchase.
Only the first purchase customer may enforce this warranty.
We will pay labor and material expenses for covered items. We will not pay for the following:
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall
not be liable for:
This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.
All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
This equipment has been tested to determine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility (EMC);
generic emission standard.
Residential, commercial and light industry"
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
Part 1: Residential, commercial and light industry environment".
CFR-47: FCC Rules and Regulations:
Part 15: “Radio frequency devices
Subpart B Unintentional radiators”
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered
by the warranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed.
3. Damage, deterioration or malfunction resulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product
1. Removal or installations charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty
coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name,
company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss
of time, commercial loss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not a llow limitations on how long an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations and exclusions may not apply to you.
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or
modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the
equipment.
Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables to connect the machine to other components.
NOTE:
Part 1:
Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: info@kramerel.com
P/N: 2900-000230 REV 1
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com,
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Caution
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
Loading...
