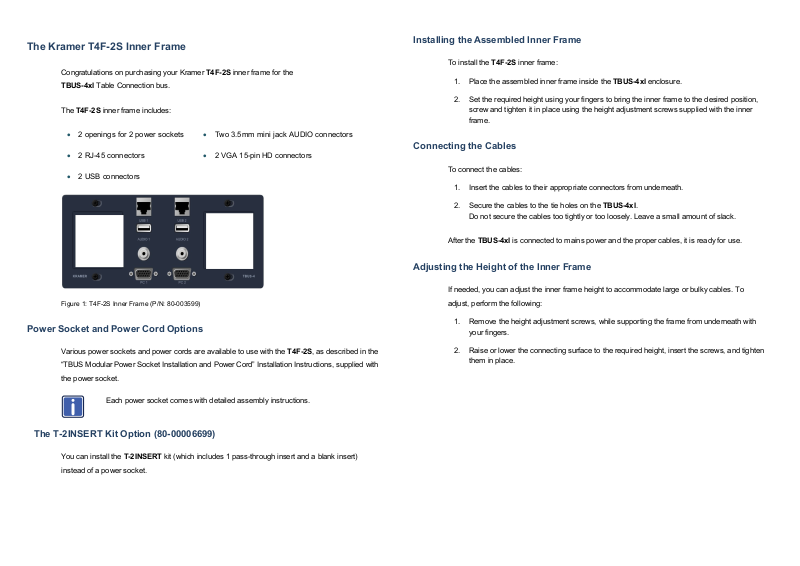

The Kramer T4F-2S Inner Frame
i
Congratulations on purchasing your Kramer T4F-2S inner frame for the
TBUS-4xl Table Connection bus.
The T4F-2S inner frame includes:
• 2 openings for 2 power sockets • Two 3.5mm mini jack AUDIO connectors
• 2 RJ-45 connectors • 2 VGA 15-pin HD connectors
• 2 USB connectors
Installing the Assembled Inner Frame
To install the T4F-2S inner frame:
1. Place the assembled inner frame inside the TBUS-4xl enclosure.
2. Set the required height using your fingers to bring the inner frame to the desired position,
screw and tighten it in place using the height adjustment screws supplied with the inner
frame.
Connecting the Cables
To connect the cables:
1. Insert the cables to their appropriate connectors from underneath.
2. Secure the cables to the tie holes on the TBUS-4xl.
Do not secure the cables too tightly or too loosely. Leave a small amount of slack.
After the TBUS-4xl is connected to mains power and the proper cables, it is ready for use.
Adjusting the Height of the Inner Frame
Figure 1: T4F-2S Inner Frame (P/N: 80-003599)
Power Socket and Power Cord Options
Various power sockets and power cords are available to use with the T4F-2S, as described in the
“TBUS Modular Power Socket Installation and Power Cord” Installation Instructions, supplied with
the power socket.
Each power socket comes with detailed assembly instructions.
The T-2INSERT Kit Option (80-00006699)
You can install the T-2INSERT kit (which includes 1 pass-through insert and a blank insert)
instead of a power socket.
If needed, you can adjust the inner frame height to accommodate large or bulky cables. To
adjust, perform the following:
1. Remove the height adjustment screws, while supporting the frame from underneath with
your fingers.
2. Raise or lower the connecting surface to the required height, insert the screws, and tighten
them in place.
!
SAFETY WARNING
Disconnect the unit from the power
supply before opening and servicing
KRAMER ELECTRONICS LTD.
Installation
Instructions
MODEL:
T4F-2S
Inner Frame
For the latest information on our products and a list of Kramer
distributors, visit our Web site where updates to this user manual may be
found.
We welcome your questions, comments, and feedback.
Web site:
E-mail:
www.kramerelectronics.com
info@kramerel.com
P/N: 2900-300068 Rev 2
