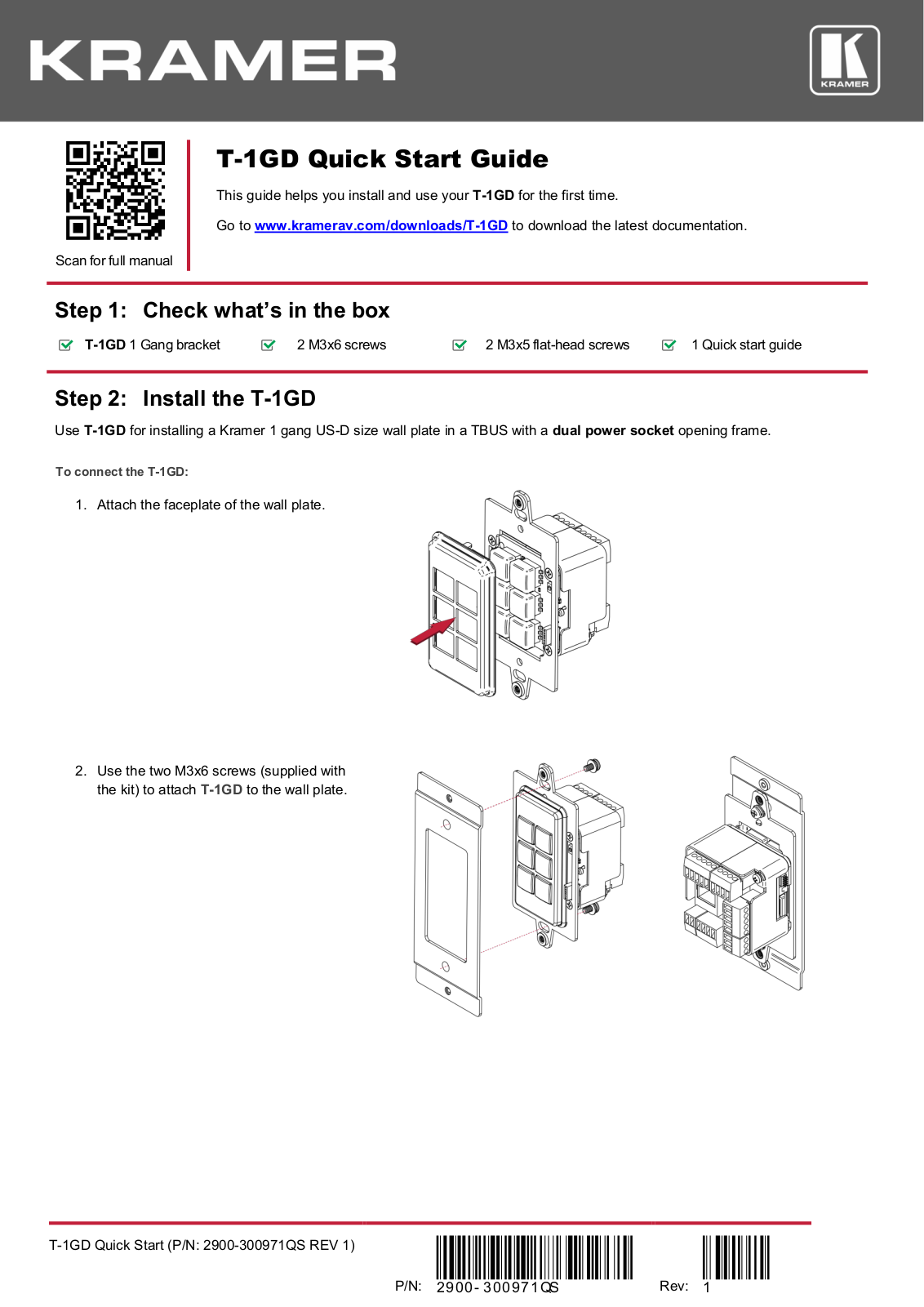

T-1GD Quick Start Guide
This guide helps you install and use your T-1GD for the first time.
Go to www.kramerav.com/downloads/T-1GD to download the latest documentation.
Step 1: Check what’s in the box
T-1GD 1 Gang bracket
2 M3x6 screws
2 M3x5 flat-head screws
1 Quick start guide
Step 2: Install the T-1GD
Use T-1GD for installing a Kramer 1 gang US-D size wall plate in a TBUS with a dual power socket opening frame.
To connect the T-1GD:
1. Attach the faceplate of the wall plate.
2. Use the two M3x6 screws (supplied with
the kit) to attach T-1GD to the wall plate.
-1GD Quick Start (P/N: 2900-300971QS REV 1)
P/N:
Rev:

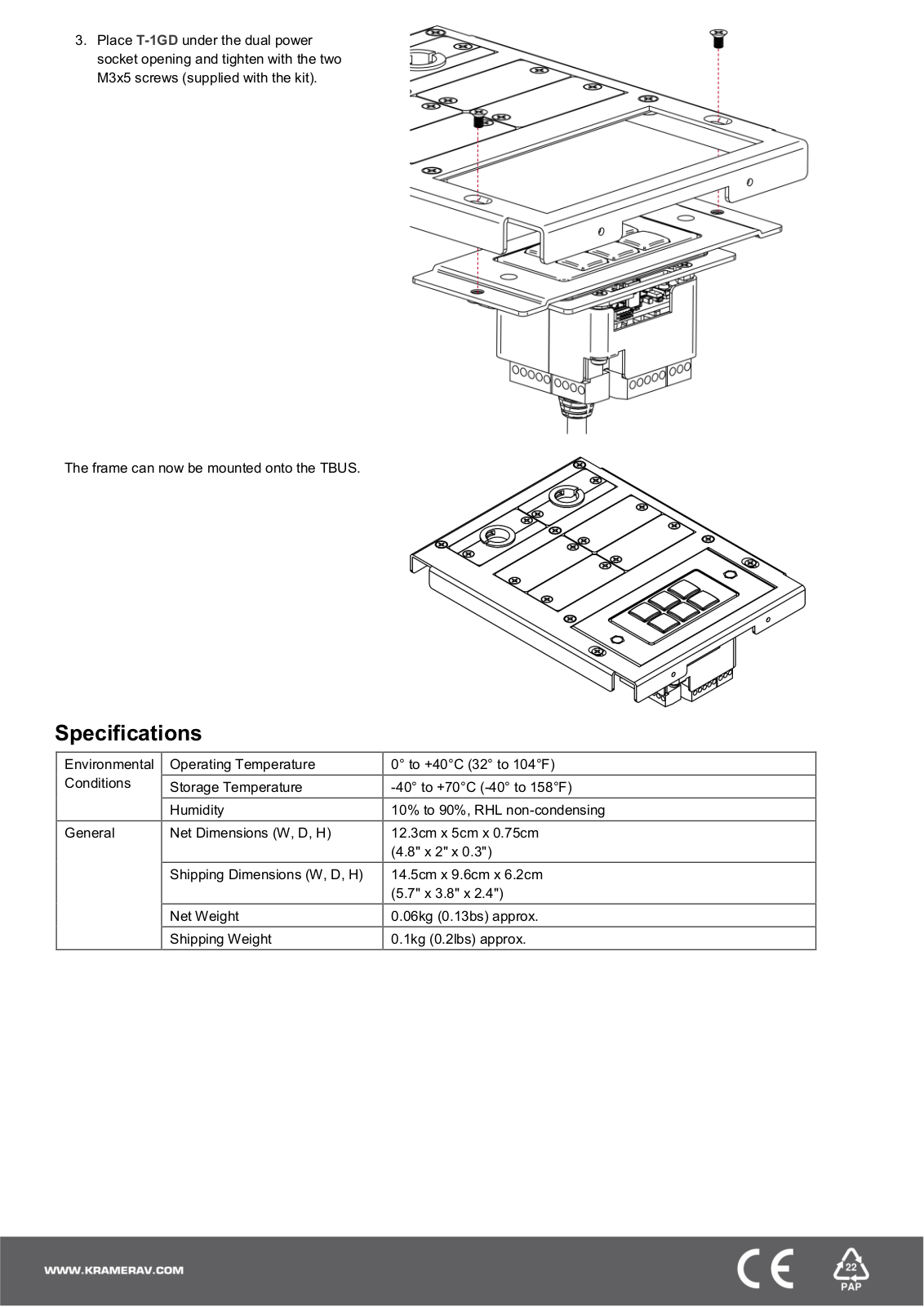

3. Place T-1GD under the dual power
Humidity
10% to 90%, RHL non-condensing
(4.8" x 2" x 0.3")
Shipping Weight
0.1kg (0.2lbs) approx.
socket opening and tighten with the two
M3x5 screws (supplied with the kit).
The frame can now be mounted onto the TBUS.
Specifications
Environmental
Conditions
General Net Dimensions (W, D, H) 12.3cm x 5cm x 0.75cm
Operating Temperature 0° to +40°C (32° to 104°F)
Storage Temperature -40° to +70°C (-40° to 158°F)
Shipping Dimensions (W, D, H) 14.5cm x 9.6cm x 6.2cm
(5.7" x 3.8" x 2.4")
Net Weight 0.06kg (0.13bs) approx.
