Kramer SWT3-41-U-T, EXT3-UE-R, EXT3-U-R, ACC3-12-SP USER MANUAL

Download

USER MANUAL

MODELS:

SWT3-41-U-T, EXT3-UE-R, EXT3-U-R,

ACC3-12-SP

4x1 USB Switcher Transmitter, USB Receivers, 1:2 CAT Cable Splitter

P/N: 2900-301682 Rev 6 www.kramerav.com

Kramer Electronics Ltd.

SWT3-41-U-T – Contents

Contents

Introduction 1

Getting Started 1 Overview 2 Typical Applications 5

Defining SWT3-41-U-T 4x1 USB Switcher 6

Defining SWT3-41-U-T 6 Defining EXT3-UE-R 8 Defining EXT3-U-R 9 Defining ACC3-12-SP 10

Mounting SWT3-41-U-T, EXT3-UE-R, EXT3-U-R, and ACC3-12-SP 11

Mounting SWT3-41-U-T 11 Mounting EXT3-UE-R 12 Mounting EXT3-U-R 13 Mounting ACC3-12-SP 14

Connecting SWT3-41-U-T 15

Connecting the Output to a Balanced/Unbalanced Stereo Audio Acceptor 17 Connecting a Balanced/Unbalanced Stereo Audio Source to the Balanced Input 17 Connecting to Devices via RS-232 18

Operating and Controlling SWT3-41-U-T 19

Principles of Operation 19 Using Front Panel Buttons 22 Operating via Ethernet 22

Using Embedded Web Pages 26

Operation 29 Settings 30 Diagnostics 50 Administration 50 Viewing the About Page 56

Upgrading Firmware 57 Technical Specifications 58

SWT3-41-U-T 58 EXT3-UE-R 59 EXT3-U-R 61 ACC3-12-SP 62 Default Communication Parameters 63

Protocol 3000 64

Understanding Protocol 3000 64 Protocol 3000 Commands 65 Result and Error Codes 75

Kramer Electronics Ltd.

SWT3-41-U-T – Introduction

Go to application programs, and to check if firmware upgrades are available (where appropriate).

Caution:

Warning:

Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better!

Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for possible future shipment.

• Review the contents of this user manual.

www.kramerav.com/downloads/SWT3-41-U-T to check for up-to-date user manuals,

Achieving Best Performance

• Use only good quality connection cables (we recommend Kramer high-performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables).

• Do not secure the cables in tight bundles or roll the slack into tight coils.

• Avoid interference from neighboring electrical appliances that may adversely influence

signal quality.

• Position your Kramer SWT3-41-U-T away from moisture, excessive sunlight and dust.

Safety Instructions

• This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building.

• For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the terminal or in the User Manual.

• There are no operator serviceable parts inside the unit.

• Use only the power cord that is supplied with the unit.

• To ensure continuous risk protection, replace fuses only according to the rating

specified on the product label which is located on the bottom of the unit.

Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected

Kramer Electronics Ltd.

SWT3-41-U-T – Introduction

and recycled. To comply with the WEEE Directive, Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at www.kramerav.com/social-responsibility/environment

Overview

Congratulations on purchasing your Kramer SWT3-41-U-T/ EXT3-UE-R/ EXT3-U-R/

ACC3-12-SP.

This section defines SWT3-41-U-T, EXT3-UE-R, EXT3-U-R and ACC3-12-SP.

SWT3-41-U-T 4x1 USB Switcher

The SWT3-41-U-T is a high−performance switcher transmitter with two USB−C and two USB−B ports for USB host devices connection and plug and play host user auto−switching experience based on active USB signal detection. The local and remote (over CAT−links)

connected USB peripherals, such as a room camera and microphone, are switchable for use of the active USB host, for convenient online meeting participants operation.

SWT3-41-U-T provides exceptional quality, advanced and user-friendly operation, and flexible

control.

Exceptional Quality

• USB 3.1 Switching — USB 3.1 signals switching, enables high data–rate connection between active USB host and meeting space USB 3.1 and 2.0 devices, such as 4K camera, high–quality audio devices, and HID (Human Interface Devices) mouse or keyboard devices.

• Comprehensive USB Extension – Integrated dual−link transmitters for USB and LAN signals extension with 2–way power providing over extended–reach CAT twisted pair copper infrastructures. The locally selected USB host is auto–connected to remotely connected USB devices, employing either interrupt, bulk or isochronous USB 2.0 standard data transfer communication

• Cost-effective Dual-link USB Extension Deployment – Link−paired remote USB receivers are flexibly connected via combined dual−link single CAT cable or dual independent

CAT cables connections, according to space extension deployment needs. Typically

used for long−distance connection of space remote two PTZ cameras, the combined dual−link single CAT cable runs to a midspan−located CAT splitter that optimally connects to receiver−connected cameras via the shortest independent CAT cables.

Advanced and User-friendly Operation

• Collaborative Online-meeting Switching – Controllable switching of online−session USB host participants and space−deployed local and remote visual (such as camera) and audible (such as microphones or headsets) USB peripherals, allows collaborative online meeting and smooth content sharing operation among online meeting participants.

• BYOD Ease and Convenience — Connect any USB–C device as an online meeting

SWT3-41-U-T – Introduction

participant, while providing the connected device with multiple concurrent capabilities of USB 3.1 and Ethernet connection, USB–driven content sharing, and (if PD–2.0–capable) up to 60 watts of power, all via a single USB–C cable connection only.

• Auto Switcher Ease of Use — Automatically connects the plugged host to the space connected USB peripherals, according to user–configured preferences, such as last– connected host.

• Simple and Flexible Control – Remote IP−controller connection, browser operation webpage, local panel buttons, and remotely connected contact−closure buttons

triggering configurable operation functions, for easy and fully flexible USB host ports selection, and switcher control.

Flexible Connectivity

• Flexible USB Connectivity – Wide Variety of USB peripheral and dual−role devices can be extended including cameras, touch screens, smart boards, hard drives, game controllers, audio devices, printers, scanners, or HID (Human Interface Devices) devices such as a mouse or keyboard.

• Built-in Intelligent Control Gateway – Remote IP−driven intelligent control of local and remote connected USB peripherals (such as PTZ cameras) and sensor devices via IP, RS−232 or I/O. Eliminating the need for an external control gateway, this feature

reduces installation complexity and costs, to enable easy integration with control systems, such as Kramer Control.

Kramer Electronics Ltd.

• Secured Connectivity — Standard IT–grade 802.1x authentication for secured IT LAN connectivity operation.

• Comprehensive and Cost–effective Management — Local panel indication LEDs to facilitate easy local maintenance and troubleshooting. Remote IP–driven device firmware upgrade and management, via user–friendly embedded web pages and optional whole site management system, ensure lasting and field proven deployment.

• Easy and Elegant Installation — PoE powering via LAN port connection, 2–way powering to CAT–paired devices, and half 19” rack noise–free fan–cooled enclosure for under table mounting, or side–by–side mounting of 2 units in a 1U rack space, for easy and convenient deployment.

EXT3-UE-R USB Receiver

EXT3-UE-R is a comprehensive 2−way powering USB 2.0 receiver over extended−reach

twisted pair CAT cable. The receiver converts the transmitted CAT signal into USB 2.0, Ethernet, RS−232 and audio signals.

EXT3-UE-R provides exceptional quality, advanced and user-friendly operation, and flexible

control:

Exceptional Quality

• Comprehensive USB Extension – Plug & play USB over CAT receiver for connecting a remote USB host to the locally connected USB peripherals, employing either interrupt, bulk or isochronous USB 2.0 standard data transfer communication.

• Simple USB Peripheral Control – Remote IP−driven or serial control, via the

SWT3-41-U-T – Introduction

CAT−extended control signals of the connected USB peripherals, such as PTZ cameras and soundbars by a remote LAN−connected control system (for example, Kramer

Control).

Advanced and User-friendly Operation

• USB Peripheral Charging – Fast USB charging of connected USB peripherals when the receiver is powered by a power supply, and standard USB charging when the receiver is powered by the transmitter via CAT.

Flexible Connectivity

• Bidirectional Ethernet Extension – LAN interface data flows in both directions, allowing

network data transmission and connected−devices control.

• Bidirectional RS–232 Extension – Serial interface data flows in both directions, allowing data transmission and device control.

Kramer Electronics Ltd.

• Audio Extension – The transmitted analog audio line signal from the remote audio source is connected to the locally connected audio playing device.

• Comprehensive and Cost–effective Management – Local panel indication LEDs facilitate easy local maintenance and troubleshooting. Remote management of connected

triggerable I/O devices (such as sensors), via user−friendly embedded web pages and

optional whole site management system, ensure lasting and field proven deployment.

• Easy Installation – Single twisted–pair cable for carrying signal and power wiring. Compact TOOLS® fan–less enclosure for device–back mounting, or side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.

EXT3-U-R USB Receiver

EXT3-U-R is a comprehensive, extended-reach CAT extender kit for USB 2.0, RS-232 and

audio signals and 2-way powering over twisted pair. The EXT3-U-R transmitter converts the USB input signal into a CAT signal. The EXT3-U-R receiver converts the transmitted CAT signal into a USB signal.

EXT3-U-R provides exceptional quality, advanced and user-friendly operation, and flexible

control:

Exceptional Quality

• Comprehensive USB Extender – Plug & play USB extender kit for providing extendedreach CAT signals and 2-way power over twisted pair copper infrastructures. A local USB host is auto-connected to remote-connected USB devices employing either interrupt, bulk or isochronous USB 2.0 standard data transfer communication.

• Flexible USB Connectivity – Wide Variety of USB peripheral devices can be extended including cameras, touch screens, smart boards, hard drives, game controllers, audio devices, printers, scanners, or HID (Human Interface Devices) devices such as a mouse or keyboard. Dual role and OTG (On The Go) devices such as smart phones and

SWT3-41-U-T – Introduction

tablets, connected either to a transmitter–side USB host port or receiver-side USB device port, can communication with a remote host or peripheral pairing device.

Advanced and User-friendly Operation

• Remote USB Charging – Fast USB charging of peripheral devices when the receiver is powered by a power supply, and standard USB charging when the receiver is powered by the transmitter via CAT.

Flexible Connectivity

• Bidirectional RS-232 Extension – Serial interface data flows in both directions, allowing data transmission and device control.

• Audio Extension – Send an audio signal from an audio source connected to the transmitter to an active audio playing device connected to the receiver.

• Cost-Effective Maintenance – Status LED indicators facilitate easy local maintenance and troubleshooting.

• Easy Installation – Single twisted-pair cable for signal and power wiring. Compact PicoTOOLS® fan-less enclosure for device–back mounting, or side-by-side mounting of 4 units in a 1U rack space with the recommended rack adapter.

Kramer Electronics Ltd.

ACC3-12-SP 1:2 CAT cable splitter

ACC3-12-SP is a passive splitter of one 4−pair signals−carrying CAT cable to two 2−pair

signals−carrying CAT cables, for optimized deployment of extension copper wiring

infrastructure.

Typical Applications

• Enterprise and education online meeting rooms.

• Upgrade AV meeting rooms to hybrid meeting rooms.

• Any solution with flexible connection of multiple USB hosts and local or remote room

peripherals.

Controlling your SWT3-41-U-T

Control your SWT3-41-U-T directly via the front panel push buttons, or:

• Via the IP commands transmitted by a controller and touch screen system, or a browser using built-in user-friendly Web pages.

• By RS-232 serial commands transmitted by a touch screen system, PC, or a serial controller.

Kramer Electronics Ltd.

SWT3-41-U-T – Defining SWT3-41-U-T 4x1 USB Switcher

Feature

Function

USB DEVICE USB A 3.1 Ports

Connect to the USB local peripheral devices (for example, a USB camera, a soundbar, microphone and so on).

HOST on USB-C 3.1 ports (1

Connect to a USB-C host (for example, a room PC) to communicate with

connector) becomes visible and lights orange.

HOST SELECT Buttons (1 to

Press to select a host.

A+B CAT LED

LED Status

Indicates

Lights green

When dual CAT combined signals are sent over the

NET LED

LED Status

Indicates

Dark

No IP address acquired.

Lights green

A valid IP address has been acquired.

Flashes green for 60s

A means to identify the device in a system, using command #IDV.

Flashes red/green

IP fallback address has been acquired.

STATUS LED

LED Status

Indicates

Dark

Power is off

2 3 4 5 6

Defining SWT3-41-U-T 4x1 USB Switcher

This section defines SWT3-41-U-T, EXT3-UE-R, EXT3-U-R and ACC3-12-SP.

Defining SWT3-41-U-T

to 2)

Figure 1: SWT3-41-U-T 4x1 USB Switcher Front Panel

the USB devices (for example, a PTZ camera) that are connected to the USB device ports and connect to the LAN. For Host 1 only: Charges the connected host (that supports USB Power Delivery 2.0) up to 60W when the device is powered via the optional 12V DC power adapter. While charging, the charging icon (to the right of the

A+B port.

When using CAT splitter, make sure the Dual

CAT extension is set to active via SWT3-41-U-T embedded webpages. See

Enabling

Combined Dual CAT A+B Mode on Page

33.

Kramer Electronics Ltd.

SWT3-41-U-T – Defining SWT3-41-U-T 4x1 USB Switcher

Feature

Function

Lights white

PSU-powered on (only).

mode.

Lights yellow

PoE-powered on.

Lights green

Power is on and a source is connected.

Lights blue

Power is on, and a source and an acceptor are connected.

Feature

Function

HOST USB B 3.1 Connectors (3

Connect to a USB host (for example, a room PC) to communicate with the

on this device and connect to the LAN.

USB CAT

A / A+B

Connect to a compatible CAT receiver (for example an EXT3-UE-R) or a compatible CAT splitter (for example an ACC3-12-SP).

Connect to a compatible CAT receiver (for example an EXT3-UE-R).

USB DEVICE

USB-A 3.1 Ports

Connect to the USB local devices (for example, a USB camera, a

USB-C 3.1 Port (4)

Connect to the USB local devices (for example, a USB camera, a

Note that this port does not provide Power delivery 2.0.

I/O 2-pin Terminal Block

Connect to:

analog input ports.

RS-232 3-pin Terminal Block

Connect to:

LAN PoE◄ RJ-45 Connector

Connect to LAN. The device accepts power from the LAN port (PoE).

this LAN port.

12/20V DC Power Connector

Use the included +20V 6A power supply for powering the unit and charging

or an optional +12V DC 5A power adapter (purchased separately). .

RESET Recessed Button

Press and hold while powering the device to reset to factory default values, including IP Settings.

7 8 9

Note: This is applicable when power supply is PoE

Figure 2: SWT3-41-U-T 4x1 USB Switcher Rear Panel

to 4)

OUT PoC ◄►

(S1, S2, G)

Connector (G, Rx, Tx)

(2 to 3)

USB devices (for example, a PTZ camera) connected to USB device ports

soundbar, microphone and so on).

• Input-triggering devices (for example, remote buttons or sensors), OR

• Output-triggered devices (for example, remote alarm LED indication).

These GPIO ports may be configured as a digital input, digital output, or

• RS-232 controlled device (for example, a PTZ USB camera) for its remote IP control by a controller (for example, an SL-240C), OR

• RS-232 control port of a controller (for example, an SL-240C) for extension via a CAT port, OR

• PC RS-232 port for controlling the device.

A LAN-enabled connection on the selected USB-C port is LAN-switched via

the source device connected to the USB-C port, or For powering the unit, without USB-C charging support, use PoE powering

SWT3-41-U-T – Defining SWT3-41-U-T 4x1 USB Switcher

Feature

Function

AUDIO IN 5-pin Terminal Block Connector

Connect to a balanced, stereo audio source (for example, from the server) for extension via the CAT ports.

Feature

Function

USB 2 Type A Ports (1 to 3)

Connect to USB local devices (for example, a USB camera, a

Ports provide standard USB device charging.

USB-C Port (4)

Connect to USB local devices (for example, a USB camera, a

Note: Port does not provide Power Delivery 2.0 charging.

LINK LED

Flashes blue when a link is established.

ON LED

Lights green when locally powered by the power adapter. Lights orange when powered by PoC.

CAT IN PoC RJ-45 Connector

Connect to:

which can be connected to the SWT3-41-U-T.

AUDIO OUTPUT 5-pin Terminal Block Connector (L+, L-, G)

Connect to a balanced analog stereo audio line acceptor.

I/O 2-pin Terminal Block (S1 to S2)

Connect to:

embedded webpages, as digital input or output ports.

RS-232 3-pin Terminal Block (G, Rx, Tx)

Connect to an RS-232 controlled device (for example, the

SWT3-41-U-T.

LAN PoE RJ-45 Connector

Connect to LAN or to an IP-controlled device (for example, the

the LAN port.

SETUP 2-way DIP-switch

Note: All changes in DIP-Switches apply immediately.

DIP-switch Name

DIP-switch #

DIP-Switch State

State Description

RS-232 MODE

OFF (up) default

Programming mode

ON (down)

Extension mode

Defining EXT3-UE-R

Figure 3: EXT3-UE-R USB Receiver Front/Rear Panel

Kramer Electronics Ltd.

soundbar, microphone etc.).

soundbar, microphone etc.). Port provides standard USB device charging.

• One of the USB CAT OUT PoC ports on the

SWT3-41-U-T OR,

CAT A or CAT B on the ACC3-12-SP 1:2 CAT cable splitter

• Input-triggering devices (for example, remote buttons or sensors), OR

• Output-triggered devices (for example, remote alarm LED indication).

These GPIO ports may be configured via paired SWT3-41-U-T

connected PTZ USB camera) to be controlled via a controller (for example, SL-240C) which is IP-connected to a paired

connected PTZ USB camera). The device accepts power from

SWT3-41-U-T – Defining SWT3-41-U-T 4x1 USB Switcher

For future use

Mandatory OFF (up)

12V DC Power Connector

Connect to the power adapter.

Feature

Function

LINK LED

Flashes blue when a link is established.

AUDIO OUT 3.5mm Mini Jack

Connect to an unbalanced stereo audio acceptor.

USB 2 Type A Ports (1 to

Connect to USB devices.

USB devices.

ON LED

Lights green when locally powered by the power adapter. Lights orange when powered by PoC.

LINK IN RJ-45 Connector

Connect to the LINK OUT port on the EXT3-UE-R.

PROG (Tx, Rx)

5-pin Terminal Block Connector (with common G pin)

RS-232 (Rx, Tx)

Press to toggle between a blank screen (blue or black) and the program

same time.

12V DC Power Connector

Connect to the power adapter.

Defining EXT3-U-R

Figure 4: EXT3-U-R USB Receiver Front/Rear Panel

Kramer Electronics Ltd.

Connect the receiver directly to the power adapter in order to charge

display. The BLANK button can be programmed to mute the audio signal at the

SWT3-41-U-T – Defining SWT3-41-U-T 4x1 USB Switcher

Feature

Function

CAT A+B RJ-45 Port

Connect to a compatible CAT transmitter (for example an SWT3-41-U-T)

CAT A RJ-45 Port

Connect to a compatible CAT receiver (for example an EXT3-UE-R, EXT3-U-R).

CAT B RJ-45 Port

Connect to a compatible CAT receiver (for example an EXT3-UE-R, EXT3-U-R).

Defining ACC3-12-SP

Figure 5: ACC3-12-SP 1:2 CAT cable splitter Front/Rear Panel

so send combined signals over the A+B port.

Make sure the Dual CAT extension is set to active via CAT

transmitter embedded webpages.

Kramer Electronics Ltd.

SWT3-41-U-T – Mounting SWT3-41-U-T, EXT3-UE-R, EXT3-U-R, and ACC3-12-SP

• Operation temperature – 0° to 40°C (32 to 104°F).

Caution:

Warning:

Mounting SWT3-41-U-T, EXT3-UE-R, EXT3-U-R, and ACC3-12-SP

Mounting SWT3-41-U-T

This section provides instructions for mounting SWT3-41-U-T. Before installing, verify that the environment is within the recommended range:

• Storage temperature – -40° to +70°C (-40 to +158°F).

• Humidity – 10% to 90%, RHL non-condensing.

• Mount SWT3-41-U-T before connecting any cables or power.

• Ensure that the environment (e.g., maximum ambient temperature & air flow) is

compatible for the device.

• Avoid uneven mechanical loading.

• Appropriate consideration of equipment nameplate ratings should be used for avoiding

overloading of the circuits.

• Reliable earthing of rack-mounted equipment should be maintained.

• Maximum mounting height for the device is 2 meters.

Mount SWT3-41-U-T in a rack:

• Use the recommended rack adapter (see www.kramerav.com/product/SWT3-41-U-T

Mount SWT3-41-U-T on a surface using one of the following methods:

• Mount device with its recommended mounting accessory to the underside of the table and secure.

• Attach the rubber feet and place the unit on a flat surface.

• Mount the unit in a rack using the recommended rack adapter

www.kramerav.com/downloads/SWT3-41-U-T

Kramer Electronics Ltd.

SWT3-41-U-T – Mounting SWT3-41-U-T, EXT3-UE-R, EXT3-U-R, and ACC3-12-SP

• Operation temperature – 0° to 40°C (32 to 104°F).

• EXT3-UE-R must be placed upright in the correct horizontal position.

Warning:

Mount

Fasten a bracket (included) on each side of the unit and attach it to

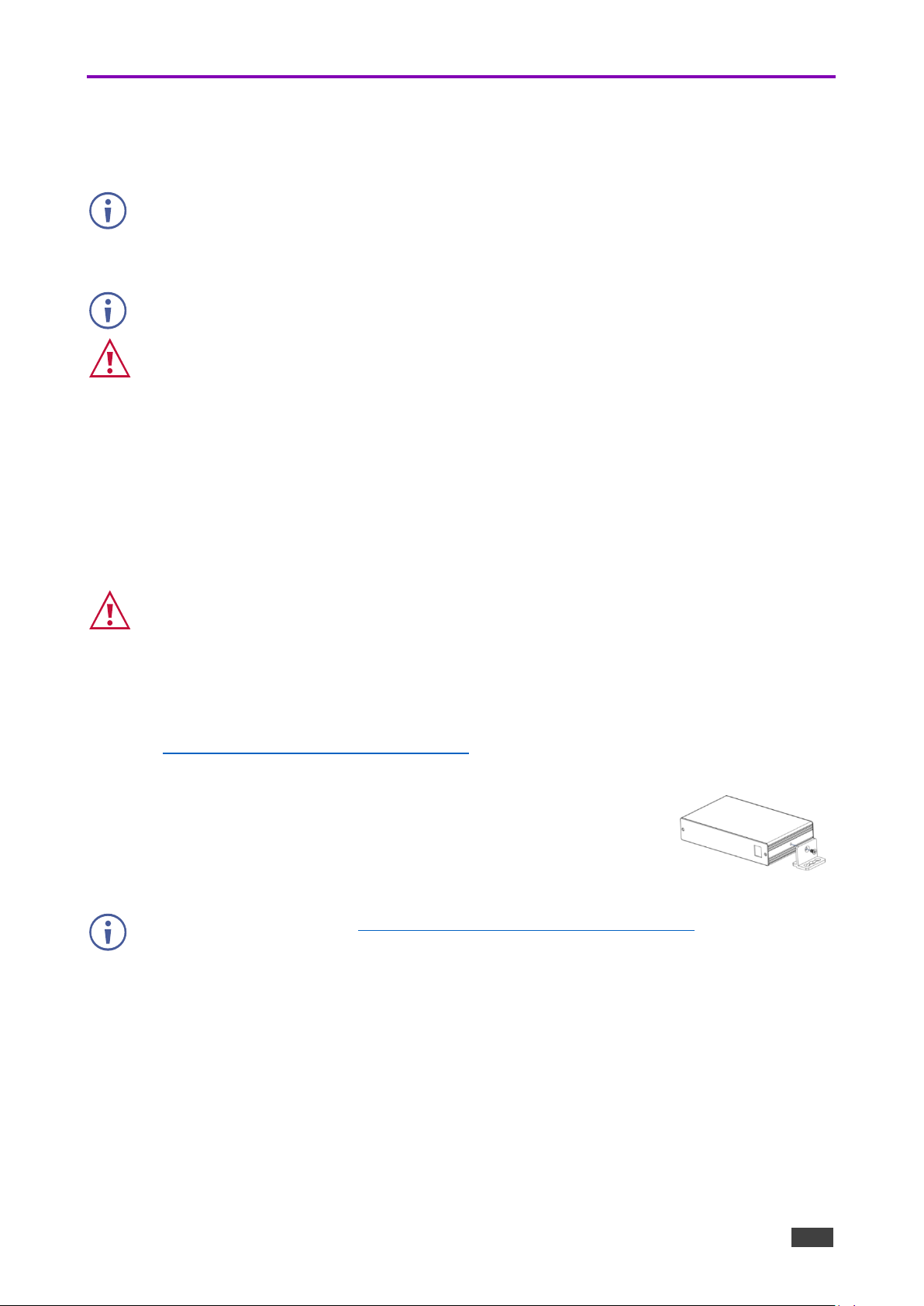

Mounting EXT3-UE-R

This section provides instructions for mounting EXT3-UE-R. Before installing, verify that the environment is within the recommended range:

• Storage temperature – -40° to +70°C (-40 to +158°F).

• Humidity – 10% to 90%, RHL non-condensing.

• Ensure that the environment (e.g., maximum ambient temperature & air flow) is

compatible for the device.

• Avoid uneven mechanical loading.

• Appropriate consideration of equipment nameplate ratings should be used for avoiding

overloading of the circuits.

• Reliable earthing of rack-mounted equipment should be maintained.

Mounting EXT3-UE-R

device before connecting any cables or power.

To mount EXT3-UE-R

Mount the unit in a rack using the recommended rack adapter (see www.kramerav.com/product/EXT3-UE-R

)

To mount the EXT3-UE-R on a table or shelf:

• Attach the rubber feet and place the unit on a flat surface.

•

a flat surface.

For more information go to www.kramerav.com/downloads/EXT3-UE-Rr

Kramer Electronics Ltd.

SWT3-41-U-T – Mounting SWT3-41-U-T, EXT3-UE-R, EXT3-U-R, and ACC3-12-SP

• Operation temperature – 0° to 40°C (32 to 104°F).

Caution:

Warning:

Fasten a bracket (included) on each side of the unit and attach it to

Mounting EXT3-U-R

This section provides instructions for mounting EXT3-U-R. Before installing, verify that the environment is within the recommended range:

• Storage temperature – -40° to +70°C (-40 to +158°F).

• Humidity – 10% to 90%, RHL non-condensing.

• Mount EXT3-U-R before connecting any cables or power.

• Ensure that the environment (e.g., maximum ambient temperature & air flow) is

compatible for the device.

• Avoid uneven mechanical loading.

• Appropriate consideration of equipment nameplate ratings should be used for avoiding

overloading of the circuits.

• Reliable earthing of rack-mounted equipment should be maintained.

• Maximum mounting height for the device is 2 meters.

Mount EXT3-U-R in a rack:

• Use the recommended rack adapter (see www.kramerav.com/product/EXT3-U-R

Mount EXT3-U-R on a surface using one of the following methods:

• Attach the rubber feet and place the unit on a flat surface.

•

a flat surface. For more information go to

www.kramerav.com/downloads/EXT3-U-R.

Kramer Electronics Ltd.

SWT3-41-U-T – Mounting SWT3-41-U-T, EXT3-UE-R, EXT3-U-R, and ACC3-12-SP

• Operation temperature – 0° to 40°C (32 to 104°F).

Caution:

Warning:

Fasten a bracket (included) on each side of the unit and attach it to

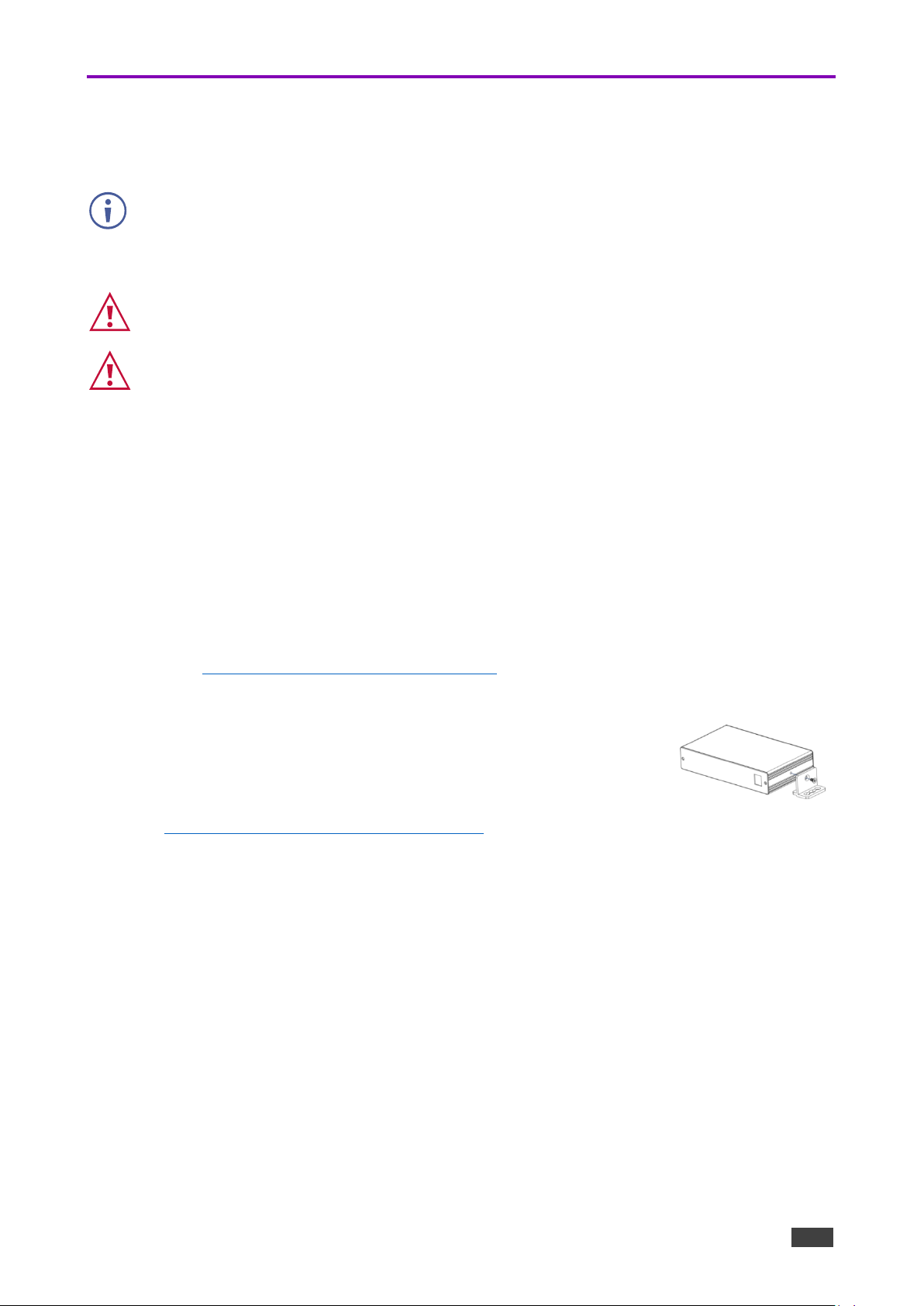

Mounting ACC3-12-SP

This section provides instructions for mounting ACC3-12-SP. Before installing, verify that the environment is within the recommended range:

• Storage temperature – -40° to +70°C (-40 to +158°F).

• Humidity – 10% to 90%, RHL non-condensing.

• Mount ACC3-12-SP before connecting any cables.

• Ensure that the environment (e.g., maximum ambient temperature) is compatible for the

device.

• Avoid uneven mechanical loading.

• Reliable earthing of rack-mounted equipment should be maintained.

Mount ACC3-12-SP in a rack:

• Use the recommended rack adapter (see www.kramerav.com/product/ACC3-12-SP

Mount ACC3-12-SP on a surface using one of the following methods:

• Attach the rubber feet and place the unit on a flat surface.

•

a flat surface. For more information go to

www.kramerav.com/downloads/ACC3-12-SP.

SWT3-41-U-T – Connecting SWT3-41-U-T

Always switch off the power to each device before connecting it to your connecting your device.

In ( cables wiring expenses. If not CAT splitter is required, either one of the required receivers EXT3-UE-R

EXT3-U-R

2 7 1

17 8 36

Connecting SWT3-41-U-T

SWT3-41-U-T, connect its power and then switch on the power to each

Kramer Electronics Ltd.

SWT3-41-U-T. After

Figure 6: Connecting to the SWT3-41-U-T

Figure 6) SWT3-41-U-T is connected to dual receivers using a CAT splitter to save CAT

SWT3-41-U-T can connect directly to

and

To connect SWT3-41-U-T as illustrated in the example in Figure 6:

 Connect the HOST USB-C 3.1 port to a laptop.

 Connect the HOST USB-B 3.1 port to a room PC.

 Connect the local USB DEVICE ports , , to USB devices (for example,

USB DEVICE 2 to a mouse, USB DEVICE 3 to a keyboard and USB DEVICE 4 to a hands-free mic).

 Connect a balanced stereo audio source (for example, media player) to the AUDIO

IN 5-pin terminal block connector .

1. Connect the USB CAT OUT A / A+B PoC RJ-45 port on the SWT3-41-U-T , to the CAT A+B Input RJ-45 port on the ACC3-12-SP.

based on needs.

Kramer Electronics Ltd.

SWT3-41-U-T – Connecting SWT3-41-U-T

To charge the device that is connected to the host USB adapter for powering the

2. Connect the CAT A RJ-45 Output Ports on the ACC3-12-SP , to the LINK IN RJ-45 ports & on the EXT3-UE-R and EXT3-U-R, correspondently.

3. Connect the Outputs on EXT3-U-R as follows:

 Connect the USB DEVICE ports to USB devices (for example, USB DEVICE 1 to a

Touch TV, USB DEVICE 2 to a PTZ camera and USB DEVICE 3 to a smartboard).

 Connect the AUDIO OUT 3.5mm mini jack to an unbalanced stereo audio

acceptor (for example, active speakers).

4. Connect the Outputs on EXT3-UE-R as follows:

 Connect the USB DEVICE ports to USB devices (for example, USB 1 to a touch TV,

USB 3 to a PTZ camera).

 Connect the AUDIO OUTPUT 5-pin terminal block connector to a balanced

stereo audio acceptor (for example, active speakers).

 Connect the I/O 2-pin terminal block connector to a triggering and/or triggered

GPIO acceptor (for example, I/O 2 to occupancy detector) or a remote button (for example, a host selector).

5. Control the devices:

 On the SWT3-41-U-T, connect a controller (for example, SL-240C room controller) to

the LAN

PoE◄ RJ-45 port , or to the RS-232 port .

 On EXT3-U-R receiver side, connect the RS-232 port to a PTZ camera (send

serial commands from SL-240C to the camera via receiver RS-232 port).

 On EXT3-U-R receiver side, connect the LAN

PoE◄ RJ-45 port to a PTZ camera

(send IP commands from SL-240C to the camera via receiver LAN port).

6. When not PoE powered, connect the power adapter to SWT3-41-U-T and to the mains electricity.

-C port, you need to use a power

SWT3-41-U-T switcher transmitter.

Kramer Electronics Ltd.

SWT3-41-U-T – Connecting SWT3-41-U-T

Figure 7: Connecting to a Balanced Stereo Audio

Acceptor

Figure 8: Connecting to an Unbalanced Stereo Audio

Acceptor

Figure 9: Connecting a Balanced Stereo Audio

Source to the Balanced Input

Figure 10: Connecting an Unbalanced Stereo Audio

Source to the Balanced Input

Connecting the Output to a Balanced/Unbalanced

Stereo Audio Acceptor

The following are the pinouts for connecting the output to a balanced or unbalanced stereo audio acceptor:

Connecting a Balanced/Unbalanced Stereo Audio

Source to the Balanced Input

The following are the pinouts for connecting a balanced or unbalanced stereo audio source to the balanced input:

Kramer Electronics Ltd.

SWT3-41-U-T – Connecting SWT3-41-U-T

RS-232 Device SWT3-41-U-T

Connecting to Devices via RS-232

You can connect to SWT3-41-U-T/ EXT3-UE-R/ EXT3-U-R via an RS-232 connection using, for example, a PC.

SWT3-41-U-T, for example, features an RS-232 3-pin terminal block connector allowing the

RS-232 to control SWT3-41-U-T.

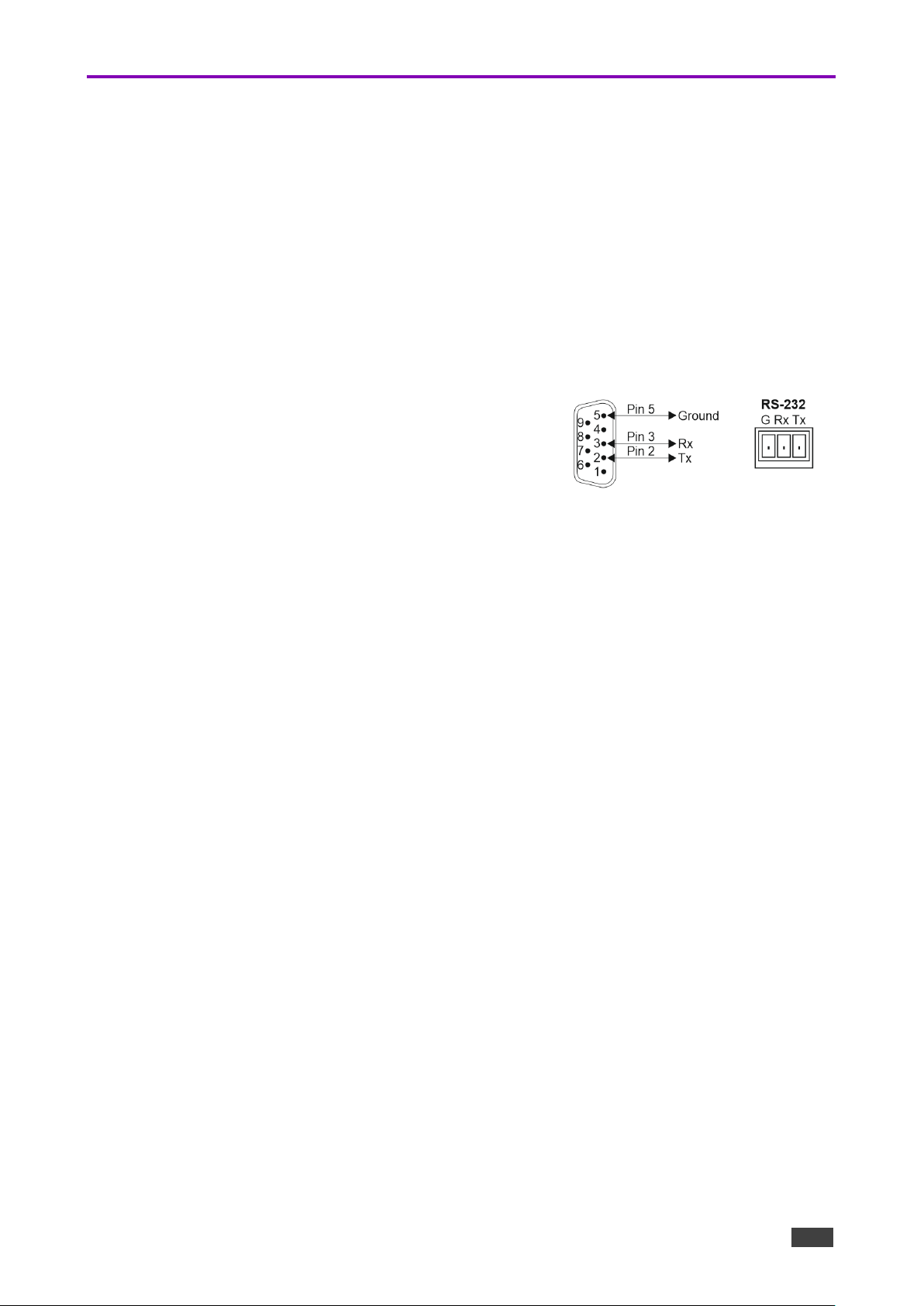

Connect the RS-232 terminal block on the rear panel of SWT3-41-U-T to a PC/controller, as follows:

From the RS-232 9-pin D-sub serial port connect:

• Pin 2 to the TX pin on the SWT3-41-U-T RS-232 terminal

block

• Pin 3 to the RX pin on the SWT3-41-U-T RS-232 terminal

block

• Pin 5 to the G pin on the SWT3-41-U-T RS-232 terminal

block

SWT3-41-U-T – Operating and Controlling SWT3-41-U-T

The auto

The auto configurable; the default setting is

In both Last Connected and Priority modes, manually selecting an input (using the panel,

Operating and Controlling SWT3-41-U-T

Principles of Operation

This section covers the following topics:

Kramer Electronics Ltd.

• Flexible SWT3-41-U-T Auto Switching Policy on page 19

• Online Meeting Systems Integration on page 20.

• Routing IP-Driven Control Signals via Built-in Control Gateway on page 20.

• Muting Extended Audio Signals on page 21.

• Flexible Remote Buttons Control on page 21.

Flexible SWT3-41-U-T Auto Switching Policy

Set the USB host switching to connected USB devices policy to:

• Manual – Select a USB host manually and switching occurs whether a USB host live signal is present or not.

• Auto – Auto Switching selection is performed in either Last Connected or Priority policy.

In Last Connected policy:

 If a signal is plugged in this mode, SWT3-41-U-T will switch to it.

 If the signal on the current input is lost, SWT3-41-U-T automatically selects the last

connected input.

-switching delay depends on the configurable signal-lost timeout

In Priority policy:

 If a signal with a higher priority than the current one is plugged in this mode,

SWT3-41-U-T will switch to it.

 When the input sync signal is lost for any reason, the input with a live signal and next

in priority is selected automatically.

-switching delay depends on the configurable signal-lost timeout. Inputs priority is

See Setting the USB Auto-Switching Policy on page 30.

remote or web UI input select button) overrides automatic selection

USB-C 1  USB C 2 USB 3  USB 4.

front

Kramer Electronics Ltd.

SWT3-41-U-T – Operating and Controlling SWT3-41-U-T

EXT3

SWT3-41-U-T

Online Meeting Systems Integration

USB device ports can be set to auto-disconnect following presenter disconnection, to allow smooth integration and auto-activation of connected online meeting room systems.

See Auto-disconnecting a USB Device on Inactive Host on page 37

Routing IP-Driven Control Signals via Built-in Control Gateway

Remote IP connected clients can communicate and control (send commands, and receive responses and notifications) via the LAN:

• IP commands/responses via the LAN-connected SWT3-41-U-T and CAT-connected EXT3-UE-R LAN extension, to/from the EXT3-UE-R LAN-connected devices.

• Via the SWT3-41-U-T built-in and I/O control gateway:

 RS-232 commands, to control devices connected to SWT3-41-U-T, EXT3-UE-R and

EXT3-U-R RS-232 control ports. The built-in control gateway sends the serial control commands (converted from the client received IP messages) to the locally and/or remotely connected serially controlled devices and distributes their received responses to all connected clients.

 Send or receive I/O digital triggers or detected triggers, to I/O control devices

connected to SWT3-41-U-T and EXT3-UE-R I/O control ports. The built-in control gateway sends the I/O control commands (converted from the client received IP messages) to the locally and/or remotely connected I/O controlled devices and distributes their received detected triggers to all connected clients.

-UE-R I/O ports control and management via LAN is done via LAN connection and web-UI only.

Kramer Electronics Ltd.

SWT3-41-U-T – Operating and Controlling SWT3-41-U-T

(Figure 11) shows the SWT3-41-U-T built-in control gateway connection for control of its local and remote EXT3-UE-R control ports. The Kramer Control controller is connected to the switcher via LAN, sends IP commands to the switcher control gateway over the LAN connection, to send control messages to, and receive control responses from:

• The PTZ Camera connected to the EXT3-U-R receiver via the RS-232 port.

• The PTZ Camera connected to the EXT3-UE-R receiver via the LAN.

• The Occupancy Detector connected to the EXT3-UE-R receiver via the I/O ports.

• The Soundbar is connected to receiver EXT3-UE-R via the RS-232 port.

• The Blinds are locally connected to SWT3-41-U-T via the I/O ports.

Figure 11: Controlling remotely via SWT3-41-U-T Control Gateway

Muting Extended Audio Signals

Sterio audio signal is extended from the switcher transmitter to both receivers, to allow easy audio and music distribution within the same space or separate rooms. Each extended audio signal can be independently muted, to enable a simple end-user control on the distributed audio signals.

See Muting the Extended Audio Signal on page 29

Flexible Remote Buttons Control

Remote contact-closure buttons can be connected to the I/O ports, for easy end user control of device functions by button press and release operation. Flexible configuration of button press/release actions and latching (default) or momentary operation mode, enable simple and custom control according to user needs.

See Configuring Remote Buttons on page 48

SWT3-41-U-T – Operating and Controlling SWT3-41-U-T

If you want to connect via a router and your IT system is based on IPv6, speak to your IT department for specific installation instructions.

This type of connection is recommended for identifying with the factory configured default IP address.

Using Front Panel Buttons

SWT3-41-U-T front and rear panel buttons enable the following actions:

• Selecting a HOST INPUT.

• Resetting device to its factory settings (for additional instructions on resetting and

resetting device (see Resetting and Restarting Device on page 34

Operating via Ethernet

You can connect to SWT3-41-U-T via Ethernet using either of the following methods:

Kramer Electronics Ltd.

• Directly to the PC using a crossover cable (see

Connecting Ethernet Port Directly to a

PC on page 22).

• Via a network switch or router, using a straight-through cable (see Connecting Ethernet

Port via a Network Hub or Switch on page 24).

Connecting Ethernet Port Directly to a PC

You can connect the Ethernet port of SWT3-41-U-T directly to the Ethernet port on your PC using a crossover cable with RJ-45 connectors.

SWT3-41-U-T

After connecting SWT3-41-U-T to the Ethernet port, configure your PC as follows:

1. Click Start > Control Panel > Network and Sharing Center.

2. Click Change Adapter Settings.

3. Highlight the network adapter you want to use to connect to the device and click Change settings of this connection. The Local Area Connection Properties window for the selected network adapter appears as shown in Figure 12

Kramer Electronics Ltd.

SWT3-41-U-T – Operating and Controlling SWT3-41-U-T

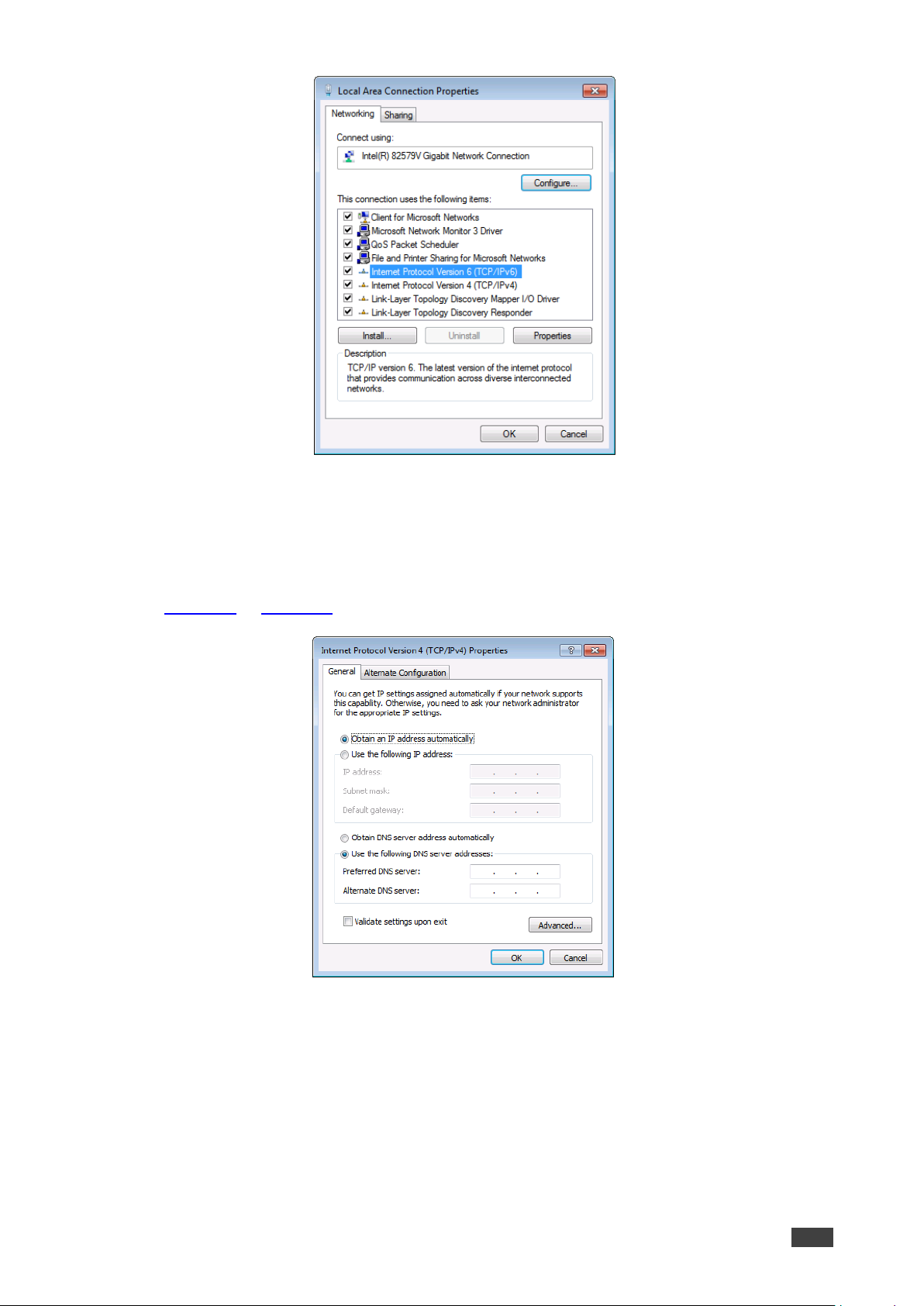

Figure 12: Local Area Connection Properties Window

4. Highlight either Internet Protocol Version 6 (TCP/IPv6) or Internet Protocol Version 4 (TCP/IPv4) depending on the requirements of your IT system.

5. Click Properties. The Internet Protocol Properties window relevant to your IT system appears as shown in

Figure 13 or Figure 14

Figure 13: Internet Protocol Version 4 Properties Window

Kramer Electronics Ltd.

SWT3-41-U-T – Operating and Controlling SWT3-41-U-T

Figure 14: Internet Protocol Version 6 Properties Window

6. Select Use the following IP Address for static IP addressing and fill in the details as shown in Figure 15

. For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to 192.168.1.255 (excluding default 192.168.1.39 fallback address) that is provided by your IT department.

Figure 15: Internet Protocol Properties Window

7. Click OK.

8. Click Close.

Connecting Ethernet Port via a Network Hub or Switch

You can connect the Ethernet port of SWT3-41-U-T to the Ethernet port on a network switch or router using a straight-through cable with RJ-45 connectors.

Configuring Ethernet Port

You can set the Ethernet parameters via the embedded Web pages.

Kramer Electronics Ltd.

SWT3-41-U-T – Operating and Controlling SWT3-41-U-T

Discovering and acquiring IP address

SWT3-41-U-T includes IP address auto-acquiring policy via LAN-connected DHCP server by

default. When no DHCP server is detected, a fallback static IP address of 192.168.1.39, and

255.255.255.0 subnet mask (class C), is assigned until an IP address is acquired via the DHCP server.

For more information, refer to Product Page Technical Note in

www.kramerav.com/product/SWT3-41-U

-T

Kramer Electronics Ltd.

SWT3-41-U-T – Using Embedded Web Pages

To apply the USB

USB (see

Operating Systems

Browser

If a web page does not update correctly, clear your Web

Check that Security/firewalls are not blocking HTTP traffic between the device and the user PC.

Using Embedded Web Pages

SWT3-41-U-T enables you to configure settings via Ethernet using built-in, user-friendly web

pages. The Web pages are accessed using a Web browser and an Ethernet connection.

-C type change, device power cycle must be performed.

-C ethernet connection is disabled by default and is enabled only by API command.

Before attempting to connect:

Protocol 3000 Commands on page 65).

• Perform the procedure in (see Operating via Ethernet on page 22

• Ensure that your browser is supported.

The following operating systems and Web browsers are supported:

Windows 7 Chrome

Windows 10

Mac Safari

iOS Safari

Android N/A

Edge

Chrome

browser’s cache.

To access the web pages:

1. Enter the IP address of the device in the address bar of your internet browser (default =

192.168.1.39).

If security is enabled, the Login window appears.

Figure 16: Embedded Web Pages Login Window

Kramer Electronics Ltd.

SWT3-41-U-T – Using Embedded Web Pages

2. Enter the Username (default = Admin) and Password (default = Admin) and click Sign in. The default web page appears.

Figure 17: Default Landing Page

Kramer Electronics Ltd.

SWT3-41-U-T – Using Embedded Web Pages

3. Click the arrow at the top of the navigation list to view the menu items in detail.

4. Click the Navigation Pane on the left side of the screen to access the relevant web page.

SWT3-41-U-T web pages enable performing the following actions:

• Operation on page 29

• Settings on page 30.

• Diagnostics on page 50.

• Administration on page 50.

• Viewing the About Page on page 56.

Figure 18: Pages and Tabs Navigable List

SWT3-41-U-T – Using Embedded Web Pages

A green light button indicates a connected source

This feature only works when

Operation

Routing Signals

This section details the following actions:

Kramer Electronics Ltd.

• Routing a Host to Devices on page 29

• Muting the Extended Audio Signal on page 29.

Routing a Host to Devices

Route any of the four USB hosts to all connected USB-C devices.

To route the Host to the Devices:

1. Go to the Routing Settings tab.

2. Perform the following functions:

 Click a Host/Devices cross-point.

A host is routed to the devices.

Muting the Extended Audio Signal:

Figure 19: Routing Page

SWT3-41-U-T is connected to a receiver(s).

SWT3-41-U-T – Using Embedded Web Pages

To mute the extended audio signal:

1. Go to the Routing Settings tab.

2. Next to CAT-A /B Audio Mute press to toggle switch to ON.

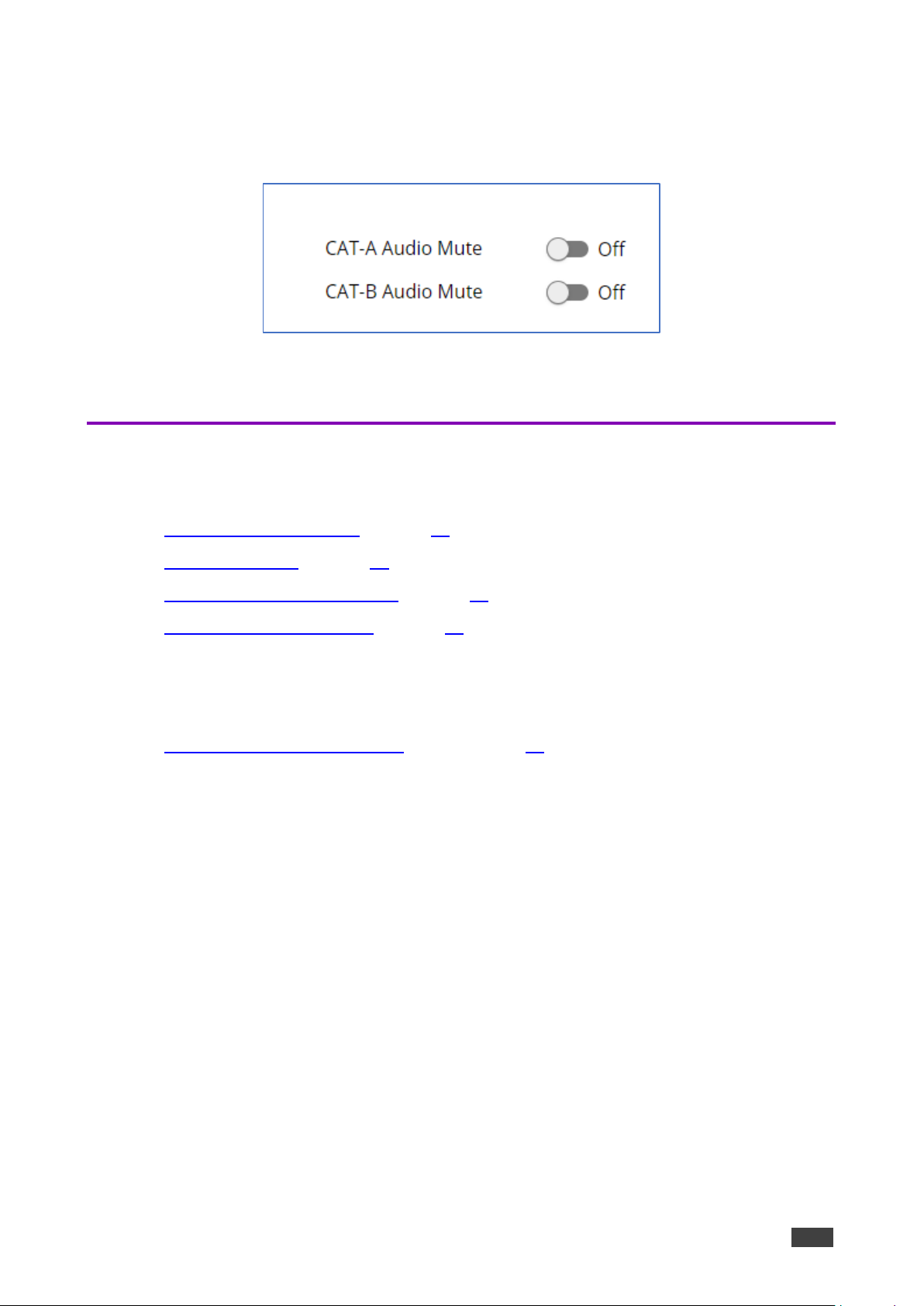

Figure 20: Muting Extended Audio Signals

Extended audio signal is muted.

Settings

Kramer Electronics Ltd.

This section details the following action:

• USB Switching Properties on page 30

• Device Properties on page 31.

• Settings Networking Properties on page 36.

• Control Gateway Properties on page 39.

USB Switching Properties

This section details the following action:

• Setting the USB Auto-Switching Policy on page 30

Setting the USB Auto-Switching Policy

To set the USB auto-switching policy:

1. Go to the Auto switching tab.

2. Next to the Selection Mode drop-down box, select the auto switching policy: Manual, Last Connected or Priority.

USB auto-switching policy is set.

To change USB Host Input Priorities:

1. Go to the Auto switching tab.

2. Next to the Selection Mode drop-down box, select Priority.

Kramer Electronics Ltd.

SWT3-41-U-T – Using Embedded Web Pages

3. Click and drag a host input between high and low to change the priorities.

Figure 21: Changing Input Priorities

4. Click SET USB.

USB Host Input priorities are set.

Device Properties

This section details the following actions:

• Device Profile and Maintenance on page 32

• Changing Device Name on page 32.

• Upgrading Firmware on page 33.

• Resetting and Restarting Device on page 34.

• Identifying Your Device on page 35.

SWT3-41-U-T – Using Embedded Web Pages

Device Profile and Maintenance

Changing Device Name

SWT3-41-U-T enables you to change the DNS name of the device.

To change the device name:

1. Go to the Device > General tab.

Kramer Electronics Ltd.

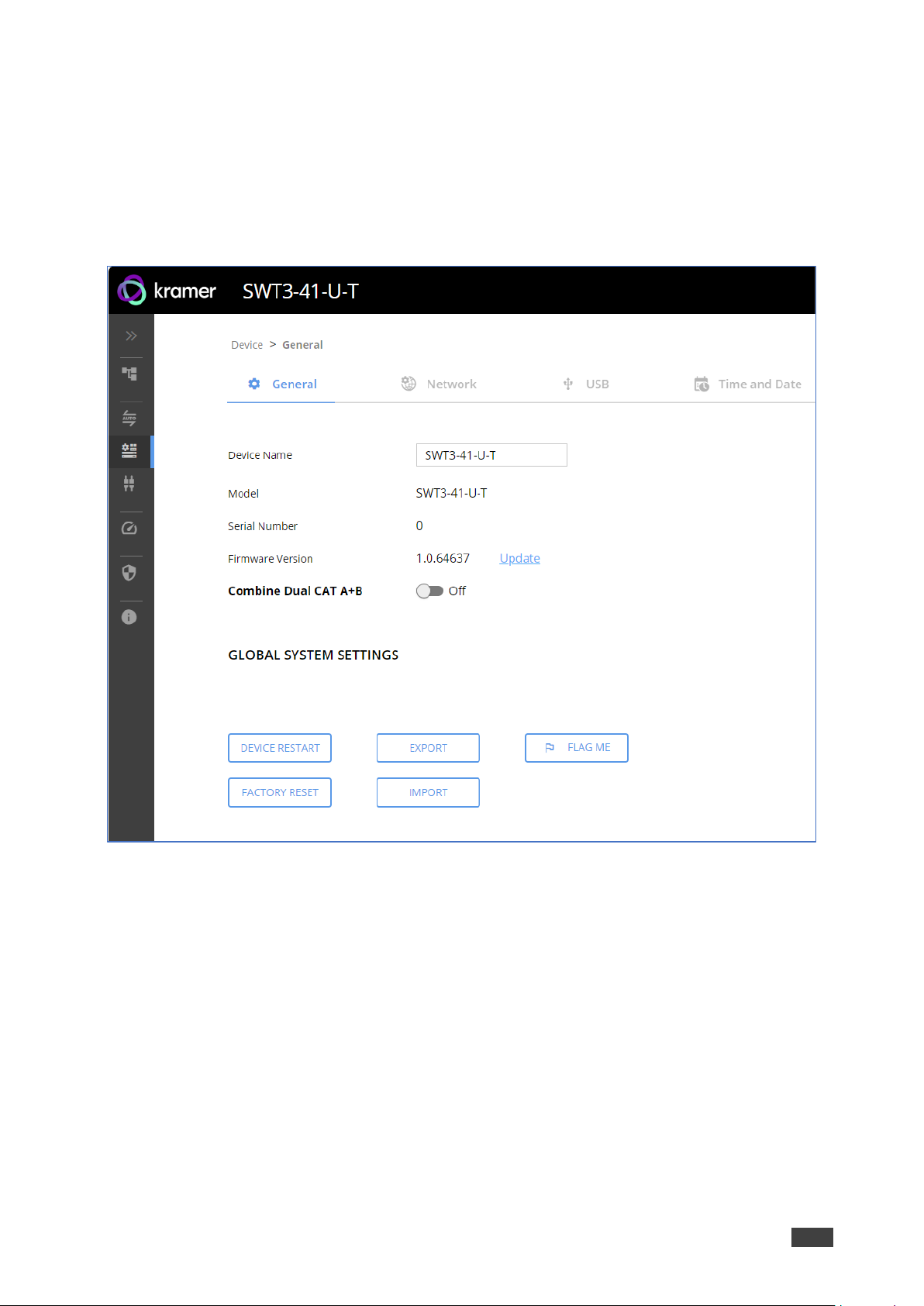

Figure 22: Device > General Page

2. Under General Preferences, change the device name and click SAVE.

The device name is changed.

SWT3-41-U-T – Using Embedded Web Pages

and USB host and devices

Any device connected to the CAT B Port will not function while this feature is active.

Upgrading Firmware

To upgrade the device firmware:

Kramer Electronics Ltd.

1. Go to the Device > General tab (Figure 22

2. Under General, click Update, open the relevant firmware file, and follow the instructions. The upgrade process (Figure 23

• During FW upgrade, the device continues to operate, but the device UI and protocol 3000 communication are inactive. When device restarts, the status LED is lit connection signal is disconnected until restart completes.

Firmware is updated.

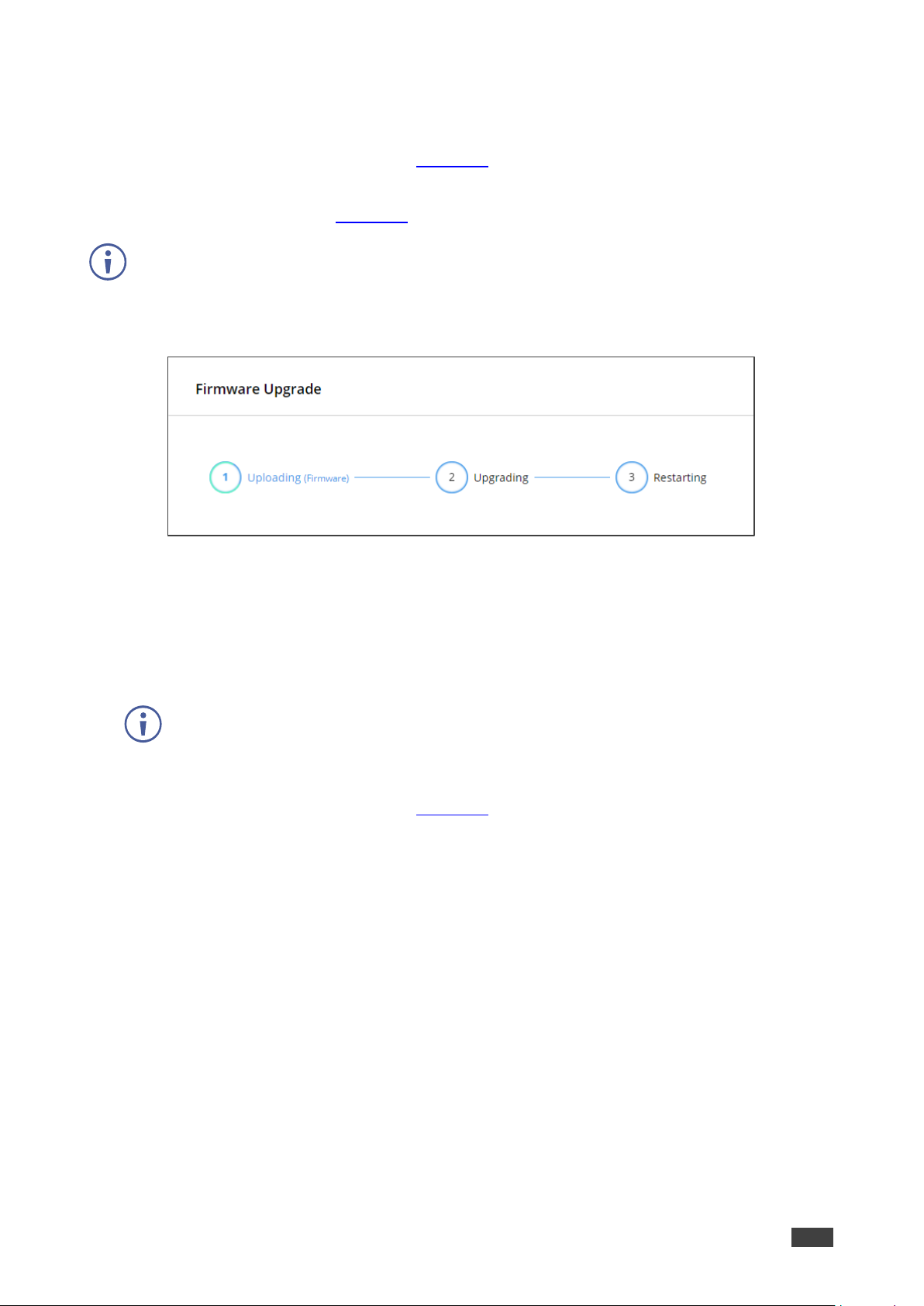

Figure 23:Firmware Upgrade Process

Enabling Combined Dual CAT A+B Mode

) takes approximately 30-60 seconds.

The SWT3-41-U-T enables you to connect it to a compatible CAT receiver (EXT3-UE-R) or compatible CAT splitter (ACC3-12-SP). When you select Combine Dual CAT A+B, the

SWT3-41-U-T sends combined signals over the A+B Port.

To configure Dual CAT A+B Mode

1. Go to the Device > General tab (Figure 22

2. Next to Combine Dual CAT A+B, press to toggle On.

Kramer Electronics Ltd.

SWT3-41-U-T – Using Embedded Web Pages

3. Click SAVE.

Dual CAT A+B Mode indication is displayed on the top bar.

Figure 24: Device Settings > Dual Mode CAT A+B

Dual CAT A+B Mode is enabled.

Resetting and Restarting Device

Two types of resets can be performed:

• Restart – Reboots your device and keeps all your device settings, including the IP address and password.

• Reset – Reboots your device and restores all factory settings including input/output definitions, switching configuration, IP address and password (a DHCP-acquired IP address is retained).

To restart the device:

 Click DEVICE RESTART on the Device > General page (Figure 22

To perform a factory reset on the device, use one of the following actions:

 Click FACTORY RESET on the Device > General page (Figure 22

 Using protocol 3000 commands, send FACTORY command then RESET commands.

 On the rear panel, press and hold the RESET button while connecting the power for

several seconds.

Exporting and Importing a Configuration File

SWT3-41-U-T enables you to export and store (in connected browsing PC storage) a

configuration file, that records all current device settings except the routing operation setup. The stored file can then be imported to the same or different SWT3-41-U-T device to load the recorded settings, for configuration backup and/or solution-replication purposes.

SWT3-41-U-T – Using Embedded Web Pages

Exporting a Configuration File

To export a configuration file of the current device settings:

Kramer Electronics Ltd.

1. Go to the Device > General page (Figure 22

2. Under Global System Settings, click EXPORT.

3. Select the storage location on your computer to save the configuration file and click SAVE.

The configuration file is exported and saved.

Importing a Configuration File

To import a configuration file of the current device settings:

1. Go to the Device > General page (Figure 22

2. Under Global System Settings, click IMPORT.

3. Select the relevant configuration file from your computer storage and click SAVE.

The configuration file is imported and the device restarts with the settings from the configuration file.

Identifying Your Device

To identify the device using a supporting discovery system:

1. Go to the Device > General page (Figure 22

2. Under Global System Settings, click FLAG ME. NET LED flashes.

FLAG ME indication turns off after 60 seconds.

The device is identified by the discovery system.

SWT3-41-U-T – Using Embedded Web Pages

By default, DHCP is set to on. The IP address shows the actual IP address acquired from the DHCP server, or the auto detection.

USB (see

Settings Networking Properties

Kramer Electronics Ltd.

To configure network settings:

1. Go to the Device > General page (Figure 22).

2. Select the Network tab.

The network page appears.

-acquired fallback IP address when there is no DHCP server

Figure 25: Device Settings > Network Page (DHCP On/DHCP Off)

3. Change settings as needed.

If required, Set to DHCP (default) or static IP address resolution modes.

4. When in Static IP mode, perform the following actions:

 Change the IP address.

 Change the Mask address.

 Change the Gateway address.

 Define UDP/TCP port numbers.

Network settings are defined.

Enabling/Disabling USB Ethernet Connection

-C ethernet connection is disabled by default and is enable only by command.

Protocol 3000 Commands on page 65) .

SWT3-41-U-T – Using Embedded Web Pages

Auto-disconnecting a USB Device on Inactive Host

When a host becomes inactive, you can automatically disconnect one or multiple USB devices.

To define auto-disconnection:

Kramer Electronics Ltd.

1. Go to the Device > General page (Figure 22

2. Select the USB tab.

3. For each USB Device Port, select the Local device ports on the SWT3-41-U-T; or select CAT-A / CAT-B for the devices located on the paired receivers.

 set the auto disconnection status to On or Off. You can also Select All Off or All On

to set all device ports to off or on, respectively.

4. Click SAVE.

USB devices are set for connected devices on local transmitter or remote receivers.

Figure 26: USB Page – USB Device Auto-Disconnection

SWT3-41-U-T – Using Embedded Web Pages

Setting Time and Date

You can sync the device time and date to any server around the world.

To sync device time and date to a server:

1. In the Navigation pane, click Device. The General tab in the Device page appears.

2. Select the Time and Date tab. The Time and Date tab appears.

Kramer Electronics Ltd.

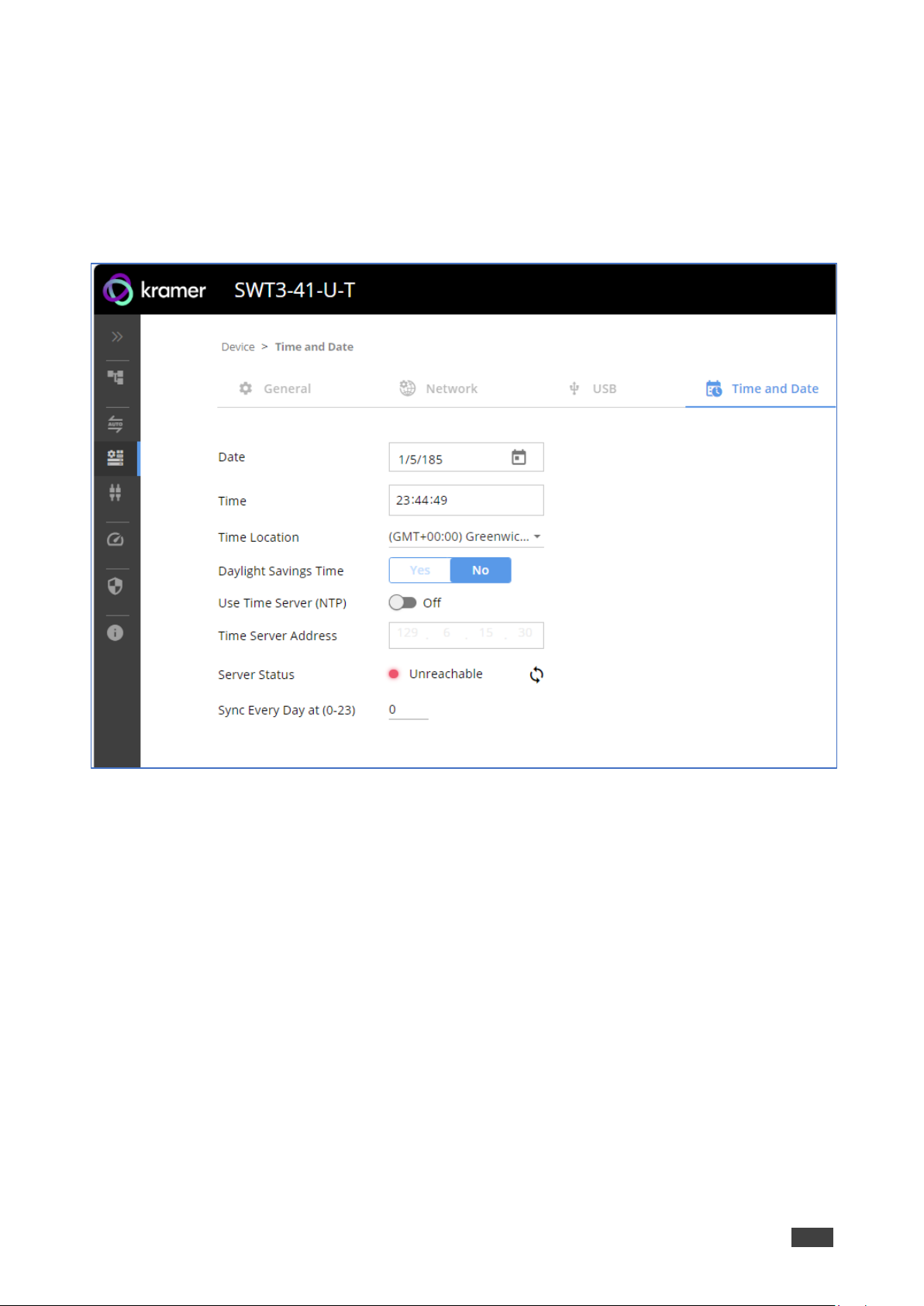

Figure 27: Device Settings – Time and Date Tab

3. Set the Date and Time.

4. Select the Time Location.

5. In the Use Time Server (NTP) drop-down box, click:

 Disabled to disable the time server.

 Manual to enable time server (NTP).

6. If enabled, type in server information:

 Enter the time server address.

 Set sync frequency (every 0 to 23 days).

7. Click SAVE for any change.

The devices date and time are synchronized to the server address entered.

SWT3-41-U-T – Using Embedded Web Pages

Control Gateway Properties

This section details the following actions:

Kramer Electronics Ltd.

• Setting Serial Port Properties on page 39

• Configuring Local I/O (GPIO) Ports on page 43.

• Configuring a Digital Output I/O Type on page 44.

• Configuring Remote Receiver I/O (GPIO) Ports on page 46.

• Defining and Testing Commands via Action Editor on page 47.

• Configuring Remote Buttons on page 48.

Setting Serial Port Properties

SWT3-41-U-T enables configuring the RS-232 port in one of the following ways:

• Controlling the SWT3-41-U-T on page 39

• Controlling a Local External Device on page 40.

• Extending Local RS-232 Port to Remote Receiver RS-232 Port on page 41.

• Controlling Remote Devices Connected to the Receiver on page 42.

Controlling the SWT3-41-U-T

To set the RS-232 port to control the device:

1. Go to the Control Gateway tab. The Serial Ports tab appears.

Figure 28: RS-232 for Device Control

Kramer Electronics Ltd.

SWT3-41-U-T – Using Embedded Web Pages

2. Next to Function, select Control.

3. Click SAVE.

RS-232 port controls the SWT3-41-U-T.

Controlling a Local External Device

Control a locally connected external device via an IP-connected Controller (for example SL-

240C that is connected via LAN)

To set the RS-232 port to control an external device:

1. Go to the Control Gateway tab. The Serial Ports tab appears.

2. Next to Function, select Gateway.

3. Define the external device RS-232 settings (Parity, Data Bits, Baud Rate and Stop Bits).

4. Click Save.

The Advanced Settings tab appears.

5. Select either UDP or TCP port.

6. Click SAVE.

RS-232 port controls locally connected external device via gateway.

Figure 29: Gateway control of local RS-232 port

SWT3-41-U-T – Using Embedded Web Pages

Extending Local RS-232 Port to Remote Receiver RS-232 Port

Enable RS-232 port extension over CAT link with bi-directional serial communication.

To set the local RS-232 port extension to the receiver RS-232 port

1. Go to the Control Gateway page. The Serial Ports tab appears.

2. Next to Function, select Extension.

Kramer Electronics Ltd.

Figure 30: Local RS-232 port extension

3. Define the RS-232 communication settings (Parity, Data Bits, Baud Rate and Stop Bits).

4. Select link of paired receiver (CAT Link A / B).

5. Click SAVE.

RS-232 port extension with bi-directional communication is enabled.

Kramer Electronics Ltd.

SWT3-41-U-T – Using Embedded Web Pages

Controlling Remote Devices Connected to the Receiver

Control an external device, remotely connected to the receiver, via an IP-connected Controller to SWT3-41-U-T (for example SL-240C that is connected via LAN).

To set the receiver RS-232 port to control a connected external device:

1. Go to the Control Gateway page. The Serial Ports tab appears.

2. In the left-hand side of the screen, select CAT-A or CAT-B.

3. Next to Function, select Gateway.

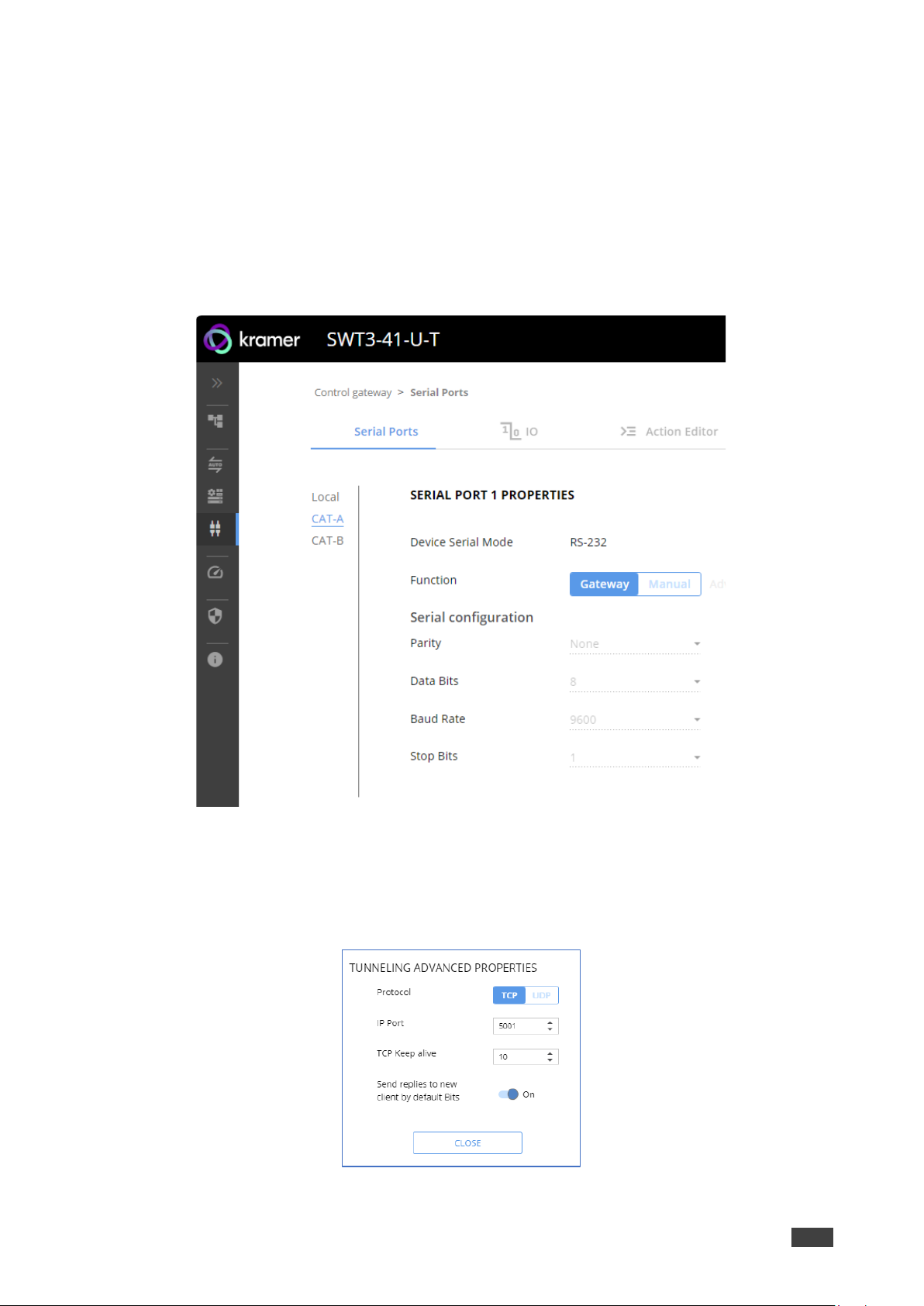

Figure 31: Gateway control of remote receiver RS-232 port

4. Define the paired-receiver RS-232 settings (Parity, Data Bits, Baud Rate and Stop Bits).

5. Click SAVE.

The TUNNELING ADVANCED PROPERTIES screen appears.

Figure 32: Setting Tunneling Advanced Properties

Kramer Electronics Ltd.

SWT3-41-U-T – Using Embedded Web Pages

To enable I/O operations, Remote Button must be set to Off.

6. Select either TCP or UDP port.

7. Click up/down arrows to select IP Port for sending commands to RS-232.

8. Click up/down arrows to select desired seconds for TCP Keep alive.

9. Press to toggle ON Send replies to new clients by default Bits.

10. Click CLOSE.

11. Click SAVE.

RS-232 port controls via gateway a remote external device connected to the receiver RS-

232 port.

Configuring Local I/O (GPIO) Ports

The 2 local I/O ports can control devices such as sensors, door locks, remote contact-closure buttons, audio volume and lighting control devices and can be configured via the webpages.

To configure an I/O port:

1. In the Navigation pane, click Control Gateway. The Serial Ports tab in the Device Settings page appears.

2. Select the IO tab. The IO tab appears.

Figure 33: Local I/O ports settings tab – Digital Input Type

3. Select the local I/O port to be configured (IO 1 or IO 2).

4. Select one of the following I/O types:

 Digital Input (default setting) (see Configuring a Digital Input I/O Type on page 44

Kramer Electronics Ltd.

SWT3-41-U-T – Using Embedded Web Pages

The settings available on the page change depending on which trigger type is selected.

 Digital Output (see Configuring a Digital Output I/O Type on page 44).

 Analog Input (see Configuring an Analog Input I/O Type on page 45).

5. Click SAVE after setting the selected I/O type.

Configuring a Digital Input I/O Type

The Digital Input trigger mode reads the digital input of an external sensor device that is connected to the I/O port. It detects High (upon passing Max threshold from Low state) or Low (upon passing Min threshold from High state) port states according to the user defined voltage threshold levels.

To configure a digital input I/O type:

1. On the IO tab, select Digital Input next to I/O Type. The Digital Input options appear.

2. Select one of the following for the Pull-up resistor setting:

 Disabled

Suitable, for example, for a high temperature alarm that exceeds the maximum voltage threshold. When the pull-up resistor is disabled, the port state is low and to be triggered it must be pulled high by the externally connected sensor.

 Enabled – Detection of an open circuit as High, or a short to ground as Low.

This is suitable for example, for a pushbutton switch (connecting one terminal of the switch to ground, and the other to the input) or for an alarm closing a circuit that activates a series of actions. When the pull-up resistor is enabled, the port state is high, and to be triggered it must be pulled low by the externally connected sensor.

3. Set the Threshold VDC Low and High Range (threshold voltage at which the port changes state).

4. Click Read to refresh port status information.

5. Click SAVE.

Digital input I/O type is configured.

Configuring a Digital Output I/O Type

To configure a digital output I/O type:

1. On the IO tab, select Digital Output next to I/O type. A warning message appears.

Figure 34: Digital Output Warning

SWT3-41-U-T – Using Embedded Web Pages

Make sure that the current in this configuration does not exceed 100mA.

2. Make sure to follow the instructions in this warning.

3. Click OK. The Digital Output options appear.

Kramer Electronics Ltd.

Figure 35: GPIO Settings Page – Digital Output I/O Type

4. Select one of the following for the Pull-up resistor setting:

 Pullup resistor set to Enabled:

The port can be used for controlling devices that accept a TTL signal such as for powering LEDs. The voltage output is TTL positive logic: high: >2.4V; low: < 0.5V. When the pull-up resistor is enabled, the port state is high. For the state to be low, you must select Low for the Current Status.

 Pullup resistor Disabled:

The port is used for controlling external devices such as room or light switches. The external source device determines the voltage output; the maximum voltage is 30V DC and the maximum current is 100mA. When the pull-up resistor is disabled, the port state is low. For the state to be high, select High for the Current Status.

5. Click SAVE.

Digital Output I/O type is configured.

Configuring an Analog Input I/O Type

When selectin the Analog Input I/O type, the port is triggered by an external analog device, such as a volume control device. The trigger is activated once when the detected voltage is within the 0 to 30V DC voltage range.

SWT3-41-U-T – Using Embedded Web Pages

To configure an analog input I/O type:

1. On the I/O tab, select Analog Input next to I/O type.

Kramer Electronics Ltd.

Figure 36: Local I/O ports settings tab - Analog Input Type

2. Enter or use the arrows to scroll to a value (1–100) for the Maximum reported steps. This value is the number of steps that the analog input signal is divided into. To calculate the voltage of each step, use the following formula: Voltage of one step = 30V / number of steps.

3. Click SAVE.

Analog input I/O type is configured.

Configuring Remote Receiver I/O (GPIO) Ports

The 4 remote I/O ports, on the paired receivers, can control devices connected to a receiver, such as sensors, door locks and lighting control devices, and can be configured via SWT3-41U-T webpages.

To configure an I/O port:

1. In the Navigation pane, click Control Gateway. The Serial Ports tab in the Device Settings page appears.

SWT3-41-U-T – Using Embedded Web Pages

2. Select the IO tab. The IO tab appears.

Figure 37: I/O Ports Settings Page

3. Select the CAT-A or CAT-B I/O port to be configured (IO 1 or IO 2).

Kramer Electronics Ltd.

4. Select one of the following I/O types:

 Digital Input (default setting) (see Configuring a Digital Input I/O Type on page 44

• Remote buttons are not configurable on remote I/O ports.

• To Configure Remote buttons, refer to Configuring Remote Buttons on page 48.

 Digital Output (see Configuring a Digital Output I/O Type on page 44).

5. Click SAVE after setting the selected I/O type.

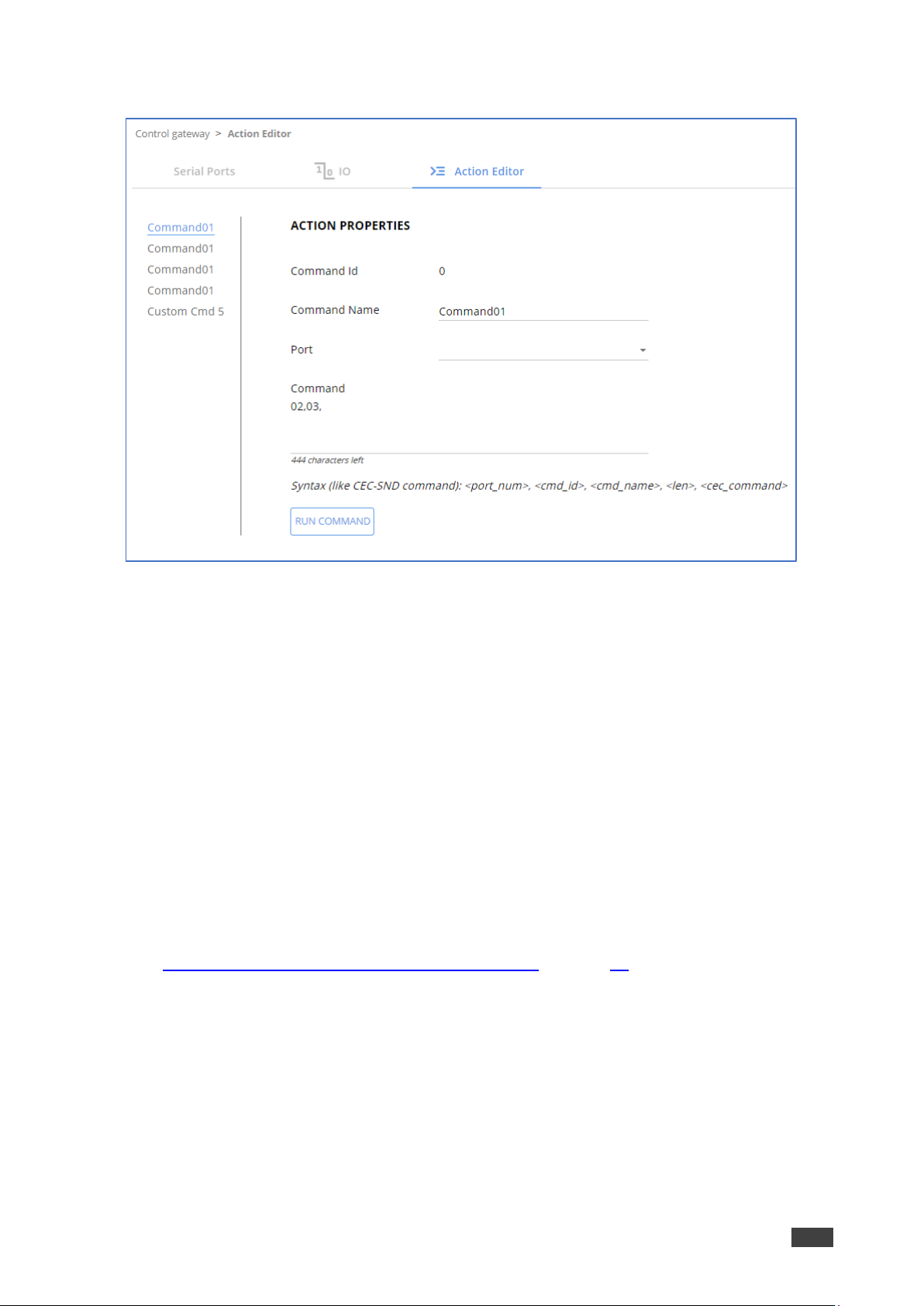

Defining and Testing Commands via Action Editor

Use action editor to create and test control commands via RS-232 control interfaces. You can create up to 5 commands.

To add an action:

1. In the navigation pane, select Control Gateway. The Serial Ports tab opens.

Kramer Electronics Ltd.

SWT3-41-U-T – Using Embedded Web Pages

2. Select the Action Editor tab. The Action Editor appears.

Figure 38: Action Editor Tab

3. Select a command name on the left side of the window.

4. Change the command name, if required.

5. Select the port (UART).

6. Enter the appropriate command line (see example below) to have NET LED blink for 60 seconds:

 For RS232 - 1,#IDV

7. Click SAVE.

8. Click RUN COMMAND to run the command test.

An action is entered and can be run.

Configuring Remote Buttons

Remotely operate, by I/O-connected remote buttons, configured control actions (see (see Defining and Testing Commands via Action Editor on page 47

To Configure Remote Buttons:

1. In the Navigation pane, click Control Gateway. The Serial Ports tab in the Device Settings page appears.

2. Select the IO tab. The IO tab appears.

3. Press to toggle Remote Button to On.

4. Configure defined control actions, for button on/off states, using the State ON, State OFF drop-down boxes.

Kramer Electronics Ltd.

SWT3-41-U-T – Using Embedded Web Pages

 Button default operation mode is latching. For momentary mode, check the

Momentary checkbox.

Figure 39: I/O ports settings tab – Configuring Remote Buttons

5. Click SAVE.

A control actions remote button can now be remotely operated.

SWT3-41-U-T – Using Embedded Web Pages

Diagnostics

Viewing Device Status

View the device status.

To view the device status:

1. In the navigation pane, select Status.

2. Select the Devices tab. The Devices Status appears.

Kramer Electronics Ltd.

3. View device status.

Device status can be viewed.

Administration

Setting Security Properties

This section details the following actions:

• Changing Security Status on page 51

• Defining 802.1X Authentication on page 52.

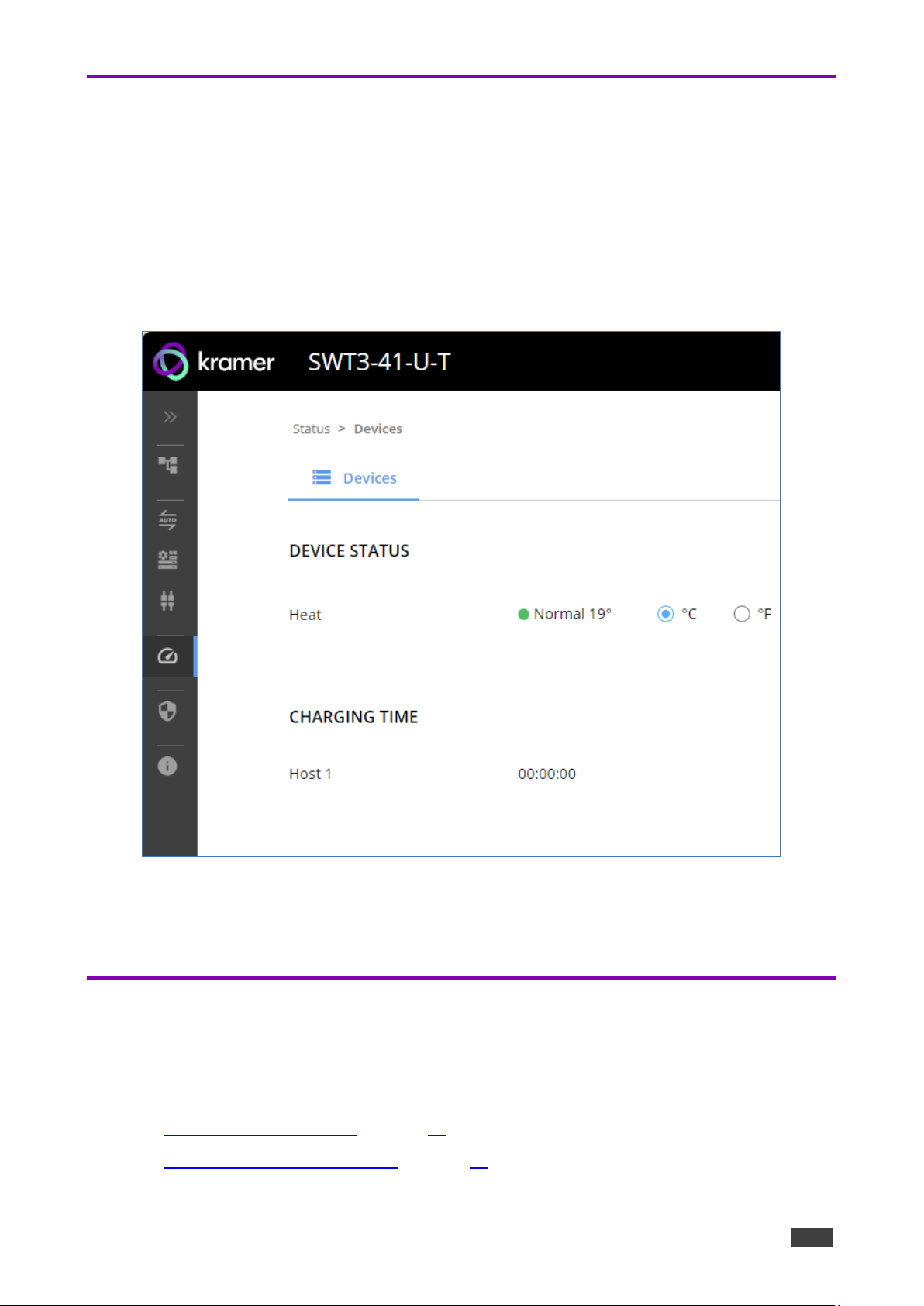

Figure 40: Device Status Page

SWT3-41-U-T – Using Embedded Web Pages

Changing Security Status

By default, security status is set to On.

Setting Security Status to Off

To set security status to Off:

Kramer Electronics Ltd.

1. Go to the Security page (Figure 41

2. Select the Security tab. The Security settings appears.

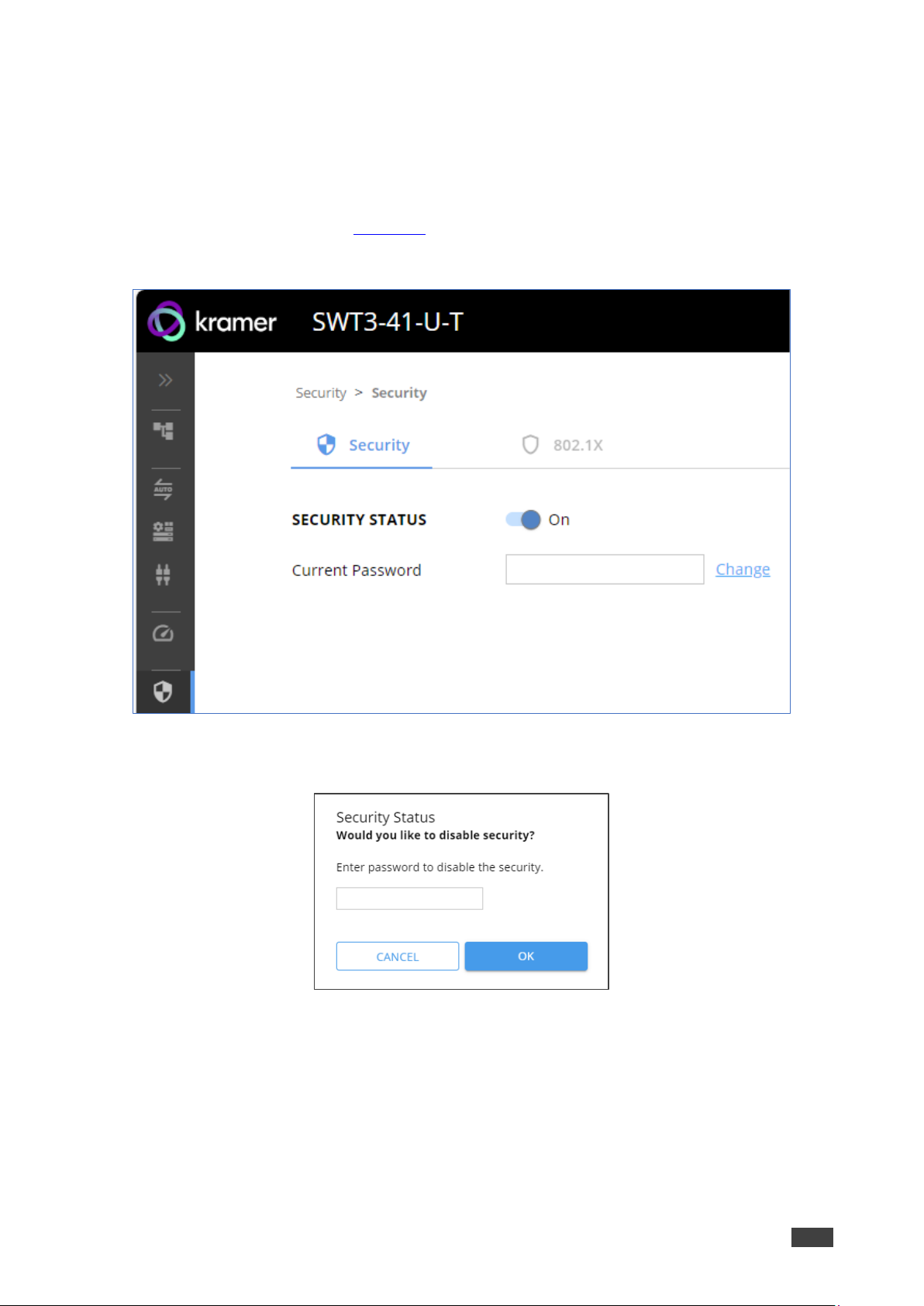

Figure 41: Security – Security Tab

3. Set SECURITY STATUS to Off. The Security Status window appears.

Figure 42: Security Status Message

4. Enter the current password.

5. Click OK.

Security status is set to Off.

SWT3-41-U-T – Using Embedded Web Pages

Setting Security Status to On

To set security status to on:

Kramer Electronics Ltd.

1. Go to the Security > Security (Figure 41

2. Set SECURITY STATUS to On.

Security status is set to On.

Changing Web Pages Access Password

To change the password for accessing the embedded web pages:

1. Go to the Security page (Figure 22

2. Select the Security Tab. The Security settings appear (Figure 43).

3. Enter the Current Password and click Change. The new password settings appear.

Figure 43: Device Settings – Changing the Password

4. Enter the new password and confirmation password and click SAVE.

The password is changed.

Defining 802.1X Authentication

802.1x security standard supports IT networking authentication based on LAN port and MAC address.

SWT3-41-U-T – Using Embedded Web Pages

To configure security:

1. In the Navigation pane, click Security. The Security settings tab in the Security page appears.

Kramer Electronics Ltd.

2. Select 802.1X tab. The 802.1X settings tab appears (see Figure 44

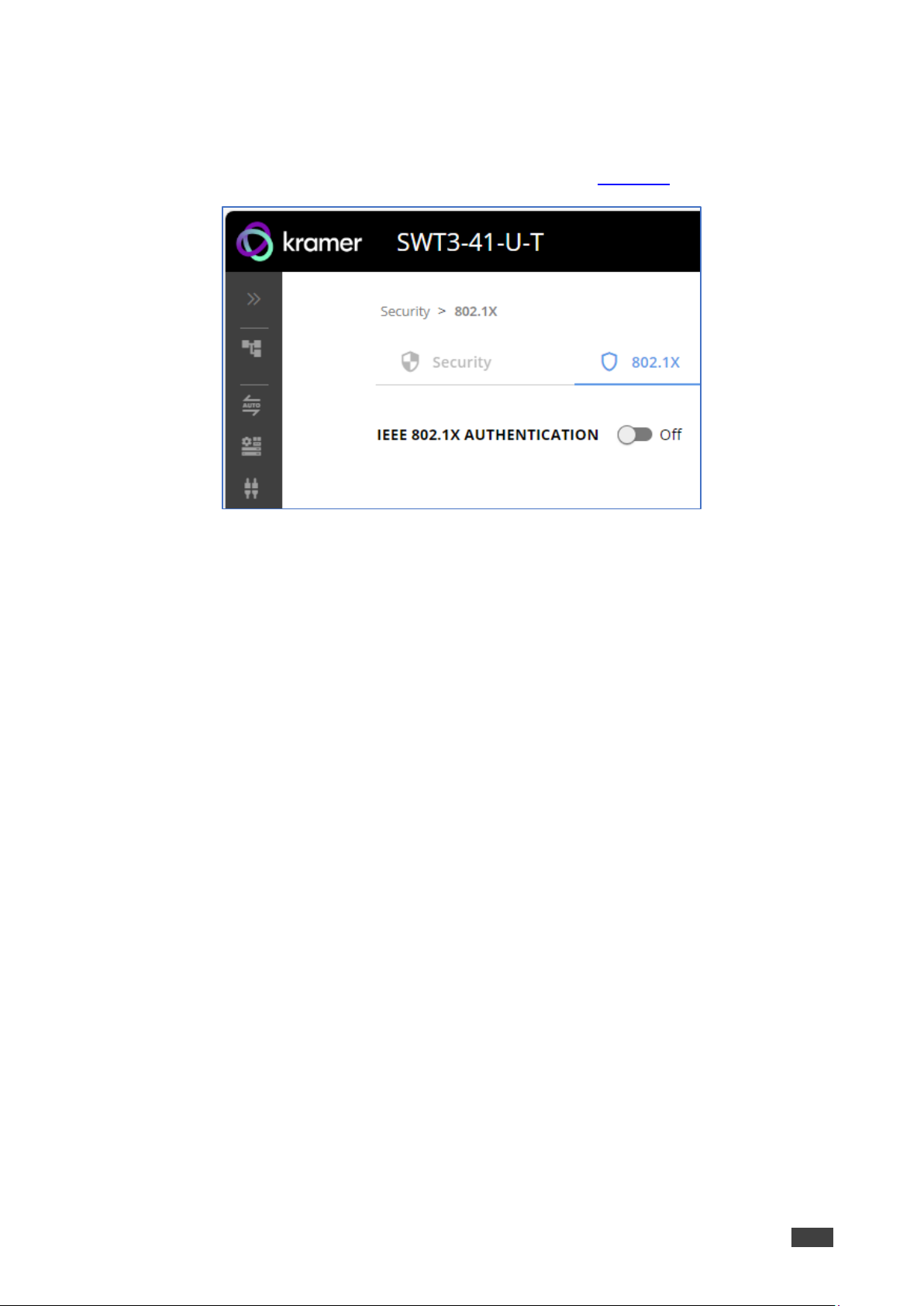

Figure 44: 802.1X Tab

3. For 802.1x authentication, click ON to enable 802.1x authentication service. 802.1x supports authentication based on port and MAC address.

4. When set to ON check one standard authentication method to set its security attributes.

 PEAP-MSCHAP V2 (Figure 45) – Enter:

 Username - up to 24 alphanumeric characters, including “_” and “-“ characters

within the username, and

 Password - up to 24 ASCII characters

Kramer Electronics Ltd.

SWT3-41-U-T – Using Embedded Web Pages

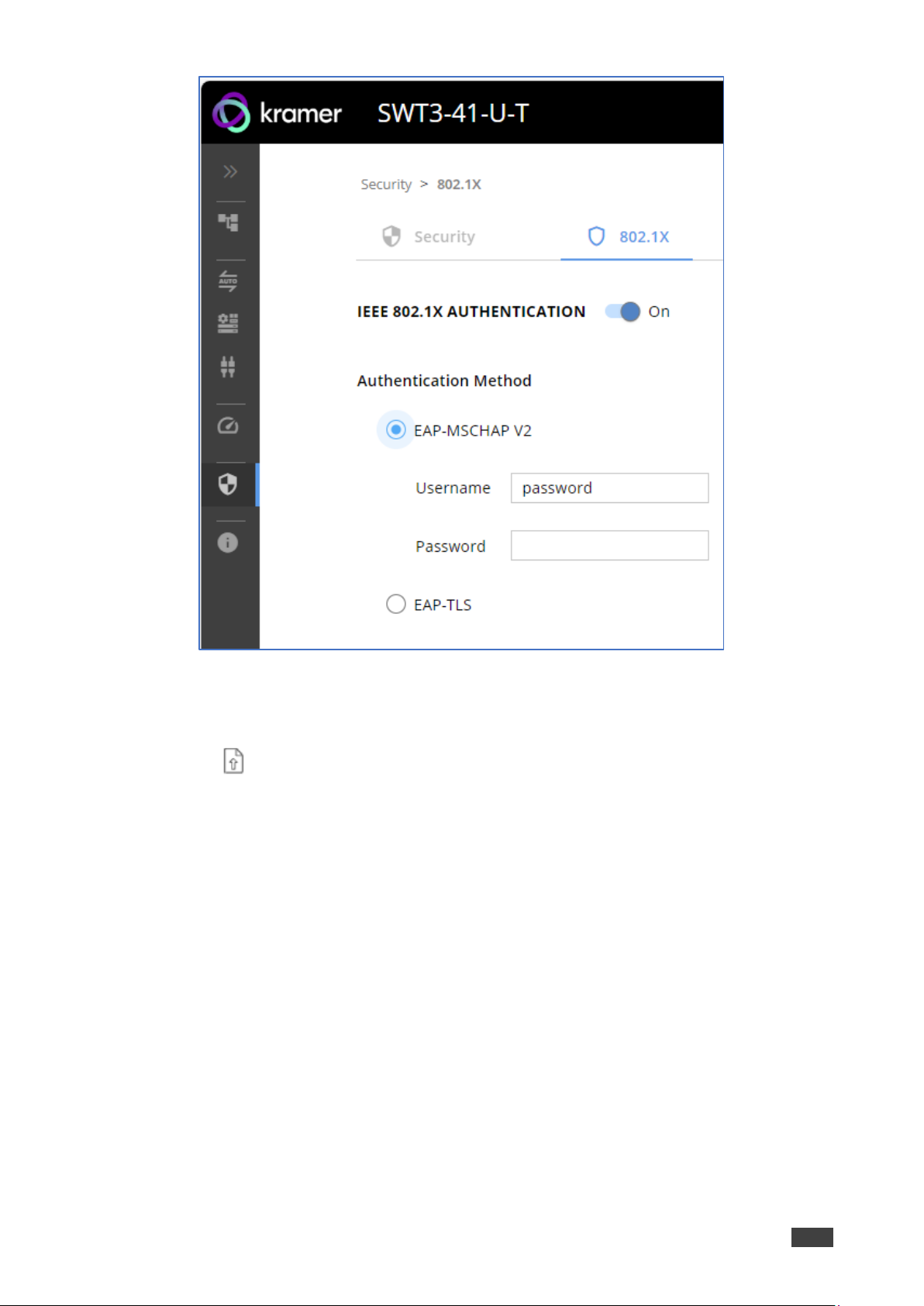

Figure 46: Security Tab – EAP-MSCHAP V2 Authentication

• EAP-TLS (Figure 47) – To submit certificate from the server for authentication:

 Enter Username,

 Click to upload the certificates and keys,

 Enter the private key password (assigned by IT administrator),

 Set Server Certificate On

Kramer Electronics Ltd.

SWT3-41-U-T – Using Embedded Web Pages

Figure 48: EAP-TLS – Certificates and Password

5. Click APPLY.

802.1x authentication security is configured.

SWT3-41-U-T – Using Embedded Web Pages

Viewing the About Page

View the firmware version and Kramer Electronics Ltd details in the About page.

Kramer Electronics Ltd.

Figure 49: About Page

Kramer Electronics Ltd.

SWT3-41-U-T – Upgrading Firmware

Note available at

Upgrading Firmware

Use the Kramer K-UPLOAD software to upgrade the firmware via ethernet or the RS-232 port, allowing RS-232 to control/program the device). The device continues to operate and once FW upload complete, you are asked to Restart no or later.

The latest version of K-UPLOAD and installation instructions can be downloaded from our website at: www.kramerav.com/support/product_downloads.asp

that in order to use the micro USB port, you need to install the Kramer USB driver,

: www.kramerav.com/support/product_downloads.asp.

SWT3-41-U-T – Technical Specifications

Hosts 2 USB 3.1 & PD 3.0

On USB type–C female connectors

2 USB 3.1

On USB−B female connectors

Devices 3 USB 3.1

On USB−A female connectors

1 USB 3.1

On USB type–C female connector

Ports

1 Stereo Analog Balanced

On 5–pin terminal block for audio extension

2 CAT

On RJ–45 female connector for extension line

1 PoE-accepting Ethernet

On an RJ–45 female connector for LAN connection and extension over CAT links

1 RS–232

On 3–pin terminal block

2 GPIO

On 2–pin terminal block

USB Features Integrated USB Hubs

2 [device 1 & 2 ports] or 1 [other device ports]

Standards Compliance

USB 3.2 GEN 2, 2.0 and 1.1

Extended USB

Data Rate

Up to 480Mbps

Transmitted Data Bandwidth

Up to 300Mbps

Standards Compliance

2.0 and 1.1 USB

Controls

Front Panel

Input selector buttons, A+B CAT, Net and Status LED indicators.

Extension Line

Reach

Up to 100m (330ft) when using Kramer cables

Extended Ethernet

Data Rate

Up to 100Mbps

Extended RS-232

Baud Rate

9600

Power

Included Power Adapter

20V DC: 6A

Consumption: 3.8A

Max. Power: 80W

Optional Power Adapter

12V DC: 2A

Consumption: 1.2A

Max. Power: 15W

PoE Consumption

370mA

Max. Power

20W

USB-C Host Max. Power

60W

Compliance

PD 3.0

USB Device Charging

Max. Total Current

Environmental

Operating Temperature

0° to +40°C (32° to 104°F)

Storage Temperature

-40° to +70°C (-40° to 158°F)

Humidity

10% to 90%, RHL non-condensing

Regulatory Safety

CE, FCC, UKCA

Environmental

RoHs, WEEE

Technical Specifications

SWT3-41-U-T

Audio

Kramer Electronics Ltd.

Conditions

For HW Rev 02 and higher, 20V PSU (power supply unit) is included (replacing the 12V PSU).

Charging

When powered with 20V power

supply only

Compliance

SWT3-41-U-T – Technical Specifications

Enclosure

Size

0.5 1U rack

Type

Aluminum

Cooling

Fan Ventilation

General

Net Dimensions (W, D, H)

21.46cm x 16.3 cm x 4.36cm (8.45" x 6.4" x 1.7")

Shipping Dimensions (W, D, H)

35cm x 21cm x 6.8 cm (13.77” x 8.26” x 2.67”)

Net Weight

0.847 kg (0.84lbs)

Shipping Weight

1.395 kg (3.075lbs)

Accessories

20V DC: 6A power supply and cord, USB-C multi-signal cable

Specifications are subject to change without notice at www.kramerav.com

Ports

1 CAT

On RJ–45 female connector for extension line

1 Stereo Analog Balanced Audio

On 5–pin terminal block for audio extension 3 USB 2.0 Devices

On USB−A female connector

1 USB 2.0 Devices

On a USB−C female connector

1 PoE-accepting Ethernet

On RJ–45 female connector for LAN connection and extension over CAT link

1 RS–232

On 3–pin terminal block

2 GPIO

On 2–pin terminal block

Extension Line

Reach

Up to 100m (330ft) when using Kramer cables

Extended USB

Data Rate

Up to 480Mbps

Integrated USB Hubs

Transmitted Data Bandwidth

Up to 300Mbps

Standards Compliance

2.0 and 1.1 USB

Controls

Front Panel

Link and ON Status LED indicators.

Extended Ethernet

Data Rate

Up to 100Mbps

Extended RS-232

Baud Rate

9600

Power

Source

12V DC/2A (not included)

Consumption

1.1A

Max. Power

12W

PoC Consumption

0.15A

Max. Power

USB

Max. Total

Environmental Conditions

Operating Temperature

0° to +40°C (32° to 104°F)

Storage Temperature

-40° to +70°C (-40° to 158°F)

Humidity

10% to 90%, RHL non-condensing

Regulatory Compliance Safety

CE, FCC, UKCA

Environmental

RoHs, WEEE

EXT3-UE-R

Kramer Electronics Ltd.

adaptor

Device

Current

Charging

When device is PoC-powered via

HDBT, total USB devices charging current is 0.5A only.

Workaround: Power device via either

LAN PoE or optional power supply to increase total charging current.

Kramer Electronics Ltd.

SWT3-41-U-T – Technical Specifications

General

Size

Tool

Type

Aluminum

Cooling

Passive

Net Dimensions (W, D, H)

12.3cm x 6.95cm x 2.74cm (4.84" x 2.73" x 0.37")

Shipping Dimensions (W, D,

15.7cm X 12cm X 8.7cm (6.18" x 4.72" x 3.42")

Net Weight

0.242kg (0.53lbs)

Shipping Weight

0.963kg (2.21lbs)

Accessories

None

Specifications are subject to change without notice at www.kramerav.com

SWT3-41-U-T – Technical Specifications

Ports

1 CAT

On an RJ-45 female connector for extension line

1 Stereo Analog Unbalanced Audio

On a 3.5mm mini jack for audio extension

4 USB

On USB-A female connector for USB devices extension

1 RS-232

On a 3-pin terminal block for serial link extension

Extended USB

Data Rate

Up to 480Mbps

Transmitted Data Bandwidth

Up to 300Mbps

Standards Compliance

1.1 and 2.0 USB

Extension Line

Reach

CAT 6A: Up to 100m (330ft)

When using Kramer cables

Extended RS-232

Baud Rate

9600

USB Charging

Max Total Current

PSU-powered: 2.5A PoC-powered: 0.5A

Max Current Per Port

PSU-powered: 2A PoC-powered: 0.5A

Indication LEDs

Front Panel

LINK LED and ON LED

Power Consumption

12V DC, 1500mA

Source

12V DC, 2A

Specifications are subject to change without notice at www.kramerav.com

EXT3-U-R

Kramer Electronics Ltd.

CAT 5e: Up to 30m (100ft)

SWT3-41-U-T – Technical Specifications

Ports

1 CAT

On RJ–45 female connector

2 CAT

On RJ–45 female connector for extension line

Environmental

Operating Temperature

0° to +40°C (32° to 104°F)

Storage Temperature

-40° to +70°C (-40° to 158°F)

Humidity

10% to 90%, RHL non-condensing

Regulatory Safety

CE, FCC, UKCA

Environmental

RoHs, WEEE

Enclosure

Size

Pico Tools

Type

Aluminum

Cooling

None

General

Net Dimensions (W, D, H)

6.22cm x 5.18 cm x 2.44cm (8.45" x 6.4" x 1.7")

Shipping Dimensions (W, D, H)

49cm x 18.6 cm x 58.8cm (19” x 7.32” x 23.14”)

Net Weight

0.104 (0.22lbs)

Shipping Weight

0.214 kg (0.47lbs)

Accessories

None

Specifications are subject to change without notice at www.kramerav.com

ACC3-12-SP

Conditions

Compliance

Kramer Electronics Ltd.

SWT3-41-U-T – Technical Specifications

RS-232

Baud Rate:

115,200

Data Bits:

Stop Bits:

Parity:

None

Command Format:

ASCII

Example (Route video input 2 to the output):

#ROUTE1,1,2<CR>

IP DHCP ON

To reset the IP settings to the factory reset values go to: Menu->Setup -> Factory Reset-> press Enter to confirm

Fallback IP Address:

192.168.1.39

Fallback Subnet mask:

255.255.255.0

Fallback gateway:

192.168.0.1

Default username:

Admin

Default password:

Admin

Full Factory Reset

P3K

“#FACTORY” command.

Embedded webpages

Go to: Device>General and click FACTORY RESET

Default Communication Parameters

Kramer Electronics Ltd.

After receiving

"FACTORY OK” perform one of the following to restart the device

and complete the procedure

• Power cycle

• Send command

"#RESET"

Kramer Electronics Ltd.

SWT3-41-U-T – Protocol 3000

Prefix

Command Name

Constant (Space)

Parameter(s)

Suffix

Command



Parameter

<CR>

Prefix

Device ID

Constant

Command Name

Parameter(s)

Suffix

nn @ Command

Parameter

Protocol 3000

Kramer devices can be operated using Kramer Protocol 3000 commands sent via serial or Ethernet ports.

Understanding Protocol 3000

Protocol 3000 commands are a sequence of ASCII letters, structured according to the following.

• Command format:

• Feedback format:

• Command parameters – Multiple parameters must be separated by a comma (,). In

addition, multiple parameters can be grouped as a single parameter using brackets ([ and ]).

• Command chain separator character – Multiple commands can be chained in the same string. Each command is delimited by a pipe character (|).

• Parameters attributes – Parameters may contain multiple attributes. Attributes are indicated with pointy brackets (<…>) and must be separated by a period (.).

The command framing varies according to how you interface with SWT3-41-U-T. The following figure displays how the # command is framed using terminal communication software (such as Hercules):

SWT3-41-U-T – Protocol 3000

Function

Description

Syntax

Parameters/Attributes

Example

Protocol handshaking.

device.

COMMAND

#<CR>

AUD-MUTE

Set audio mute.

COMMAND

out_index –1

Set Output 1 to mute:

AUD-MUTE?

Set audio mute.

COMMAND

out_index –1

Get Output 1 to mute:

AUTH-802-1X-

Set authentication

COMMAND

interface – Interface ID – 0

Set the authentication

AUTH-802-1X-

Get authentication

COMMAND

interface – Interface ID – 0

Get the authentication

AUTH-802-1X-

Get Authentication

COMMAND

interface – Index for ethernet

Get the authentication

AUTH-802-1X-

Get Authentication

COMMAND

interface – Interface ID – 0

Get the authentication



AV-SW-MODE

Set input auto switch

COMMAND

layer_type – Number that indicates

2 – last connected switch

Set the input audio switch

AV-SW-MODE?

Get input auto switch

COMMAND

layer_type – Number that indicates

Get the input audio switch

BEACON-INFO?

Get beacon

COMMAND

port_id – ID of the Ethernet port

name – Device name

Get beacon information:

BUILD-DATE?

Get device build date.

COMMAND

date – Format: YYYY/MM/ DD where

Get the device build date:

CAT-LINK-

Gets Dual Link Mode

COMMAND

port_id- CAT port to check if

Get the Dual Link Mode

Protocol 3000 Commands

Kramer Electronics Ltd.

ENABLE

ENABLE?

OP-STAT?

Validates the Protocol 3000 connection and gets the machine number.

Step-in master products use this command to identify the availability of a

802.1X feature for the specific interface.

802.1X operational status.

#<CR>

FEEDBACK

~nn@ok<CR><LF>

#AUD-MUTEout_index,mute_mode<CR>

FEEDBACK

~nn@AUD-MUTEout_index,mute_mode<CR><LF>

#AUD-MUTEout_index<CR>

FEEDBACK

~nn@AUD-MUTEout_index,mute_mode<CR><LF>

#AUTH-802-1X-ENABLEinterface,enable_status<CR>

FEEDBACK

~nn@AUTH-802-1XENABLEinterface,enable_status<CR><LF>

#AUTH-802-1X-ENABLE?interface<CR>

FEEDBACK

~nn@AUTH-802-1XENABLEinterface,enable_status<CR><LF>

#AUTH-802-1X-OP-STAT?interface<CR>

FEEDBACK

~nn@AUTH-802-1X-OP-STATinterface, status<CR>

#AUTH-802-1X-OP-STAT?interface<CR>

FEEDBACK

~nn@AUTH-802-1X-OP-STATinterface<CR>

mute_mode – On/Off

0 – Off 1 – On

mute_mode – On/Off

0 – Off 1 – On

enable_status –

0 – Off 1 – On

enable_status –

0 – Off 1 – On

interface number. – 0

enable_status –

0 – Running 1 – Not Running

enable_status –

0 – Running 1 – Not Running

#AUD-MUTE1,1<CR>

802.1X feature on:

#AUTH-802-1XENABLE0,1<CR>

802.1X feature status:

#AUTH-802-1XENABLE?0<CR>

802.1X operational status:

#AUTH-802-1X-OP-STAT?

0<CR>

802.1X operational status:

#AUTH-802-1X-OP-STAT?

0<CR>

mode (per output).

information, including IP address, UDP control port, TCP control port, MAC address, model, name.

DUAL?

status

#AV-SW-MODElayer_type,out_index,connection_mode<CR>

FEEDBACK

~nn@AV-SW-MODElayer_type,out_index,connection_mode<C

R><LF>

#AV-SW-MODE?layer_type,out_index<CR>

FEEDBACK

~nn@AV-SW-MODElayer_type,out_index,connection_mode<C

R><LF>

#BEACON-INFO?<CR>

FEEDBACK

~nn@BEACONINFOport_id, ip_string,udp_port,tcp_port,mac_address,

model,name<CR><LF>

#BUILD-DATE?<CR>

FEEDBACK

~nn@BUILD-DATEdate,time<CR><LF>

#CAT-LINK-DUAL?port_id<CR>

FEEDBACK

~nn@CAT-LINK-DUAL?port_id, status <CR>

the signal type:

1 – Video 2 – Audio

out_index – 1 connection_mode – Connection

mode

0 – manual 1 – priority switch

the signal type:

1 – Video 2 – Audio

out_index – 1 connection_mode – Connection

mode

0 – manual 1 – priority switch 2 – last connected switch

ip_string – Dot-separated

representation of the IP address

udp_port – UDP control port

tcp_port – TCP control port

mac_address – Dash-separated mac

address

model – Device model

YYYY = Year MM = Month DD = Day

time – Format: hh:mm:ss where

hh = hours mm = minutes ss = seconds

dual link is activated. 1 – CAT port A 2 – CAT port B

status -

0 – disable (not activated) 1 – enable (activated)

mode to Manual for HDMI OUT:

#AV-SW-MODE1,1,0<CR>

mode for HDMI OUT:

#AV-SW-MODE?1,1<CR>

#BEACON-INFO?<CR>

#BUILD-DATE?<CR>

status:

#CAT-LINK-DUAL1<CR>

port_id: 1 (currently,

the only available

port)

Kramer Electronics Ltd.

SWT3-41-U-T – Protocol 3000

Function

Description

Syntax

Parameters/Attributes

Example

CONF-EXPORT

Export configuration

COMMAND

Export configuration file:

CONF-IMPORT

Export configuration

COMMAND

file_name - the name of the file we

Import configuration file:

COM-ROUTE?

Get tunneling port

COMMAND

com_id – Machine dependent, * (get

3600

Get tunneling port routing

COUNTER?

Get the sent or

COMMAND

category_id – CEC messages: 0

count – Number range: 0-65535

Get the number of sent

COUNTER-CLR

Clear CEC messages.

COMMAND

category_id – CEC messages: 0

* – Clear all CEC messages

Clear all CEC messages:

DEV-STATE?

Get the device state.

COMMAND

dev_state – device state

connected or not)

Get device status:

ETH-PORT

Set Ethernet port

range: 0-(2^16-1).

COMMAND

port_type – TCP/UDP

Set the Ethernet port

ETH-PORT?

Get Ethernet port

range: 0-(2^16-1).

COMMAND

port_type – TCP/UDP

Get the Ethernet port

ETH-TUNNEL?

Get an open tunnel

COMMAND

tunnel_id – Tunnel ID number, * (get

1 – wired connection

Set baud rate to 9600, 8

FACTORY

Reset device to factory

effect.

COMMAND

Reset the device to factory

file

routing.

This command sets tunneling port routing. Every com port can send or receive data from the ETH port.

Set command can edit an existing configuration.

received CEC messages count.

#CONF-EXPORT<CR>

FEEDBACK

~nn@CONF-EXPORT file_name<CR><LF>

#CONF-IMPORTfile_name<CR>

FEEDBACK

~nn@CONF-IMPORTfile_name<CR><LF>

#COM-ROUTE?com_id<CR>

FEEDBACK

~nn@COM-ROUTEcom_id,port_type,port_id,eth_rep_en,pin

g_val<CR><LF>

#COUNTER?category_id,sub_category_id<CR>

FEEDBACK

~nn@COUNTERcategory_id,sub_category_id,count<CR><LF>

#COUNTER-CLR?category_id,sub_category_clr<CR>

FEEDBACK

~nn@COUNTERCLRcategory_id,sub_category_id,count<CR><LF>

#DEV-STATE?<CR>

FEEDBACK

~nn@DEV-STATEdev_state<CR><LF>’

want to upload for the import.

all route tunnels)

port_type – TCP/UDP

0 – TCP 1 – UDP

port_id – TCP/UDP port number eth_rep_en – Ethernet Reply

0 – COM port does not send replies

to new clients

1 – COM port sends replies to new

clients.

ping_val – Send an empty string to

TCP client every 0 to 3600 seconds. 0 -

Sub_category_id – Type of

message:

0 – Sent message 1 – Received message

Sub_category_clr – Type of

message to clear:

0 – Clear sent messages 1 – Clear received messages

0 – Active 1 – Power-on and no connected AV

I/O ports (detecting cable connection faults)

2 – Power-on and standby (low

power; cables are either

#CONF-EXPORT<CR>

#CONF-IMPORT SWT3-

41-U-T-conf<CR>

for all route tunnels:

#COM-ROUTE?*<CR>

messages:

#COUNTER?0,0<CR>

#COUNTER-CLR?0,*<CR>

#DEV-STATE?<CR>

protocol.

If the port number you enter is already in use, an error is returned. The port number must be within the following

protocol.

If the port number you enter is already in use, an error is returned. The port number must be within the following

parameters.

default configuration.

This command deletes all user data from the device. The deletion can take some time.

Your device may require powering off and powering on for the changes to take

#ETH-PORTport_type,port_id<CR>

FEEDBACK

~nn@ETH-PORTport_type,port_id<CR><LF>

#ETH-PORT?port_type<CR>

FEEDBACK

~nn@ETH-PORTport_type,port_id<CR><LF>

#ETH-TUNNEL?tunnel_id<CR>

FEEDBACK

~nn@ETH-TUNNELtunnel_id,cmd_name,port_type,port_id,e

th_ip,remote_port_id,eth_rep_en,connection_type<CR><L

#FACTORY<CR>

FEEDBACK

~nn@FACTORYok<CR><LF>

port_id – TCP/UDP port number

(0 – 65535)

port_id – TCP/UDP port number

(0 – 65535)

all open tunnels)

cmd_name – UART number port_type – TCP/UDP

0 – TCP 1 – UDP

port_id – TCP/UDP port number eth_ip – Client IP address remote_port_id – Remote port

number

eth_rep_en – Ethernet Reply

0 – COM port does not send replies

to new clients

1 – COM port sends replies to new

clients

connection_type – Connection type

0 – not wired connection

protocol for TCP to 12457:

#ETH-PORTTCP,12457<C

protocol for UDP:

#ETH-PORT?UDP<CR>

data bits, parity to none and stop bit to 1:

#ETH-TUNNEL?*<CR>

default configuration:

#FACTORY<CR>

Kramer Electronics Ltd.

SWT3-41-U-T – Protocol 3000

Function

Description

Syntax

Parameters/Attributes

Example

FW-TYPE?

Get the current FW

process.

COMMAND

Fw_type –

Get the current FW type

GLOBAL-GW-

Set global gateway to

COMMAND

status – On/Off

Set global gateway off:

GLOBAL-GW-

Set global gateway to

COMMAND

~nn@GLOBAL-GW-ACTIVEstatus<CR><LF>

status – On/Off

Get global gateway off:

GPIO-CFG

Set HW GPIO

COMMAND

gpio_id – Hardware GPIO number (1-

Set HW GPIO 1

GPIO-CFG?

Get HW GPIO

COMMAND

gpio_id – Hardware GPIO number (1-

1 – enable

Get HW GPIO configuration:

GPIO-STATE

Set HW GPIO state.

answer is 0 to 100.

COMMAND

gpio_id – Hardware GPIO number (1-

Set GPIO 2 to High:

GPIO-STATE?

Get HW GPIO state.

answer is 0 to 100.

COMMAND

gpio_id – Hardware GPIO number (1-

Get GPIO 2 state:

GPIO-STEP

Set HW GPIO step.

error is returned.

COMMAND

gpio_id – HW GPIO number (1-2)

Set GPIO 2 (set to Analog

ACTIVE

ACTIVE?

type status.

Used by Kramer Network and KUpload to identify recovery

active / inactive.

configuration.

#FW-TYPE?<CR>

FEEDBACK

~nn@FEATURE-LISTfw_type<CR><LF>

#GLOBAL-GW-ACTIVEstatus<CR>

FEEDBACK

~nn@GLOBAL-GW-ACTIVEstatus<CR><LF>

#GLOBAL-GW-ACTIVE?<CR>

FEEDBACK

#GPIO-CFGgpio_id,gpio_type,gpio_dir,pullup<CR>

FEEDBACK

~nn@GPIO-CFGgpio_id,gpio_type,gpio_dir<CR><LF>

#GPIO-CFG?gpio_id<CR>

FEEDBACK

~nn@GPIO-CFGgpio_id,gpio_type,gpio_dir<CR><LF>

0 – Application 1 – Safe mode (kboot)

ON – Active Off – Inactive

gpio_type – Hardware GPIO type

0 – analog 1 – digital

gpio_dir – Hardware GPIO direction

0 – input 1 – output

pullup – Enable/Disable pull-up

0 – disable 1 – enable

gpio_type – Hardware GPIO type

0 – analog 1 – digital

gpio_dir – Hardware GPIO direction

0 – input 1 – output

pullup – Enable/Disable pull-up

0 – disable

status:

#FW-TYPE?<CR>

#AUDIO-BYPASSOFF<CR>

#AUDIO-BYPASS?<CR>

configuration:

#GPIO-CFG1,1,1,1<CR>

#GPIO-CFG?1<CR>

GPIO-STATE? can only be set in digital out mode and the answer is 0=Low, 1=High. In all other modes an error message is sent.

The device uses this command to notify the user of any change regarding the step and voltage in:

In digital mode the answer is 0 (low), 1 (high).

In analog mode the

GPIO-STATE? can only be set in digital out mode and the answer is 0=Low, 1=High. In all other modes an error message is sent.

The device uses this command to notify the user of any change regarding the step and voltage in:

In digital mode the answer is 0 (low), 1 (high).

In analog mode the

#GPIO-STATEgpio_id,gpio_mode<CR>

FEEDBACK

~nn@GPIO-STATEgpio_id,gpio_mode<CR><LF>

#GPIO-STATE?gpio_id<CR>

FEEDBACK

~nn@GPIO-STATEgpio_id,gpio_mode<CR><LF>

gpio_mode – Hardware GPIO state

0 – Low 1 – High

gpio_mode – Hardware GPIO state

0 – Low 1 – High

#GPIO-STATE2,1<CR>

#GPIO-STATE?2<CR>

In digital mode the response is 2.

In analog mode the response is 1 to 100.

In other modes an

#GPIO-STEPgpio_id,step_id<CR>

FEEDBACK

~nn@GPIO-STEPgpio_id,step_id,currentstep<CR><LF>

step_id – The configuration step –

See note in description.

currentstep – The actual step

depending on the measured voltage

In) configuration step to 38mV:

#GPIO-STEP2,38<CR>

Kramer Electronics Ltd.

SWT3-41-U-T – Protocol 3000

Function

Description

Syntax

Parameters/Attributes

Example

GPIO-STEP?

Get HW GPIO step.

error is returned.

COMMAND

gpio_id – HW GPIO number (1-2)

Get GPIO 2configuration:

GPIO-THR

Set HW GPIO voltage

COMMAND

gpio_id – Hardware GPIO number (1-

millivolts

Set GPIO 2 to a low level of

GPIO-THR?

Get HW GPIO voltage

COMMAND

gpio_id – Hardware GPIO number (1-

millivolts

Get GPIO 2:

GPIO-VOLT?

Get active voltage

out mode.

COMMAND

gpio_id – Hardware GPIO number (1-

Get GPIO 1 voltage:

HDCP-OUT

Set HDCP mode.

MIRROR OUTPUT.

COMMAND

out_index – Number that indicates

Set the output HDCP mode

HDCP-OUT?

Get HDCP mode.

MIRROR OUTPUT.

COMMAND

out_index – Number that indicates

Get the output

HELP

Get command list or

COMMAND

cmd_name – Name of a specific

Get the command list:

IDV

Set visual indication

similar devices.

COMMAND

#IDV<CR>

LOG-TAIL?

Get the list of the N

COMMAND

~nn@LOG-TAIL

last_event – the number of last

Get the protocol permission

In digital mode the response is 2.

In analog mode the response is 1 to 100.

In other modes an

levels.

levels that were set.

levels of HW GPIO.

This command is not available in digital

Get HDCP working mode on the device input:

HDCP supported – HDCP ON [default].

HDCP not supported HDCP OFF.

HDCP support changes following detected sink -

#GPIO-STEP?gpio_id<CR>

FEEDBACK

~nn@GPIO-STEPgpio_id,step_id,currentstep<CR><LF>

#GPIO-THRgpio_id,low_level,high_level<CR>

FEEDBACK

~nn@GPIO-THRgpio_id,low_level,high_level<CR><LF>

#GPIO-THR?gpio_id<CR>

FEEDBACK

~nn@GPIO-THRgpio_id,low_level,high_level<CR><LF>

GPIO-VOLT?gpio_id<CR>

FEEDBACK

~nn@GPIO-VOLTgpio_id,voltage<CR><LF>

#HDCP-OUTout_index,mode<CR>

FEEDBACK

~nn@HDCP-OUTout_index,mode<CR><LF>

step_id – The configuration step –

See note in description.

currentstep – The actual step

depending on the measured voltage

low_level – Voltage 500 to 28000

millivolts

high_level – Voltage 2000 to 30000

low_level – Voltage 500 to 28000

millivolts

high_level – Voltage 2000 to 30000

voltage – Voltage 0 to 30000

millivolts

the specific input:

1 – HDBaset OUT

mode – HDCP mode:

0 – Follow Input 1 – HDCP always ON (i.e. output

signal is always HDCP-encrypted, regardless of input HDCP)

#GPIO-STEP?2<CR>

800mV and a high level of 2200mV:

#GPIOTHR2,800,2200<CR>

#GPIO-THR?2<CR>

#GPIO-VOLT?1<CR>

of HDBaseT OUT to follow input:

#HDCP-OUT1,0<CR>

Get HDCP working mode on the device input:

HDCP supported – HDCP ON [default].

HDCP not supported HDCP OFF.

HDCP support changes following detected sink -

help for specific command.

from device.

Using this command, some devices can light a sequence of buttons or LEDs to allow identification of a specific device from

last events.

#HDCP-OUT?out_index<CR>

FEEDBACK

~nn@HDCP-OUTout_index,mode<CR><LF>

#HELP<CR>

#HELPcmd_name<CR>

FEEDBACK

1. Multi-line:

~nn@Devicecmd_name,cmd_name…<CR><LF>

To get help for command use: HELP (COMMAND_NAME)<CR><LF>

~nn@HELPcmd_name:<CR><LF>

description<CR><LF>

USAGE:usage<CR><LF>

#IDV<CR>

FEEDBACK

~nn@IDVok<CR><LF>

#LOG-TAIL?last_event<CR>

FEEDBACK

last_event,ok,<list>

the specific input:

1 – HDBaset OUT

mode – HDCP mode:

0 – Follow Input 1 – HDCP always ON (i.e. output

signal is always HDCP-encrypted, regardless of input HDCP)

command

events to view <N = 1,2,3…>

HDCP-MODE of HDBaseT OUT :

#HDCP-OUT?1<CR>

#HELP<CR>

To get help for AV-SW-TIMEOUT: HELPav-sw-timeout<C

level to Admin:

#LOG-TAIL?8<CR>

Kramer Electronics Ltd.

SWT3-41-U-T – Protocol 3000

Function

Description

Syntax

Parameters/Attributes

Example

Set protocol

logout after timeout.

COMMAND

login_level – Level of permissions

Set the protocol permission

Get protocol

logout after timeout.

COMMAND

login_level – Level of permissions

Get the protocol permission

LOGOUT

Cancel current

Not Secure.

COMMAND

#LOGOUT<CR>

MODEL?

Get device model.

COMMAND

~nn@MODELmodel_name<CR><LF>

model_name – String of up to 19

Get the device model:

NAME

Set machine (DNS)

feature on).

COMMAND

machine_name – String of up to 15

Set the DNS name of the

permission.

The permission system works only if security is enabled with the “SECUR” command.

LOGIN allows the user to run commands with an End User or Administrator permission level. When the permission system is enabled, LOGIN enables running commands with the User or Administrator permission level When set, login must be performed upon each connection

It is not mandatory to enable the permission system in order to use the device

In each device, some connections allow logging in to different levels. Some do not work with security at all.

Connection may

permission state.

The permission system works only if security is enabled with the “SECUR” command.

It is not mandatory to enable the permission system in order to use the device

In each device, some connections allow logging in to different levels. Some do not work with security at all.

Connection may

#LOGINlogin_level,password<CR>

FEEDBACK

~nn@LOGINlogin_level,passwordok<CR><LF>

~nn@LOGINerr004<CR><LF>

(if bad password entered)

#LOGINlogin_level <CR>

FEEDBACK

~nn@LOGINlogin_level,passwordok<CR><LF>

~nn@LOGINerr004<CR><LF>

(if bad password entered)

required (User or Admin)

password – Predefined password (by

PASS command). Default password is an empty string

required (User or Admin)

password – Predefined password (by

PASS command). Default password is an empty string or NO SECURE if authentication is removed.

level to Admin (when the password defined in the PASS command is 33333):

#LOGINadmin,33333<CR

level to Admin:

#LOGIN?admin<CR>

permission level.

Logs out from End User or Administrator permission levels to

name.

The machine name is not the same as the model name. The machine name is used to identify a specific machine or a network in use (with DNS

#LOGOUT<CR>

FEEDBACK

~nn@LOGOUTok<CR><LF>

#MODEL?<CR>

FEEDBACK

#NAMEmachine_name<CR>

FEEDBACK

~nn@NAMEmachine_name<CR><LF>

printable ASCII chars

alpha-numeric chars (can include hyphen, not at the beginning or end)

#MODEL?<CR>

device to room-442:

#NAMEroom-442<CR>

Kramer Electronics Ltd.

SWT3-41-U-T – Protocol 3000

Function

Description

Syntax

Parameters/Attributes

Example

NAME?

Get machine (DNS)

feature on).

COMMAND

machine_name – String of up to 15

Get the DNS name of the

NAME-RST

Reset machine (DNS)

number.

COMMAND

Reset the machine name

NET-CONFIG

Set a network

specified by RFC950.

COMMAND

netw_id – 0

Set the device network

NET-CONFIG?

Get a network

specified by RFC950.

COMMAND

netw_id – 0

Get the device network

NET-DHCP?

Get DHCP mode.

COMMAND

netw_id – Network ID–the device

config

Get DHCP mode for port 1:

NET-GATE

Set gateway IP.

administrator.

COMMAND

ip_address – Format: xxx.xxx.xxx.xxx

Set the gateway IP address

NET-GATE?

Get gateway IP.

security problems.

COMMAND

ip_address – Format: xxx.xxx.xxx.xxx

Get the gateway IP address:

name.

The machine name is not the same as the model name. The machine name is used to identify a specific machine or a network in use (with DNS

name to factory default.

Factory default of machine (DNS) name is “KRAMER_” + 4 last digits of device serial

configuration.

Parameters

[DNS1] and [DNS2]are optional.

For Backward compatibility, the id parameter can be omitted. In this case, the Network ID, by default, is 0, which is the Ethernet control port.

If the gateway address is not compliant to the subnet mask used for the host IP, the command will return an error. Subnet and gateway compliancy

#NAME?<CR>

FEEDBACK

~nn@NAMEmachine_name<CR><LF>

#NAME-RST<CR>

FEEDBACK

~nn@NAME-RSTok<CR><LF>

#NET-CONFIGnetw_id,net_ip,net_mask,gateway,[dns1],[d

ns2]<CR>

FEEDBACK

~nn@NET-CONFIGnetw_id,net_ip,net_mask,gateway<CR><LF

alpha-numeric chars (can include hyphen, not at the beginning or end)

net_ip – Network IP net_mask – Network mask gateway – Network gateway

device:

#NAME?<CR>

(S/N last digits are 0102):

#NAMERSTkramer_0102<CR>

parameters to IP address

192.168.113.10, net mask

255.255.0.0, and gateway

192.168.0.1:

#NET-CONFIG0,192.168 .113.10,255.255.0.0,1

92.168.0.1<CR>

configuration.

Parameters

[DNS1] and [DNS2]are optional.

For Backward compatibility, the id parameter can be omitted. In this case, the Network ID, by default, is 0, which is the Ethernet control port.

If the gateway address is not compliant to the subnet mask used for the host IP, the command will return an error. Subnet and gateway compliancy

For Backward compatibility, the id parameter can be omitted. In this case, the Network ID, by default, is 0, which is the Ethernet control port.

A network gateway connects the device via another network and maybe over the Internet. Be careful of security issues. For proper settings consult your network

#NET-CONFIGnetw_id,net_ip,net_mask,gateway,[dns1],[d

ns2]<CR>

FEEDBACK

~nn@NET-CONFIGnetw_id,net_ip,net_mask,gateway<CR><LF

#NET-DHCP?netw_id<CR>

FEEDBACK

~nn@NET-DHCPnetw_id,dhcp_state<CR><LF>

#NET-GATEip_address<CR>

FEEDBACK

~nn@NET-GATEip_address<CR><LF>

net_ip – Network IP net_mask – Network mask gateway – Network gateway

network interface (if there are more than one). Counting is 0 based, meaning the control port is ‘0’, additional ports are 1,2,3….

dhcp_state –

0 – Do not use DHCP. Use the IP set

by the factory or using the net- ip or net-config command.

1 – Try to use DHCP. If unavailable,

use the IP set by the factory or using the net-ip or net-

command.

parameters:

#NET-CONFIG?0<CR>

#NET-DHCP?1<CR>

to 192.168.0.1:

#NETGATE192.168.000.001<

CR>

A network gateway connects the device via another network and maybe over the Internet. Be aware of

#NET-GATE?<CR>

FEEDBACK

~nn@NET-GATEip_address<CR><LF>

#NET-GATE?<CR>

Kramer Electronics Ltd.

SWT3-41-U-T – Protocol 3000

Function

Description

Syntax

Parameters/Attributes

Example

NET-IP

Set IP address.

COMMAND

ip_address – Format: xxx.xxx.xxx.xxx

Set the IP address to

NET-IP?

Get IP address.

COMMAND

~nn@NET-IPip_address<CR><LF>

ip_address – Format: xxx.xxx.xxx.xxx

Get the IP address:

NET-MAC?

Get MAC address.

port.

COMMAND

id – Network ID–the device network

#NET-MAC?id<CR>

NET-MASK

Set subnet mask.

COMMAND

net_mask – Format: xxx.xxx.xxx.xxx

Set the subnet mask to

CR>

NET-MASK?

Get subnet mask.

COMMAND

~nn@NET-MASKnet_mask<CR><LF>

net_mask – Format: xxx.xxx.xxx.xxx

Get the subnet mask:

PASS

Set password for login

COMMAND

login_level – Level of login to set

Set the password for the

PASS?

Get password for login

string.

COMMAND

~nn@PASSlogin_level,password<CR><LF>

login_level – Level of login to set

chars

Get the password for the

PRG-ACTION

Add new user

COMMAND

commandNum – Command number 0 to

button ID

Add a new user command:

PRG-ACTION?

Add new user

COMMAND

commandNum – Command number

button ID

Add a new user command:

For proper settings consult your network administrator.

For backward compatibility, the id parameter can be omitted. In this case, the Network ID, by default, is 0, which is the Ethernet control

For proper settings consult your network administrator.

level.

The default password is an empty string.

level.

The default password is an empty

#NET-IPip_address<CR>

FEEDBACK

~nn@NET-IPip_address<CR><LF>

#NET-IP?<CR>

FEEDBACK

#NET-MAC?id<CR>

FEEDBACK

~nn@NET-MACid,mac_address<CR><LF>

#NET-MASKnet_mask<CR>

FEEDBACK

~nn@NET-MASKnet_mask<CR><LF>

#NET-MASK?<CR>

FEEDBACK

#PASSlogin_level,password<CR>

FEEDBACK

~nn@PASSlogin_level,password<CR><LF>

#PASSlogin_level <CR>

FEEDBACK

interface (if there are more than one). Counting is 0 based, meaning the control port is ‘0’, additional ports are 1,2,3….

mac_address – Unique MAC address.

Format: XX-XX-XX-XX-XX-XX where X is hex digit

(End User or Administrator).

password – Password for the

login_level. Up to 15 printable ASCII chars

(End User or Administrator).

password – Password for the

login_level. Up to 15 printable ASCII

192.168.1.39:

#NETIP192.168.001.039<CR

#NET-IP?<CR>

255.255.0.0:

#NETMASK255.255.000.000<

#NET-MASK?<CR>

Admin protocol permission level to 33333:

#PASSadmin,33333<CR>

Admin protocol permission: #PASS?admin<CR>

command.

Programs matrix action as a response for external event (programmable button pressed).

command.

Programs matrix action as a response for external event (programmable button pressed).

#PRG-ACTIONcommandNum,type,name,command<CR>

FEEDBACK

~nn@PRG-ACTIONcommandNum,type,name,command<CR><LF>

#PRG-ACTION?commandNum<CR>

FEEDBACK

~nn@PRG-ACTIONcommandNum,type,name,command<CR><LF>

type – External programmable button

cec

name – Bitmap representing command – External programmable

0 – Input 1 – Output

type – External programmable button

name – Bitmap representing command – External programmable

#PRGACTION1,3,1,0<CR>

#PRGACTION?0,3,1,0<CR>

Kramer Electronics Ltd.

SWT3-41-U-T – Protocol 3000

Function

Description

Syntax

Parameters/Attributes

Example

PRG-BTN-

Set program button

COMMAND

btnNum – Button number 0 to 4

Set the DISPLAY ON button

PROG-BTN-

Get programmable

COMMAND

btnNum – Button number 0 to 4

1 – Momentary mode enabled

Get the mode of button 3:

PRIORITY

Set input priority.

COMMAND

layer_type – Layer Enumeration

Set the priority to first HDMI

ACTION

MOD?

mode

buttons mode

#PROG-BTNMODbtnNum,mode,actionOn,actionOff,btnBehavior<CR>

FEEDBACK

~nn@PROG-BTNMODbtnNum,mode,actionOn,actionOff,btnBehavior<CR><LF

#PROG-BTN-MOD?<CR>

FEEDBACK

~nn@PROG-BTN-MODbutton_mode<CR><LF>

1 and 2 are enabled when remote button is (mode) On

1 – IO 1 button 2 – IO 2 button 3 – Display On button

mode – Remote button state

0 – Off

1 – On

actionOn –

100 – None 101 – Switch Input 102 – Display On (via CEC) 103 – Display Off (via CEC) 104 – Mute 105 – Unmute 106 – Volume ++ 107 – Volume - 0 – Command_01 1 – Command_02 2 – Command_03 3 – Command_04 4 – Custom 5

actionOff – Button_mode

btnBehavior – Button_mode

0 – Momentary mode disabled 1 – Momentary mode enabled

1 and 2 are enabled when remote button is (mode) On

1 – IO 1 button 2 – IO 2 button 3 – Display On button

mode – Remote button state

0 – Off 1 – On

actionOn –

actionOff – Button_mode

btnBehavior – Button_mode

0 – Momentary mode disabled

to mute/unmute with the press of a button:

#PROG-BTNMOD3,1,104,105,0<CR>

#PROG-BTN-MOD?3<CR>

#PRIORITYlayer_type,priority_1,priority_2,priority_3

<CR>

FEEDBACK

~nn@PRIORITYlayer_type,priority_1,priority_2,priorit

y_3<CR><LF>

1 – Video

priority – Priority of inputs (1-2)

1 – USB-C 1 2 – HDMI 2 3 – HDMI 3

2, USB-C 1 second and HDMI 3 third:

#PRIORITY1,2,1,3<CR>

Kramer Electronics Ltd.

SWT3-41-U-T – Protocol 3000

Function

Description

Syntax

Parameters/Attributes

Example

PRIORITY?

Set input priority.

COMMAND

layer_type – Layer Enumeration

3 – HDMI 3

Get the input priority:

PROT-VER?

Get device protocol

COMMAND

version – XX.XX where X is a

Get the device protocol

RESET

Reset device.

reopen the port.

COMMAND

Reset the device:

ROUTE

Set layer routing.

COMMAND

layer_type Layer Enumeration

3 – HDMI IN 3

Route video input 2 to the

ROUTE?

Get layer routing state.

COMMAND

layer_type Layer Enumeration

Get video routing output:

SECUR

Start/stop security.

command.

COMMAND

security_state – Security state

Enable the permission

SECUR?

Get security state.

command.

COMMAND

security_state – Security state

Enable the permission

SIGNAL-USB-

Get if there is an

COMMAND

host_index: the number of the host

1 – Inactive

Get if there is active host



SN?

Get device serial

COMMAND

~nn@SN

serial_num – 14 decimal digits,

Get the device serial

TIME

Set device time and

Month, Year.

COMMAND

day_of_week – One of

Set device time and date to

TIME?

Get device time and

Month, Year.

COMMAND

day_of_week – One of

Get device time and date:

version.

To avoid locking the port due to a USB bug in Windows, disconnect USB connections immediately after running this command. If the port was locked, disconnect, and reconnect the cable to

This command replaces all other routing commands.

The permission system works only if security is enabled with the “SECUR”

#PRIORITY?layer_type<CR>

FEEDBACK

~nn@PRIORITYlayer_type,priority_1,priority_2,priorit

y_3<CR><LF>

#PROT-VER?<CR>

FEEDBACK

~nn@PROT-VER3000:version<CR><LF>

#RESET<CR>

FEEDBACK

~nn@RESETok<CR><LF>

#ROUTElayer_type,out_index,in_index<CR>

FEEDBACK

~nn@ROUTElayer_type,out_index,in_index<CR><LF>

#ROUTE?layer_type,out_index<CR>

FEEDBACK

~nn@ROUTElayer_type,out_index,in_index <CR><LF>

#SECURsecurity_state<CR>

FEEDBACK

~nn@SECURsecurity_state<CR><LF>

1 – Video

priority – Priority of inputs (1-2)

1 – USB-C 1 2 – HDMI 2

decimal digit

1 – Video 5 – USB

out_index

1 – Output

in_index –

Source id for Video:

1 – USB-C 1 2 – HDMI IN 2

1 – Video 5 – USB

out_index

1 – Output

in_index –

Source id for Video:

1 – USB-C 1 2 – HDMI IN 2 3 – HDMI IN 3

0 – OFF (disables security) 1 – ON (enables security)

#PRIORITY?1<CR>

version:

#PROT-VER?<CR>

#RESET<CR>

output:

#ROUTE1,1,2<CR>

#ROUTE?1,1<CR>

system:

#SECUR1<CR>

HOST?

The permission system works only if security is enabled with the “SECUR”

active host connected to the port.

number.

date.

The year must be 4 digits.

The device does not validate the day of week from the date.

Time format - 24 hours.

Date format - Day,

date.

The year must be 4 digits.

The device does not validate the day of week from the date.

Time format - 24 hours.

Date format - Day,

#SECUR?security_state<CR>

FEEDBACK

~nn@SECURsecurity_state<CR><LF>

#SIGNAL-USB-HOST?host_index<CR>

FEEDBACK

~nn@SIGNAL-USB-HOSThost_index,state<CR><LF>

#SN?<CR>

FEEDBACK

serial_num

#TIMEday_of_week,date,data<CR>

FEEDBACK

~nn@TIMEday_of_week,date,data<CR><LF>

#TIME?<CR>

FEEDBACK

~nn@TIMEday_of_week,date,data<CR><LF>

0 – OFF (disables security) 1 – ON (enables security)

port

1-N

state: Active/Inactive

0– Active

factory assigned

{SUN,MON,TUE,WED,THU,FRI,SAT}

date – Format: DD-MM-YYYY. data – Format: hh:mm:ss where

hh = hours mm = minutes ss = seconds

{SUN,MON,TUE,WED,THU,FRI,SAT}

date – Format: YYYY/MM/ DD where

YYYY = Year MM = Month DD = Day

data – Format: hh:mm:ss where

hh = hours mm = minutes ss = seconds

system:

#SECUR?<CR>

connected to port 2:

#SIGNAL-USB-HOST?

2<CR>

number:

#SN?<CR>

December 5, 2020 at 2:30pm:

#TIMEmon05-122020,14:30:00<CR>

#TIME?<CR>

Kramer Electronics Ltd.

SWT3-41-U-T – Protocol 3000

Function

Description

Syntax

Parameters/Attributes

Example

TIME-LOC

Set local time offset

settings.

COMMAND

utc_off – Offset of device time from

Set local time offset to 3

TIME-LOC?

Get local time offset

settings.

COMMAND

utc_off – Offset of device time from

Get local time offset from

TIME-SRV

Set time server.

COMMAND

mode – On/Off

server_status – On/Off

Set time server with IP

TIME-SRV?

Get time server.

COMMAND

mode – On/Off

server_status – On/Off

Get time server:

UART-CAT-

COMMAND

UART_id - local UART we want to

UART-CAT-

Set the CAT port that

COMMAND

UART_id - local UART we want to

Set the selection to CAT

USBA-

Set USB device auto-

COMMAND

USBDevice – USB device number

Set USB Device 1 polycom

USBA-

Get USB device auto-

COMMAND

USBDevice – USB device number

Get USB Device 1 polycom

from UTC/GMT.

If the time server is configured, device time calculates by adding UTC_off to UTC time (that it got from the time server) + 1 hour if daylight savings time is in effect.

TIME command sets the device time without considering these

from UTC/GMT.

If the time server is configured, device time calculates by adding UTC_off to UTC time (that it got from the time server) + 1 hour if daylight savings time is in effect.

TIME command sets the device time without considering these

This command is needed for setting UDP timeout for the current client list.

#TIME-LOCutc_off,dst_state<CR>

FEEDBACK

~nn@TIME-LOCutc_off,dst_state<CR><LF>

#TIME-LOC?<CR>

FEEDBACK

~nn@TIME-LOCutc_off,dst_state<CR><LF>

#TIME-SRVmode,time_server_ip,sync_hour<CR>

FEEDBACK

~nn@TIME-SRVmode,time_server_ip,sync_hour,server_sta

tus<CR><LF>

UTC/GMT (without daylight time correction)

dst_state – Daylight saving time

state

0 – no daylight saving time 1 – daylight saving time

UTC/GMT (without daylight time correction)

dst_state – Daylight saving time

state

0 – no daylight saving time 1 – daylight saving time

0 – Off 1 – On

time_server_ip – Time server IP

address

sync_hour – Hour in day for time

server sync

with no daylight-saving time:

#TIME-LOC3,0<CR>

UTC/GMT:

#TIME-LOC?<CR>

address of 128.138.140.44 to ON:

#TIMESRV1,128.138.140.44,

0,1<CR>

LINK?

LINK

This command is needed for setting UDP timeout for the current client list.

Get the CAT port that has been chosen to be linked to the local serial port (Transmitter).

has been chosen.

Setting the chosen CAT port to communicate with when in Extension mode.

In Extension mode we are connecting the local UART and the CAT UART to make both sides communicate.

(The data is passing through the HDBT to the RS232 in the remote receiver).

#TIME-SRV?<CR>

FEEDBACK

~nn@TIME-SRVmode,time_server_ip,sync_hour,server_sta

tus<CR><LF>

#UART-CAT-LINKUART_id<CR>

FEEDBACK

~nn@UART-CAT-LINKUART_id_valens_port_id<CR><LF>

#UART-CAT-LINKUART_id,CAT_port_id<CR>

FEEDBACK

~nn@USBA-DISCONNECT-MODEmode<CR><LF>

0 – Off 1 – On

time_server_ip – Time server IP

address

sync_hour – Hour in day for time

server sync

use for id:

1 (= UART0)

valens_port_id: the CAT port we

want to connect to

1 = UART1 connected to A/A+B CAT

port.

2 = UART2 connected to B CAT

port.

use for id:

1 (= UART0)

CAT_port_id: the CAT port we want

to connect to

1 = UART1 connected to A/A+B

CAT port.

2 = UART2 connected to B CAT

port.

#TIME-SRV?<CR>

Get the selection of CAT port that connected to local UART0

#UART-CAT-LINK?1<CR>

port A/A+B, and local UART0

#UART-CAT-

LINK1,1<CR>

DISCONNECTMODE

DISCONNECTMODE?

disconnection mode.

disconnection mode..

#USBA-DISCONNECT-MODEUSBDevice,mode<CR>

FEEDBACK

~nn@USBA-DISCONNECT-MODEmode<CR><LF>

#USBA-DISCONNECT-MODE?USBDevice<CR>

FEEDBACK

~nn@USBA-DISCONNECT-MODEmode<CR><LF>

1 – USB Device 1 2 – USB Device 2 3 – USB Device 3 4 – USB Device 4

mode – On/Off

0 – Off 1 – On

1 – USB Device 1 2 – USB Device 2 3 – USB Device 3 4 – USB Device 4

mode – On/Off

0 – Off 1 – On

mode to ON:

#USBA-DISCONNECTMODE1,1<CR>

mode:

#USBA-DISCONNECTMODE?1<CR>

Kramer Electronics Ltd.

SWT3-41-U-T – Protocol 3000

USBC-ETH

Set USBC to

COMMAND

~nn@USBC-ETHstate<CR><LF>

state – On/Off

Set USBC to Ethernet

VERSION?

Get firmware version

COMMAND

firmware_version – XX.XX.XXXX

Get the device firmware

Ethernet connection.

#USBC-ETHstate<CR>

FEEDBACK

0 – Off 1 – On

number.

#VERSION?<CR>

FEEDBACK

~nn@VERSIONfirmware_version<CR><LF>

where the digit groups are: major.minor.build version

Result and Error Codes

Syntax

In case of an error, the device responds with an error message. The error message syntax:

• ~NN@ERR XXX<CR><LF> – when general error, no specific command

• ~NN@CMD ERR XXX<CR><LF> – for specific command

• NN – machine number of device, default = 01

connection state to ON:

#USBC-ETH1<CR>

version number:

#VERSION?<CR>

• XXX – error code

SWT3-41-U-T – Protocol 3000

Error Code

P3K_NO_ERROR

No error

ERR_PROTOCOL_SYNTAX

Protocol syntax

ERR_COMMAND_NOT_AVAILABLE

Command not available

ERR_PARAMETER_OUT_OF_RANGE

Parameter out of range

ERR_UNAUTHORIZED_ACCESS

Unauthorized access

ERR_INTERNAL_FW_ERROR

Internal FW error

ERR_BUSY

Protocol busy

ERR_WRONG_CRC

Wrong CRC

ERR_TIMEDOUT

Timeout

ERR_RESERVED

(Reserved)

ERR_FW_NOT_ENOUGH_SPACE

Not enough space for data (firmware, FPGA…)

ERR_FS_NOT_ENOUGH_SPACE

Not enough space – file system

ERR_FS_FILE_NOT_EXISTS

File does not exist

ERR_FS_FILE_CANT_CREATED

File can’t be created

ERR_FS_FILE_CANT_OPEN

File can’t open

ERR_FEATURE_NOT_SUPPORTED

Feature is not supported

ERR_RESERVED_2

(Reserved)

ERR_RESERVED_3

(Reserved)

ERR_RESERVED_4

(Reserved)

ERR_RESERVED_5

(Reserved)

ERR_RESERVED_6

(Reserved)

ERR_PACKET_CRC

Packet CRC error

ERR_PACKET_MISSED

Packet number isn't expected (missing packet)

ERR_PACKET_SIZE

Packet size is wrong

ERR_RESERVED_7

(Reserved)

ERR_RESERVED_8

(Reserved)

ERR_RESERVED_9

(Reserved)

ERR_RESERVED_10

(Reserved)

ERR_RESERVED_11

(Reserved)

ERR_RESERVED_12

(Reserved)

ERR_EDID_CORRUPTED

EDID corrupted

ERR_NON_LISTED

Device specific errors

ERR_SAME_CRC

File has the same CRC – not changed

ERR_WRONG_MODE

Wrong operation mode

ERR_NOT_CONFIGURED

Device/chip was not initialized

Error Codes

Kramer Electronics Ltd.

Error Name

Description

The warranty obligations of Kramer Electronics Inc. (“Kramer Electronics”) for this product are limited to the terms set forth below:

What is Covered

This limited warranty covers defects in materials and workmanship in this product.

What is Not Covered

This limited warranty does not cover any damage, deterioration or malfunction resulting from any alteration, modification, improper or unreasonable use or maintenance, misuse, abuse, accident, neglect, exposure to excess moisture, fire, improper packing and shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature. This limited warranty does not cover any damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Kramer Electronics to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product. This limited warranty does not cover cartons, equipment enclosures, cables or accessories used in conjunction with this product. Without limiting any other exclusion herein, Kramer Electronics does not warrant that the product covered hereby, including, without limitation, the technology and/or integrated circuit(s) included in the product, will not become obsolete or that such items are or will remain compatible with any other product or technology with which the product may be used.

How Long this Coverage Lasts

The standard limited warranty for Kramer products is seven (7) years from the date of original purchase, with the following exceptions:

1. All Kramer VIA hardware products are covered by a standard three (3) year warranty for the VIA hardware and a standard three (3) year warranty for firmware and software updates; all Kramer VIA accessories, adapters, tags, and dongles are covered by a standard one (1) year warranty.

2. Kramer fiber optic cables, adapter-size fiber optic extenders, pluggable optical modules, active cables, cable retractors, ring mounted adapters, portable power chargers, Kramer speakers, and Kramer touch panels are covered by a standard one (1) year warranty. Kramer 7-inch touch panels purchased on or after April 1st, 2020 are covered by a standard two (2) year warranty.

3. All Kramer Calibre products, all Kramer Minicom digital signage products, all HighSecLabs products, all streaming, and all wireless products are covered by a standard three (3) year warranty.

4. All Sierra Video MultiViewers are covered by a standard five (5) year warranty.

5. Sierra switchers & control panels are covered by a standard seven (7) year warranty (excluding power supplies and fans that are covered for three (3) years).

6. K-Touch software is covered by a standard one (1) year warranty for software updates.

7. All Kramer passive cables are covered by a lifetime warranty.

Who is Covered

Only the original purchaser of this product is covered under this limited warranty. This limited warranty is not transferable to subsequent purchasers or owners of this product.

What Kramer Electronics Will Do

Kramer Electronics will, at its sole option, provide one of the following three remedies to whatever extent it shall deem necessary to satisfy a proper claim under this limited warranty:

1. Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and labor to complete the repair and restore this product to its proper operating condition. Kramer Electronics will also pay the shipping costs necessary to return this product once the repair is complete.

2. Replace this product with a direct replacement or with a similar product deemed by Kramer Electronics to perform substantially the same function as the original product. If a direct or similar replacement product is supplied, the original product’s end warranty date remains unchanged and is transferred to the replacement product.

3. Issue a refund of the original purchase price less depreciation to be determined based on the age of the product at the time remedy is sought under this limited warranty.

What Kramer Electronics Will Not Do Under This Limited Warranty

If this product is returned to Kramer Electronics or the authorized dealer from which it was purchased or any other party authorized to repair Kramer Electronics

products, this product must be insured during shipment, with the insurance and shi pping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re-installation of this product from or into any installation. Kramer Electronics will not be responsible for any costs related to any setting up this product, any adjustment of user controls or any programming required for a specific installation of this product.

How to Obtain a Remedy Under This Limited Warranty

To obtain a remedy under this limited warranty, you must contact either the authorized Kramer Electronics reseller from whom you purchased this product or the Kramer Electronics office nearest you. For a list of authorized Kramer Electronics resellers and/or Kramer Electronics authorized service providers, visit our web

site at www.kramerav.com or contact the Kramer Electronics office nearest you. In order to pursue any remedy under this limited warranty, you must possess an original, dated receipt as proof of purchase from an authorized Kramer Electronics

reseller. If this product is returned under this limited warranty, a return authorization number, obtained from Kramer Electronics, will be required (RMA number). You may also be directed to an authorized reseller or a person authorized by Kramer Electronics to repair the product.

If it is decided that this product should be returned directly to Kramer Electronics, this product should be properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization number will be refused.

Limitation of Liability

THE MAXIMUM LIABILITY OF KRAMER ELECTRONICS UNDER THIS LIMITED WARRANTY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE PAID FOR THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

TO THE MAXIMUM EXTENT PERMITTED BY LAW, THIS LIMITED WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF KRAMER ELECTRONICS CANNOT LAWFULLY DISCLAIM OR EXCLUDE IMPLIED WARRANTIES UNDER APPLICABLE LAW, THEN ALL IMPLIED WARRANTIES COVERING THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY TO THIS PRODUCT AS PROVIDED UNDER APPLICABLE LAW. IF ANY PRODUCT TO WHICH THIS LIMITED WARRANTY APPLIES IS A “CONSUMER PRODUCT” UNDER THE MAGNUSON-MOSS WARRANTY ACT (15 U.S.C.A. §2301, ET SEQ.) OR OTHER APPLICABLE LAW, THE FOREGOING DISCLAIMER OF IMPLIED WARRANTIES SHALL NOT APPLY TO YOU, AND ALL IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR THE PARTICULAR PURPOSE, SHALL APPLY AS PROVIDED UNDER APPLICABLE LAW.

Other Conditions

This limited warranty gives you specific legal rights, and you may have other rights which vary from country to country or state to state. This limited warranty is void if (i) the label bearing the serial number of this product has been removed or defaced, (ii) the product is not distributed by Kramer

Electronics or (iii) this product is not purchased from an authorized Kramer Electronics reseller. If you are unsure whether a reseller is an authorized Kramer

Electronics reseller, visit our web site at www.kramerav.com or contact a Kramer Electronics office from the list at the end of this document. Your rights under this limited warranty are not diminished if you do not complete and return the product registration form or complete and submit the online product registration form. Kramer Electronics thanks you for purchasing a Kramer Electronics product. We hope it will give you years of satisfaction.

0000-000000

SAFETY WARNING

Disconnect the unit from the power supply before opening and servicing

P/N:

Rev:

For the latest information on our products and a list of Kramer distributors, visit our website where updates to this user manual may be found.

We welcome your questions, comments, and feedback.

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. All brand names, product names, and trademarks are the property of their respective owners.

www.kramerav.com info@kramerav.com

Kramer SWT3-41-U-T, EXT3-UE-R, EXT3-U-R, ACC3-12-SP USER MANUAL

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

Getting Started

Achieving Best Performance

Safety Instructions

Recycling Kramer Products

Overview

SWT3-41-U-T 4x1 USB Switcher

Exceptional Quality

Advanced and User-friendly Operation

Flexible Connectivity

EXT3-UE-R USB Receiver

Exceptional Quality

Advanced and User-friendly Operation

Flexible Connectivity

EXT3-U-R USB Receiver

Exceptional Quality

Advanced and User-friendly Operation

Flexible Connectivity

ACC3-12-SP 1:2 CAT cable splitter

Typical Applications

Controlling your SWT3-41-U-T

Defining SWT3-41-U-T 4x1 USB Switcher

Defining SWT3-41-U-T

Defining EXT3-UE-R

Defining EXT3-U-R

Defining ACC3-12-SP

Mounting SWT3-41-U-T, EXT3-UE-R, EXT3-U-R, and ACC3-12-SP

Mounting SWT3-41-U-T

Mounting EXT3-UE-R

Mounting EXT3-U-R

Mounting ACC3-12-SP

Connecting SWT3-41-U-T

Connecting to Devices via RS-232

Operating and Controlling SWT3-41-U-T

Principles of Operation

Flexible SWT3-41-U-T Auto Switching Policy

Online Meeting Systems Integration

Routing IP-Driven Control Signals via Built-in Control Gateway

Muting Extended Audio Signals

Flexible Remote Buttons Control

Using Front Panel Buttons

Operating via Ethernet

Connecting Ethernet Port Directly to a PC

Connecting Ethernet Port via a Network Hub or Switch

Configuring Ethernet Port

Discovering and acquiring IP address

Using Embedded Web Pages

Operation

Routing Signals

Routing a Host to Devices

Muting the Extended Audio Signal:

Settings

USB Switching Properties

Setting the USB Auto-Switching Policy

Device Properties

Device Profile and Maintenance

Changing Device Name

Upgrading Firmware

Enabling Combined Dual CAT A+B Mode

Resetting and Restarting Device

Exporting and Importing a Configuration File

Exporting a Configuration File

Importing a Configuration File

Identifying Your Device

Settings Networking Properties

Enabling/Disabling USB Ethernet Connection

Auto-disconnecting a USB Device on Inactive Host

Setting Time and Date

Control Gateway Properties

Setting Serial Port Properties

Controlling the SWT3-41-U-T

Controlling a Local External Device

Extending Local RS-232 Port to Remote Receiver RS-232 Port

Controlling Remote Devices Connected to the Receiver

Configuring Local I/O (GPIO) Ports

Configuring a Digital Input I/O Type
