Page 1
KRAMER ELECTRONIC S LTD.
USER MANUAL
MODEL:
RK-P S1
Rack Adapter for Power Supply
P/N: 2900-300468 Rev 2

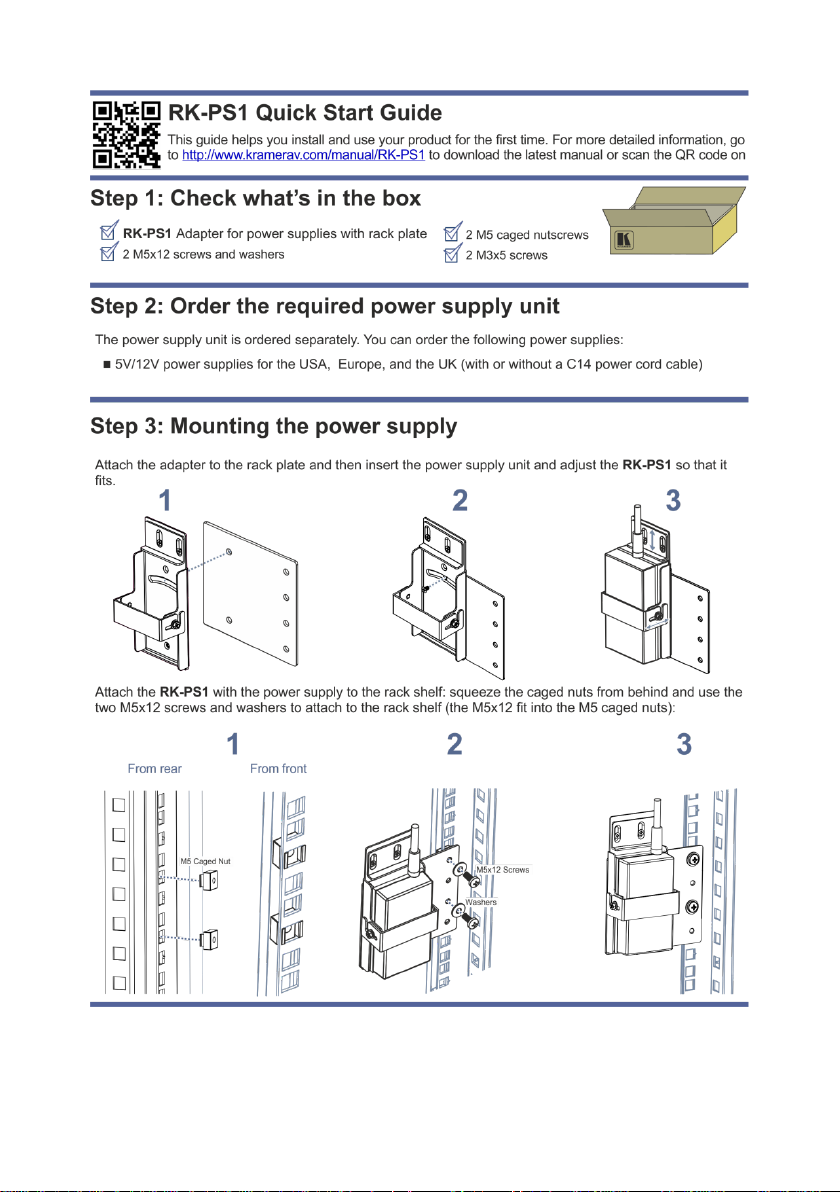

Page 2
Page 3
RK-PS1 – Contents
i
Contents
1 Introduction 1
2 Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Recycling Kramer Products 2
3 Overview 3
3.1 Defining the RK-PS1 3
4 Mounting the RK-PS1 4
4.1 Available Power Supply Units 4
4.2 Mounting the RK-PS1 to a Rack Shelf 5
5 Technical Specifications 9
Figures
Figure 1: Defining the RK-PS1 Main Components 3
Figure 2: Attaching the M5 Caged Nuts – Rear view 6
Figure 3: M5 Caged Nuts Attached – Front view 7
Figure 4: Mounting the RK-PS1 7
Figure 5: The Mounted RK-PS1 8
Page 4
RK-PS1 - Introduction
1
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront video, audio, presentation, and broadcasting professionals
on a daily basis. In recent years, we have redesigned and upgraded most of our
line, making the best even better!
Our 1,000-plus different models now appear in 14 groups that are clearly defined by
function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;
GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:
Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:
Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11:
Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and
GROUP 14: Collaboration.
Congratulations on purchasing your Kramer RK-PS1 Rack Adapter for power
supply which is ideal for:
Mounting on the Kramer RK-6PS Rack Adapter with Power Supplies
Installing directly on a rack shelf
Page 5
2
RK-PS1 - Getting Started
Go to www.kramerav.com/downloads/ to check for up-to-date user
manuals, application programs, and to check if firmware upgrades are
available (where appropriate).
This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.
i
!
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
2.1 Achieving the Best Performance
To achieve the best performance:
Use only good quality connection cables (we recommend Kramer high-
performance, high-resolution cables) to avoid interference, deterioration in
signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables)
Do not secure the cables in tight bundles or roll the slack into tight coils
Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
Position your Kramer RK-PS1 away from moisture, excessive sunlight and dust
2.2 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims
to reduce the amount of WEEE sent for disposal to landfill or incineration by
requiring it to be collected and recycled. To comply with the WEEE Directive,
Kramer Electronics has made arrangements with the European Advanced
Recycling Network (EARN) and will cover any costs of treatment, recycling and
recovery of waste Kramer Electronics branded equipment on arrival at the EARN
facility. For details of Kramer’s recycling arrangements in your particular country go
to our recycling pages at http://www.kramerelectronics.com/support/recycling/.
Page 6
RK-PS1 - Overview
3
3
3 Overview
The RK-PS1 power supply adapter can hold one power supply and can be attached
either to the RK-6PS rack adapter (detailed in the RK-6PS user manual) or directly
to the rack shelf (see Section 4.2).
3.1 Defining the RK-PS1
Figure 1 defines the RK-PS1 main components:
Figure 1: Defining the RK-PS1 Main Components
Page 7
4
RK-PS1 - Mounting the RK-PS1
To mount the RK-PS1 onto the Kramer RK-6PS rack adapter, go to
www.kramerav.com/downloads/ to check for the latest RK-6PS user
manual.
Power Supply for:
Power Specs
5V Power Supply Type
12V Power Supply
The USA:
PS-504/US (60-0001895)
5V/4A
With a 75cm C14 power cord cable,
100-120V AC, 50/60Hz
PS-1202/US (60-000195)
12V/2A
With a 75cm C14 power cord cable,
100-120V AC, 50/60Hz
Europe:
PS-504/EU (60-0001890)
5V/4A
With a 75cm C14 power cord cable,
100-240V AC, 50/60Hz
PS-1202/EU (60-000190)
12V/2A
With a 75cm C14 power cord cable,
100-240V AC, 50/60Hz
UK:
PS-504/GB (60-0001893)
5V/4A
With a 75cm C14 power cord cable,
100-240V AC, 50/60Hz
PS-1202/GB (60-000193)
12V/2A
With a 75cm C14 power cord cable,
100-240V AC, 50/60Hz
General use (does not
include the power
cord):
PS-1202 (60-0001899)
5V/4A
100-240V AC, 50/60Hz
PS-1202 (60-0001099)
12V/2A
100-240V AC, 50/60Hz
i
4 Mounting the RK-PS1
This section describes how to mount the RK-PS1 onto a rack shelf.
4.1 Available Power Supply Units
The RK-PS1 is suitable to hold any of the following power supplies (note, that each
power supply must be ordered separately):
Page 8
RK-PS1 - Mounting the RK-PS1
5
5
You need to use the
RK-PS1 together with the
rack plate.
Set the arch shaped opening
to the desired angle and
attach it to the rack plate
using one M3x5 screw.
4.2 Mounting the RK-PS1 to a Rack Shelf
The RK-PS1 can be connected directly to the rack shelf using the Rack Plate.
To do so:
Page 9
6
RK-PS1 - Mounting the RK-PS1
Remove the adjusting plate.
Adjust the height of the
RK-PS1 by partially
releasing and then tightening
the two nuts on the sides so
that the power supply fits
well. Then set the adjusting
plate to ensure that the
power supply is fixed in
place.
Check the location in which you want to attach the RK-PS1 and squeeze-in the two
M5 caged nuts from behind the location set for the RK-PS1, into the shelf square
openings:
Figure 2: Attaching the M5 Caged Nuts – Rear view
After fitting the nuts you can install the RK-PS1.
Page 10
RK-PS1 - Mounting the RK-PS1
7
7
Figure 3: M5 Caged Nuts Attached – Front view
Use the two M5x12 screws and washers to attach the RK-PS1 to the rack shelf (the
M5x12 screws fit into the M5 cage nuts):
Figure 4: Mounting the RK-PS1
Page 11
8
RK-PS1 - Mounting the RK-PS1
Tighten the screws to complete the installation:
Figure 5: The Mounted RK-PS1
Now you can connect the power supply cable to the device and then connect the
C14 cable cord from the power supply to the mains electricity.
Page 12
RK-PS1 - Technical Specifications
9
9
RK-PS1
DIMENSIONS:
7.0cm x 12.5cm x 3.5 cm (2.75" x 4.9" x 1.38") W, D, H
WEIGHT:
0.25kg
INCLUDED ACCESSORIES:
2 M5x12 screws with washers, 2 M5 caged nuts, 2 M3x5 screws
OPTIONS:
Power supply units:
Power Supply for:
Power Specs
5V Power Supply Type
5V Power Supply Type
The USA:
PS-504/US (60-0001895)
5V/4A
With a 75cm C14 power
cord cable, 100-120V AC,
50/60Hz
PS-1202/US (60-000195)
12V/2A
With a 75cm C14 power
cord cable, 100-120V AC,
50/60Hz
Europe:
PS-504/EU (60-0001890)
5V/4A
With a 75cm C14 power
cord cable, 100-240V AC,
50/60Hz
PS-1202/EU (60-000190)
12V/2A
With a 75cm C14 power
cord cable, 100-240V AC,
50/60Hz
UK:
PS-504/GB (60-0001893)
5V/4A
With a 75cm C14 power
cord cable, 100-240V AC,
50/60Hz
PS-1202/GB (60-000193)
12V/2A
With a 75cm C14 power
cord cable, 100-240V AC,
50/60Hz
General use (does
not include the
power cord):
PS-1202 (60-0001899)
5V/4A
100-240V AC, 50/60Hz
PS-1202 (60-0001099)
12V/2A
100-240V AC, 50/60Hz
OPERATING TEMPERATURE:
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:
-40° to +70°C (-40° to 158°F)
HUMIDITY:
10% to 90%, RHL non-condensing
Specifications are subject to change without notice
5 Technical Specifications
