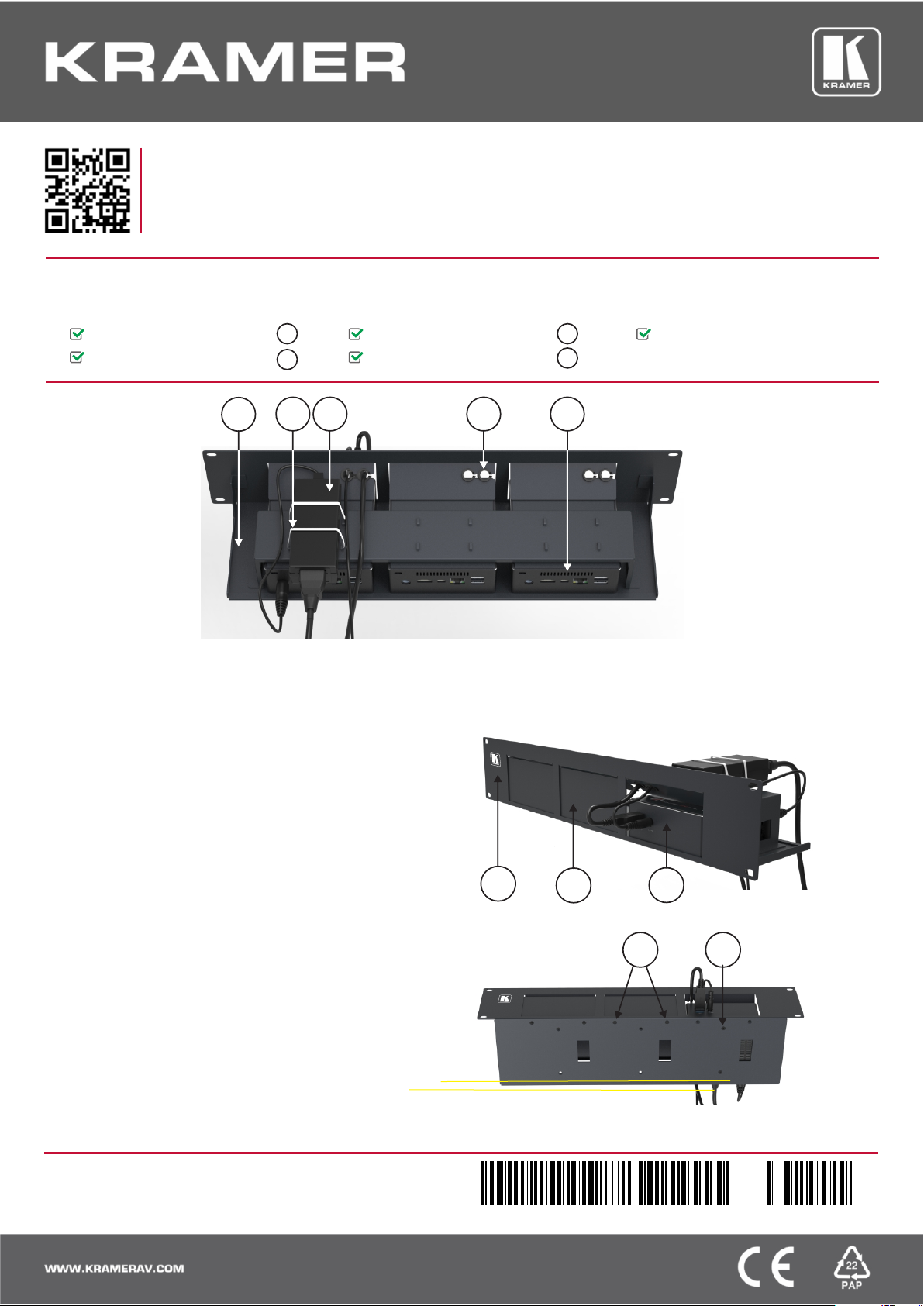

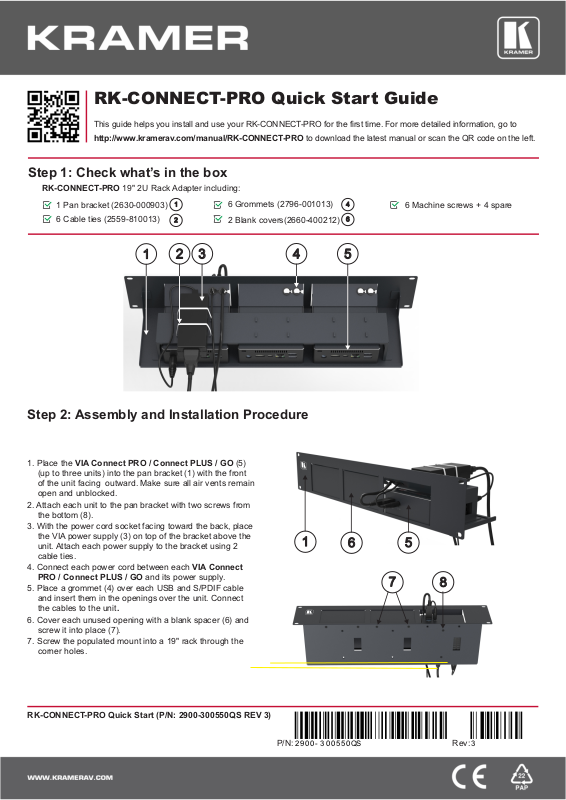

RK-CONNECT-PRO Quick Start Guide
This guide helps you install and use your RK-CONNECT-PRO for the first time. For more detailed information, g
http://www.kramerav.com/manual/RK-CONNECT-PRO to download the latest manual or scan the QR code on the left.
Step 1: Check what’s in the box
1 Pan bracket (2630-000903)
6 Cable ties (2559-810013)
1
1
2
2 3 4 5
RK-CONNECT-PRO 19" 2U Rack Adapter including:
6 Grommets (2796-001013)
2 Blank covers(2660-400212)
o to
4
6
6 Machine screws + 4 spare
Step 2: Assembly and Installation Procedure
1. Place the VIA Connect (5)
(up to three units) into the pan bracket (1) with the front
of the unit facing outward. Make sure all air vents remain
open and unblocked.
2. Attach each unit to the pan bracket with two screws from
the bottom (8).
3. With the power cord socket facing toward the back, place
the VIA power supply (3) on top of the bracket above the
unit. Attach each power supply to the bracket using 2
cable ties.
4. Connect each power cord between each VIA Connect
PRO / Connect PLUS / GO and its power supply.
5. Place a grommet (4) over each USB and S/PDIF cable
and insert them in the openings over the unit. Connect
the cables to the unit.
6. Cover each unused opening with a blank spacer (6) and
screw it into place (7).
7. Screw the populated mount into a 19" rack through the
corner holes.
PRO / Connect PLUS / GO
1
6
5
7
8
RK-CONNECT-PRO Quick Start (P/N: 2900-300550QS REV 3)
